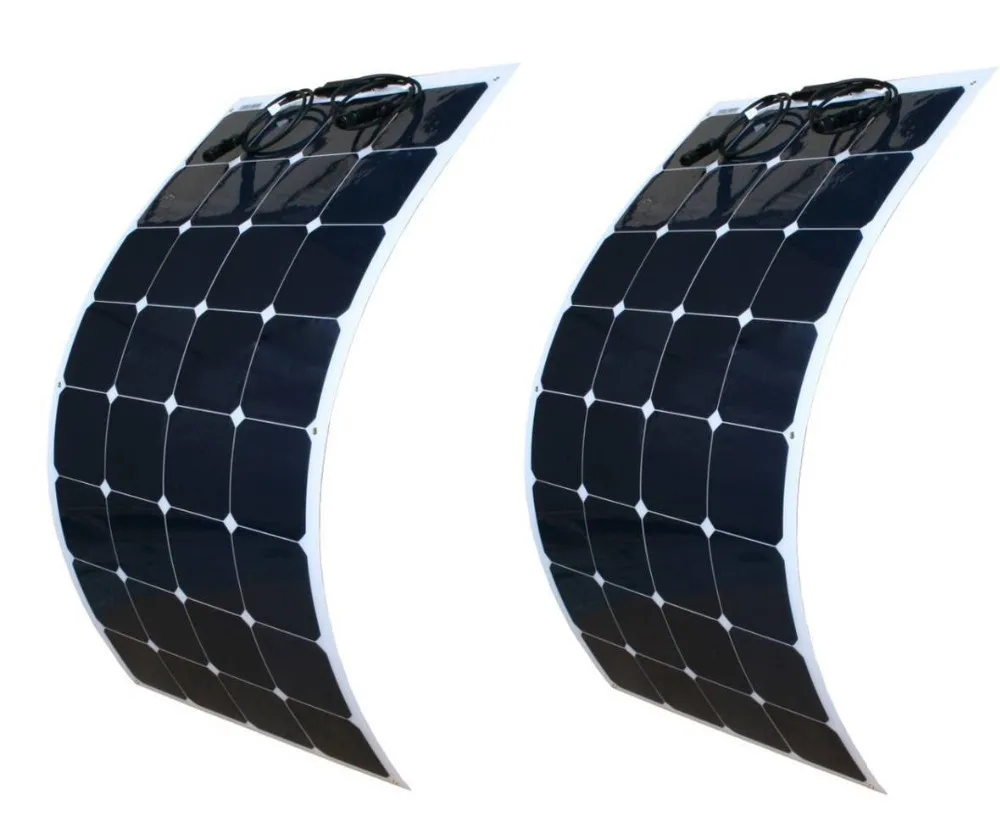

100W Semi Flexible Solar Panel Waterproof Shockproof Dust Resistant

1 / 5

100W Semi Flexible Solar Panel Waterproof Shockproof Dust Resistant

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.:DS-SF100Wa

Application:Potable Power System

Certification:EST, ISO, CB, CE

Material:Polycrystalline Silicon

Size:1050 * 540 * 3 mm

Junction Box:IP67 Waterproof

Frame:Anodized Aluminium Alloy

Other Name:100W Bendable Solar Panel

Origin:China

Capacity:Over 10000 Sets Per Year

Product Description

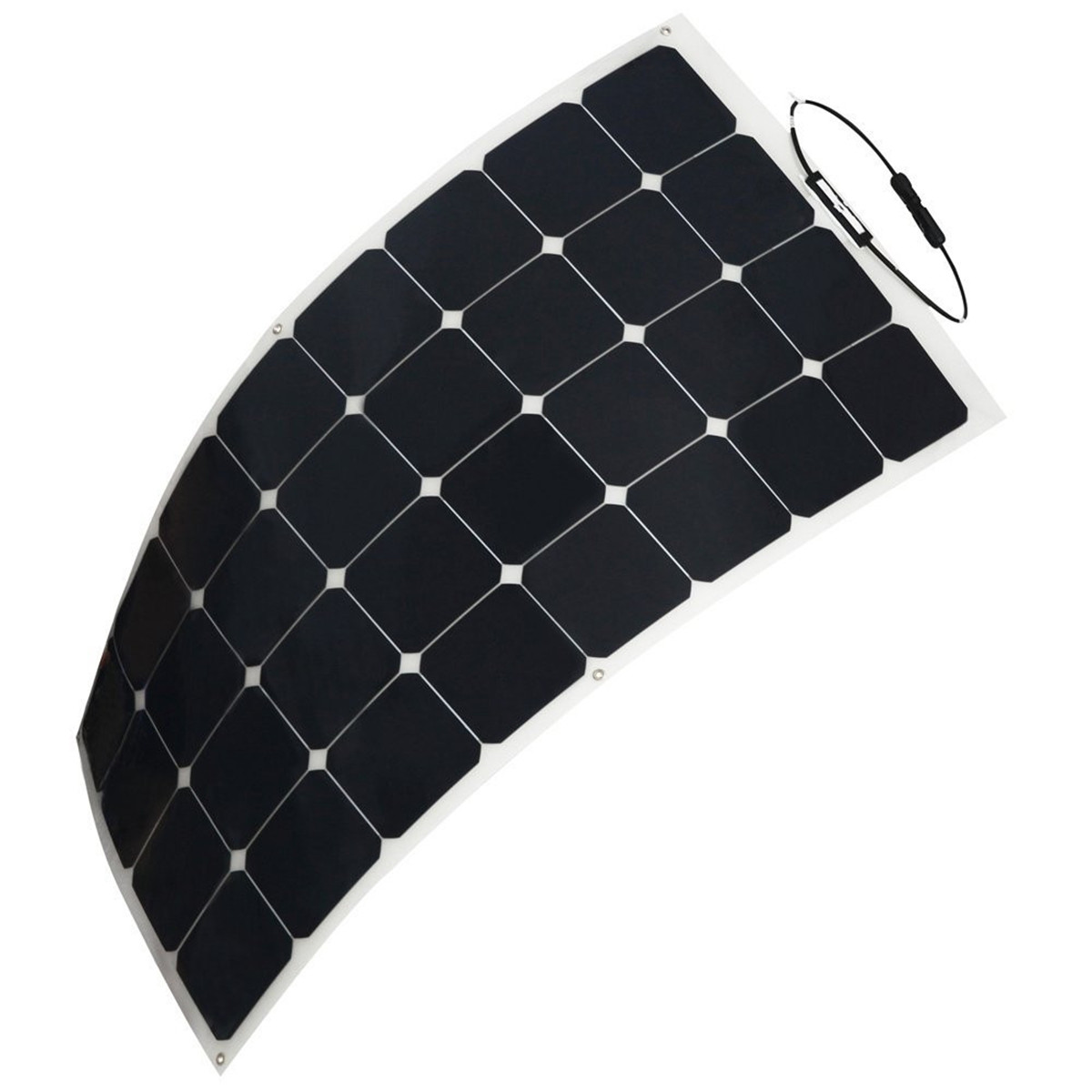

100W Semi-Flexible Solar Panel

These flexible panels are lightweight and portable, making them perfect for outdoor adventures. Manufactured with high-efficiency solar cells, they provide more power and faster charging times for solar batteries.

Dimensions	1050 x 540 x 3 mm
Weight	1.8kg
Max Voltage (VM)	17.7V
Max Current (Im)	5.70A
Open Circuit Voltage (Voc)	21.70A
Short Circuit Current (Isc)	6.10A
Cable Type & Length	4mm2, 0.9m

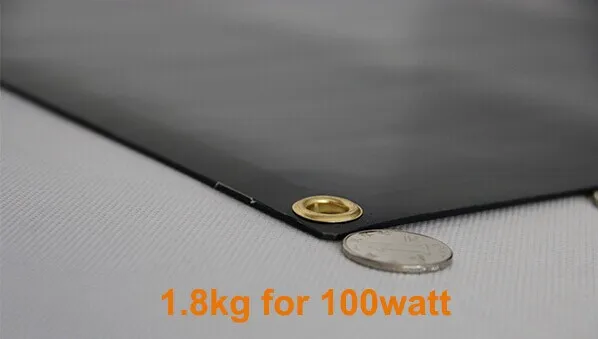

Key Features

✓ 3mm ultra-thin and super lightweight design.
✓ Back contact cells with efficiency above 20-22% (30% higher than conventional panels).
✓ Pre-drilled eyelets with stainless grommets for easy installation.
✓ High flexibility with a bend rate from 10 to 90 degrees.

Weather Resistance & Application

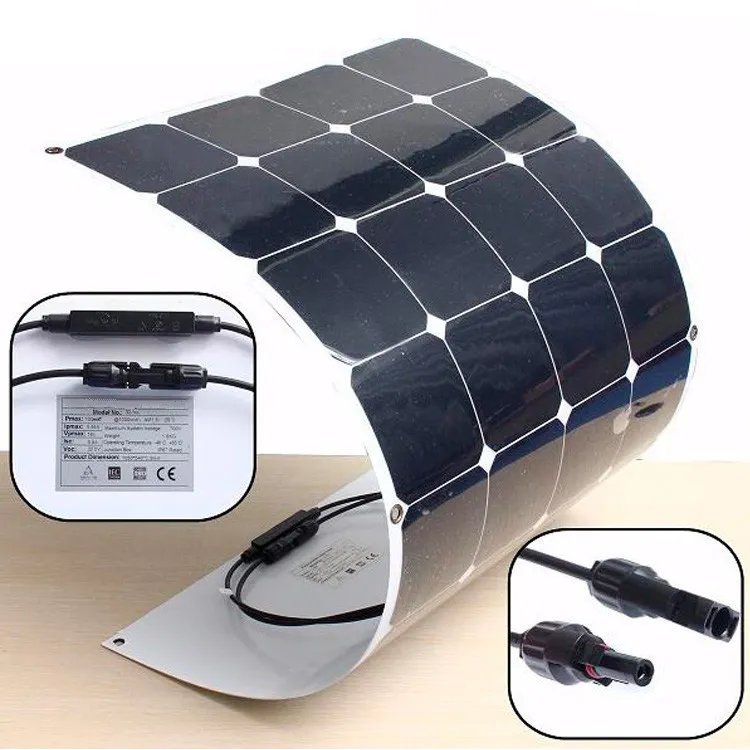

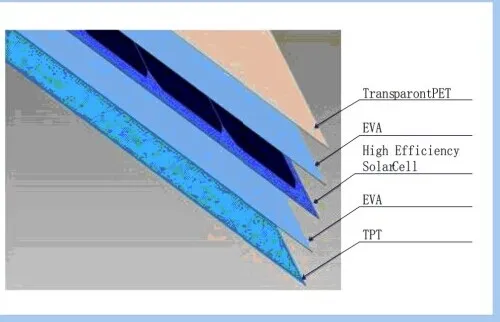

Equipped with a waterproof junction box (insert diode) and transparent PVDF material on the surface. Combined with a high-quality TPT back plate, it offers excellent salt corrosion and UV resistance, withstands hail, storms, and harsh weather conditions.

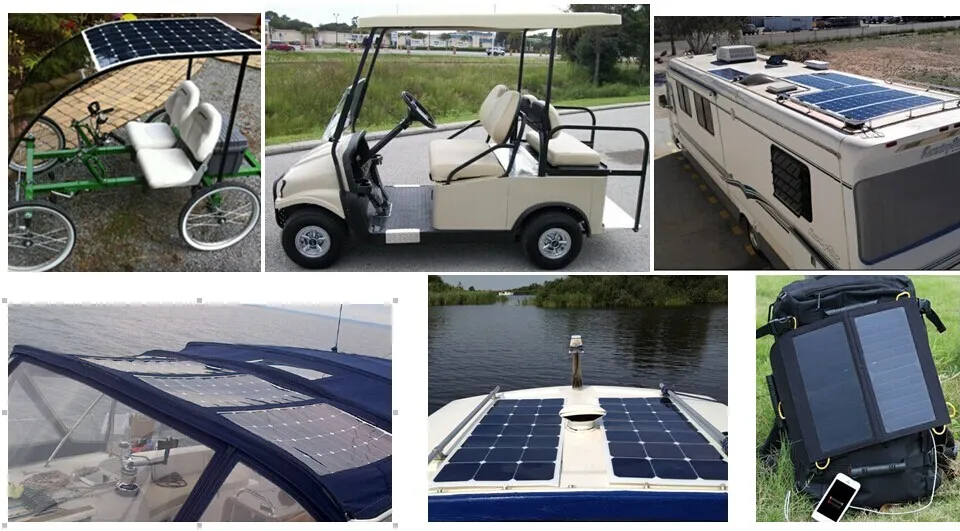

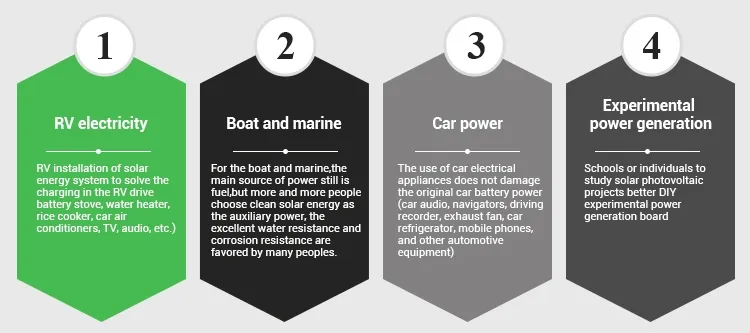

Widely applied to: Caravans, golf carts, electric cars, yachts, marine vessels, tents, and backpacks.

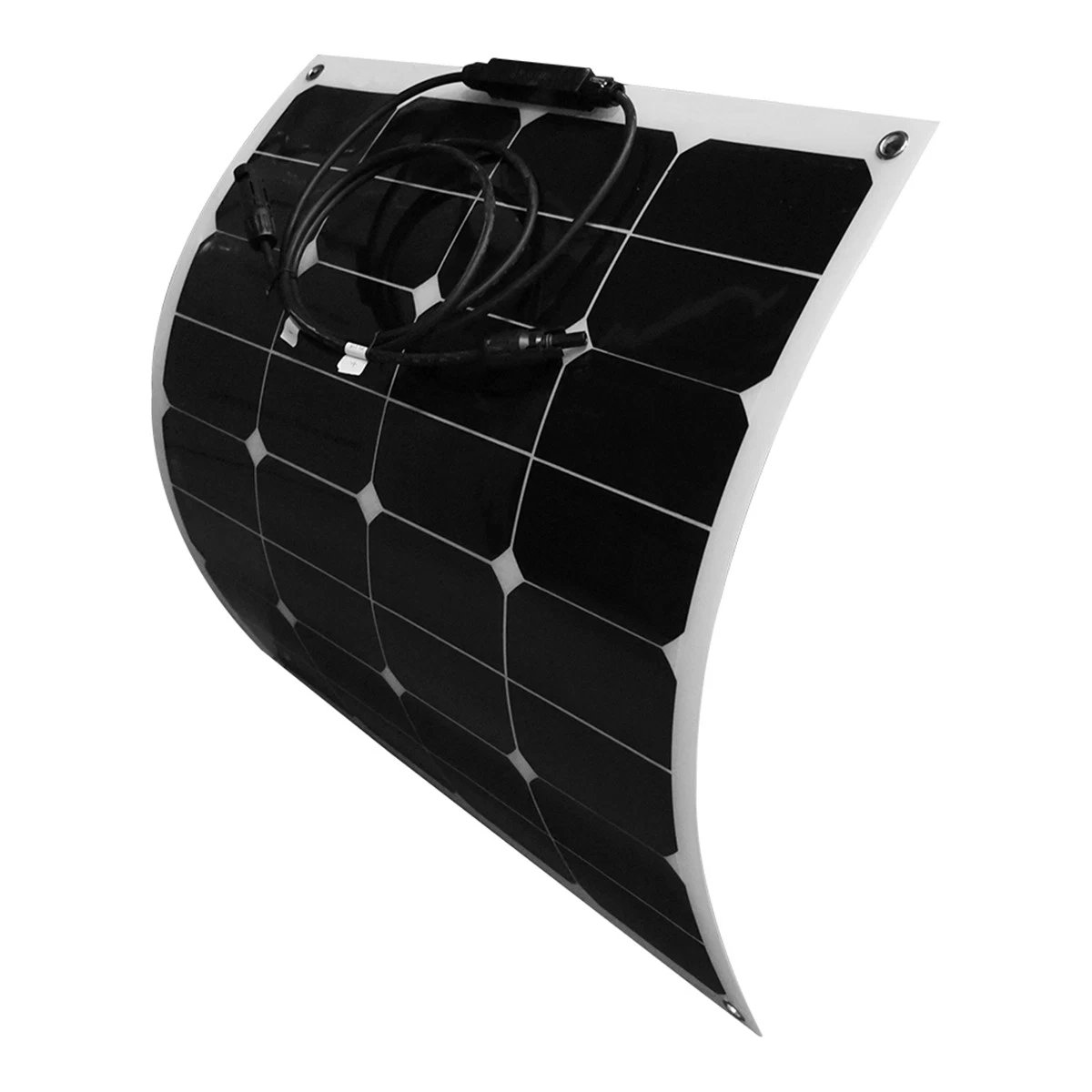

Detailed View

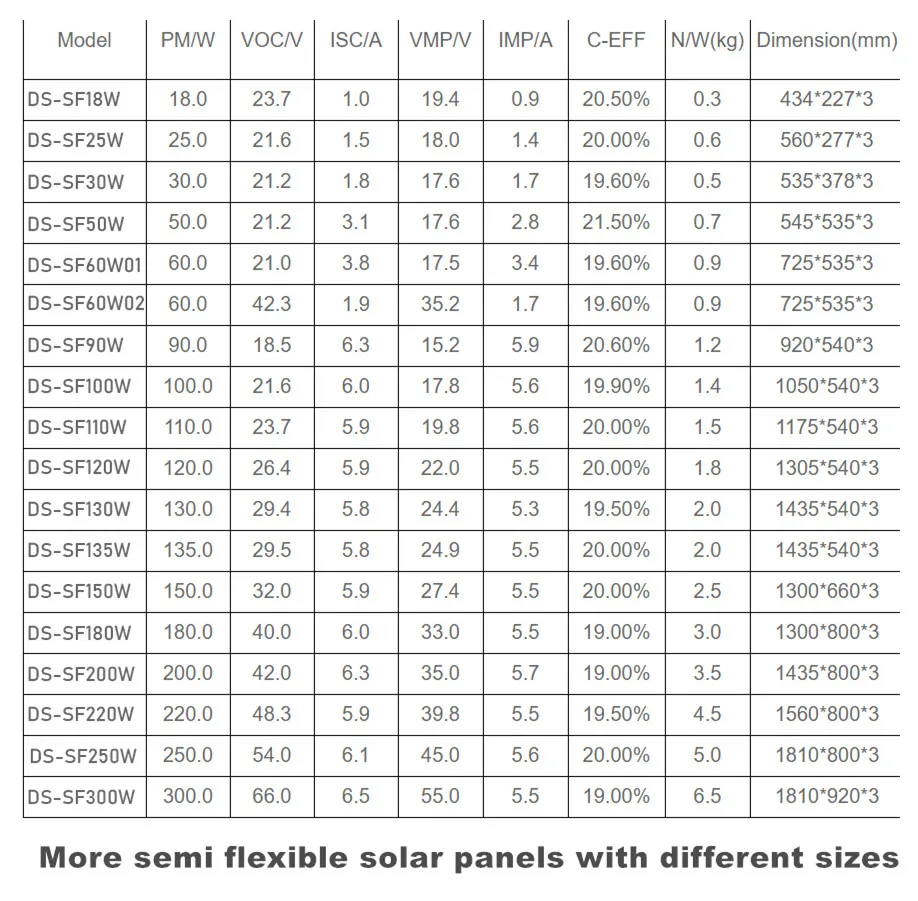

Related Products

Frequently Asked Questions

1. How flexible is this solar panel?

The panel is semi-flexible and can be bent between 10 to 90 degrees, making it suitable for curved surfaces like boat decks or RV roofs.

2. Is the panel waterproof and durable for marine use?

Yes, it features an IP67 waterproof junction box and PVDF surface material that provides salt corrosion resistance and UV protection for harsh environments.

3. What is the efficiency of the solar cells used?

The panel uses back contact cells with an efficiency of 20-22%, which is approximately 30% higher than conventional solar panels.

4. How heavy is the 100W flexible panel?

The panel is extremely lightweight, weighing only 1.8kg, and has a thickness of just 3mm.

5. Can it be easily installed?

Yes, the panel comes with pre-drilled eyelets in the corners featuring stainless grommets, allowing for quick and secure mounting.

6. What are the electrical specifications for the 100W model?

It features a Max Voltage (Vm) of 17.7V, Max Current (Im) of 5.70A, and an Open Circuit Voltage (Voc) of 21.70A.
