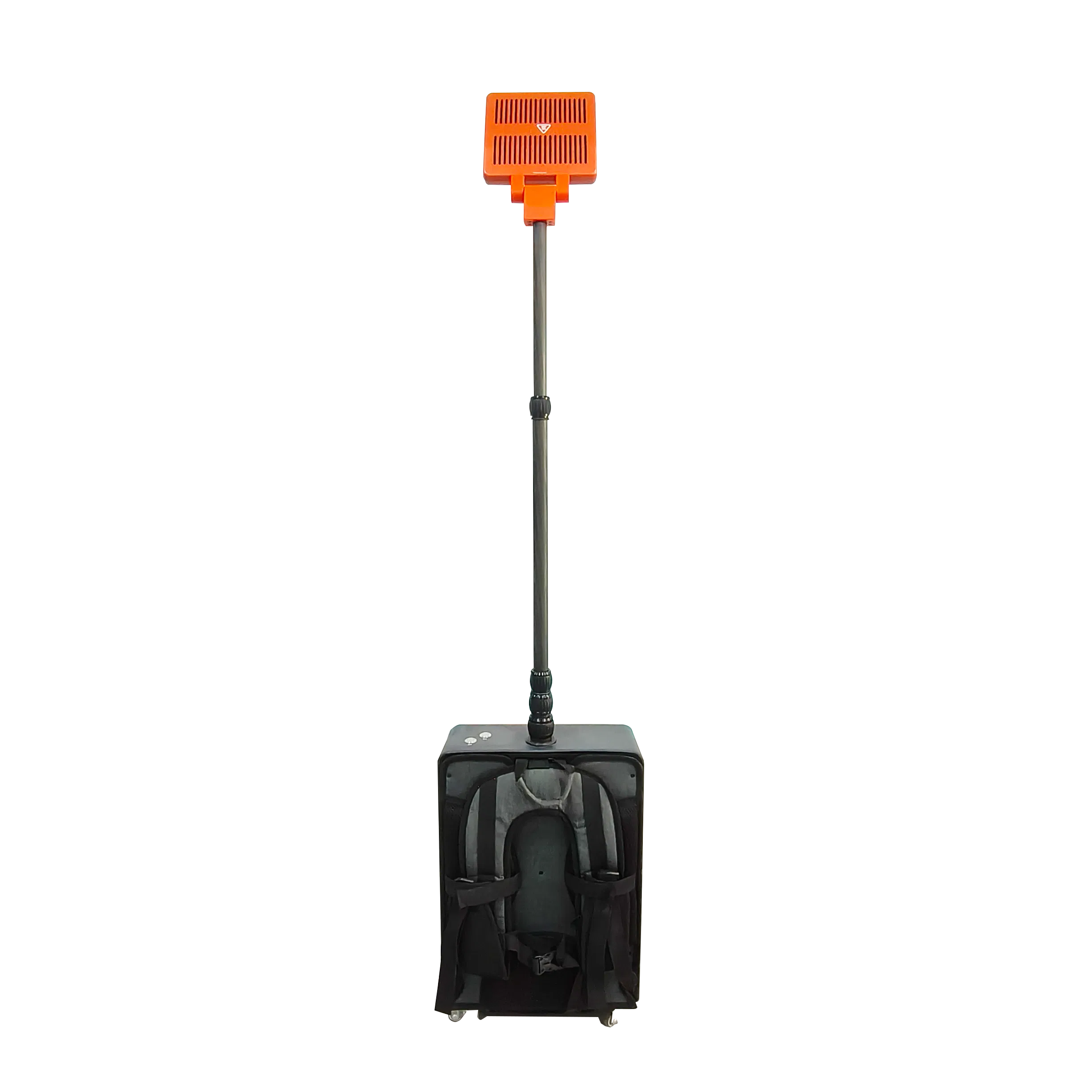

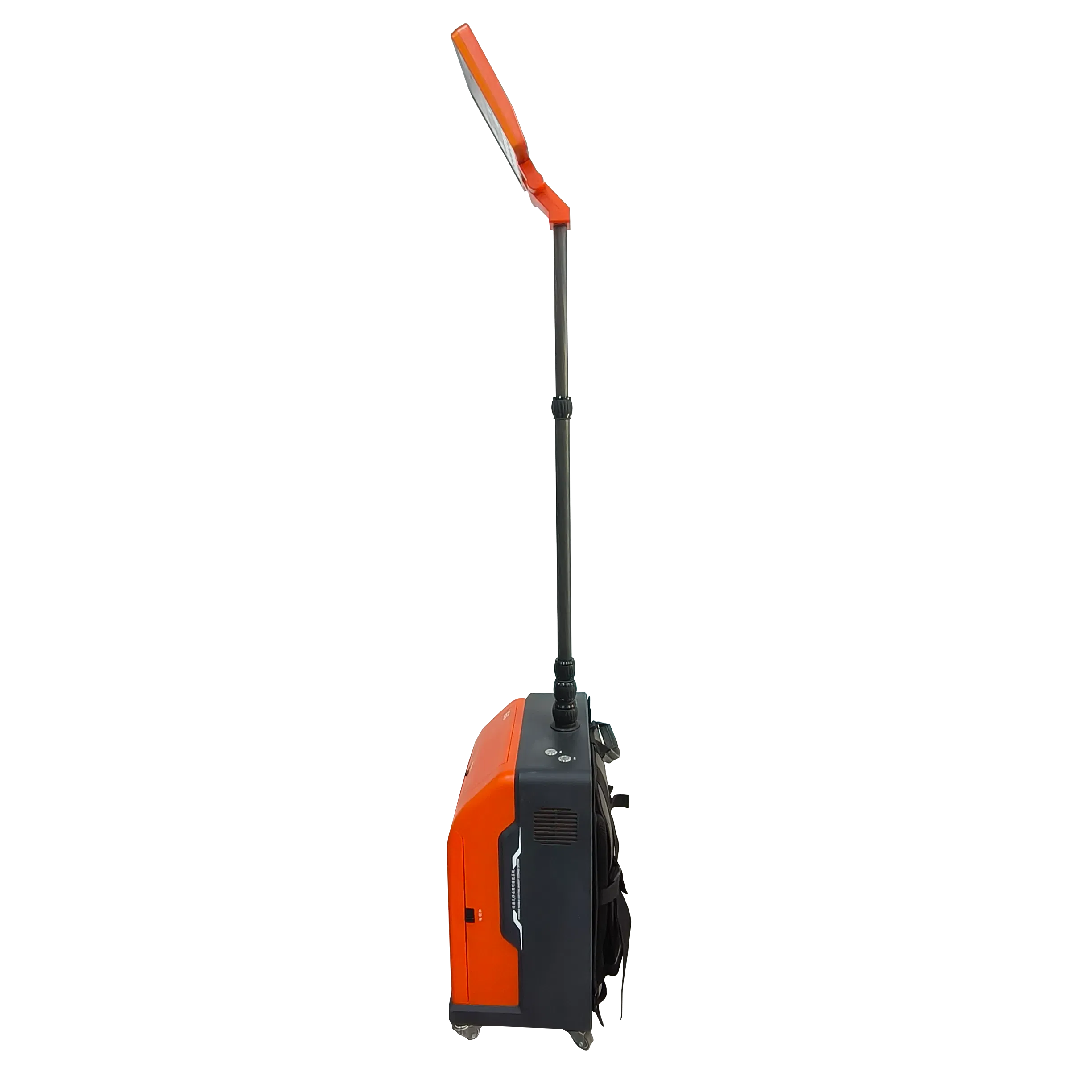

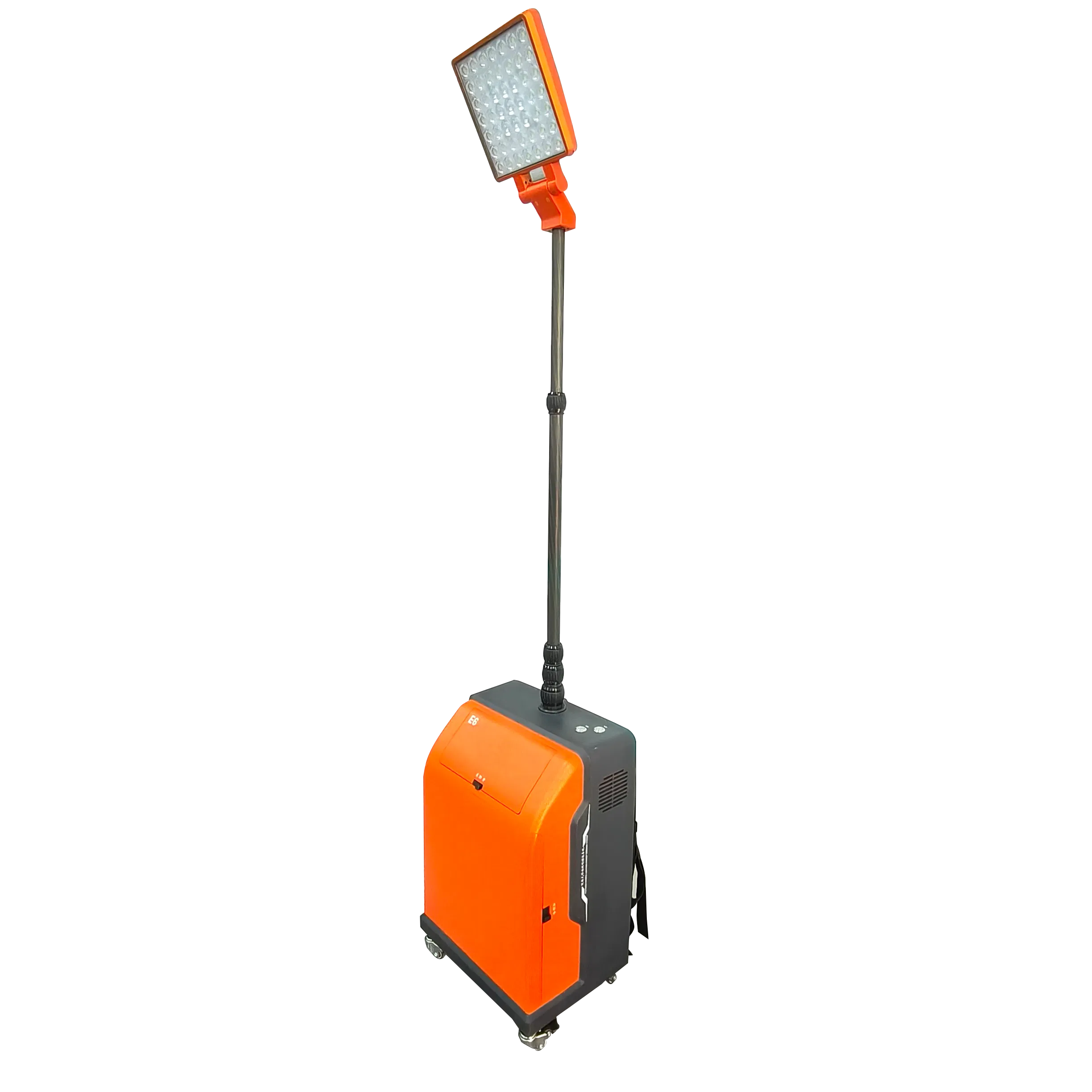

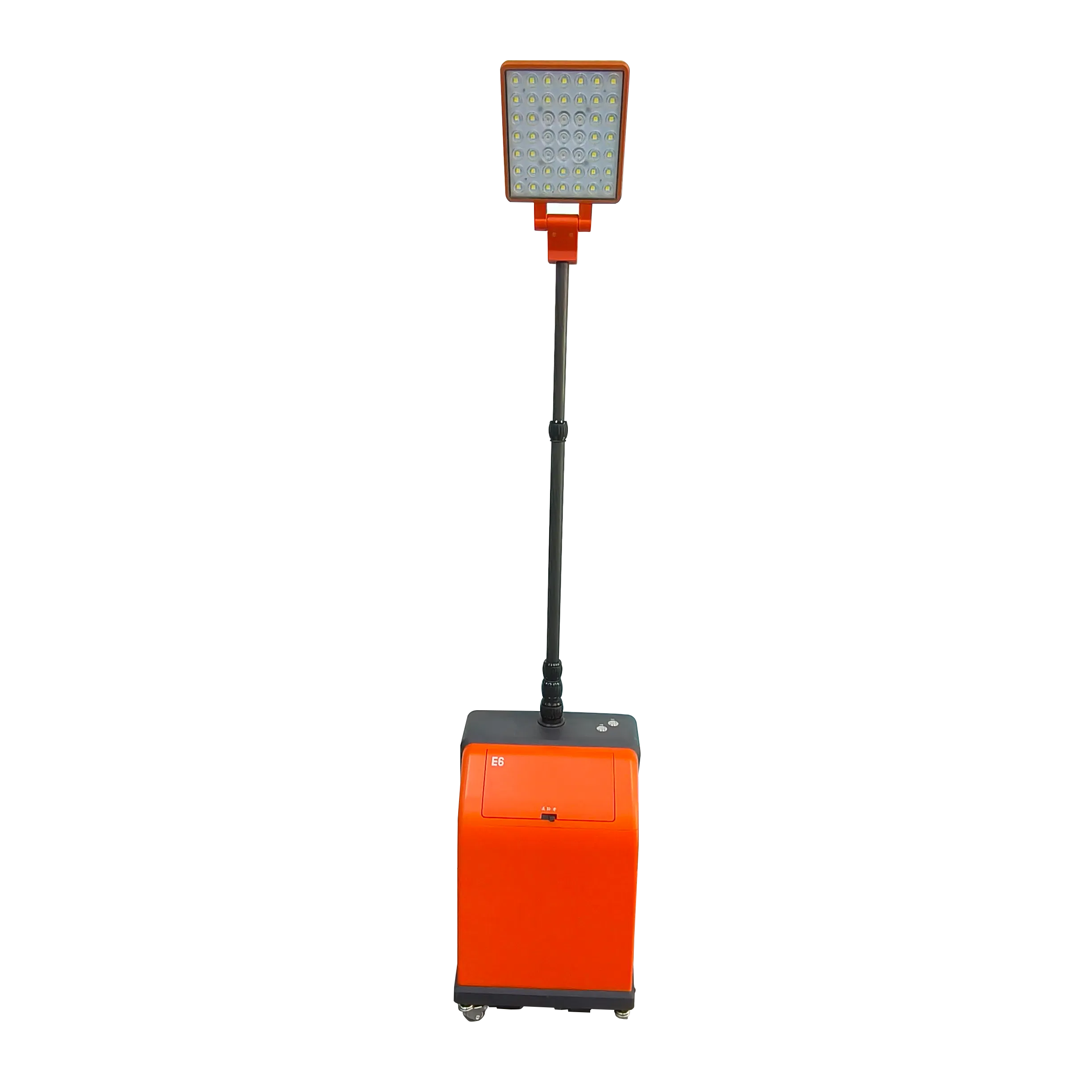

Portable Mobile Lighting System with Quick Energy Storage

Customization:	Available
Usage:	Crime Scene Lighting, Outdoor Lighting, Emergency
Emergency Time:	4.5h

📋

Basic Specifications

Model NO.

HW-E6

Installation

Stand

Color Temperature

Cool White

Operation Mode

Maintained

Charging Time

4.5h

Total Weight

12kg

Storage Box Size

240mm * 130mm * 250mm

External Dimensions

300mm * 230mm * 670mm

Origin

China

Capacity

5000

💡

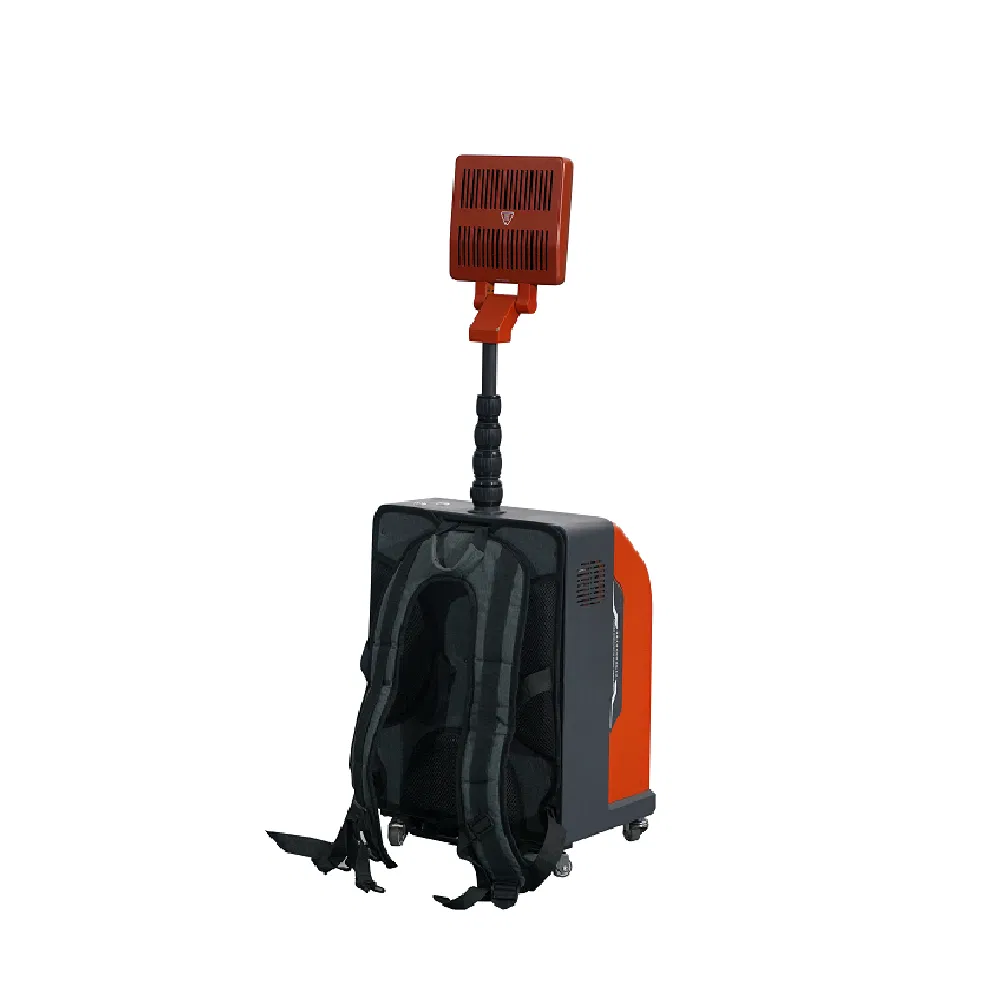

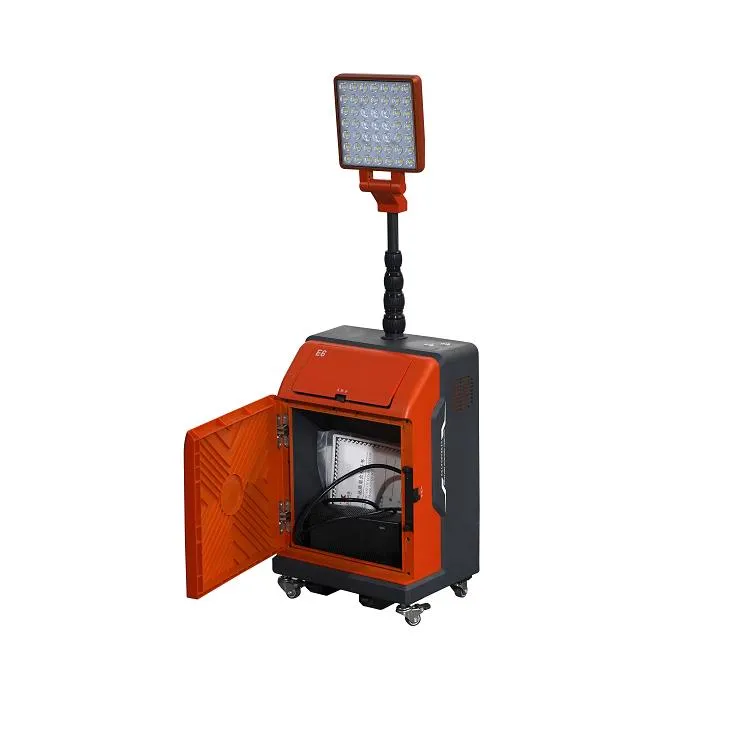

Backpack Mobile Lighting Energy Storage System

Introducing the Backpack Mobile Lighting Energy Storage System (Model: HW-E6), a cutting-edge innovation designed to revolutionize your outdoor experiences. This versatile solution seamlessly combines powerful lighting, robust energy storage, and convenient backpack storage, making it an essential companion for outdoor activities such as public security missions, firefighting operations, emergency responses, power maintenance, and railway tasks.

Engineered for excellence, it delivers high-power illumination and a reliable power supply tailored to meet on-site demands. Compact and lightweight, it enables effortless carrying and maneuvering, ideal for quick deployment by individual operatives.

The lamp head's lighting component can be manually extended to a towering height of 2.2 meters, emitting a maximum power of up to 100W to cover hundreds of square meters with ease. The power supply component boasts an impressive capacity of storing up to 1 kilowatt-hour, offering a maximum output of 1000W to satisfy the emergency power needs of various electronic devices.

Built with fire-resistant plastic technology, this system is waterproof and dustproof, ensuring exceptional performance in diverse and challenging environments.

⚙️

Technical Parameters

Parameter	Description
Lamp Power	Spotlight ≥ 45W, floodlight ≥ 100W
Lifting Height	2.2m
Rotation Angle	0-270 degrees
Lighting Function	Cycle: Low-Medium-Strong; Automatic temperature control protection
UPS Capacity	1000W
Output Mode	USB, Type-C, 220V output (Fast charge supported)
Output Power	USB ≥ 24W, Type-C ≥ 35W
Battery	22.2V 40Ah
Charging Time	4.5h
Working Hours	10h (Floodlight Strong), 72h (Weak Light)
Luminous Flux	14000LM (Floodlight), 3600LM (Spotlight)
Charging Methods	Solar charging (optional), Mains charging
Car Start Assist	12V 10A
Total Weight	12kg

🏞️

Applicable Scenes

"Whether you are at a crime scene, need outdoor lighting, require an emergency power source, plan an outdoor adventure, engage in location shooting, or need power for your car, this system is your go-to solution."

📸

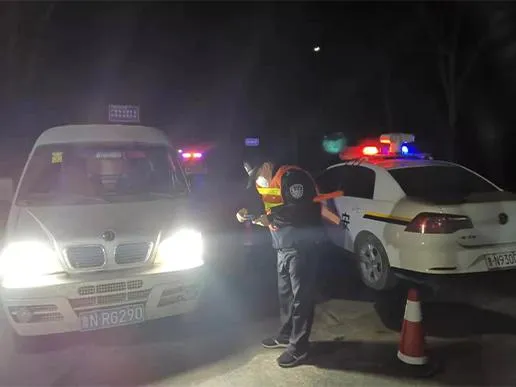

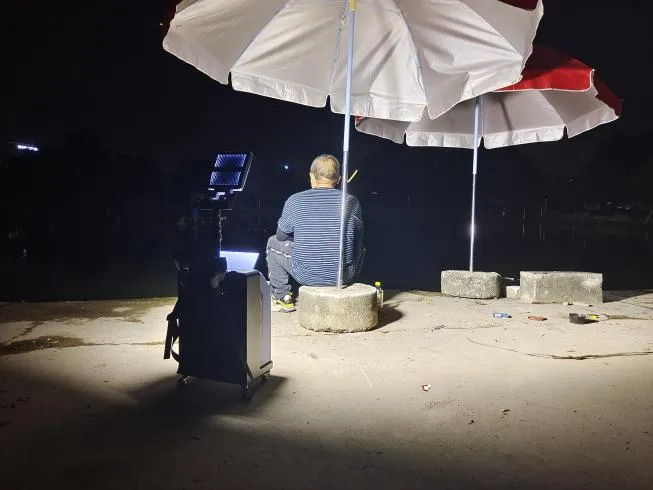

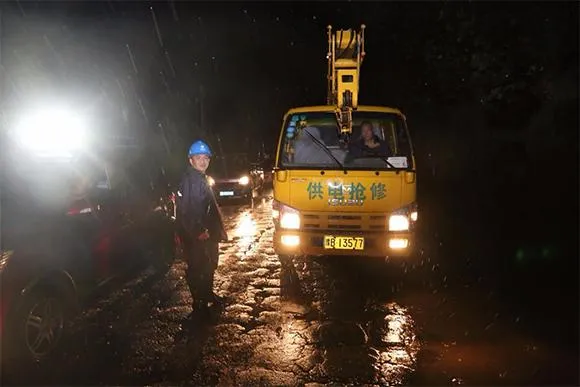

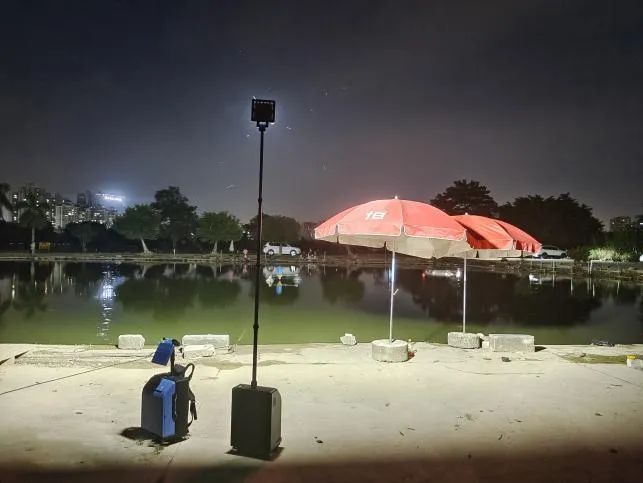

Actual Shooting Effect

❓

Frequently Asked Questions

What is the maximum brightness and coverage of the lighting system?

The system provides up to 14000 Lumens in floodlight mode, capable of covering hundreds of square meters. The lamp head can be extended up to 2.2 meters for wide-area illumination.

How long does the battery last on a single charge?

It offers approximately 10 hours of continuous lighting in floodlight strong mode and up to 72 hours in weak light mode.

Can I use this to power other electronic devices?

Yes, the system features a 1000W UPS capacity with 220V AC output, USB, and Type-C ports, making it suitable for charging small appliances and mobile devices.

What are the available charging methods?

The system supports standard mains charging and also offers an optional solar charging function for off-grid use.

Is the equipment durable for harsh weather?

Yes, it is built with fire-resistant plastic and designed to be waterproof and dustproof, ensuring reliability in emergency and outdoor environments.

Does it have safety features for the light?

Yes, it includes a time and temperature control function that automatically adjusts brightness if the temperature rises too high, protecting the luminaire from damage.
