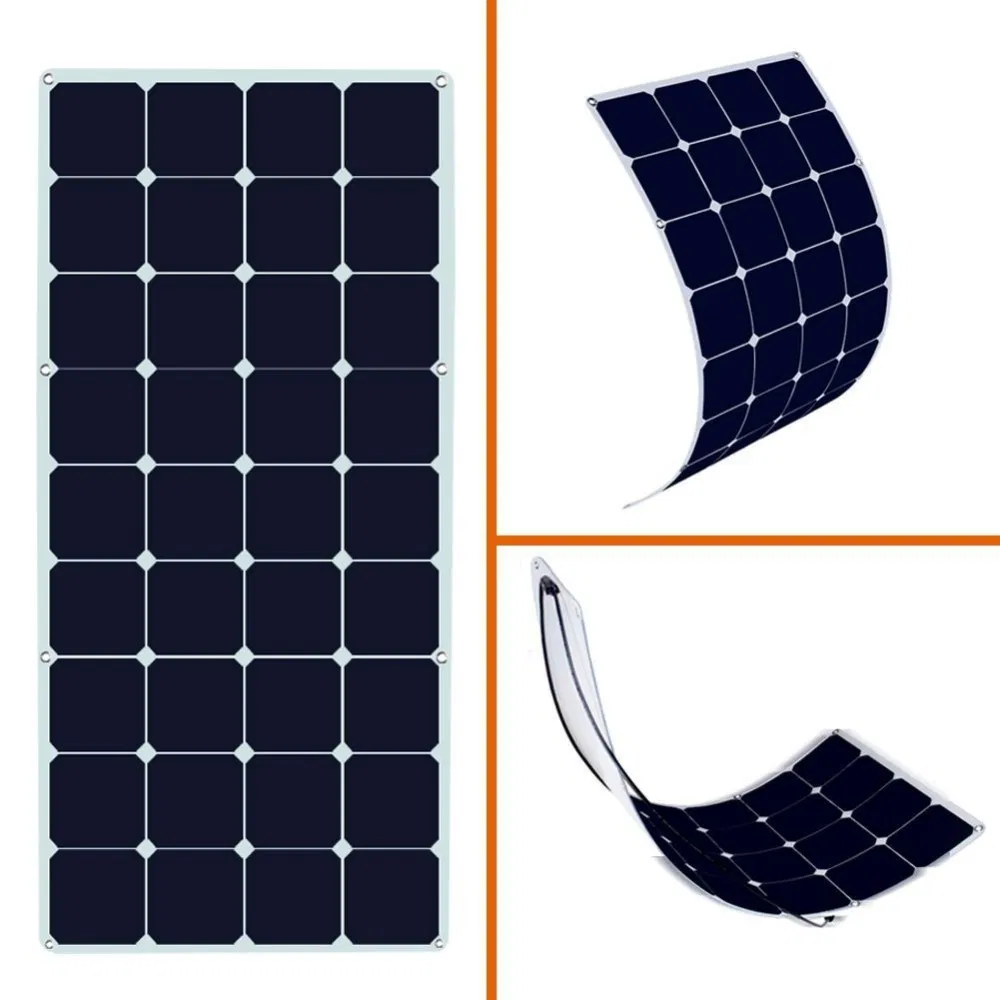

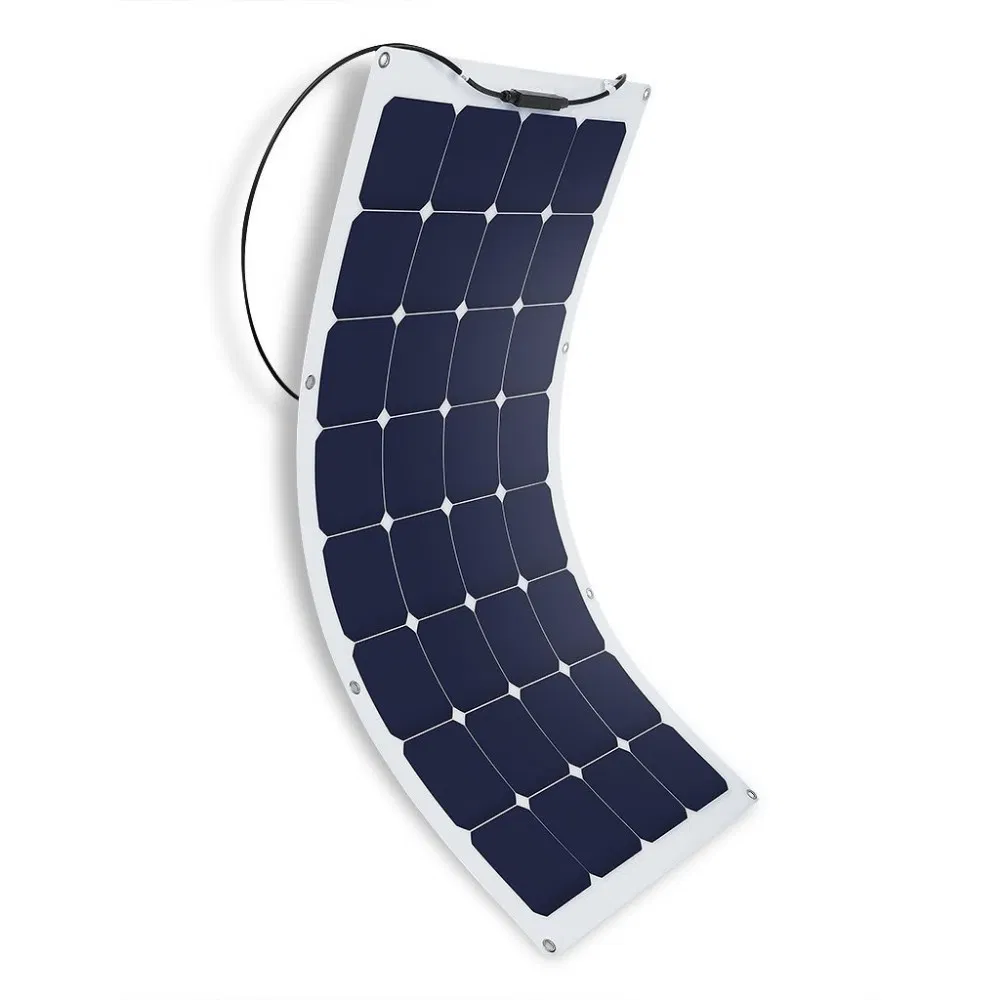

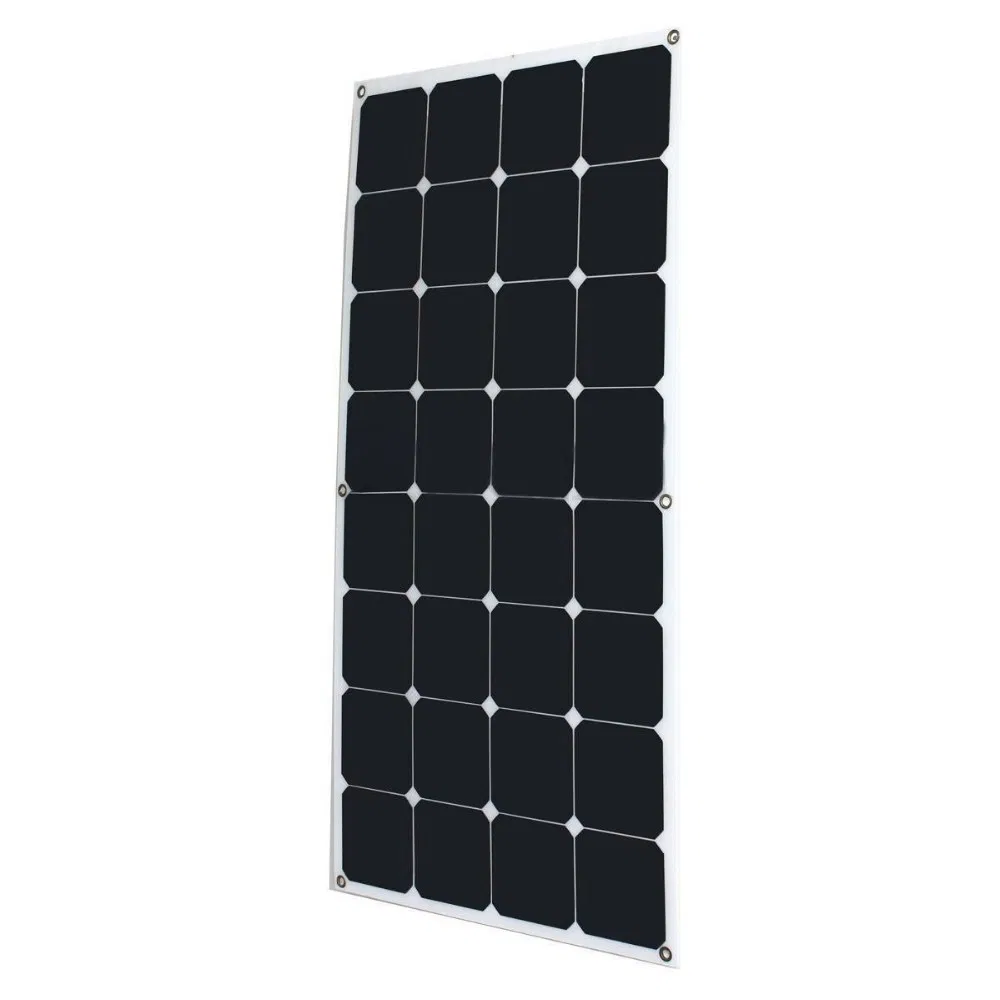

150W Semi Flexible Solar Panel for Caravan, Boat and Yacht

1 / 5

150W Semi Flexible Solar Panel for Caravan, Boat and Yacht

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

DS-SF150W

Application

Potable Power System

Condition

New

Certification

EST, ISO, CB, CE

Material

Polycrystalline Silicon

Size

1300 * 660 * 3 mm

Junction Box

IP67 Waterproof

Frame

Anodized Aluminium Alloy

Connector

Waterproof Connectors

Other Name

150W Bendable Solar Panel

Transport Package

Cartons on Pallet

Specification

Semi flexible 150w

Origin

China

HS Code

85419000

Capacity

Over 10000 Sets Per Year

150W Semi Flexible Solar Panel

⚡

These flexible panels are light weight and portable, making them ideal for outdoor adventures. Made of very high efficiency solar cells, they provide more power and faster charging times for solar batteries.

Technical Specifications

Dimensions	1300 x 660 x 3 mm
Weight	2.5kg
Max Voltage (VM)	27.4V
Max Current (Im)	5.5A
Open Circuit Voltage (Voc)	32V
Short Circuit Current (Isc)	5.9A
Max System Voltage	600V
Cable Type & Length	4mm2, 0.9m, MC4 connector

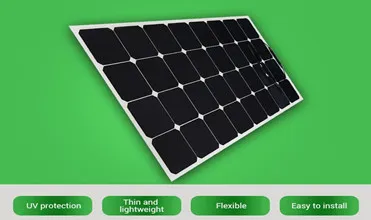

Key Features

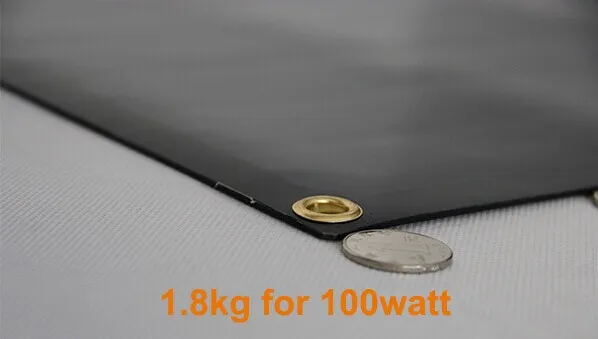

3mm thin, super lightweight design.
Consists of back contact cells (efficiency 20-22%).
30% higher efficiency than conventional panels.

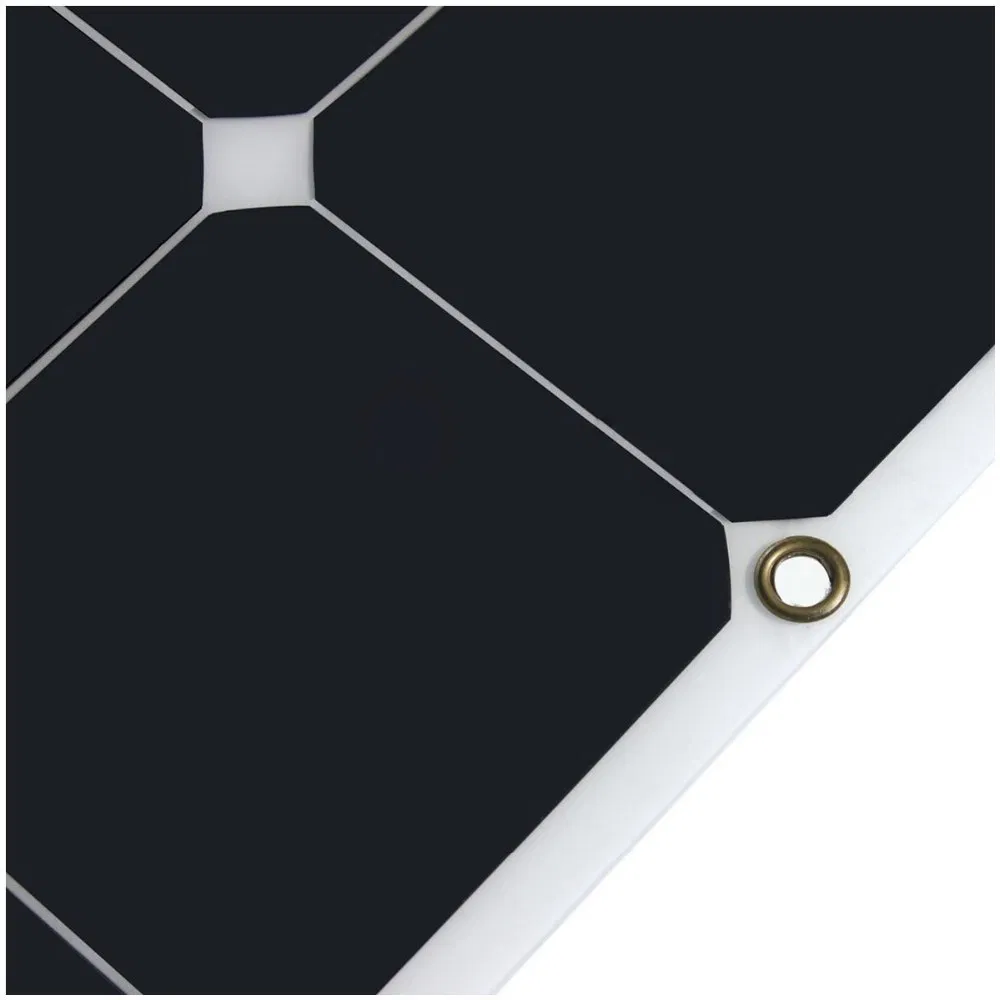

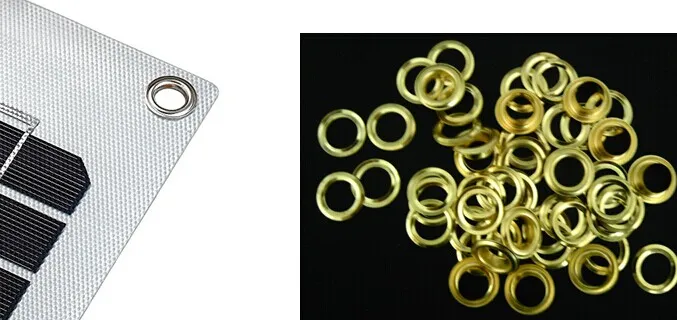

Pre-drilled eyelets in the corner with stainless grommets for easy installation.

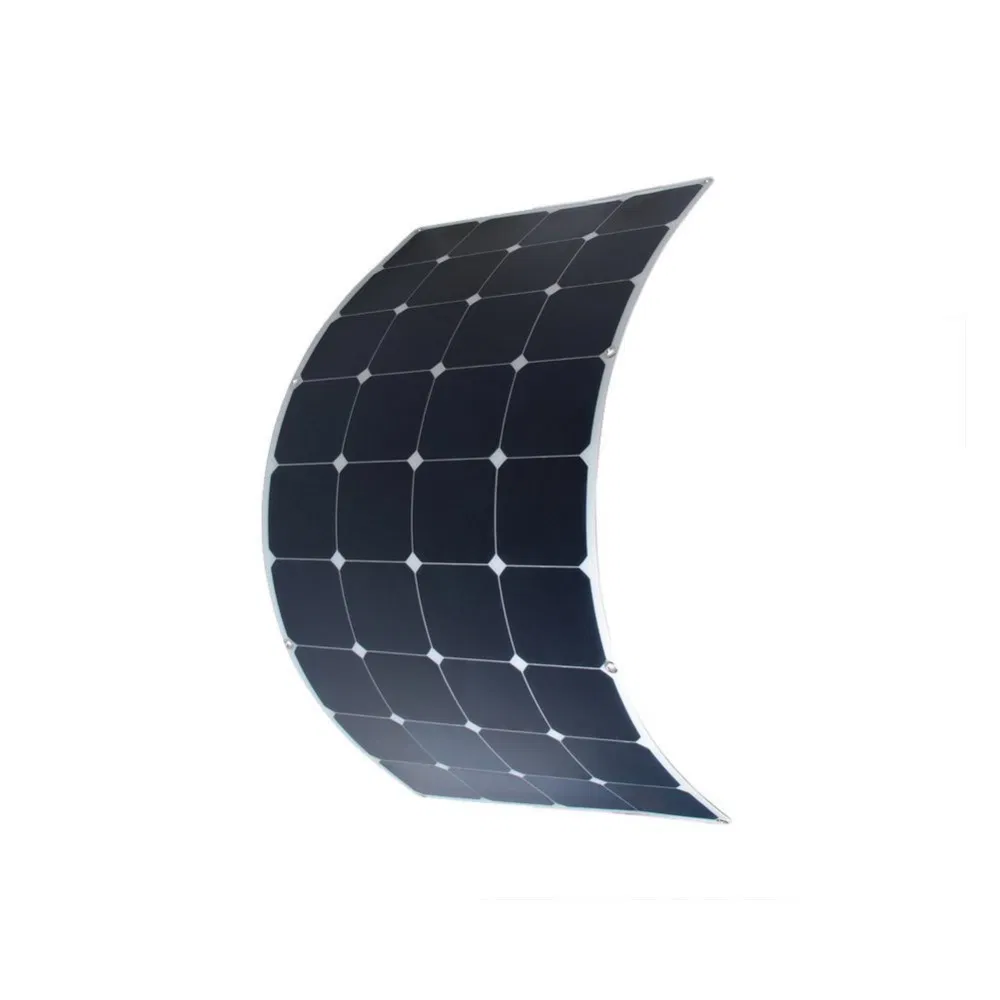

Flexible bend rate from 10-90 degrees.

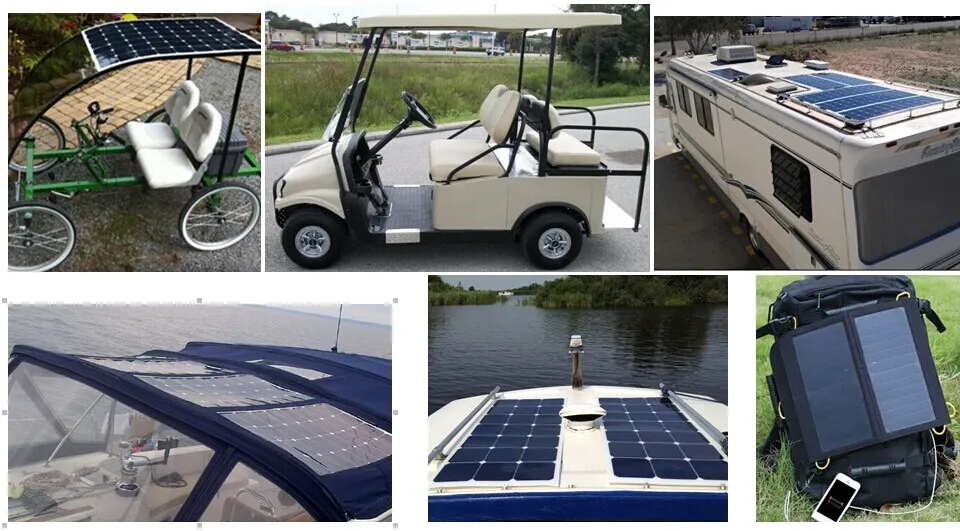

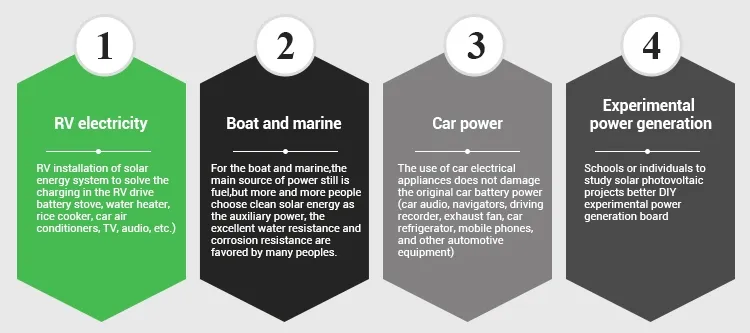

Widely applied to caravans, golf carts, yachts, marine, tents, and backpacks.

Waterproof junction box with inserted diode.
Transparent PVDF surface and high-quality TPT back plate.
Salt corrosion and UV resistance, withstanding hail, storms, and harsh weather.

Product Details & Related

Frequently Asked Questions

1. What makes this solar panel "flexible"?

The panel is designed with a bend rate of 10-90 degrees, allowing it to be installed on curved surfaces such as boat decks or RV roofs.

2. Is the panel durable enough for marine use?

Yes, it features a transparent PVDF surface and TPT back plate which provides excellent salt corrosion and UV resistance, ideal for yachts and marine environments.

3. How efficient are the solar cells?

It uses back contact cells with an efficiency rating above 20-22%, which is roughly 30% more efficient than standard solar panels.

4. How heavy is the 150W panel?

The panel is extremely lightweight, weighing only 2.5kg, making it highly portable for camping and outdoor activities.

5. What kind of connectors does it use?

It comes equipped with 0.9 meters of cable and waterproof MC4 connectors for secure outdoor installation.

6. Is the junction box protected against water?

Yes, the junction box is IP67 waterproof rated and includes an inserted diode for circuit protection.
