Basic Specifications
Model NO.:DS-SF60Wa
Application:Potable Power System
Condition:New
Certification:EST, ISO, CB, CE
Material:Polycrystalline Silicon
Size:535 * 725 * 3 mm
Junction Box:IP67 Waterproof
Frame:Anodized Aluminium Alloy
Connector:Waterproof Connectors
Other Name:60W Bendable Solar Panel
HS Code:85419000
Capacity:Over 10000 Sets Per Year
Product Description

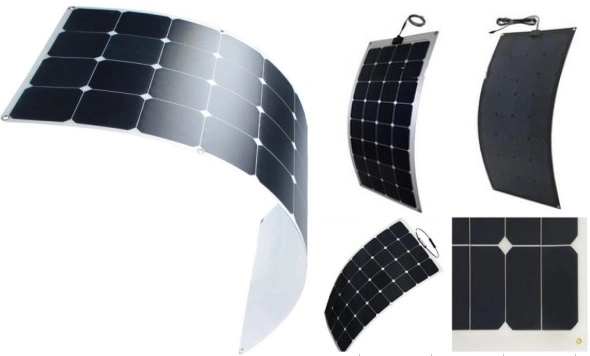

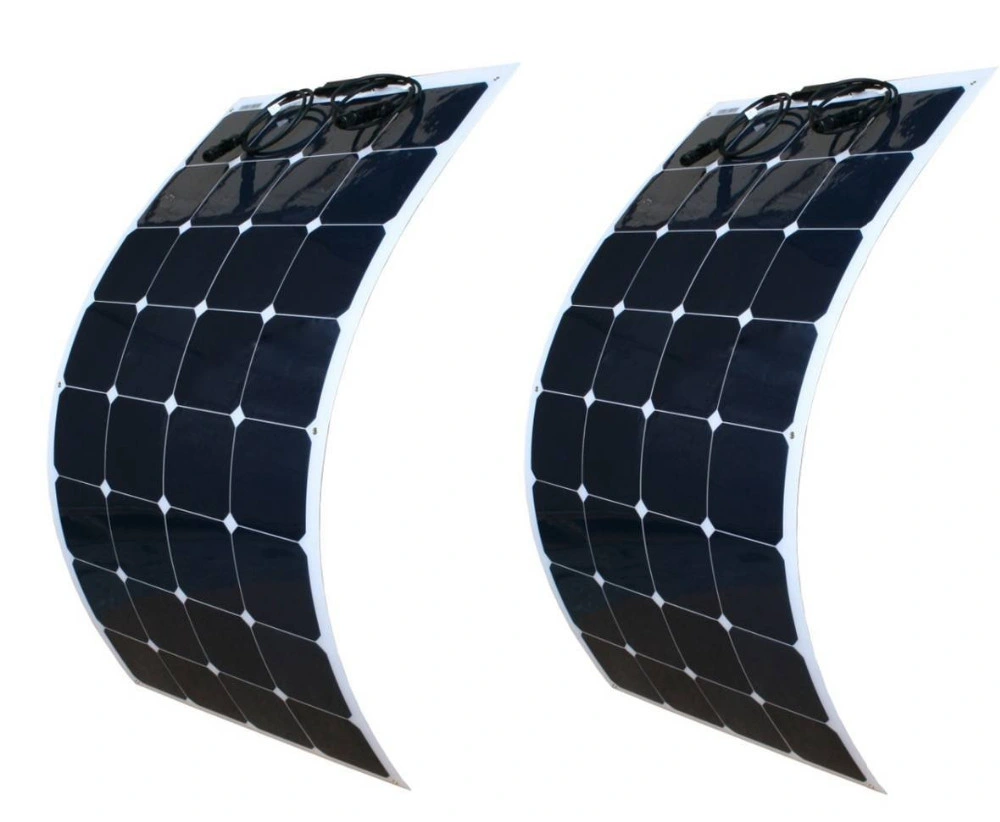

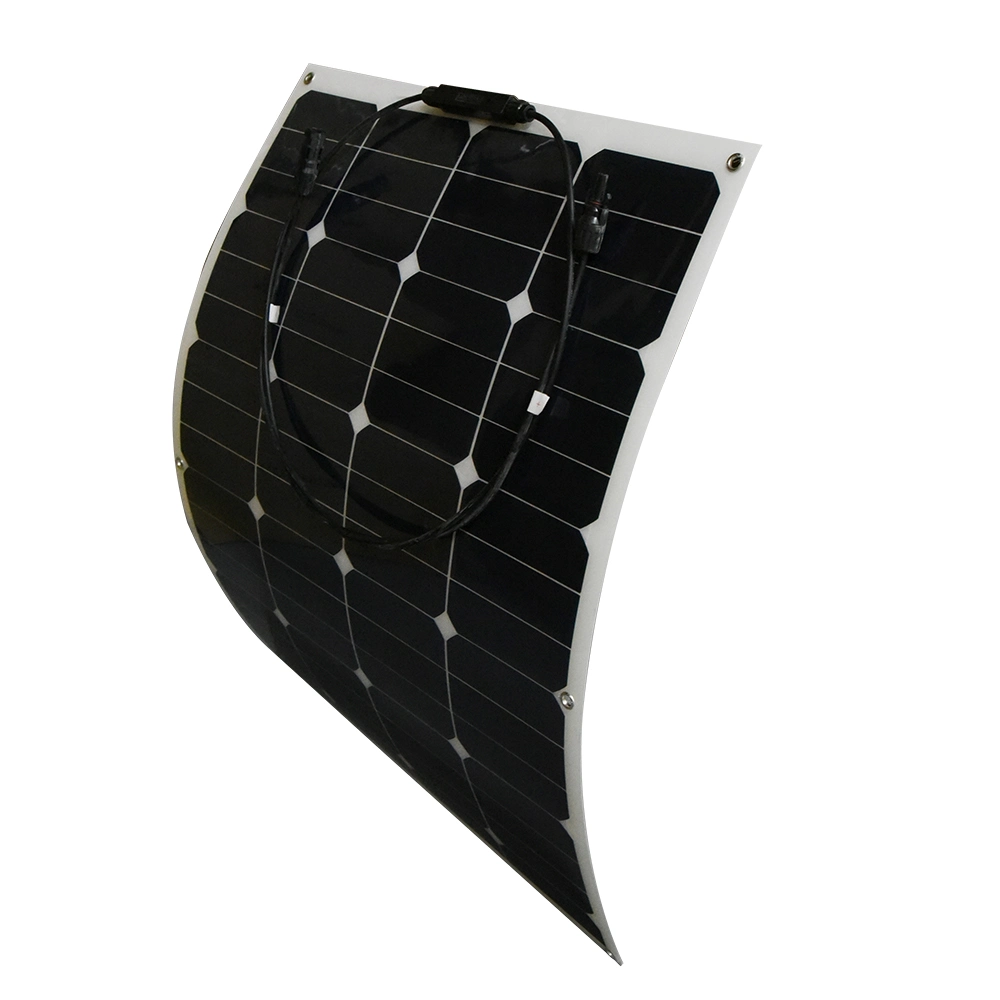

60W Semi-Flexible Solar Panel - Waterproof, Shockproof, and Dust Resistant
These flexible panels are lightweight and portable, perfect for outdoor adventures. Built with high-efficiency solar cells, they provide more power and faster charging times for solar batteries.
| Dimensions |
535 x 725 x 3 mm |
Weight |
0.9kg |
| Max Voltage (Vm) |
35.2V |
Max Current (Im) |
1.7A |
| Open Circuit Voltage (Voc) |
42.3V |
Short Circuit Current (Isc) |
1.9A |
| Cable Type & Length |
4mm², 0.9m, MC4 connector |

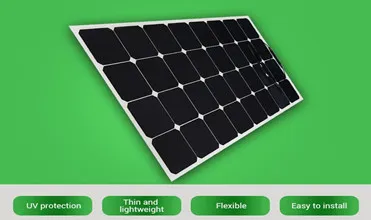

Key Features
✓
Ultra-Thin: Only 3mm thickness and super lightweight.
✓
High Efficiency: Back contact cells with efficiency above 20-22% (30% higher than conventional panels).
✓

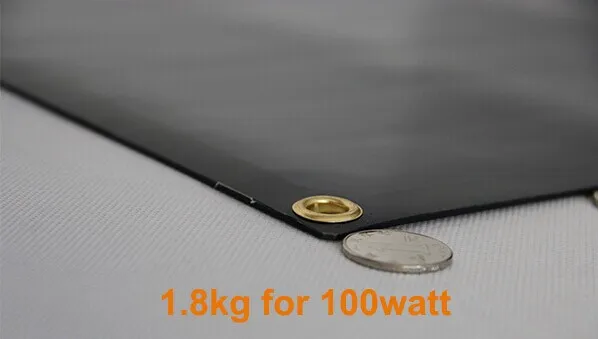

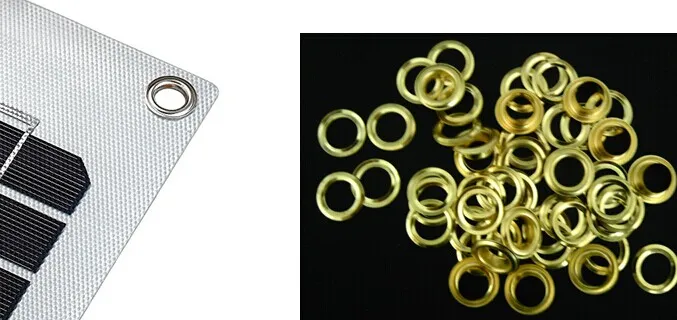

Easy Installation: Pre-drilled eyelets in corners with stainless grommets.
✓
Flexible Design: Bend rate from 10 to 90 degrees.
✓

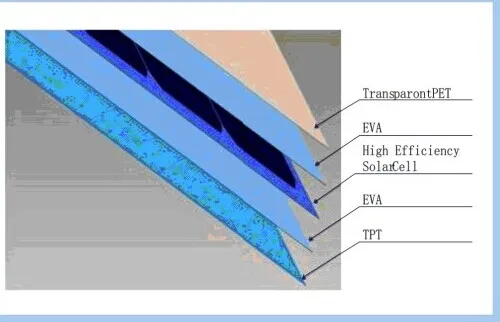

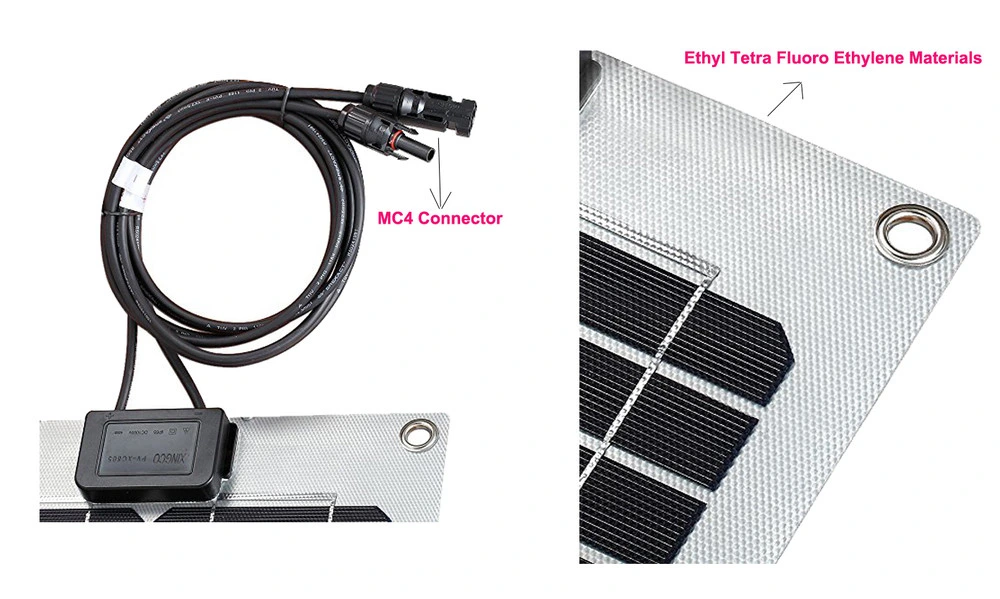

Durable Surface: Transparent PVDF material with high-quality TPT back plate.
✓
Weather Resistant: IP67 Waterproof junction box, salt corrosion and UV resistance.
More Details & Applications

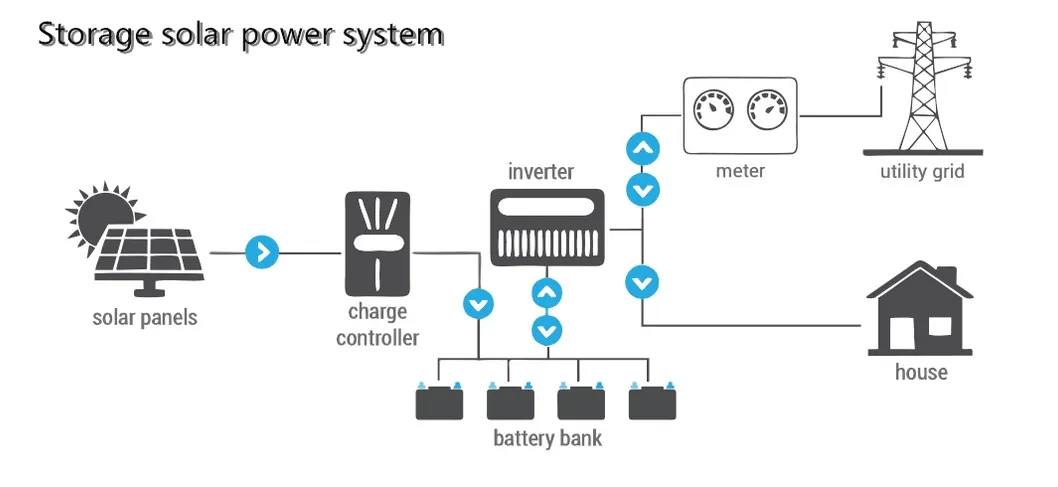

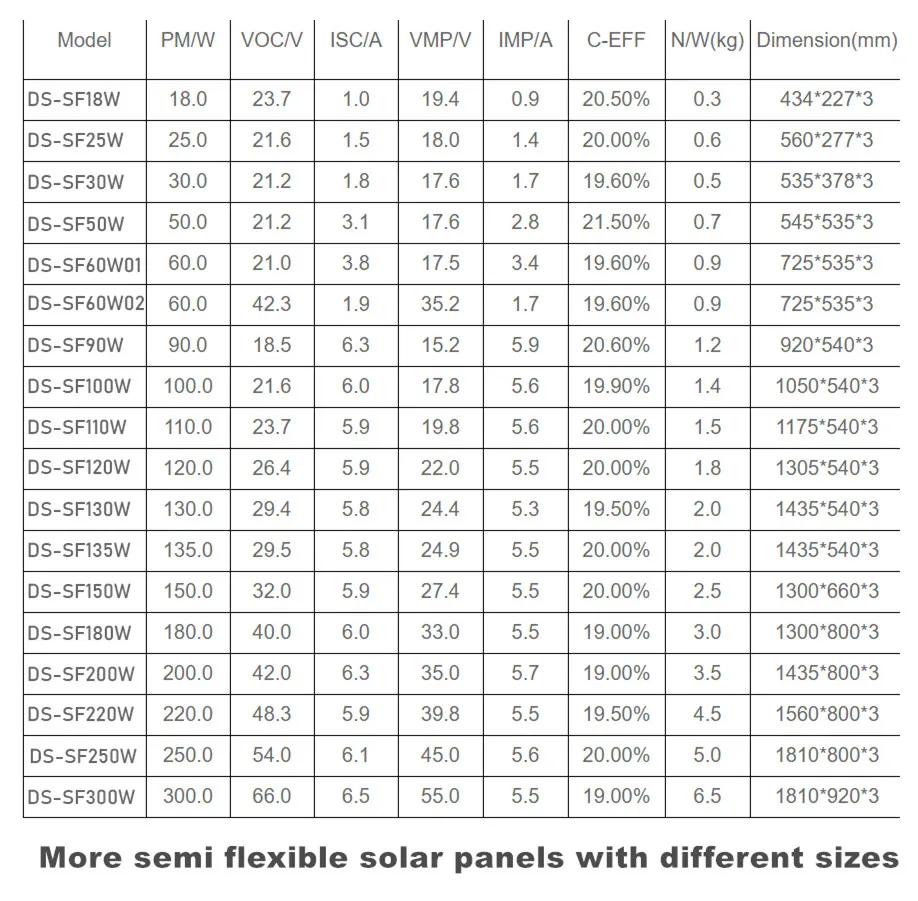

Related Product Showcase
Frequently Asked Questions
Q: How flexible is this 60W solar panel?
A: This semi-flexible solar panel features a bend rate ranging from 10 to 90 degrees, making it ideal for curved surfaces like RV roofs, boat decks, and tents.
Q: What is the efficiency of the solar cells used?
A: The panel is constructed with back contact cells that have an efficiency of over 20-22%, which is approximately 30% higher than conventional solar panels.
Q: Is the solar panel durable enough for marine environments?
A: Yes, it is designed with an IP67 waterproof junction box and transparent PVDF material on the surface, providing excellent resistance to salt corrosion, UV rays, and harsh weather conditions.
Q: How do I install this flexible solar panel?
A: The panel comes with pre-drilled eyelets in the corners reinforced with stainless grommets, allowing for easy and secure installation on various surfaces.

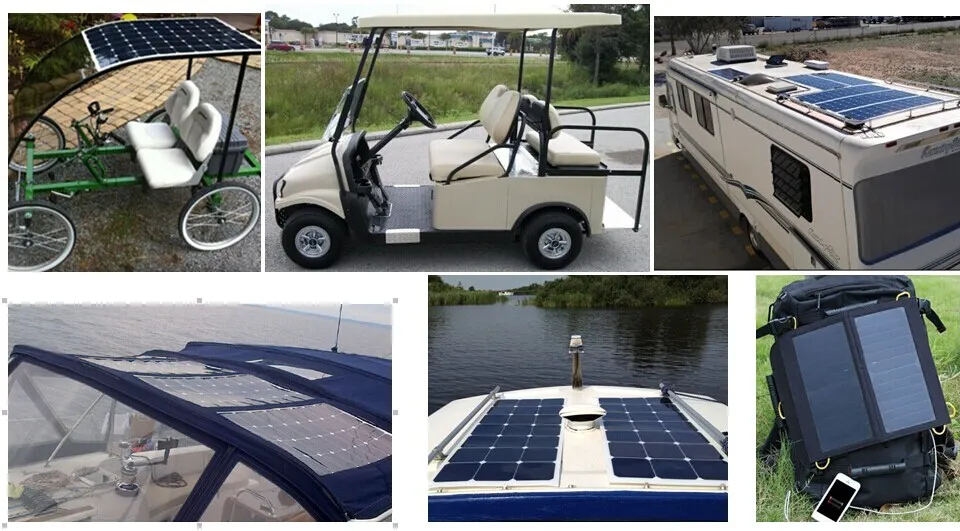

Q: What are the main applications for this product?
A: It is widely used for caravans, golf carts, electric cars, yachts, marine vessels, camping tents, and even integrated into backpacks for portable power.
Q: What is the weight and thickness of the panel?
A: The panel is exceptionally lightweight at only 0.9kg and very thin with a thickness of just 3mm.
