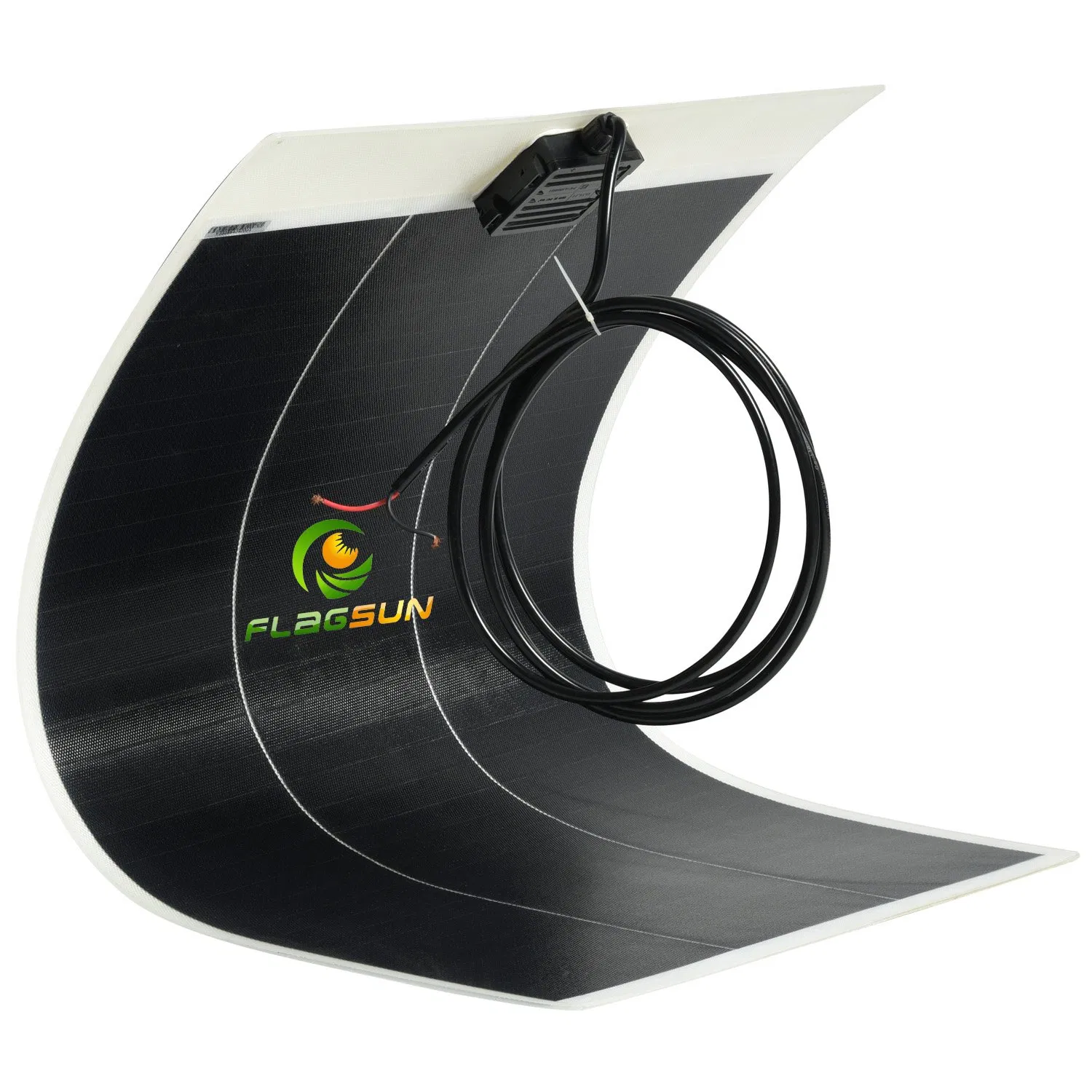

Bendable 100W Monocrystalline Solar Panel for Outdoor Use

Bendable 100W Monocrystalline Solar Panel for Outdoor Use

Bendable 100W Monocrystalline Solar Panel for Outdoor Use

Bendable 100W Monocrystalline Solar Panel for Outdoor Use

Bendable 100W Monocrystalline Solar Panel for Outdoor Use

1 / 5

Bendable 100W Monocrystalline Solar Panel for Outdoor Use

Bendable 100W Monocrystalline Solar Panel for Outdoor Use

Bendable 100W Monocrystalline Solar Panel for Outdoor Use

Bendable 100W Monocrystalline Solar Panel for Outdoor Use

Bendable 100W Monocrystalline Solar Panel for Outdoor Use

Bendable 100W Monocrystalline Solar Panel for Outdoor Use

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

FFXS-100W

Application

Industrial

Certification

ISO, CB, CE, TUV, IEC, RoHS

Material

Monocrystalline Silicon

Power

100W

Efficiency

22.3%

Dimensions

1050mm x 540mm x 3mm

Front Cover

ETFE/Tpt Film

Junction Box

IP67 Waterproof

Solar Cell

Advanced Shingled Solar Cells

Production Capacity

100MW/Year

Technical Specifications

Maximum Power (Pmax)	100W
Open Circuit Voltage (Voc)	18V
Short Circuit Current (Isc)	6.67A
Voltage at Pmax (Vmp)	21.6V
Current at Pmax (Imp)	7.34A
Number of Cells	32
Weight	2.9kg
Operating Temperature	-40 to +85ºC
Bypass Diodes	3 Diodes
Maximum Mechanical Load	Snow 5400Pa / Wind 2400Pa

Core Features

✓Non-Glass Design with ETFE or Polish PET coating

✓Semi-Flexible: Bending angle up to 30-90 degrees

✓Ultra-Lightweight & Fully Weatherproof Design

✓Unbreakable Protective Plastic Film Coating

✓3mm Thickness: Easy installation on RV or Yacht roofs

✓High efficiency monocrystalline cells

✓Safe rounded corners to prevent scratches

✓Can be stepped on with soft-soled shoes

Application Scenarios

Widely applied to RV, Golf car, Electric car, Yacht, boat, marine, Tent or backpack etc.

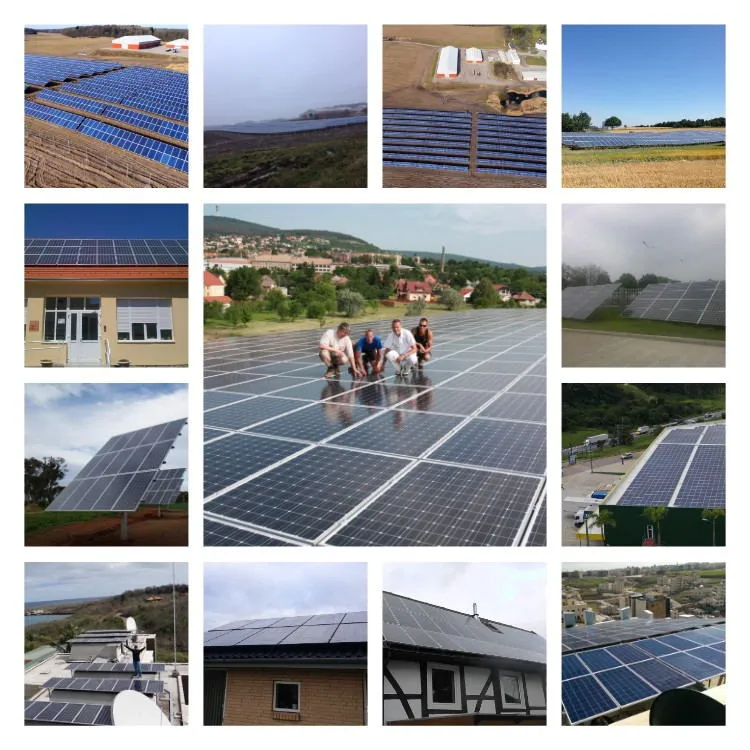

Application

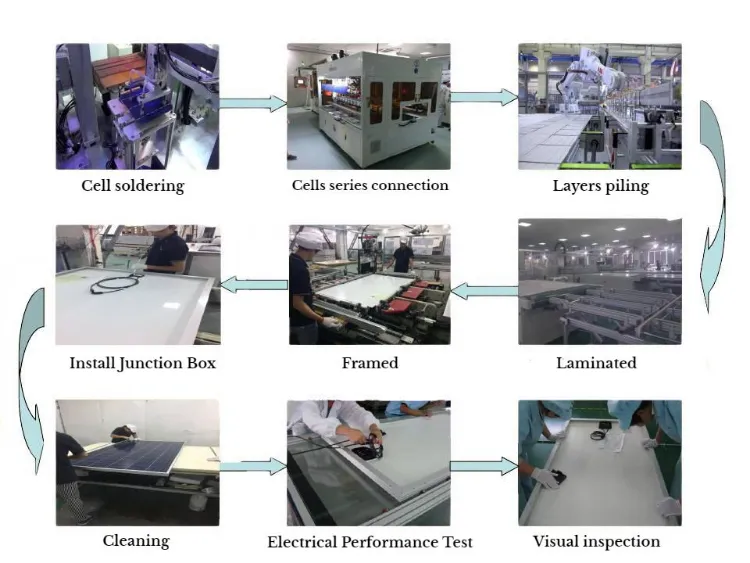

Manufacture Process

Manufacture Process

Related Products

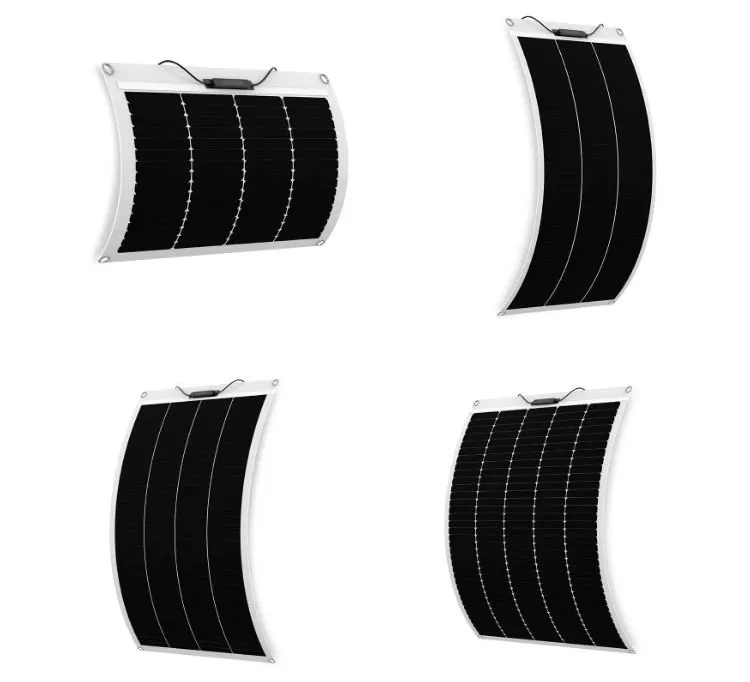

Product 1

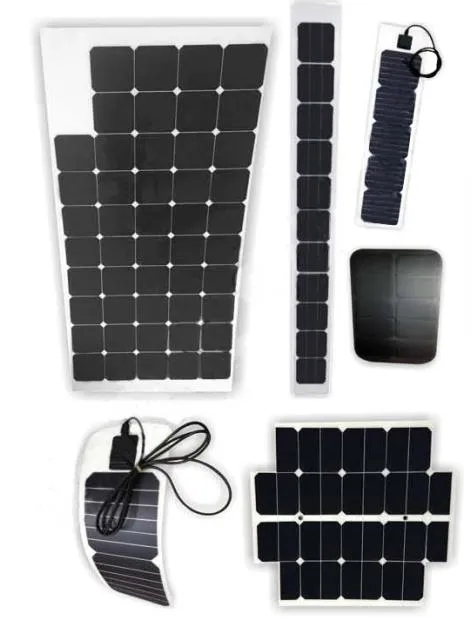

Product 2

Our Services

● Custom solar panels for different products

● ODM & OEM Services

● Factory visit pickup service

● Global shipping services

● Dedicated after-sale support

Packaging & Shipping

Package Box

Carton Box or Wooden Box (for samples)

Package Size

150.00cm * 60.00cm * 3.00cm

Gross Weight

3.000kg

Logistics

DHL, FEDEX, UPS, TNT, Air, Sea

Packaging

Frequently Asked Questions

Q1: How flexible is this 100W solar panel?

The panel is semi-flexible and can be bent to an angle of 30 to 90 degrees, making it ideal for curved surfaces like RV roofs or boat decks.

Q2: Can I walk on the solar panels once installed?

Yes, these panels are designed to be durable and can be stepped on if wearing soft-soled shoes.

Q3: Is the junction box waterproof?

Yes, the junction box is IP67 rated, which means it is fully protected against dust and can withstand immersion in water.

Q4: What is the main benefit of ETFE coating over PET?

ETFE is more durable, has higher light transparency, and offers better weather resistance and a longer lifespan compared to standard PET coatings.

Q5: What is the thickness and weight of the panel?

The panel is extremely thin at only 3mm and lightweight at approximately 2.9kg, making it very easy to carry and install.

Q6: Are samples available for testing?

Yes, samples are available for quality testing and market evaluation. We also support OEM and ODM customizations.
