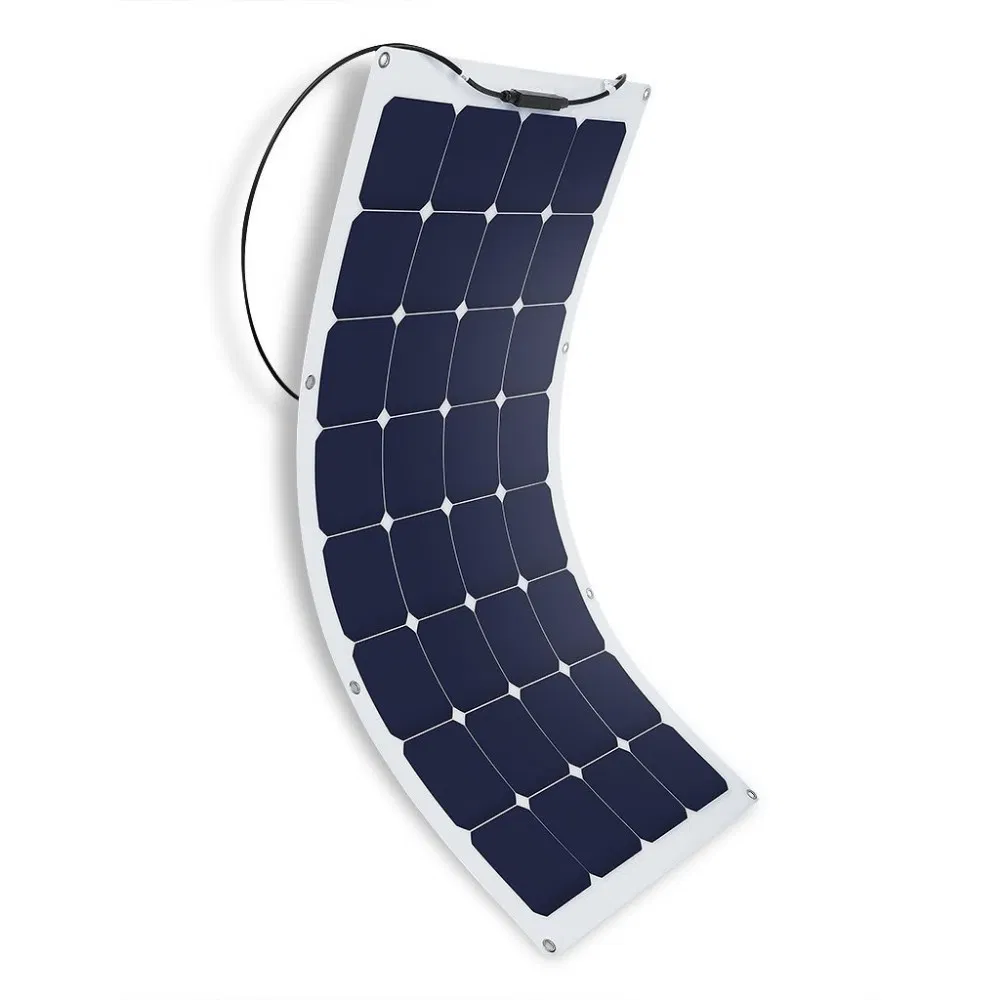

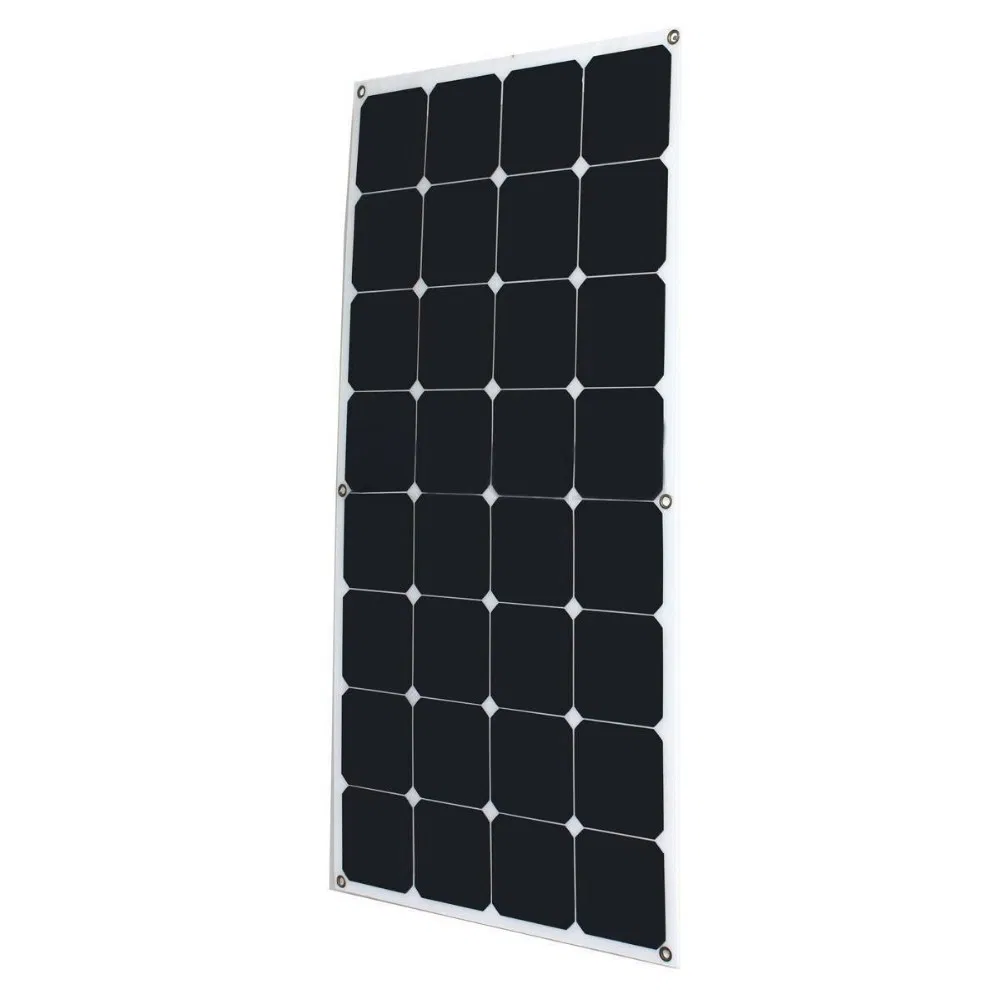

50W, 60W, 100W, 120W, 130W, 150W Semi Flexible Solar Panel

1 / 5

50W, 60W, 100W, 120W, 130W, 150W Semi Flexible Solar Panel

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Technical Specifications

Model NO.

DS-SF150W-all

Application

Potable Power System

Condition

New

Certification

EST, ISO, CB, CE

Material

Polycrystalline Silicon

Size

1300 * 660 * 3 mm

Junction Box

IP67 Waterproof

Frame

Anodized Aluminium Alloy

Connector

Waterproof Connectors

Other Name

150W Bendable Solar Panel

Production Capacity

Over 10000 Sets Per Year

Origin

China

Product Description

💡

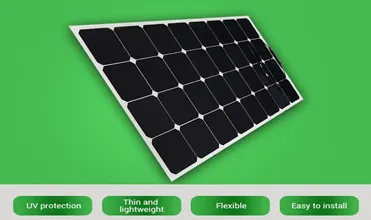

High Efficiency Flexible Solutions: 50w, 60w, 100w, 120w, 130w, 150w semi flexible solar panel designed for caravan, boat and yacht. These flexible panels are light weight and portable, perfect for outdoor adventures.

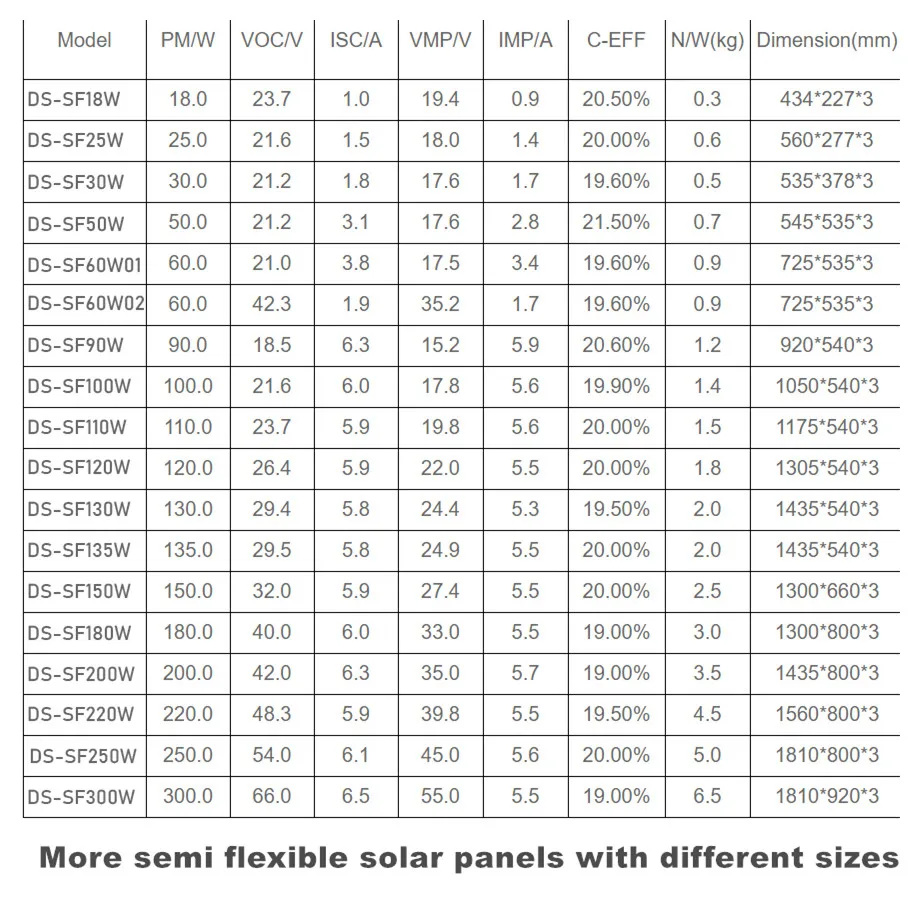

Dimensions	1300 x 660 x 3 mm
Weight	2.5kg
Max Voltage (Vm)	27.4V
Max Current (Im)	5.5A
Open Circuit Voltage (Voc)	32A
Short Circuit Current (Isc)	5.9A
Max System Voltage	600V

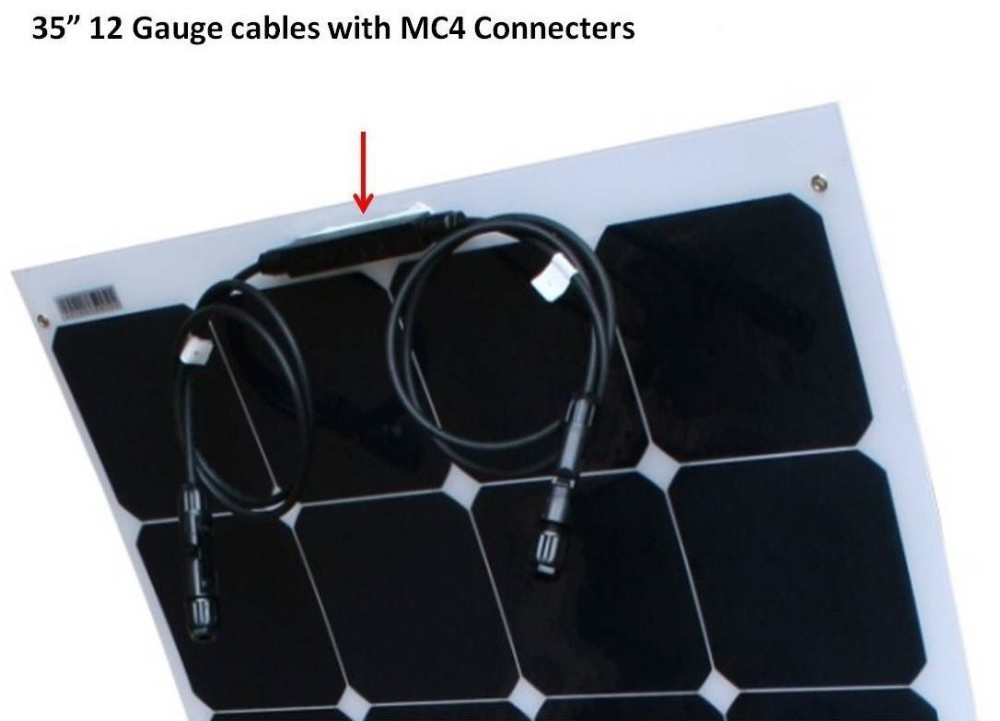

Cable Type & Length	4mm2, 0.9m, MC4 connector

Key Features

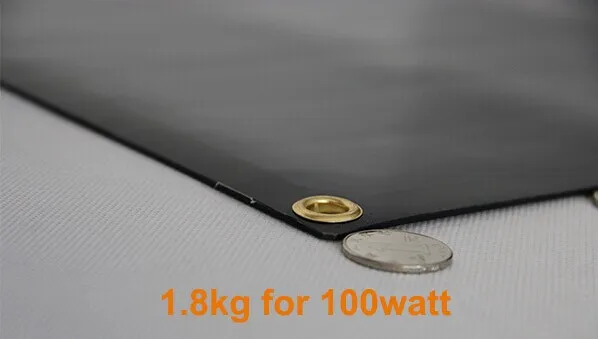

3mm thin, super lightweight design
High efficiency back contact cells (above 20-22%)
30% higher efficiency than conventional panels

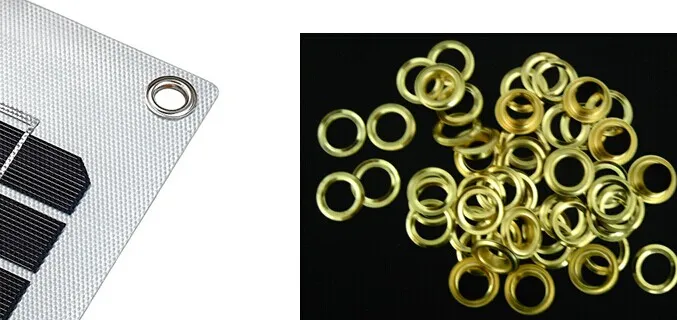

Pre-drilled eyelets with stainless grommets

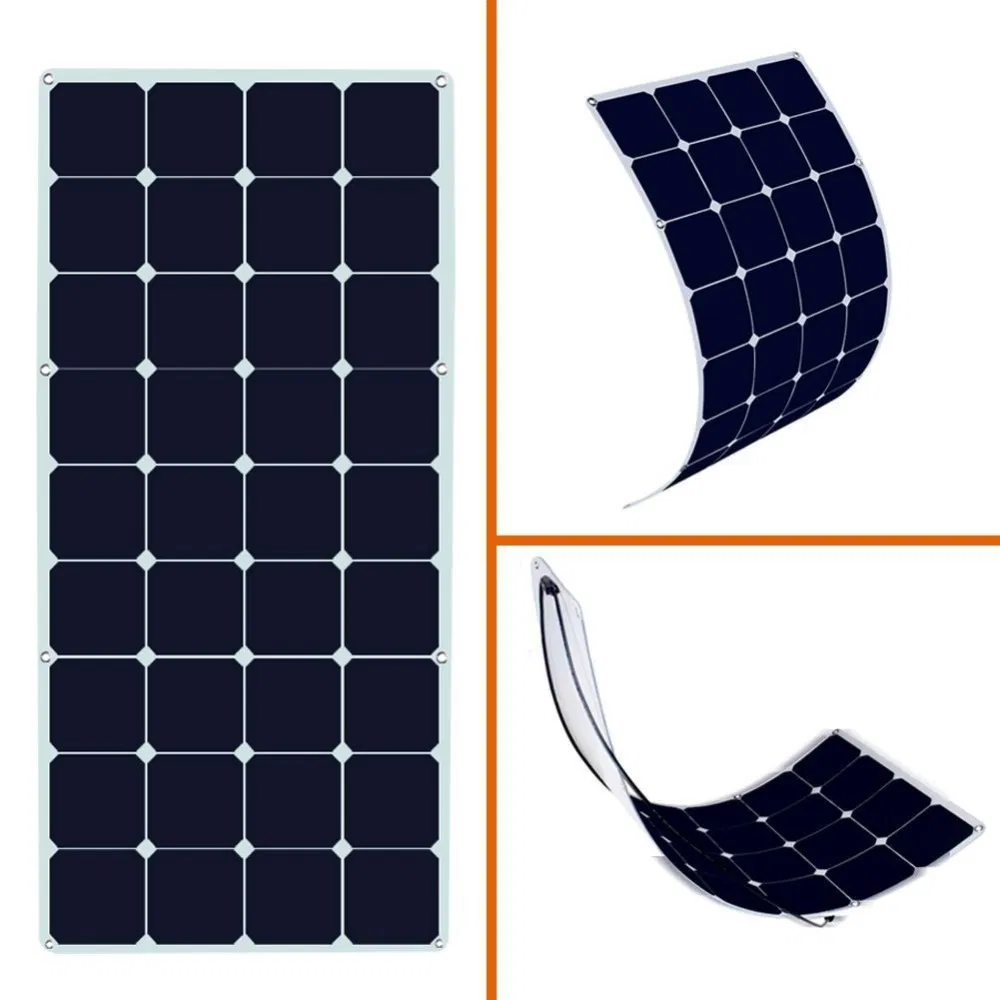

Bend rate from 10-90 degrees

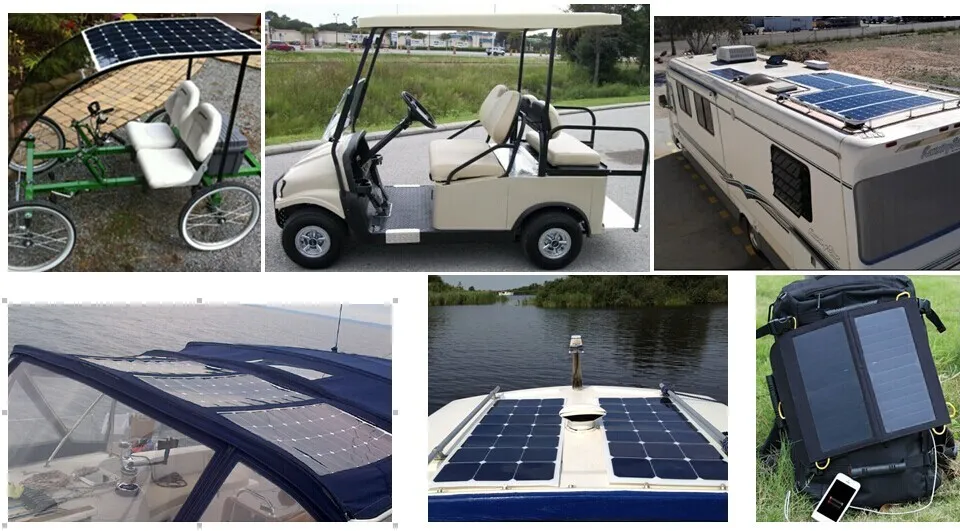

Widely applied to caravan, golf cart, electric car, yacht
Ideal for marine use, tents, and backpacks

Waterproof junction box with insert diode
Transparent PVDF surface material
High quality TPT back plate
Salt corrosion, UV, and harsh weather resistance

More Product Details

Related Products

Frequently Asked Questions

1. How flexible are these solar panels?

The panels are semi-flexible with a bend rate ranging from 10 to 90 degrees, making them ideal for curved surfaces like boat decks or caravan roofs.

2. What is the efficiency of the solar cells?

These panels use back contact cells with an efficiency of above 20-22%, which is approximately 30% higher than conventional solar panels.

3. Are the panels weather-resistant?

Yes, they feature an IP67 waterproof junction box and transparent PVDF material that provides resistance against salt corrosion, UV rays, hailstorms, and harsh weather.

4. How heavy are the 150W panels?

The panels are designed to be super lightweight, weighing only approximately 2.5kg, which allows for easy transport and installation.

5. Is installation difficult?

No, the panels come with pre-drilled eyelets in the corners with stainless grommets, making them very easy to secure to various surfaces.

6. What is included with the connection system?

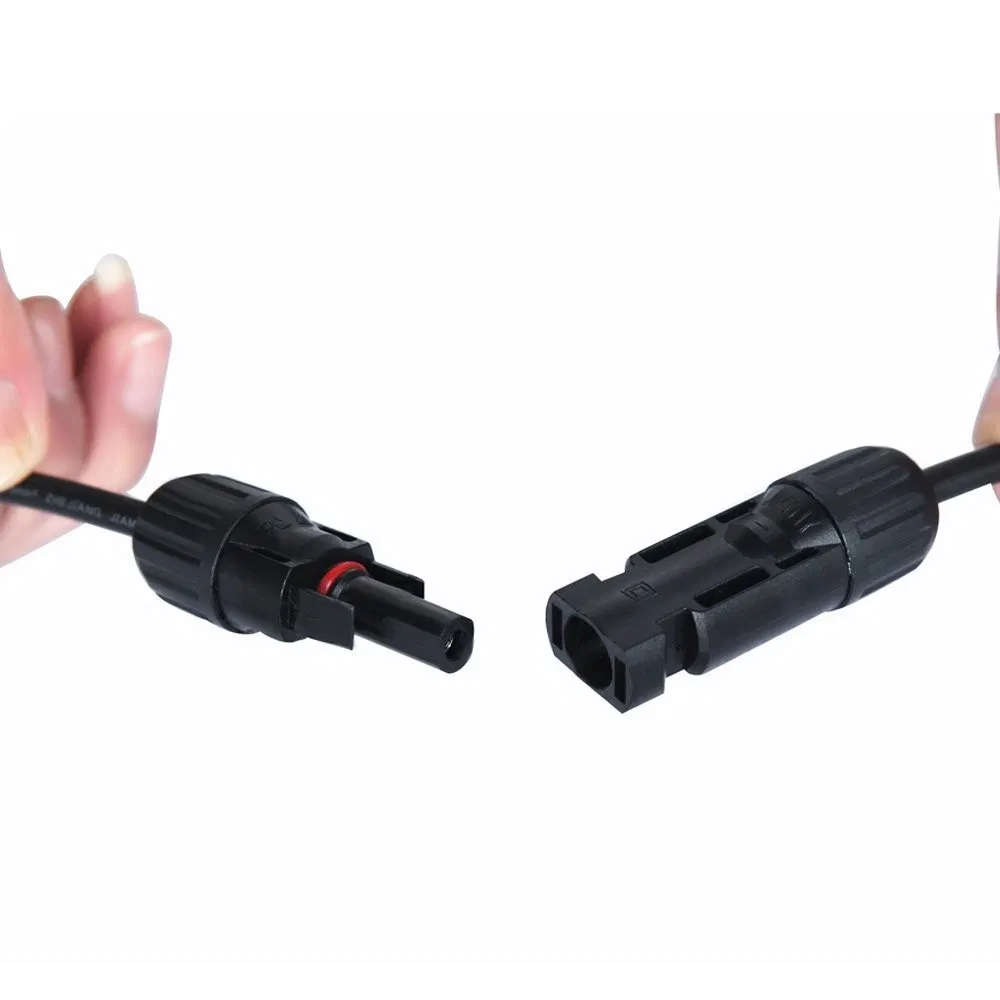

Each panel comes equipped with a 0.9m cable (4mm2) and standard waterproof MC4 connectors for secure and easy integration into your power system.
