1200W Solar Portable Power Station System Home Car Use Kit with MPPT Controller External Battery Flashlight Solar Panel Source

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Certificate:

IEC, Ec, RoHS, Soncap, Pvoc, Coc, Saso, FCC

Product Size:

37*23*20.5 Cm

Weight:

N.W. 9.1 Kg / G.W. 10.4 Kg

Warranty:

5 Years

Origin:

Jiangsu, China

Capacity:

50,000 Pieces/Year

Packaging:

Export Carton with Foam

Package Size:

49.00cm * 19.00cm * 29.50cm

Product Description

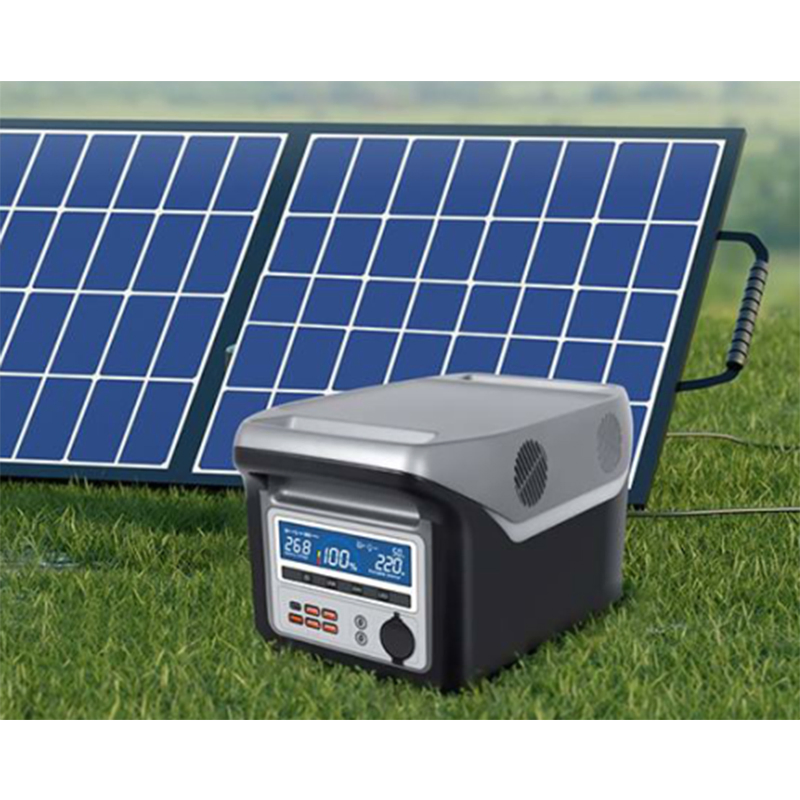

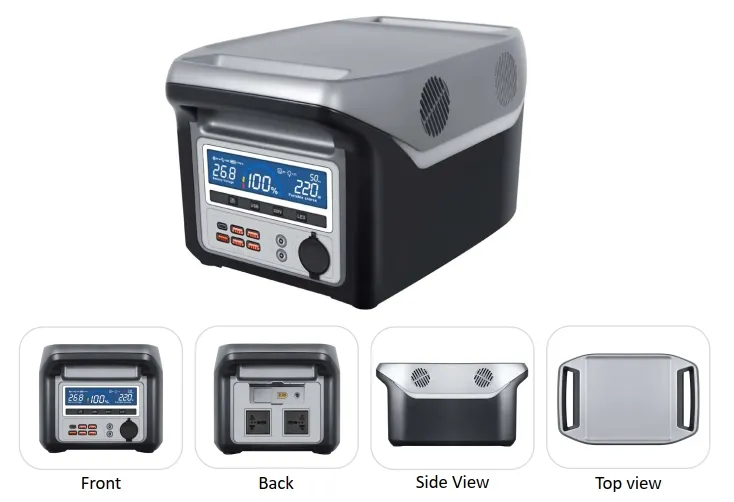

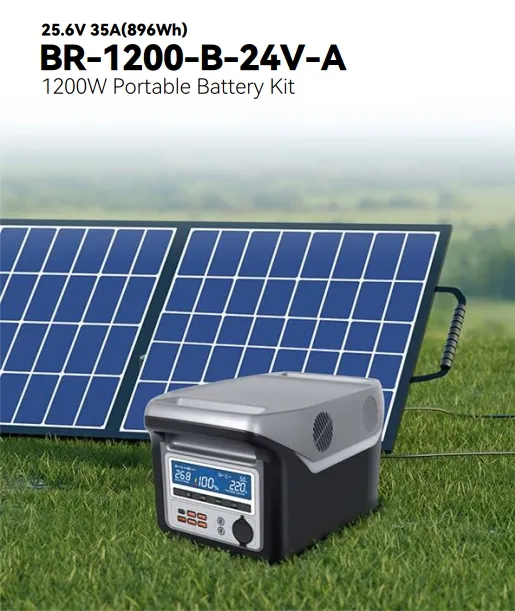

Solar Portable Power System Overview

Application Scenarios

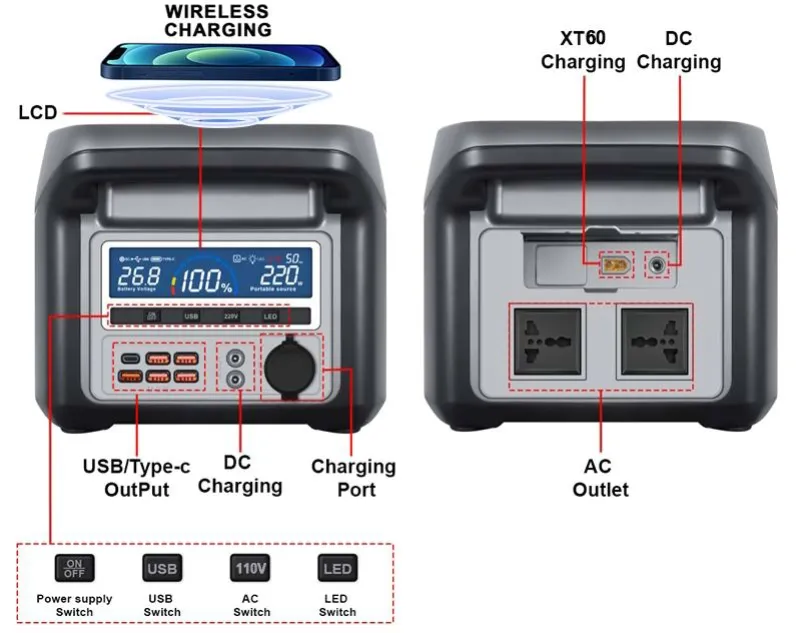

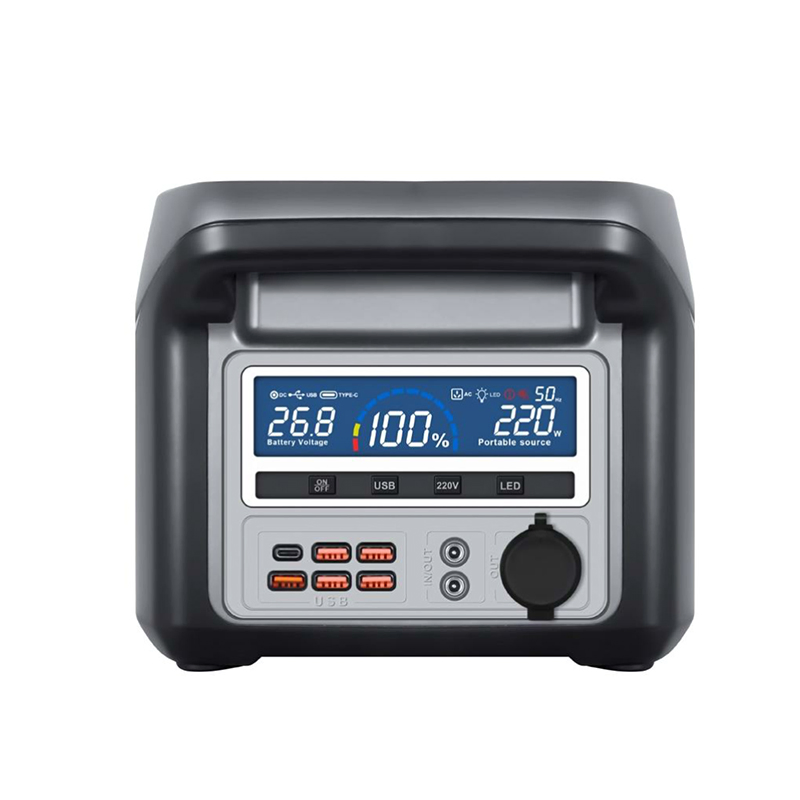

Interface & Function Analysis

Switch button: Main power supply control for the panel.
USB switch: Controls output for USB and TYPE-C ports.
AC switch: Controls AC 220V/110V current output.
LED light switch: Controls emergency lighting and dimming.
Type-C & USB: High-speed charging for mobile devices and tablets.
DC Output/Input: 24V5A DC output; supports 24V5A/29.2V5A input.
Cigarette lighter: Provides 12V10A DC power supply.
AC Output Socket: Supports max 1200W load (220V/110V, 50HZ/60HZ).
XT60 Fast Port: High current charging (max 15A) via 36V PV panels.
Wireless Charger: Supports 15W wireless output power.
UPS Function: Equipment features integrated Uninterruptible Power Supply.
Battery: LiFePO4 with 4500+ cycles and pure sine wave output.

Technical Parameters

System Specification
Battery Type	LiFePO4
Output Voltage	AC110V / USB5V / DC24V
Input Voltage	29.2V5A / DC 36V5A / XT60 36V 15A
Product Dimensions	372320.5 CM
Weight	N.W. 9.1 KG / G.W. 10.4 KG
USB Ports	5QC3.0; TYPE-C: 1QC3.0
DC Interface	2*5521 (24V 5A Output / 29.2V 5A Input)
AC Sockets	2 Universal Sockets
Wireless Charging	15W
Built-in LED	10W Emergency Light
Optional Accessories	PV panel: 36V 400W

Operating Modes & Features:

Automatic charging by connecting solar panels to the input terminal.
Compatible with DC & AC equipment (TV, fans, computers, lights).
Comprehensive protection: Overload, short circuit, low pressure, high pressure, and high temperature automatic shut-off.
Triple charging modes: Solar, AC wall outlet, and Car charging.

Production & Certificates

Competitive Product Range

Solar Street & LED Lighting (15W-150W)
Solar Garden & Landscape Lights (5W-30W)
Solar Batteries (4.5Ah-3000Ah)
Poly & Mono Solar Modules (5W-360W)
Solar Controllers (5A-60A, IP68)
Solar Home Systems/Kits (5W-10KW)

Payment & Delivery

Method	Terms
T/T (EXW/FOB)	30% Advance, 70% Before Delivery
T/T (CFR/CIF)	30% Advance, 70% Against Copy of B/L
L/C	Acceptable for amounts above USD 100,000
West Union/PayPal	For amounts less than USD 1,000
Delivery Time	15-20 Working Days after down payment

Frequently Asked Questions

What type of battery is used in this power station?

The system utilizes high-quality LiFePO4 (Lithium Iron Phosphate) batteries, known for their safety and long lifespan.

How many cycles does the battery support?

The internal lithium batteries are designed for a minimum of 4,500 charging cycles.

What is the maximum output power for AC appliances?

The AC load supports a maximum output power of 1200W. It is recommended not to exceed this to prevent damage.

Can I charge the power station using a solar panel?

Yes, you can charge it via solar panels through the standard DC input or the XT60 fast charging port (supports 36V panels).

Does this unit support medical or sensitive electronic equipment?

Yes, the device provides a pure sine wave output, which is safe for sensitive electronics and features a UPS function for continuous power.

What kind of protection does the system offer?

The system includes automatic protection against overload, short circuits, low/high pressure, and high temperatures.
