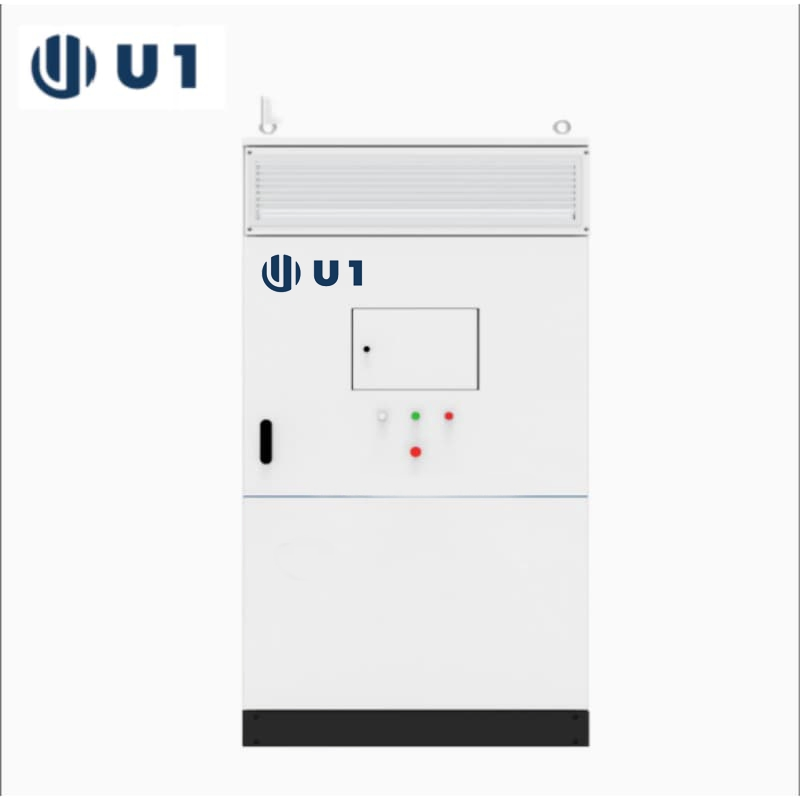

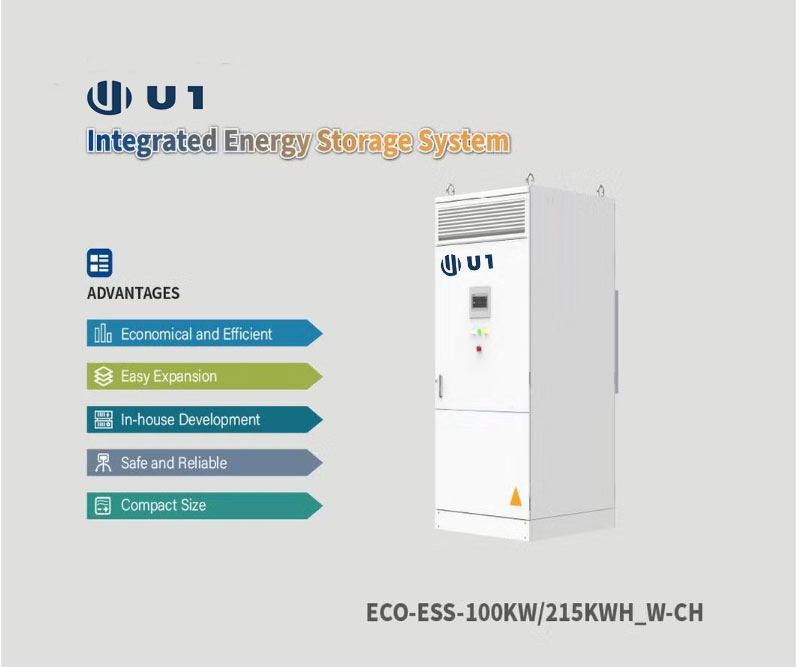

215kwh Emergency Backup Power Supply Solar Lithium Battery Energy Storage Container for Power System
215kwh Emergency Backup Power Supply Solar Lithium Battery Energy Storage Container for Power System
215kwh Emergency Backup Power Supply Solar Lithium Battery Energy Storage Container for Power System
215kwh Emergency Backup Power Supply Solar Lithium Battery Energy Storage Container for Power System
215kwh Emergency Backup Power Supply Solar Lithium Battery Energy Storage Container for Power System
1 / 5
215kwh Emergency Backup Power Supply Solar Lithium Battery Energy Storage Container for Power System
215kwh Emergency Backup Power Supply Solar Lithium Battery Energy Storage Container for Power System
215kwh Emergency Backup Power Supply Solar Lithium Battery Energy Storage Container for Power System
215kwh Emergency Backup Power Supply Solar Lithium Battery Energy Storage Container for Power System
215kwh Emergency Backup Power Supply Solar Lithium Battery Energy Storage Container for Power System

215kwh Emergency Backup Power Supply Solar Lithium Battery Energy Storage Container for Power System

Customization: Available
Weight: 2.6t
Warranty: 2 Years
Send Inquiry

Product Description

Basic Specifications

Model NO.:U1-03-215
Cycle Life:8000 times
Nominal Capacity:215kWh
Battery Type:LiFePO4
Certification:ISO9001:2000 / CE
Protection Grade:IP65
Rated Voltage:768 V
Dimensions:1250*1300*2350 mm

Product Overview

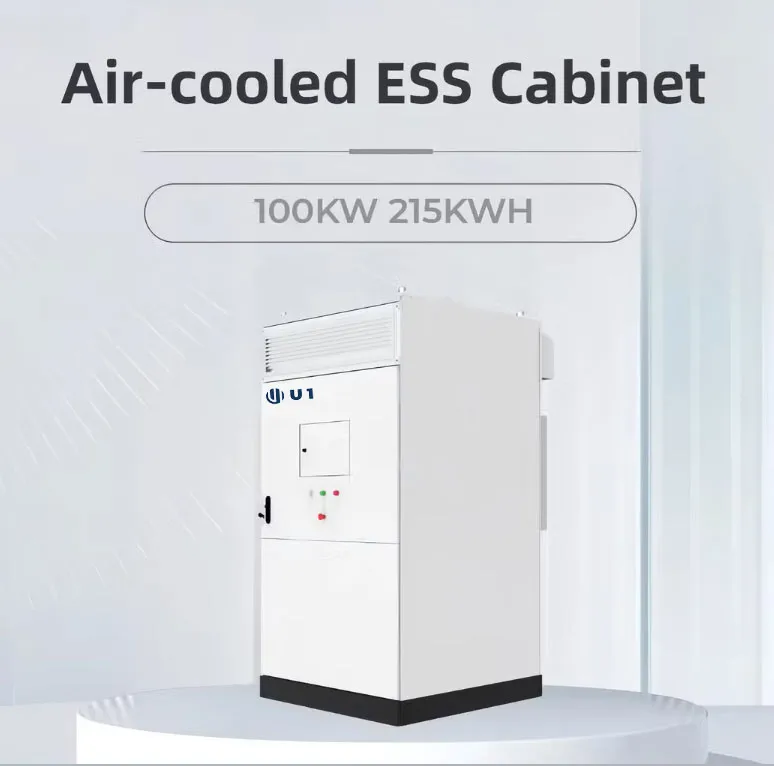

Energy Storage Container

The 215kWh commercial & industrial energy storage system adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density, which significantly improves the economy, safety and construction convenience of ESS projects.

💎 Compact Design 1.4m² footprint only, easy transportation & fast installation.
⚡ High Integration 215kWh energy in one cabinet to ensure long-term endurance.
🌀 Efficient Cooling Optimal in-PACK duct design, high-efficient cooling and low energy consumption.
🛡️ Ultimate Safety In-PACK fire warning and protection with Aerosol, prevent heat diffusion.

Product Parameters

DC Battery Parameters

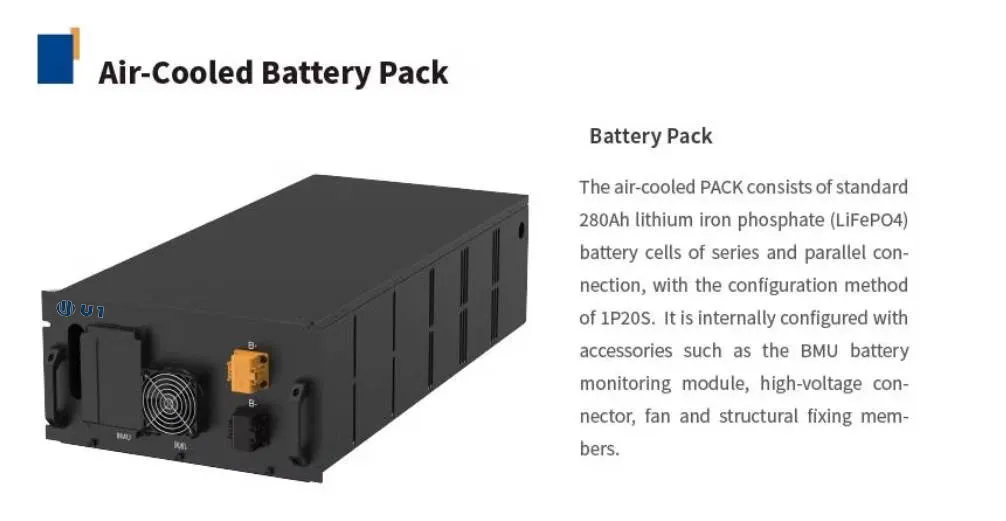

Battery Cell TypeLFP 280Ah
Battery System Configuration215kWh / 1P240S
Battery Voltage Range600~876V DC
System Rated Voltage768V DC
AC Side Parameters
AC Rated Power100kW
Grid Rated Voltage400V AC
Rated Grid Frequency50Hz
AC Current Distortion Rate<3%
System Parameters
Energy Conversion Efficiency≥90%
Protection LevelIP55
Operating Temperature-25~55ºC
Fire Suppression SystemAerosol + Active Warning

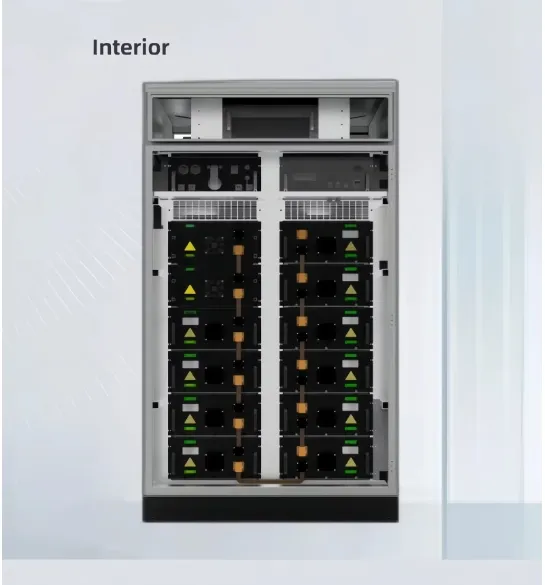

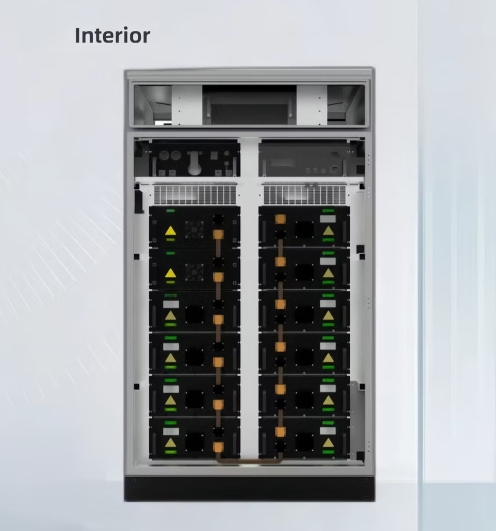

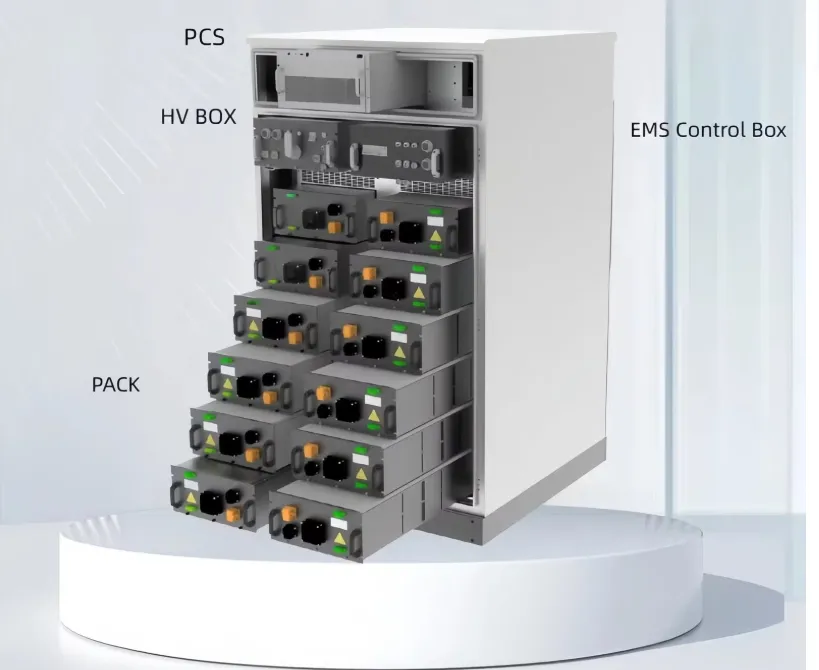

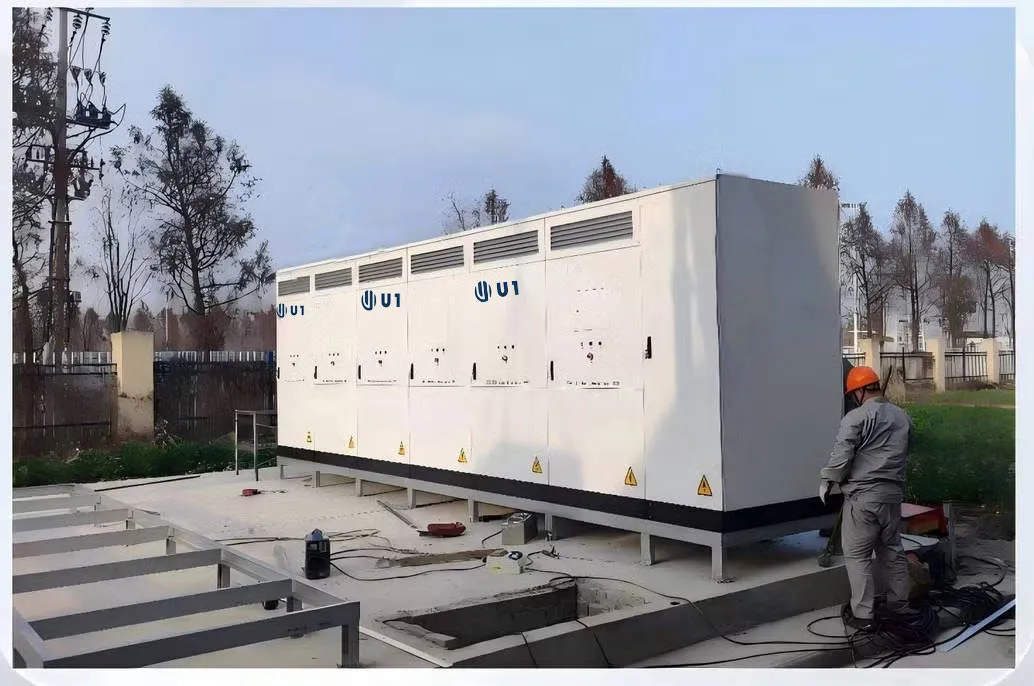

Detailed Photos

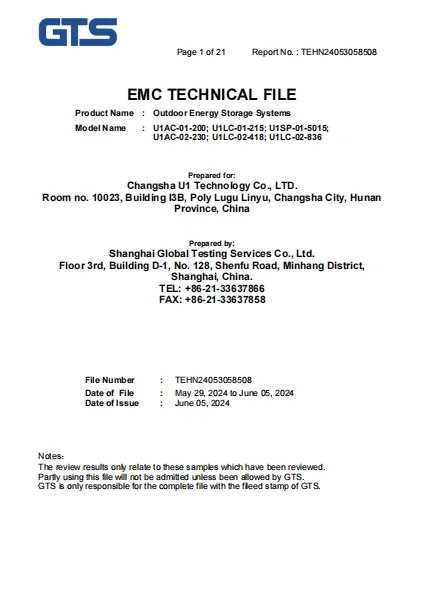

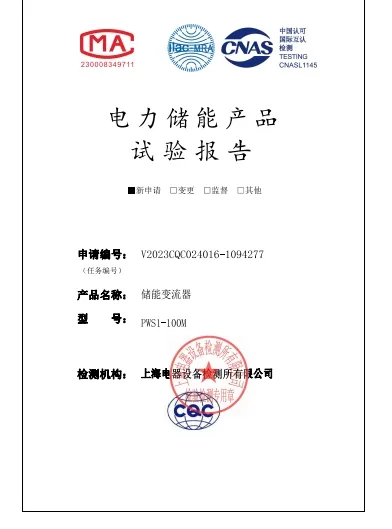

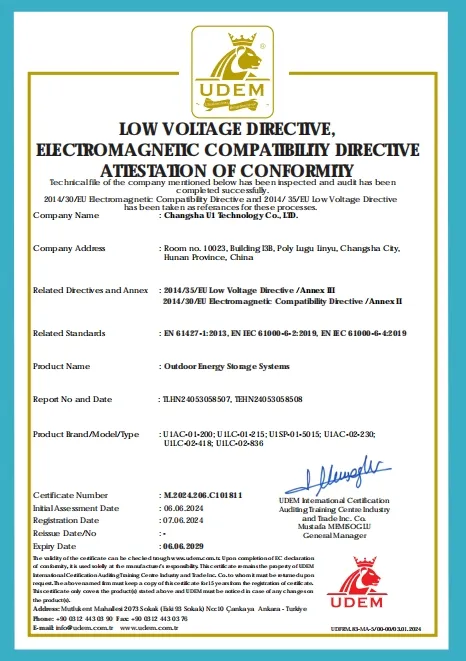

Certifications

Frequently Asked Questions

Q: Are you a manufacturer?
A: Yes, we are a professional factory specializing in advanced energy storage solutions.
Q: Does your company provide customized manufacturing?
A: We provide full OEM/ODM services. Our experienced R&D team develops high-efficiency solutions tailored to specific customer requirements.
Q: What is the typical lead time for delivery?
A: For standard items in stock, delivery is usually within 1 month. Production times for custom orders may vary based on specifications.
Q: What are the primary applications for this 215kWh system?
A: This system is designed for commercial and industrial (C&I) applications, including power demand management, emergency backup, and integration with solar PV systems.
Q: How do you ensure the safety of the battery container?
A: The system features an IP55/IP65 protection rating, active aerosol fire suppression, and a modular design that prevents thermal runaway diffusion between packs.
Q: What are your standard terms of payment?
A: For orders over $3000, we typically require a 30% deposit and 70% before shipment, or terms as negotiated between both parties.
