Customization: Available
Container Size: 6500*2800*2896mm
Weight: 44t
Send Inquiry

Product Description

⚡ Overview
Model NO.JSKJ-ESS-DC5000-ANominal Voltage1331.2V
Nominal Capacity3768ahWarranty5 Years
Cycle Life8000Cell TypeLfpbattery
Cell Configuration12p416sRated EnergyExpandable to 100mwh+
Charge/Discharge Rate0.5pOperating Voltage Range1164.8-1497.6V
Cooling MethodLiquid + Air CoolingWaterproof DesignIP54
System ArchitectureTriple Fire ProtectionHS Code8507600090
📦 Product Description
Battery Backup Storage System

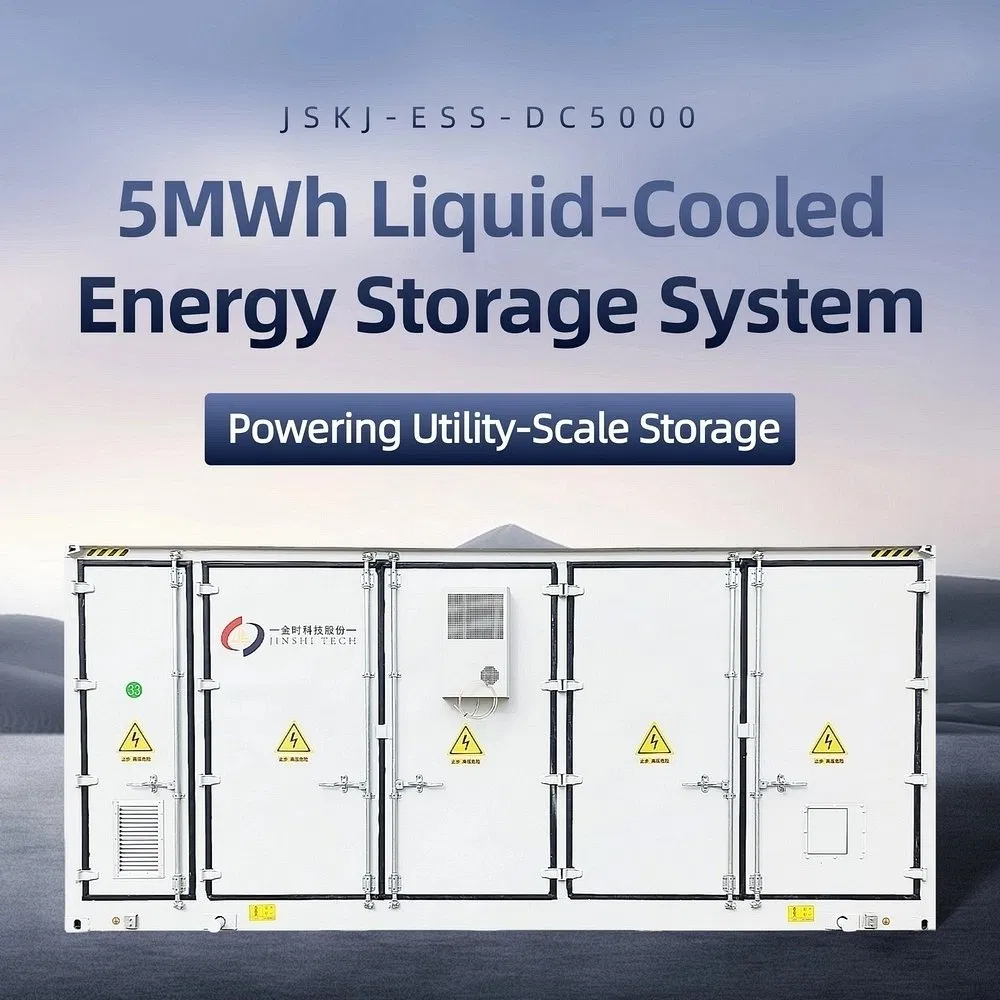

5MWH BATTERY STORAGE CONTAINER

The 5MWh liquid-cooled system enhances energy density by 30% and extends battery life by 50% via AI-driven thermal management. Ideal for grid-side peak shaving, frequency regulation, and industrial energy arbitrage.

🛡️
24/7 Monitoring: Continuous BMS monitoring for maximum safety.
🔥
Fire Suppression: Supports NOVEC 1230 and Liquid Nitrogen agents.
🔗
Scalability: Multi-cabinet parallel connection for easy expansion.

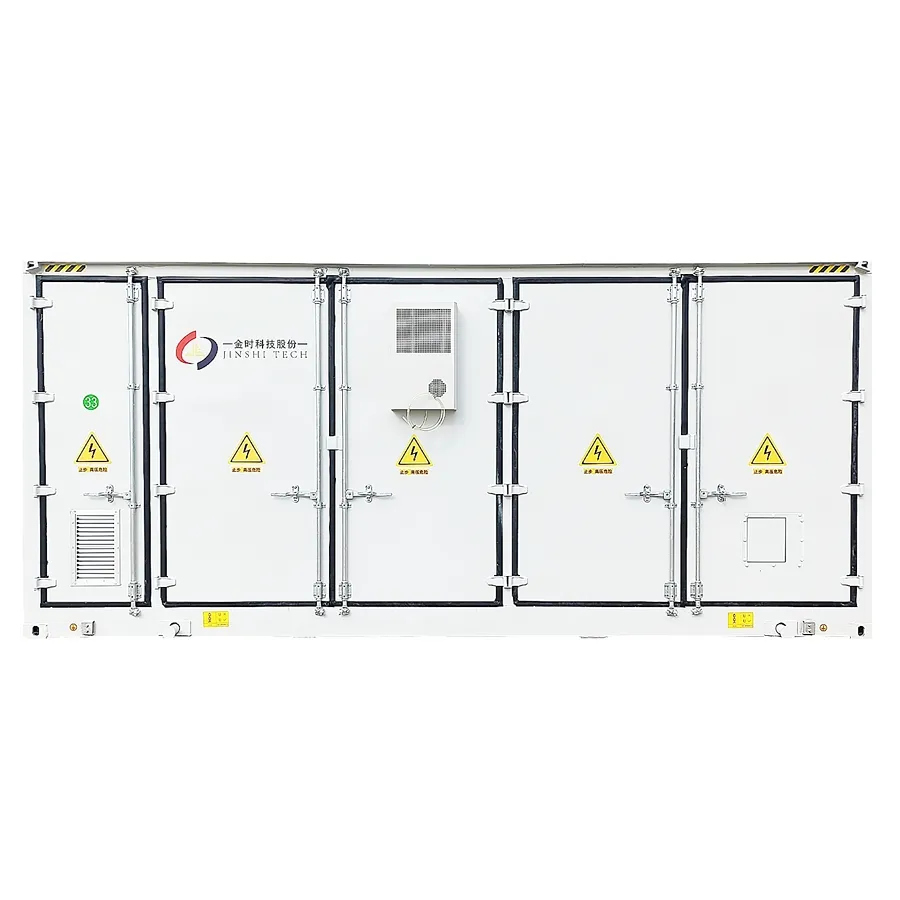

Battery Storage Detail 1

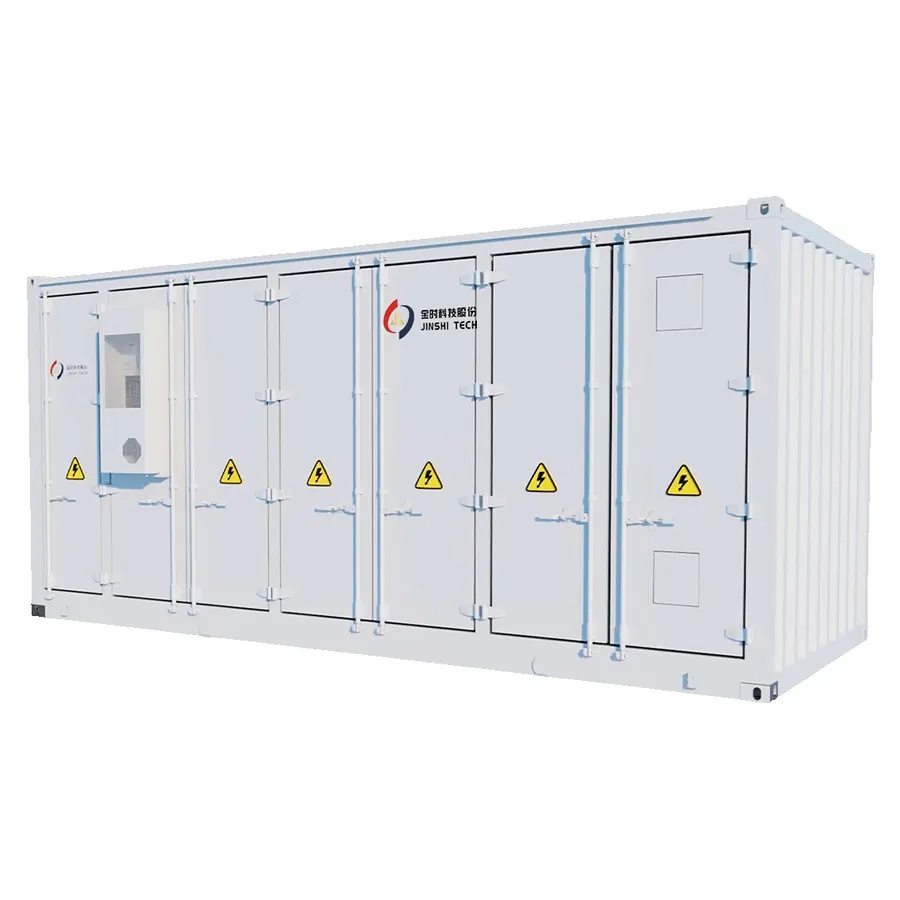

Battery Storage Detail 2

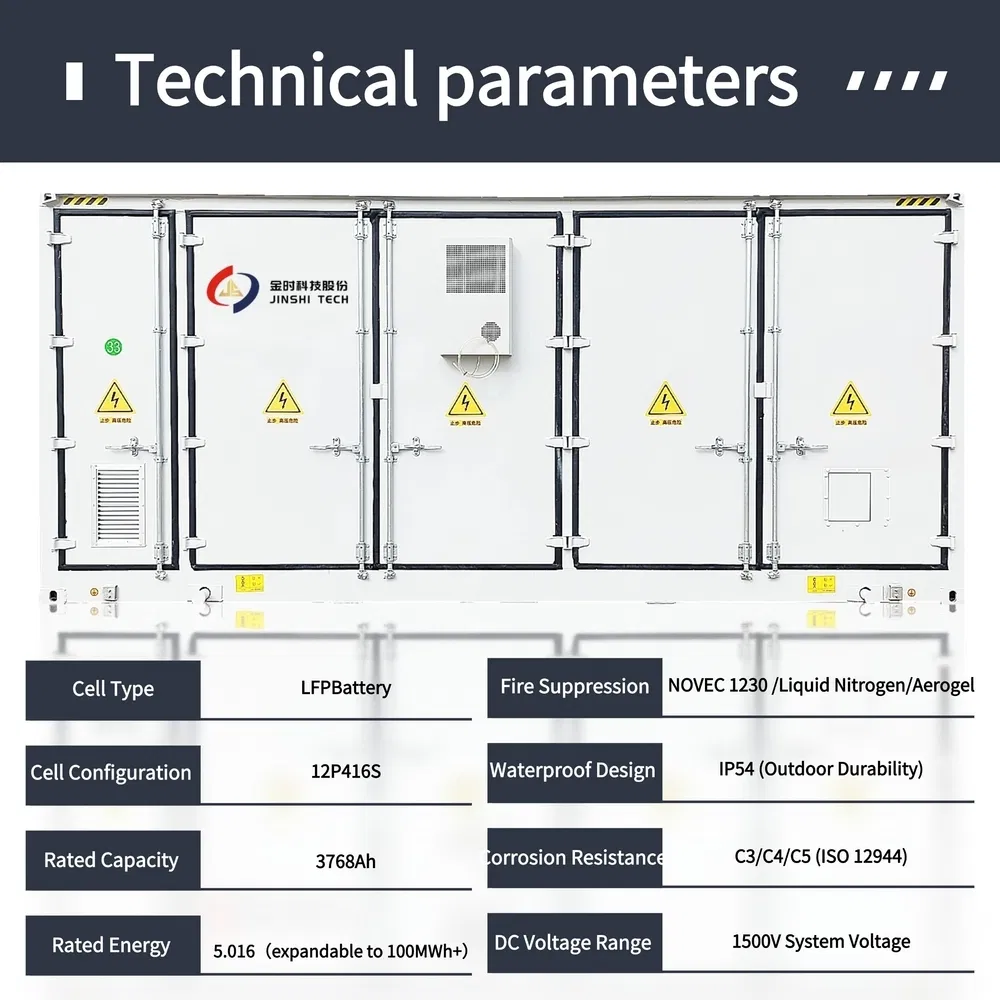

📊 Technical Parameters
TECHNICAL SPECIFICATIONS
Rated Capacity3768Ah
Rated EnergyExpandable To 100MWh+
Standard Charge/Discharge Current1884A/1884A
Fire DetectionTemp, CO, Smoke Sensors
Corrosion ResistanceC3/C4/C5 (ISO 12944)
DC Voltage Range1500V System Voltage
Application ScenariosInland, Plateau, Coastal
Technical Layout 1
Technical Layout 2

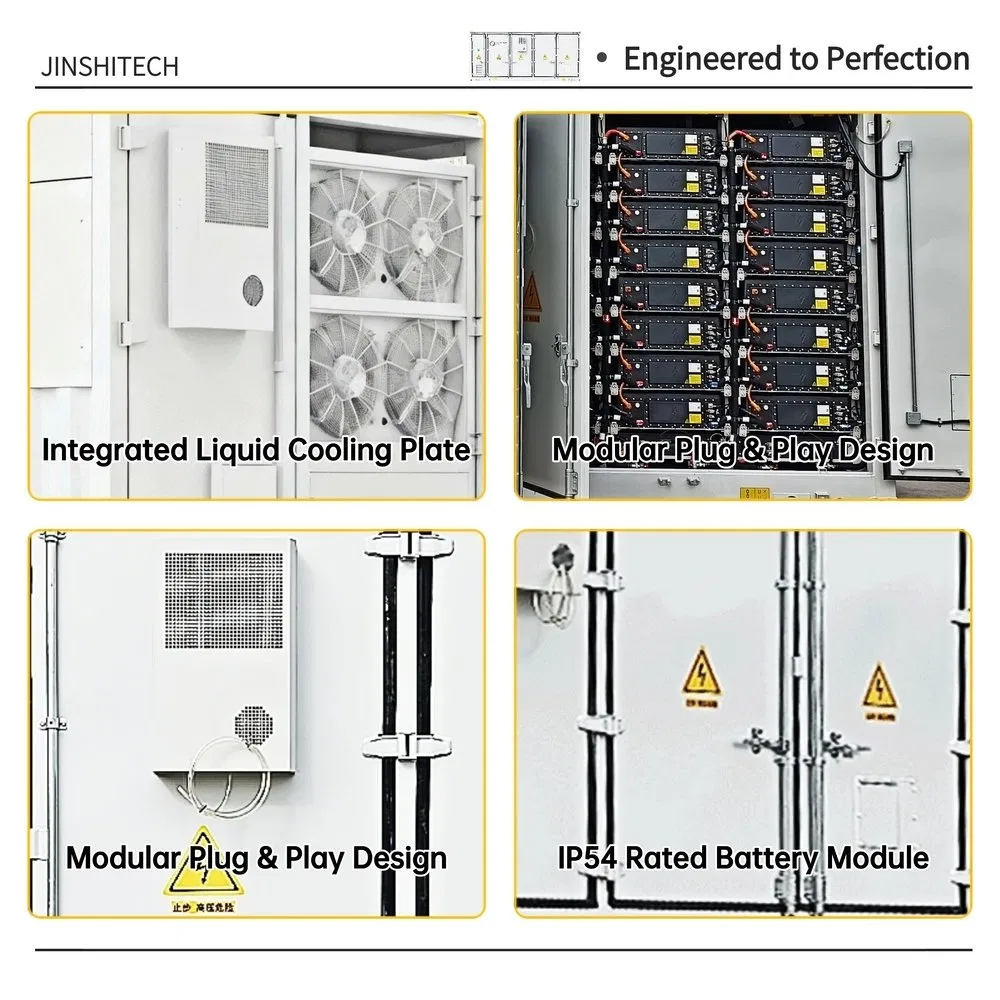

📸 Detailed Photos
Triple-Layer Fire Protection: Three-level fusing system with targeted explosion discharge.
Robust Protection: IP54 waterproof rating and specialized corrosion resistance for all environments.
Unit Photo 1

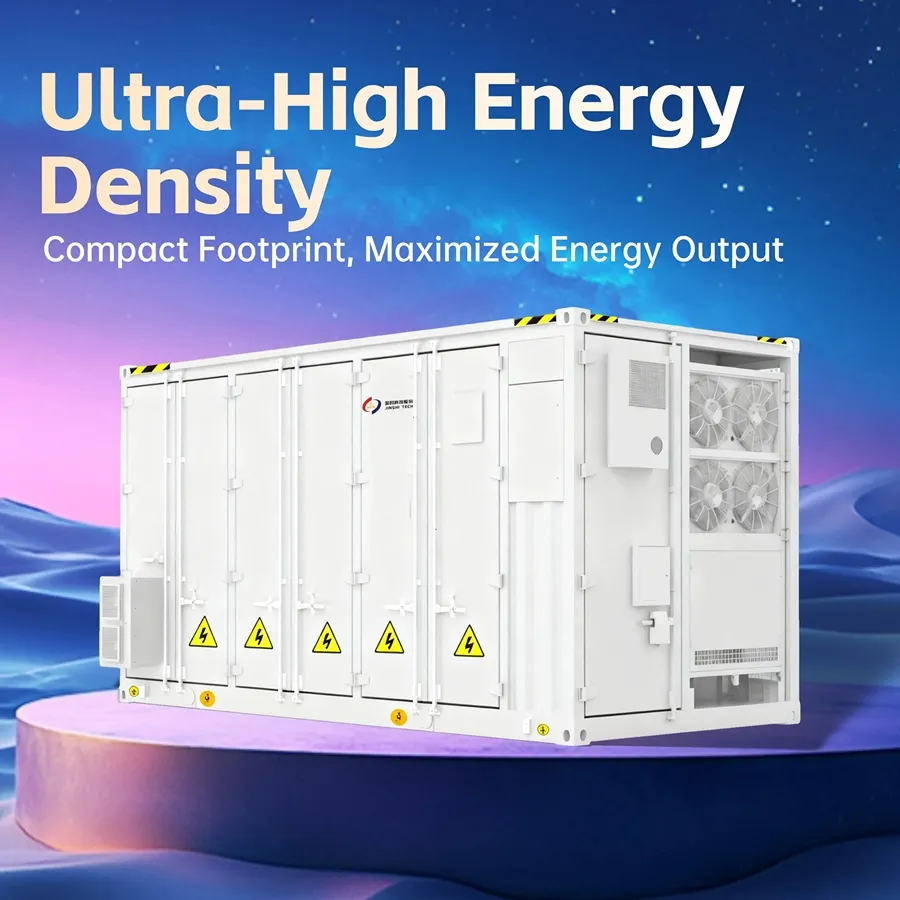

Unit Photo 2
Unit Photo 3
System Internal Architecture System Dimensions Outdoor Installation View
❓ FAQ
Q1: Are you a manufacturer or a trading company?
A: We are a manufacturer integrating industry and trade, specializing in high-capacity energy storage solutions.
Q2: Can I customize the logo and appearance?
A: Yes, we support comprehensive customization including logo, color schemes, and physical dimensions to meet your project requirements.
Q3: What payment methods are accepted?
A: We support various payment methods including T/T, Western Union, and PayPal. Specific terms can be negotiated during the contract phase.
Q4: How do you handle shipping and logistics?
A: We arrange transportation via sea, air, or land based on the destination and cargo conditions, ensuring the most efficient delivery method.
Q5: How can I obtain an accurate price quote?
A: Please provide your specific technical requirements and project scale. Our team will design a customized solution and provide a detailed quotation.
Q6: What is the standard lead time for a 5MWh system?
A: Lead times vary based on customization requirements and current production capacity, typically discussed during the initial consultation.
