25 Years Lifespan 3kw 5kw 6kw 7kw 8kw 9kw 10kw Rooftop on Grid Solar Energy System

1 / 5

25 Years Lifespan 3kw 5kw 6kw 7kw 8kw 9kw 10kw Rooftop on Grid Solar Energy System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

LF1-10KW-ON

Condition

New

Certification

ISO, CB, CE

Application

Home

Inverter

Pure Sine Wave Inverter

Keyword

Photovoltaic Solar Energy System

Solar Panel

Mono Solar Panel

Load Power

1-10kw

Output Voltage

220V;380V/400V

Output Frequency

50/60Hz

Product Description

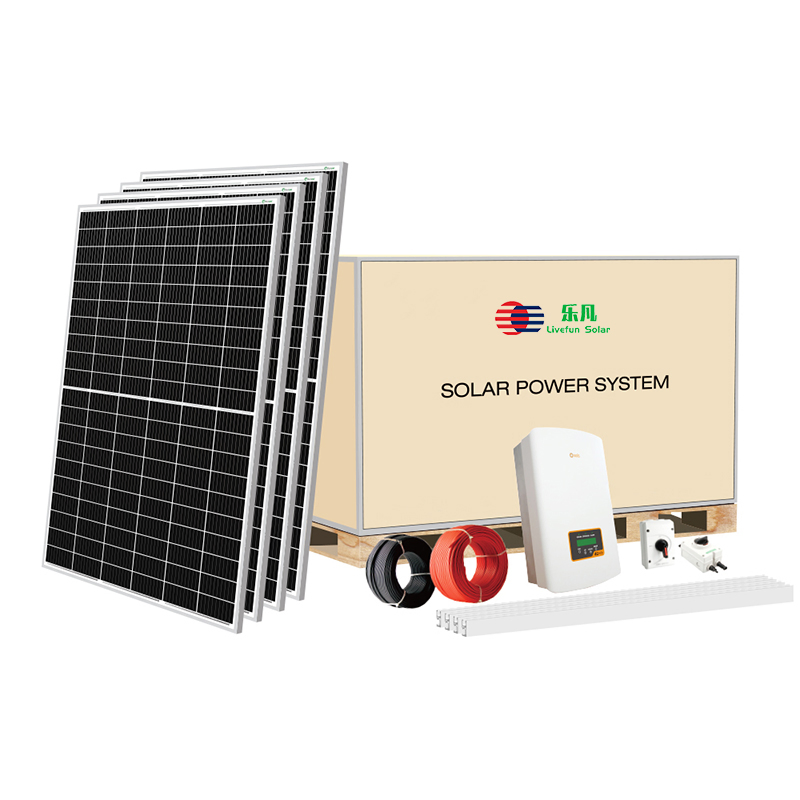

25 Years Lifespan Rooftop On-Grid Solar Energy System (3kw - 10kw)

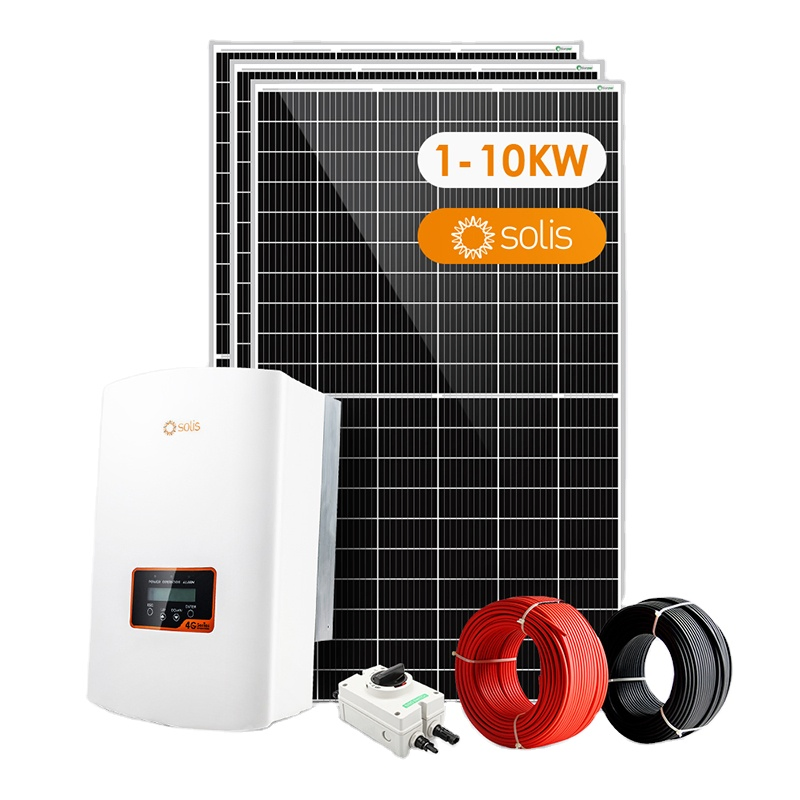

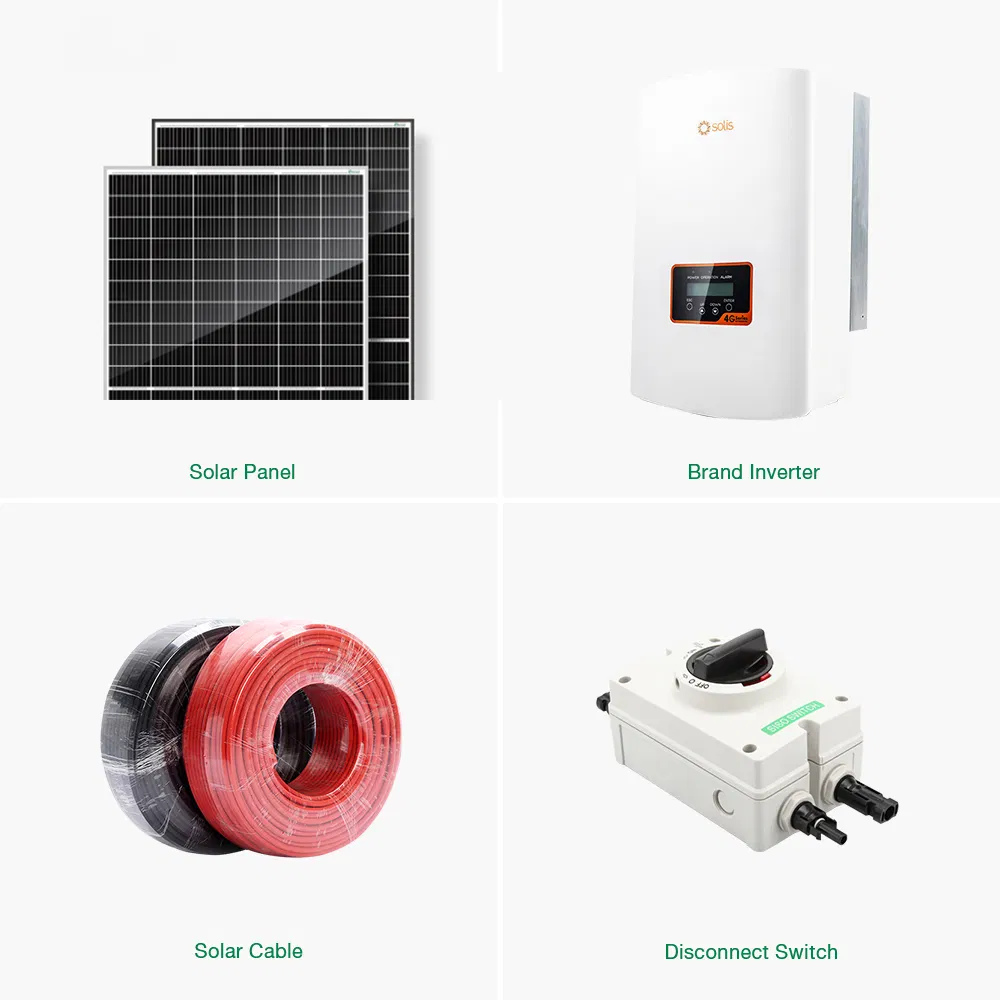

System Components Specifications

Components	LF1KW-ON	LF2KW-ON	LF3KW-ON	LF4KW-ON	LF5KW-ON
410W Solar Panel	3 Piece	5 Piece	8 Piece	10 Piece	14 Piece
DC Isolation Switch	1 Set	1 Set	1 Set	2 Set	2 Set
Grid Tied Inverter	1KW	2KW	3KW	4KW	5KW
AC Isolation Switch	1 Set	1 Set	1 Set	1 Set	1 Set
DC Cable 4mm2	100m	100m	100m	200m	200m

Components	LF6KW-ON	LF7KW-ON	LF8KW-ON	LF9KW-ON	LF10KW-ON
410W Solar Panel	16 Piece	18 Piece	20 Piece	22 Piece	26 Piece
DC Isolation Switch	2 Set	2 Set	2 Set	2 Set	2 Set
Grid Tied Inverter	6KW	7KW	8KW	9KW	10KW
AC Isolation Switch	1 Set	1 Set	1 Set	1 Set	1 Set
Mounting System	1 Set Included

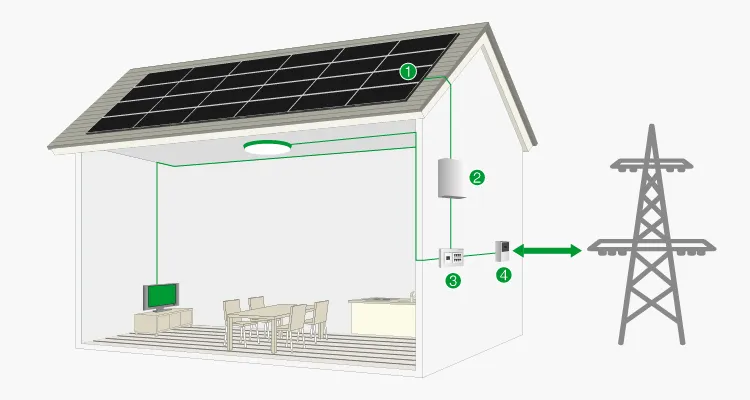

System Architecture

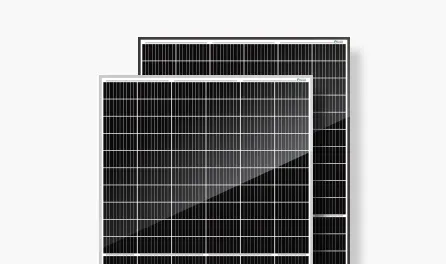

Mono Solar Panel

Peak Power: 410W | Cell Orientation: 144 cells
Max Power Voltage: 42.3V | Max Power Current: 9.69A
Dimensions: 2008×1002×40 mm | Weight: 22.5 kg
Frame: Silver/Black Anodized Aluminium Alloy

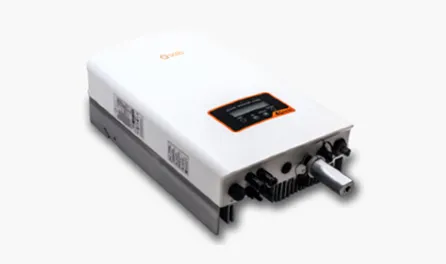

On Grid Inverter & Data Logging

Max. DC Input Power: Up to 10KW | Max. Voltage: 600V
MPPT Voltage Range: 50-500V
Rated Grid Voltage: 208/240V (US) or 220/230V (EU)
Connectivity: Wifi Stick, Lan & GPRS Optional.

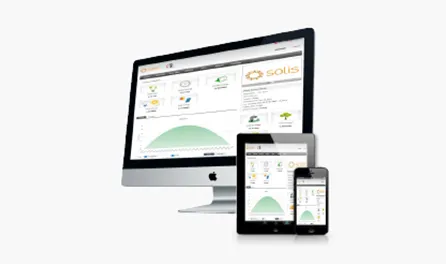

Monitoring System

Data Logging Stick allows real-time information retrieval. Accessible via Wi-Fi/Lan/GPRS on Web Servers and Mobile Apps (iOS & Android).

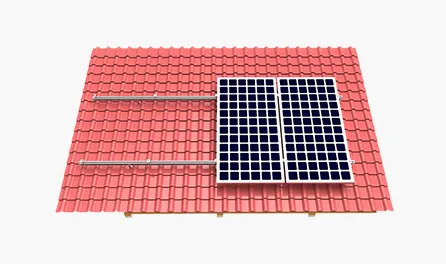

PV Mounting System

Material: AI6005 & SUS304 Bolt
Includes: Mounting Rail, Mid & End Clamps, L Foot, and Grounding Clips.
Compatibility: Asphalt Shingle, Tile, or Metal Roofs.

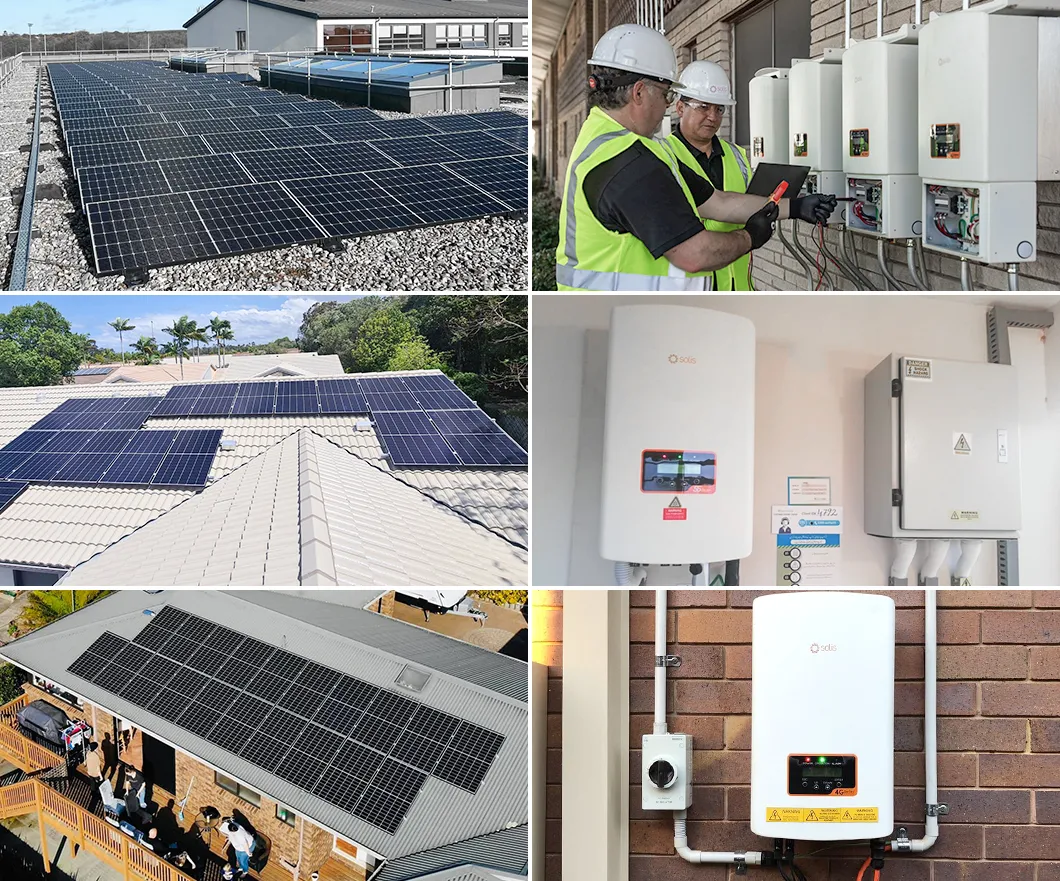

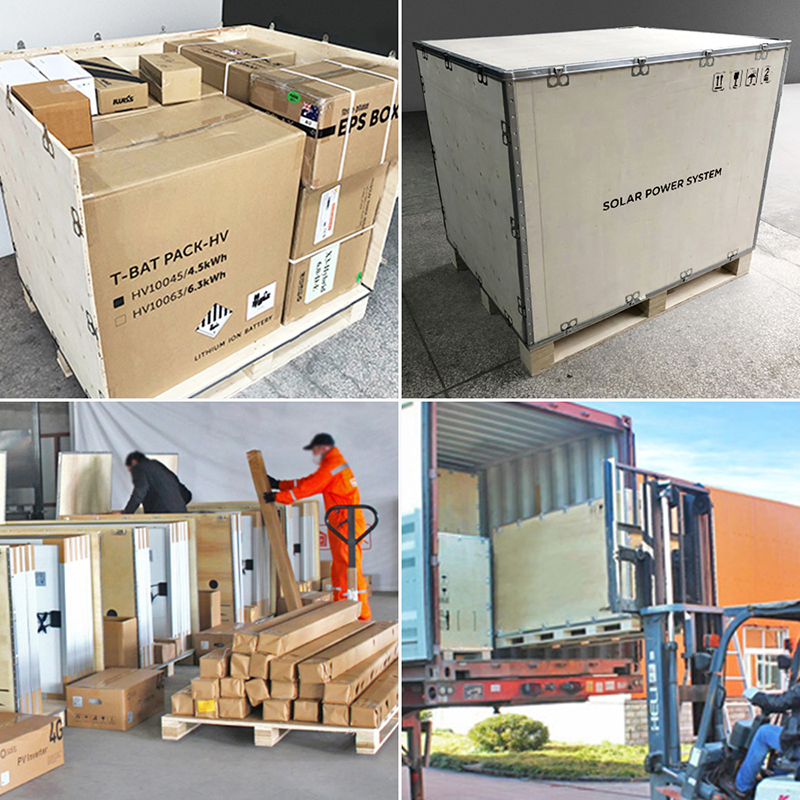

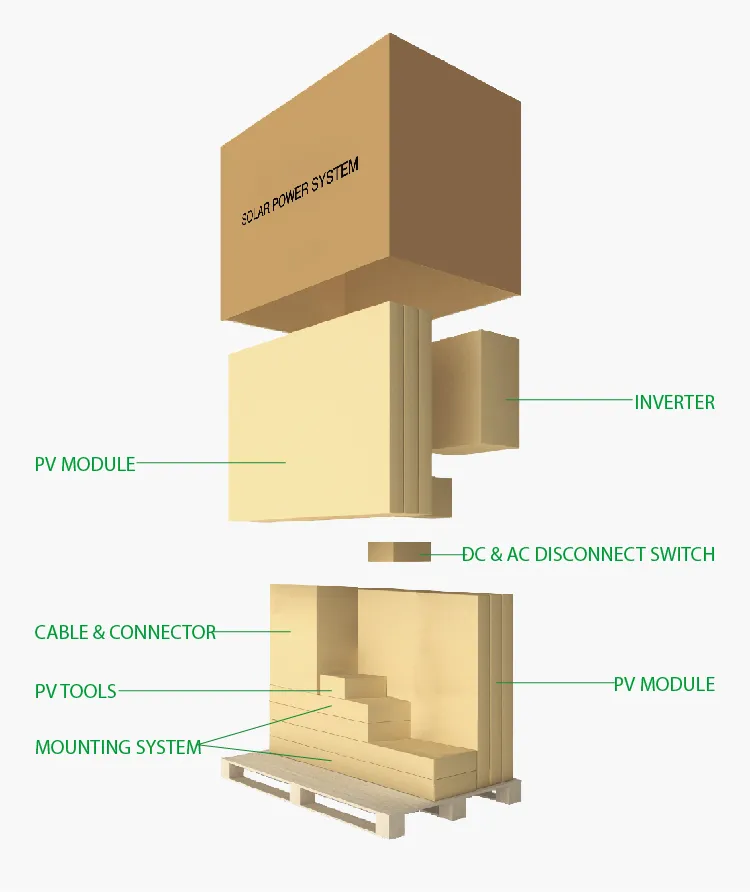

Packaging & Real Cases

Frequently Asked Questions

What is the estimated lifespan of the on-grid solar system?

The system is designed for a long-term lifespan of up to 25 years, with solar panels typically carrying a 10-year warranty on materials and a 25-year linear power output warranty.

Does the system include all necessary installation tools?

Yes, the package includes complete technical support and PV tools such as cable cutters, strippers, and MC4 crimpers for assembly.

How can I monitor the performance of my solar system?

You can monitor the system in real-time through a Data Logging Stick via Wi-Fi, LAN, or GPRS. An app is available for PC, iOS, and Android devices.

Is this system suitable for different roof types?

Yes, the PV mounting system is versatile and includes options for asphalt shingles, hanger bolts, and various clamp sizes (35-50mm) to fit different roof structures.

What certifications do these products hold?

Our solar energy systems and components are fully certified with ISO, CB, CE, and TUV standards, ensuring safety and quality.

Are OEM and ODM services available?

Yes, we accept both OEM and ODM requests to customize the solar energy system according to your specific project requirements.
