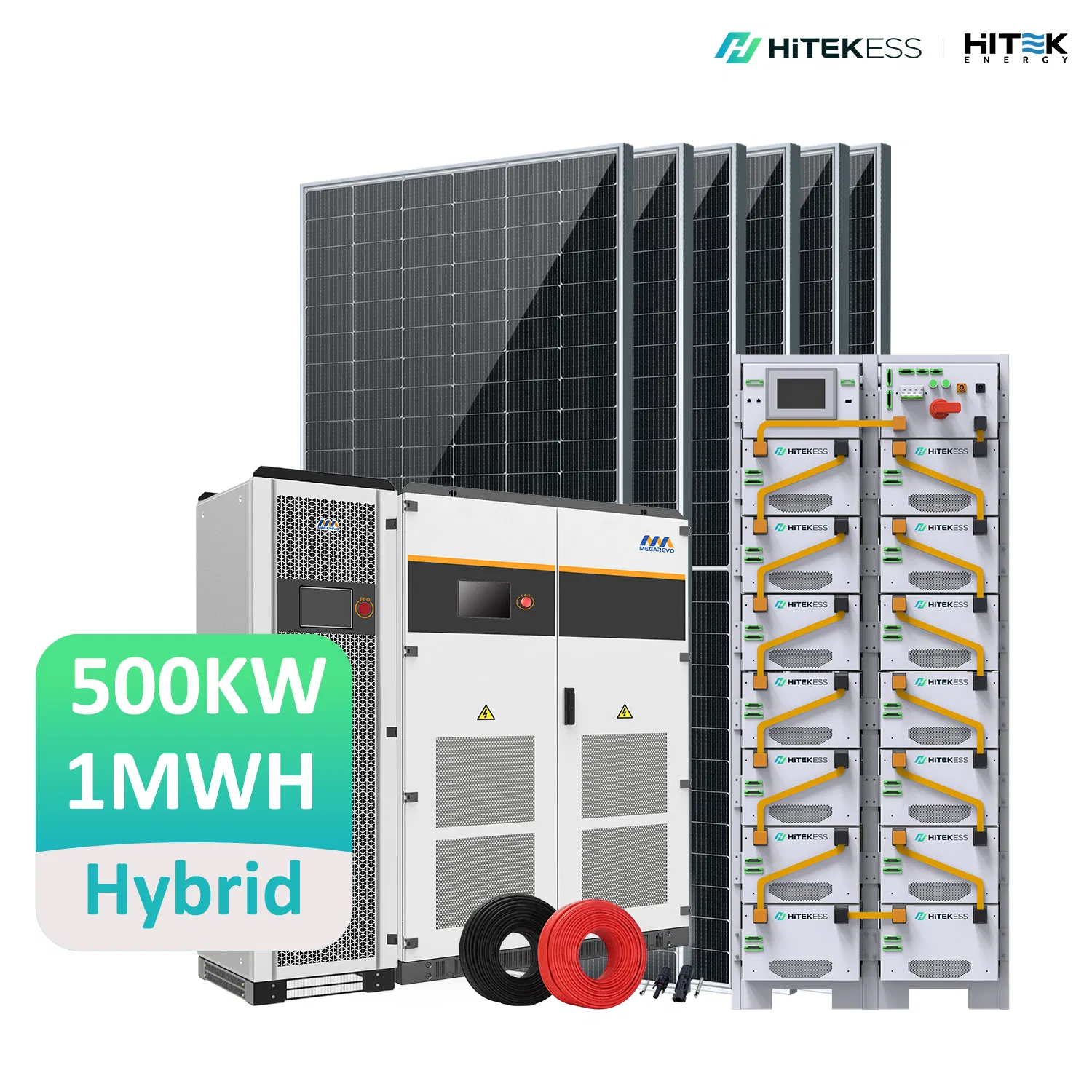

Hitek Energy Cost-Effective Renewable Industrial 500kw 1MW Hybrid off Grid Solar Power Energy Storage Emergency Backup Bess Container System 1mwh 2mwh

Customization:	Available
After-sales Service:	Available
Warranty:	5 Years

Send Inquiry

Product Description

Basic Information Overview

Model NO.HT500KW-HY

ConditionNew

CertificationISO, CE

ApplicationHome, Industrial, Commercial

System TypeHybrid Solar System

Output Voltage380V/400/415VAC 50Hz 3phase

Solar Panel TypeMonocrystalline Solar Panel

Battery TypeLead Acid, Lithium Ion, LiFePO4

MonitoringWiFi/LAN/GPRS

Capacity Range30KW-500KW / 1MWh Energy Storage

Product Description

Warranty & Reliability

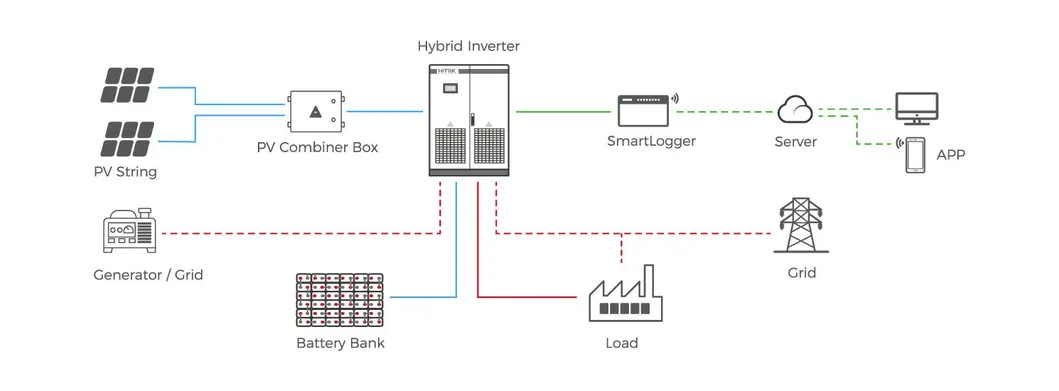

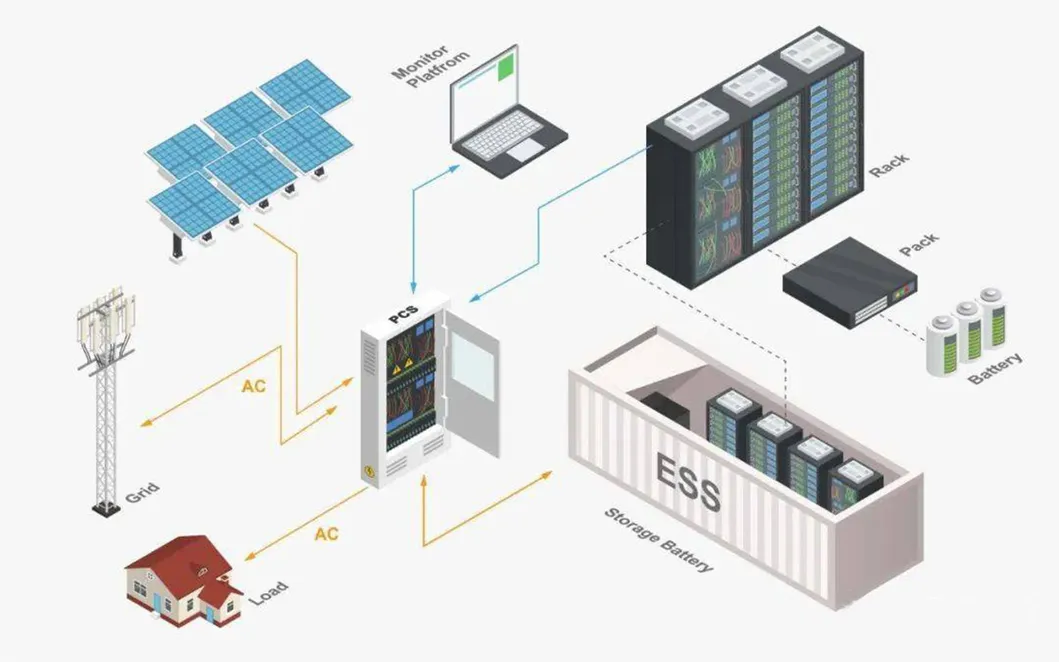

How It Works

This hybrid solar system is a grid-tied renewable energy solution that includes battery storage. It utilizes solar panels to produce energy during the day, while storing excess power in batteries for use at night or during outages. This dual capability allows for seamless operation even when the grid is unavailable.

Technical Specifications

Parameter	HT30KW-HY	HT50KW-HY	HT100KW-HY	HT150KW-HY	HT250KW-HY	HT500KW-HY
AC Rated Power	30KW	50KW	100KW	150KW	250KW	500KW
Solar Panels	68PCS	102PCS	204PCS	289PCS	510PCS	1020PCS
Solar Power Total	38.08KW	57.1KW	114.24KW	161.84KW	285.6KW	571.2KW
Battery Capacity	40.96KWh	100.35KWh	200.7KWh	315.3KWh	473.0KWh	946.1KWh
Inverter Model	HTMPS30	HTMPS50	HTMPS100	HTMPS150	HTMPS250	HTMPS500

Core System Components

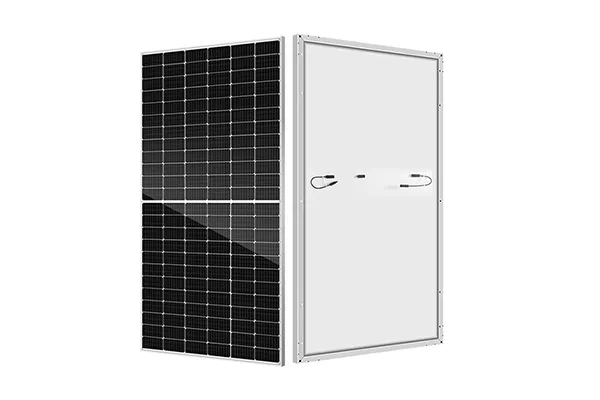

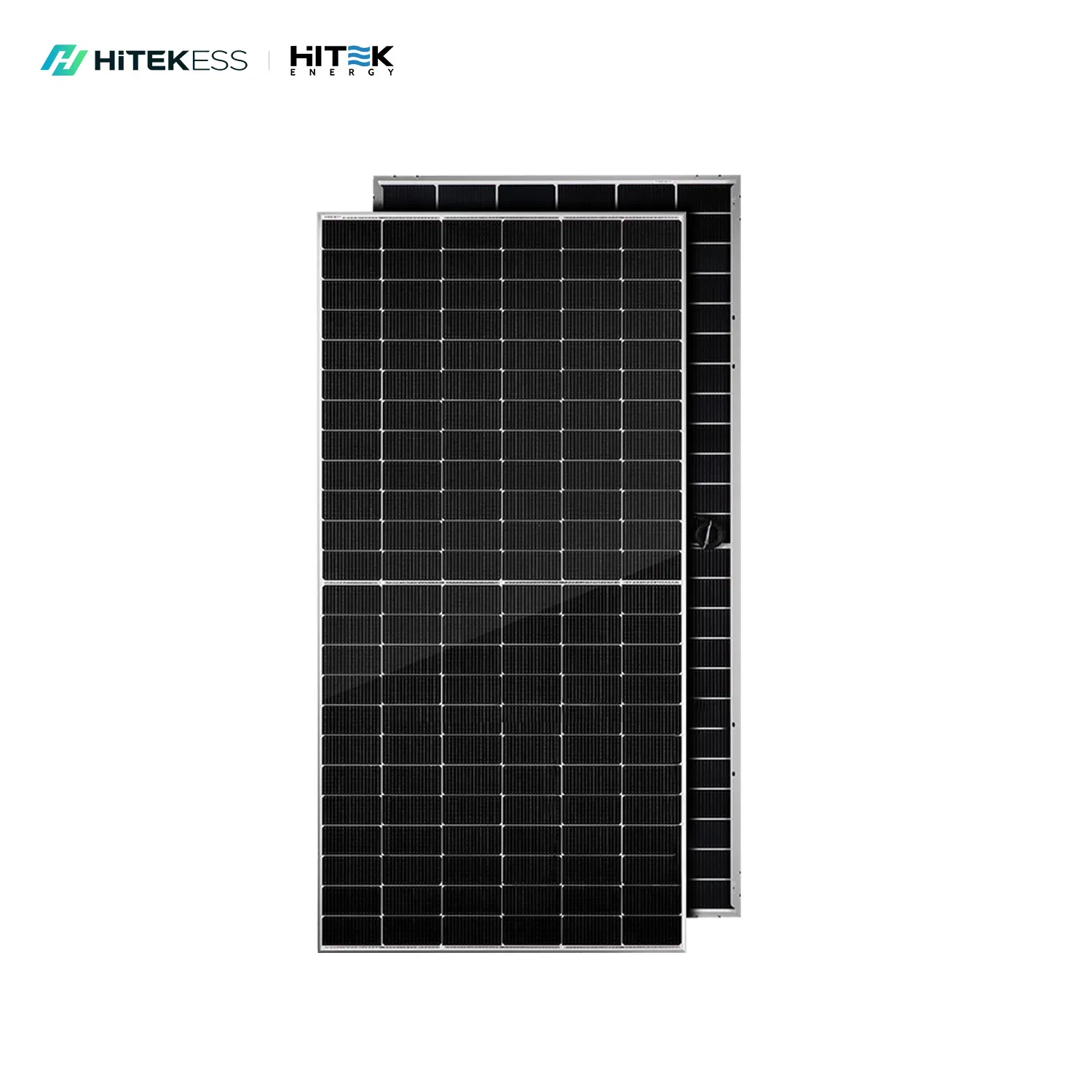

High-Efficiency Mono Solar Panel

Peak Power: 560Wp
Advanced Monocrystalline technology
Dimensions: 2279*1134*35mm
Optimized for low-light performance

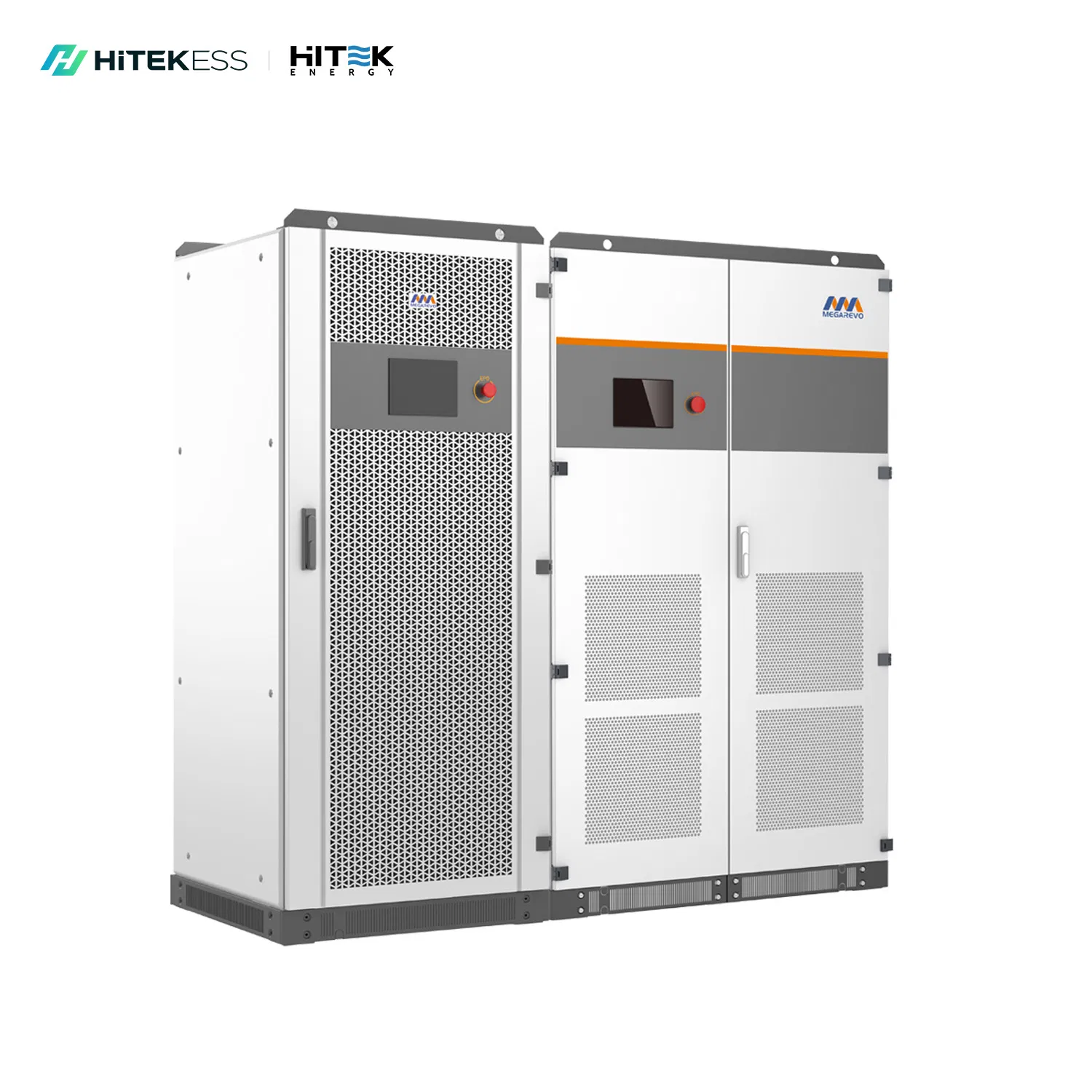

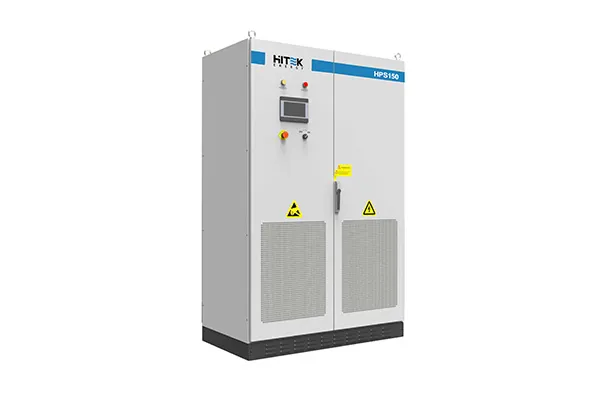

All-in-one Hybrid Inverter

Touchscreen LCD for easy control
Seamless transfer between power sources
Programmable working modes
Scalable design for parallel operation

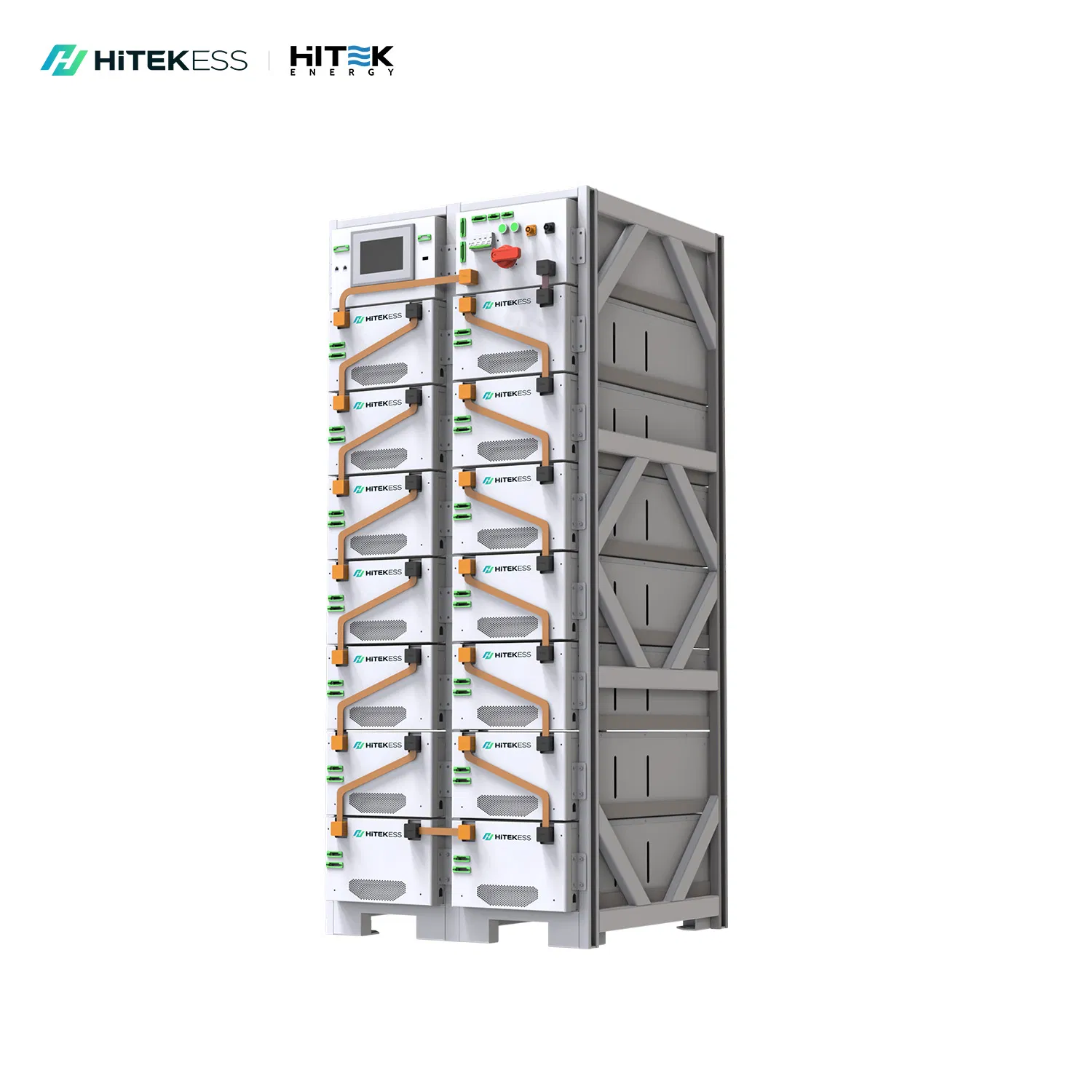

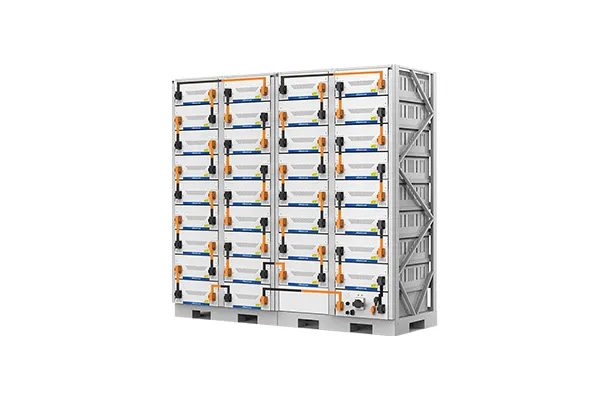

Premium Battery Storage

LiFePO4/Lithium Ion technology
Deep cycle with 6000+ cycle life
90% Depth of Discharge (DOD)
Rack-mounted easy installation

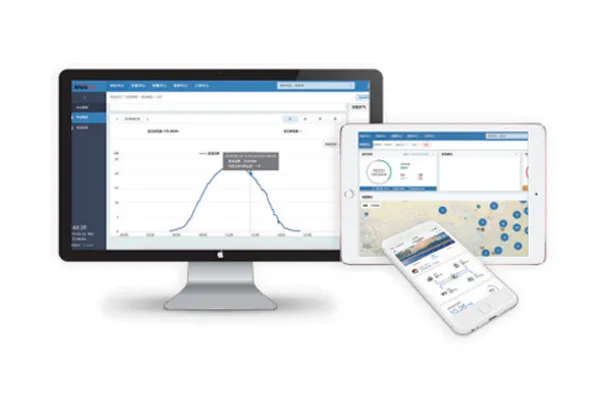

Online Monitoring System

One-click installation and registration
Real-time data tracking and traceable logs
Full lifecycle data security
WiFi/LAN/GPRS support

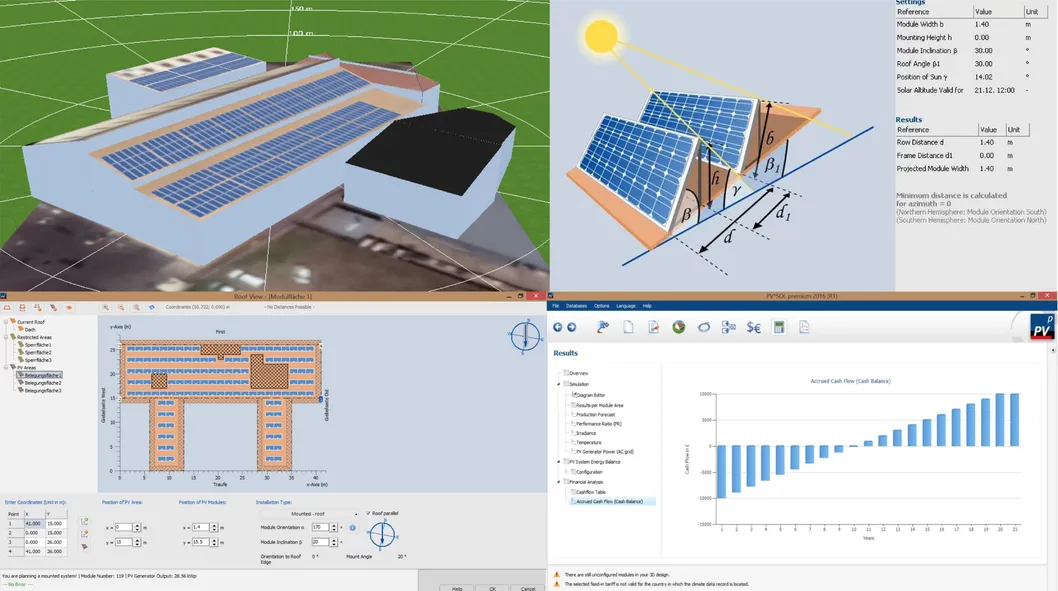

Technical Support & Installation

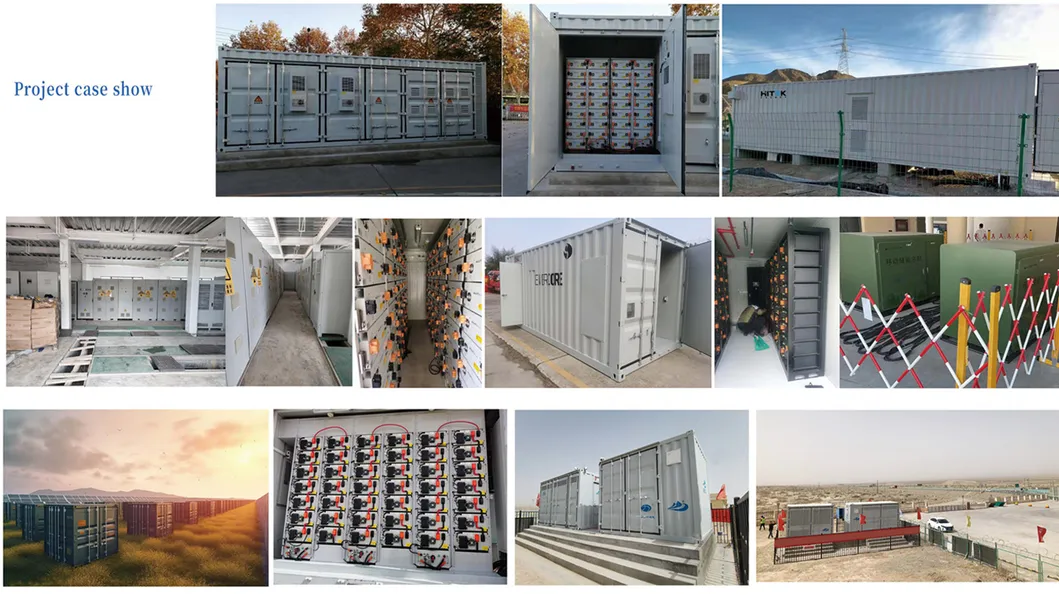

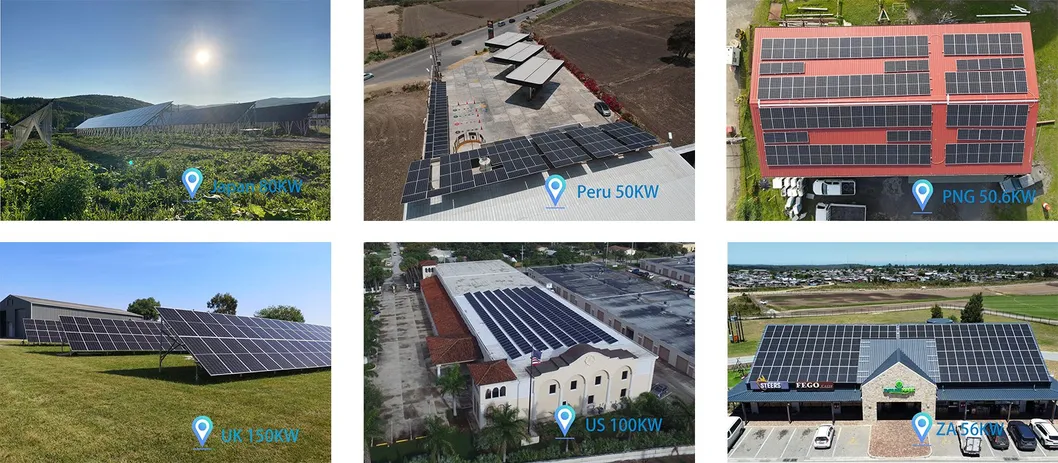

Project Cases

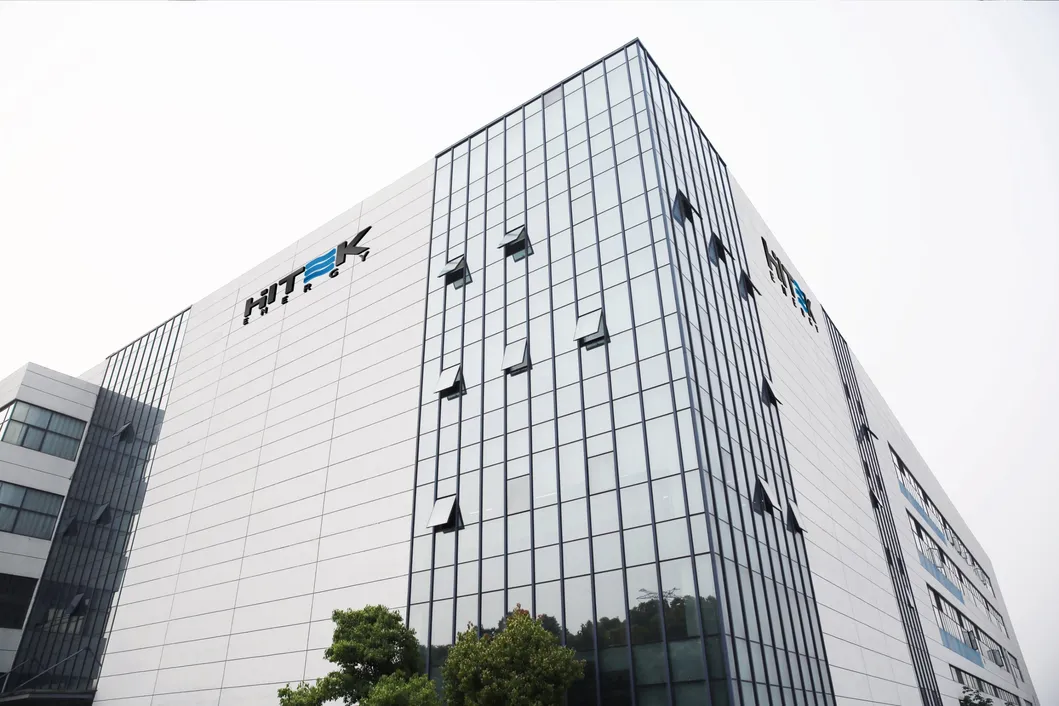

About Our Mission

Founded with a focus on superior photovoltaic manufacturing, we are dedicated to providing sustainable and renewable energy solutions for homes, businesses, and industrial factories. Our tailored solar solutions prioritize reliability, cost-efficiency, and long-term partnership.

Working together for a better, brighter and greener future.

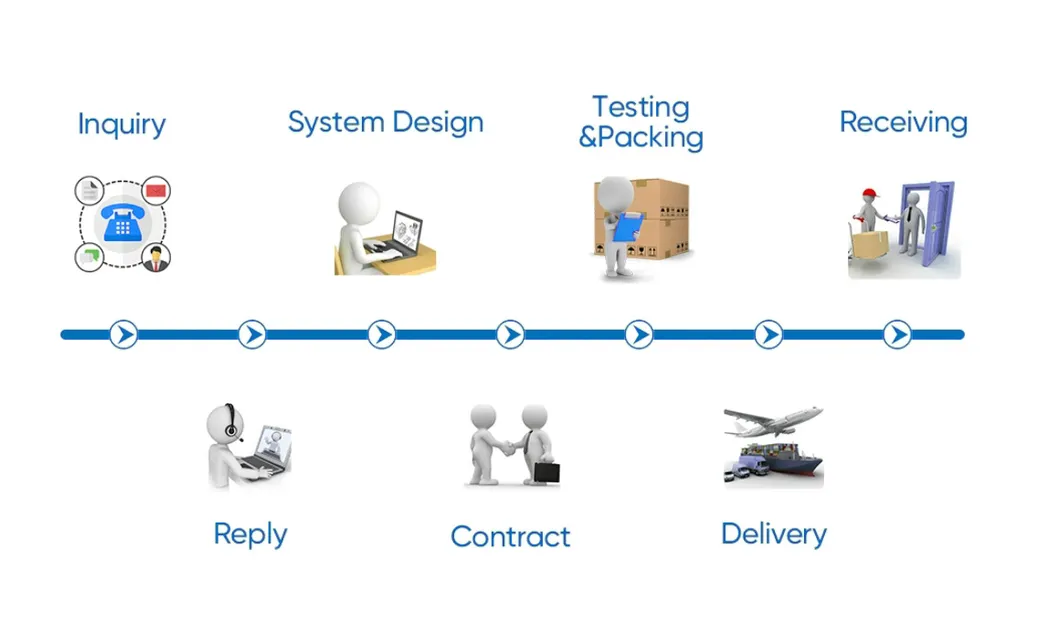

How to Get Your System

Frequently Asked Questions

1. What is the main advantage of a hybrid solar system? A hybrid system offers both grid-tied and off-grid capabilities, ensuring your property remains powered during a blackout while saving on electricity bills through solar production and battery storage.

2. Can this system be scaled for larger industrial needs? Yes, our systems are available in ranges from 30KW up to 500KW, and the all-in-one inverters support parallel connection to increase capacity as needed.

3. What types of batteries are used in the energy storage system? We primarily use high-performance LiFePO4 Lithium-Ion batteries, which offer more than 6000 cycles and high discharge performance, though AGM and GEL types are also compatible.

4. Is the system's performance monitored remotely? Absolutely. Each system includes an online monitoring platform accessible via WiFi, LAN, or GPRS, providing real-time data and traceable operation logs.

5. How long is the lifespan of the solar panels? Our high-efficiency monocrystalline solar panels are designed for long-term durability, typically maintaining a standard lifecycle of 25 years or more.

6. Do you provide technical support for installation? Yes, we provide complete professional technical guidance and support to ensure your system is installed and configured correctly for optimal performance.
