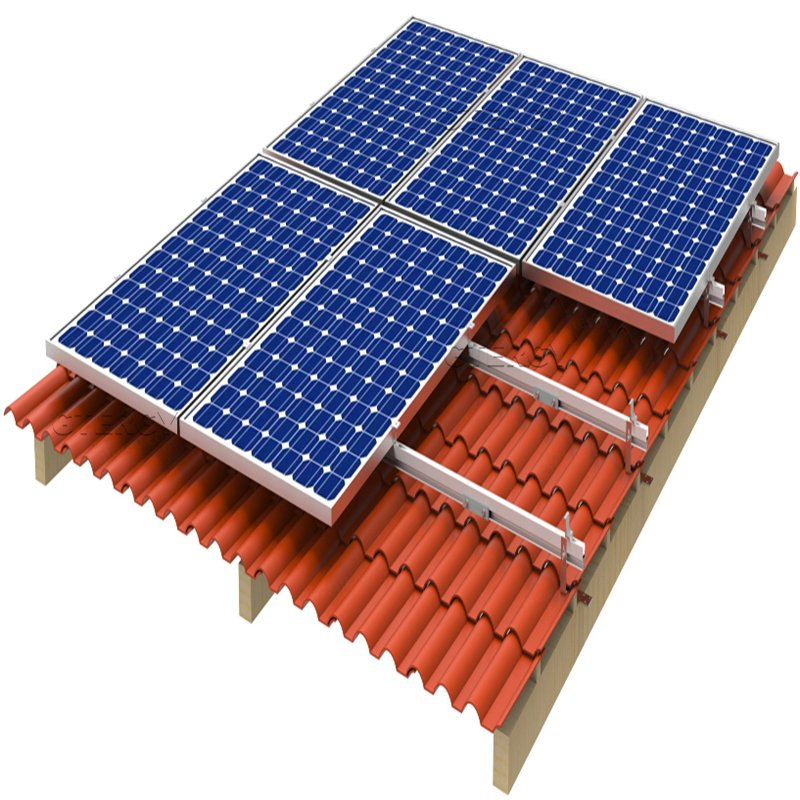

Pitch Rooftop PV Mounting Energy Tile Roof Solar Mounting System
Pitch Rooftop PV Mounting Energy Tile Roof Solar Mounting System
Pitch Rooftop PV Mounting Energy Tile Roof Solar Mounting System
Pitch Rooftop PV Mounting Energy Tile Roof Solar Mounting System
Pitch Rooftop PV Mounting Energy Tile Roof Solar Mounting System
1 / 5
Pitch Rooftop PV Mounting Energy Tile Roof Solar Mounting System
Pitch Rooftop PV Mounting Energy Tile Roof Solar Mounting System
Pitch Rooftop PV Mounting Energy Tile Roof Solar Mounting System
Pitch Rooftop PV Mounting Energy Tile Roof Solar Mounting System
Pitch Rooftop PV Mounting Energy Tile Roof Solar Mounting System

Pitch Rooftop PV Mounting Energy Tile Roof Solar Mounting System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
GT-TS001
Application
Commercial
Material
Aluminum Alloy
Type
Roof Bracket
Installation
Hollow Tile/Flat Roof Tile/Standard Tile
Max Wind Speed
Up to 130mph(60m/s)
Snow Load
Up to 30PSF(1.4kN/m2)
Color
Natural Sliver
Surface Treatment
Anodizing/Sand Blasting
Tilt Angle
0-180 Degree
Durable
25 Years
Item Name
Tile Roof Solar Mounting System
Product Description

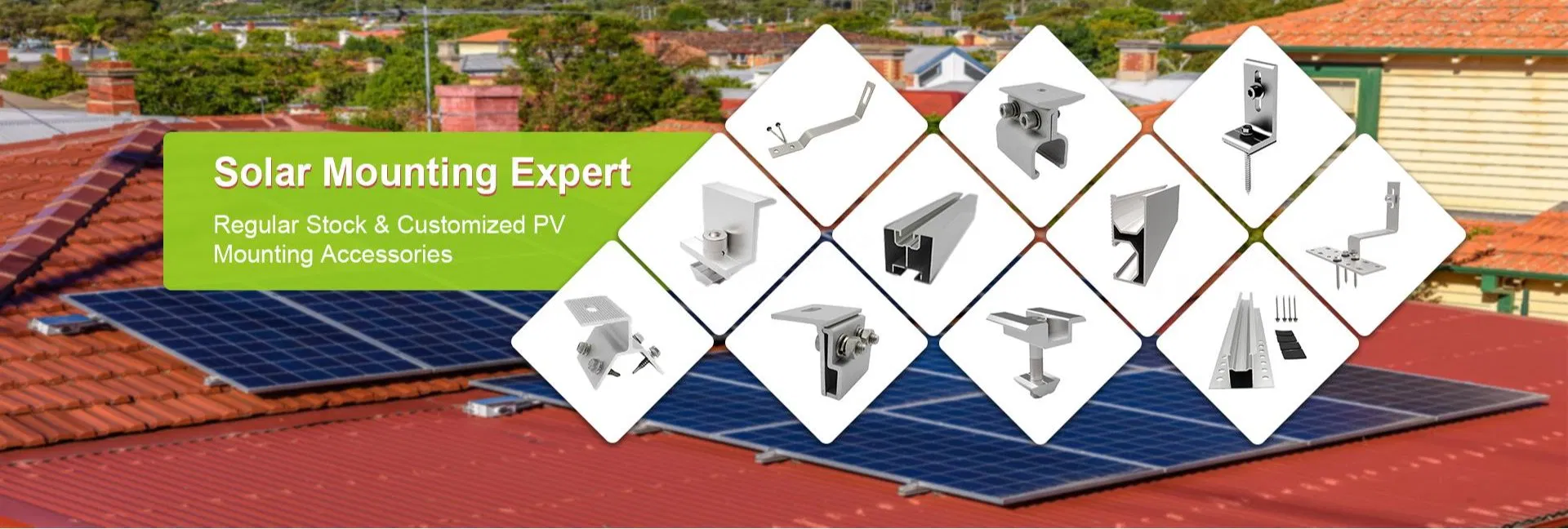

Solar Mounting System Overview
Key Features
  • ●
    Economic and Energy Savings: Made of stainless steel 304 & Aluminum 6005-T5 material, featuring high strength and corrosion resistance. Easy installation with no harmful waste generated.
  • ●

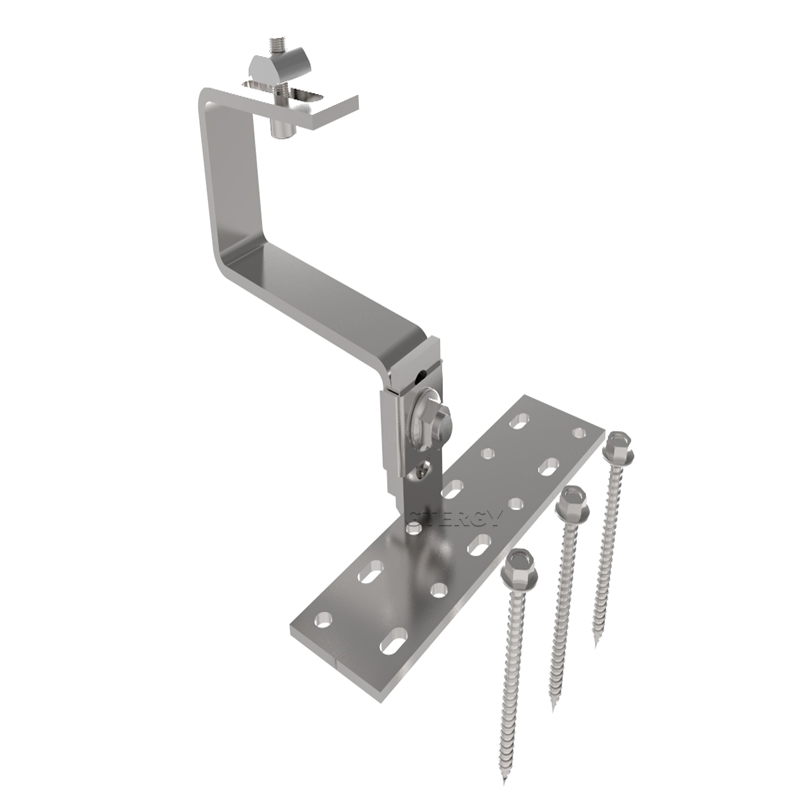

    Easy Installation: The steel roof hook is designed for almost all Spanish tile roof installations; it can be directly mounted on wooden beams and rafters.
  • ●
    Sustainability: Committed to maintaining a positive environmental and social impact through eco-friendly materials and practices.
  • ●
    High Compatibility: Compatible with various solar panels available in the market.
  • ●
    Pre-assembled Service: Available for quick installation to save labor costs and time.
  • ●
    Long Service Life: Durable design with a 25-year lifespan, suitable for residential, commercial, and BIVP projects.
Product Detail
Technical Specifications
Parameter Details
Product NameTile Roof Solar Mounting System
MaterialStainless Steel 304 & Aluminum 6005-T5
Surface TreatmentAnodizing 13 um / Sand Blasting
Installation Angle90° or 180°
Max Wind SpeedUp to 130mph (60m/s)
Design Snow LoadUp to 30psf (1.4KN/m2)
Design StandardJIS C 8955:2011, GB50009-2012, IBC 2009
Panel DirectionVertical or Landscape
ApplicationHollow/Flat/Standard/Double Slot/Roman Tile Rooftops
Warranty12 Years
Durability25 Years

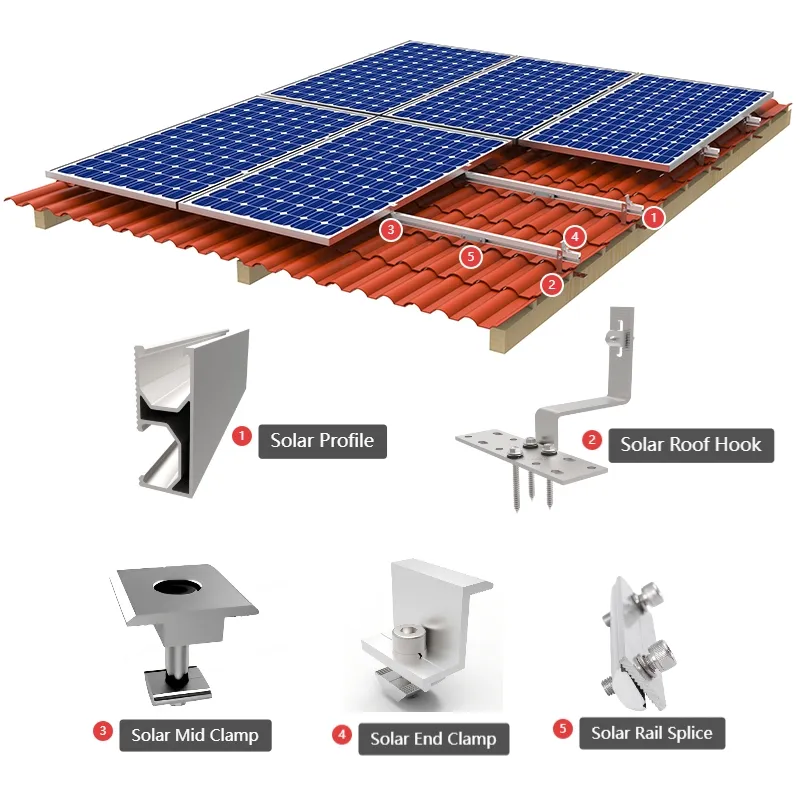

Product Components & Details
Component 1

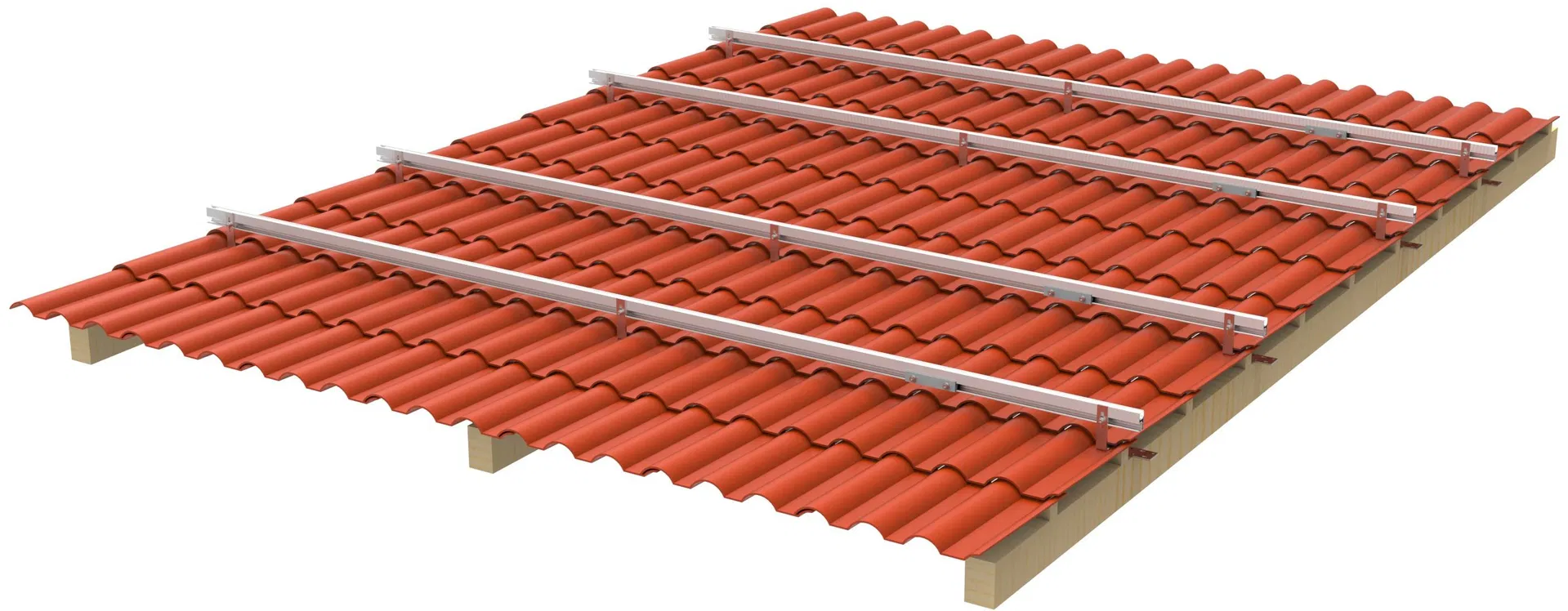

Component 2

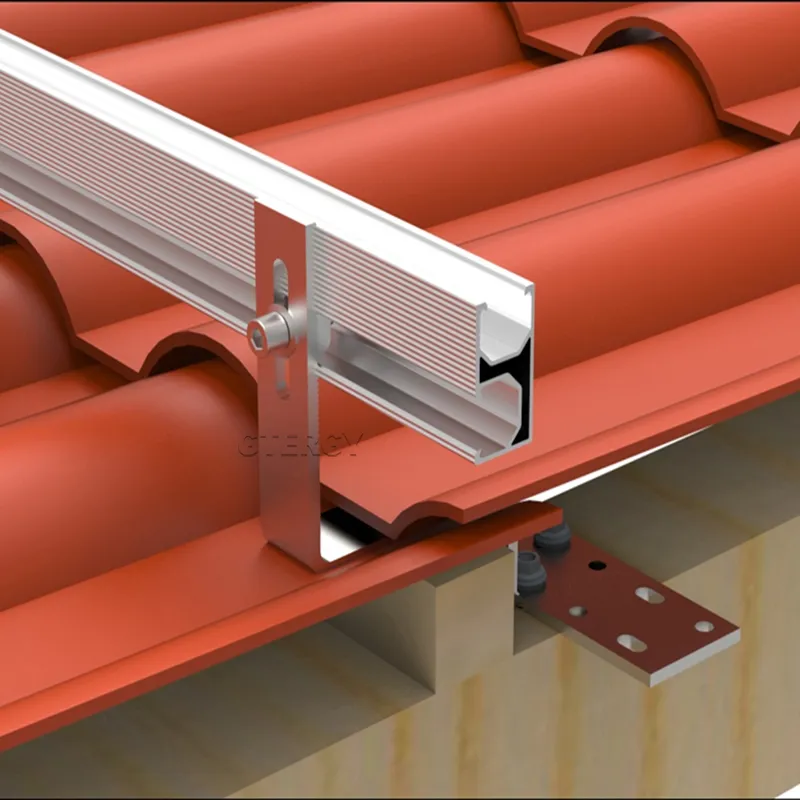

Component 3

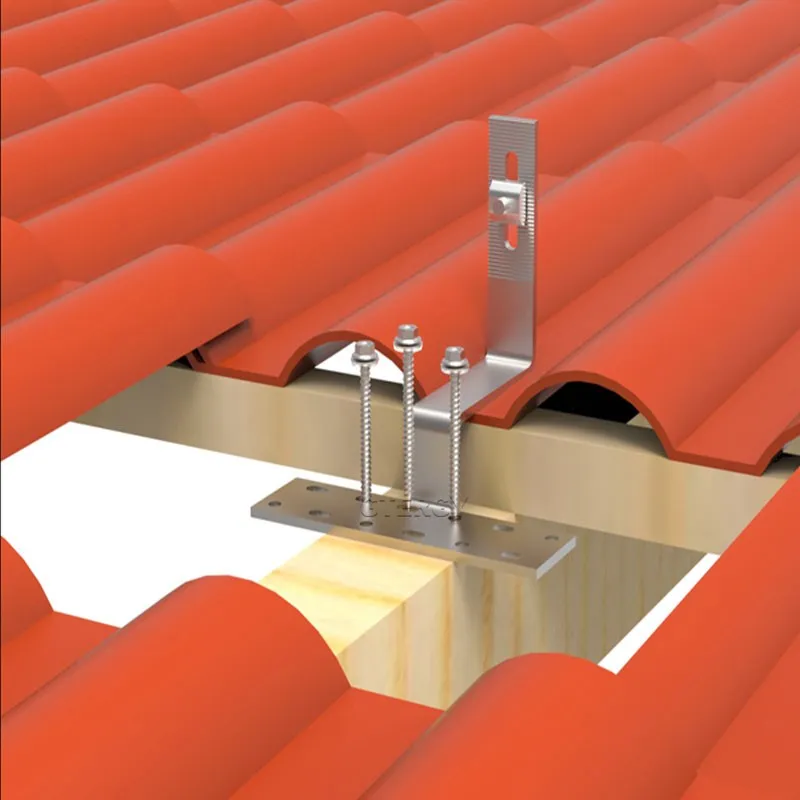

Component 4

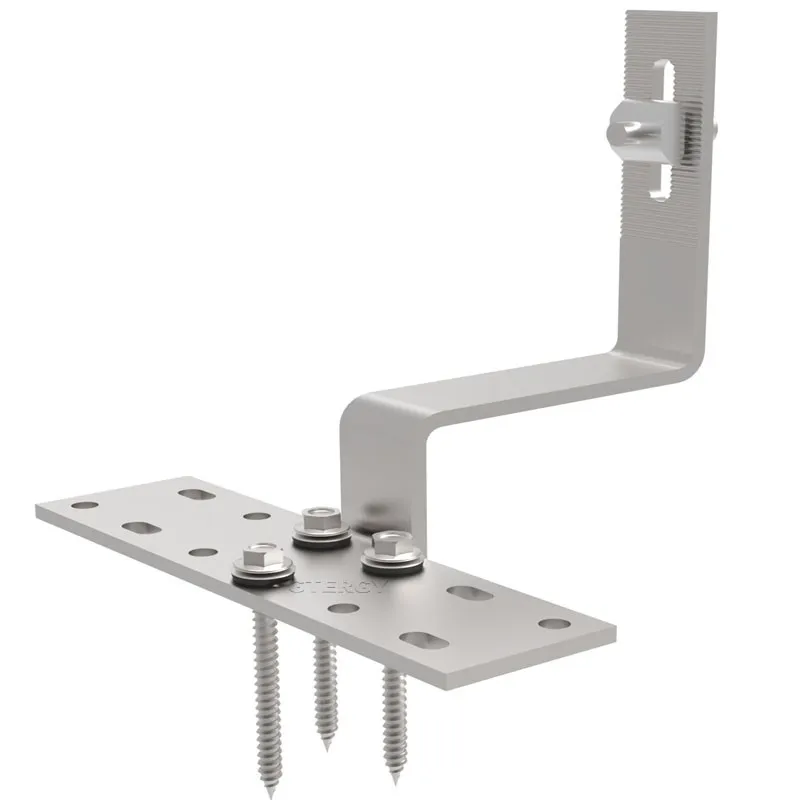

Component 5

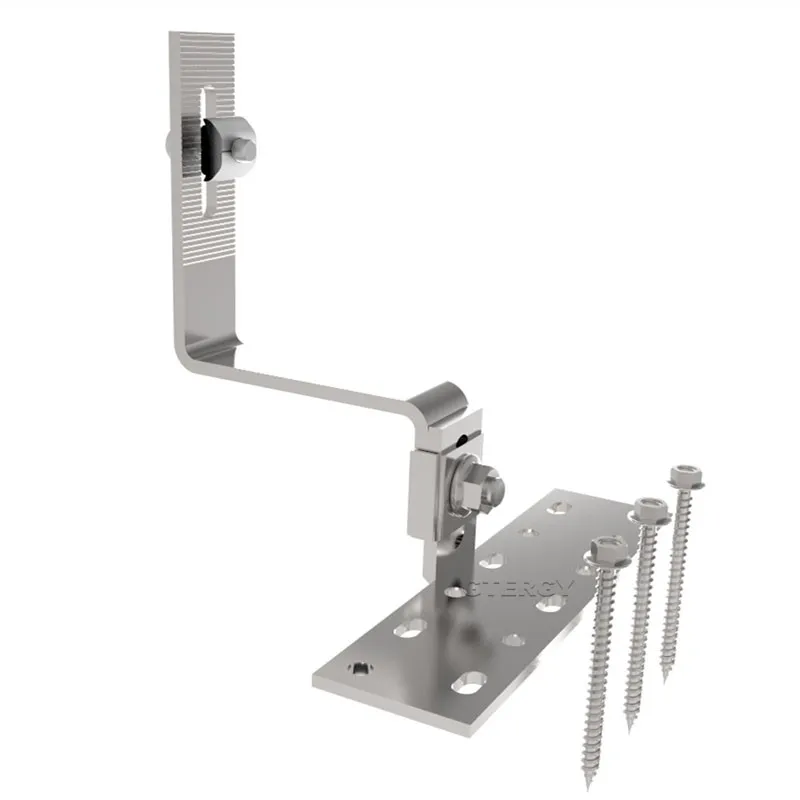

Component 6
Mounting Display
Project Cases

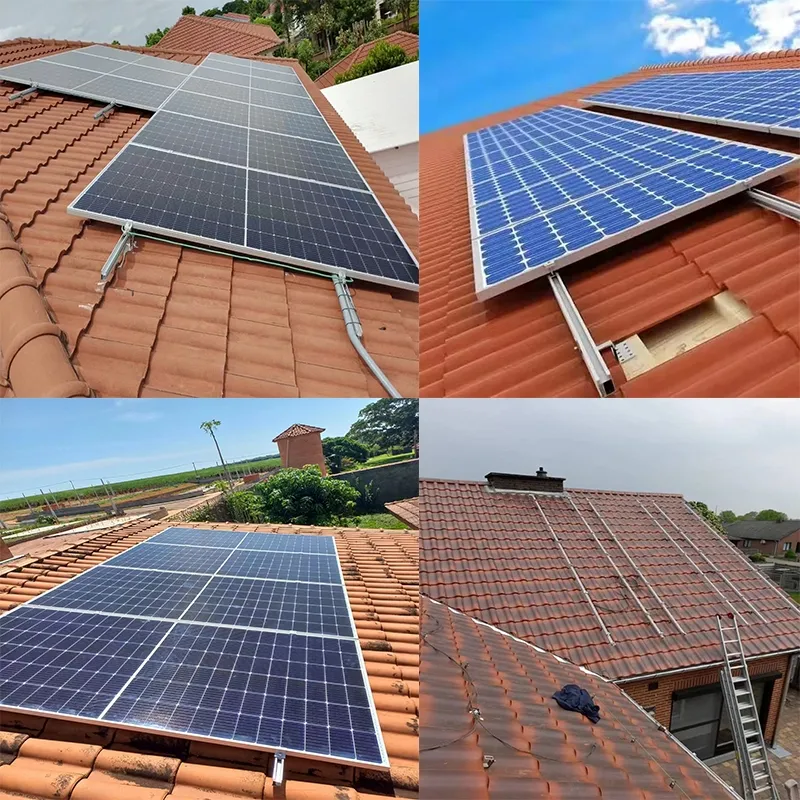

Case 1

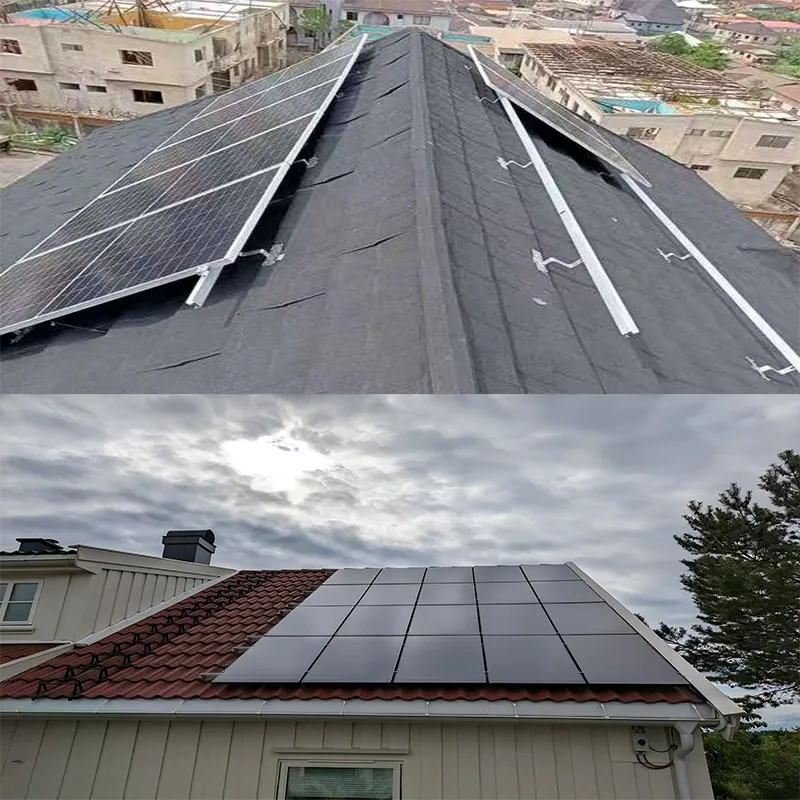

Case 2
Case 3
Factory & Production
Factory Facility
Production 1
Production 2
Workshop
Production 3
Production 4
Certifications
Product Certifications
Frequently Asked Questions
Are you a factory or trading company?
We are a direct manufacturer specializing in producing solar mounting systems. We supply multi-choice mounting systems for different kinds of power solutions, including roof, ground, and RV.
How about the production time?
Stock items require 1-3 days. Mass production typically takes 7-15 days, depending on the specific order quantity.
Do you have any MOQ limit?
We do not have an MOQ request for our current standard products; 1pc for quality testing is available. For ODM and OEM items, a minimum order quantity may be required.
Can I have a free sample?
If you need similar standard samples, we can provide them for free, though you will need to cover the freight expense. Customized samples require a sample charge.
How long does it take for goods to arrive?
Sample orders shipped via DHL or FedEx take 3-5 days. Large orders shipped by sea generally take 15-30 days to arrive at the local port.
What services can you provide?
We provide comprehensive OEM and ODM services, including customized logos and color packaging based on your requirements.
