| Installation Site | Metal Roof / Custom Requirements |
|---|---|
| Material | Aluminum 6000 series / Stainless Steel |
| Survival Wind Speed | < 60m/s |
| Design Snow Load | Up to 1.4KN/m² |
| Panel Orientation | Transverse or Vertical |

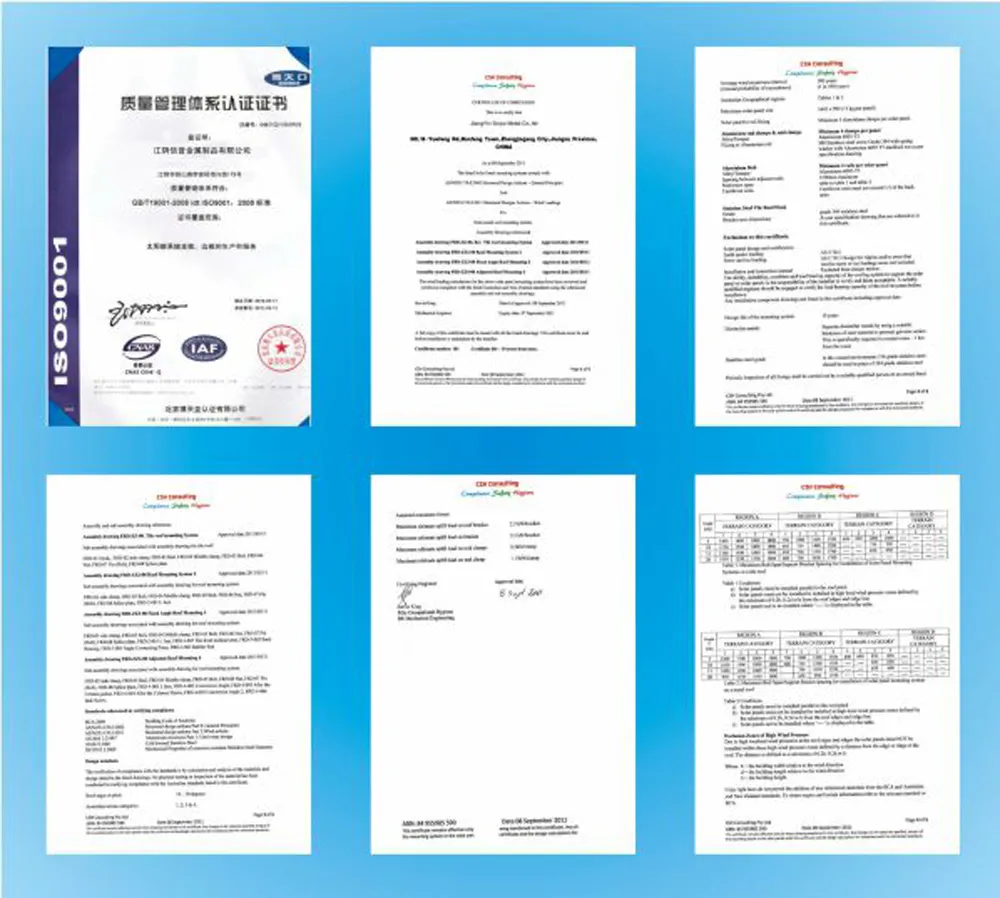

| Standard | CE; ISO9001; SGS |
| Duration | More than 20 years |
| NO. | Name | Size(mm) | QTY | Material |
|---|---|---|---|---|

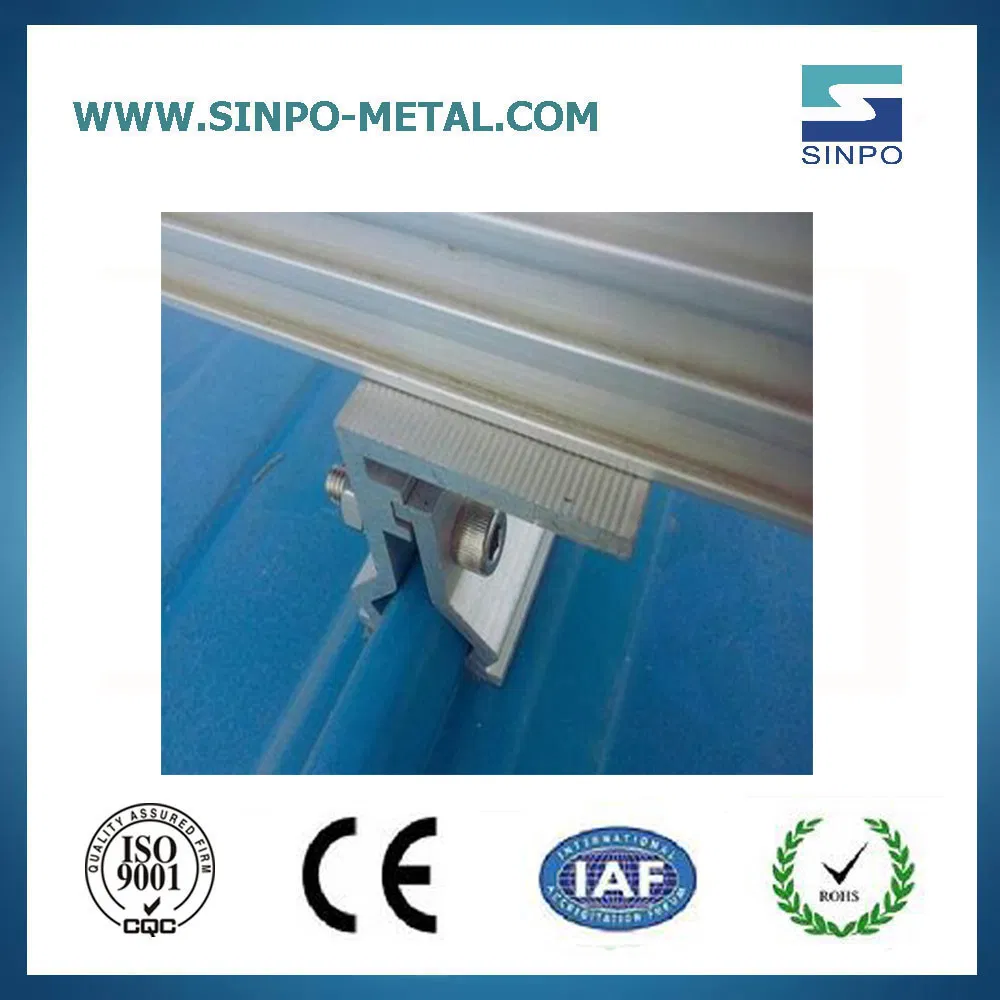

| 1 | Clamp | - | 12 | AL6063-T5 |

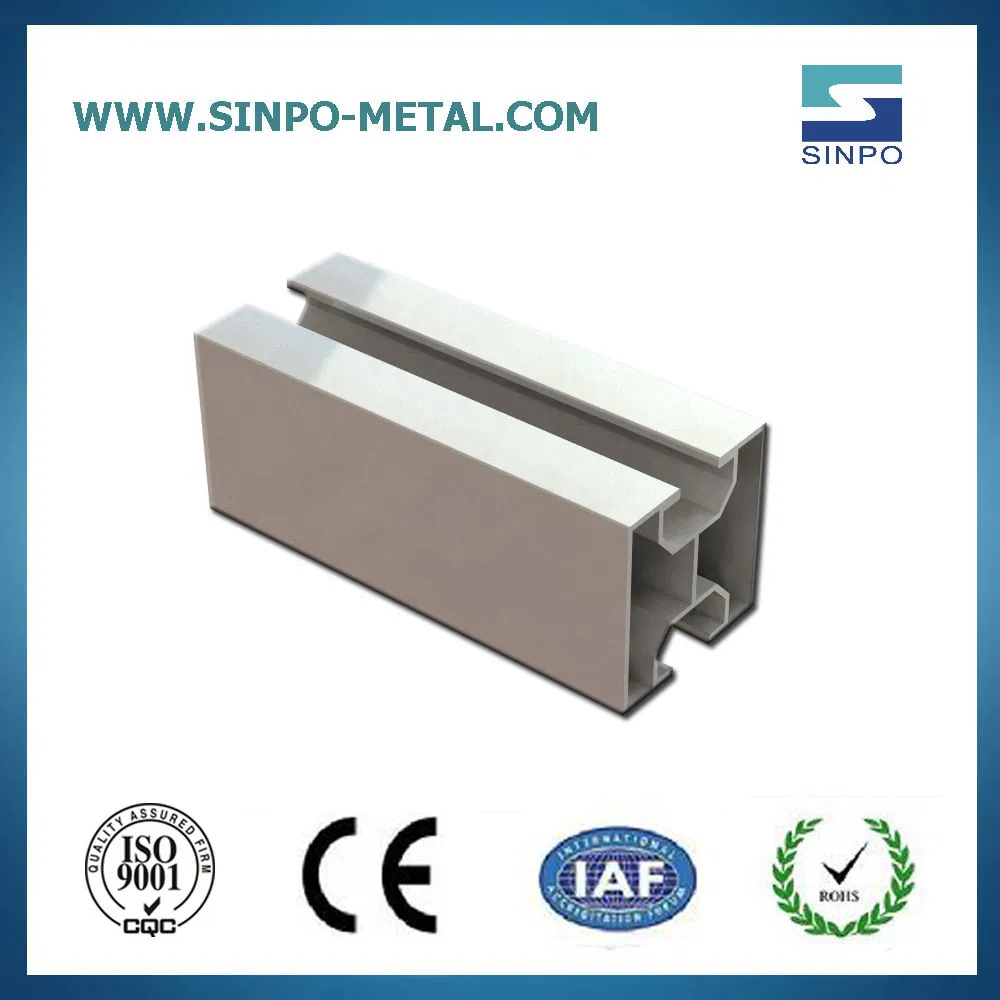

| 2 | Rail | 40*40/30*40 | 4 | AL6063-T5 |
| 3 | Rail Joiner | 4 set screw | 2 | AL6063-T5 |

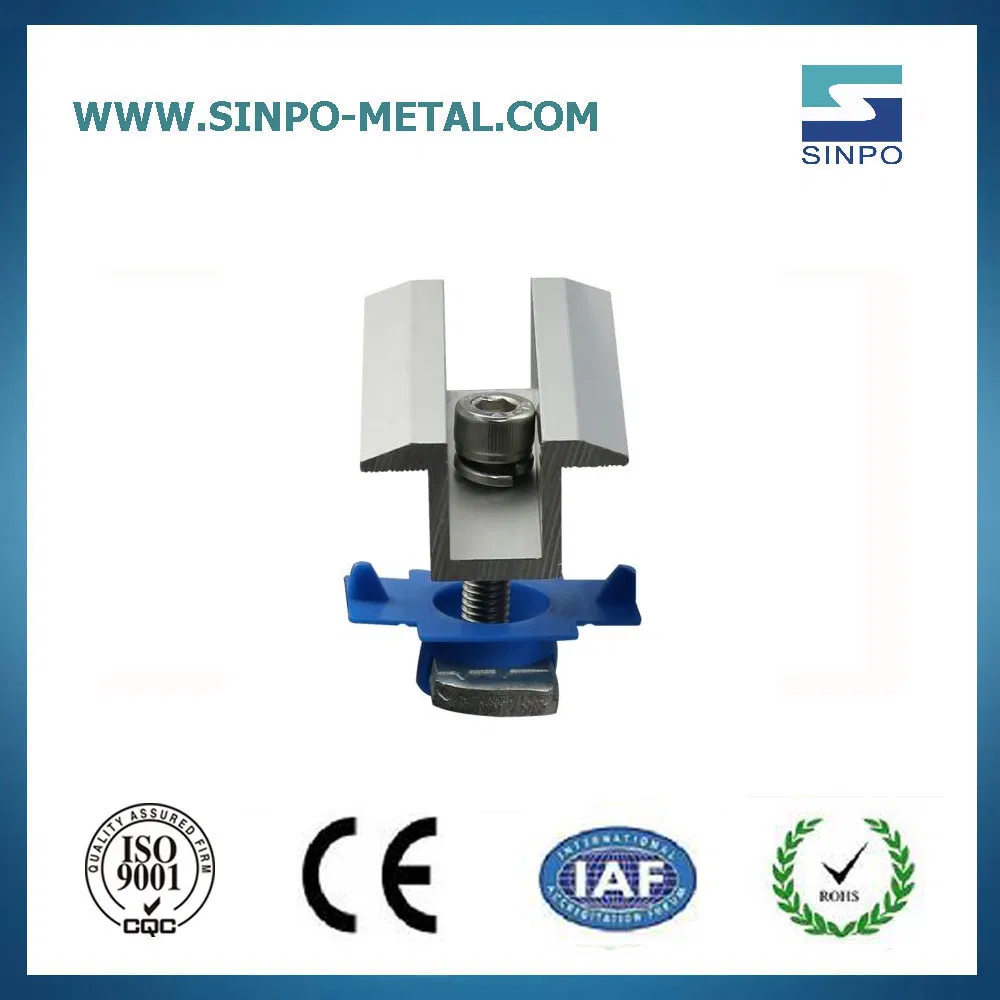

| 4 | Mid Clamp | 30-47-60 | 6 | AL6063-T5 |

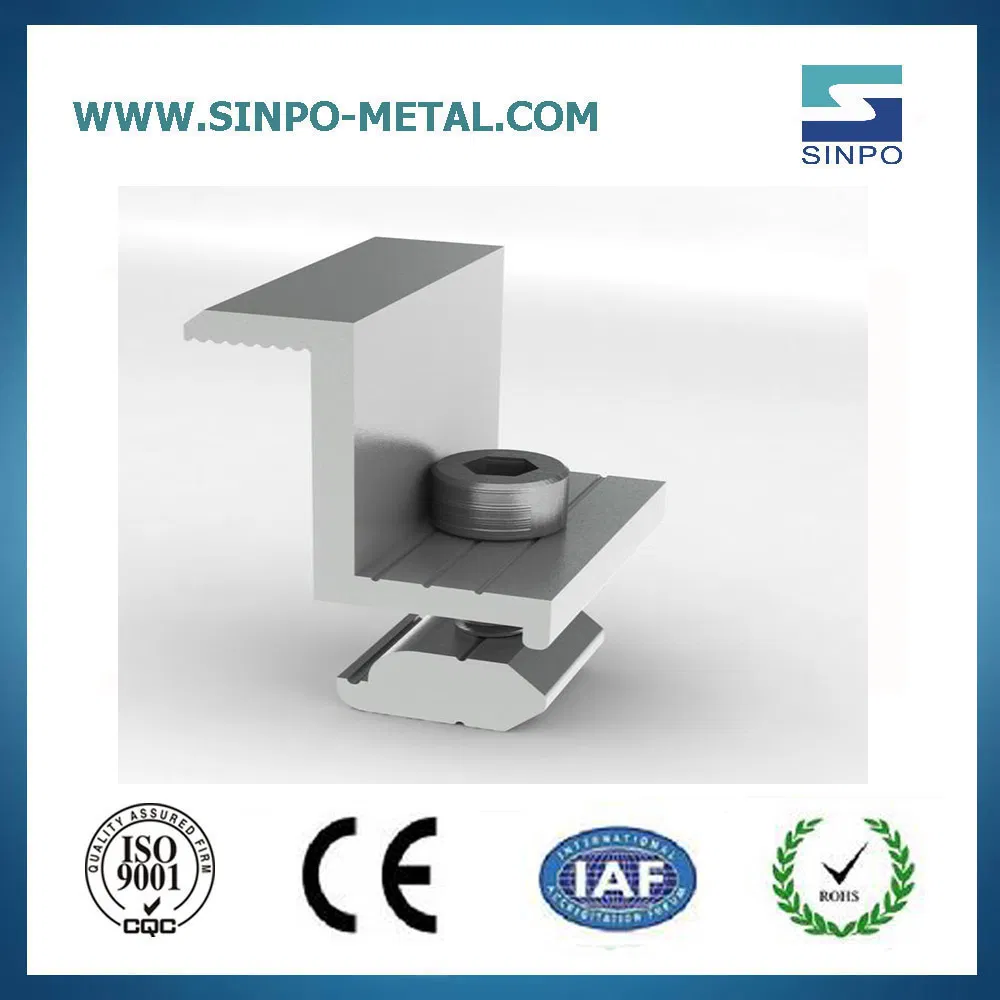

| 5 | End Clamp | W40-60-16 | 4 | AL6063-T5 |
| 6 | Hexagon Socket Screw | M8*25 | 24 | SUS 304 |

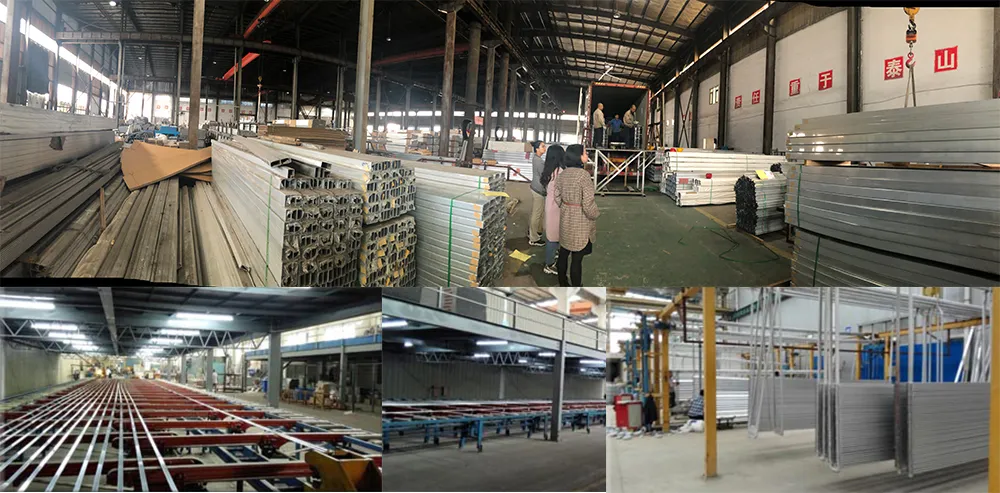

With over 20 years of experience, we specialize in high-quality aluminum products for the solar industry. Our products are exported to over 15 countries, including the United States. We offer both custom designs and a wide range of ready-made mounting solutions to fit your specific market needs.
To help you get the right system, please provide the following details:
1. Solar panel dimensions. 2. Array configuration. 3. Rooftop type. 4. Tilt angle. 5. Wind and snow load requirements.
