| Model NO. | Iron Roof Mounting System 1 |
| Certification | ISO, CE |
| Application | Home |
| Material | Aluminum Alloy |
| Type | Roof Angle Bracket |
| Install Site | Tin Roof |
| Module Orientation | Landscape, Portrait |
| Max Wind Speed | 60m/S |
| Max Snow Load | 1.6kn/M² |
| Duration | More Than 20 Years |

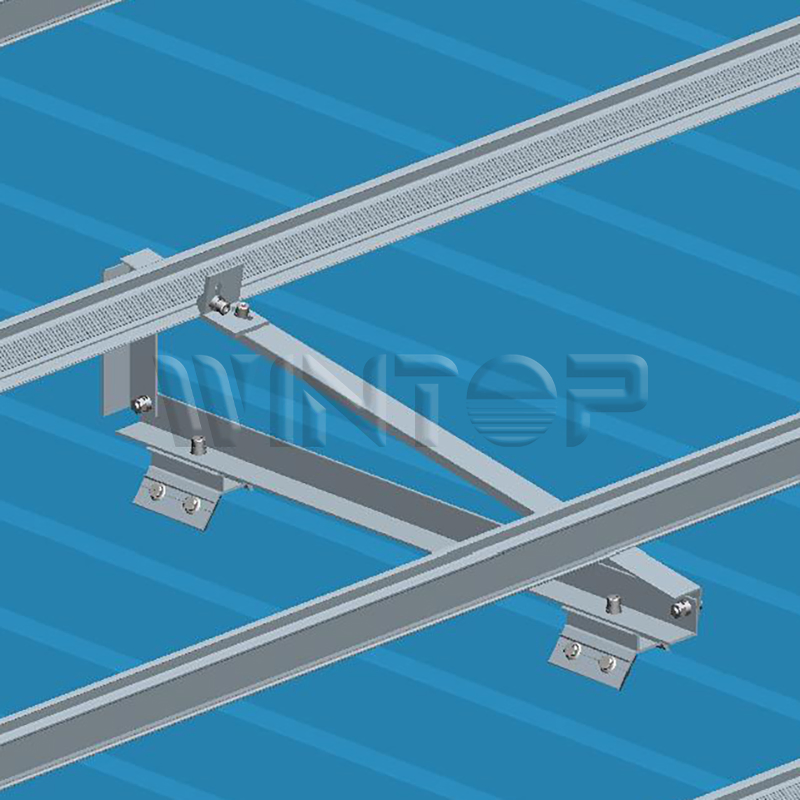

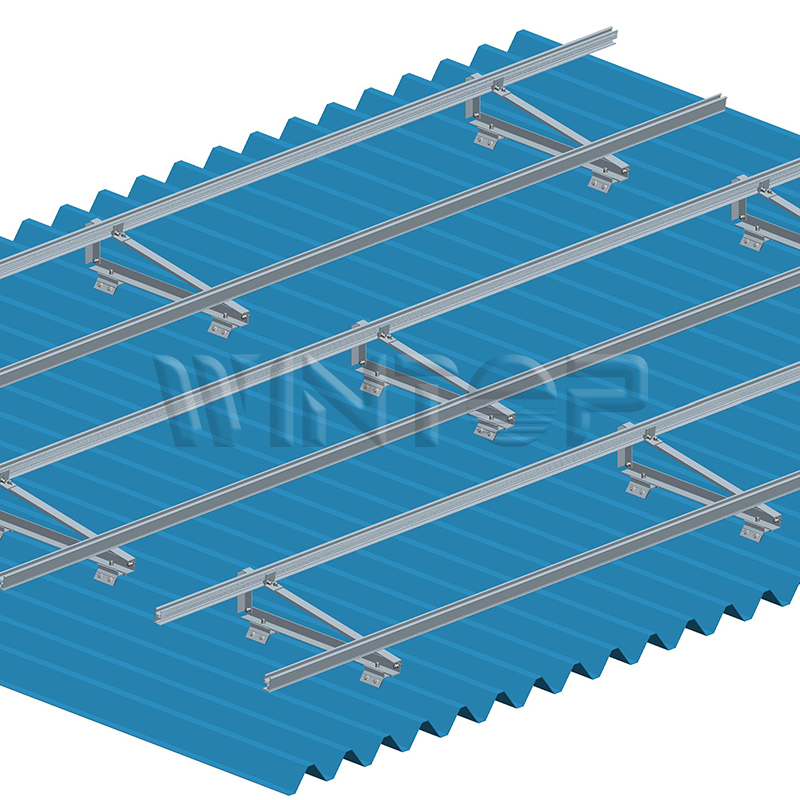

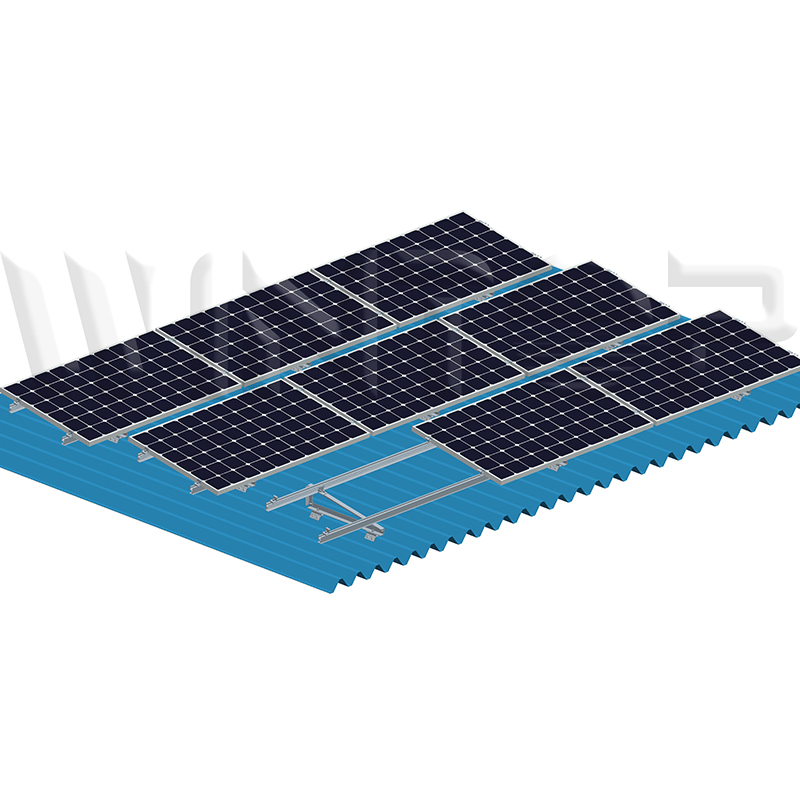

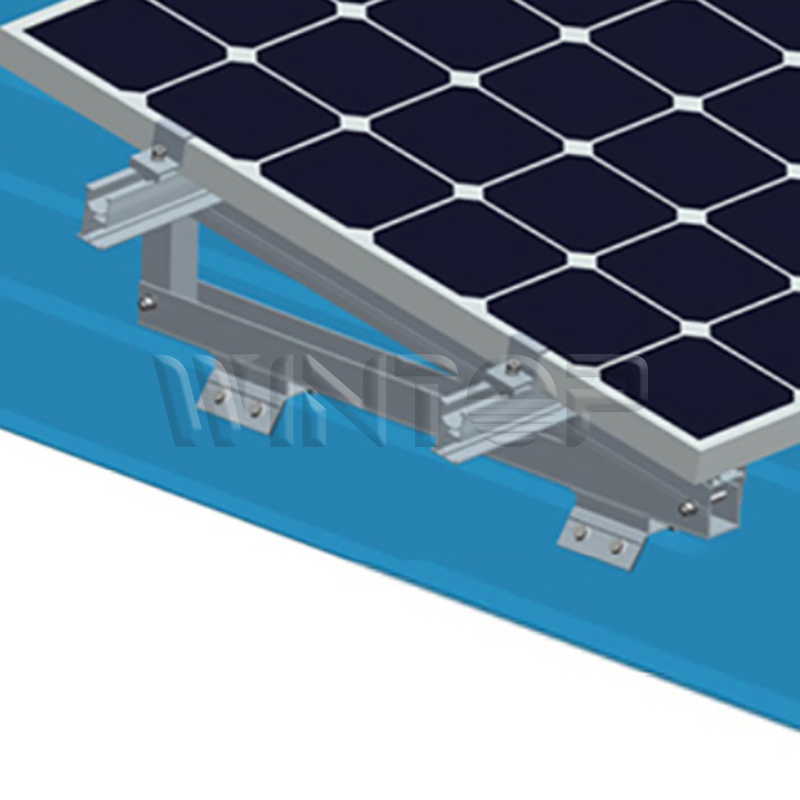

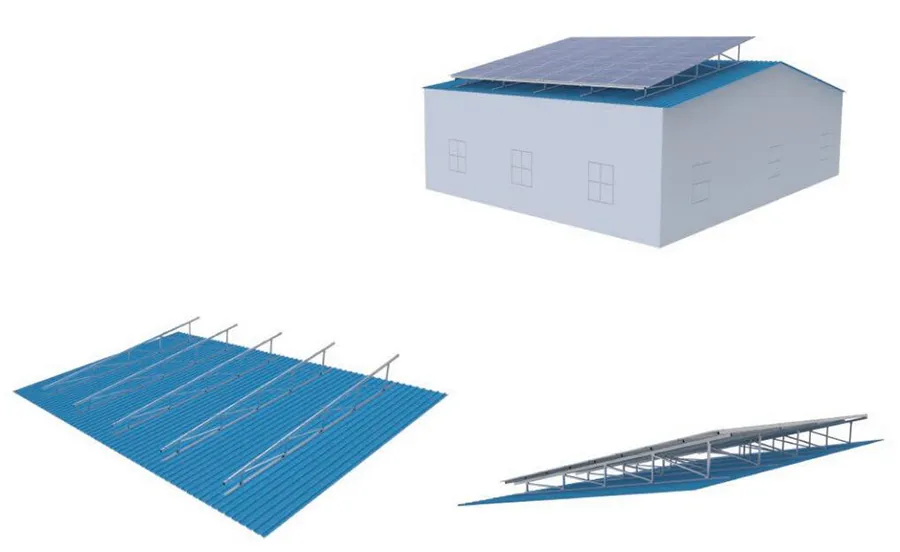

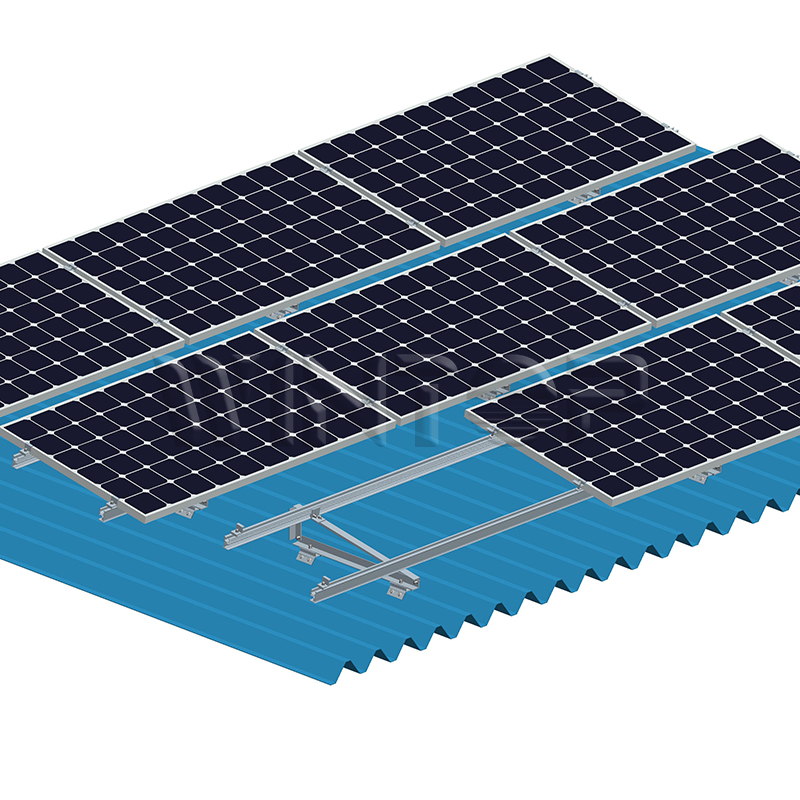

Solar Energy Support System for Tin Rooftop
Tin roof tripod mounting system is designed for residential and commercial applications. We design fixtures according to roof shape and size to ensure amazingly fast and easy installation for each roof. The tripod has a professional structural design to ensure the strength of the bracket system.
| Installation location | Roof |
| Installation foundation | Tin Roof |
| Installation angle | 0°-60° |
| Wind load | 60m/s(216kmh/133mph) |
| Snow load | 1.4KN/m² |
| Applicable module type | Mono-crystalline, Poly-crystalline, Double wave and Thin film |
| Module Orientation | Horizontal, Vertical |
| Design standard | AS/NZS1170, JIS C 8955-2017 |
| Bracket material | AL6005-T5(Anodized Oxidation) |
| Fastener Material | Stainless steel SUS304 |
| Warranty & Duration | 10 years & More than 20 years |

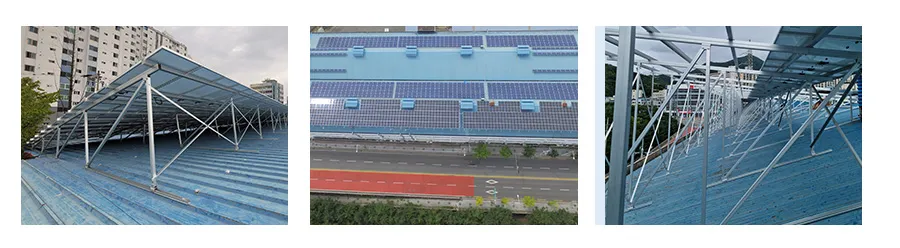

Project Case Study:
Established in 2016, we are a high-tech enterprise that integrates R&D, production and marketing of Solar Mounting Systems for residential, commercial and utility scale customers.
