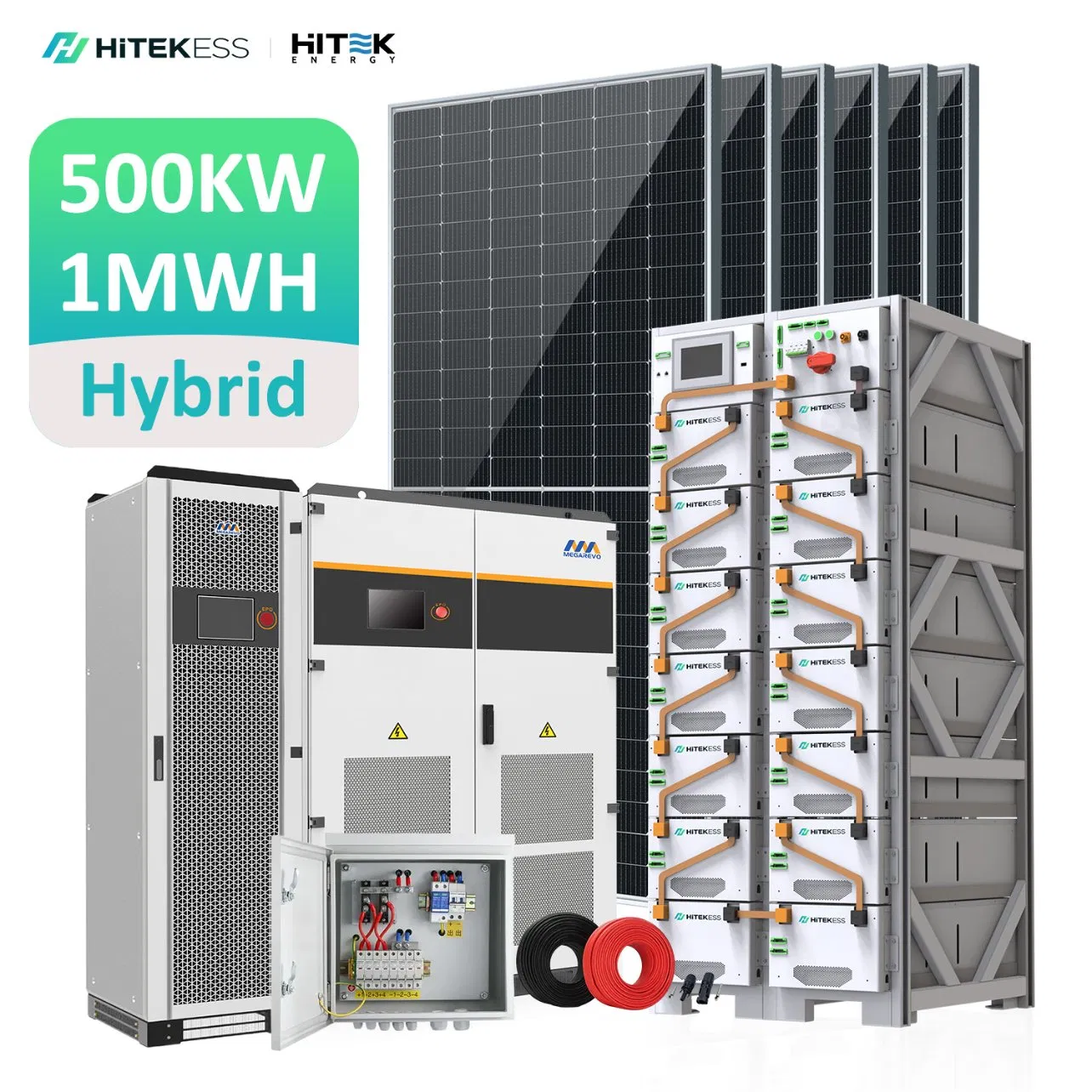

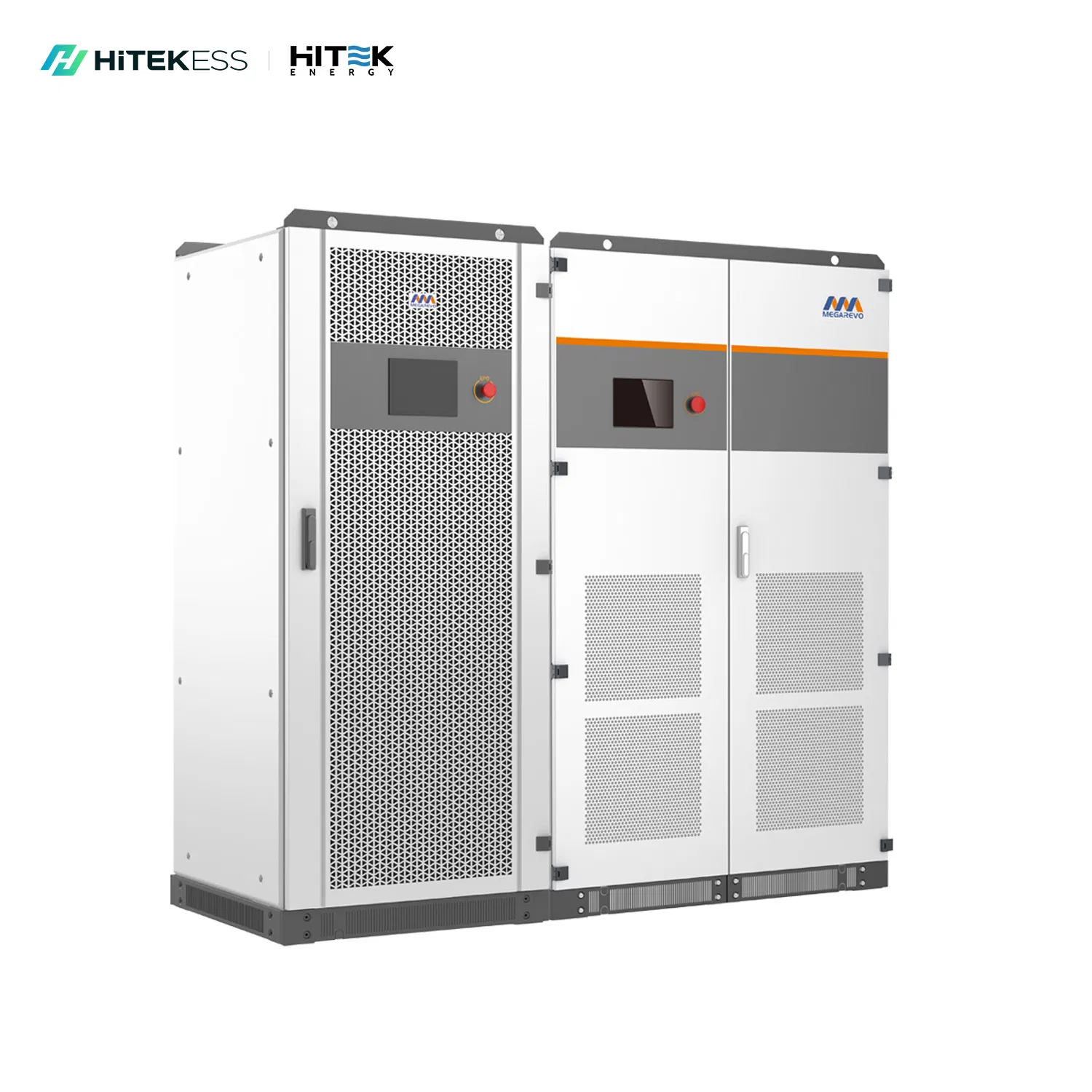

Renewable Solar Photovoltaic System 500kw 1mwh Hybrid Grid Connected off Grid Solar Power Energy Storage Emergency Backup Bess 100kw 150kw 200kw 250kw 500kw

1 / 5

Renewable Solar Photovoltaic System 500kw 1mwh Hybrid Grid Connected off Grid Solar Power Energy Storage Emergency Backup Bess 100kw 150kw 200kw 250kw 500kw

Customization:	Available
After-sales Service:	Available
Warranty:	5 Years

Send Inquiry

Product Description

⚡ Basic Information

Model NO.:HT500KW-HY

Certification:ISO, CE

Application:Home, Industrial, Commercial

Product Name:500kw 1mwh Battery Energy Storage System

System Type:Hybrid Solar System

Output Voltage:380V/400/415VAC 50Hz 3phase

Battery Type:Lead Acid, Lithium Ion, LiFePO4

Monitoring:WiFi/LAN/GPRS

📘 Product Overview

The hybrid solar system is a grid-tied renewable energy solution that includes high-capacity battery storage. It generates power during the day and stores excess energy for nighttime use or emergency backups during grid outages.

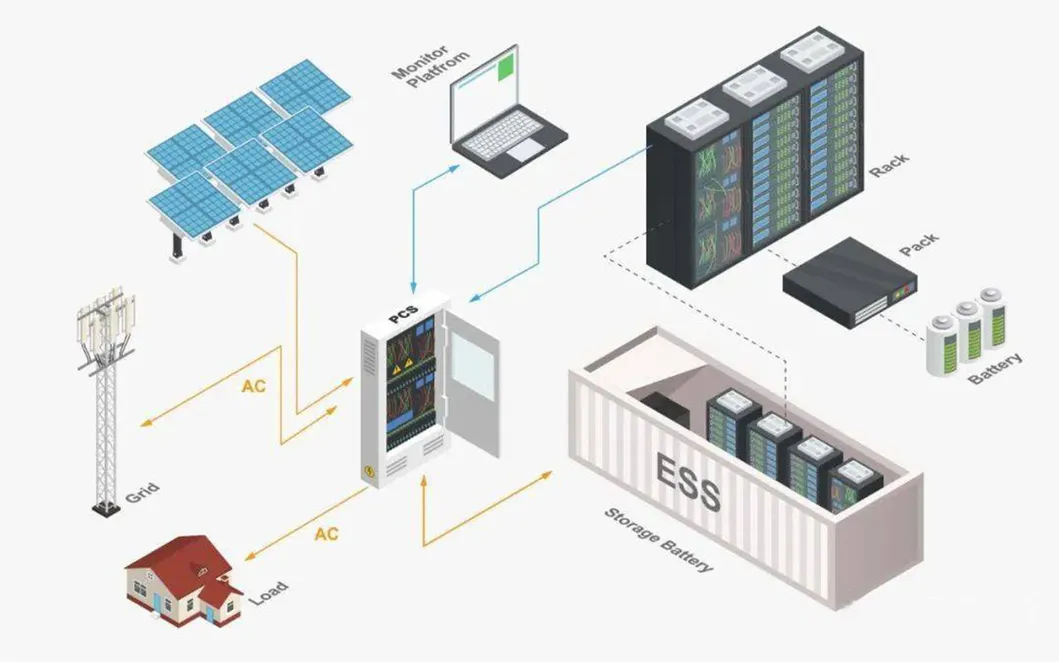

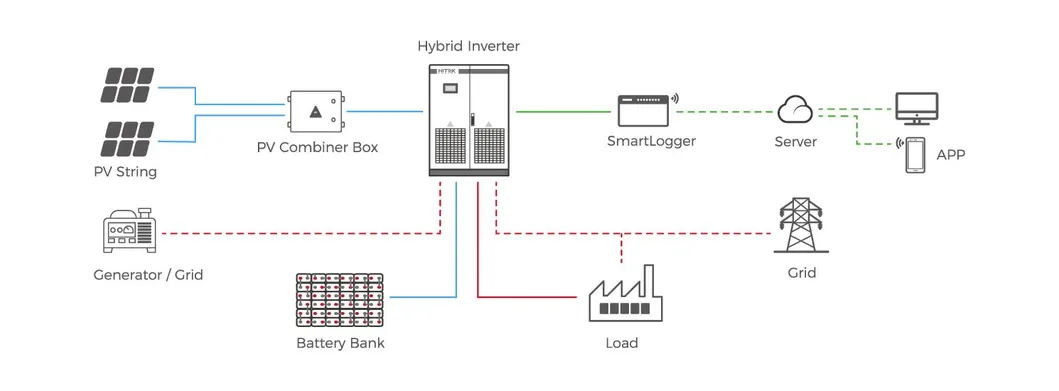

🛠️ How It Works

📊 System Configuration Details

Parameter	HT30KW-HY	HT50KW-HY	HT100KW-HY	HT150KW-HY	HT250KW-HY	HT500KW-HY
AC Rated Power	30KW	50KW	100KW	150KW	250KW	500KW
Grid Voltage	380/400VAC (50/60Hz)
Solar Panel Qty	68PCS	102PCS	204PCS	289PCS	510PCS	1020PCS
Total Panel Power	38.08KW	57.1KW	114.24KW	161.84KW	285.6KW	571.2KW
Battery Capacity	40.96KWH	100.352KWH	200.704KWH	315.392KWH	473.088KWH	946.176KWH

🧩 Main System Components

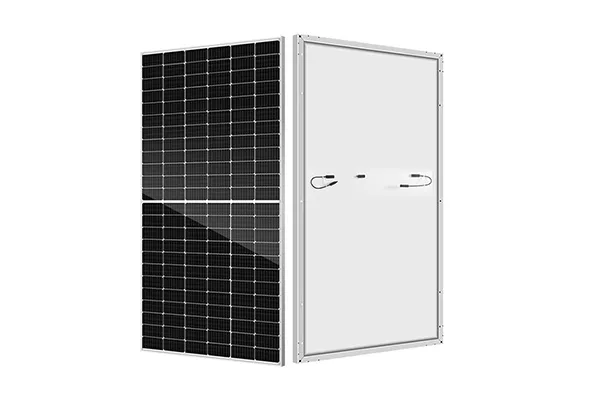

Mono Solar Panel

Model: HT560M-72
Peak Power: 560Wp
Dimensions: 2279*1134*35mm
Efficiency optimized for commercial use.

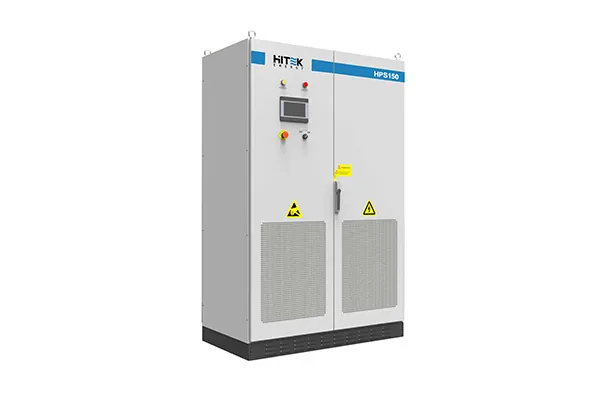

All-in-one Hybrid Inverter

Programmable working modes with touchscreen LCD. Supports seamless transfer and scalable design (up to 4 units in parallel).

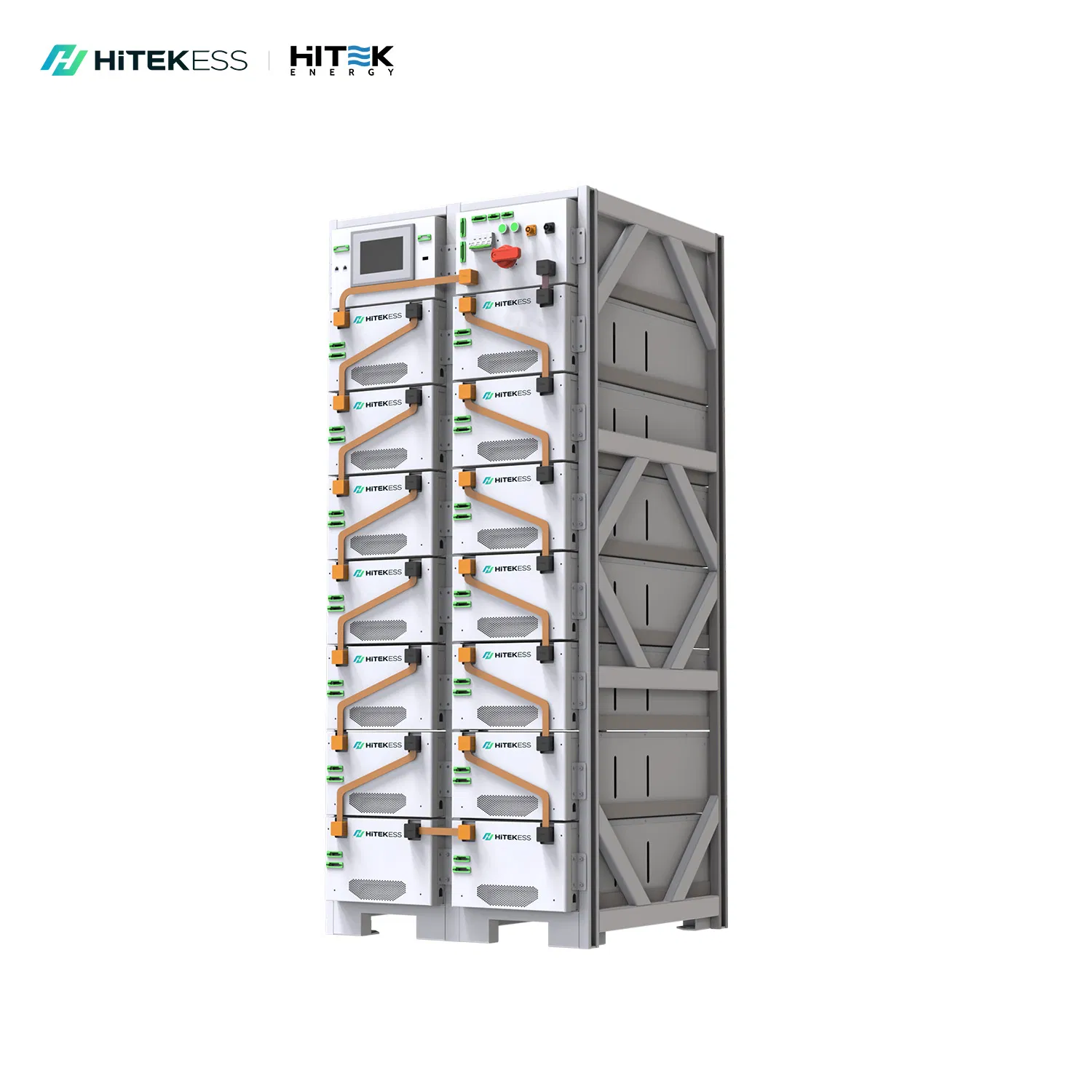

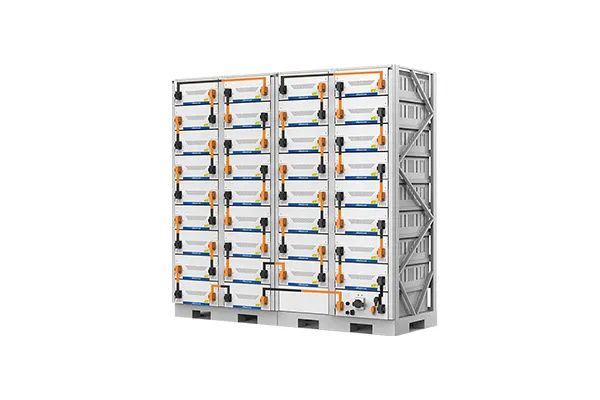

Solar Battery Packs

LiFePO4 Lithium Ion technology. Rack-mounted for easy maintenance. Over 6000 cycles at 90% DOD.

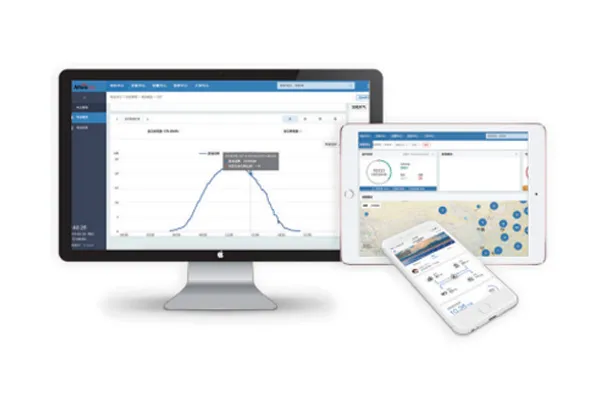

Smart Monitoring & Protection

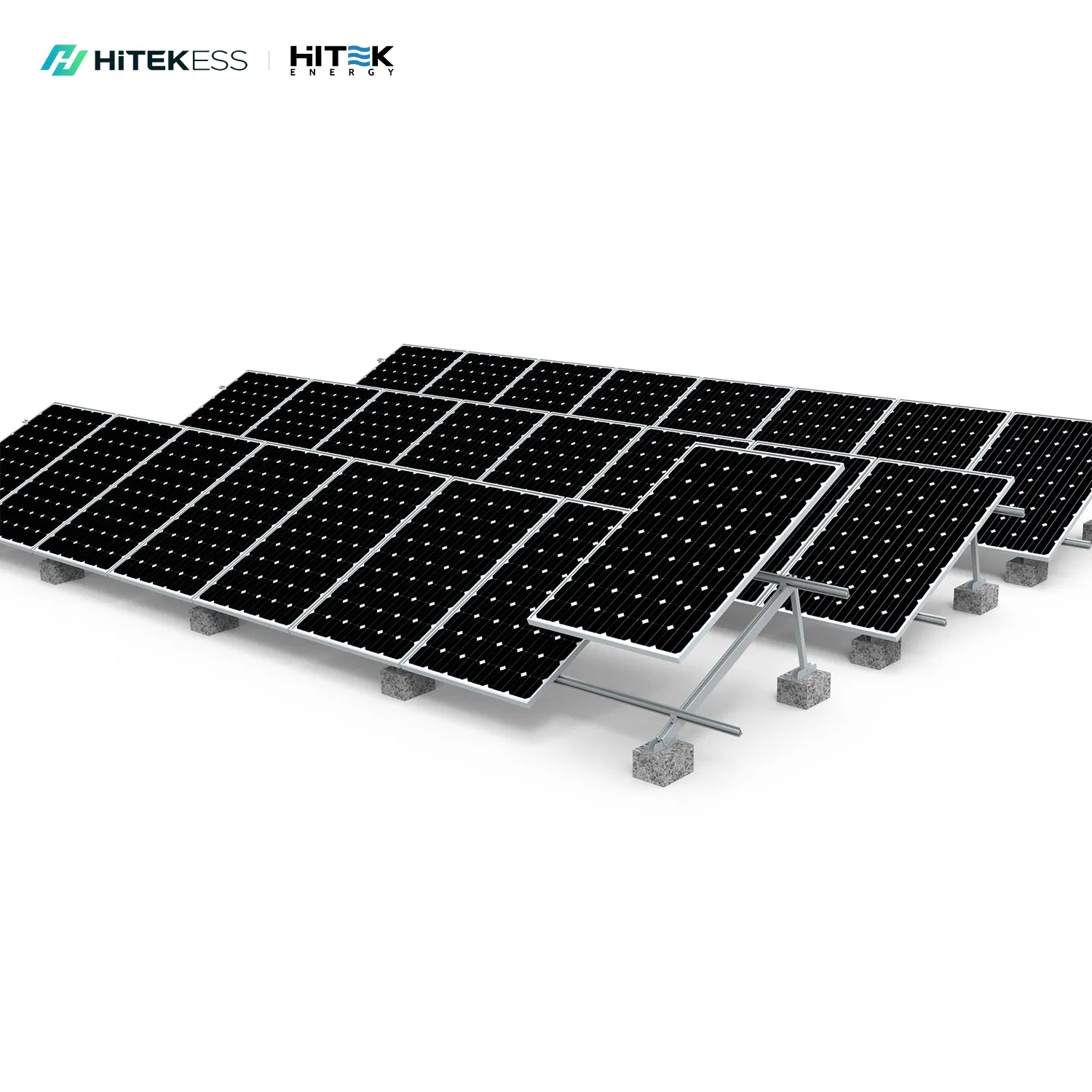

Real-time online monitoring station for data security. Includes DC/AC disconnect switches and professional PV mounting systems.

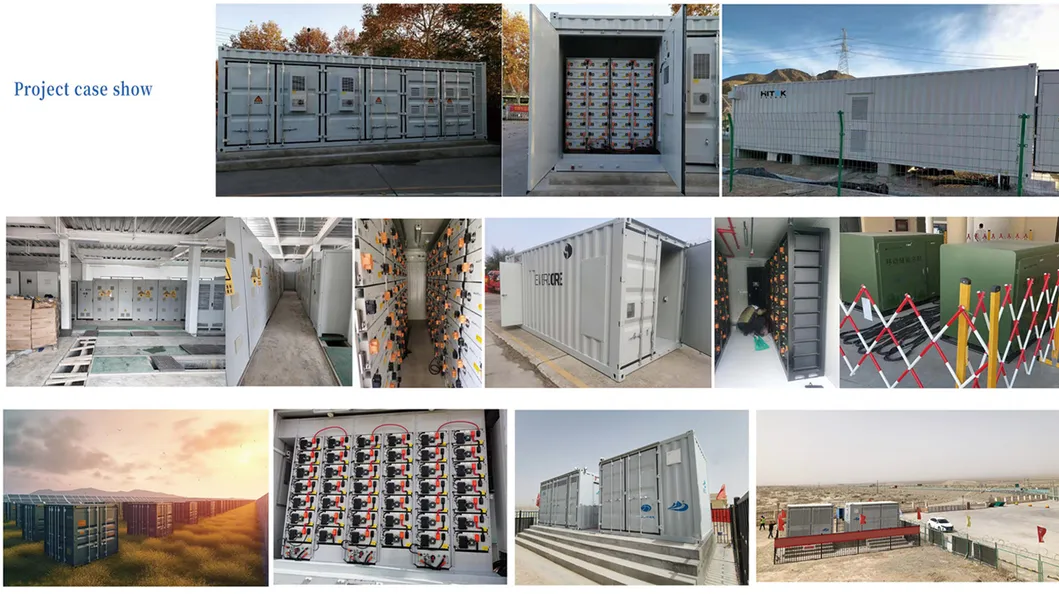

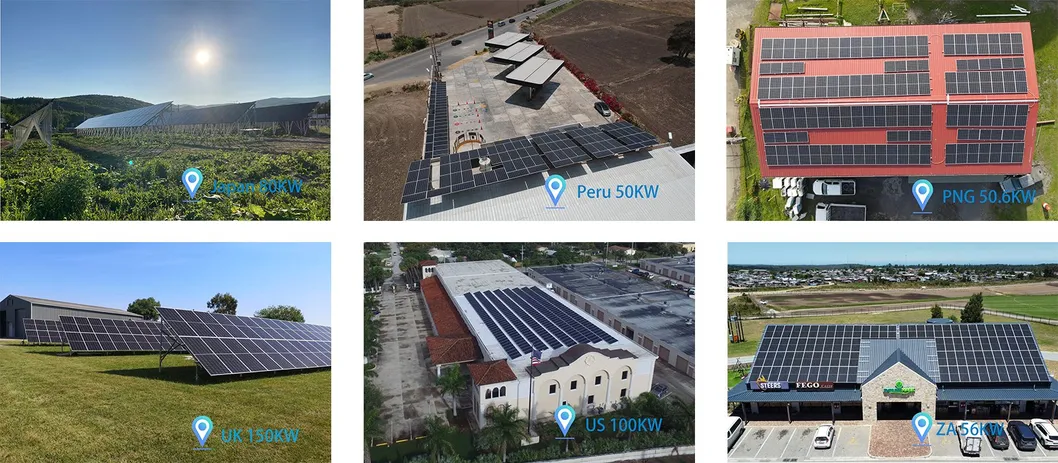

🌍 Project Gallery & Support

Frequently Asked Questions

Q1: What is the main benefit of the 500KW Hybrid Solar System?

It provides a perfect balance between grid stability and energy independence. You can use solar power directly, store it for later, or sell excess back to the grid.

Q2: How long is the warranty for this energy storage system?

The system comes with a comprehensive warranty covering solar panels for 25 years and key components like inverters and batteries for 5-10 years depending on the specific package.

Q3: Can the battery storage be expanded later?

Yes, the system features a scalable design. Both the inverter capacity (up to 4 units) and the lithium battery packs can be increased to meet growing power demands.

Q4: Does the system work during a total power outage?

Yes. The hybrid inverter includes an off-grid function that automatically switches to battery power during a grid failure to keep your critical loads running.

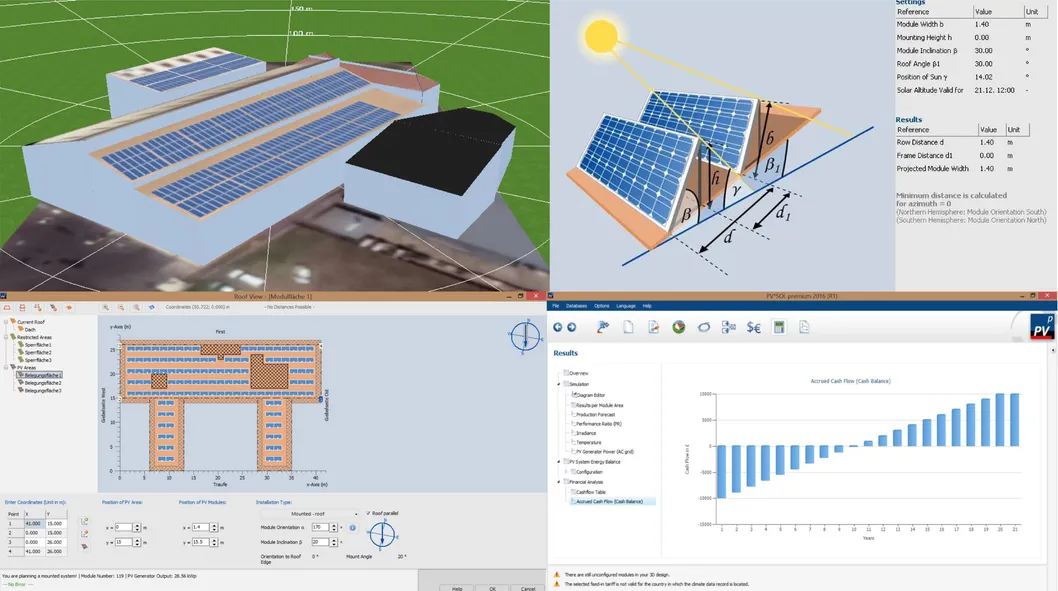

Q5: Is technical support available for installation?

We provide complete professional technical guidance, including wiring diagrams and remote monitoring setup, to ensure a smooth installation process.

Q6: What maintenance does the system require?

The LiFePO4 battery packs are maintenance-free. We recommend periodic cleaning of the solar panels and checking connections annually to maintain peak performance.
