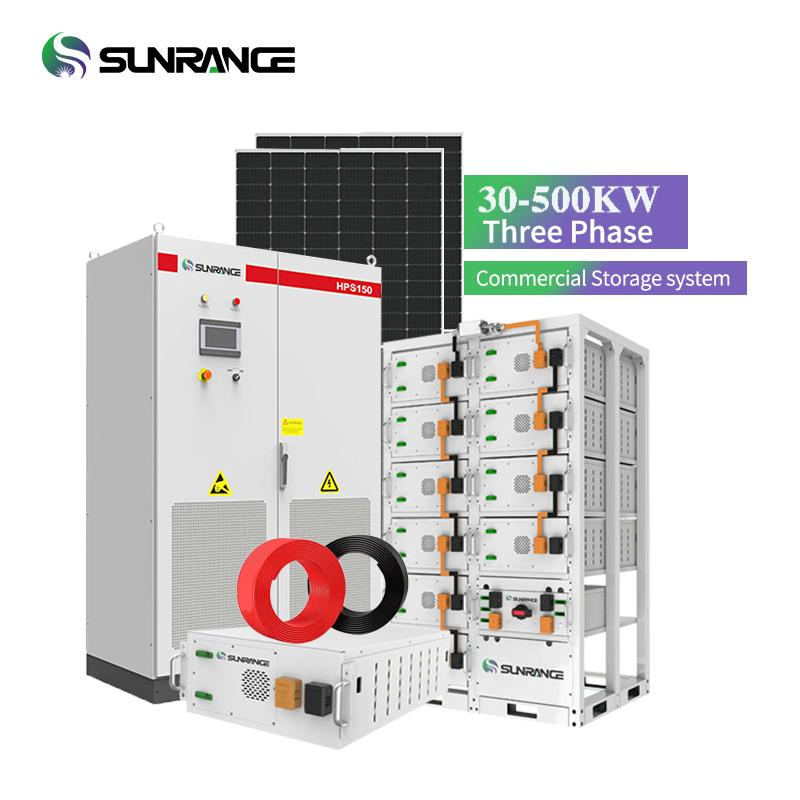

Sunrange 500kw 300kw Rooftop Commercial Solar System Reduce Electricity Costs Net Metering Solar Energy System

1 / 5

Sunrange 500kw 300kw Rooftop Commercial Solar System Reduce Electricity Costs Net Metering Solar Energy System

Customization:	Available
After-sales Service:	Technical Guidance
Warranty:	5-30 Years

Send Inquiry

Product Description

📊 Basic Information

Model NO.

SR-30/50/100/150/250/500KW-HY

Certification

ISO, CB, CE

Application

Commercial

Type

Commercial Solar Energy Storage System

Battery

Gel/ LiFePO4 Battery

System Type

Hybrid Solar PV System

Solar Panel

Monocrystalline 400-700W

Controller

MPPT Types

Battery Capacity

230kwh / Customized

Origin

China

📝 Product Description

Model No.	SR-30KW-HY	SR-50KW-HY	SR-100KW-HY	SR-150KW-HY	SR-250KW-HY	SR-500KW-HY
AC Rated Power	30KW	50KW	100KW	150KW	250KW	500KW
Grid Voltage	380/400VAC
Solar Panels	60PCS	90PCS	180PCS	270PCS	450PCS	900PCS
Inverter Model	SRHPS 30	SRHPS 50	SRHPS 100	SRHPS 150	PBD250	PBD 250
Battery Type	SR48100	SR48280	SR76120	SR76120	SR48280	SR48280
Bank Capacity	40.96KWH	100.352KWH	202.752KWH	304.128KWH	473.088KWH	946.176KWH

⚙️ Product Parameters

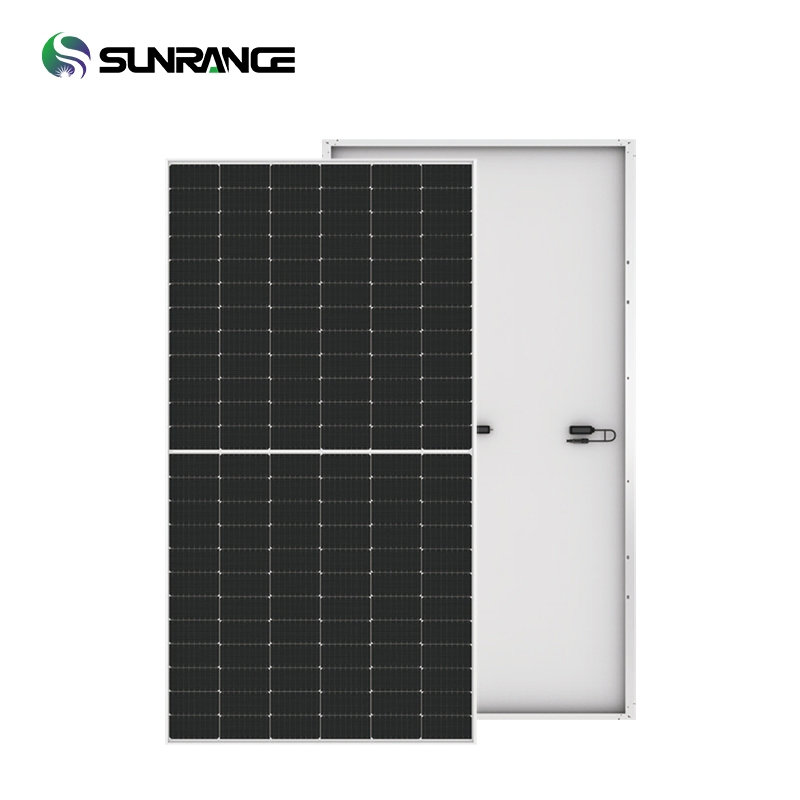

N-Type Topcon Solar Panel

Model: SR72P-580N
Maximum Power (Pmax): 580W
Open Circuit Voltage (Voc): 51.57V
Short Circuit Current (lsc): 14.33A
Module Efficiency: 22.44%

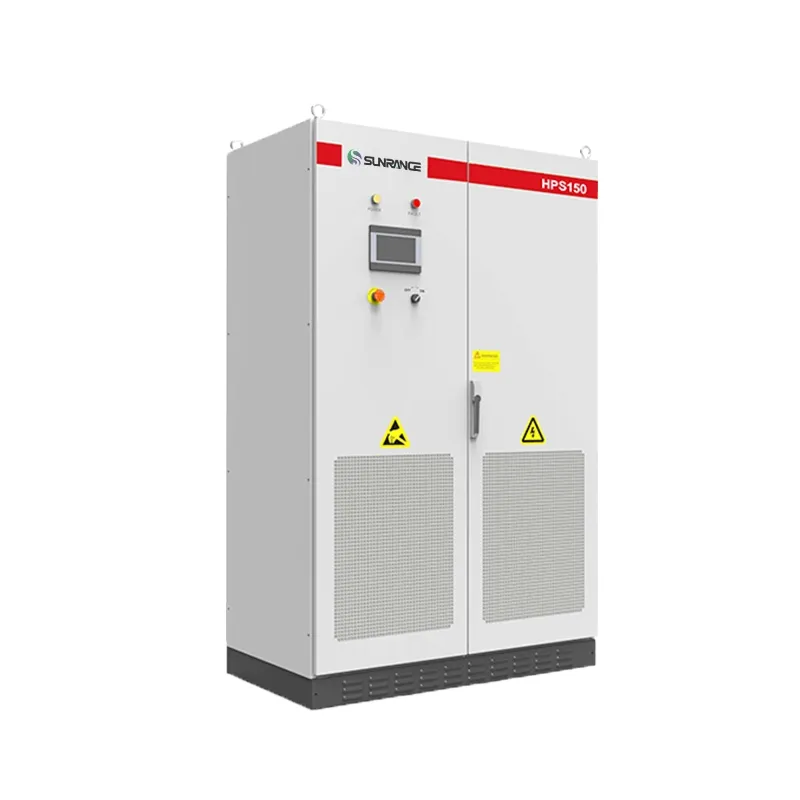

All-in-one Hybrid Inverter

Support PV, battery, DG, grid, and load connections
System capacity easily expandable
Dynamic power distribution to fulfill demand
SCR enables seamless switch within 6ms

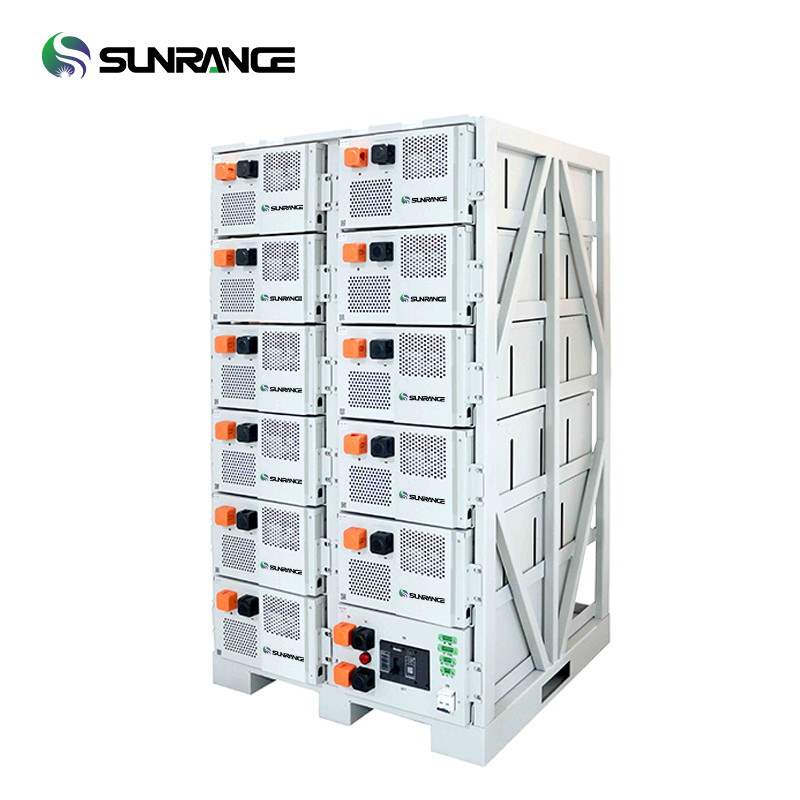

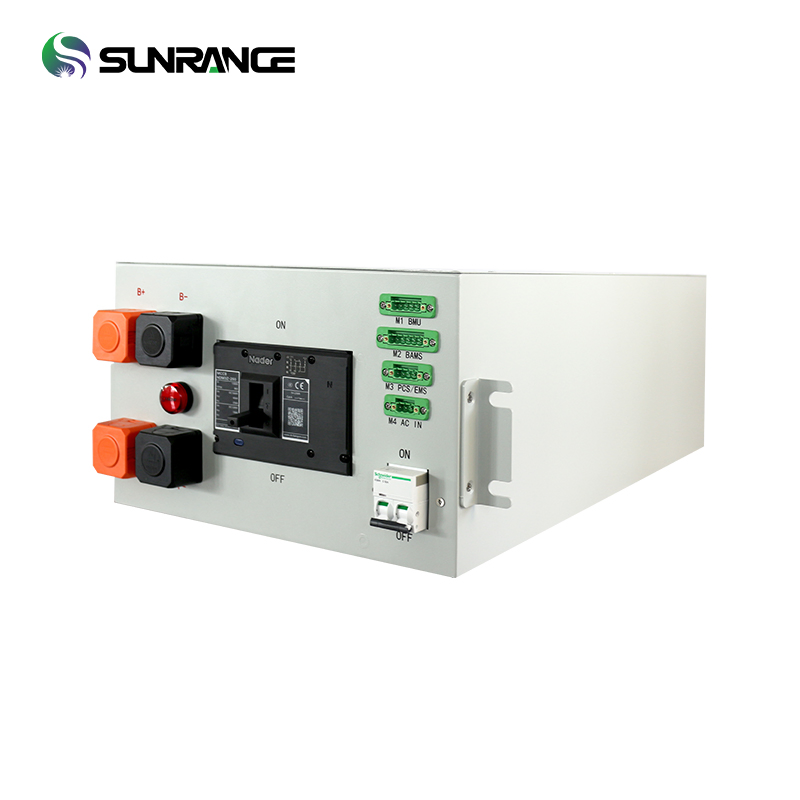

Solar Battery Packs

GEL/LiFePO4 Lithium Ion Battery Options
Rack mounted, Deep Cycle long lifespan
More than 6000 cycles, up to 90% DOD
Wide suitability of ambient temperature range

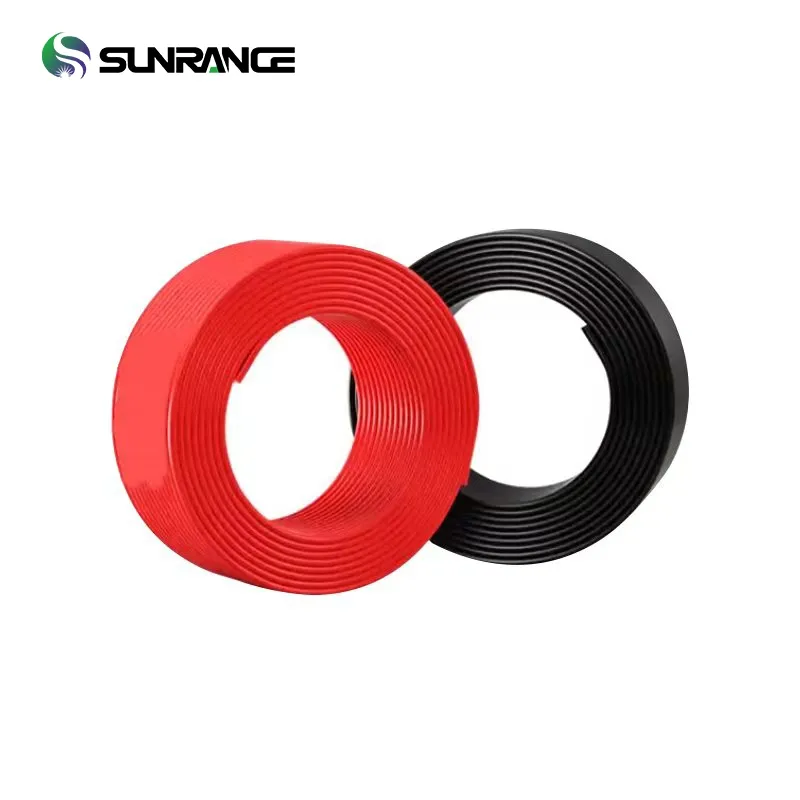

DC Cable & MC4 Connector

Cross Section: 4mm2; 6mm2; 10mm2 Optional
Rated Voltage: 600vDC/1000VDC (TUV)
Lifetime: ≤25 Years

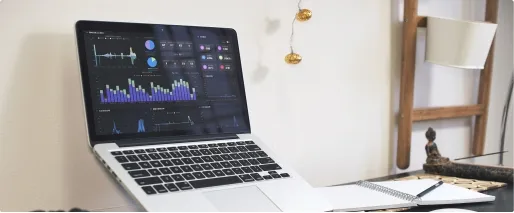

Online Monitoring System

Supports one-click installation and registration
Safe operation with traceable logs
Full lifecycle data storage for reliability

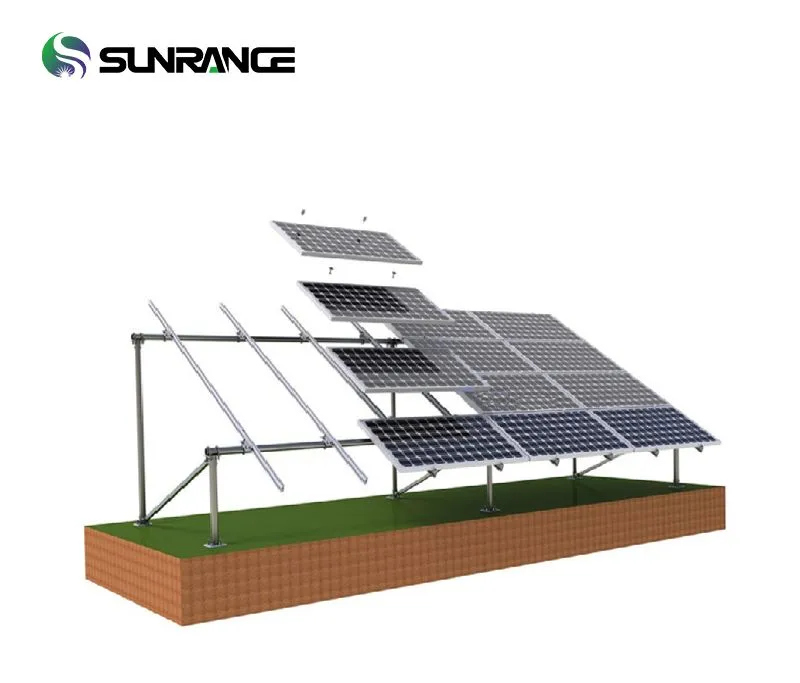

PV Mounting System

Mounting Rail & Splice Kit: Ai6005 & Sus304
Clamps: 30, 35, 40mm
L Foot & Hanger Bolt optional

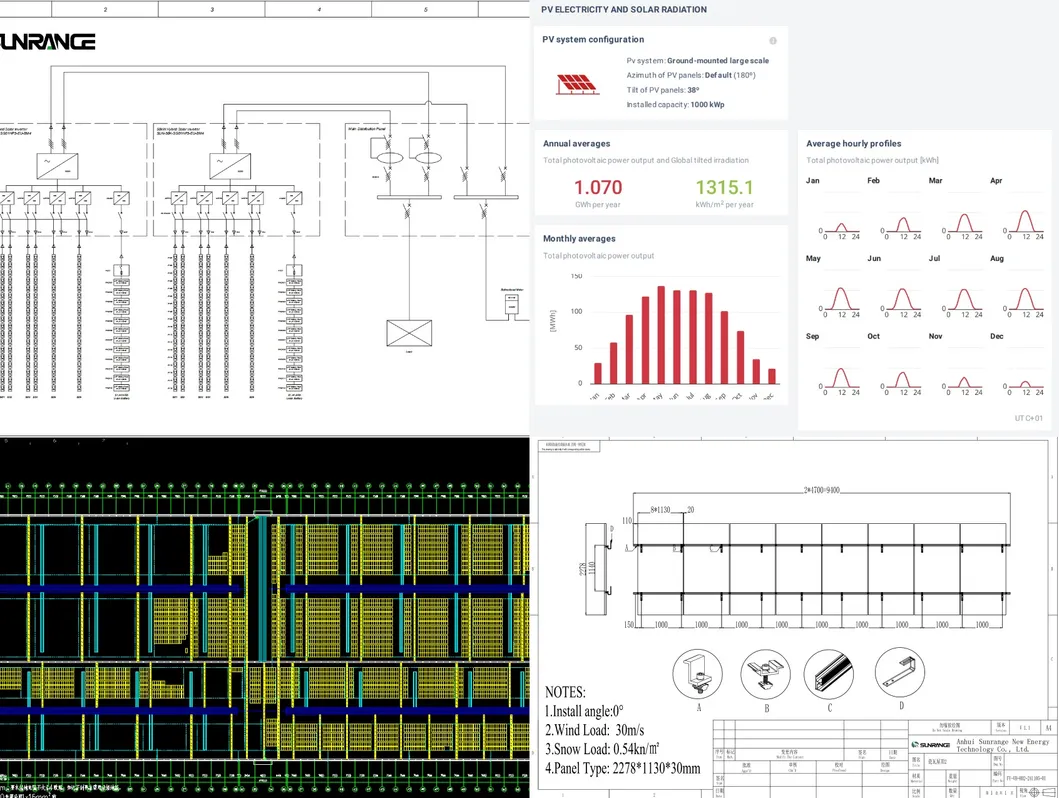

🛠️ Complete Technical Support

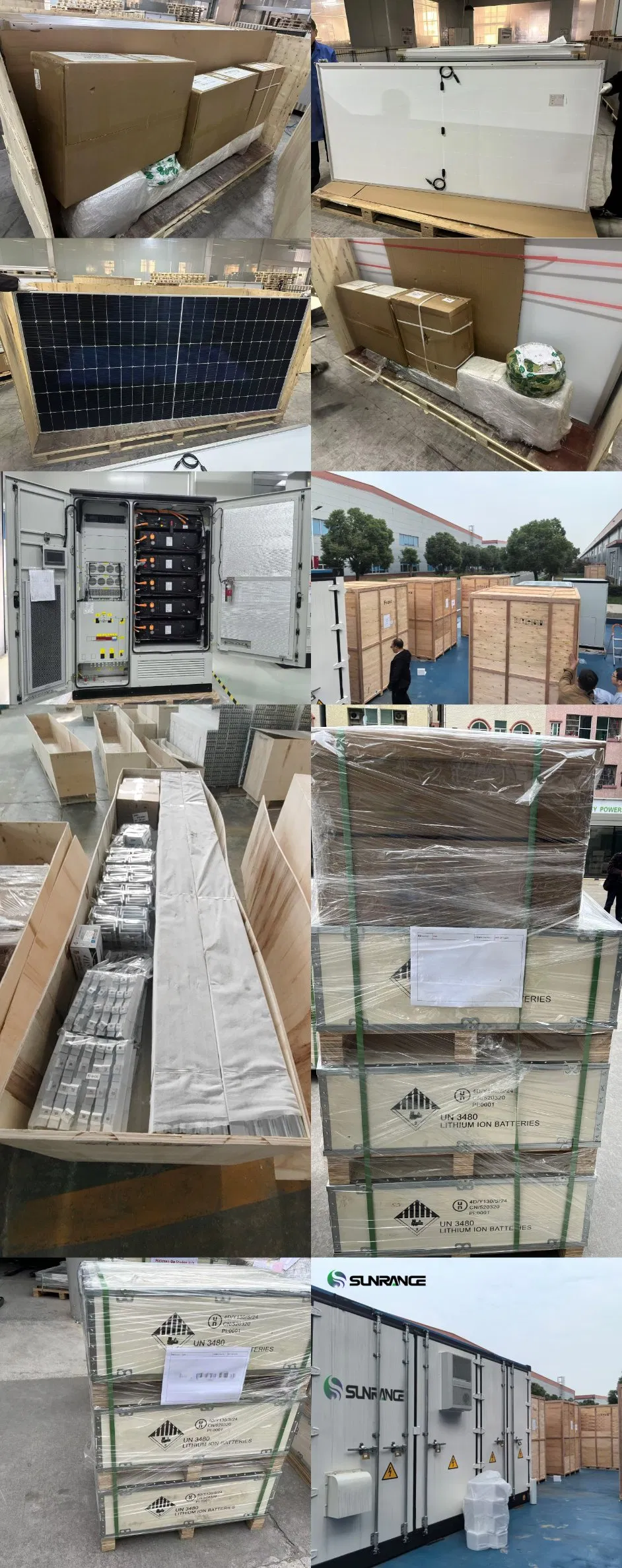

📦 Packaging & Shipping

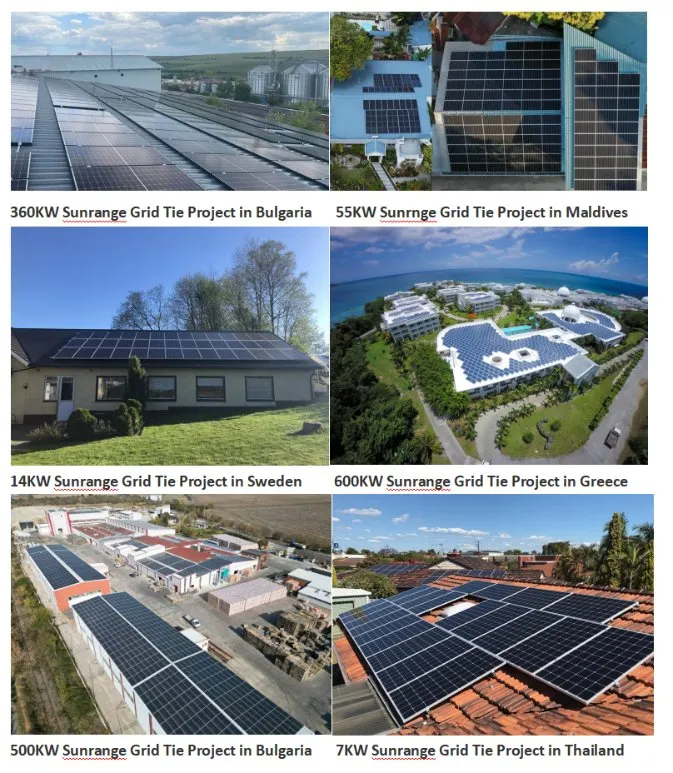

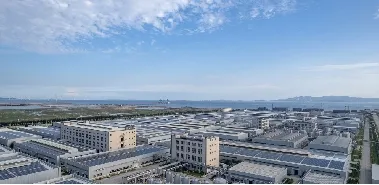

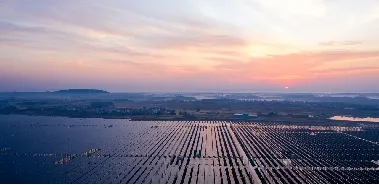

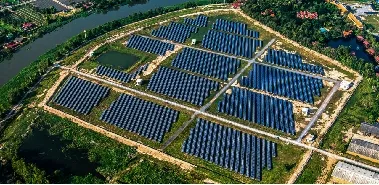

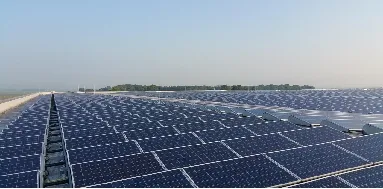

🏗️ Project Case

📜 Certifications

Frequently Asked Questions

What power capacities are available for this system?

We offer a range of AC rated powers including 30KW, 50KW, 100KW, 150KW, 250KW, and 500KW models to suit different commercial needs.

What type of battery technology is used?

The system is compatible with both Gel and LiFePO4 (Lithium Iron Phosphate) batteries, offering high discharge performance and deep cycle longevity.

How many cycles can I expect from the lithium battery packs?

The lithium battery packs are designed for long lifespans, providing more than 6000 cycles with up to 90% Depth of Discharge (DOD).

Can the system work with the existing power grid?

Yes, this is a Hybrid Solar PV System that supports connections for PV, battery, diesel generators, the utility grid, and local loads simultaneously.

Does the system provide seamless power switching?

Yes, thanks to the SCR technology in our hybrid inverters, the system enables a seamless switch between power sources within 6ms.

Is there a way to monitor the system's performance remotely?

Absolutely. Each system includes an online monitoring platform that supports one-click registration, traceable logs, and secure data storage for the system's full lifecycle.
