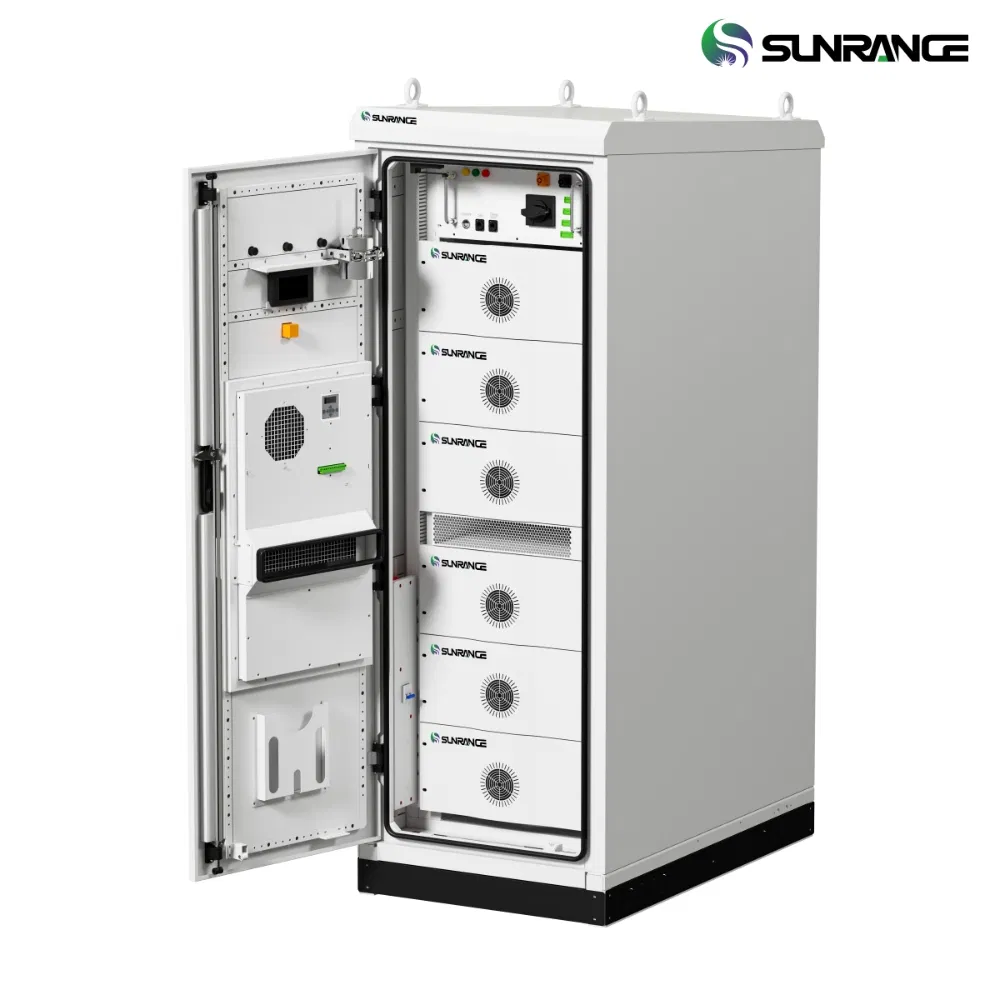

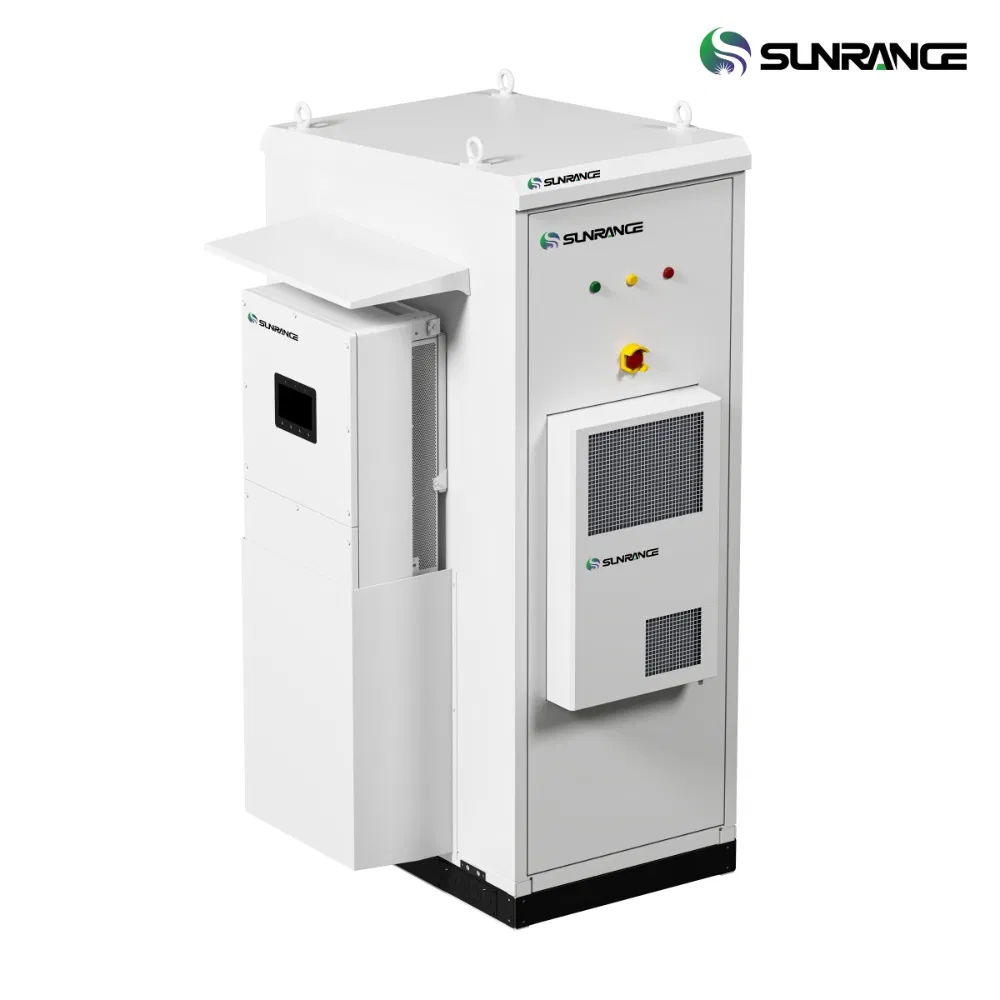

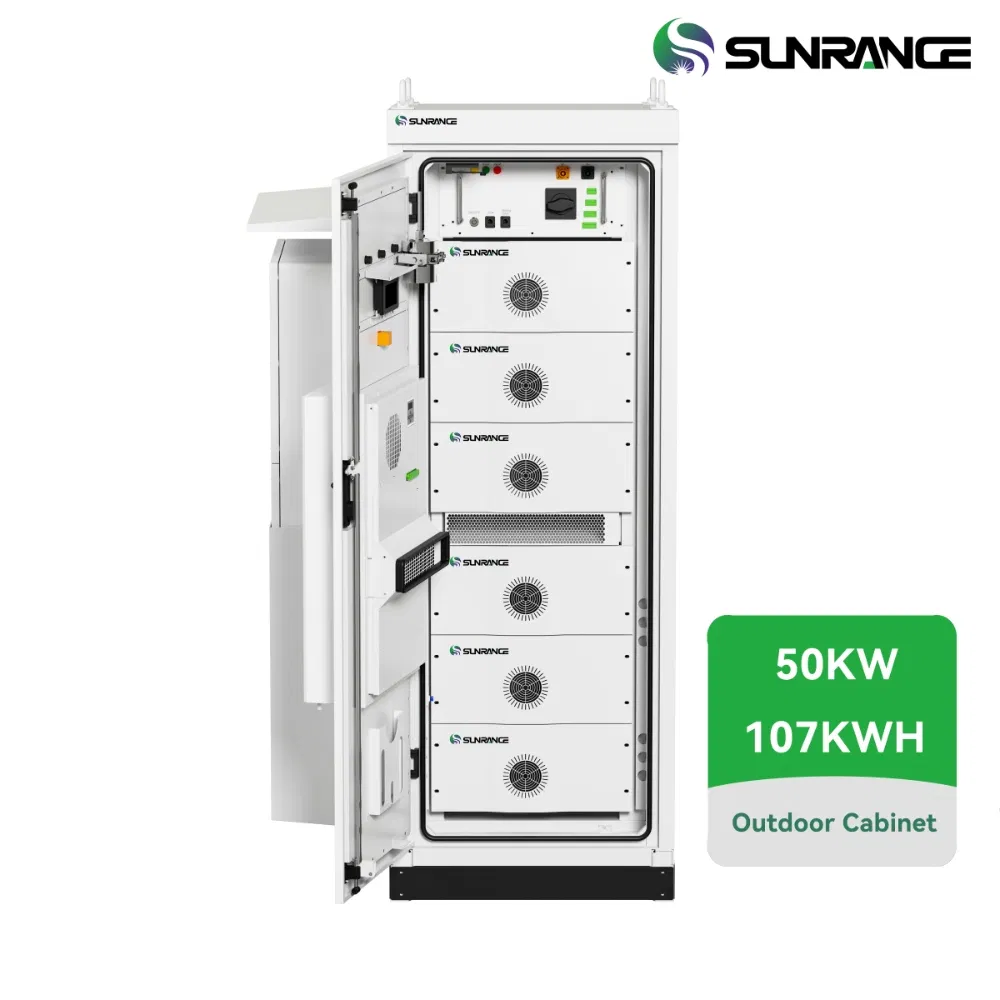

Sunrange Mobile Solar Container System 30kw 60kw 120kw Expandable Battery Backup for Emergency Power and Microgrid Solutions
Sunrange Mobile Solar Container System 30kw 60kw 120kw Expandable Battery Backup for Emergency Power and Microgrid Solutions
Sunrange Mobile Solar Container System 30kw 60kw 120kw Expandable Battery Backup for Emergency Power and Microgrid Solutions
Sunrange Mobile Solar Container System 30kw 60kw 120kw Expandable Battery Backup for Emergency Power and Microgrid Solutions
Sunrange Mobile Solar Container System 30kw 60kw 120kw Expandable Battery Backup for Emergency Power and Microgrid Solutions
1 / 5
Sunrange Mobile Solar Container System 30kw 60kw 120kw Expandable Battery Backup for Emergency Power and Microgrid Solutions
Sunrange Mobile Solar Container System 30kw 60kw 120kw Expandable Battery Backup for Emergency Power and Microgrid Solutions
Sunrange Mobile Solar Container System 30kw 60kw 120kw Expandable Battery Backup for Emergency Power and Microgrid Solutions
Sunrange Mobile Solar Container System 30kw 60kw 120kw Expandable Battery Backup for Emergency Power and Microgrid Solutions
Sunrange Mobile Solar Container System 30kw 60kw 120kw Expandable Battery Backup for Emergency Power and Microgrid Solutions

Sunrange Mobile Solar Container System 30kw 60kw 120kw Expandable Battery Backup for Emergency Power and Microgrid Solutions

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

1

Basic Specifications

Model NO.SR-eBank-50120F
ConditionNew
CertificationISO, CB, CE
Rated Energy107.5kwh
Rated Voltage384V
Cycle Life8000 Times
Max.PV Input Power96 Kw
Protection RatingIP54
Environment Temp-30~50℃
WeightAbout 1200kg
2

Product Description

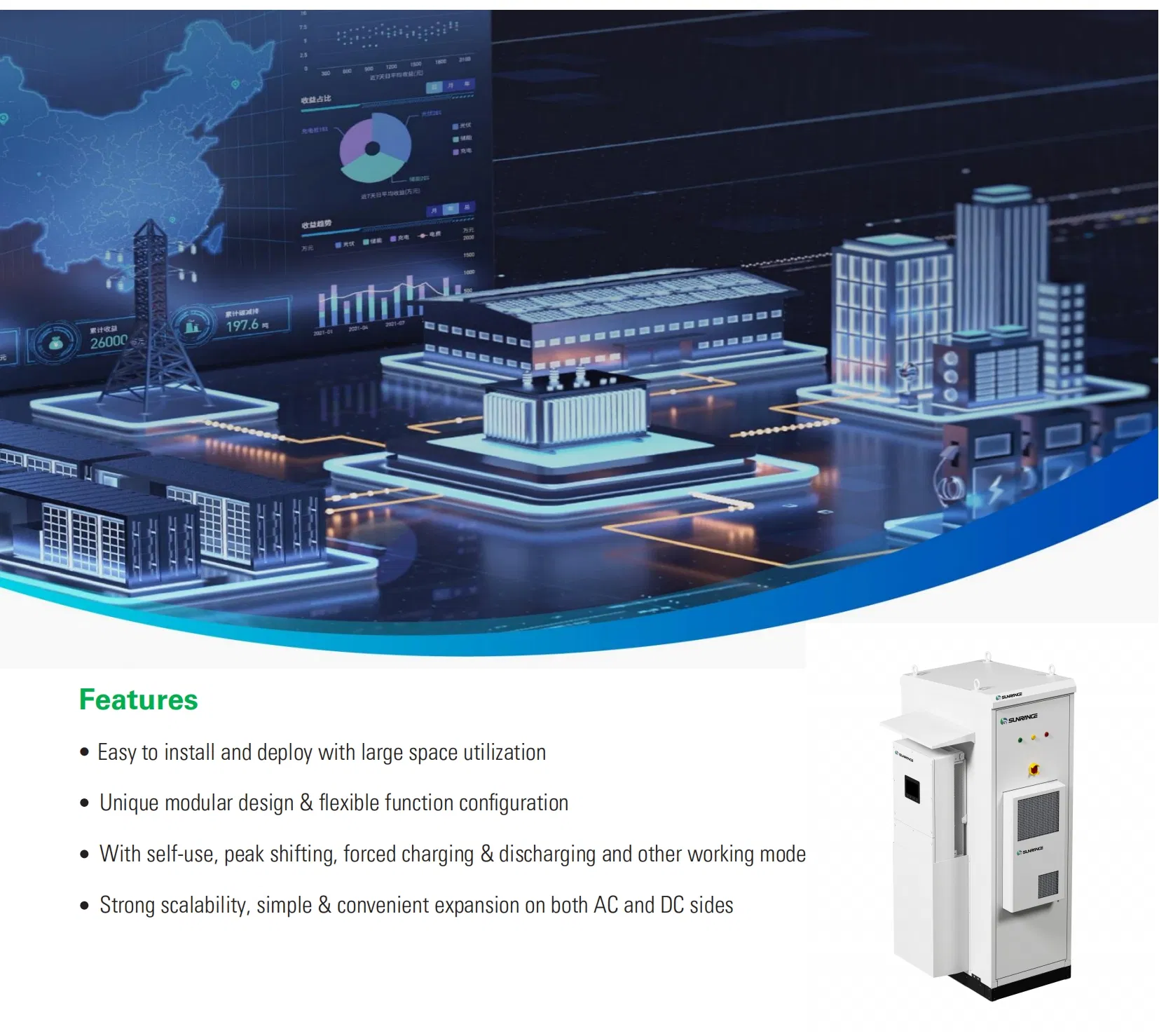

Mobile Solar Container System
The small-scale optical storage integrated outdoor cabinet energy storage system adopts modular design, featuring easy integration, easy deployment, and easy expansion. It is ideal for peak shaving, valley filling, self-consumption, and off-grid power backup.
3

Technical Parameters

Battery & PV Parameters
Number of battery packs6
Voltage range336~438V
Discharge Depth90%
Rated input voltage (PV)600VDC
MPPT voltage range150~850VDC
AC Side & System Parameters
AC rated input/output power50kVA
Voltage3L/N/PE; 230/400V
Frequency50/60Hz
CommunicationCAN/RS485/WiFi/ETH
Design Life10 years+
ExpansionSupport in parallel up to 90kW/252.9kWh
4

Product Detail Photos

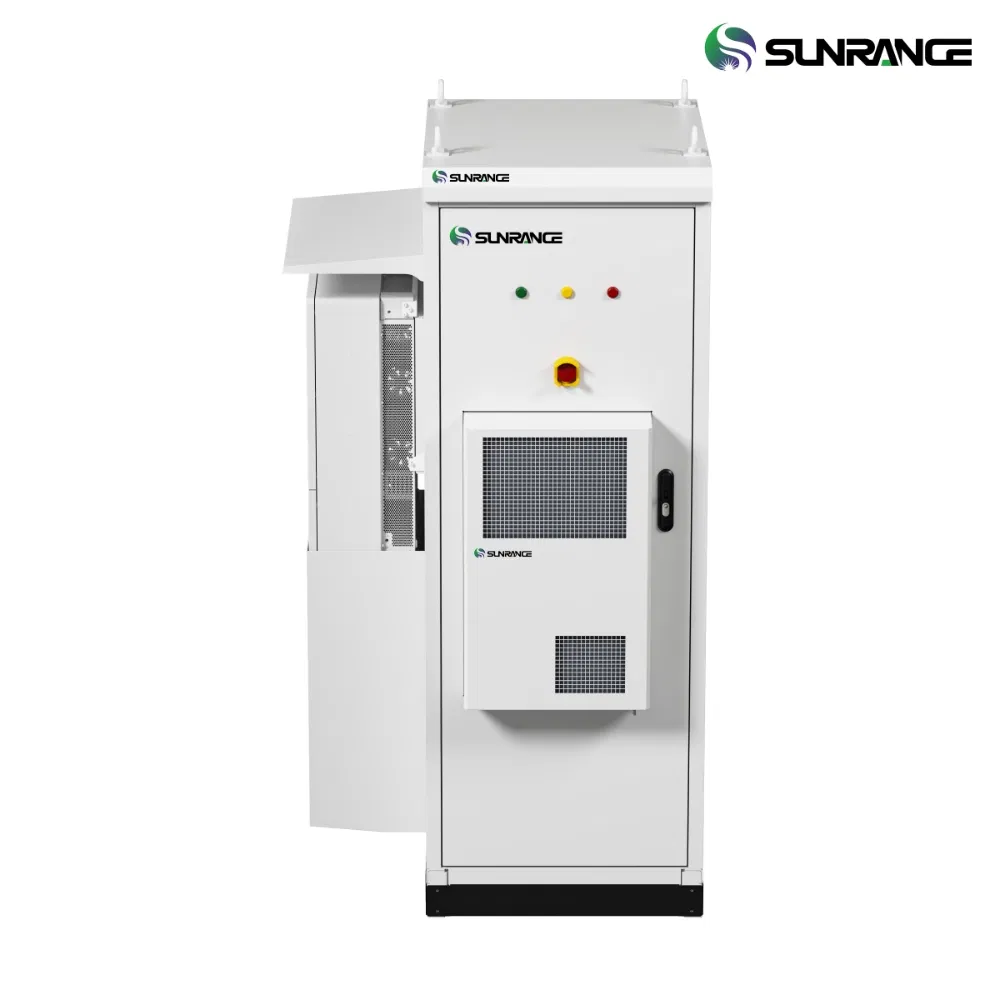

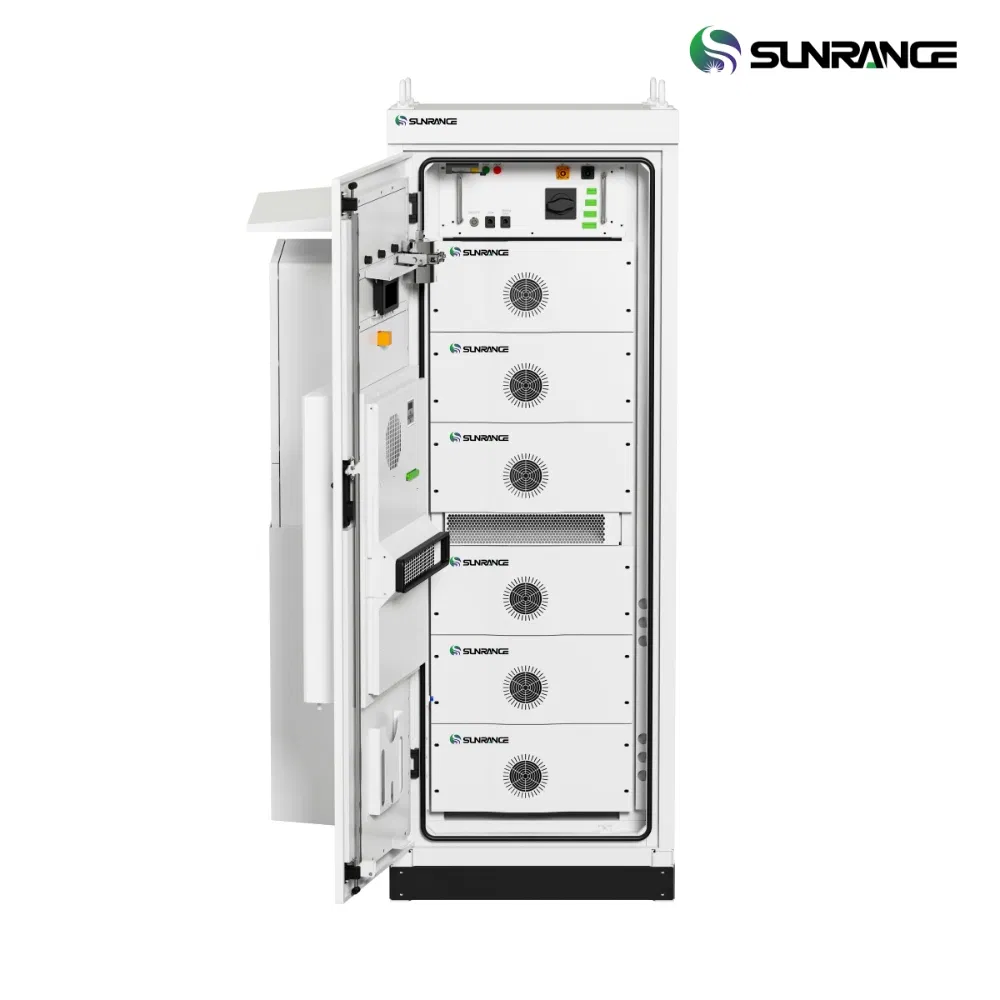

Solar Storage Detail 1
Solar Storage Detail 2
5

System Overview

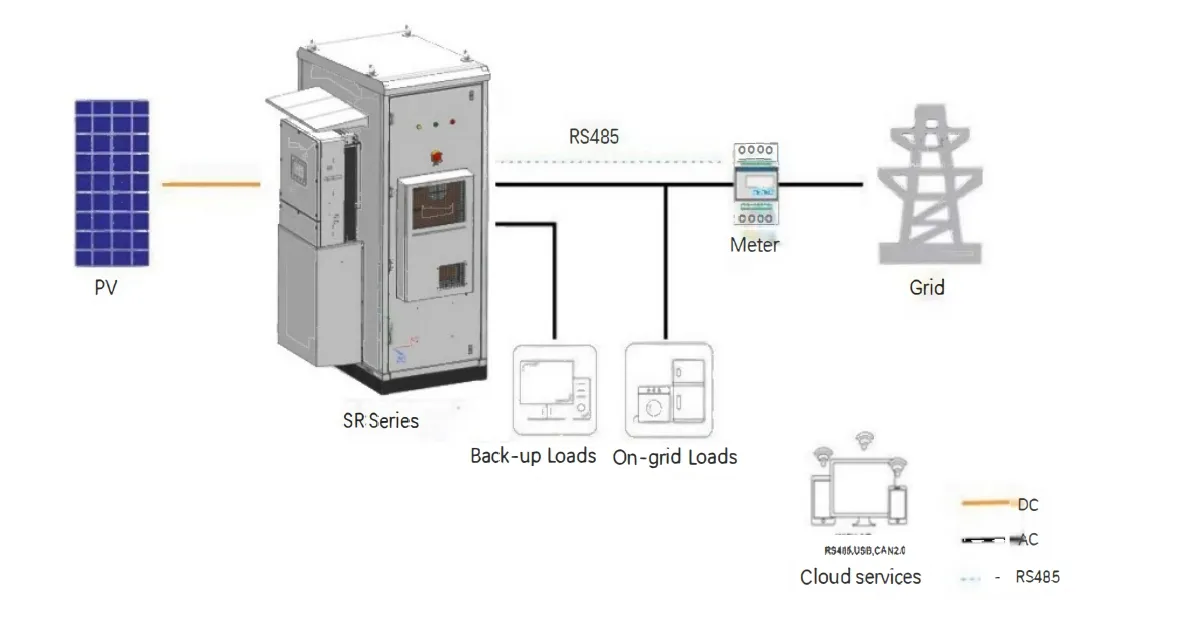

System Overview Map

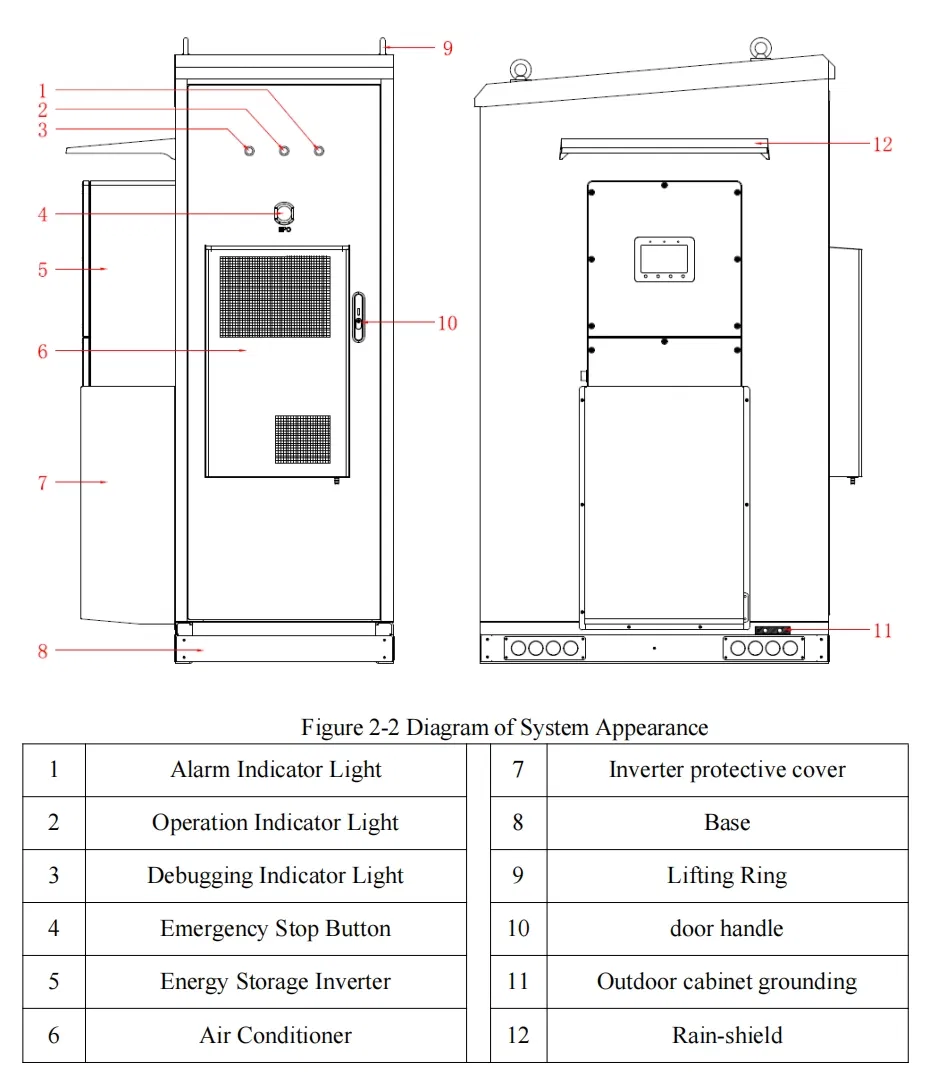

Module 1

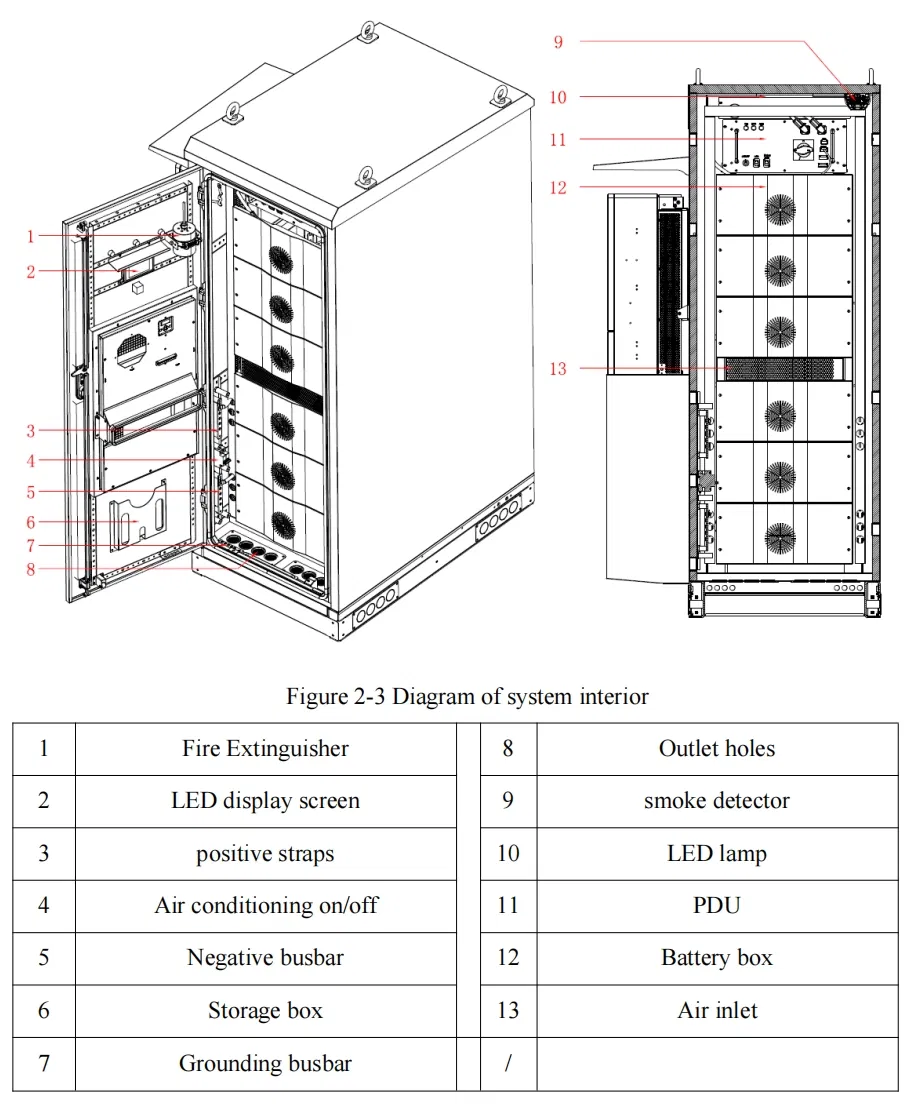

Module 2

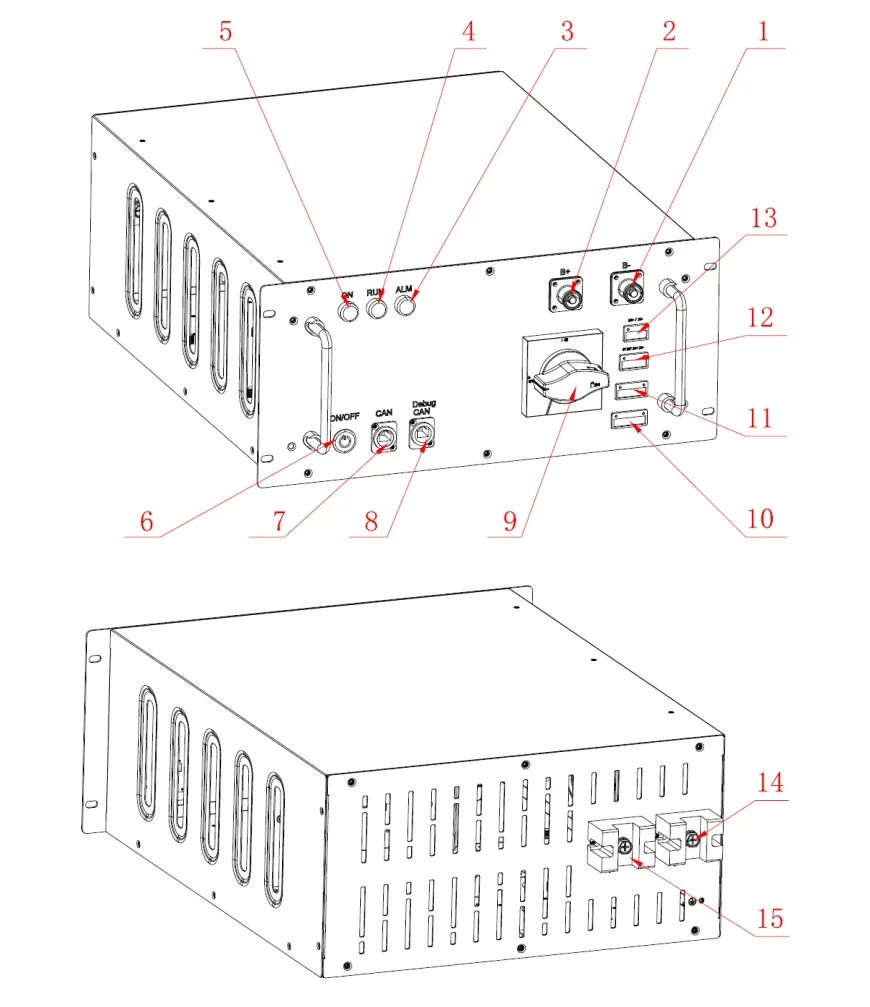

Module 3
6

Technical Support & Cases

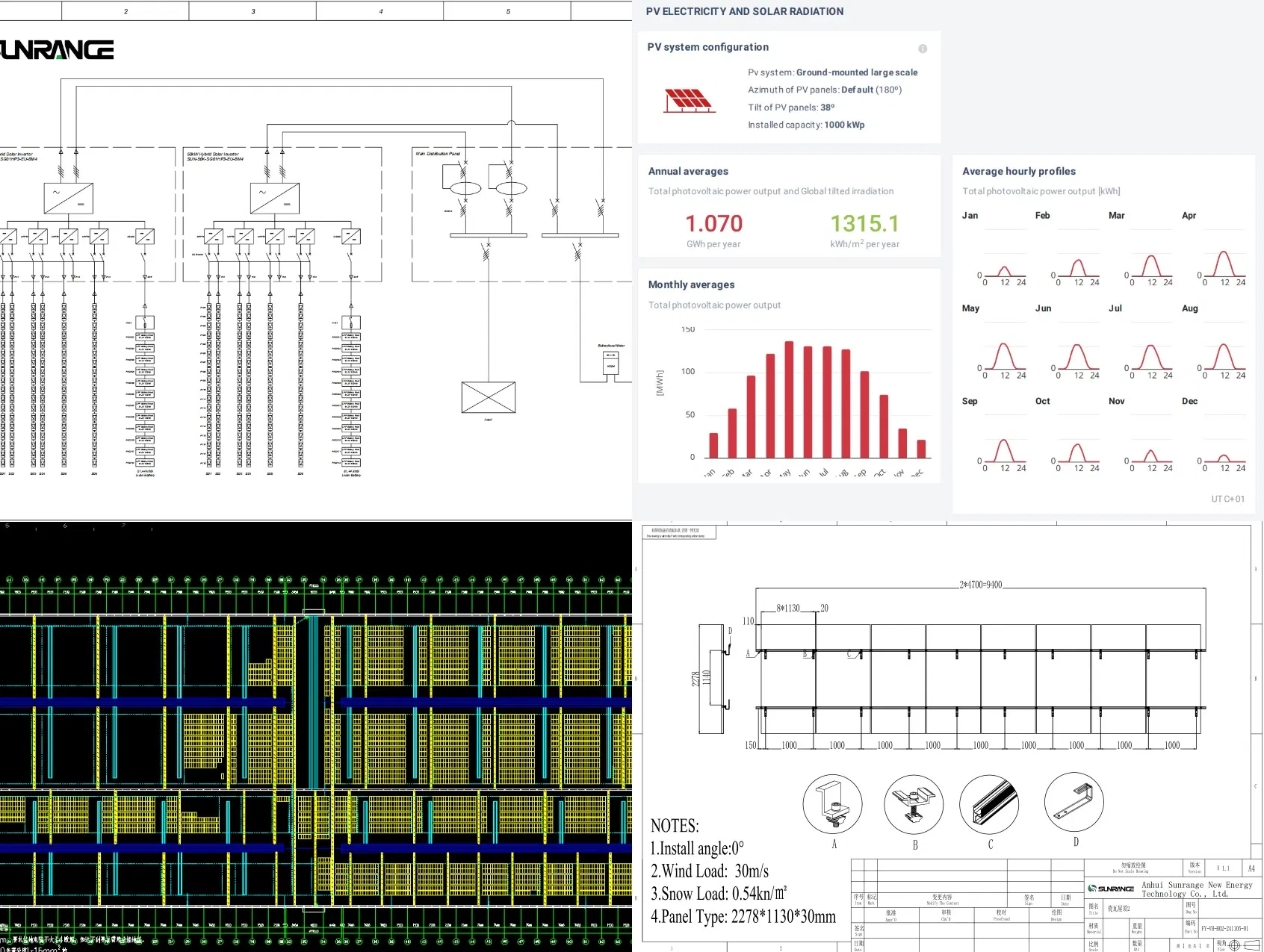

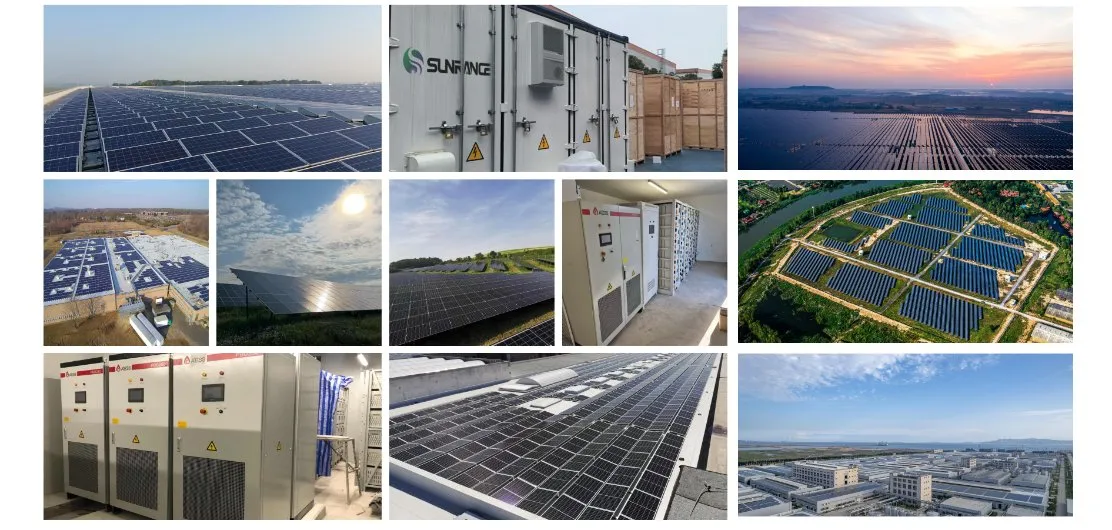

Technical Support Project Case
7

Certifications

Industry Certifications
8

Professional Services

Facility

We provide the highest quality products and professional services, offering diverse design solutions for large, medium, and small-scale customers. We continuously develop and improve technology to bring a better experience to users globally.

Frequently Asked Questions

What is the cycle life of this energy storage system?
The system features a high-performance battery with a cycle life of up to 8000 times.
Is the system suitable for outdoor installation?
Yes, the enclosure has an IP54 protection rating, making it suitable for various outdoor industrial and commercial environments.
Can the capacity be expanded in the future?
Absolutely. The system supports parallel expansion up to 90kW/252.9kWh to meet growing energy needs.
What are the primary applications for this system?
It is ideal for peak shaving, valley filling, self-generation/consumption, demand management, and off-grid power backup.
What is the operating temperature range?
The system is designed to operate reliably in environments ranging from -30℃ to 50℃.
What communication methods are supported?
The system supports CAN, RS485, WiFi, and ETH for comprehensive monitoring and control.
