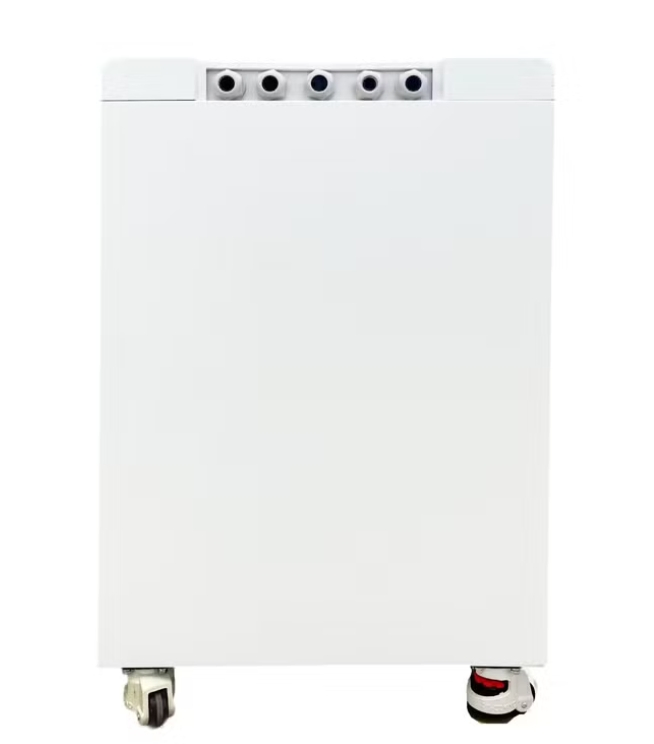

16kwh Energy Storage Power with Wheels Wres-Hw-25-016 (1)
16kwh Energy Storage Power with Wheels Wres-Hw-25-016 (1)
16kwh Energy Storage Power with Wheels Wres-Hw-25-016 (1)
16kwh Energy Storage Power with Wheels Wres-Hw-25-016 (1)
16kwh Energy Storage Power with Wheels Wres-Hw-25-016 (1)
1 / 5
16kwh Energy Storage Power with Wheels Wres-Hw-25-016 (1)
16kwh Energy Storage Power with Wheels Wres-Hw-25-016 (1)
16kwh Energy Storage Power with Wheels Wres-Hw-25-016 (1)
16kwh Energy Storage Power with Wheels Wres-Hw-25-016 (1)
16kwh Energy Storage Power with Wheels Wres-Hw-25-016 (1)

16kwh Energy Storage Power with Wheels Wres-Hw-25-016 (1)

Customization: Available
Type: Li-ion Battery
Cathode Material: LFP
Send Inquiry

Product Description

i

Basic Information

Model NO.
WRES-HW-25-016(1)
Rechargeable
Yes
Size
Medium
Cycle Life
8000
Efficiency
>97%
Cooling Type
Natural Cooling

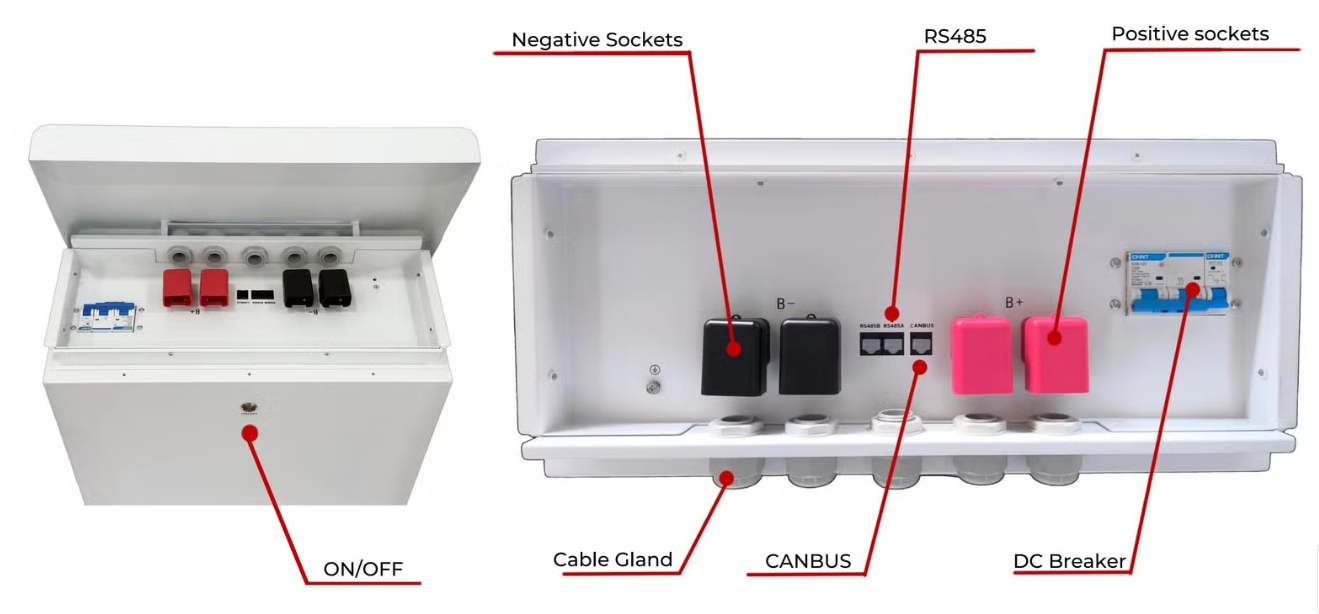

Communication
Can/RS485
Nominal Capacity
16kwh
Dimension
525*720*245mm
Protection
Over-Current/ Over- Voltage/Short Circuit
IP Rating
IP65
Usage
Energy Storage
Origin
China
Energy Storage Power
⚙

Technical Specification

ProductNameWRES-HW-25-016(Ⅰ)
Total Energy (kWh)16.08
Usable Energy (kWh)15.11
Nominal Voltage (Vd.c)51.2
Voltage Range (Vd.c)44.8-57.6
Rated Capacity (Ah)314
Max. Current (Charge/Discharge)200A
BMS FeaturesOver-voltage, Over-current, Short-circuit, Low-voltage, Over Temperature Protection, Cell Balance

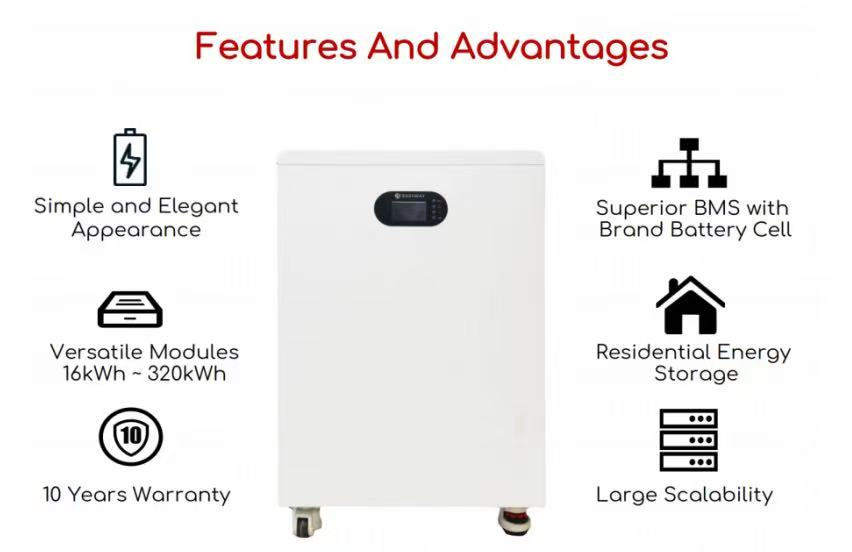

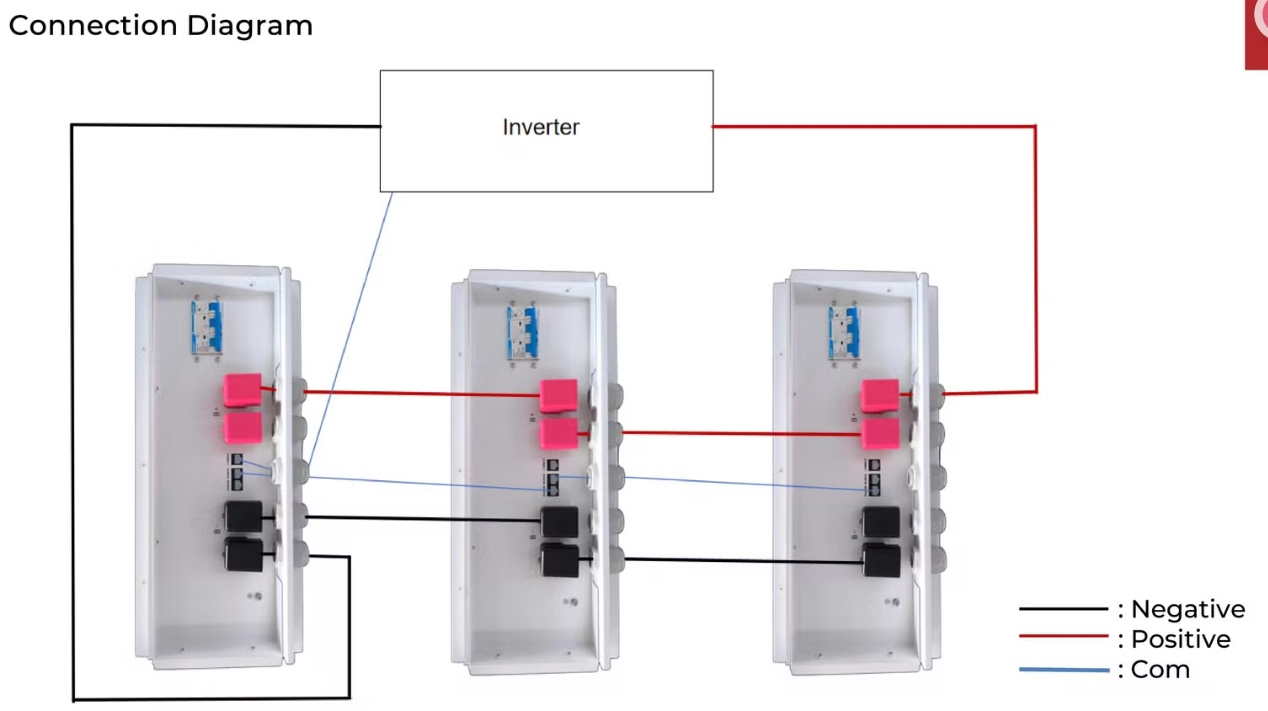

ScalabilityMax 20 in Parallel
Weight (KG)120
Operating Temperature-20°C to 55°C
Cycle Life≥8000 @ 25℃
📦

Packing & Delivery

Packaging Detail 1 Packaging Detail 2

We provide a reliable, transparent, and secure transportation service tailored to our core products—residential energy storage systems, commercial & industrial (C&I) energy storage solutions, and EV chargers.

Key Logistics Features:
  • Transparent Tracking: Real-time monitoring of the entire journey via dedicated tracking numbers.
  • Customized Reinforced Packaging: High-density shockproof materials and reinforced wooden crates for maximum protection.
  • Prompt Resolution: Rapid response handling mechanism for any transportation-related issues.
🏭

Manufacturing Excellence

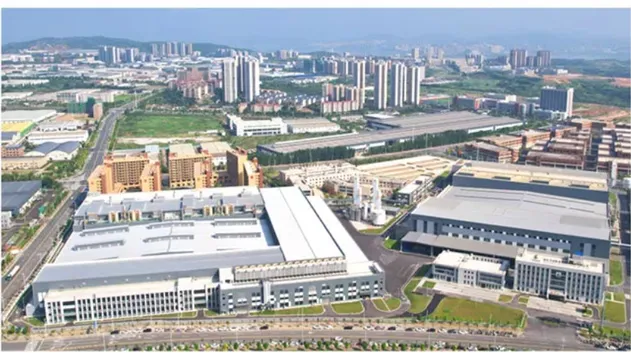

Production Line 1 Production Line 2 Production Line 3
?

Frequently Asked Questions

What are the primary products manufactured?
We primarily produce cathode materials for lithium-ion power batteries, photovoltaic modules, energy storage integration systems, and charging pile products.
What are the advantages of the production line?
Our facilities feature state-of-the-art fully automated production lines utilizing American IPG lasers and German Blackbird galvanometers, integrated with a MES management system for real-time data tracking.
What R&D capabilities are available?
Our infrastructure includes a CNAS accredited laboratory, German Zeiss scanning electron microscopes, Agilent ICP, and Japanese RIKEN XRD technology.
What is the annual production capacity?
We are capable of meeting an annual production capacity of 10,000 DC charging stations and 100,000 AC charging stations.
What types of charging stations can be mass-produced?
We produce 7kW AC stations, 20-40kW low-power DC stations, 60-240kW integrated DC stations, and up to 800kW fully liquid-cooled superchargers.
What is the core vision regarding sustainability?
To lead industry development through technological innovation and establish a model for green, circular, and low-carbon practices in the new energy sector.
