Alicosolar Longi Jinko Tier 1 Solar Panel 400-700W PV Modules on Grid off Grid Hybrid Solar Power Energy System Builder
Alicosolar Longi Jinko Tier 1 Solar Panel 400-700W PV Modules on Grid off Grid Hybrid Solar Power Energy System Builder
Alicosolar Longi Jinko Tier 1 Solar Panel 400-700W PV Modules on Grid off Grid Hybrid Solar Power Energy System Builder
Alicosolar Longi Jinko Tier 1 Solar Panel 400-700W PV Modules on Grid off Grid Hybrid Solar Power Energy System Builder
Alicosolar Longi Jinko Tier 1 Solar Panel 400-700W PV Modules on Grid off Grid Hybrid Solar Power Energy System Builder
1 / 5
Alicosolar Longi Jinko Tier 1 Solar Panel 400-700W PV Modules on Grid off Grid Hybrid Solar Power Energy System Builder
Alicosolar Longi Jinko Tier 1 Solar Panel 400-700W PV Modules on Grid off Grid Hybrid Solar Power Energy System Builder
Alicosolar Longi Jinko Tier 1 Solar Panel 400-700W PV Modules on Grid off Grid Hybrid Solar Power Energy System Builder
Alicosolar Longi Jinko Tier 1 Solar Panel 400-700W PV Modules on Grid off Grid Hybrid Solar Power Energy System Builder
Alicosolar Longi Jinko Tier 1 Solar Panel 400-700W PV Modules on Grid off Grid Hybrid Solar Power Energy System Builder

Alicosolar Longi Jinko Tier 1 Solar Panel 400-700W PV Modules on Grid off Grid Hybrid Solar Power Energy System Builder

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Specifications

Model
SOLAR SYSTEM
Cells
144 PCS
Material
Monocrystalline Silicon
Efficiency
20.0~22.7%
Weight
23.5kg
Dimensions
2094*1038*32mm
Voltage
1500V Max
Protection
IP68 Rated
★

Product Overview

PV Modules

This high-efficiency monocrystalline solar system is designed for multi-field applications, featuring advanced Hi-MO technology for superior power output. With 144 cells and a robust anodized aluminium alloy frame, it ensures long-term reliability in various environmental conditions.

✓

Features at a Glance

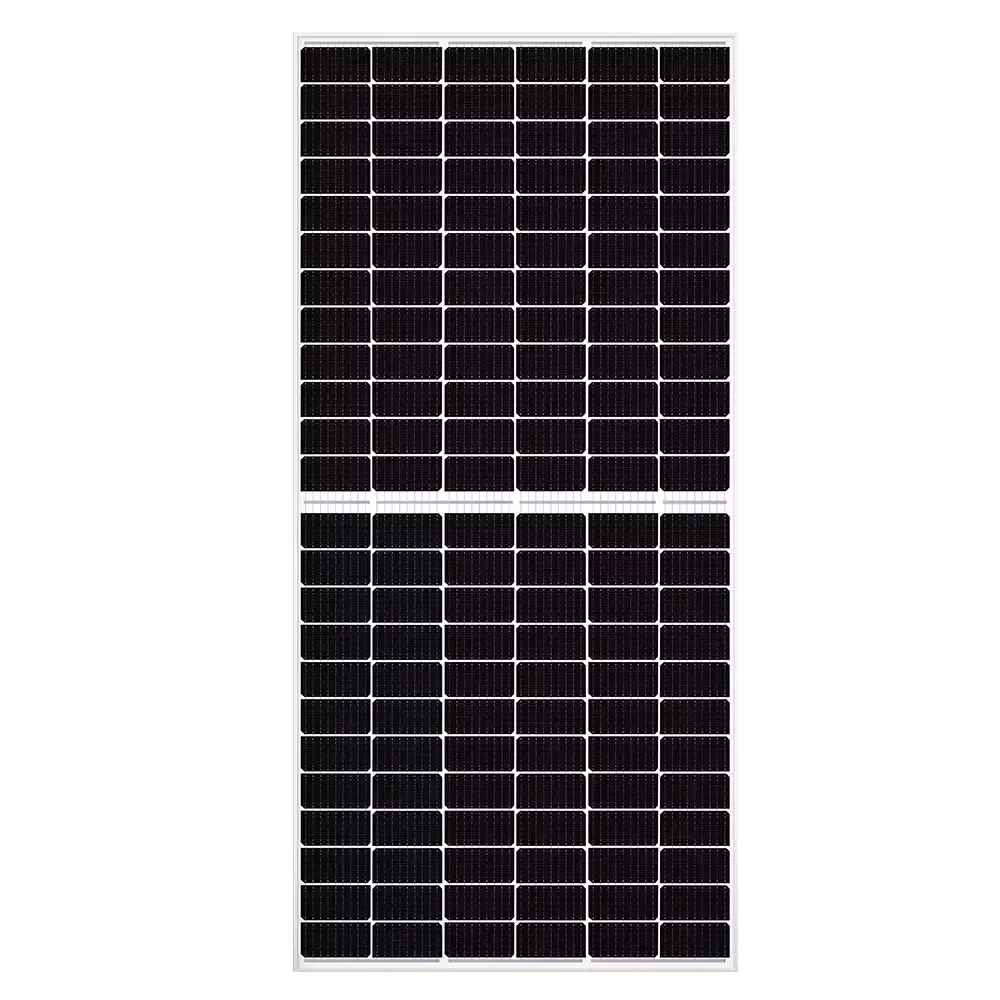

Module Details

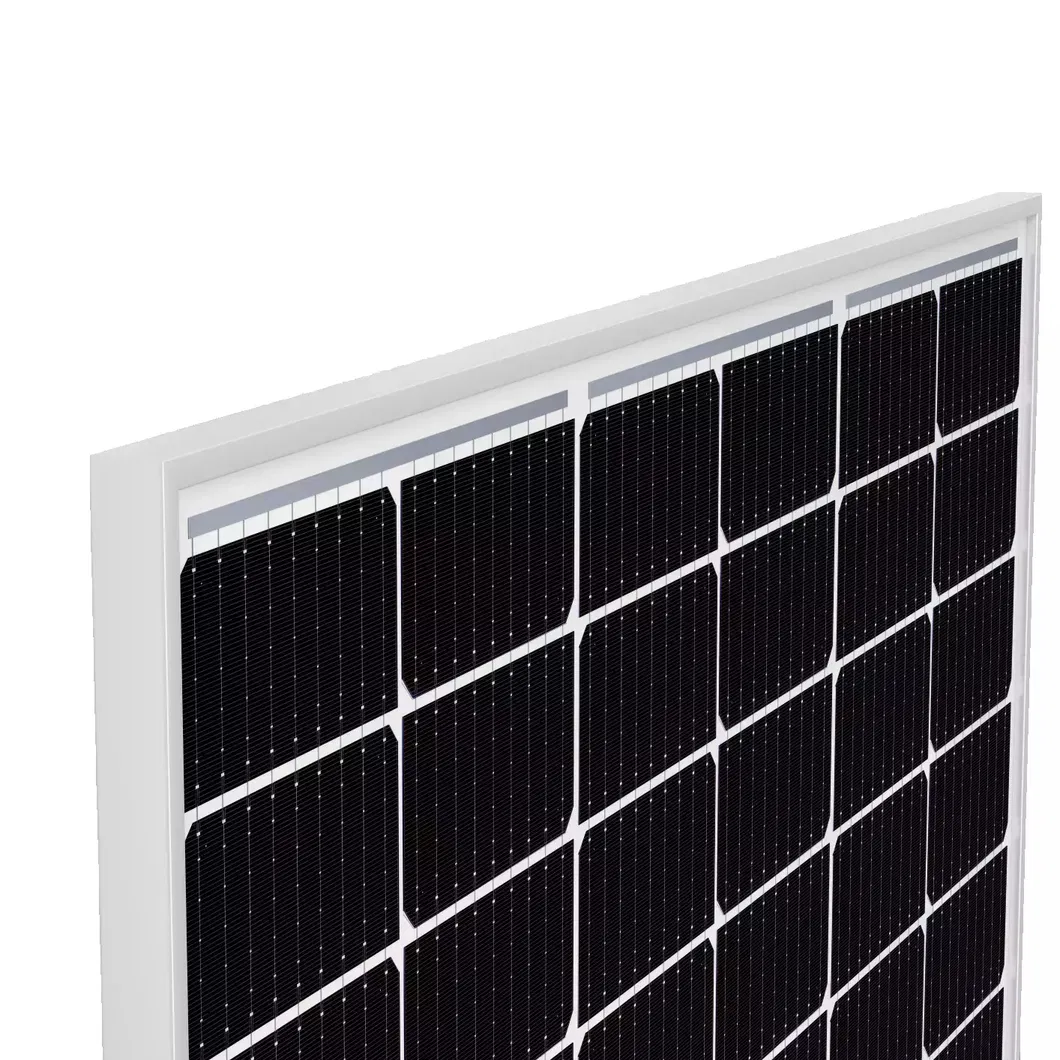

Frame Details

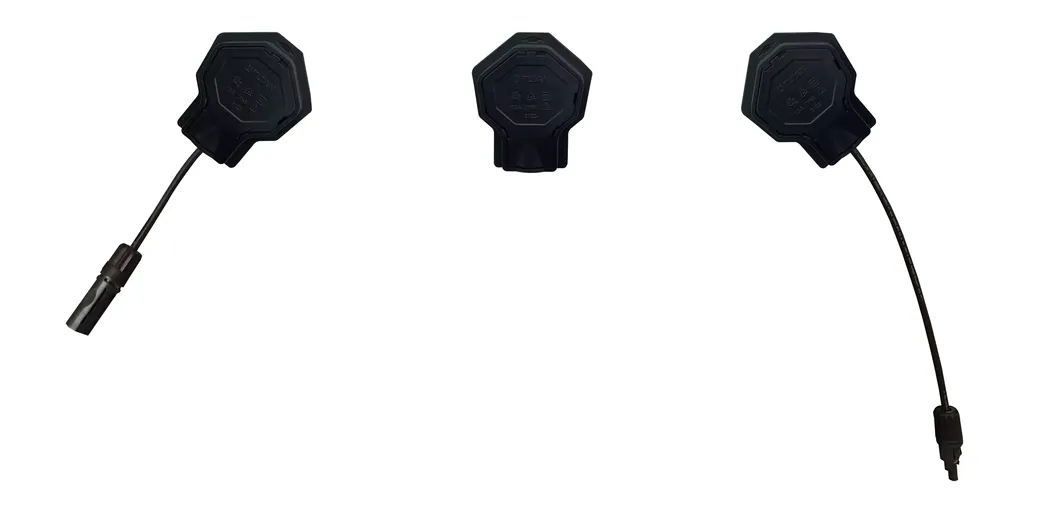

J-Box Details
High Efficiency Module: Monofacial module exceeding 480W with low power loss in cell connection and better shading tolerance.
Advanced Glass & Frame: 3.2mm heat-strengthened glass and 35mm anodized aluminium alloy for robust protection and easy installation.
Reliable Junction Box: IP68 split junction boxes provide better heat dissipation and higher safety standards.
📊

Technical Specifications

Mechanical Data Electrical Data
Cell TypeMono-crystalline Operating Temp-40°C ~ +85°C
Cell Arrangement144 [2 X (12 X 6)] Max System Voltage1500 V (IEC)
Weight23.5kg Power Tolerance0 ~ +5 W
J-BoxIP68, 3 bypass diodes Bifaciality70%
Cable4.0 mm², 300mm Module Fire PerformanceType 3 / Class C
📷

Project Showcase

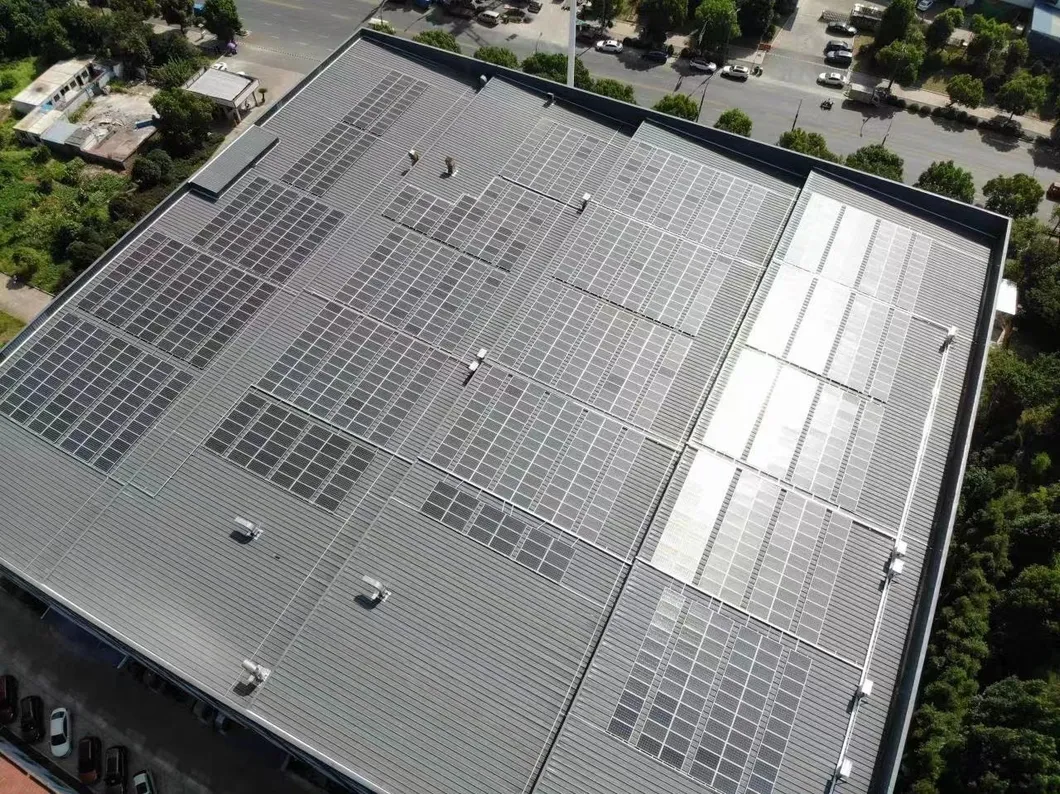

Solar Project 1

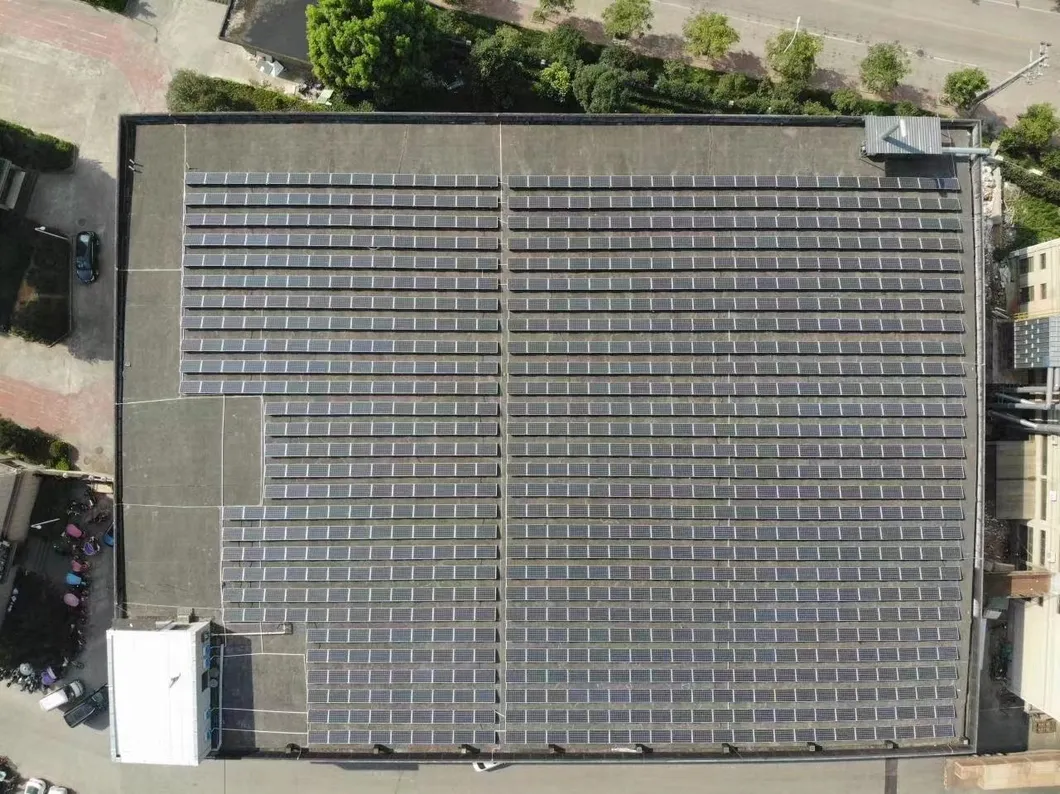

Solar Project 2

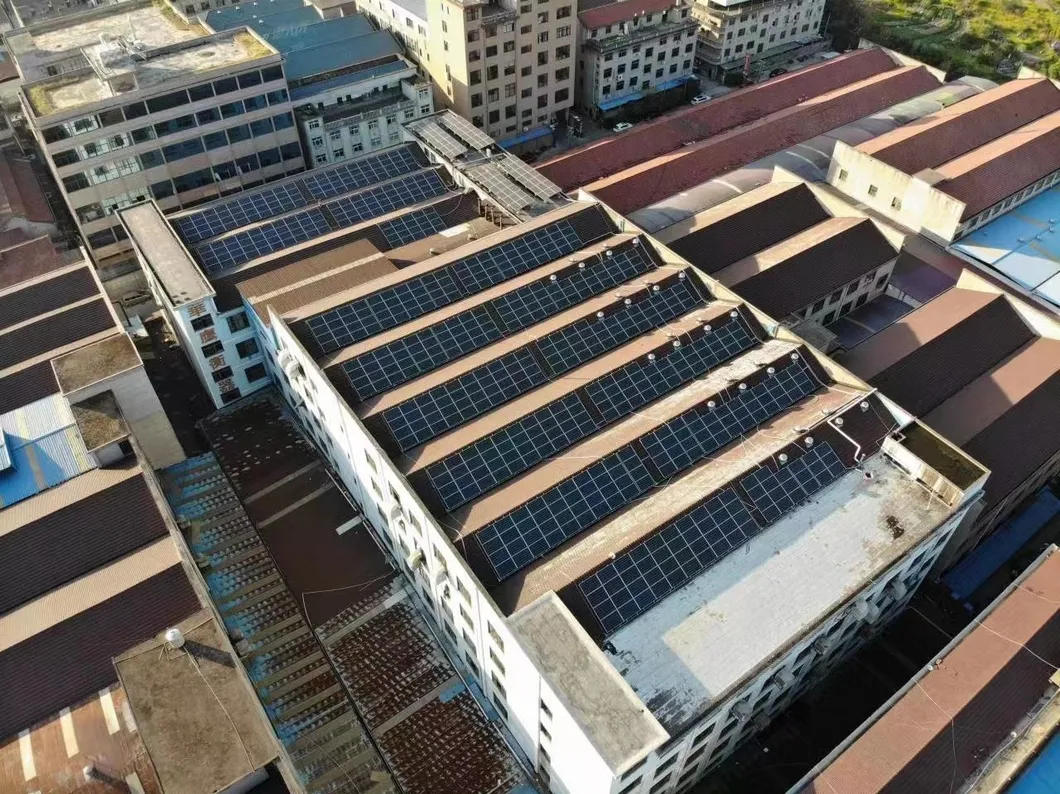

Solar Project 3
Solar Project 4

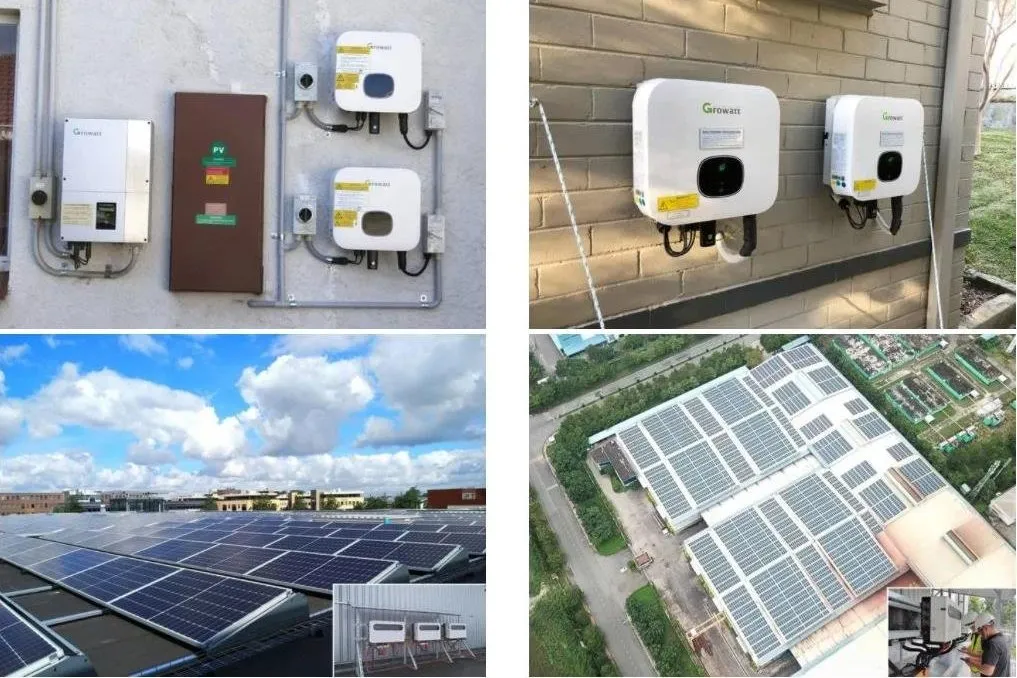

Solar Project 5
?

Frequently Asked Questions

Q1: What is the power conversion efficiency of these panels? A: These monocrystalline panels offer a high efficiency range between 20.0% and 22.7%.
Q2: Are the solar modules durable against extreme weather? A: Yes, they feature IP68 rated junction boxes and 3.2mm heat-strengthened glass, capable of operating from -40°C to +85°C.
Q3: What are the dimensions and weight of a single panel? A: Each panel measures 2094*1038*32mm and weighs approximately 23.5kg.
Q4: Can the cable length be customized for specific projects? A: Yes, while the standard cable length is 300mm, it can be customized to meet your installation requirements.
Q5: What is the maximum system voltage supported? A: The modules are designed to support a maximum system voltage of 1500V (IEC).
Q6: How are the panels packaged for international shipping? A: Panels are typically packed in 33 pieces per pallet, with a standard 40' HQ container holding up to 660 pieces.
