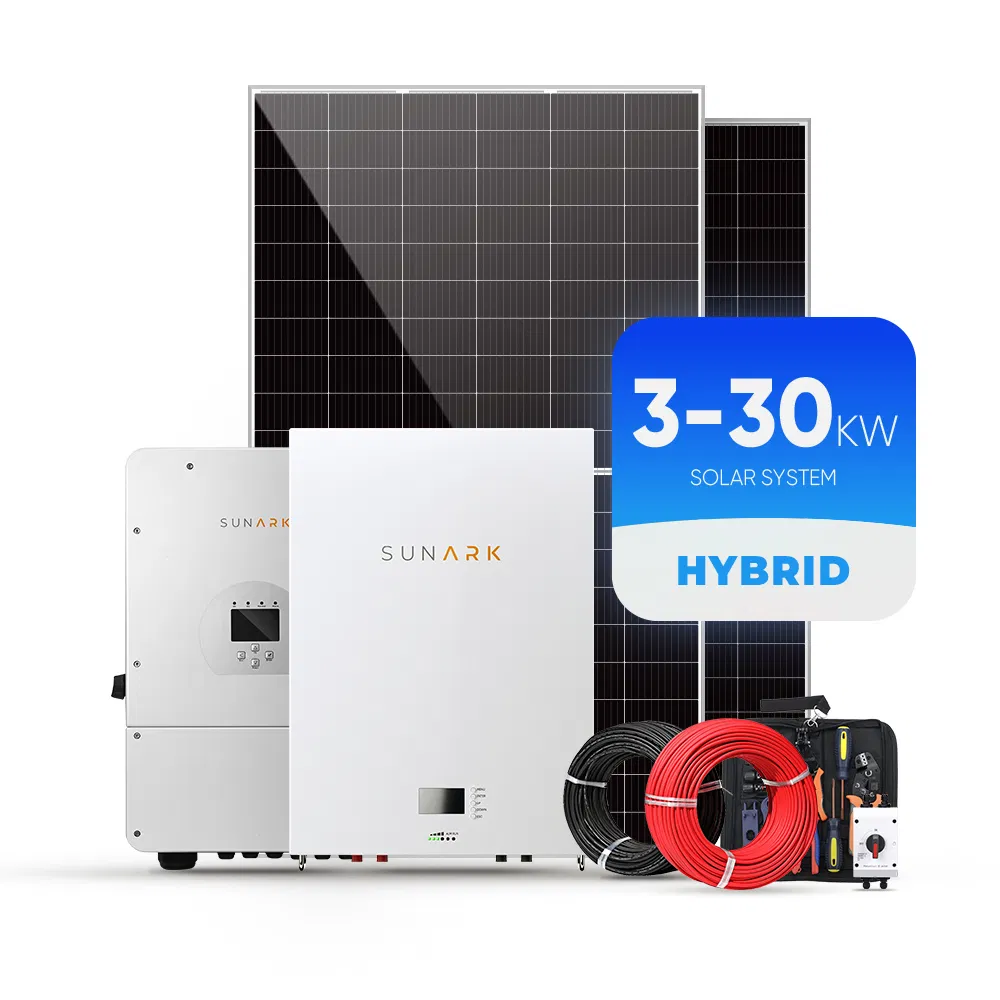

Sunevo All in One Hybrid Solar Power System 3kw 5kw 10 Kw 20kw 30kw Complete off Grid Solar Panel Energy System for Home

1 / 5

Sunevo All in One Hybrid Solar Power System 3kw 5kw 10 Kw 20kw 30kw Complete off Grid Solar Panel Energy System for Home

Customization:	Available
After-sales Service:	Yes
Warranty:	5 Year

Send Inquiry

Product Description

📊 Basic Specifications

Model NO.

SE-HY

Certification

ISO, CB, CE, TUV

Application

Home / Residential

Specification

Normal, 3-30KW

Solar Panel

Monocrystalline 400-700W

Solar Inverter

Hybrid 3-30kw

Battery Type

Gel / LiFePO4 Lithium Battery

Monitoring

APP for PC and Phone

Capacity

5000 Set/Week

💡 Product Description

🛡️

Comprehensive Warranty

Ensuring long-term reliability and performance for your home energy needs.

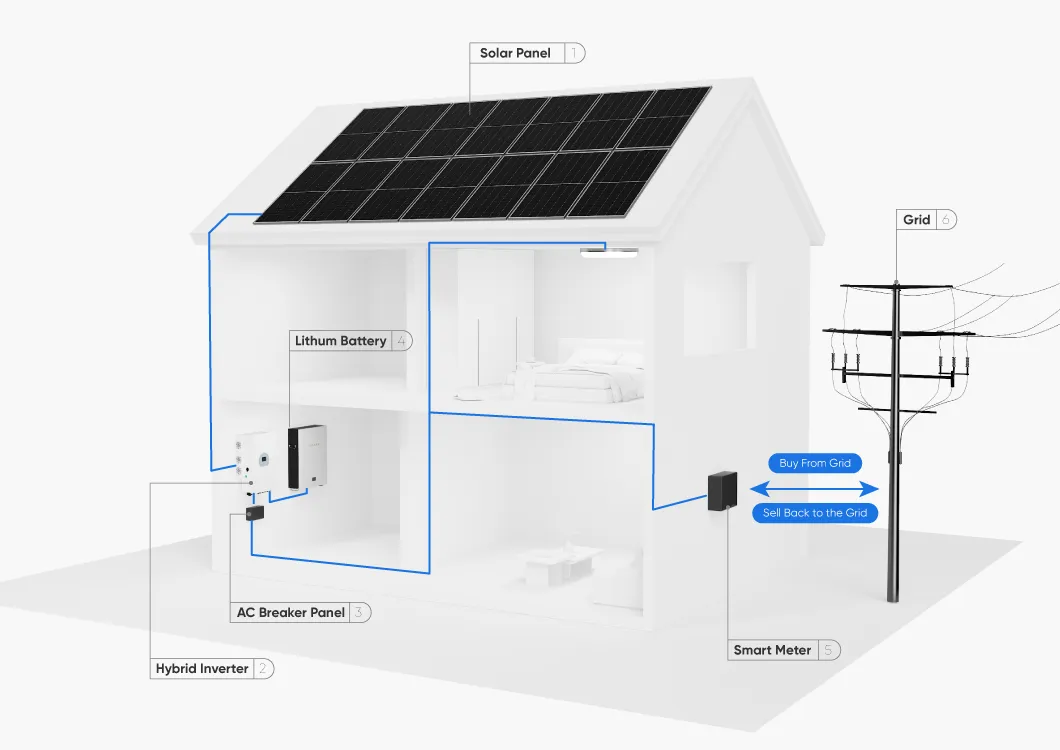

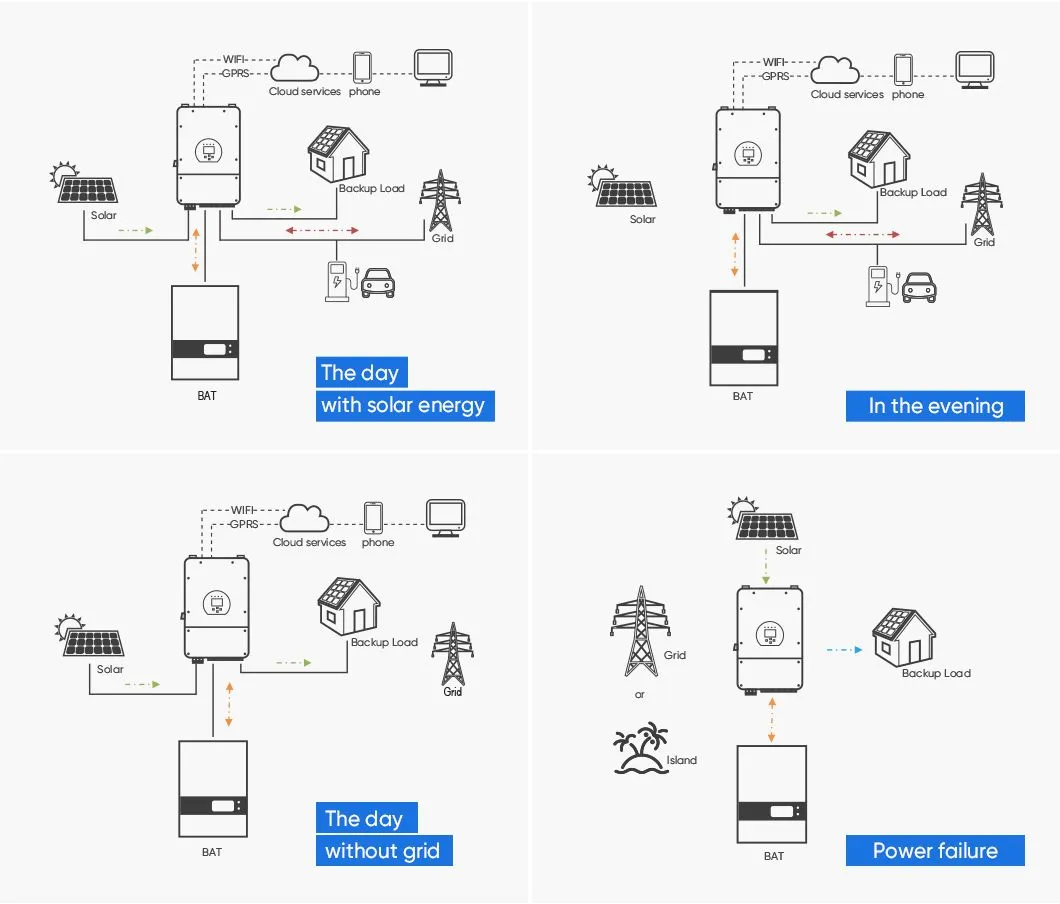

⚙️ How It Works

📝 System Configurations

Model Components	SE-3KW-HY	SE-5KW-HY	SE-10KW-HY
Solar Panel (Mono 550W)	6 Pieces	10 Pieces	21 Pieces
Hybrid Inverter	3K-SG04LP1	5K-SG03LP1	10K-SG04LP3
LiFePo4 Battery	5Kwh	5Kwh	10Kwh
DC Cable 4mm2	100 meter	200 meter	400 meter

Model Components	SE-15KW-HY	SE-20KW-HY	SE-30KW-HY
Solar Panel (Mono 550W)	30 Pieces	42 Pieces	63 Pieces
Hybrid Inverter Units	3 Pieces (5K)	2 Pieces (10K)	3 Pieces (10K)
LiFePo4 Battery	15Kwh	20Kwh	30Kwh
Mounting System	Customized for Roof or Ground

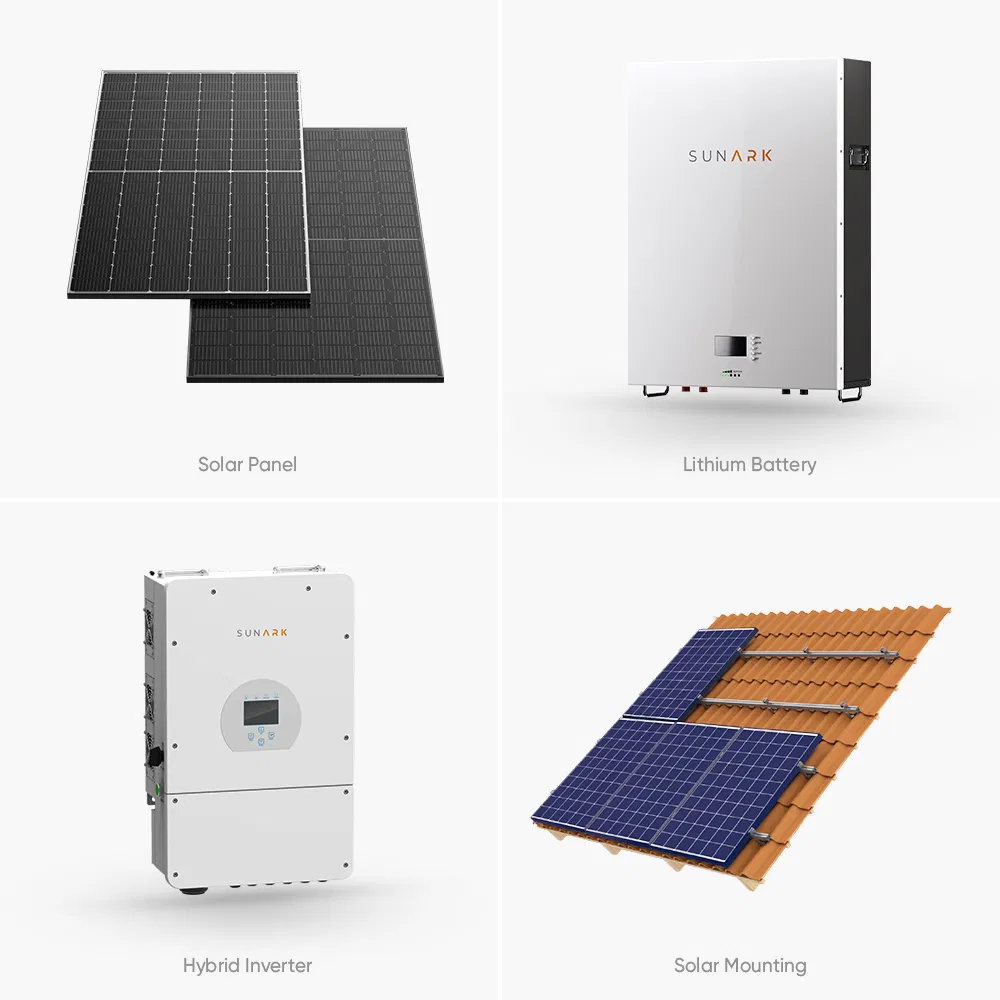

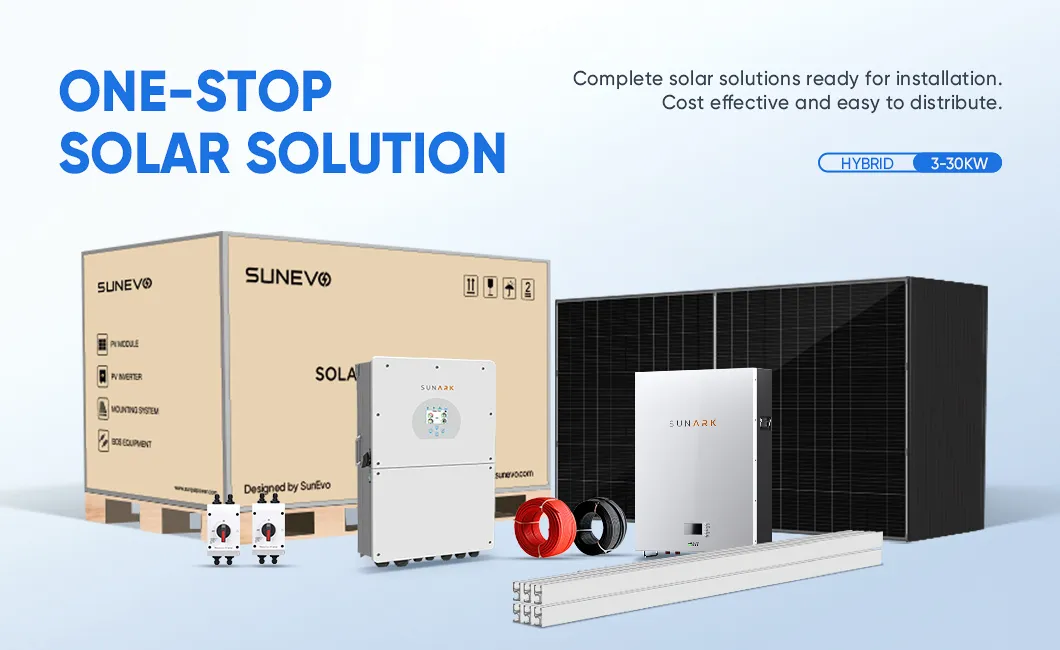

📦 Key Components Included

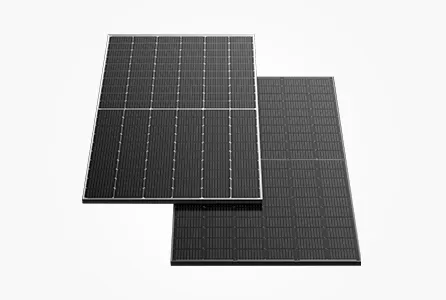

Half Cut Mono 750W Solar Panel: High efficiency with dimensions of 2384*1303*33mm.

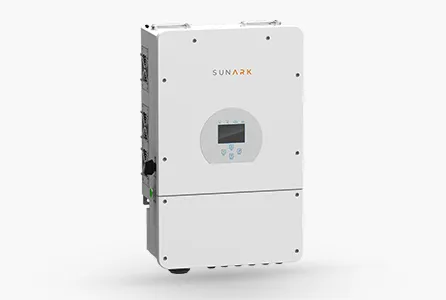

Hybrid Solar Inverter: 48V low voltage, transformer isolation, max 240A charging.

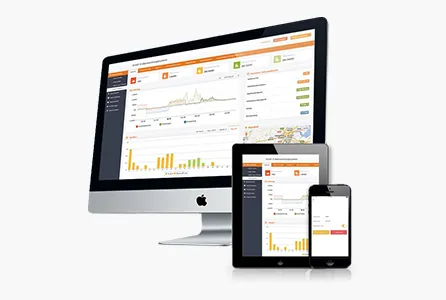

Monitoring System: One-click registration, safe operation with traceable logs.

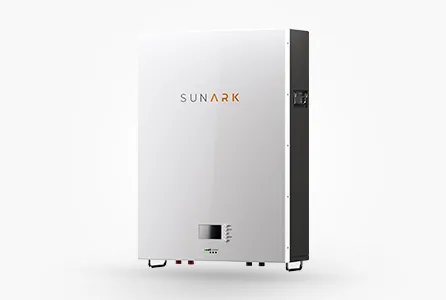

LiFePo4 Battery: 6000+ cycle life, scalable design with high-quality BMS.

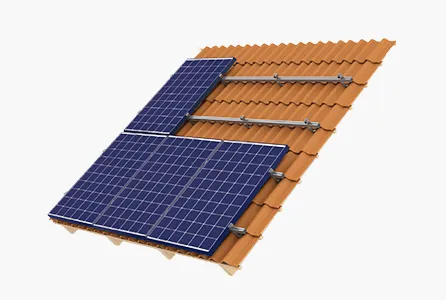

PV Mounting: AI6005 & SUS304 components for Asphalt Shingle or Ground.

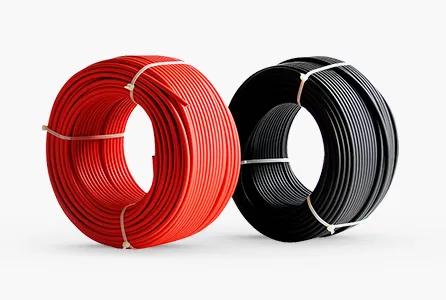

Cables & Connectors: 4mm2/6mm2 TUV rated, 1000VDC lifetime up to 25 years.

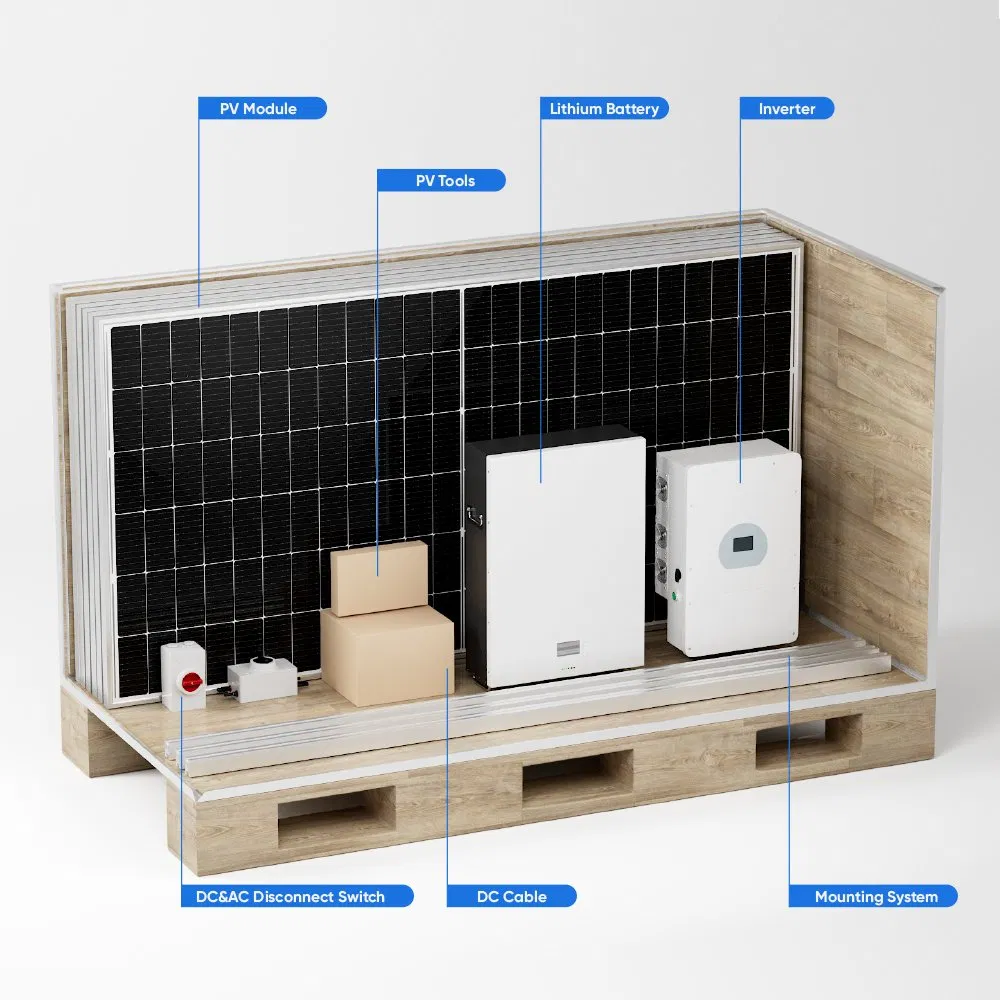

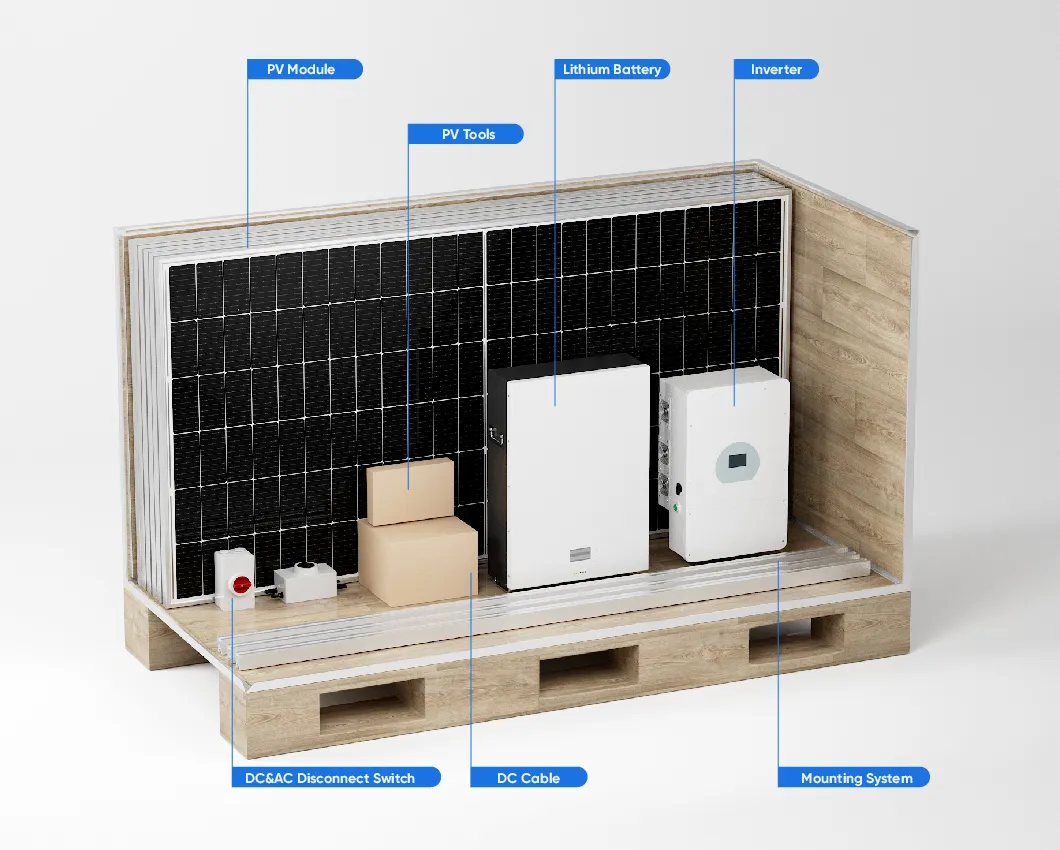

🚢 Packaging & Logistics

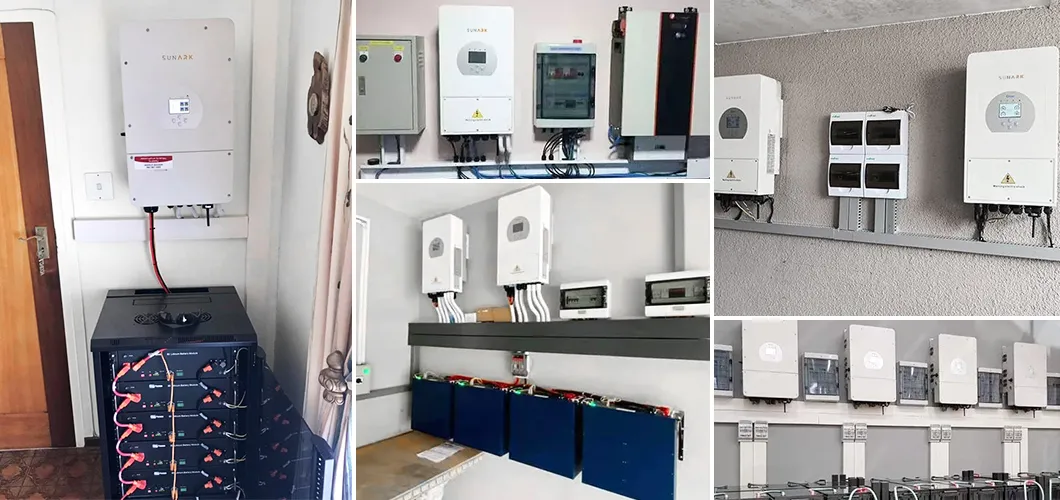

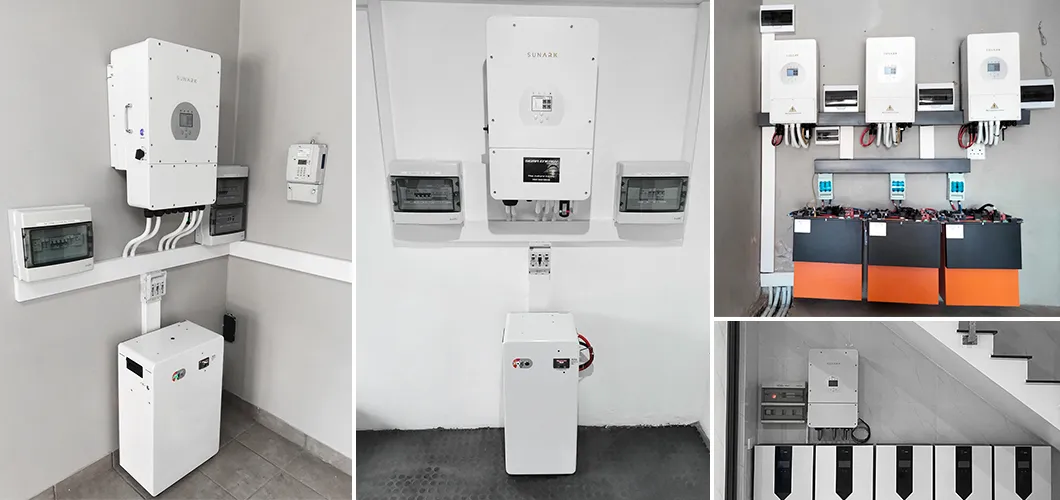

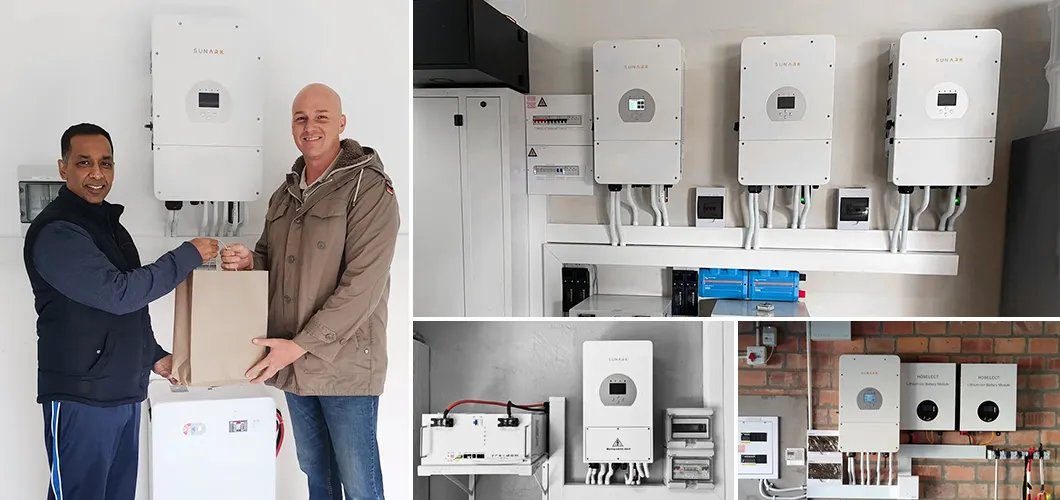

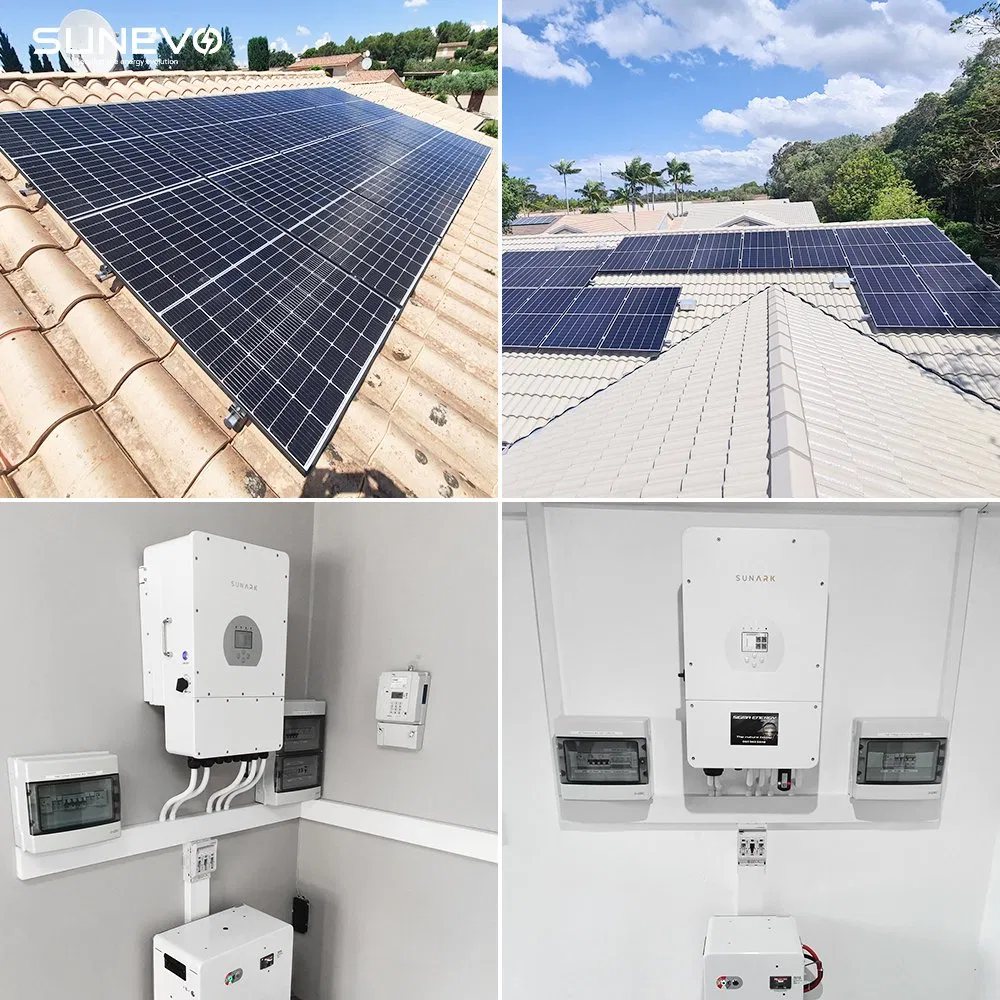

🏠 Real-World Applications

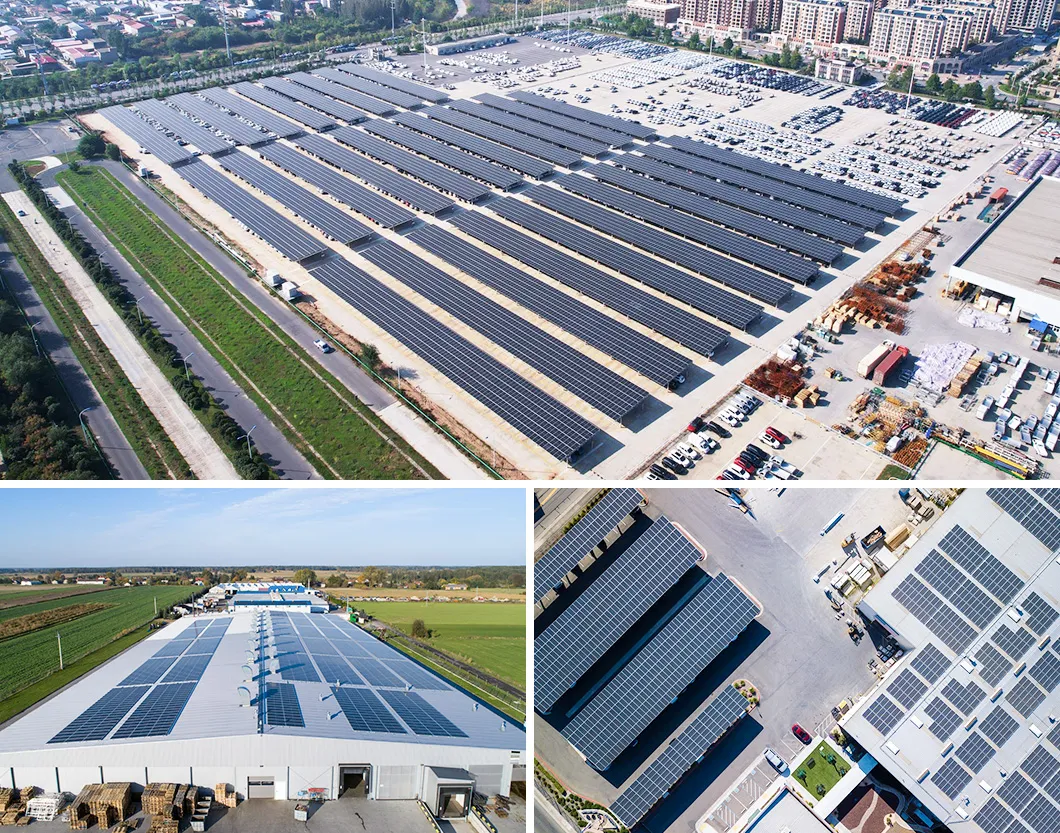

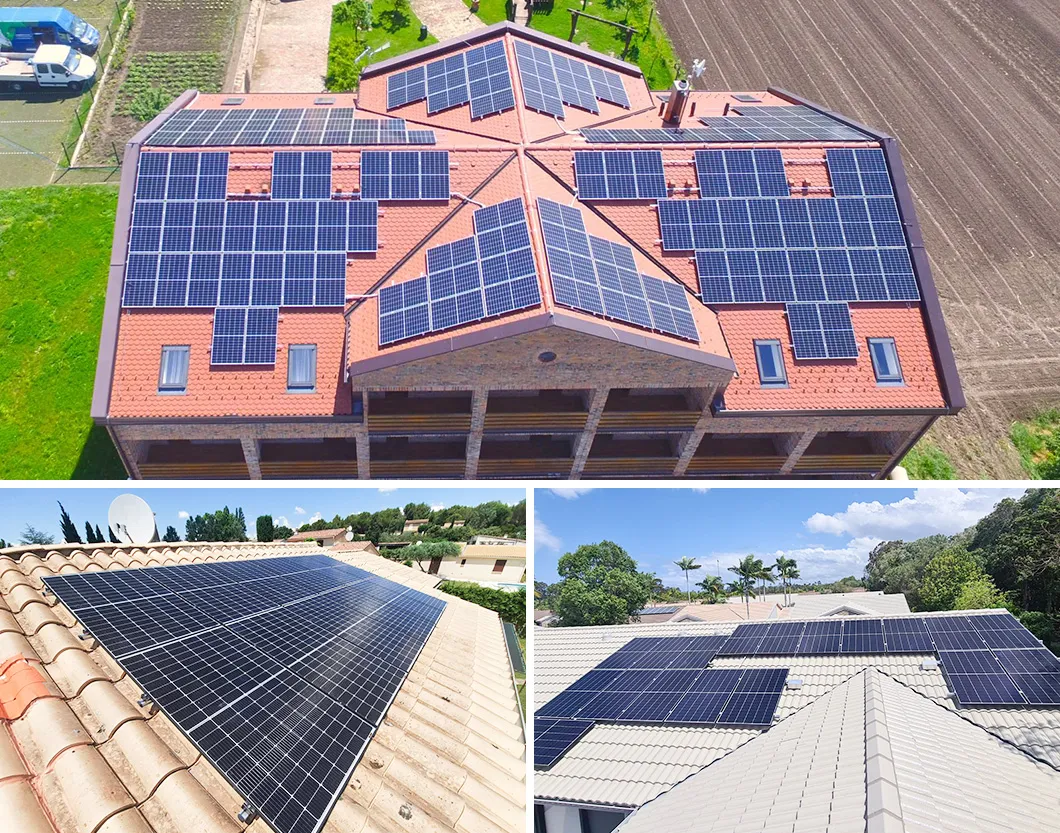

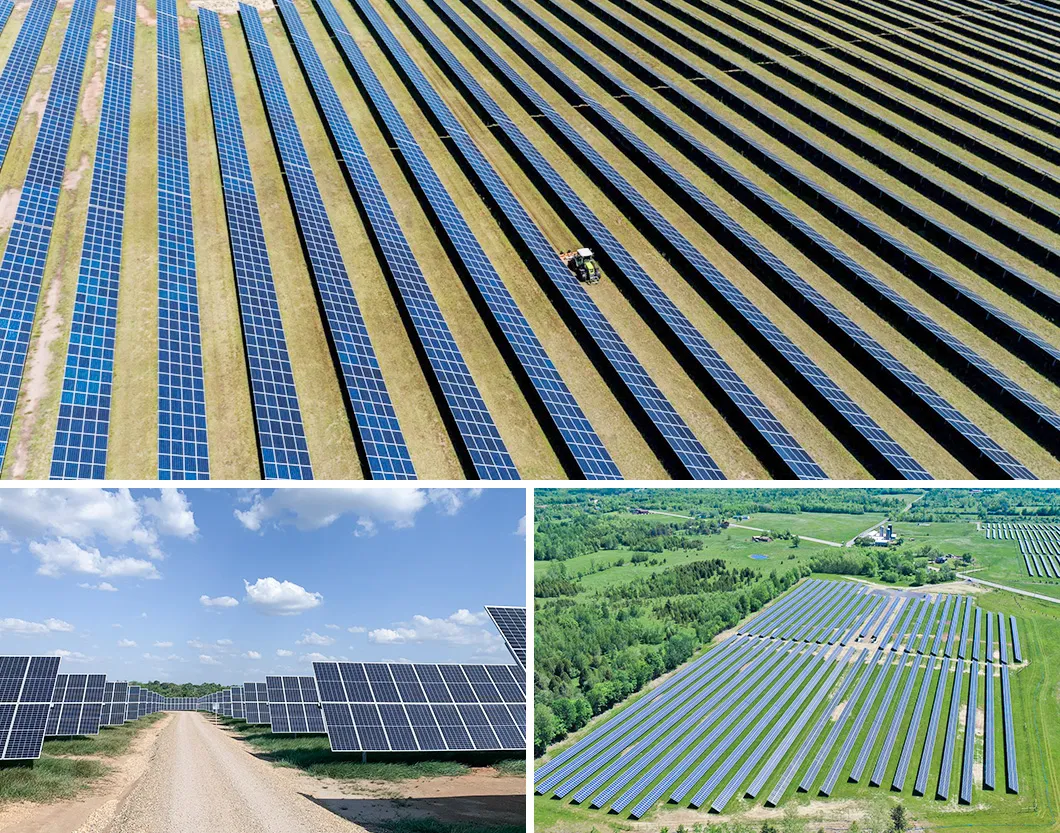

🌍 Global Projects

❓ Frequently Asked Questions

What is a Hybrid Solar Power System?

A hybrid system combines solar panels, a battery storage unit, and a connection to the utility grid. It allows you to store excess solar energy for use at night or during power outages while still having the grid as a backup.

Can this system work during a grid power failure?

Yes, our hybrid inverters feature an "off-grid" mode that automatically switches to battery power during a blackout, ensuring your essential appliances stay running.

How long do the LiFePO4 batteries last?

The LiFePO4 (Lithium Iron Phosphate) batteries are designed for long-term use, typically offering over 6,000 cycles with a design life of 15-20 years.

Is the monitoring system easy to use?

Absolutely. The system comes with a dedicated APP available for both PC and smartphones, providing real-time data on energy production, battery status, and household consumption.

Can the mounting system be customized for my roof?

Yes, we provide customized mounting solutions based on your specific installation requirements, whether it is a tiled roof, metal roof, or ground-mounted setup.

What is the maintenance requirement for this system?

The system is designed for low maintenance. We recommend periodic cleaning of the solar panels to ensure maximum efficiency and checking the electrical connections once a year.
