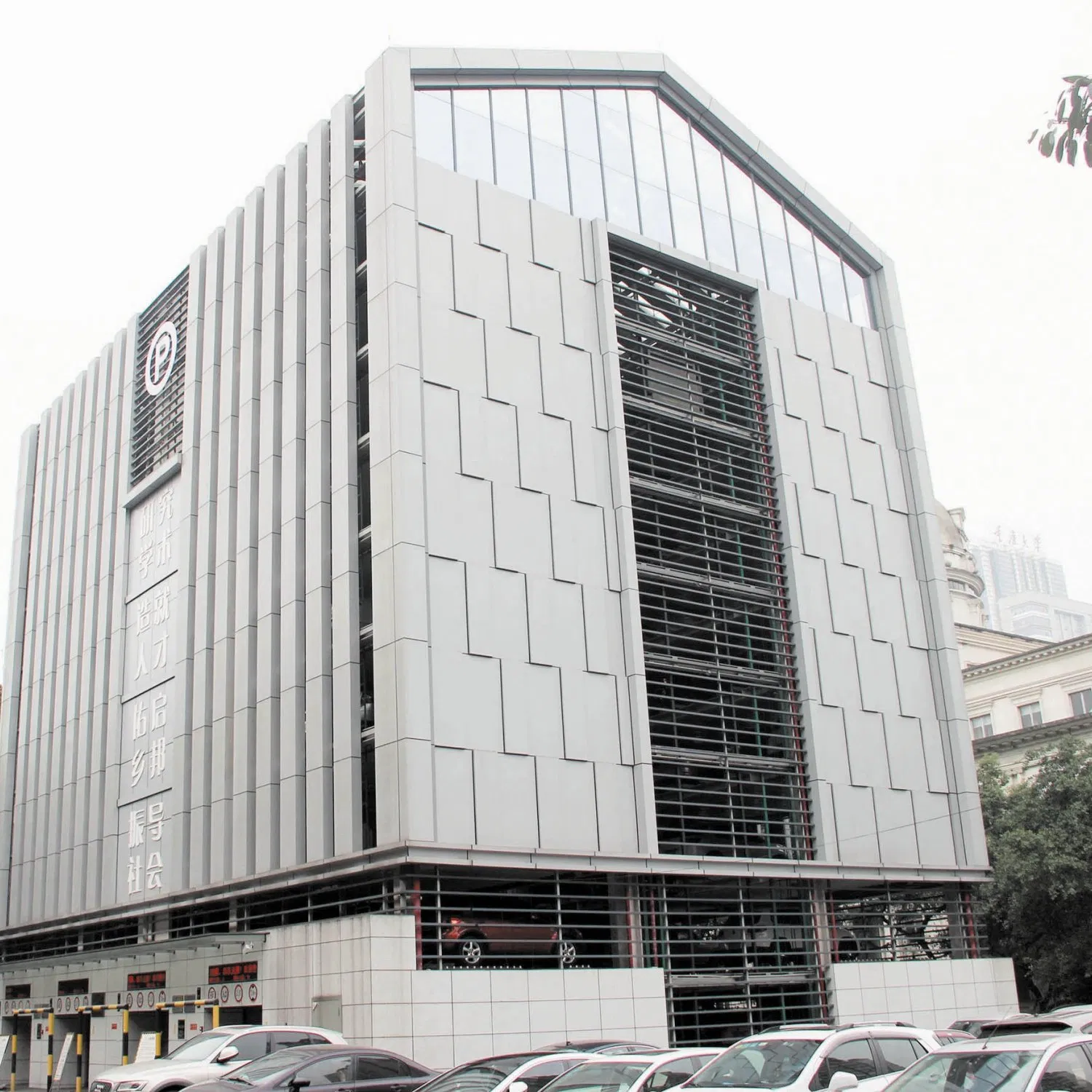

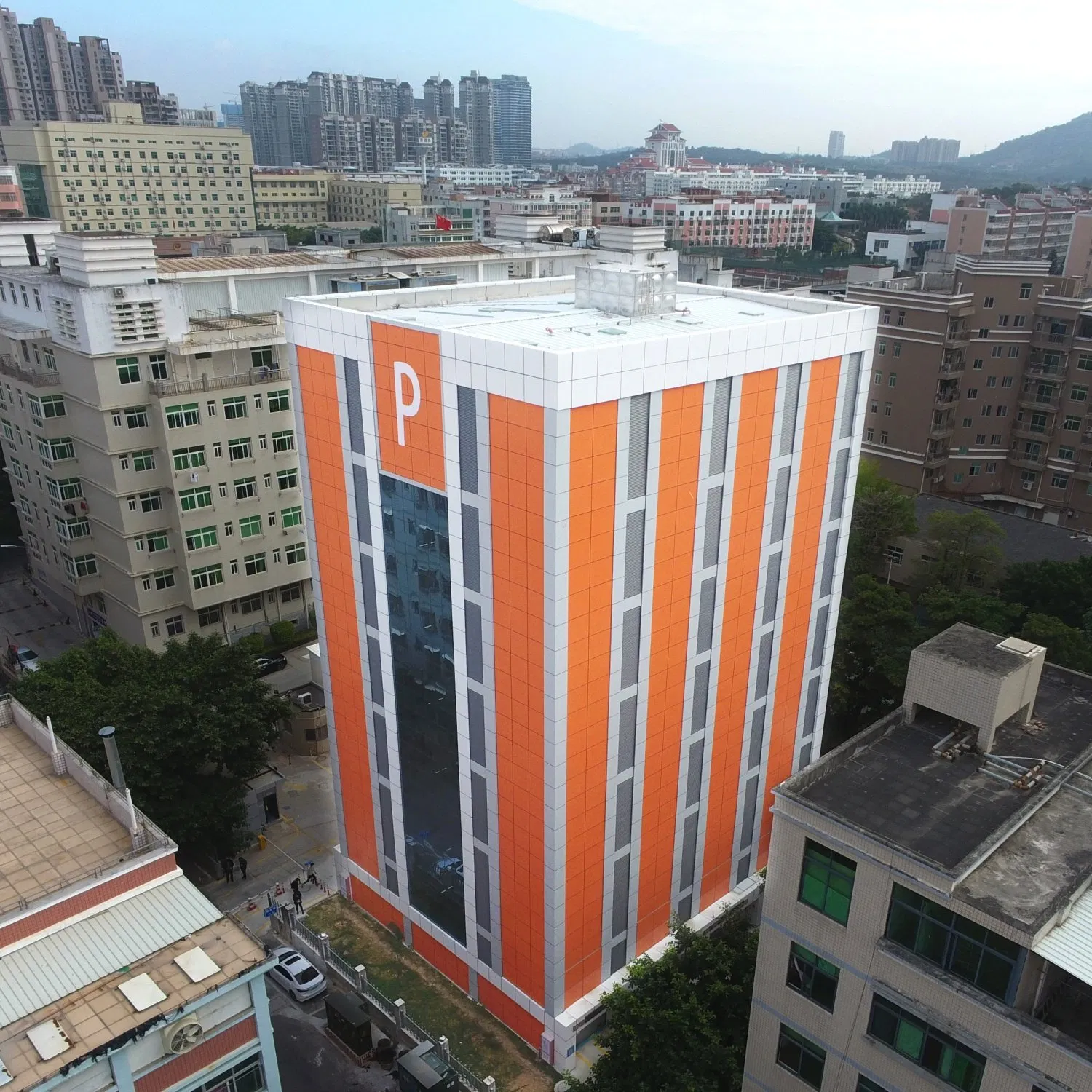

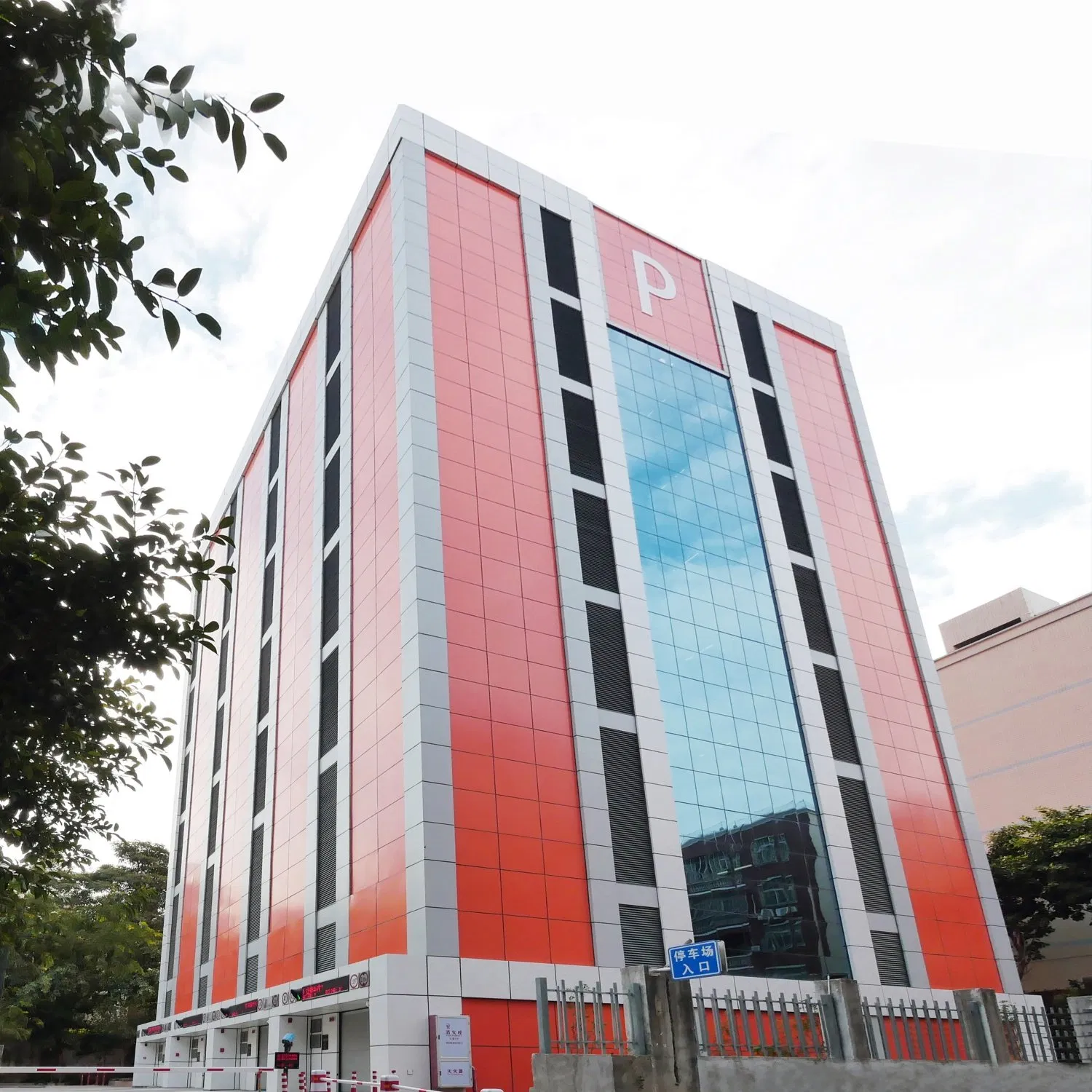

Automated Parking Tower with Smart Lighting and Energy Management System

Customization:	Available
Level:	5-9 Levels
Parking Post:	25-99 Posts

Basic Information

Color

Black

Installation

Multi-Level

Material

Steel

Operation

Automatic

Power Source

Electric

Warranty

2 Years

Drive Mode

Traction + Wire Rope

Car Weight

≤2350kg

Lifting Speed

Max: 95m/min

Origin

China

🛡️ Safety Features

Anti-slip Surface, Emergency Stop Button, Overload Protection, Safety Railings, Safety Sensors

Product Description

Drive Mode	Traction + wire rope
Car Size	Sedan≤5300×1900×1550mm \| SUV ≤5300×1900×2050mm
Power & Speed	Lifting: 30kw / Max:95m/min	Turn: 2.2kw / 4.5 rpm
Access Method	Forward in and forward out

1️⃣ High Space Utilization

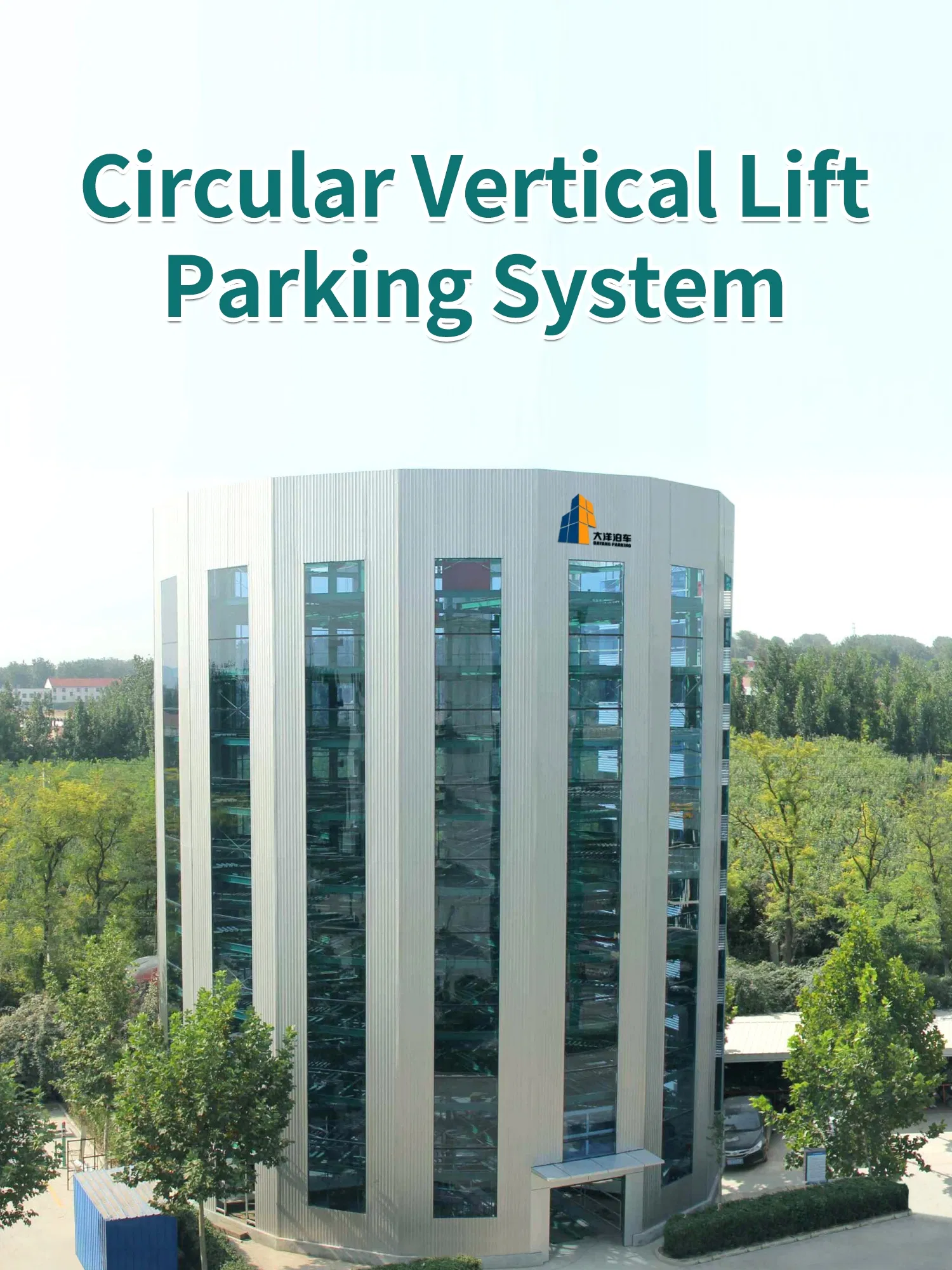

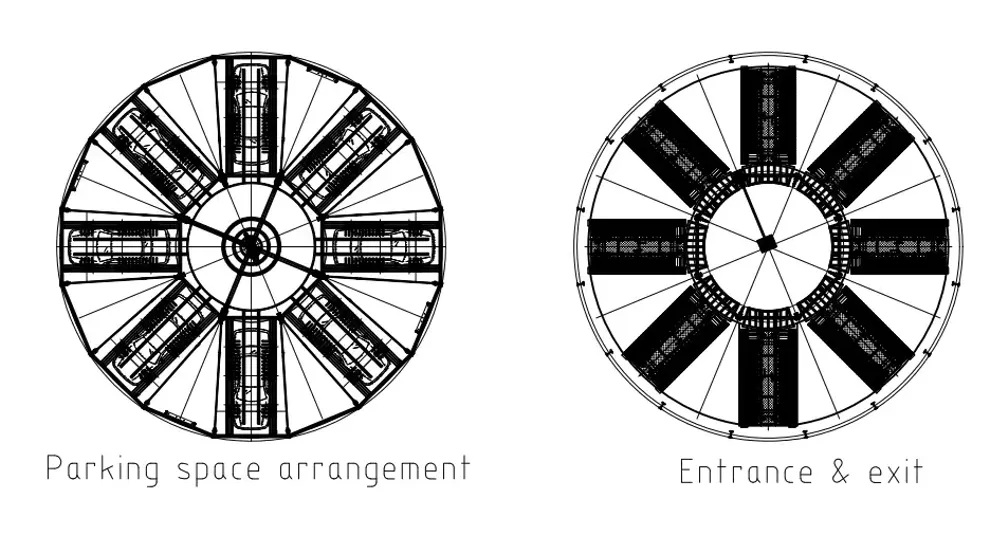

Vertical tower design requiring only a small circular foundation. No need for ramps or driveways, dedicated purely to parking efficiency.

2️⃣ Vehicle Access Efficiency

Rotating platform technology allows 360-degree rotation during lifting. "Head-in, head-out" access simplifies driver operation and reduces wait times.

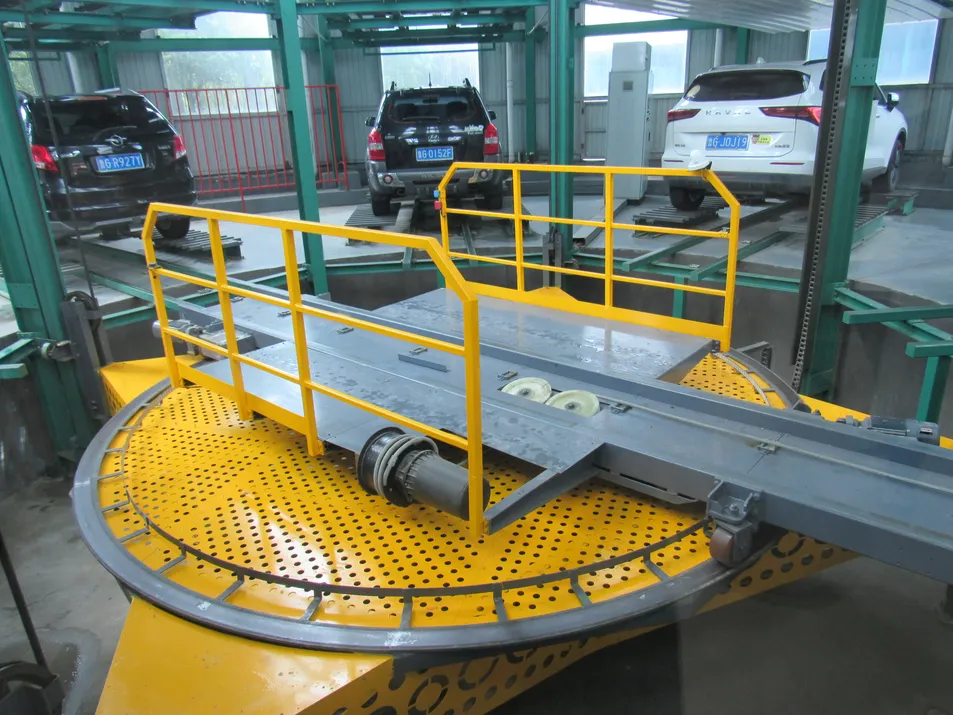

3️⃣ Safety and Protection

Fully enclosed steel structure protects against weather and vandalism. Automated operation eliminates human error and collision risks during parking.

4️⃣ Environmental Protection

Reduces vehicle emissions by eliminating the search for spaces. Electric drive with high energy efficiency and potential energy feedback recovery.

5️⃣ Intelligent Experience

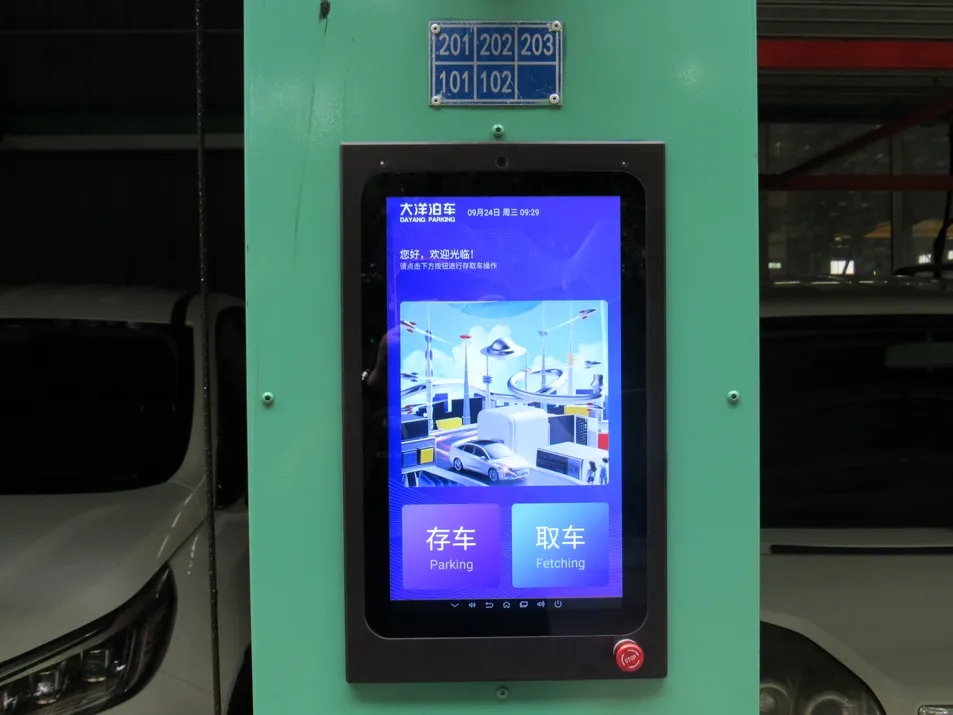

Touchscreen, card swipe, or license plate recognition. Average retrieval times between 1 to 3 minutes with remote monitoring and diagnostics.

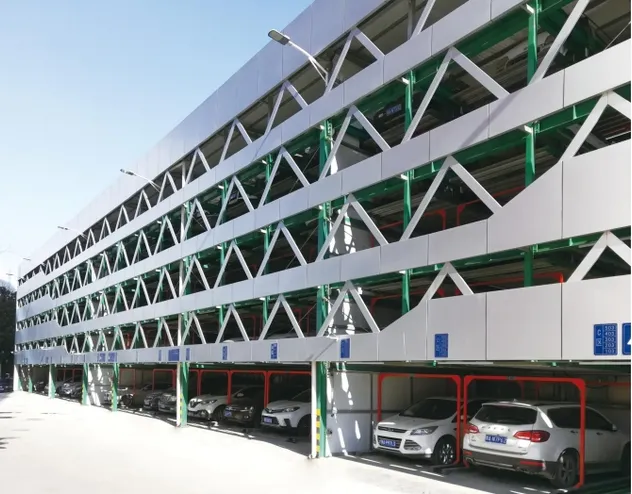

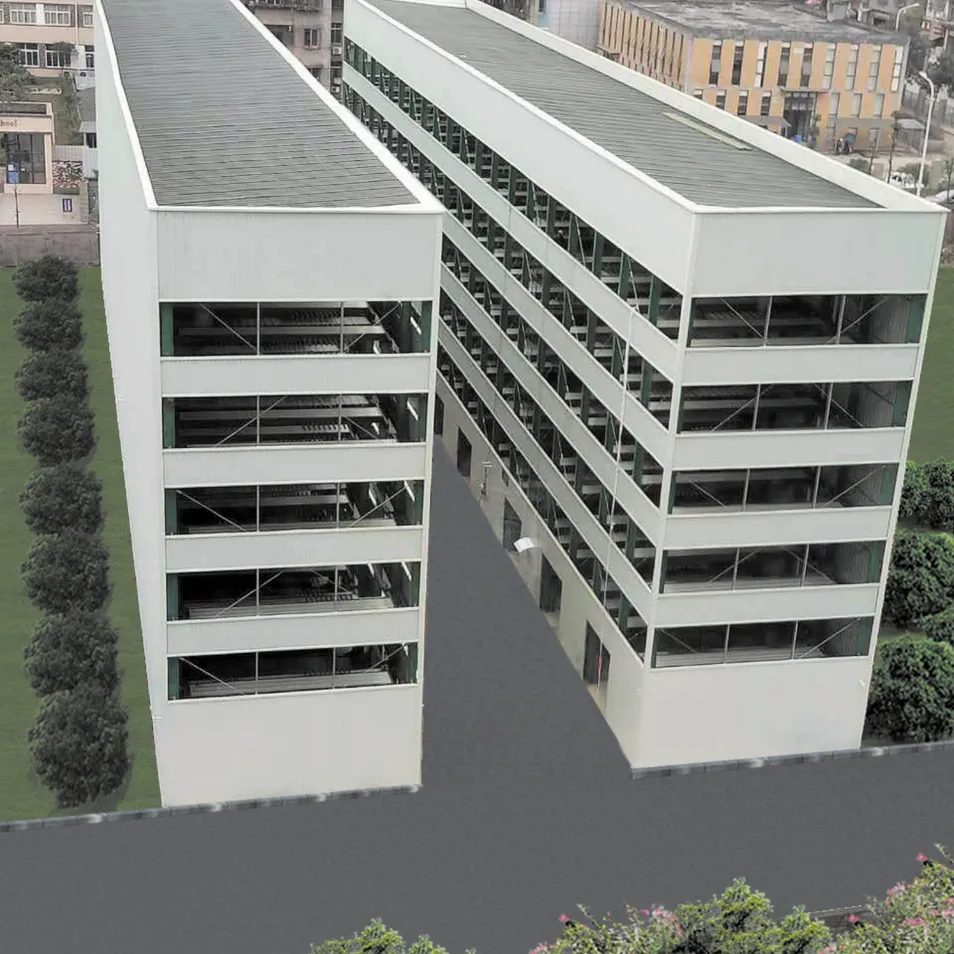

Global Project Cases

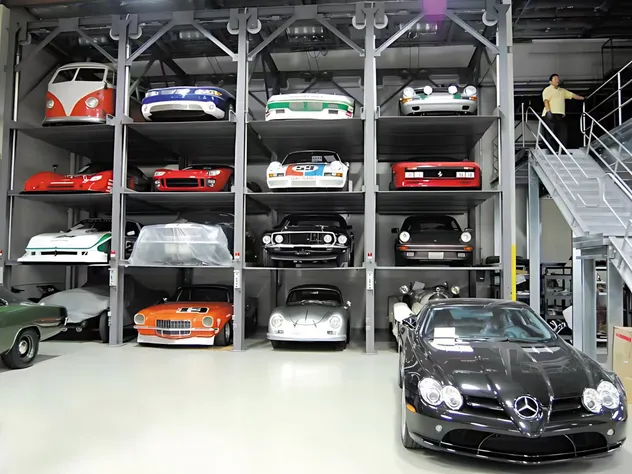

USA Project

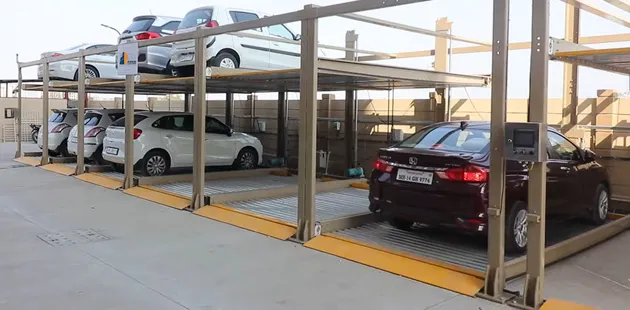

Saudi Arabia Project

Domestic Smart Project

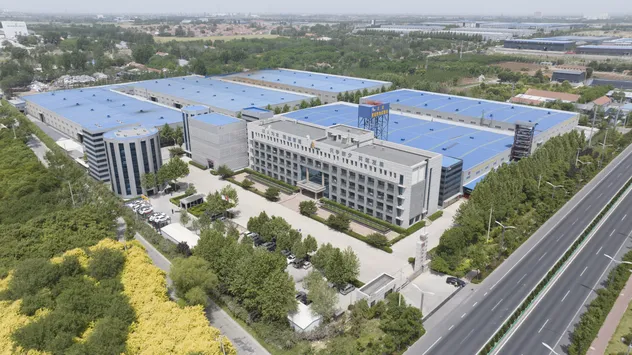

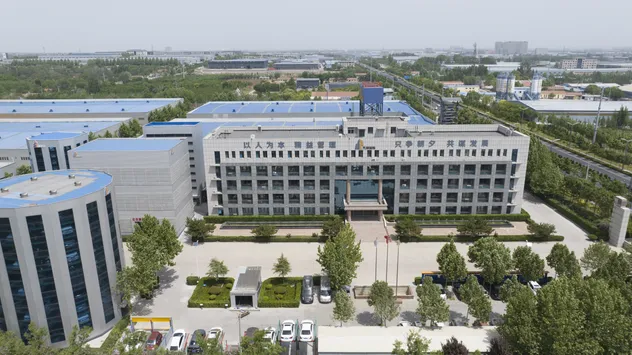

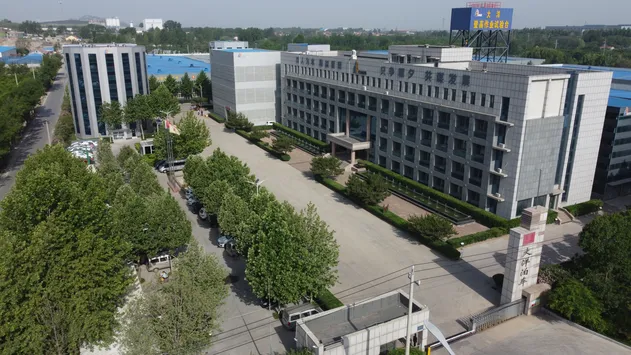

Manufacturing Excellence

Industry Leader: Top manufacturer of mechanical and smart parking systems since 2001.
Global Reach: Exports to North America, Middle East, Europe, and Southeast Asia.
High Capacity: Annual output exceeds 200,000 parking spaces.
Innovative: Emphasis on safety, energy efficiency, and sustainability.

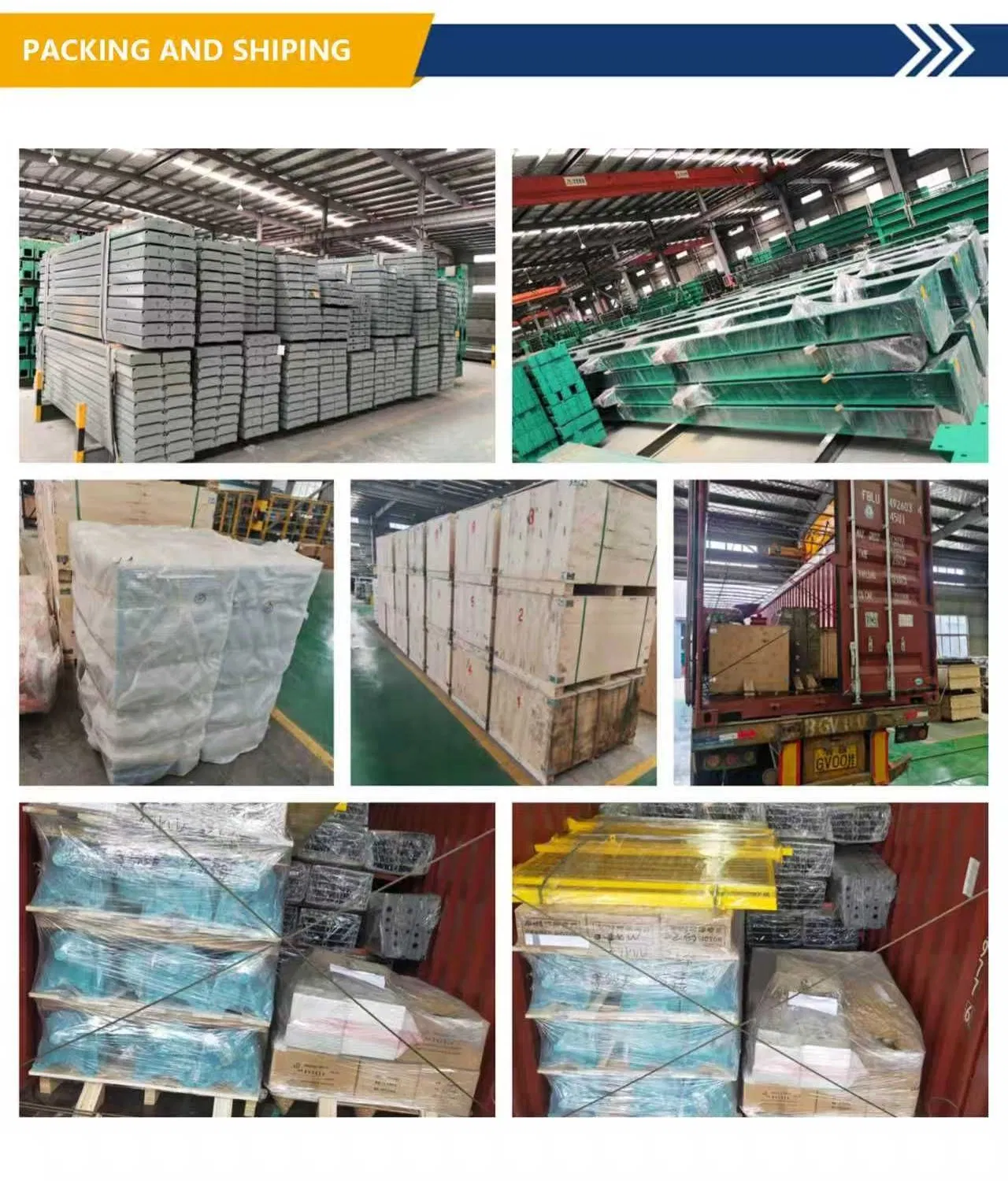

Packing & Delivery

Package Size

650cm * 150cm * 80cm

Gross Weight

800.00kg

Frequently Asked Questions

1. How to prevent equipment corrosion in high-humidity areas?

Hot-dip galvanized steel and fluorocarbon spraying technology are used, with a salt spray test reaching 1000 hours. A dehumidification system can be optionally equipped to control humidity below 60%.

2. How to deal with icing in cold regions?

Heated car carriers (adjustable from -30ºC to 50ºC) are equipped, and the guide rails use anti-slip coatings. Our low-temperature start-up technology can operate reliably as low as -40 °C.

3. Can unmanned management be realized?

It supports AGV robots to transport vehicles; car owners only need to park at the entrance and leave. The IoT system monitors equipment status in real-time and alerts to abnormalities.

4. What is the approximate construction cost?

Lifting and traversing types cost about 15,000-30,000 yuan per space, while vertical lifting types cost about 60,000-100,000 yuan. We provide full-cycle optimization to reduce energy consumption by 20%.

5. Are there any government subsidy policies?

Many regions provide subsidies for public multi-story parking garages (up to 20,000 yuan per space in some areas). We can assist in applying for special funds and provide policy declaration services.

6. What is the average vehicle retrieval time?

The system automatically optimizes access paths, and average retrieval times are typically between 1 to 3 minutes, ensuring efficiency during peak hours.
