China Factory 50kw 60kw 70kw 80kw Hybrid Solar Panel System with Foldable Panels Portable Solar Energy System

Customization: Available
After-sales Service: Technical Guidance
Warranty: 5-10 Years

Product Description

📊

Basic Specifications

Model NO.SR-30/50/100/150/250/500KW-HY
ConditionNew
CertificationISO, CB, CE
ApplicationCommercial
System TypeHybrid Solar PV System
BatteryGel/ LiFePO4 Battery
Solar PanelMonocrystalline 400-700W
Grid Type3W+N+PE
ControllerMPPT Types
Battery Capacity230kwh/Customized
OriginChina
Capacity50000 Piece/Year
🛠️

Product Description

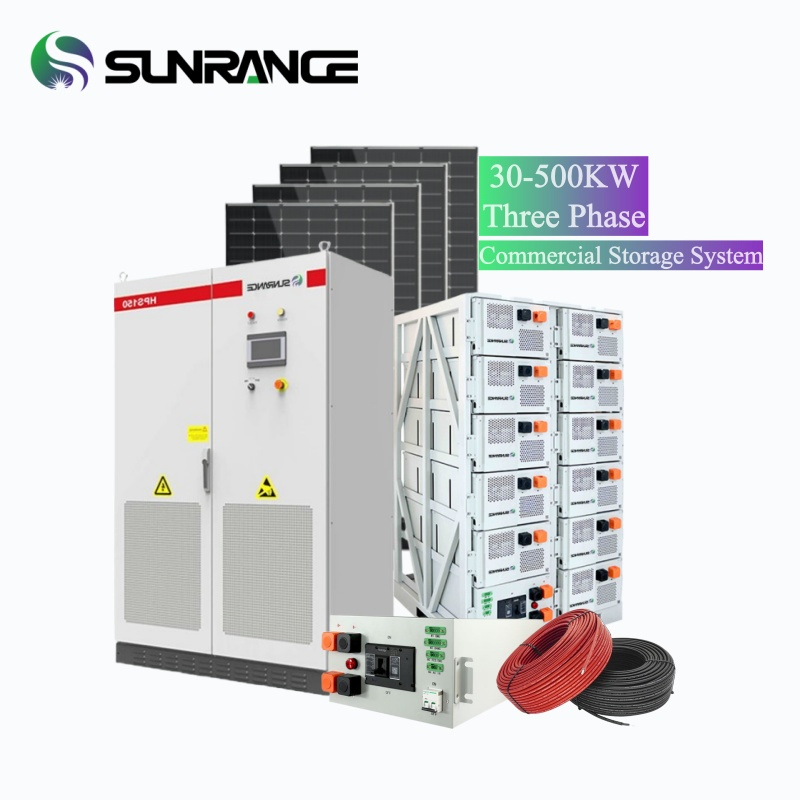

Hybrid Solar Panel System
Category Model No. SR-30KW-HY SR-50KW-HY SR-100KW-HY SR-150KW-HY SR-250KW-HY SR-500KW-HY
System Parameter AC Rated Power 30KW 50KW 100KW 150KW 250KW 500KW
Grid Voltage 380/400VAC
Max. Output (KVA) 33 55 110 165 275 550
Solar Panel Quantity 60PCS 90PCS 180PCS 270PCS 450PCS 900PCS
Total Power 34.8KW 52.2KW 104.4KW 156.6KW 261KW 522KW
Lithium Battery Model SR48100 SR48280 SR76120 SR76120 SR48280 SR48280
Nominal Capacity 100AH 280AH 120AH 120AH 280AH 280AH
Bank Capacity 40.96KWH 100.352KWH 202.752KWH 304.128KWH 473.088KWH 946.176KWH
⚙️

Core Components

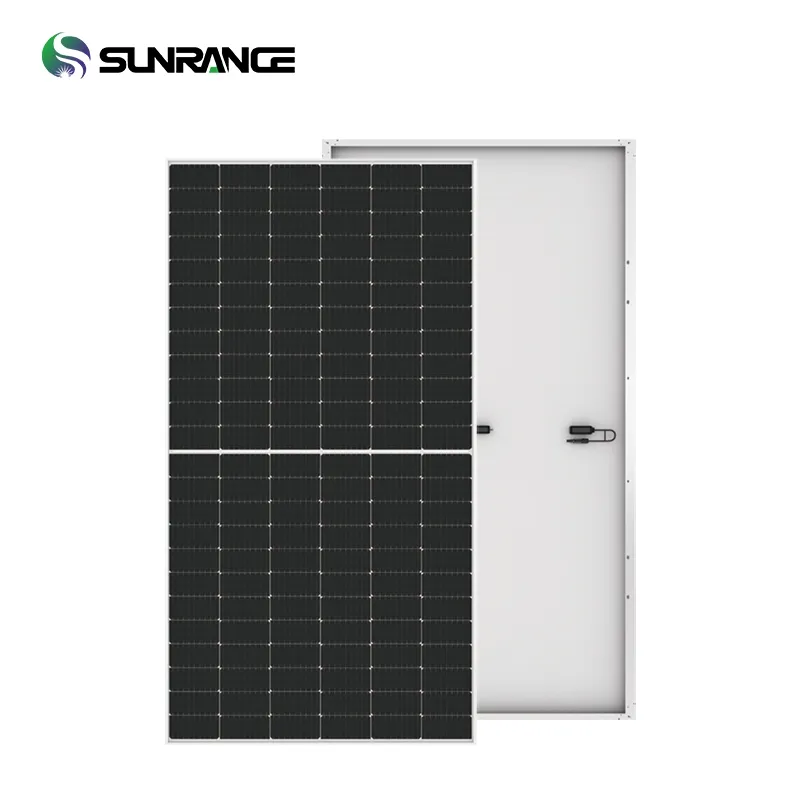

N-Type Topcon Solar Panel

N-Type Topcon Solar Panel

  • Model: SR72P-580N
  • Maximum power (Pmax): 580W
  • Open Circuit Voltage (Voc): 51.57V
  • Short Circuit Current (lsc): 14.33A
  • Module Efficiency: 22.44%

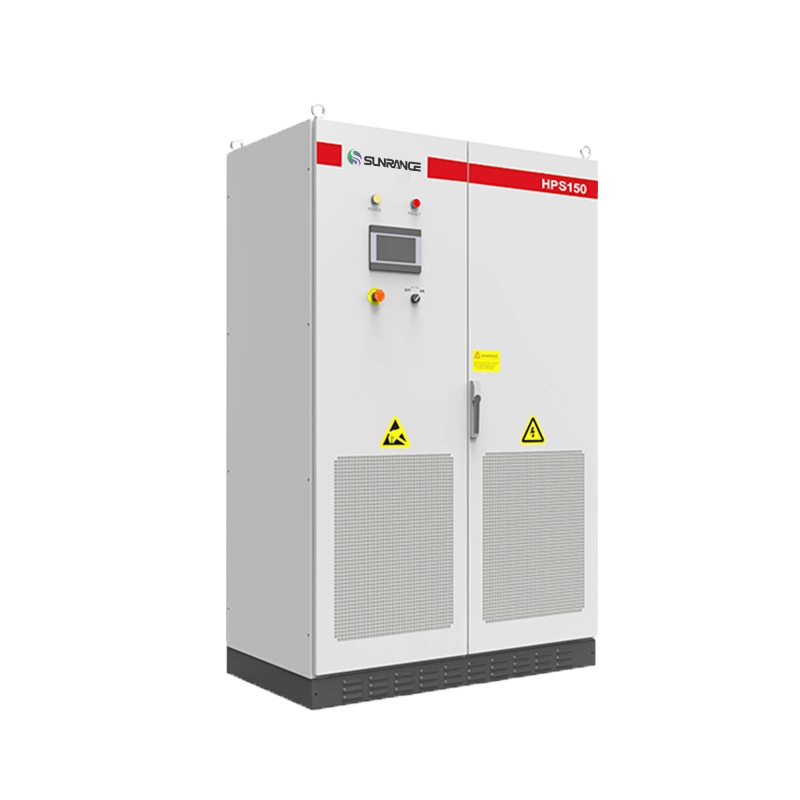

All-in-one Hybrid Inverter

  • Supports PV, battery, DG, grid, and load connections
  • System capacity easily expandable
  • Dynamic power distribution for load demand
  • Seamless switch within 6ms via SCR
Hybrid Inverter

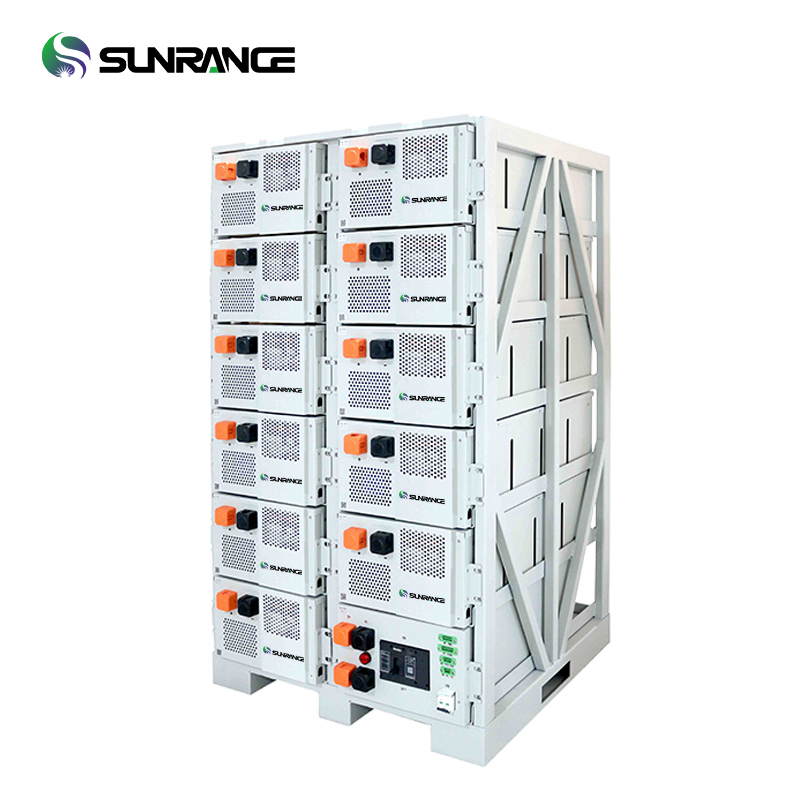

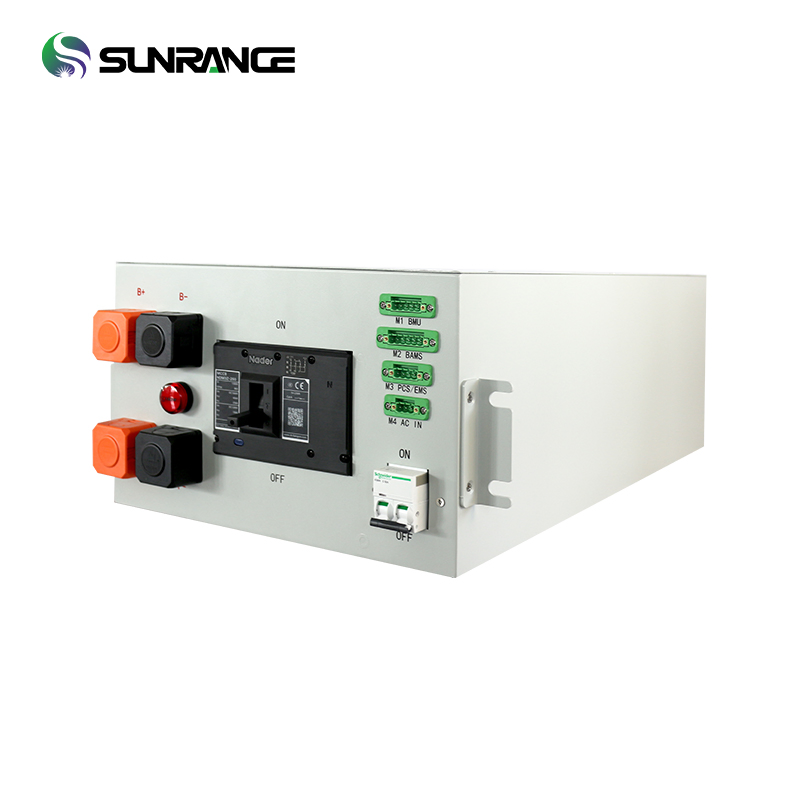

Solar Battery Packs

Solar Battery Packs

  • Rack mounted deep cycle lifespan
  • High discharge performance
  • GEL/LiFePO4 Lithium Ion options
  • More than 6000 cycles, up to 90% DOD
  • Wide ambient temperature range suitability
📦

Technical Support & Logistics

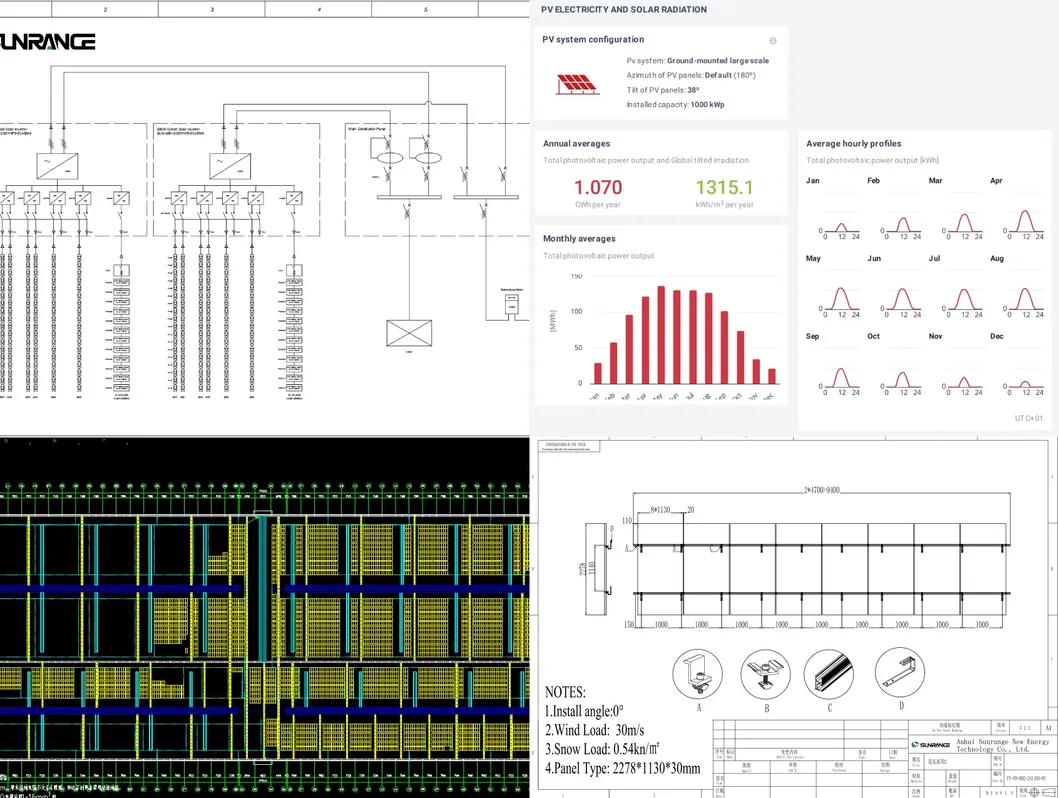

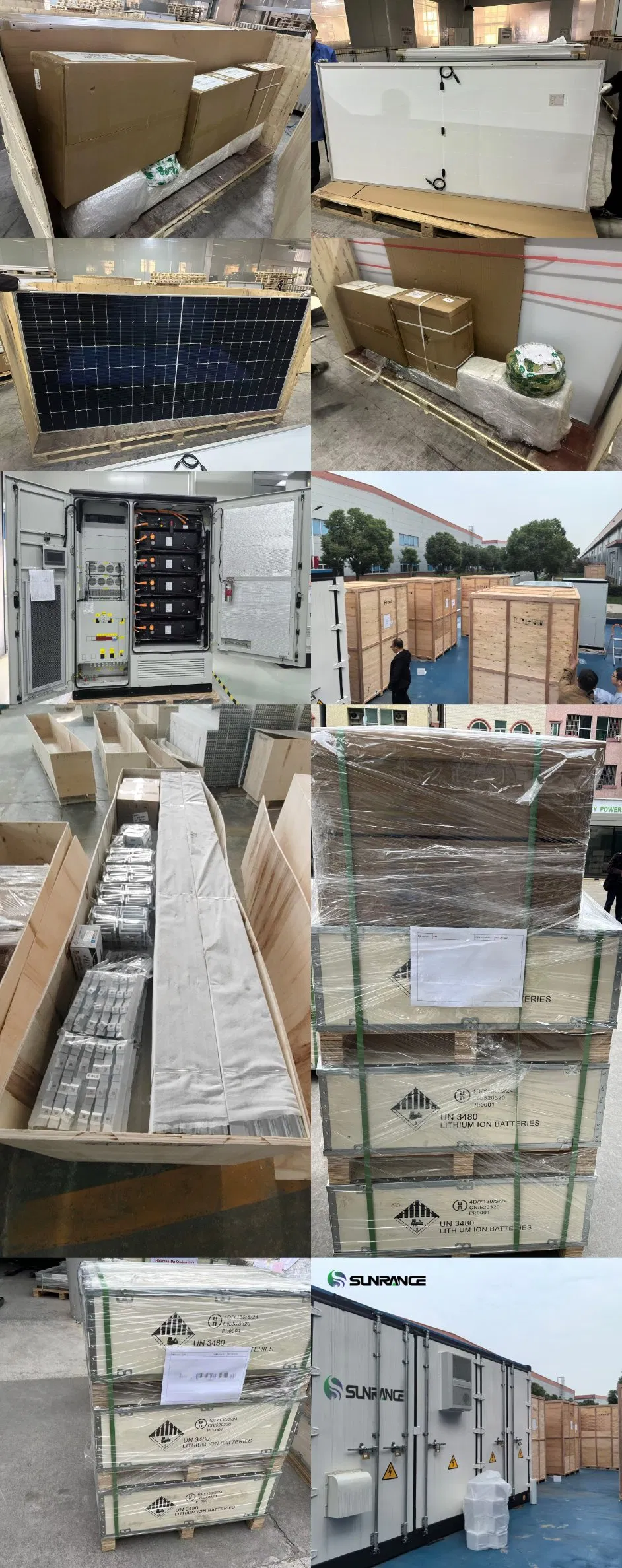

Technical Support Packaging and Shipping
🏠

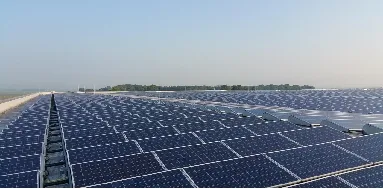

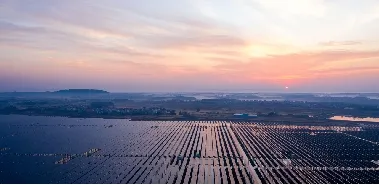

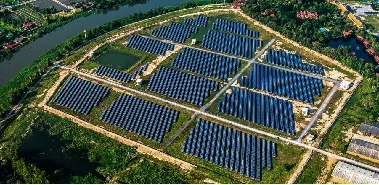

Project Cases

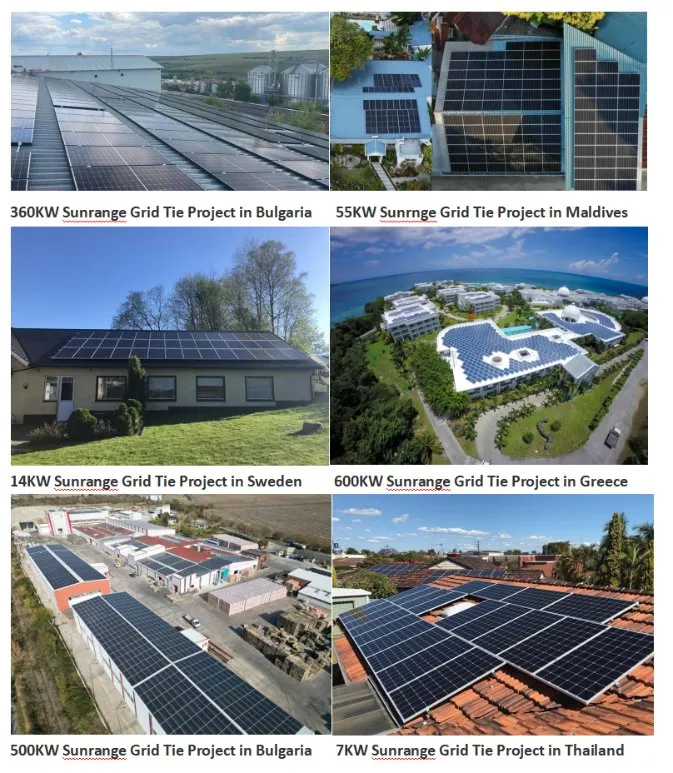

System Installation
📜

Certifications

Certifications

Frequently Asked Questions

What is the lifespan of the battery system?
The LiFePO4 Lithium Ion batteries are designed for more than 6000 cycles with up to 90% depth of discharge (DOD), ensuring a long operational life.
Can the system work without the grid?
Yes, this is a hybrid system that supports off-grid operation using battery storage and can also integrate with diesel generators.
Is remote monitoring available?

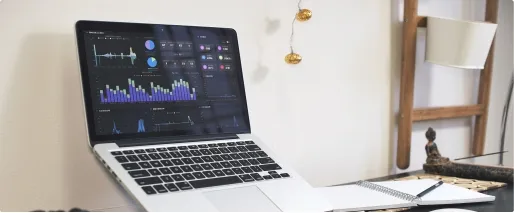

Yes, the system includes an online monitoring platform that supports one-click installation, safe operation logs, and real-time data tracking.
Is the system customizable?

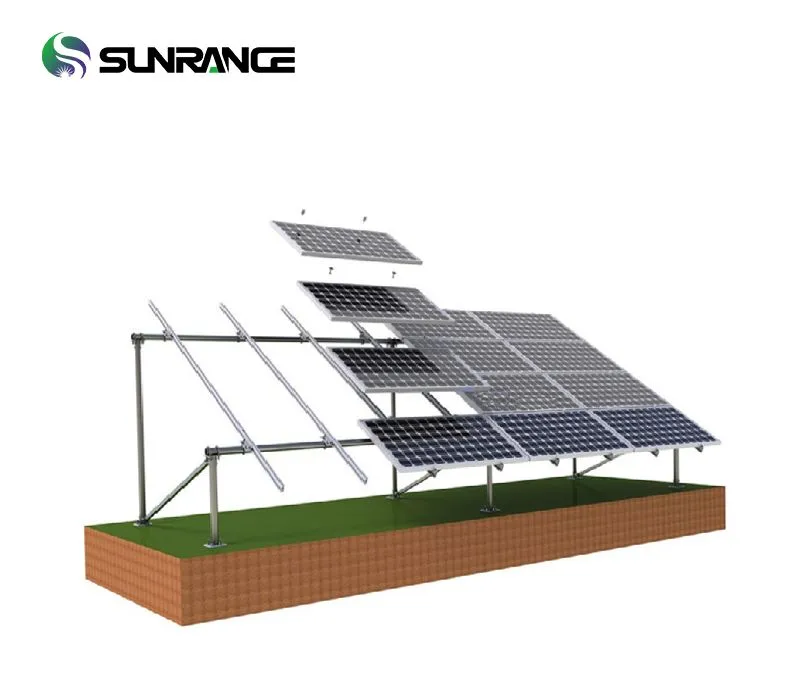

Absolutely. We offer customized specifications for battery capacity, solar panel quantity, and mounting structures to meet specific commercial needs.
How long does the seamless switch take?
The system features an SCR that enables a seamless switch between power sources within 6ms, protecting sensitive electronic loads.
What certifications do your products have?
Our solar systems are certified by ISO, CB, and CE standards, ensuring international quality and safety compliance.
