| Model NO. | MSC-40HQ | Condition | New |
|---|---|---|---|
| Certification | ISO, CE | Application | Home, Industrial, Commercial |
| Specification | Normal, 40HQ | Total Weight (Tons) | 28 |
| Photovoltaic Capacity | 199.92 (200~230) Kwp | Solar Module Power | 600*184*2 or Customized |
| Unfolded Footprint | 119*10*0.9 M | Transport Package | Container |
| Origin | China | HS Code | 8543709990 |

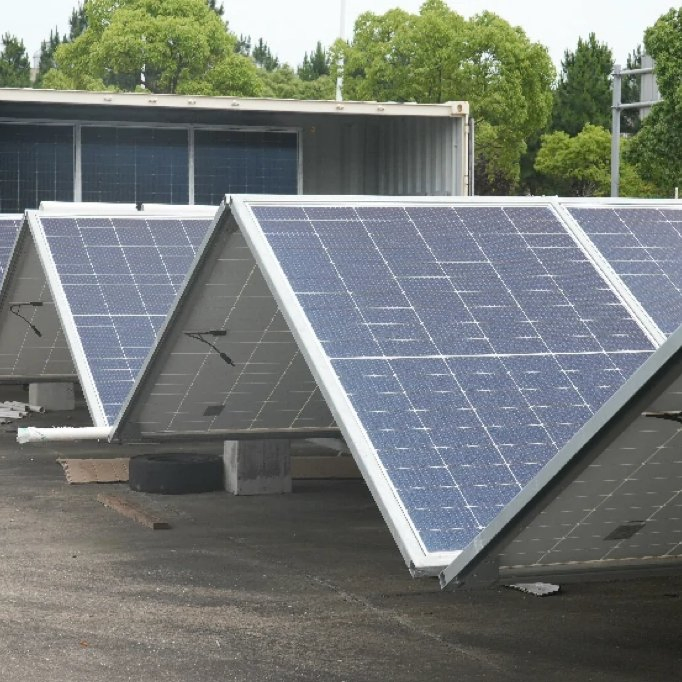

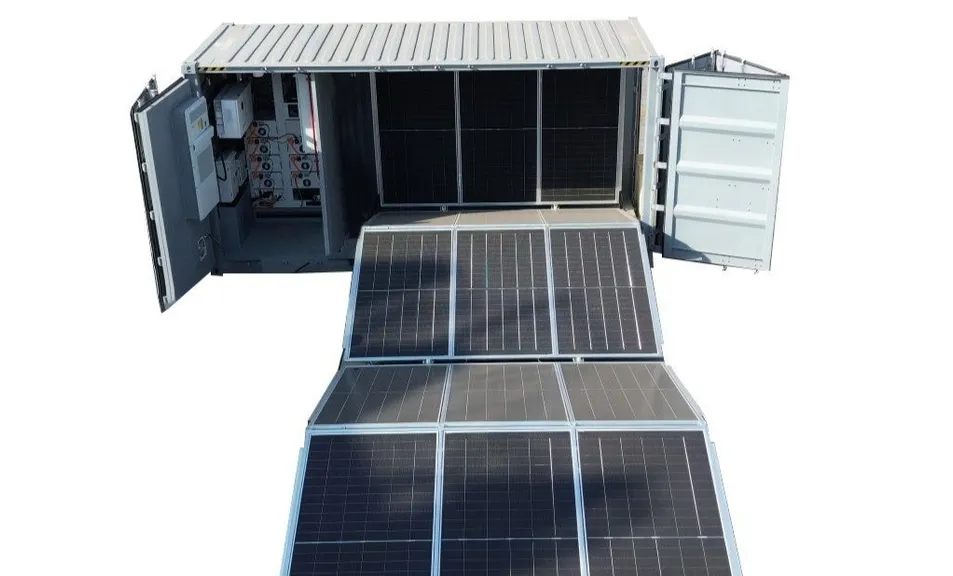

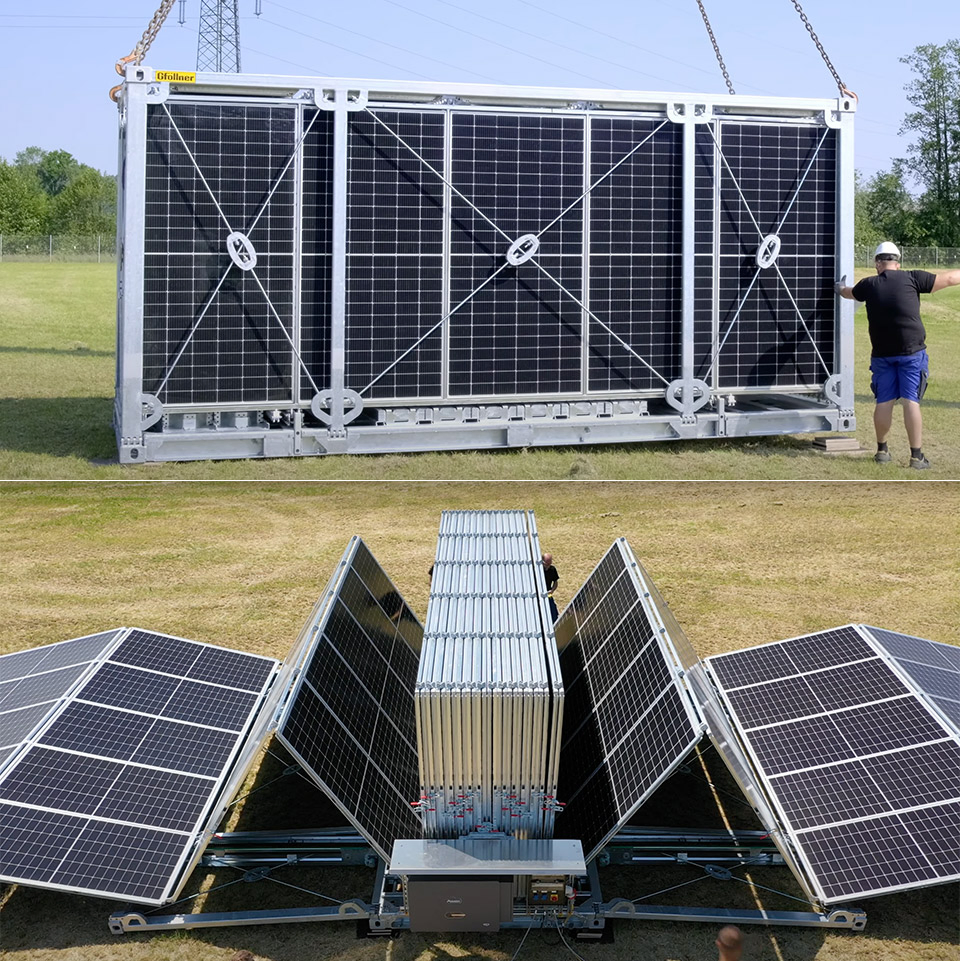

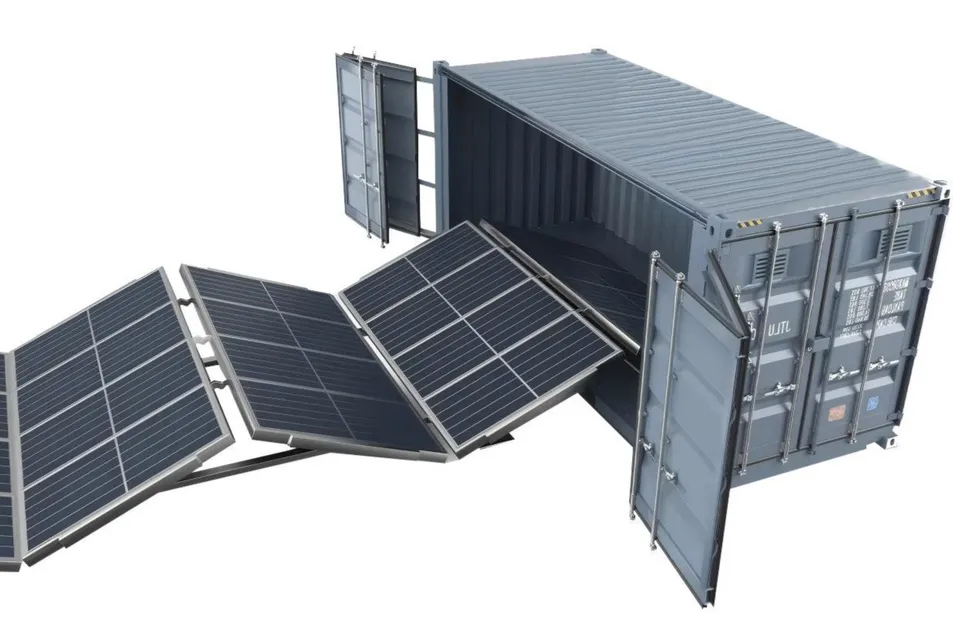

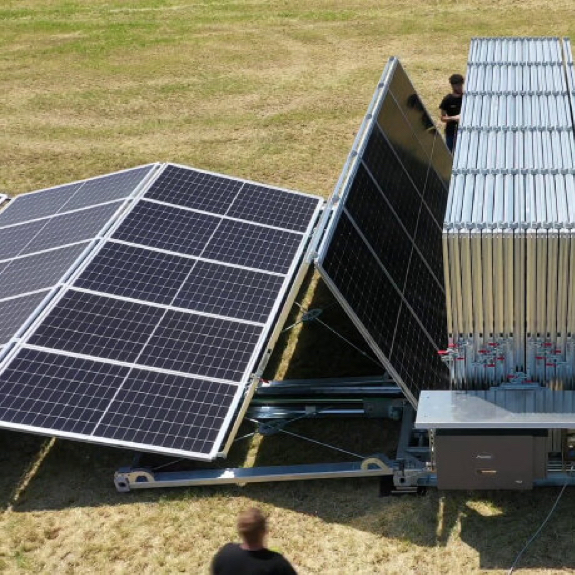

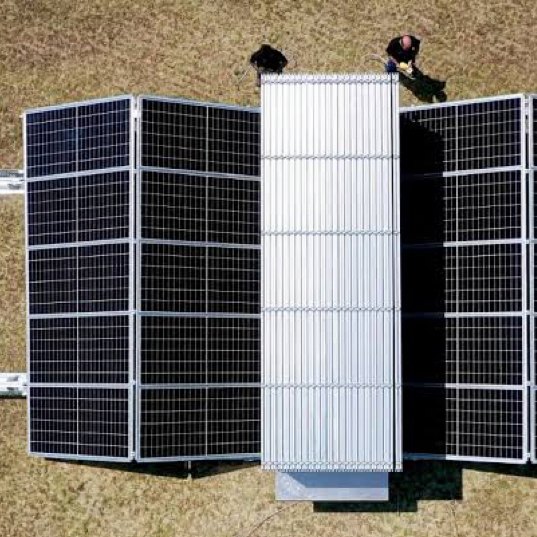

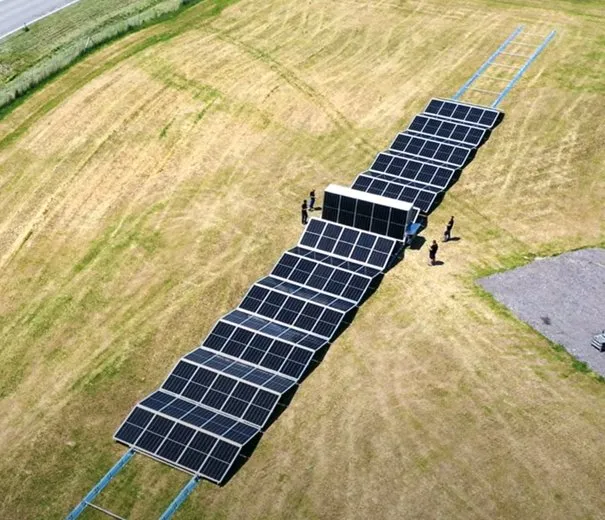

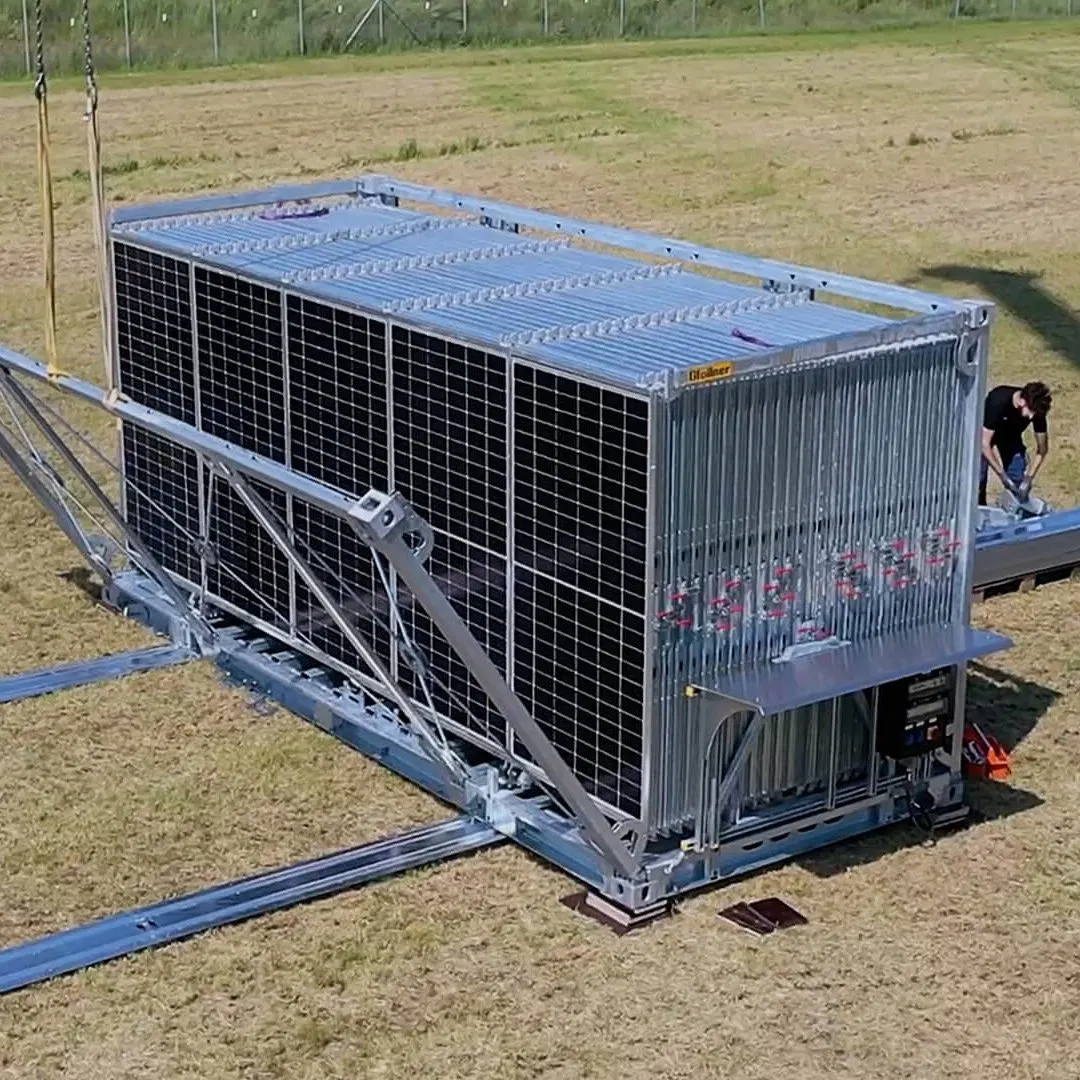

The solar PV container (rail type) is a container-based system with photovoltaic equipment cleverly integrated inside. The solar power generation components are mounted on a set of foldable frames that can be easily unfolded or folded as needed. This energy system can be easily installed on a trailer or flatbed truck, providing multiple options for deployment to almost any global location.

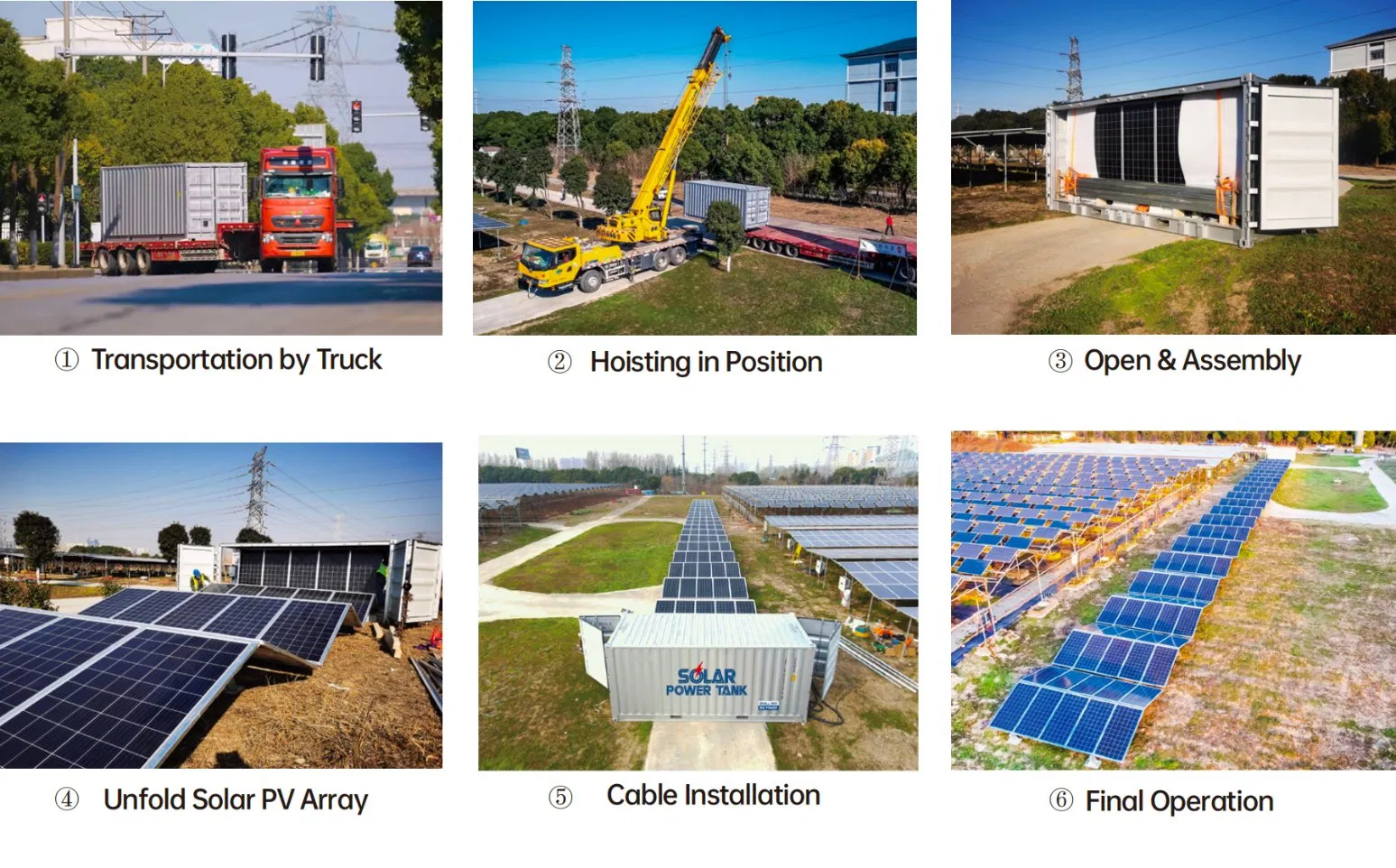

Without the need for on-site solar engineers, the system allows for simple deployment in just a few minutes. It provides a practical solution for defense, mining, humanitarian disaster relief, construction, and other temporary power needs in remote areas.
| Technical Index | Movable Solar Power Container | Traditional Solar Station | Project Advantages |
|---|---|---|---|
| Field Deployment | 1-2 days | 10-15 days | Fast deployment |
| Installers Needed | 4-6 persons | 6-10 persons | Labor efficient |
| Reuse Rate | Transferable, 10x/year | Fixed use only | High mobility |
| Complexity | Plug & Play | Complex construction | Simple steps |
| Environmental Impact | Readily transferable | Affected by climate | Resilient |
Grid Connected: Agriculture, residential areas, EV charging stations, large-scale events, and energy communities.
Off-Grid: Remote infrastructure, oil/mineral extraction, island borders, disaster reconstruction, refugee resettlement, and military deployment.
| Product Model | SC40HQ-M-220K | SC40HQP-M-250K | SC40HQP-M-270K |
|---|---|---|---|
| Solar Array Capacity (kWp) | 220.8 | 249.6/248.64 | 268.0/272.32 |
| Container Type | 40HQ | 40HQP | 40HQP |
| Unfolding Time (mins) | 180 | 200 | 200 |
| Occupied Area (m²) | 1190 | 1250/1265 | 1300/1320 |
| Hybrid Model | SC40HQ-M-190K260 | SC40HQP-M-220K260 | SC40HQP-M-200K520 |
|---|---|---|---|
| Battery Capacity (kWh) | 261 | 261 | 522 |
| Solar Module (W) | 600*322 | 650*336 | 670*150*2 |
| Hybrid Inverter (kW) | 70*2 | 80*2 | 80*2 |
