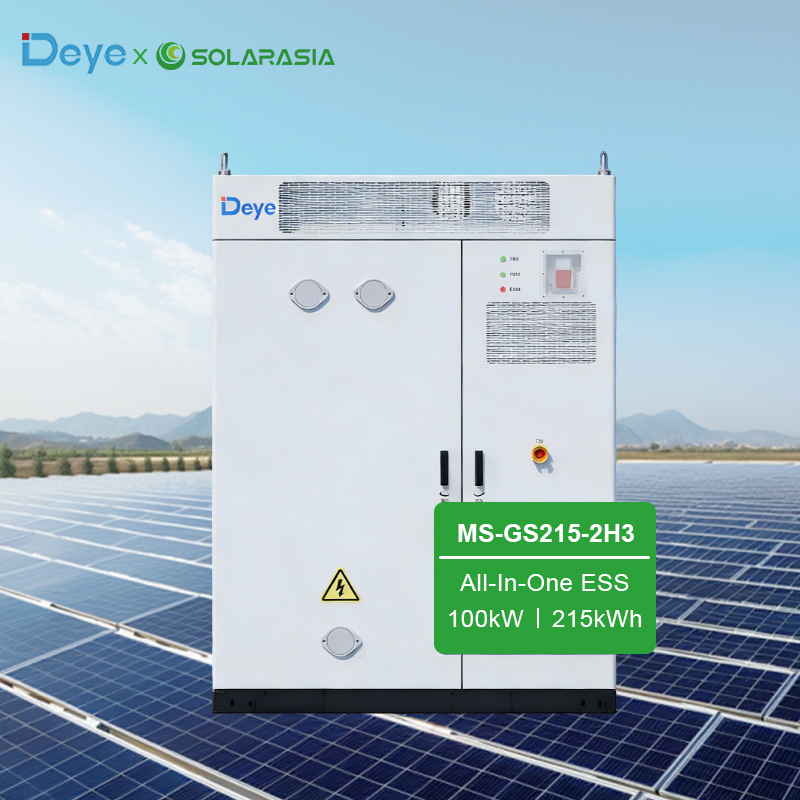

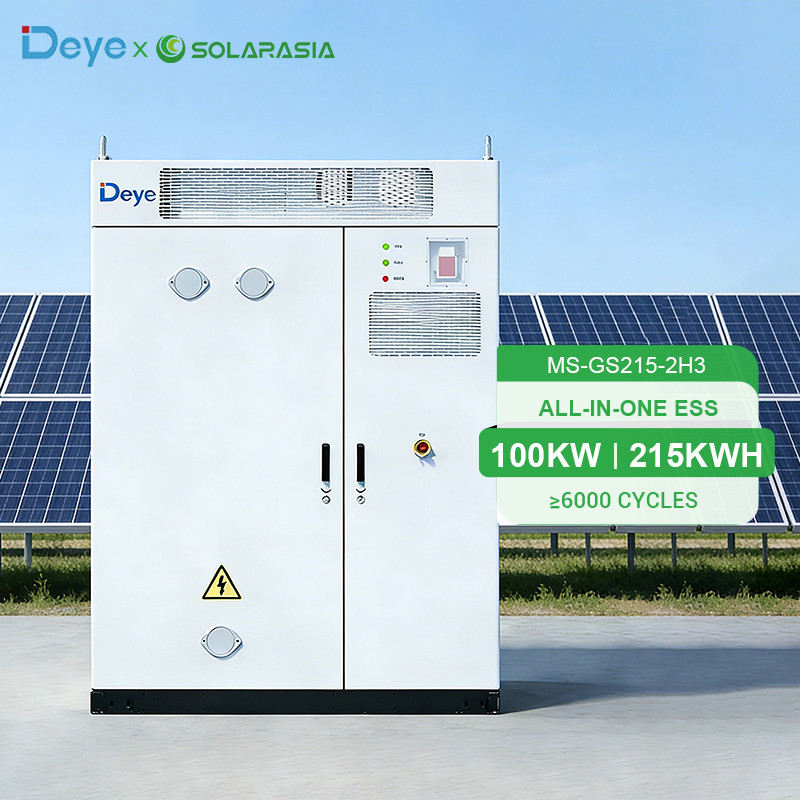

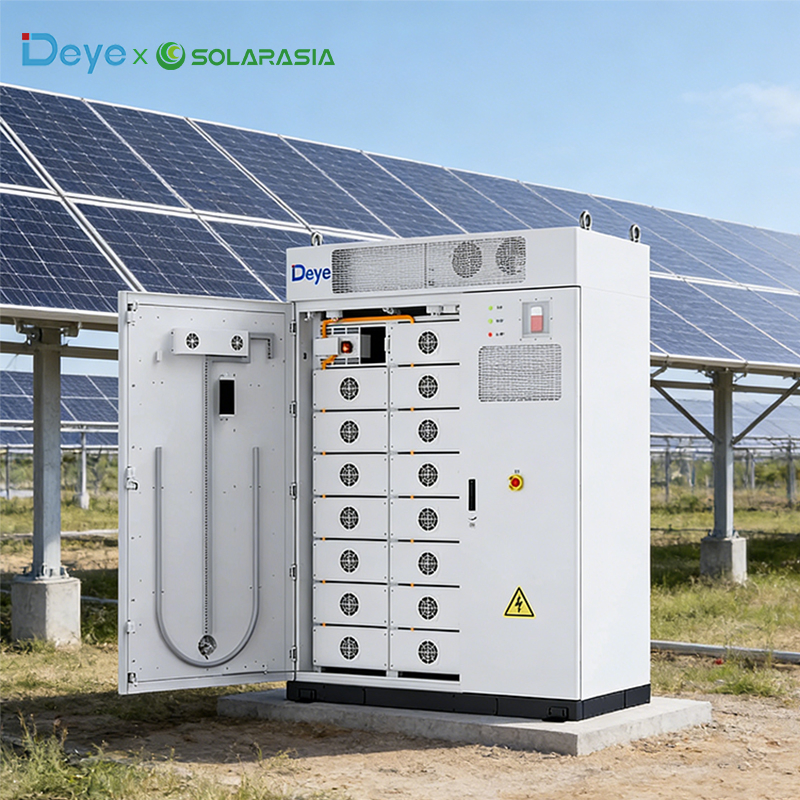

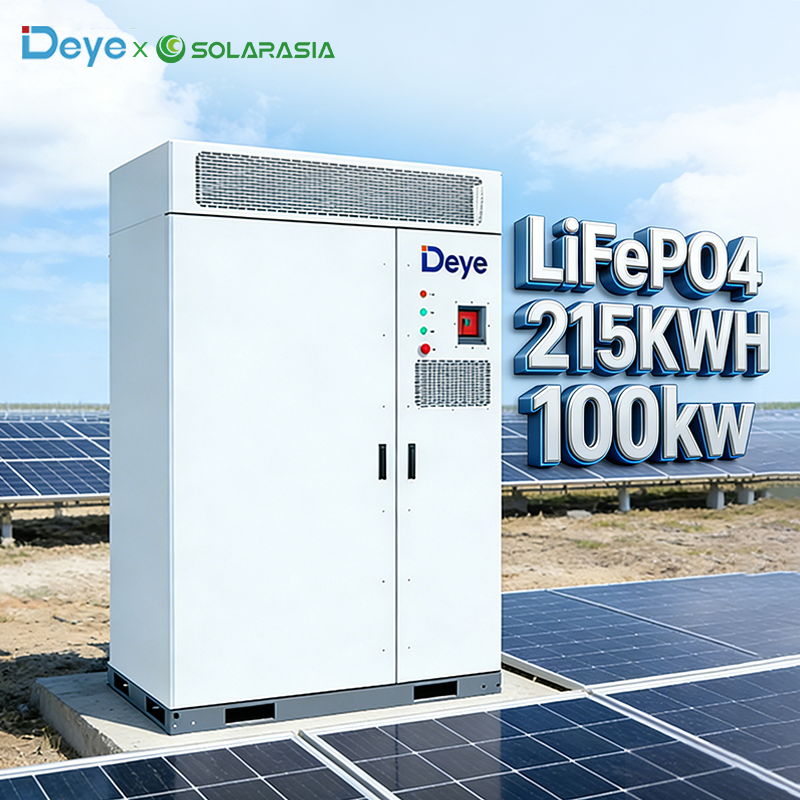

The MS-G215-2H3 is a cutting-edge All-in-One Commercial & Industrial (C&I) energy storage system that integrates PCS (Power Conversion System), EMS (Energy Management System), BMS (Battery Management System), and high-safety liquid-cooled LFP batteries into a single compact cabinet.

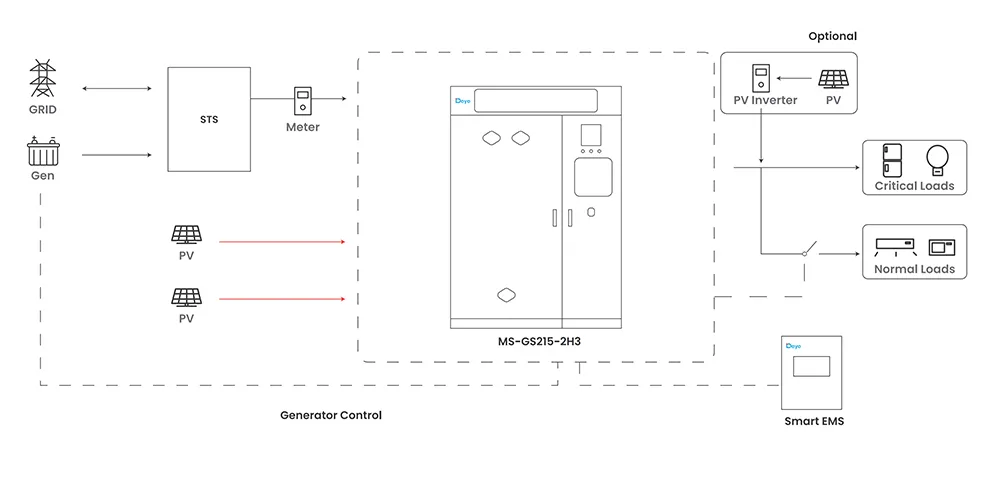

With a rated output of 100kW and usable energy of 215kWh, this system supports both on-grid and off-grid operation, black start function, and diesel generator integration. It is ideal for peak-valley arbitrage, solar self-consumption, demand management, and reliable backup power in factories, commercial buildings, data centers, EV charging stations, and microgrids.
Fully integrated EMS + PCS + BMS with triple auxiliary power redundancy. Supports black start and ultra-fast on/off-grid switching.

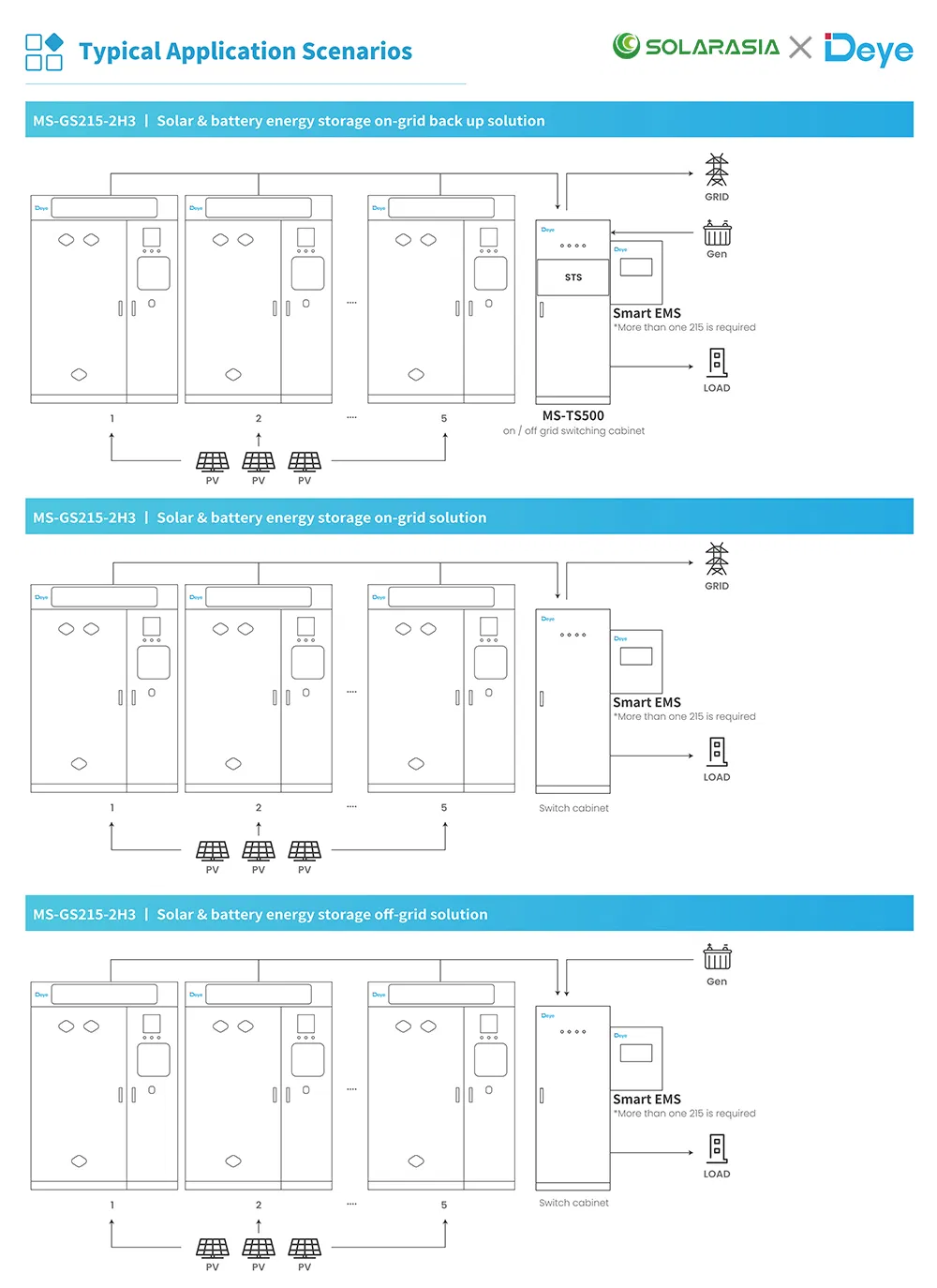

On-grid parallel up to 20 units (max. 2MW / 4.3MWh). Off-grid parallel up to 10 units (max. 1MW / 2.15MWh).
Precision liquid cooling: battery temp ≤35°C. EMS enables peak-valley arbitrage and transformer overload protection. System efficiency: 88% RTE.
LFP battery cells with ≥6000 cycles. Aerosol fire suppression system + automatic exhaust & explosion-proof design.
| Main Parameter | Value |
|---|---|
| AC Output Power (kW) | 100 |
| AC Output Frequency and Voltage | 50 / 60Hz; 380 / 400Vac |
| Grid Type | 3L / N / PE |
| Energy (kWh) | 215 |
| Dimension (W × D × H, mm) | 1865 × 1000 × 2500 |
| Weight Appr. (kg) | 2900 |
| Max. RTE | 88% |
| System Communication | ETH / 4G |
| Operating Temperature Range | -20 ~ 50°C (>45 Derating) |
| IP Rating of Enclosure | IP54 |
| Anti-Corrosion Grade | ≤C5 |
| Certifications | UN3536, IEC61000, IEC62477, IEC60730 |
