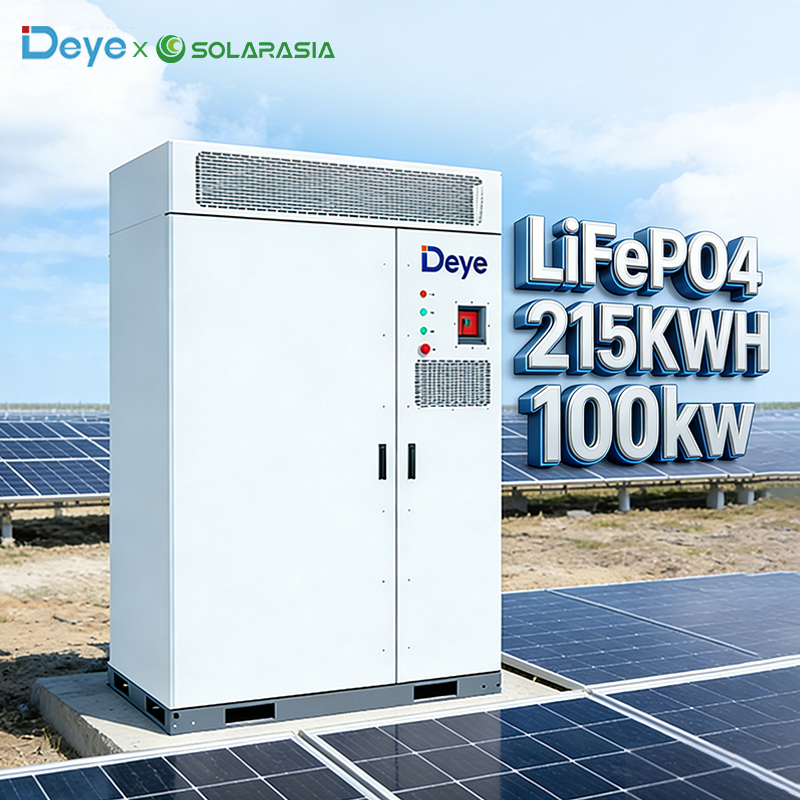

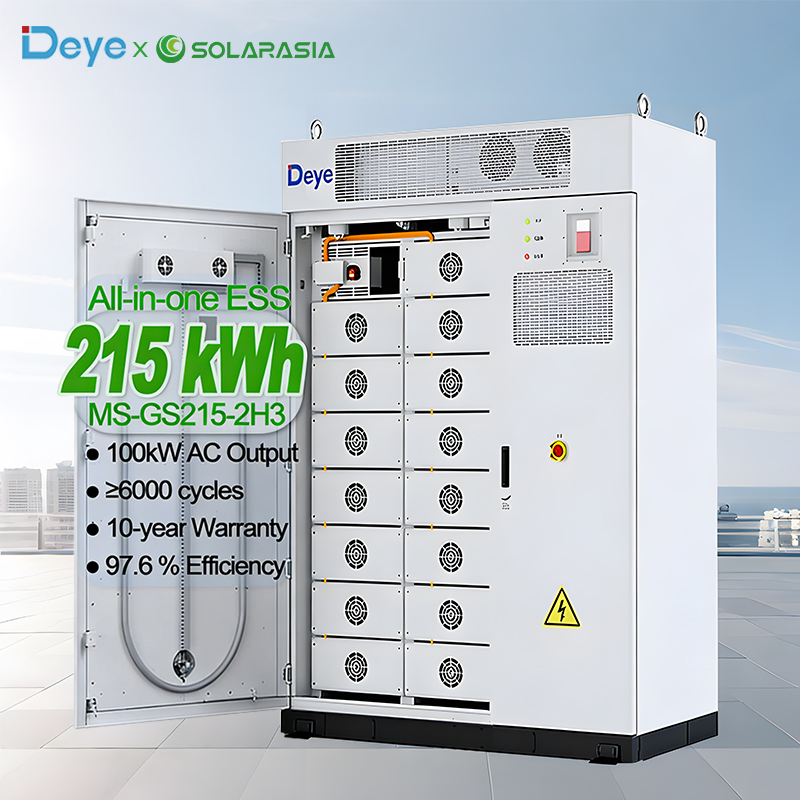

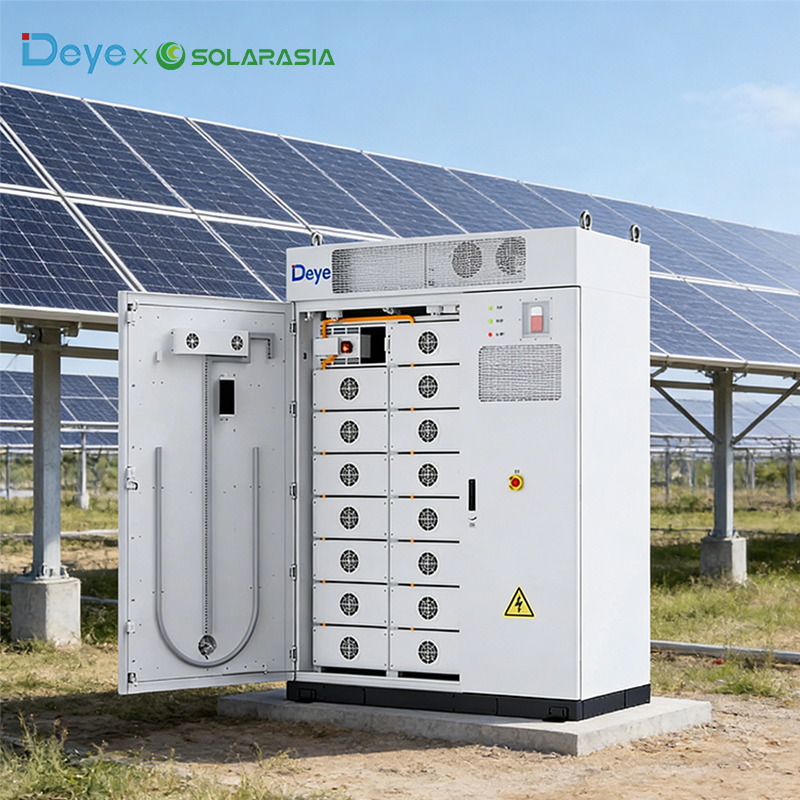

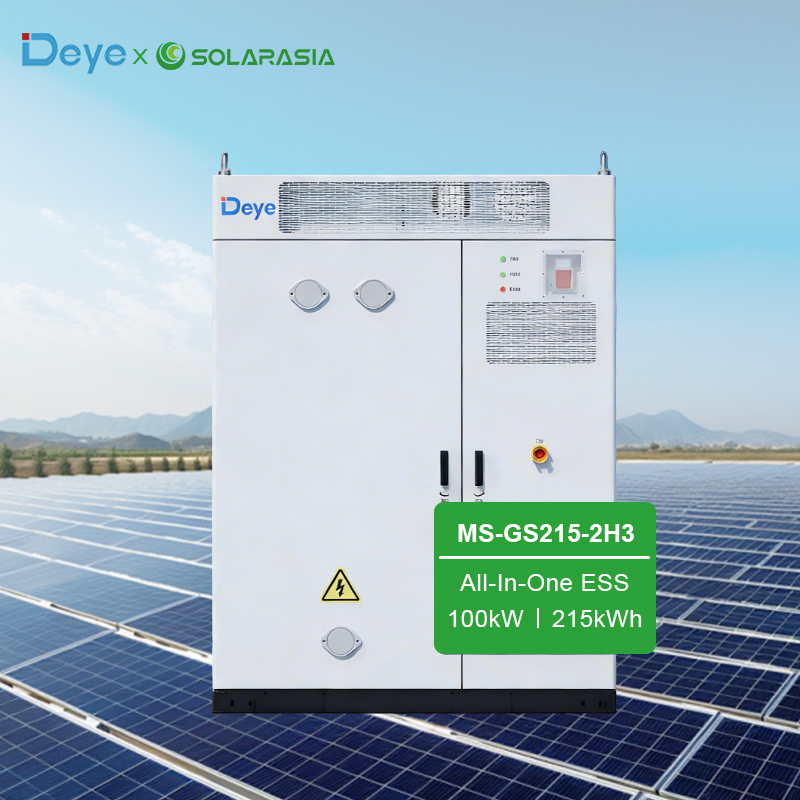

The MS-G215-2H3 is a cutting-edge All-in-One Commercial & Industrial (C&I) energy storage system that integrates PCS (Power Conversion System), EMS (Energy Management System), BMS (Battery Management System), and high-safety liquid-cooled LFP batteries into a single compact cabinet.

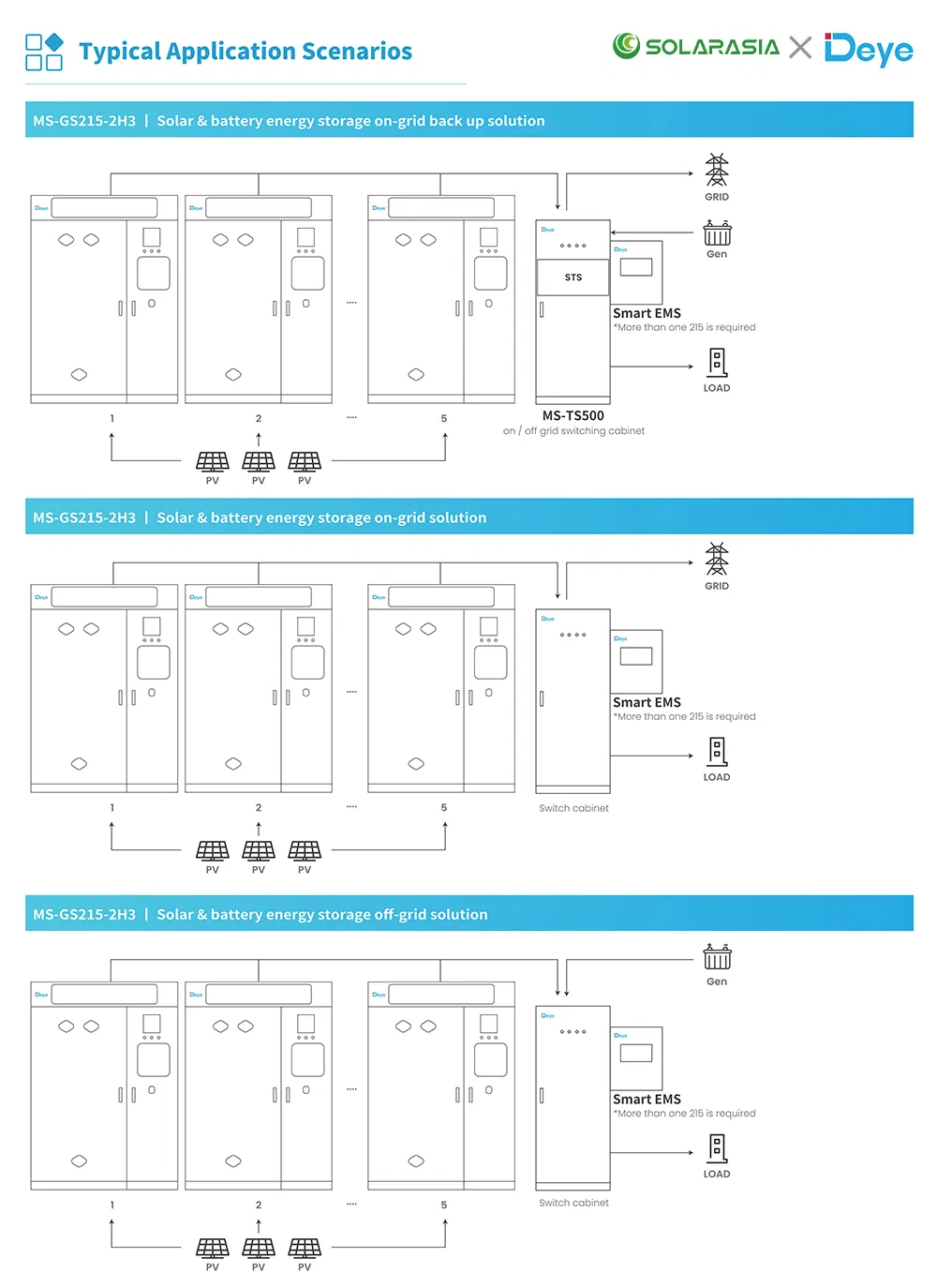

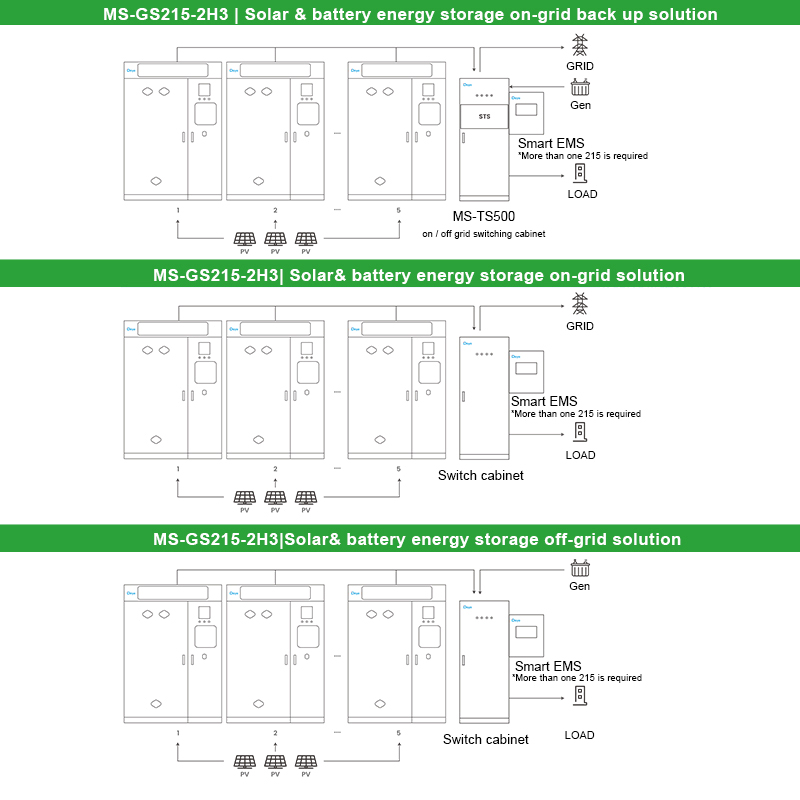

With a rated output of 100kW and usable energy of 215kWh, this system supports both on-grid and off-grid operation, black start function, and diesel generator integration. It is ideal for peak-valley arbitrage, solar self-consumption, demand management, and reliable backup power in factories, commercial buildings, data centers, and EV charging stations.

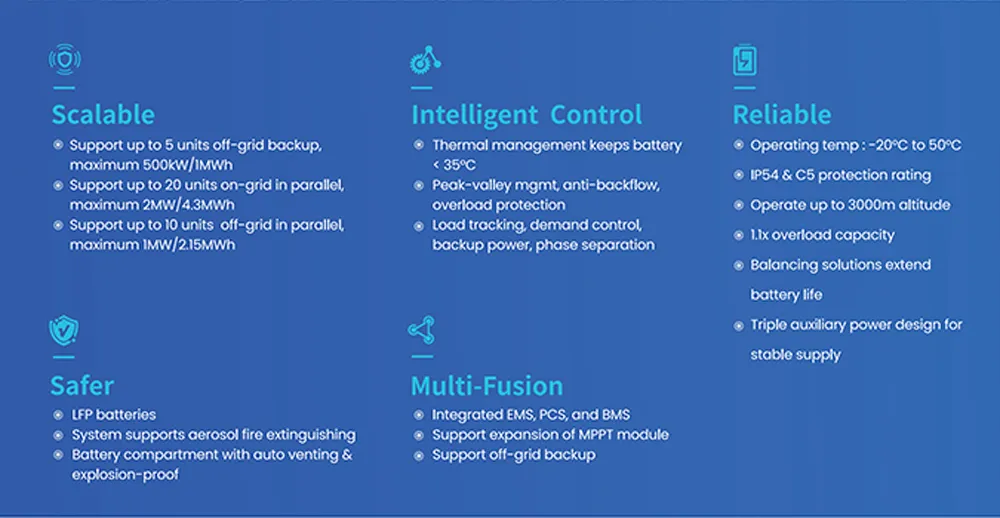

Fully integrated EMS + PCS + BMS with triple auxiliary power redundancy. Supports black start and ultra-fast on/off-grid switching.
Precision liquid cooling maintains battery temperature ≤35°C. Max. inverter efficiency: 97.6% | System round-trip efficiency (RTE): 88%.
LFP battery cells with ≥6000 cycles. Features aerosol fire suppression system + automatic exhaust & explosion-proof design.
| Main Parameter | Value |
|---|---|
| AC Output Power (kW) | 100 |
| AC Frequency & Voltage | 50 / 60Hz; 380 / 400Vac |
| Battery Operating Voltage | 660 ~ 864 Vd.c. |
| Energy (kWh) | 215 |
| Weight (kg) | 2900 |
| System Communication | ETH / 4G |
| Max. Working Altitude | ≤3000m |
| IP Rating | IP54 |
| Anti-Corrosion Grade | ≤C5 |
