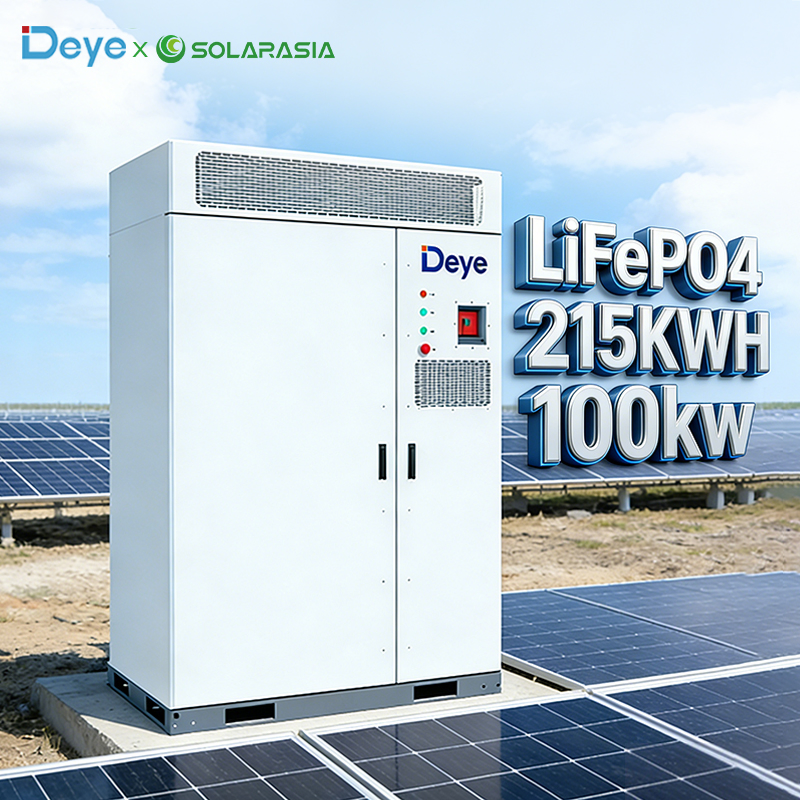

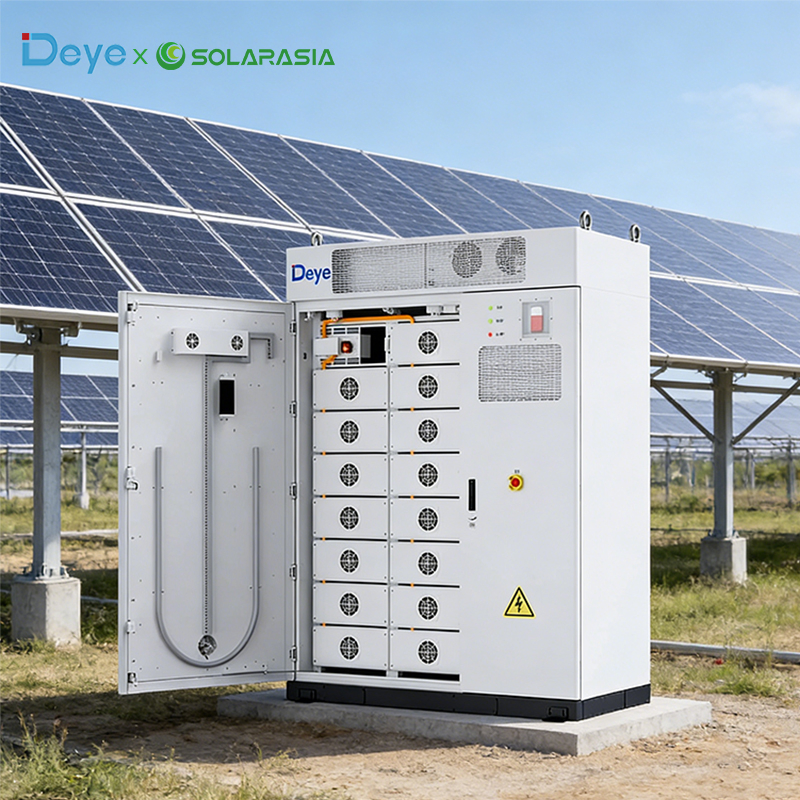

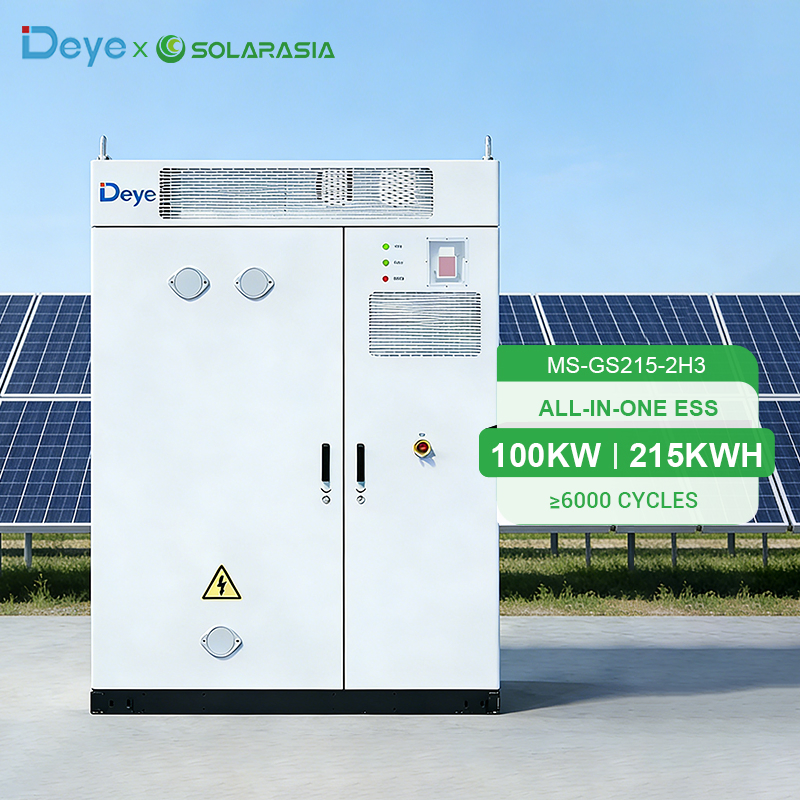

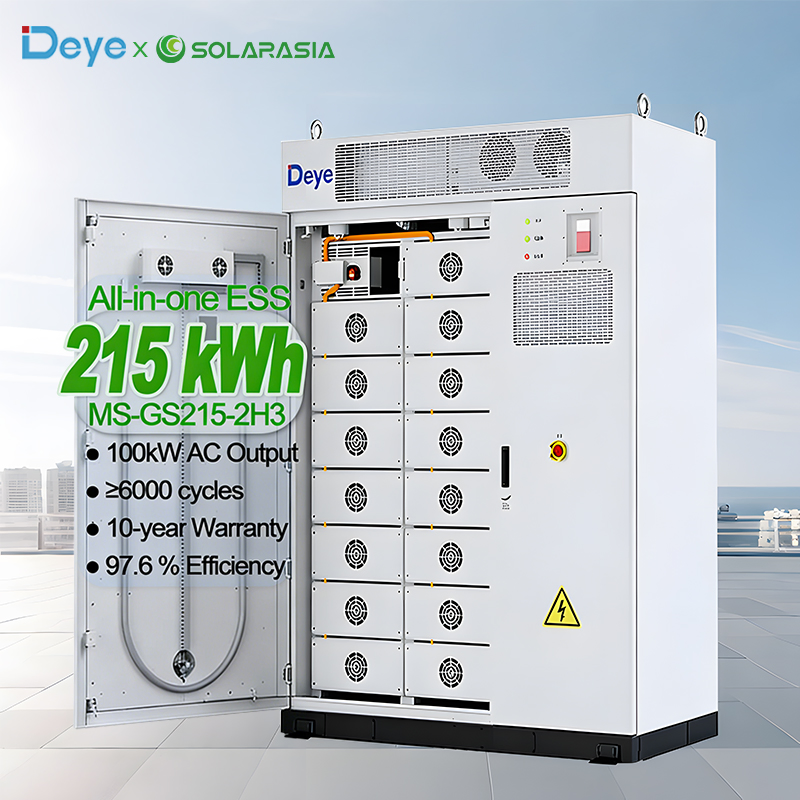

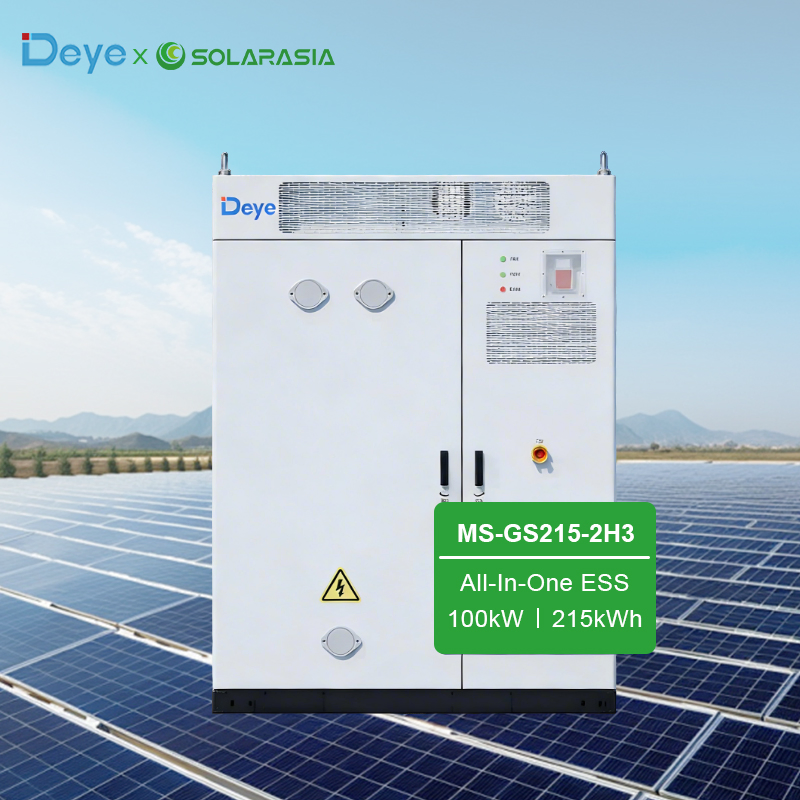

The MS-G215-2H3 is a cutting-edge All-in-One Commercial & Industrial (C&I) energy storage system that integrates PCS (Power Conversion System), EMS (Energy Management System), BMS (Battery Management System), and high-safety liquid-cooled LFP batteries into a single compact cabinet.

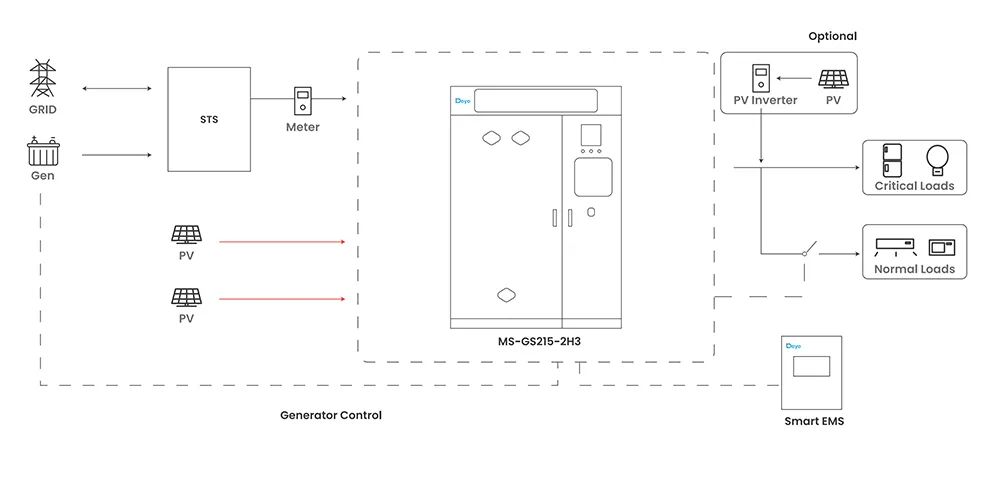

With a rated output of 100kW and usable energy of 215kWh, this system supports both on-grid and off-grid operation, black start function, and diesel generator integration. It is ideal for peak-valley arbitrage, solar self-consumption, demand management, and reliable backup power.
| Main Parameter | Value |
|---|---|
| AC Output Power (kW) | 100 |
| AC Output Frequency/Voltage | 50 / 60Hz; 380 / 400Vac |
| Grid Type | 3L / N / PE |
| Battery Operating Voltage | 660 ~ 864 Vd.c. |
| Energy Capacity | 215 kWh |
| Max. RTE (Efficiency) | 88% |
| Dimension (W × D × H) | 1865 × 1000 × 2500 mm |
| System Communication | ETH / 4G |
| Protection Rating | IP54 / Anti-Corrosion ≤C5 |
| System Certification | UN3536, IEC61000, IEC62477, IEC60730 |
