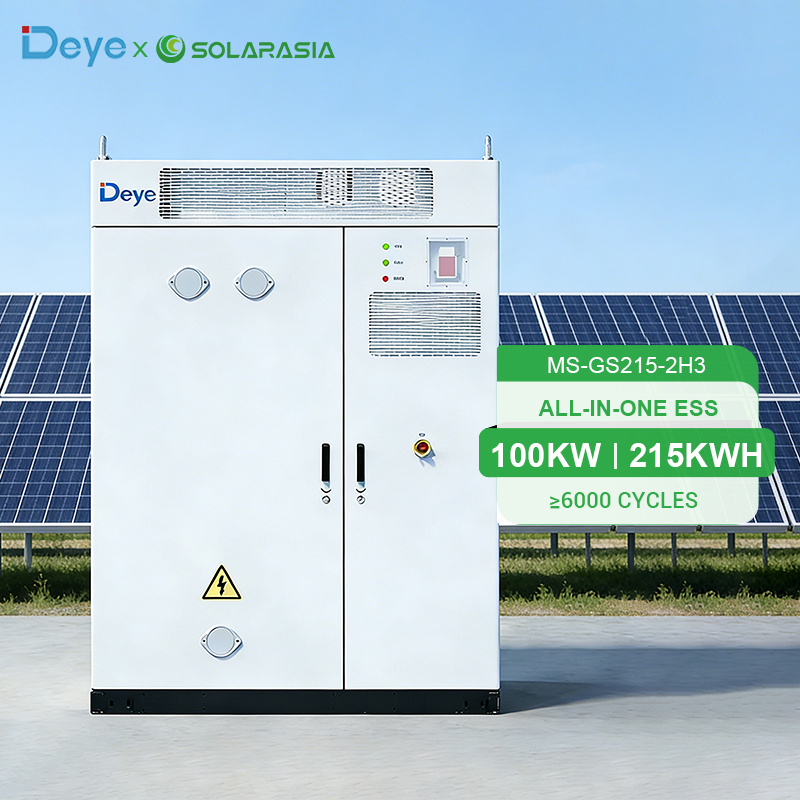

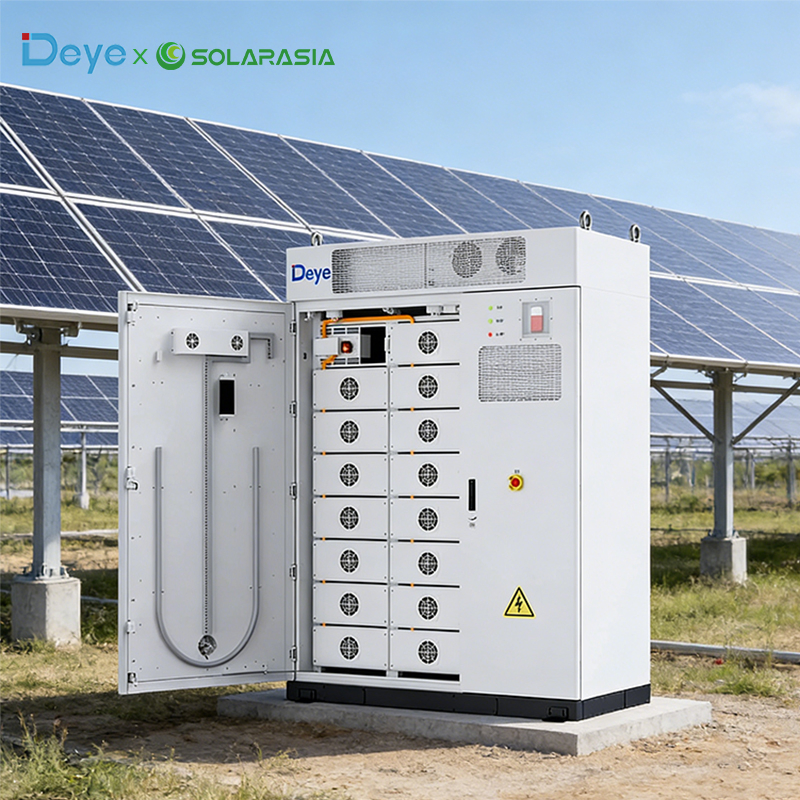

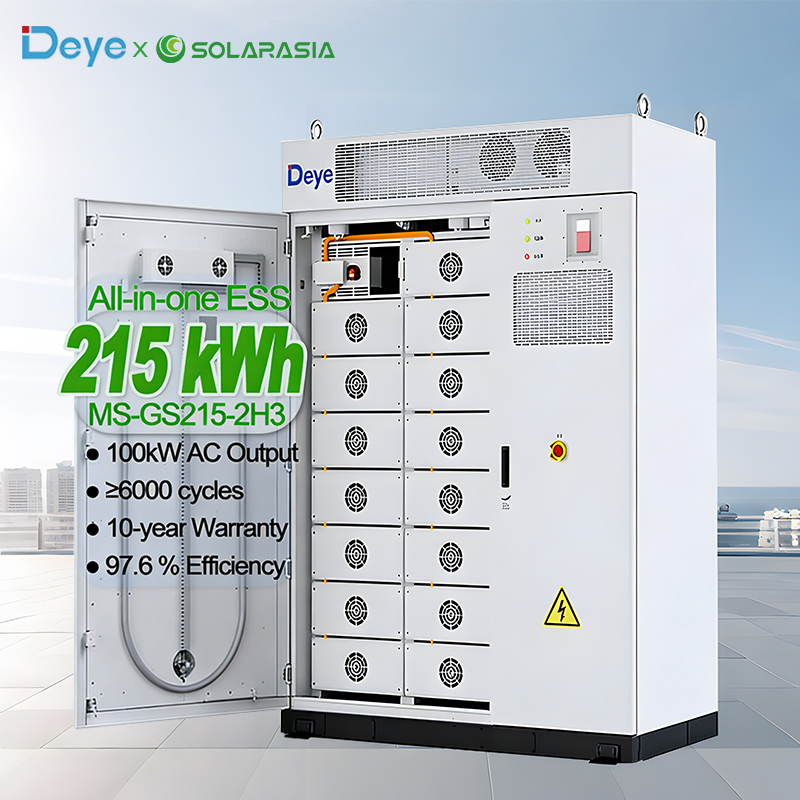

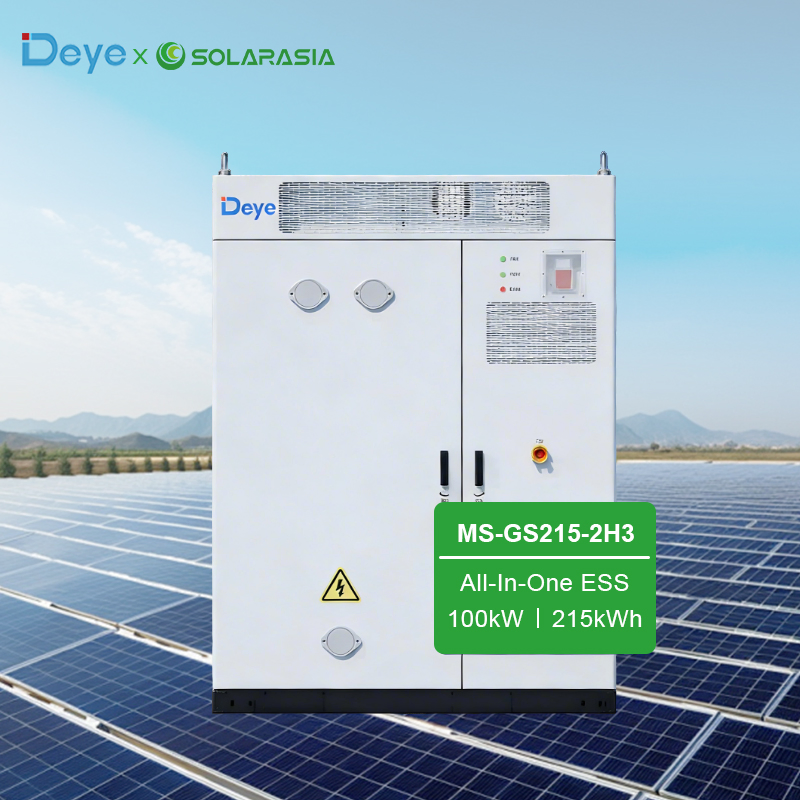

The MS-G215-2H3 is a cutting-edge All-in-One Commercial & Industrial (C&I) energy storage system. It integrates PCS (Power Conversion System), EMS (Energy Management System), BMS (Battery Management System), and high-safety liquid-cooled LFP batteries into a single compact cabinet.

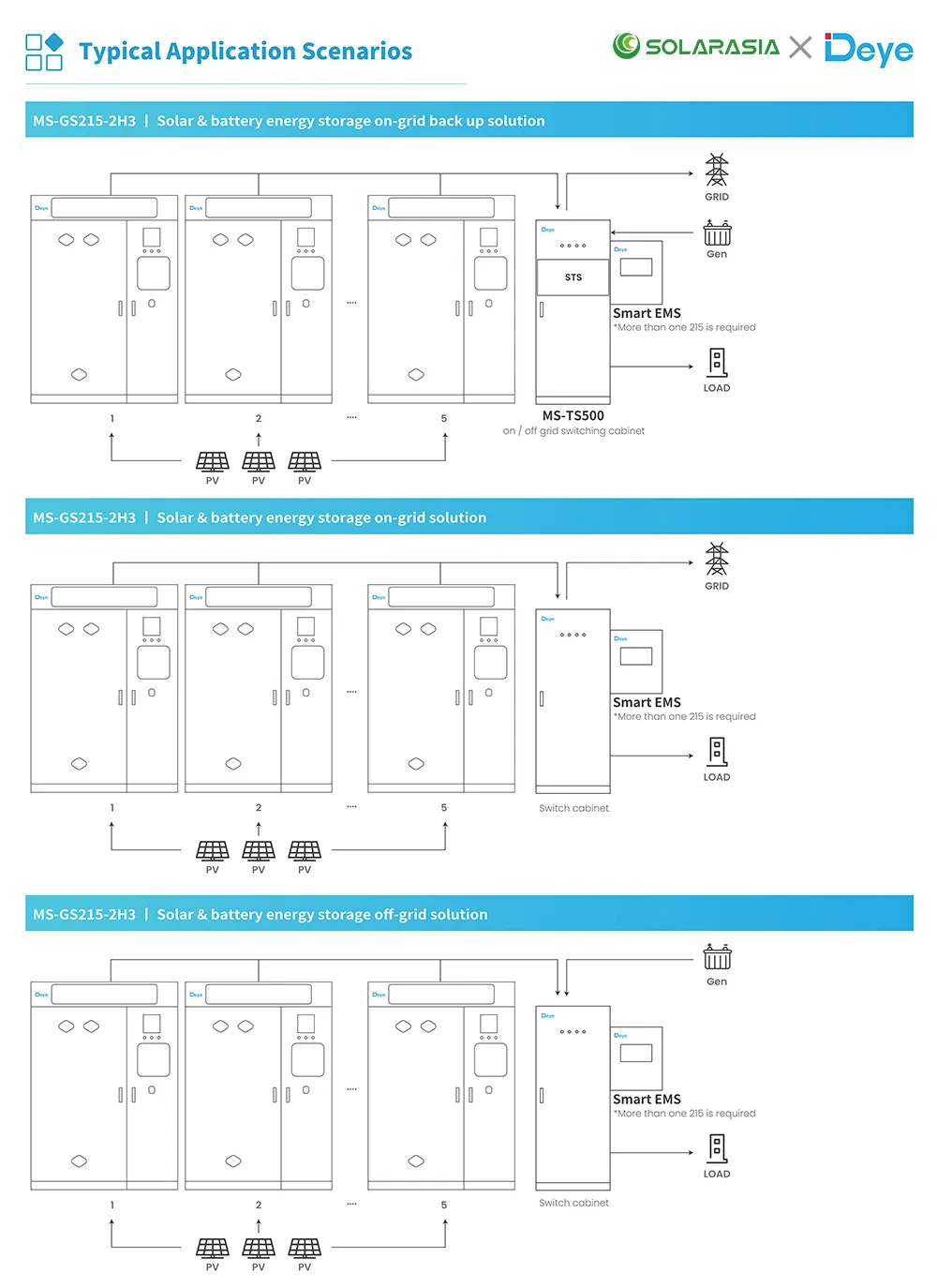

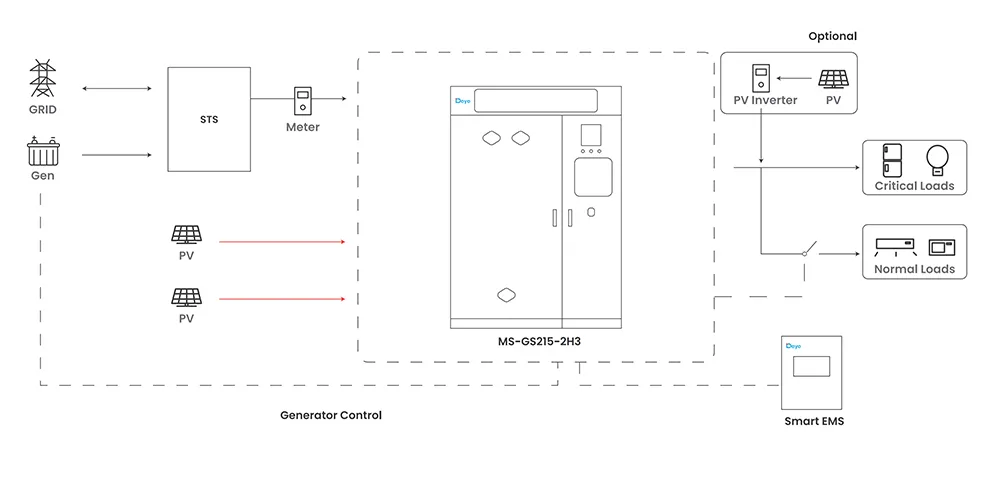

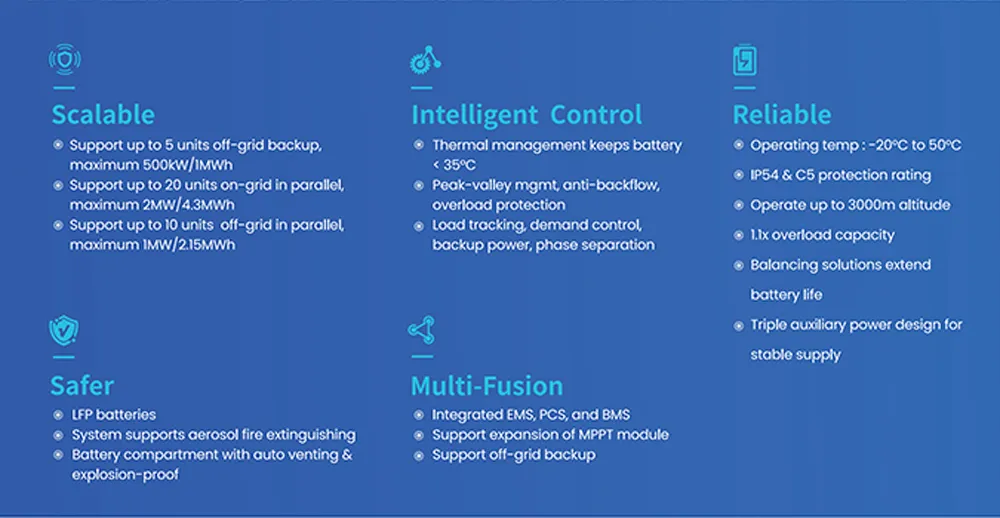

With a rated output of 100kW and usable energy of 215kWh, this system supports both on-grid and off-grid operation, black start function, and diesel generator integration. It is ideal for peak-valley arbitrage, solar self-consumption, and reliable backup power.
| Main Parameter | Value |
|---|---|
| AC Output Power (kW) | 100 |
| AC Output Frequency and Voltage | 50 / 60Hz; 380 / 400Vac |
| Grid Type | 3L / N / PE |
| Battery Operating Voltage (Vd.c.) | 660 ~ 864 |
| Energy (kWh) | 215 |
| Dimension (W × D × H, mm) | 1865 × 1000 × 2500 |
| Weight Appr. (kg) | 2900 |
| Max. RTE | 88% |
| System Communication | ETH / 4G |
| System Operating Temperature Range | -20 ~ 50°C (>45 Derating) |
| IP Rating of Enclosure | IP54 |
| System Certification | UN3536, IEC61000, IEC62477, IEC60730 |
