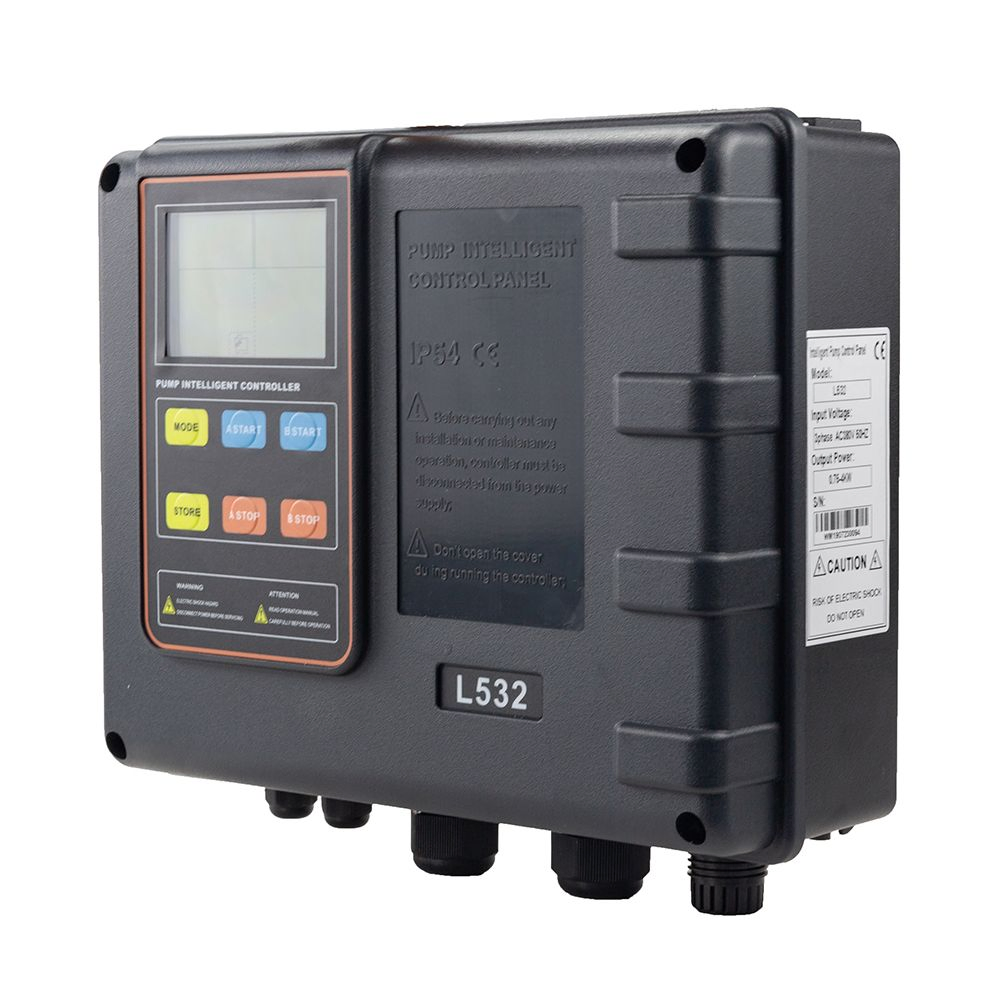

Advanced Energy-Efficient Smart Pump Management System for Savings

i

Product Overview & Basic Info

Model NO.

L532

Mathematical Model

Linear

Signal

Continuous

Function

Automatic Control, Protection, Monitoring

Certification

ISO: 9001, CE

Condition

New

Customized

OEM Available

Material

ABS

Protection Grade

IP54

Phase Number

3 Phase

Rated Output Power

0.75kw~15kw

Rated Input Voltage

AC380/AC400V Three Phase

P

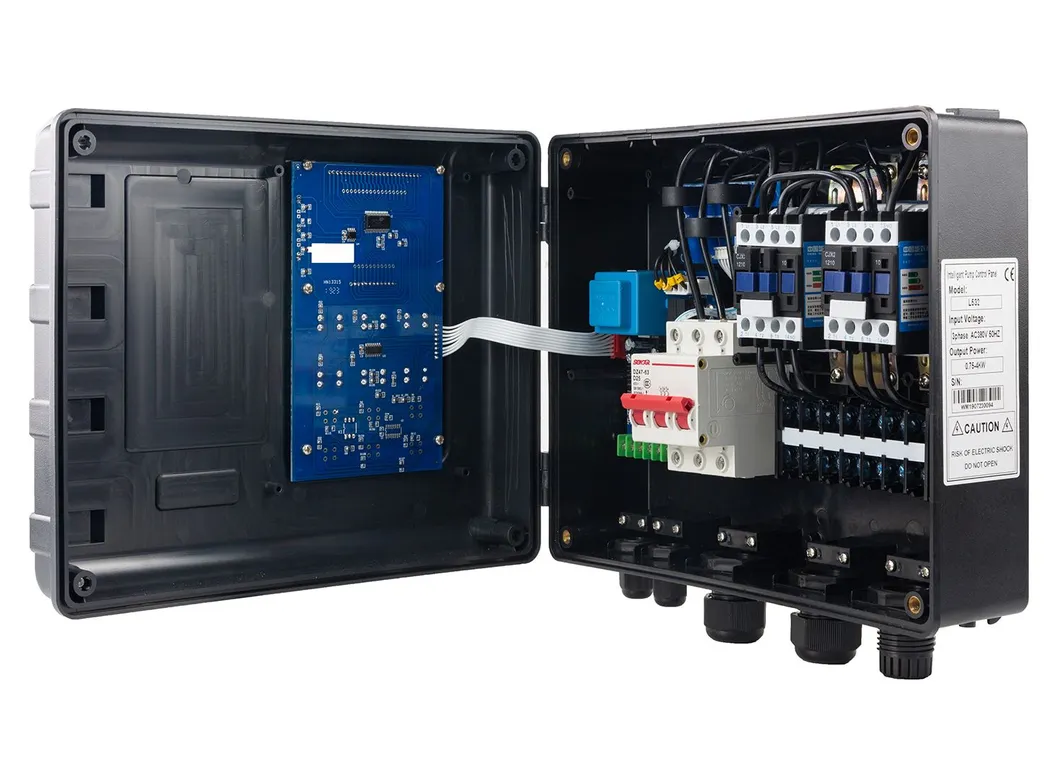

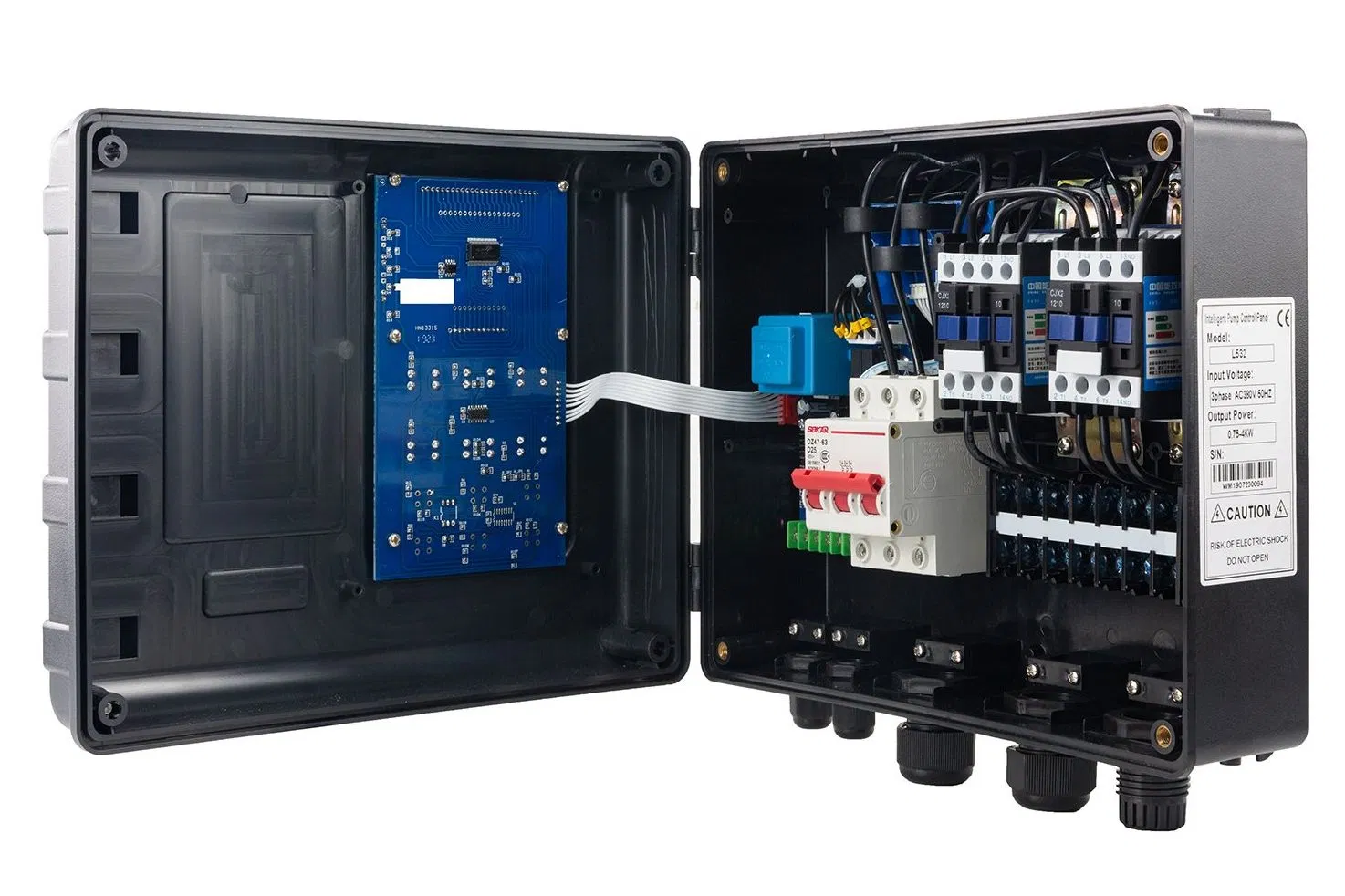

Detailed Photos

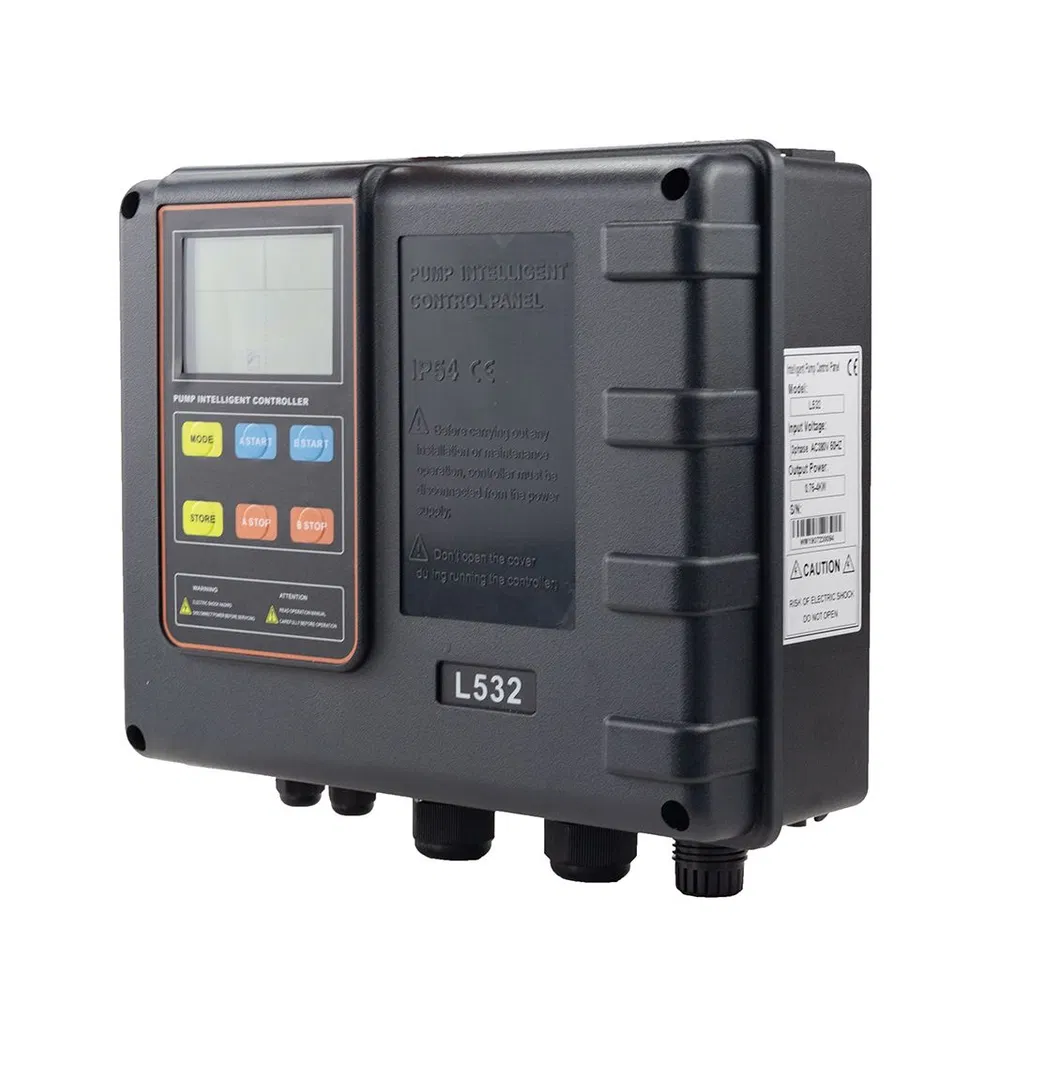

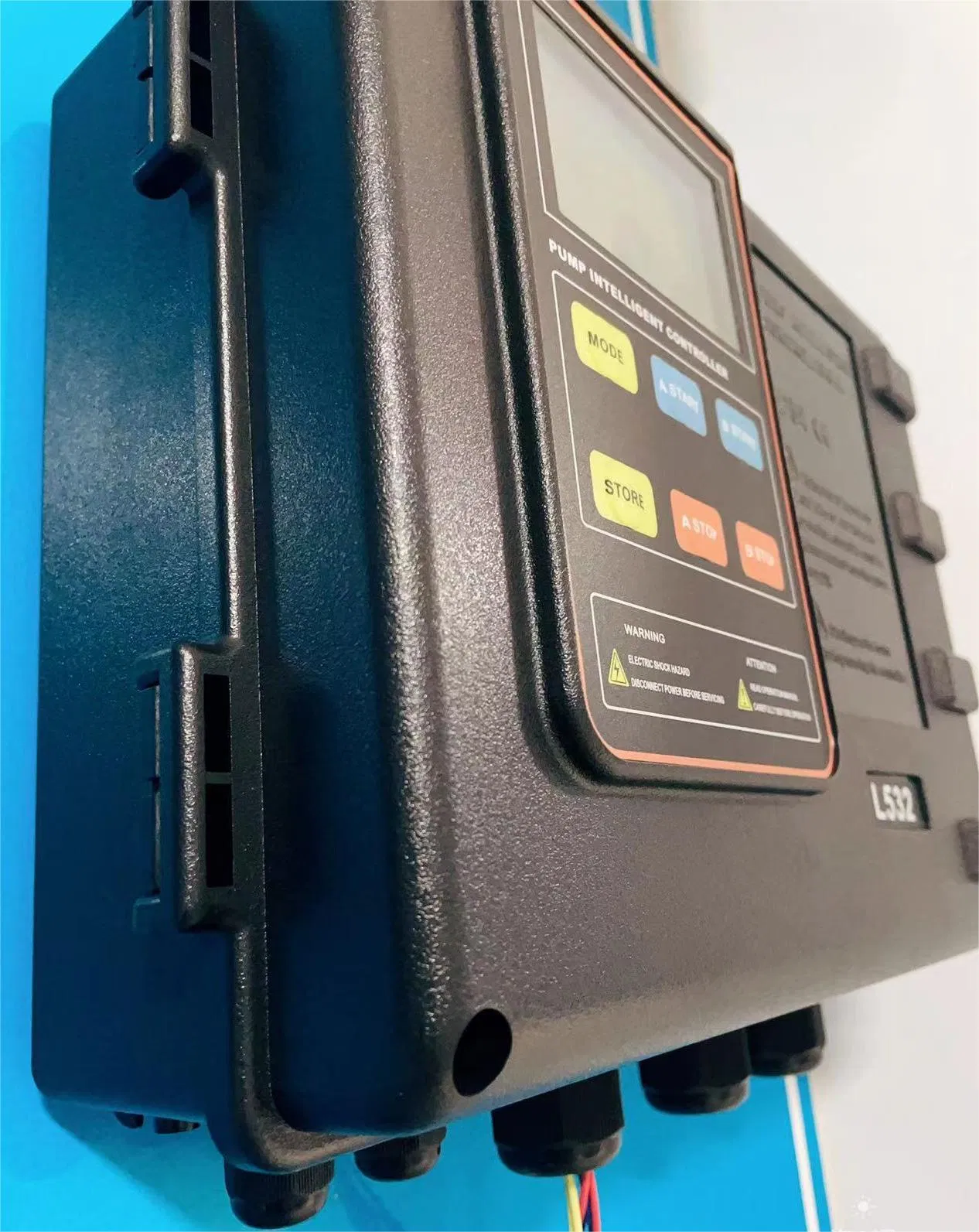

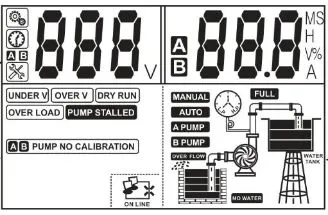

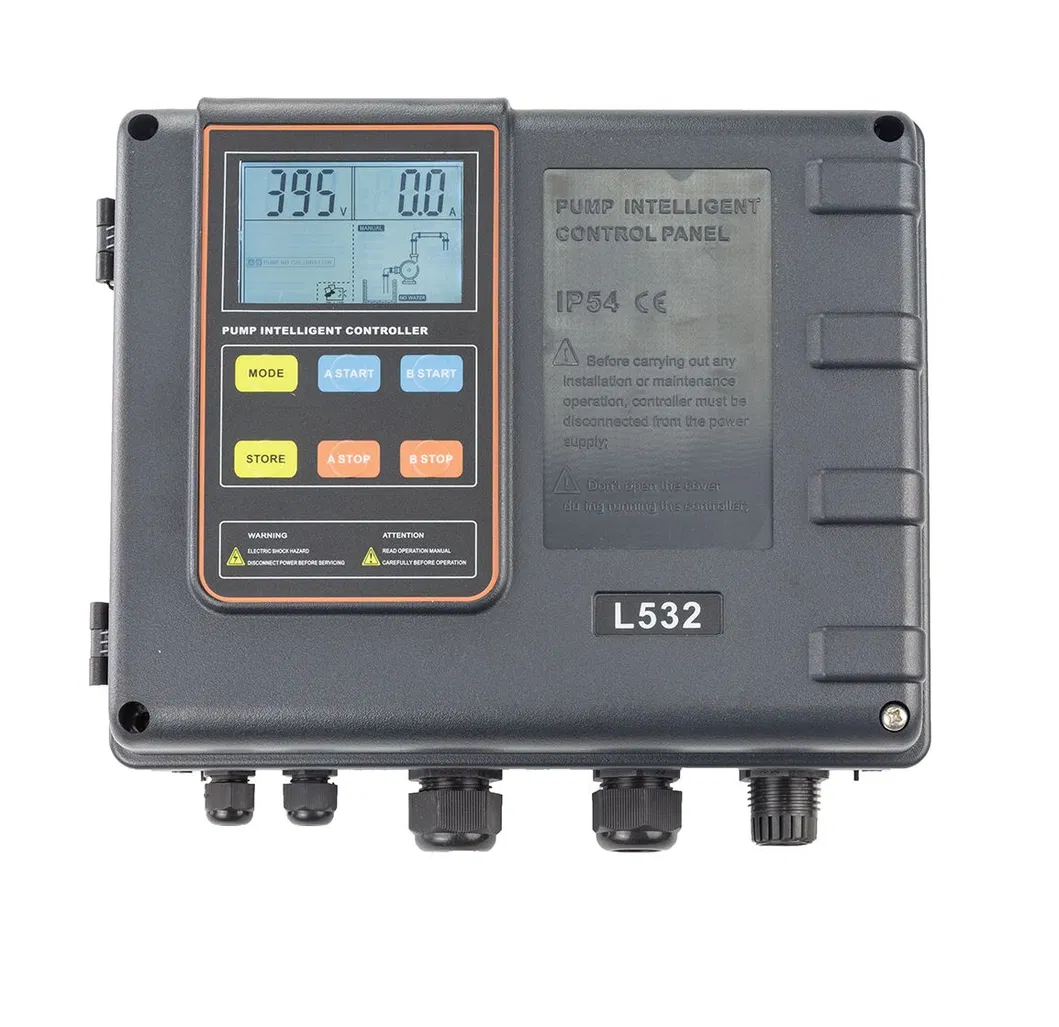

LCD Screen Display: Features a clear LCD screen displaying real-time pump running status and diagnostic information.

S

Product Specifications

Main Technical Data
Start Type	Direct on line
Qty of controlled pump	Duplex pump
Rated input voltage	AC380V/AC400V Three Phase 50HZ/ 60HZ
Protection functions	Over load, Pump stalled, Dry run (sensor free), Under/Over voltage, Repeat start, Open phase
Control Characteristics

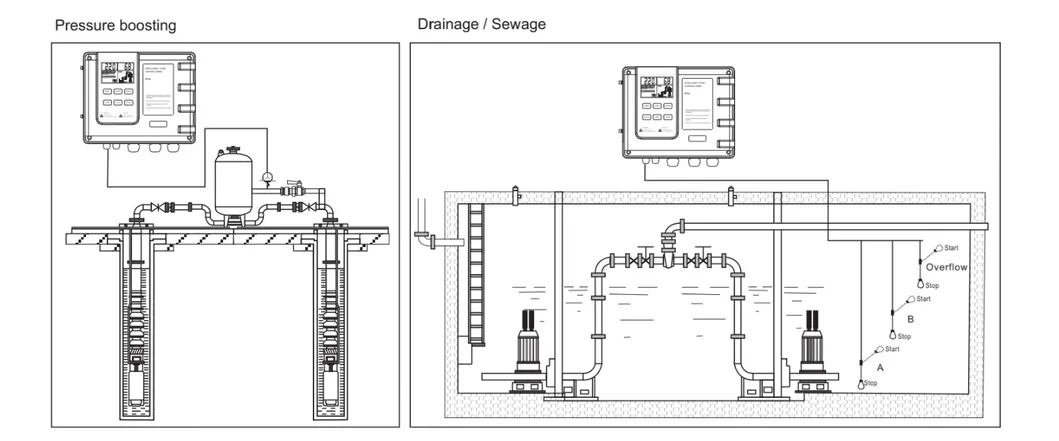

Application	Water supply (float switch/probe), Booster (pressure switch), Drainage, Sewage
Operation Mode	Main/Standby pump auto alternate & switch against malfunction
Installation Data
Protection Degree	IP54
Install Position	Wall mounting
Dimensions	300×240×120mm

F

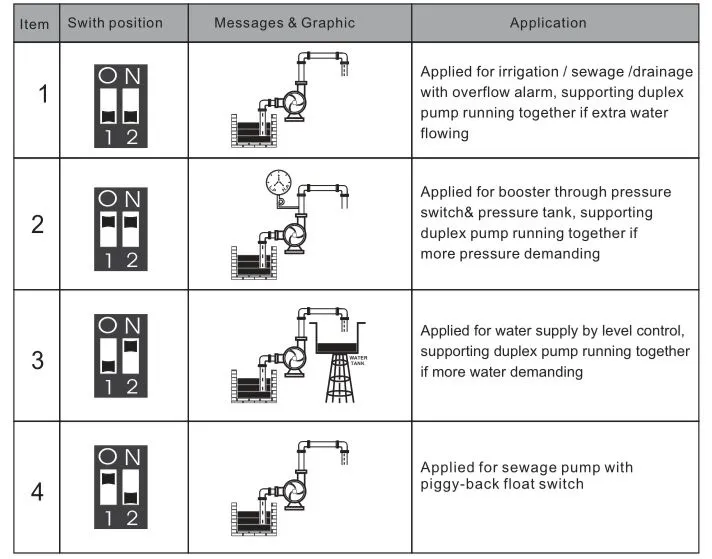

Function Switch Setting

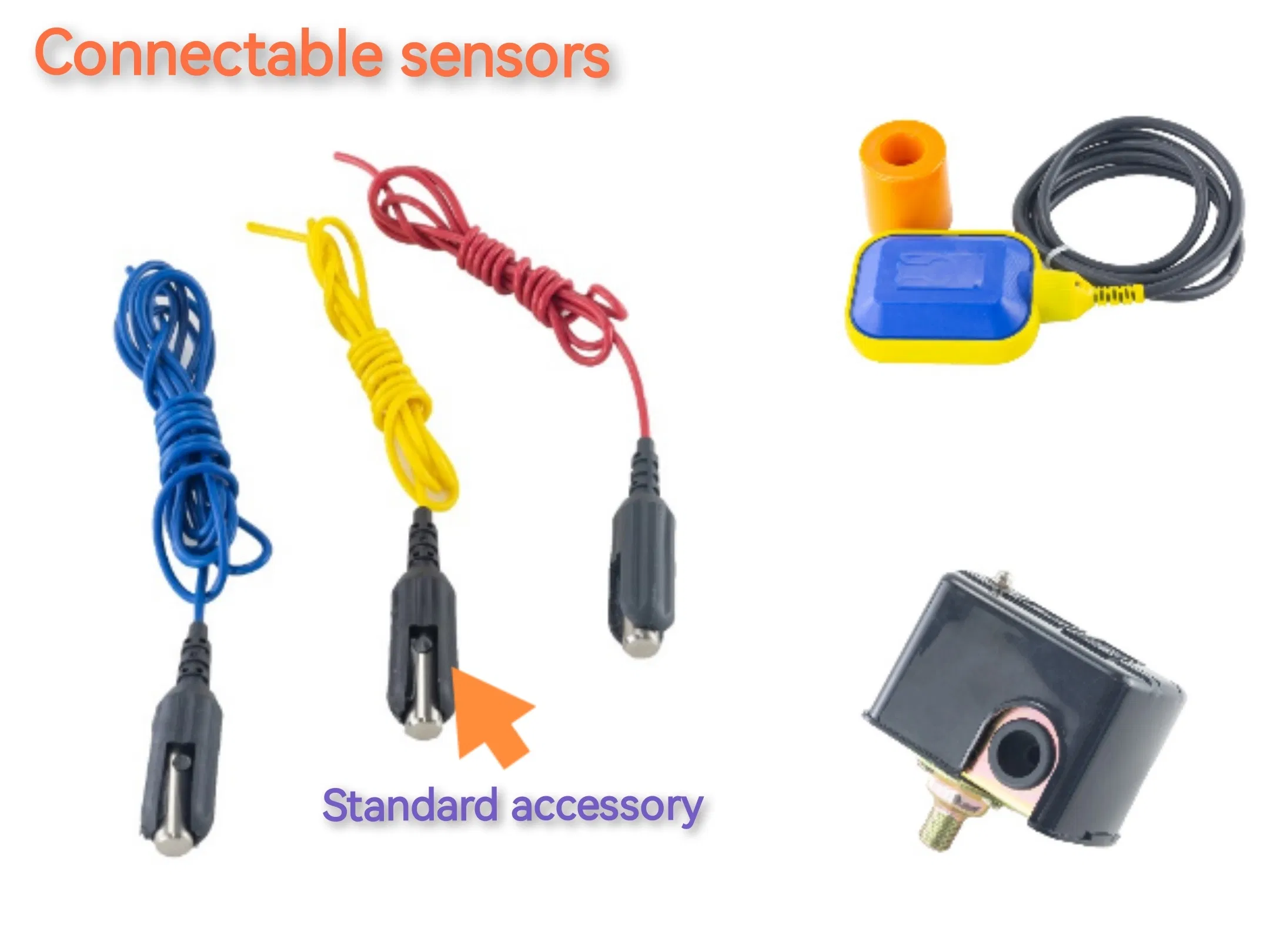

Connectable sensors: Liquid probe (standard accessory) / Pressure switch / Float switch

T

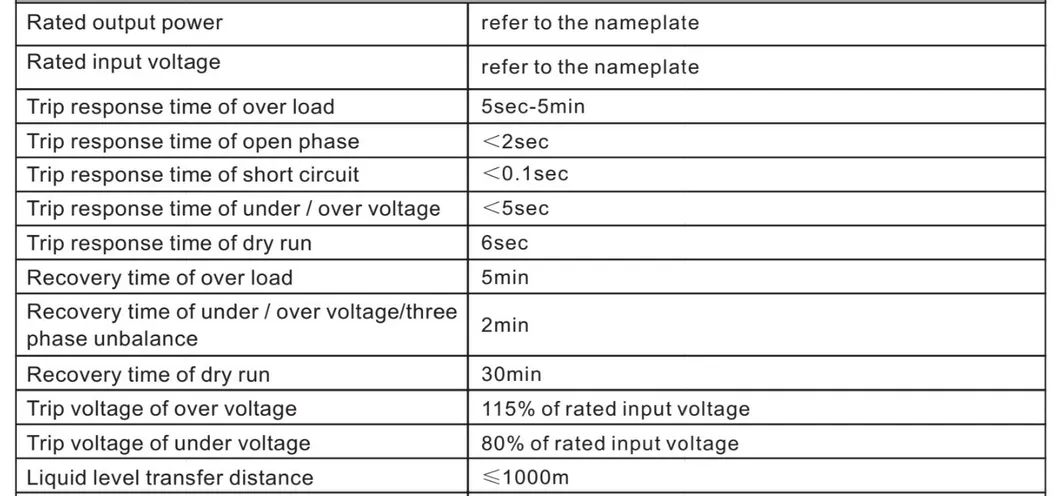

Technical Parameters

M

Manufacturing Facility & Ability

Q

Trading & Feedback

D

Payment & Delivery Terms

?

Frequently Asked Questions

Can I have some samples?

Yes, we can send you samples for testing. Please contact us for further details.

What's the delivery time?

For standard pump control panels, it usually takes about 7 working days; for non-standard models, it usually takes 15-20 days.

Can I do OEM or ODM?

Yes, we have our own engineering team and accept both OEM and ODM orders, subject to quantity requirements.

How is quality control managed?

Our production follows ISO standards. We control quality from raw materials to the finished product, and each panel is strictly tested before shipping.

What is the approximate lifetime of the control panel?

The designed lifetime of our pump control panels is approximately 8 years.

What is your after-sales service policy?

Depending on the order quantity, we provide free spare parts or controllers for maintenance and offer technical training support.
