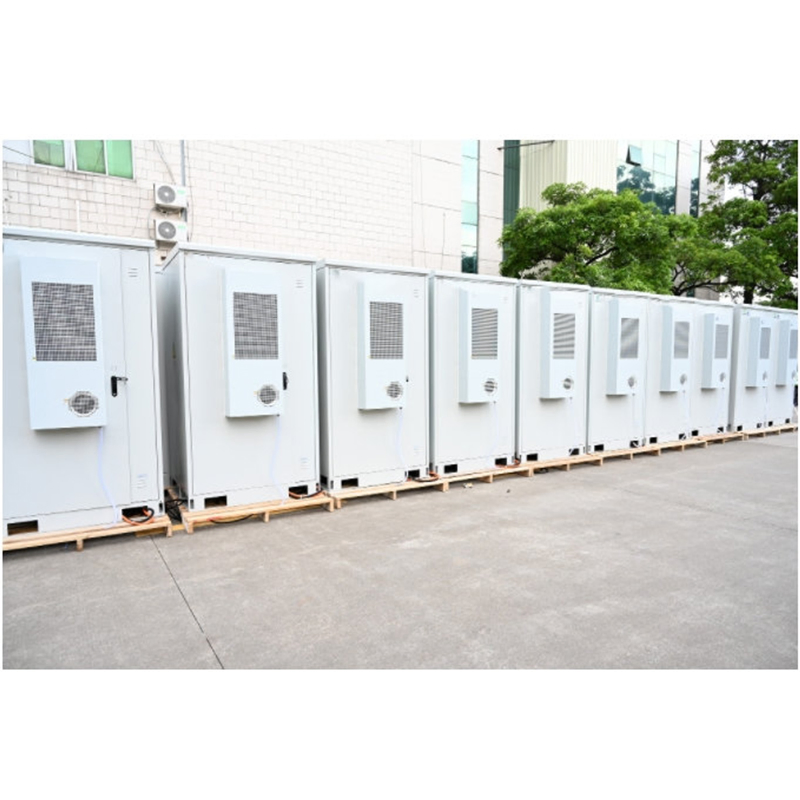

High Density Power Concentration Integrated All-in-One Ess Storage Efficiency Management System LiFePO4 Battery Smart Bess Solar Wind Renewable Energy System

1 / 5

High Density Power Concentration Integrated All-in-One Ess Storage Efficiency Management System LiFePO4 Battery Smart Bess Solar Wind Renewable Energy System

Customization:	Available
Container Size:	150012882500mm
Weight:	2700kgs

Send Inquiry

Product Description

📋

Basic Information

Model NO.

BR-BESS2

Nominal Voltage

768V

Warranty

3 Years

Nominal Capacity

215.04kwh

Cycle Life

6000 times

Transport Package

Cabinet

Specification

1500*1288*2500mm

HS Code

8504402000

📦

Packaging & Delivery

Package Size

300.00cm * 235.00cm * 238.00cm

Gross Weight

1200.000kg

⚡

Product Description

High Density Power Concentration Integrated All-in-One ESS Storage Efficiency Management System LiFePO4 Battery Smart BESS Solar Wind Renewable Energy System

Storage Tank System Parameters
Battery Specs	Type Class: 100KW/215KWh
	Energy Storage Capacity: 215KWh

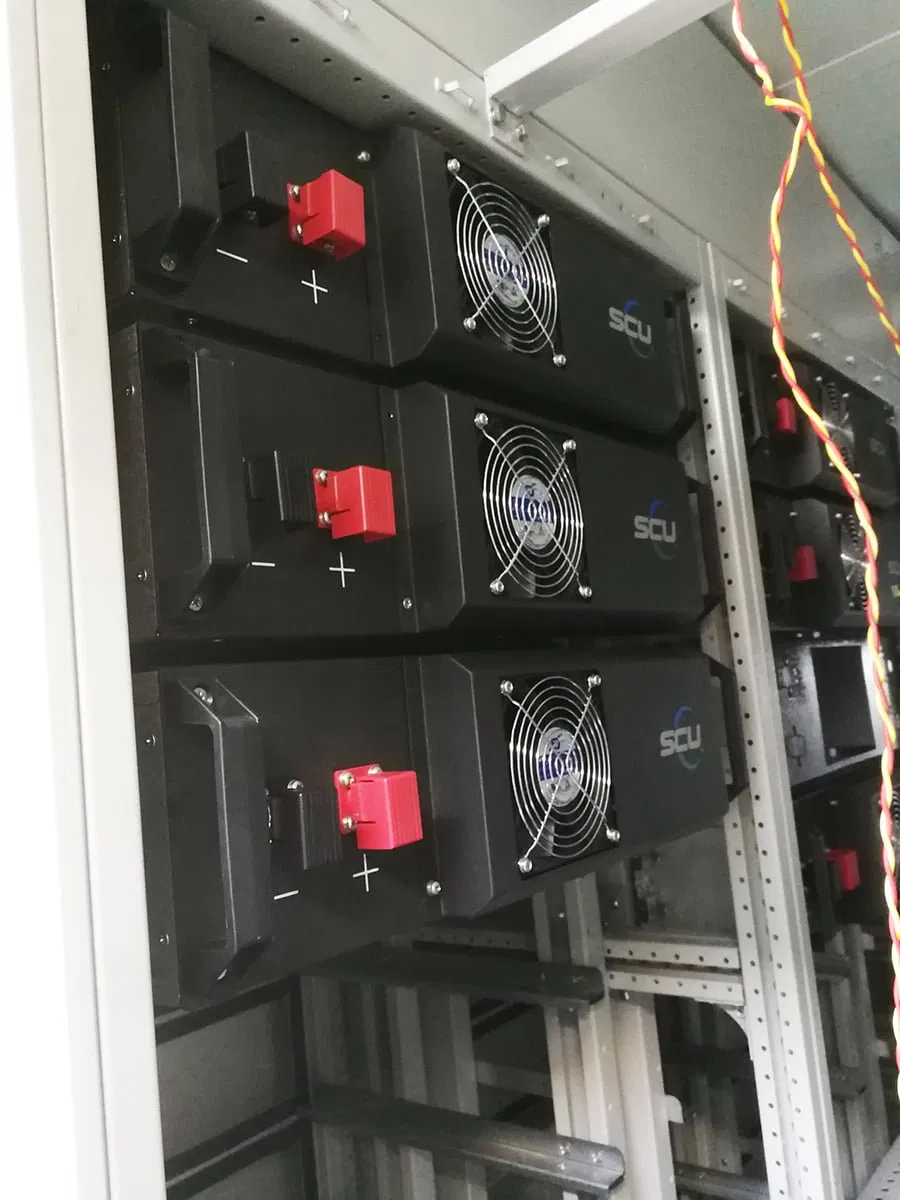

	Configuration: 768V 280AH Lithium Battery
	System Voltage: 768V
	Operating Voltage: DC672V~DC876V
	Battery Type: LFP (LiFePO4)
	Cycle Number: >6000 (100% DOD, 0.5C)
	10-Year Remaining Energy: >150kWh (70%)
DC Side	Voltage Range: DC650V - DC900V
DC Side	Single Channel Rated Current: 175A
AC Grid	Rated Power: 100KW
	Rated Voltage: AC 380V (3W+PE)
	Rated Frequency: 50Hz/60Hz
	Power Factor: 1
	Output Harmonic: ≤3%
Environment	Operating Temp: -20ºC to 55ºC
	Protection Class: IP54
	Cooling Mode: Air Conditioner

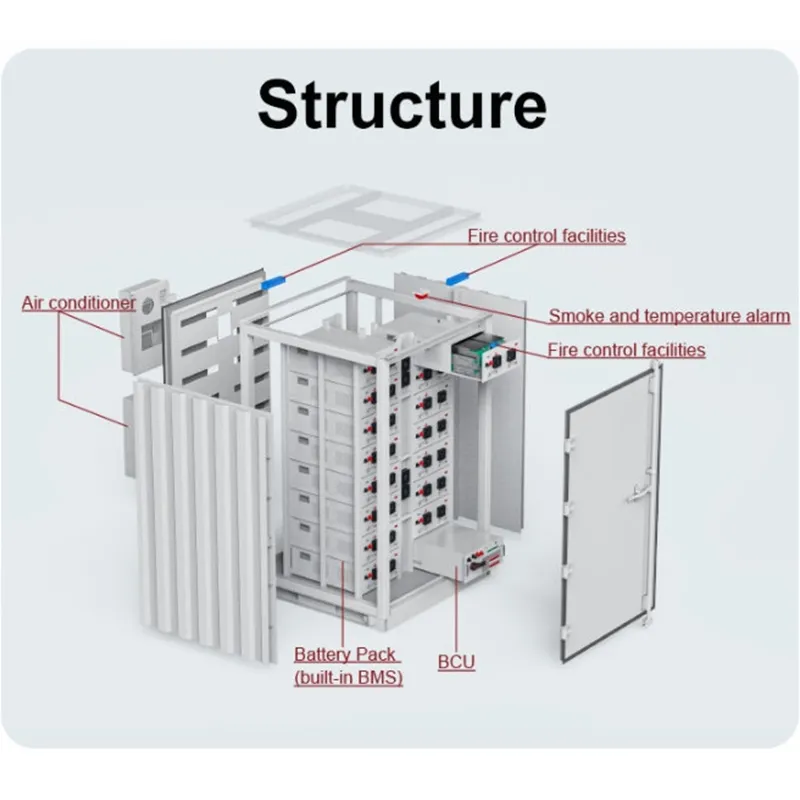

Safety	Fire Fighting: Perfluorohexone fire extinguisher

🛠️

Our Services

✔ Inquiries replied within 12 hours with professional guidance.

✔ Experienced staff answering all inquiries in fluent English.

✔ Support for OEM & ODM requirements with unique design options.

✔ 2-year comprehensive warranty for reliable long-term operation.

✔ Sample orders accepted for performance testing and evaluation.

✔ Strict protection of private information and design integrity.

❓

Frequently Asked Questions

What is the total energy capacity of the BR-BESS2 system?

The system provides a nominal capacity of 215.04kWh with a 100KW rated output power.

What type of battery technology is used in this ESS?

The system utilizes high-density LFP (LiFePO4) lithium batteries, known for their safety and long cycle life.

How many cycles can I expect from this battery system?

It offers a cycle life of over 6000 times at 100% Depth of Discharge (DOD) under standard operating conditions.

Is the system protected against outdoor environmental factors?

Yes, the cabinet is rated IP54 and includes an integrated air conditioning system for optimal temperature management between -20ºC and 55ºC.

What safety features are integrated into the unit?

The system includes a Perfluorohexone fire extinguisher, islanding prevention, insulation resistance detection, and input/output protection protocols.

What is the expected lifespan of the device?

The whole life cycle is designed for 10 years, based on a standard usage profile of 2 charges and 2 releases per day.
