Next-Gen 24V 100ah Energy Storage System for Smart Management

1 / 5

Next-Gen 24V 100ah Energy Storage System for Smart Management

Customization:	Available
Type:	LiFePO4
Connection Mode:	Parallel Connection

Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.

24v 100ah

Rechargeable

Chargeable

Discharge Rate

Accessories Type

Battery

Rated Capacity

100ah

Standard Voltage

25.6V

Usage

Ess

Electrolyte

Li-ion

Cycle Life

2500 times

Charge Voltage

28.8V

Continuous Discharge

100A

BMS

8s 100A Normal BMS

Case Material

Plastic Box

Dimension

L520*W269*H2220mm

Production Capacity

10000PCS/Months

📊

Product Parameters

Item	Specification	Remarks
Typical Capacity	100Ah	0.5C discharge
Minimum Capacity	99Ah	0.5C discharge
Nominal Voltage	25.6V	-
Discharging Voltage (Min)	20V	-
Charging Voltage (Max)	28.8±0.05V	-
Charging Current (Std)	20A	0.2C(0 ~ +45°C)
Discharging Current (Std)	20A	0.2C(-20 ~ +60°C)
Max Charging Current	100A	1.0C(0 ~ +45°C)
Max Continuous Discharge	100A	1.0C(5 ~ +45°C)
Internal Impedance	≤170mW	AC Impedance 1kHz
Cell Weight	18kg	About

Test Item	Condition	Requirement
Full Charge	0.2C constant current to 28.8V, then CV to ≤0.01C	5.0 hours total
Capacity (0.5C)	Discharged at 0.5C down to 20.0V	100% capacity
Cycle Life	3000 cycles, CC-CV (0.2C-28.8V), discharged at 0.5C to 20.0V	80% capacity retention
Capacity Retention	Stored 28 days at 20°C, then discharge at 0.2C	≥ 95%

📷

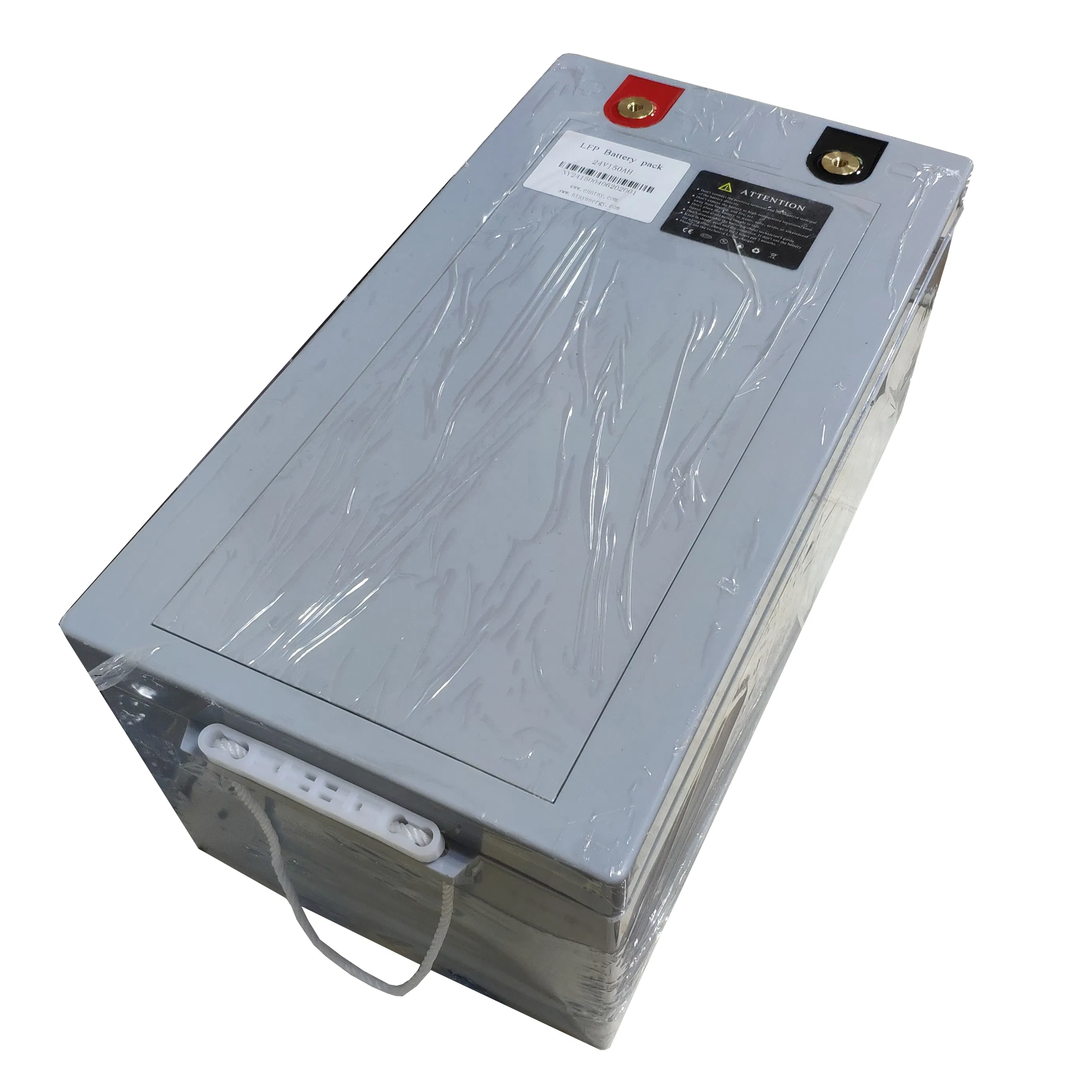

Detailed Photos & Description

🏢

Profile & Certifications

💬

Feedback & Delivery

❓

Frequently Asked Questions

1. What is the rated capacity and voltage of this battery?

The battery has a nominal voltage of 25.6V and a typical capacity of 100Ah, providing a total energy of 2560Wh.

2. How many cycles can I expect from this Li-ion battery?

Under standard conditions (CC-CV charging and 0.5C discharge), the battery is designed for a cycle life of approximately 2500 to 3000 cycles while retaining 80% of its capacity.

3. Does the battery include a management system?

Yes, it comes equipped with a built-in 8S 100A Normal BMS (Battery Management System) to ensure safe operation during charging and discharging.

4. What are the charging and discharging temperature ranges?

The recommended charging temperature range is 0°C to +45°C, while the discharging temperature range is -20°C to +60°C.

5. What is the maximum continuous discharge current?

The battery supports a maximum continuous discharge current of 100A, making it suitable for high-demand energy storage systems (ESS).

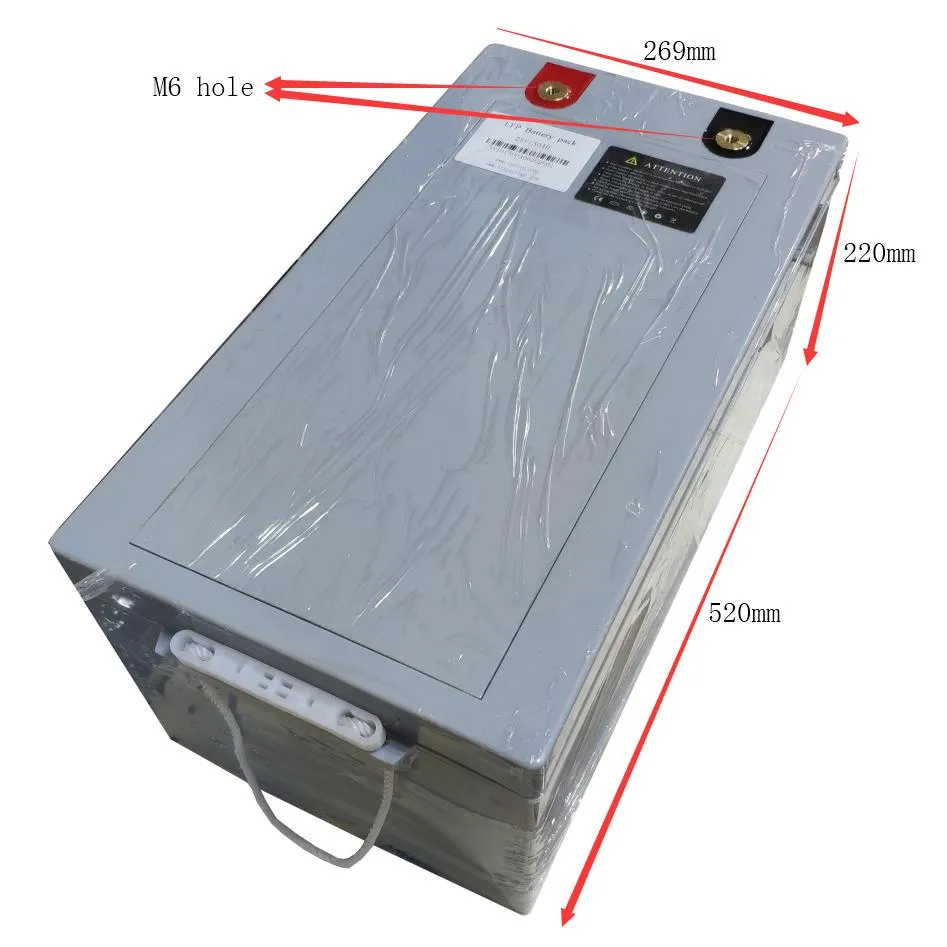

6. What is the weight and dimension of the unit?

The battery weighs approximately 18kg and has outer dimensions of L520mm * W269mm * H2220mm, housed in a durable plastic box.
