| Model NO. | MATE-OFF Commercial |
|---|---|
| Condition | New |
| Certification | CE |
| Application | Industrial, Commercial |

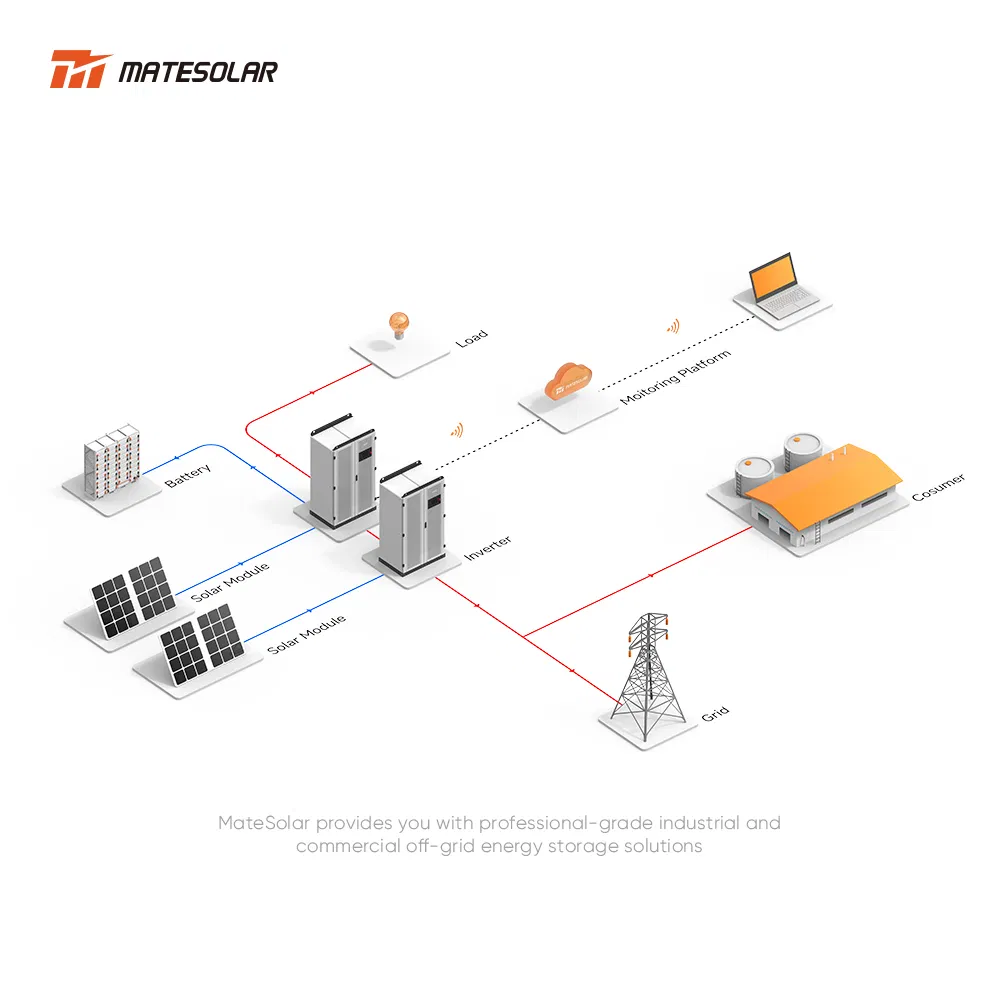

| Specification | Off-grid Hybrid Solar Photovoltaic System |

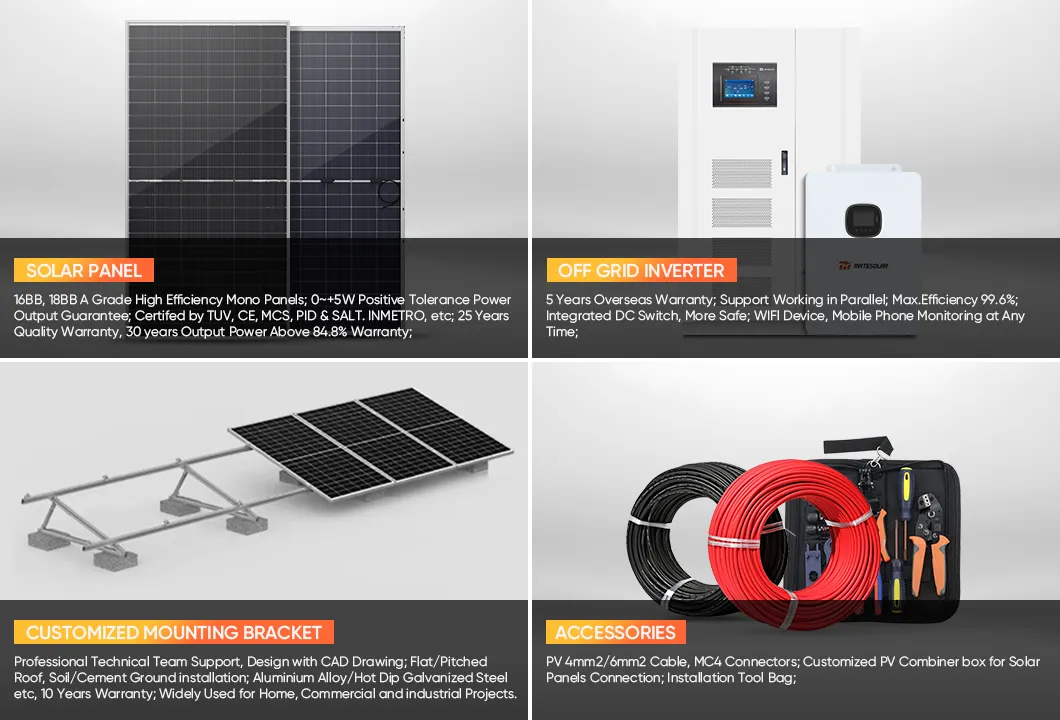

| Product Name | Commercial Off Grid Solar System |
| Battery | Lead Acid/LiFePO4 Lithium Battery (Customized) |
| Inverter | Single Phase/Split Phase/3Phase |
| Technical Support | Complete Technical Support |
| Origin | China |
| Production Capacity | 1000PCS/Per Day |

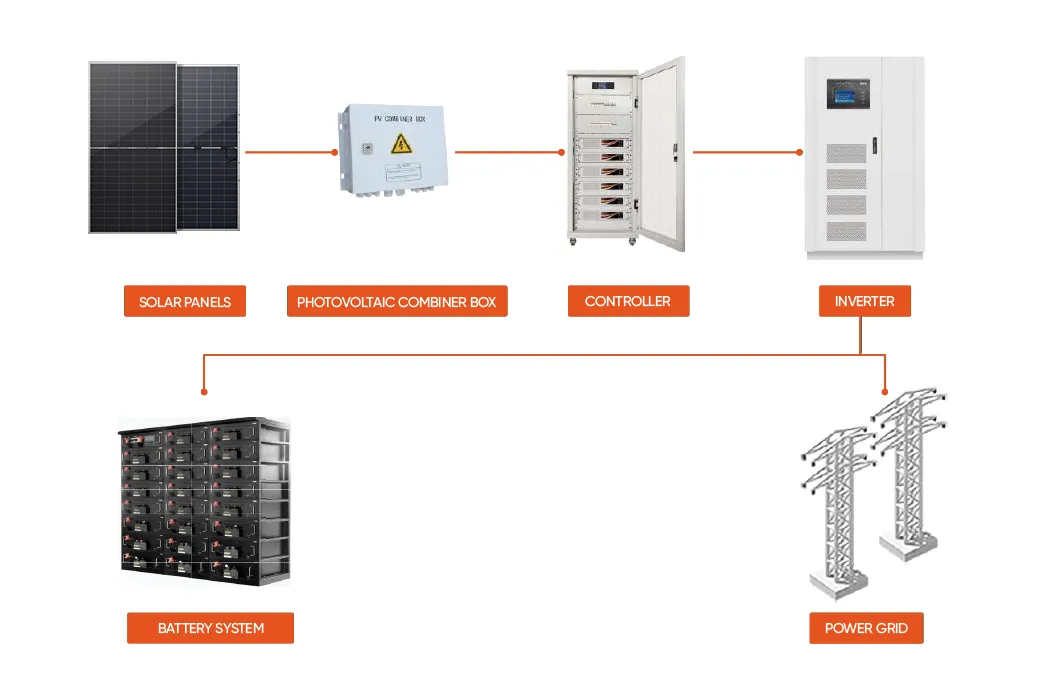

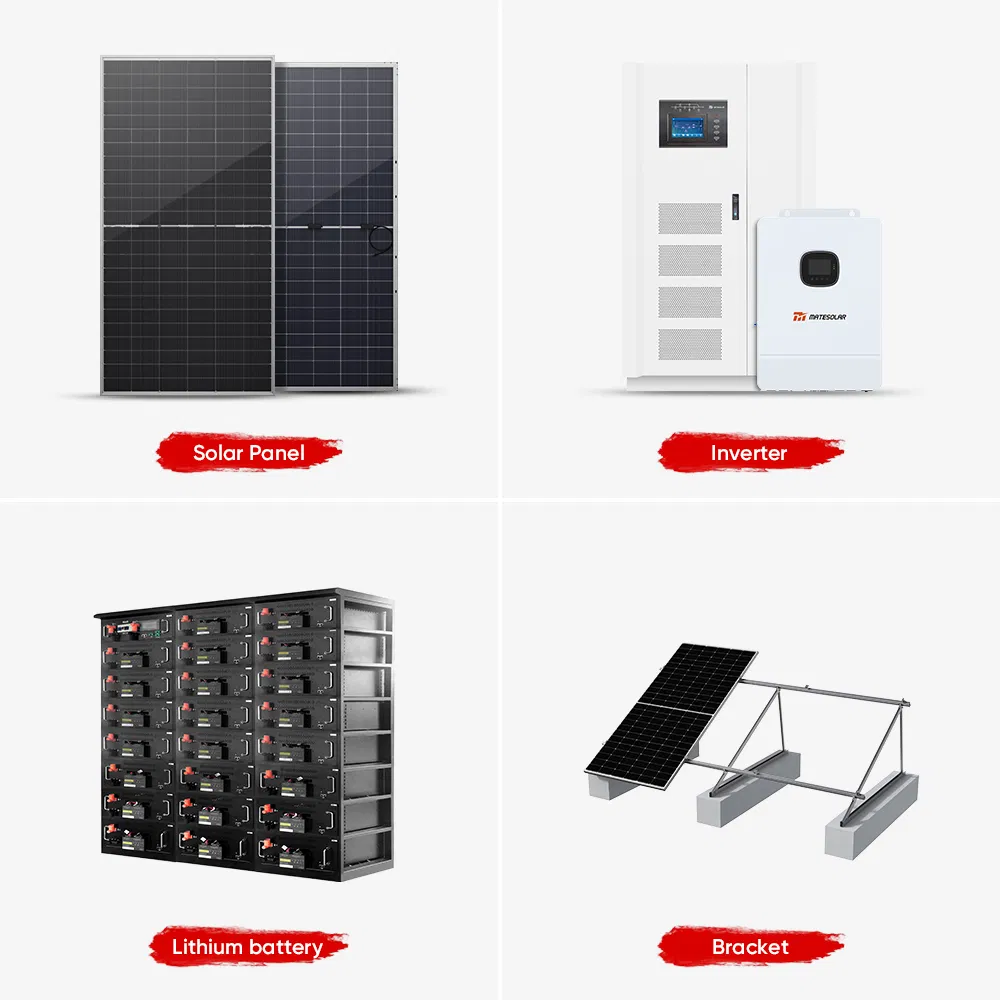

| Model | SP-30KW-OFF | SP-60KW-OFF | SP-100KW-OFF |
|---|---|---|---|
| Half Cut Mono 550W Panel | 55 Pieces | 108 Pieces | 180 Pieces |
| PV Combiner Box | 5 Input 2 Output (1pc) | 3 Input 1 Output (3pcs) | 5 Input 1 Output (3pcs) |
| Off-Grid Hybrid Inverter | 30KVA | 60KVA | 100KVA |
| VRLA GEL Battery | 30Kwh | 60Kwh | 100Kwh |
| DC Cable (4mm2) | 500 meter | 1000 meter | 1500 meter |
| Mounting System | Customized Based On Installation Roof/Ground | ||
| Model | SP-200KW-OFF | SP-300KW-OFF | SP-500KW-OFF |
|---|---|---|---|
| Half Cut Mono 550W Panel | 360 Pieces | 42 Pieces | 63 Pieces |
| PV Combiner Box | 5 Input 1 Output (6pcs) | 6 Pieces | 9 Pieces |
| Off-Grid Hybrid Inverter | 100KVA/2PCS | 100KVA/3PCS | 100KVA/5PCS |
| Deep Cycle Battery | 200Kwh | 300Kwh | 500Kwh |
| DC Cable (4mm2) | 3000 meter | 4500 meter | 7500 meter |

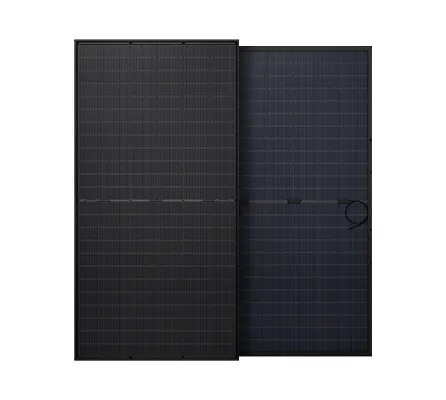

Half Cut Mono 595W Solar Panel
• Peak Power Watts: 595W
• Maximum Power Voltage: 43.88V
• Maximum Power Current: 14.19A
• Open Circuit Voltage: 49.75V
• Dimensions: 2279x1134x30mm
• Weight: 31.5 kg

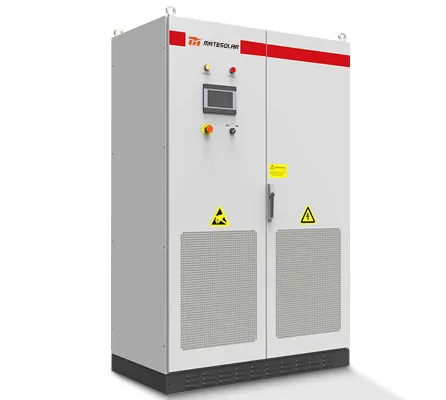

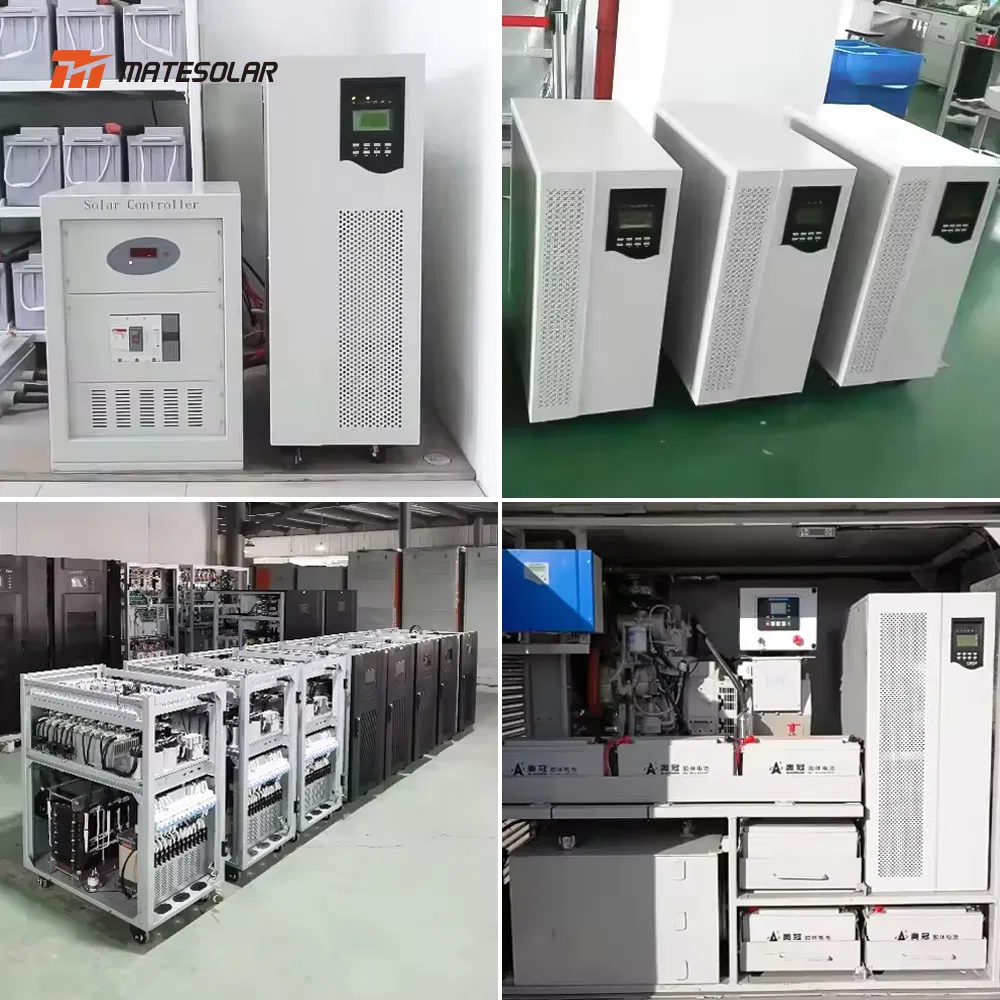

Hybrid Solar Inverter (50kW-630kW)
• Large capacity all-in-one hybrid inverter
• Programmable working mode
• Touch screen LCD interface
• Seamless on/off grid transfer
• Supports remote control of Diesel Generator
• Doubled capacity via parallel connection

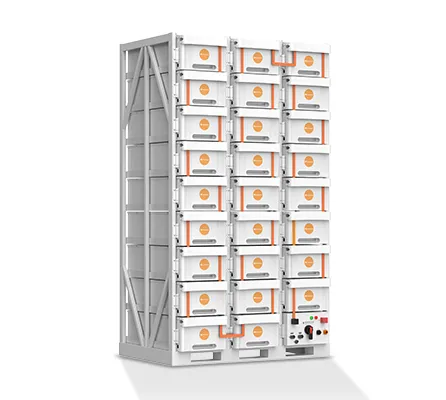

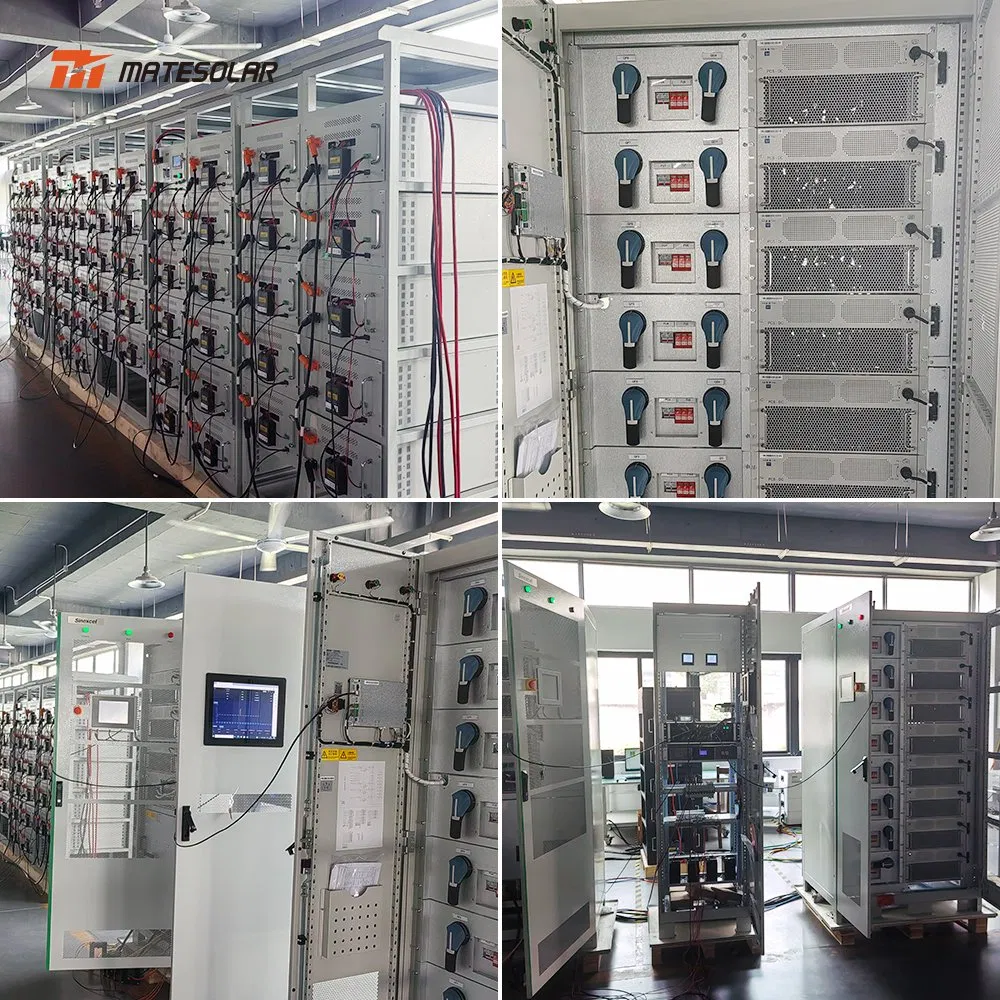

High Voltage Rack Mount LiFePO4 Battery
• Single Battery Capacity: 100Kwh-215Kwh
• Rated Capacity: 280Ah
• Three-stage BMS module (ESMU)
• Communication: CAN, RS-485, RJ45 Ethernet
• Compatible with PCS/UPS/EMS for data control

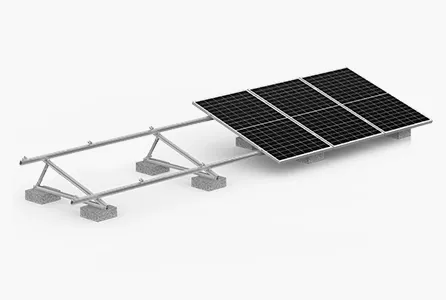

PV Mounting System
AI6005 Rail, SUS304 Bolts, Mid/End Clamps (35-50mm), L-Foot or Hanger Bolt options.

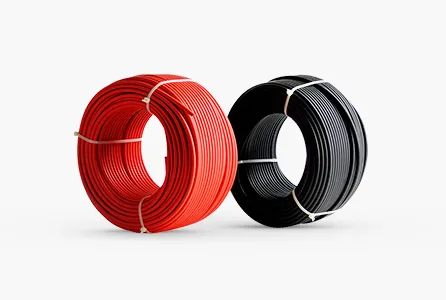

DC Cable & Connectors
4mm2/6mm2 cross section, TUV rated 1000VDC, Current 55A/70A, 25-year lifetime.

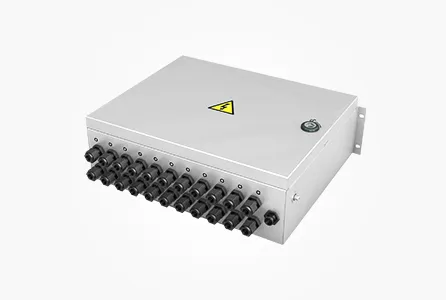

PV Combiner Box
IP65 Waterproof Rating, Rated Voltage 1000VDC, Input terminal 4-6mm2.

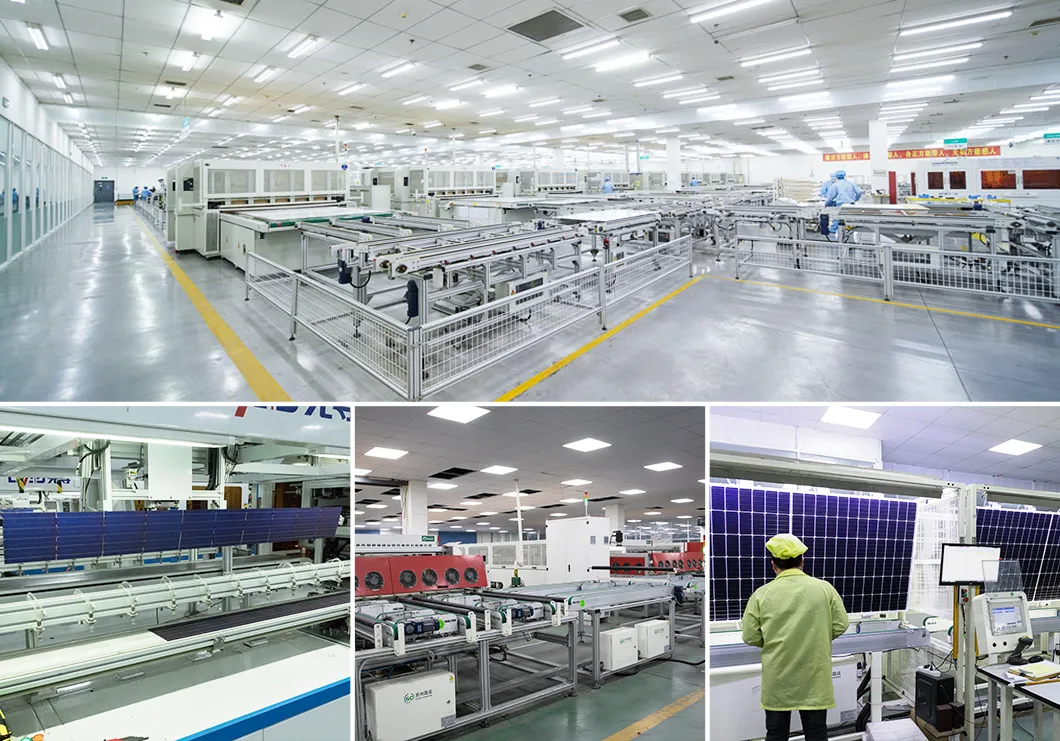

Our company is a world-class solar products manufacturer, specializing in the research, development, production, and sales of solar PV products and solar panels. Since 1998, we have focused on high-efficiency solar technology, exporting to 86 countries. Our facility covers 150,000 square meters with a team of 600 experienced employees.

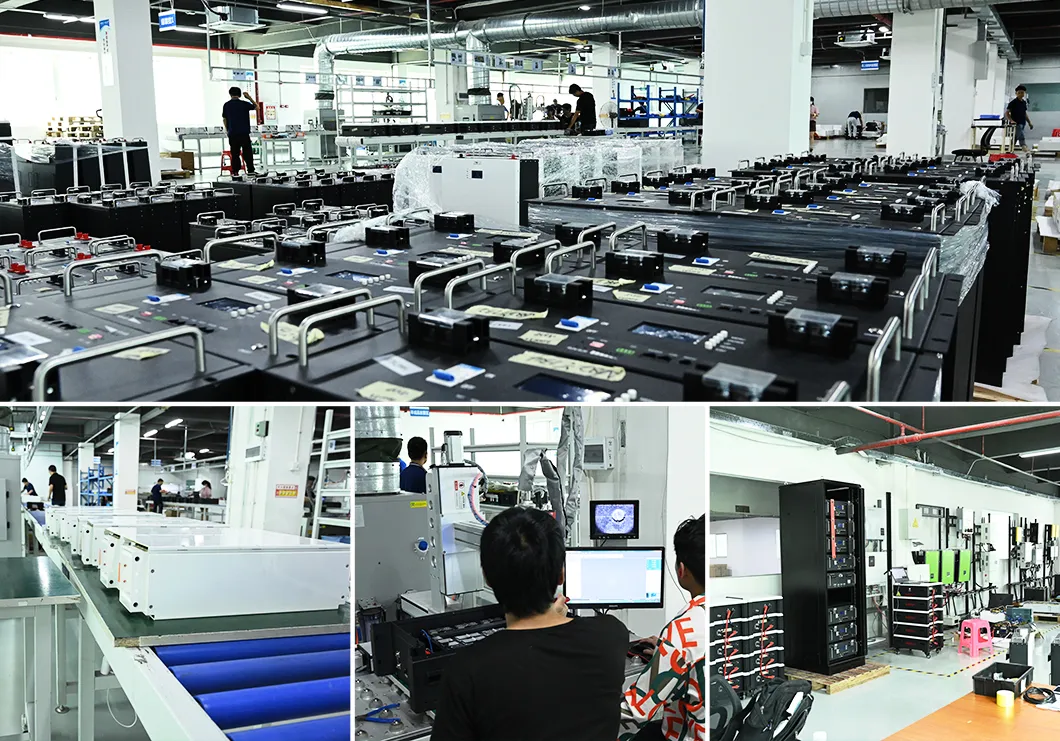

Lithium Battery Production Line

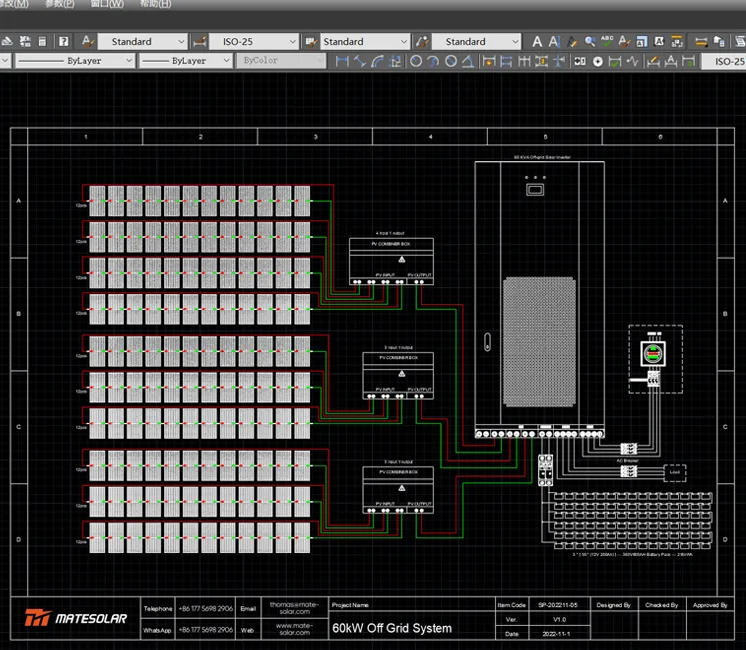

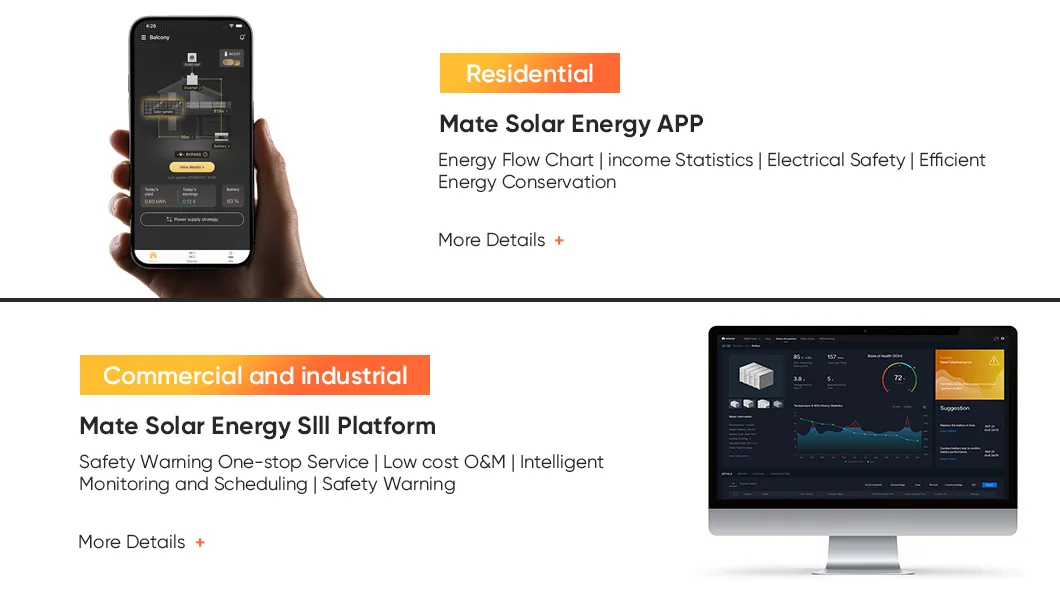

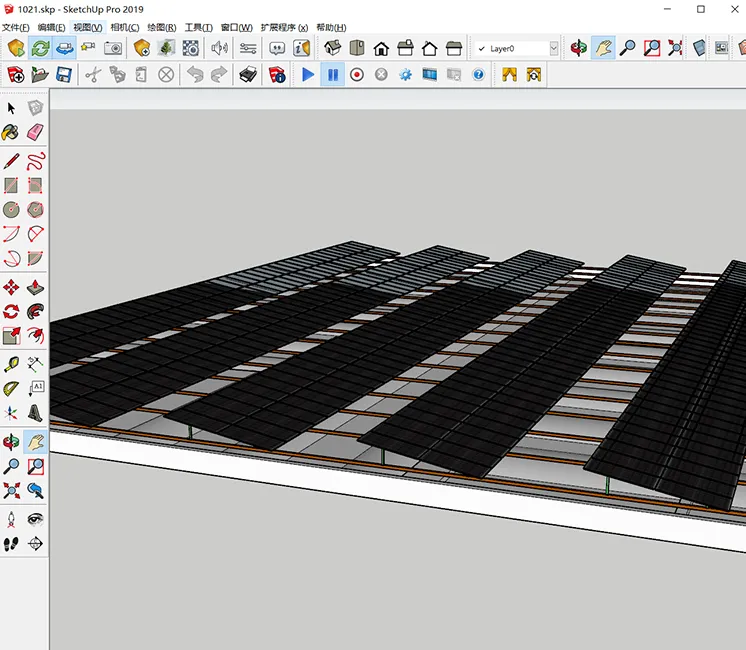

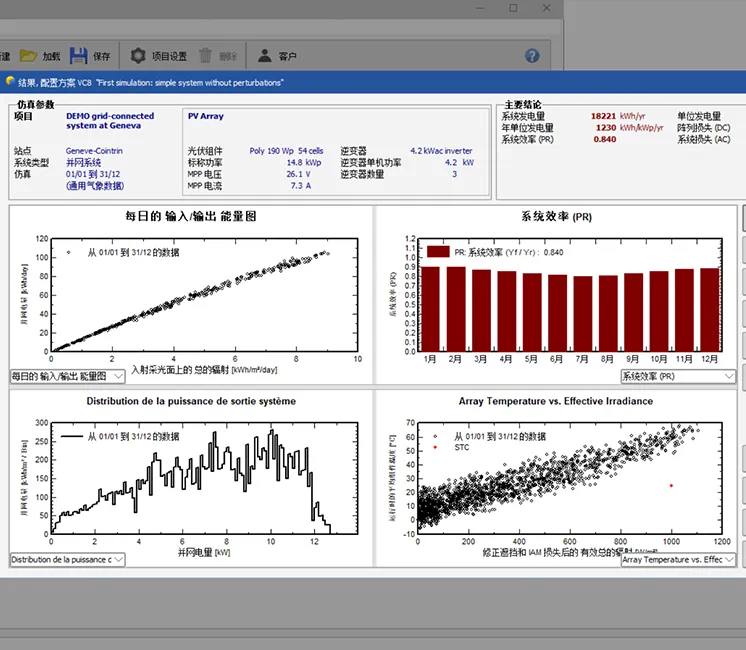

Professional Software Design & 24h Support

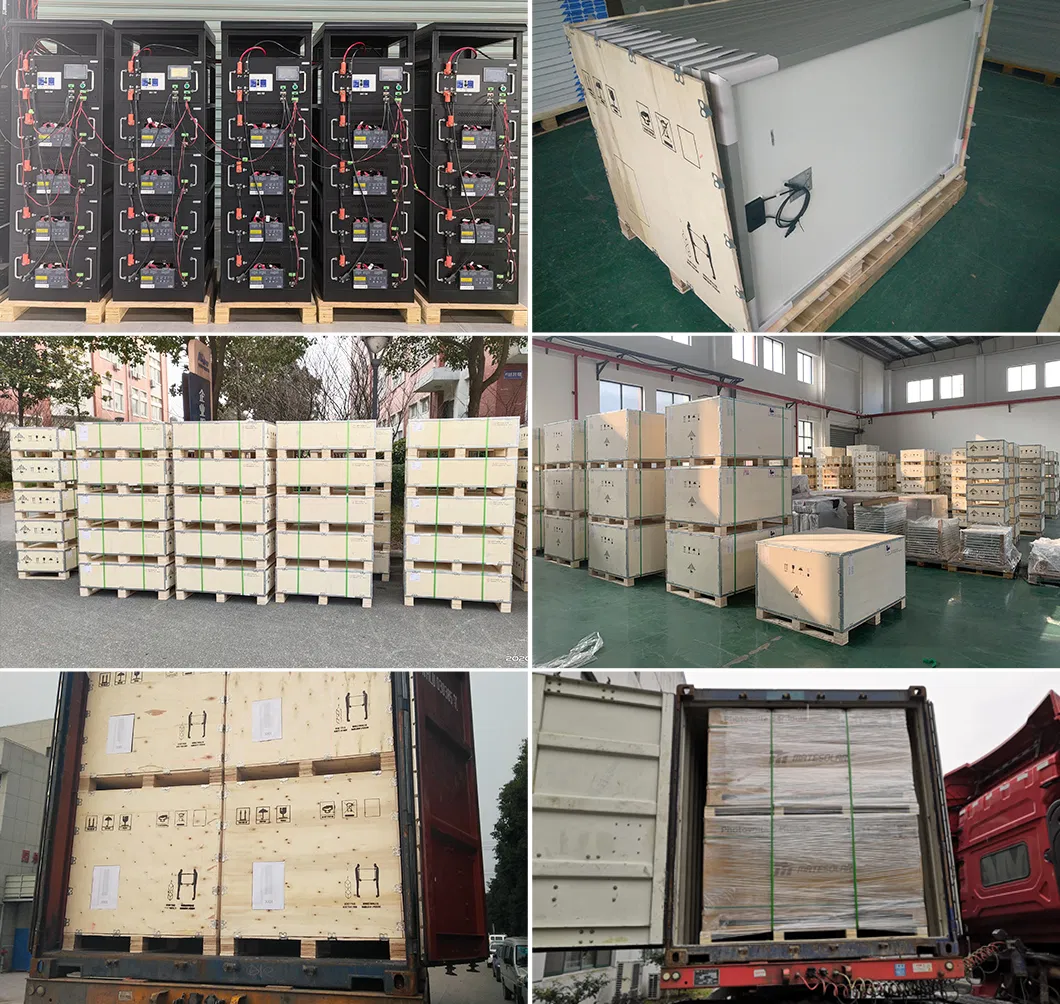

Wooden Case Packing For Safety Shipping
