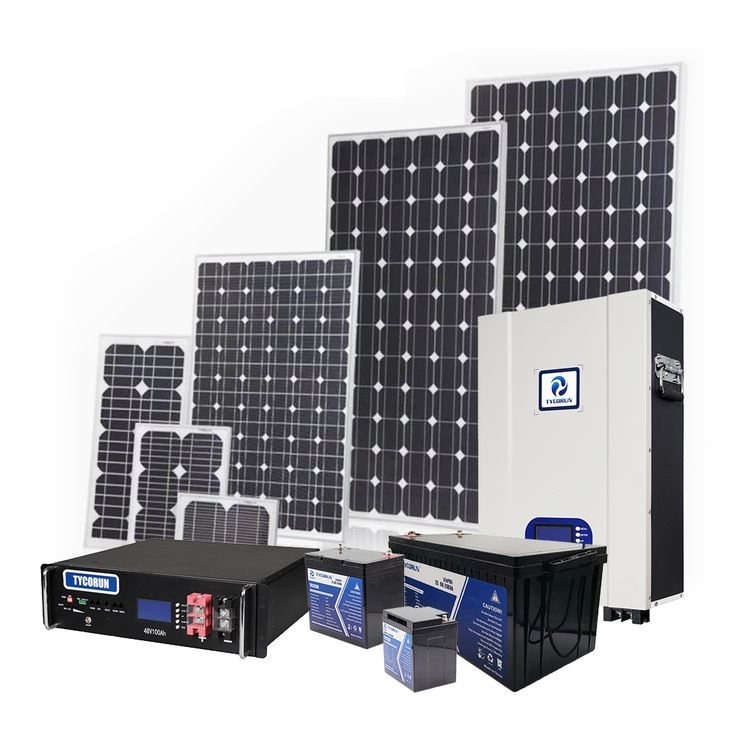

Photovoltaic Complete off Grid 15kw 30kw 50kw 80kw 100kw Battery Storage Panel Set Energy Hybrid PV Solar Power Systems Price for Industry Home

1 / 5

Photovoltaic Complete off Grid 15kw 30kw 50kw 80kw 100kw Battery Storage Panel Set Energy Hybrid PV Solar Power Systems Price for Industry Home

Customization:	Available
Weight:	1300 Kg
Warranty:	10 Years

Send Inquiry

Product Description

📊 Basic Information

Model

CSAS solar system

Cycle Life

1000 Cycles

Nominal Capacity

1kw - 15kw Optional

Certification

ISO, CE

Mounting Support

Roof or Ground Bracket

Inverter Type

Off Grid Inverter

Solar Panel

Monocrystalline

Package

Carton/Wooden Box

📝 Product Parameters

Parts	Specification	SP5KW	SP6KW	SP8KW	SP10KW	SP12KW
Solar Panel	590W Mono Panel	6 Pieces	10 Pieces	12 Pieces	16 Pieces	20 Pieces
Hybrid Inverter	Single/Three Phase	1 pcs 5KW	1 pcs 6KW	1 pcs 8KW	1 pcs 10KW	1 pcs 12KW
LiFePO4 Battery	48V 5/10KWH	1 Pieces	2 Pieces	2 Pieces	2 Pieces	2 Pieces
Bracket	Ground or Roof	1 set	1 set	1 set	1 set	1 set
PV Cables	4mm²	100 meters	200 meters	200 meters	200 meters	200 meters
MC4 Connector	Male + Female	5 pairs	10 pairs	10 pairs	15 pairs	15 pairs

Note: Product dimensions and physical appearance in this data sheet are nominal. We reserve the right to make product changes from time to time, without prior notification, which may change the dimensions and/or physical appearance shown.

⚙️ Core Components

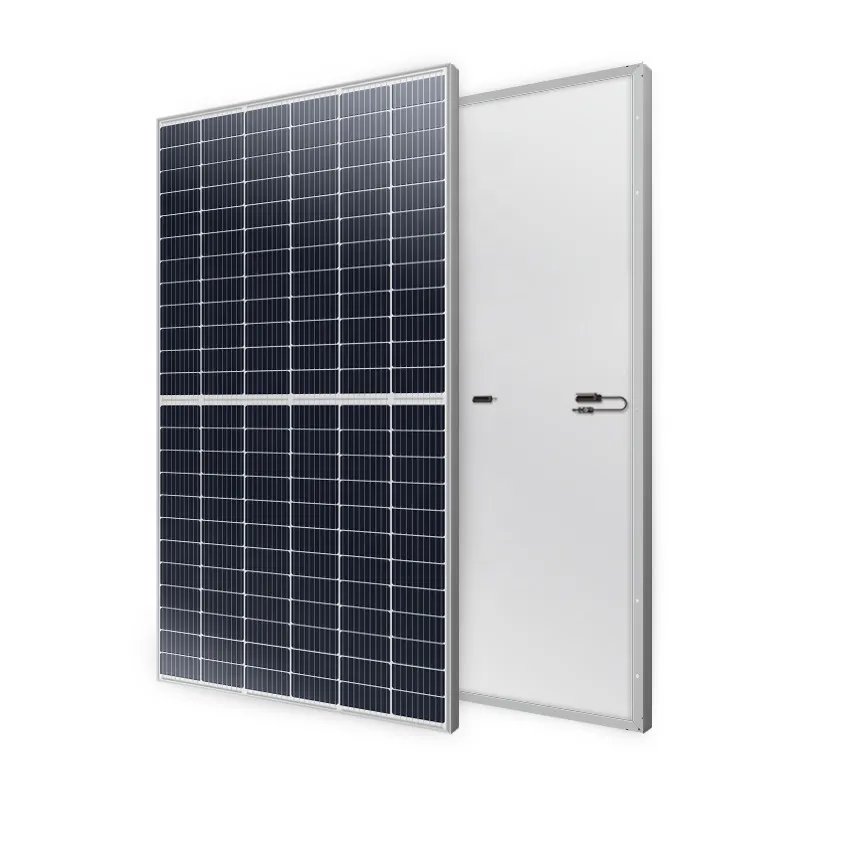

Mono Solar Panels

Peak Power Watts: 590W
Maximum Power Voltage: 41.5V
Maximum Power Current: 11.3A
Open Circuit Voltage: 48.5V
Short Circuit Current: 11.96A
Dimensions: 2094*1038*35 mm
Weight: 25 kg

Inverter with MPPT Controller

AC 220V/230V/50HZ, Capacity 5.5KW
MPPT voltage range: 70-450Vdc
Maximum open-circuit voltage: 500Vdc
Maximum photovoltaic connection: 5.5kwp
Optional WIFI monitoring service available.

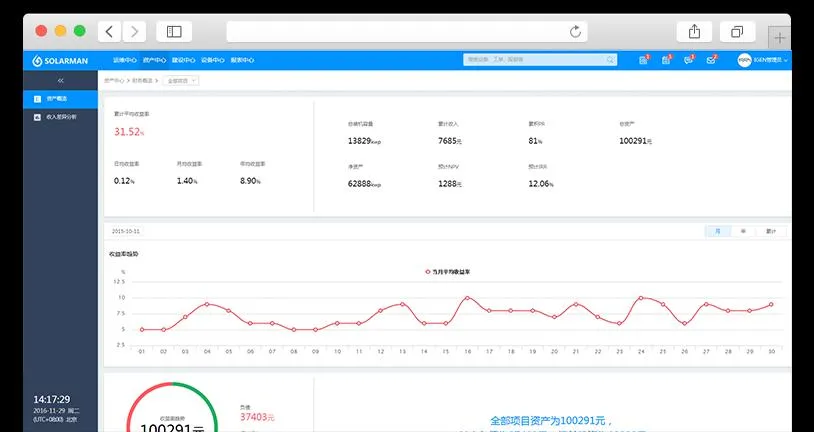

Remote Monitoring System

Data Logging Stick allows you to receive information from your solar power system via Wi-Fi, Lan or GPRS.
Keep informed about PV system status and atmosphere conditions anytime, anywhere.
App Available: PC, iOS & Android.

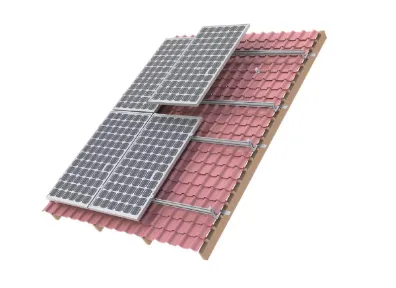

PV Mounting System

Mounting Rail & Rail Splice Kit: Al6005 & SUS304 Bolt.
Mid & End Clamps: 35, 40, 45, 50mm.
L Foot Asphalt Shingle Mount & Hanger Bolt Optional.
Cable Clip, Tie, Ground Clip & Lugs Optional.

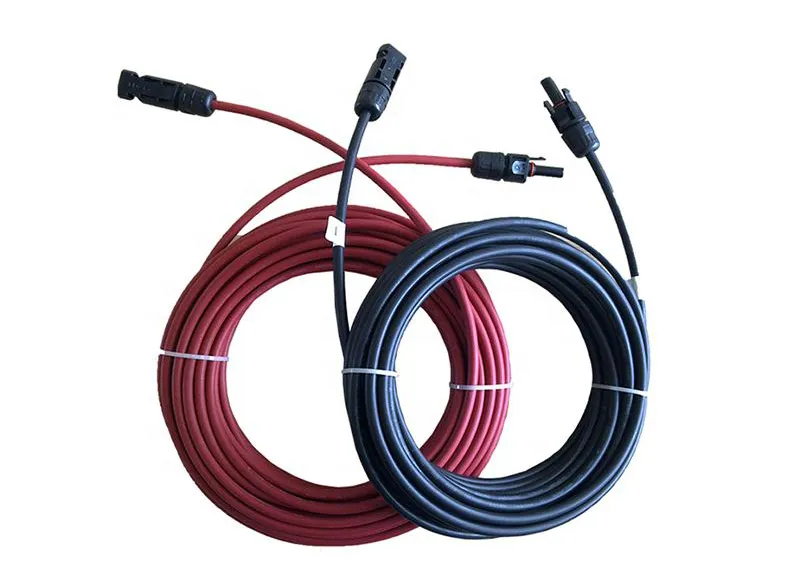

DC Cable & MC4 Connector

Cross Section: 4mm², 6mm² Optional.
Rated Voltage: 600VDC/1000VDC(TUV).
Rated Current: 55A, 70A.
Colors: Black (STD), Red Optional.
Lifetime: ≤25 Years.

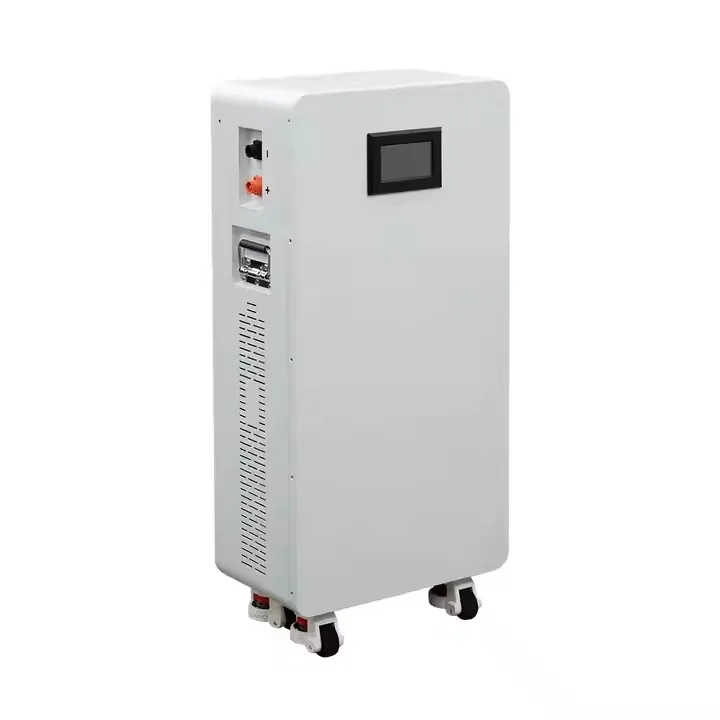

Lithium Battery

Capacity: 4.8KWH.
Includes battery connection cables and communication cables.
Gross Weight: 103 KG.
Package Size: 710*500*310 mm.

❓ Common Questions

What is the expected lifespan of the battery system?

The system features a cycle life of 1000 cycles for the standard configuration, ensuring long-term reliability for off-grid energy storage.

Can I monitor the solar system performance remotely?

Yes, the system includes a Data Logging Stick that supports Wi-Fi, Lan, or GPRS. You can monitor performance via a dedicated App on PC, iOS, or Android devices.

What type of solar panels are included in the set?

The system utilizes high-efficiency 590W Monocrystalline solar panels, known for their superior performance and durability.

Is the mounting system compatible with my roof?

Our PV mounting system is versatile and can be customized for both ground and various roof types, including asphalt shingle roofs using L-foot mounts or hanger bolts.

Are the installation cables durable for outdoor use?

Yes, we provide TUV-rated 4mm² or 6mm² DC cables designed for a lifetime of up to 25 years under outdoor conditions.
