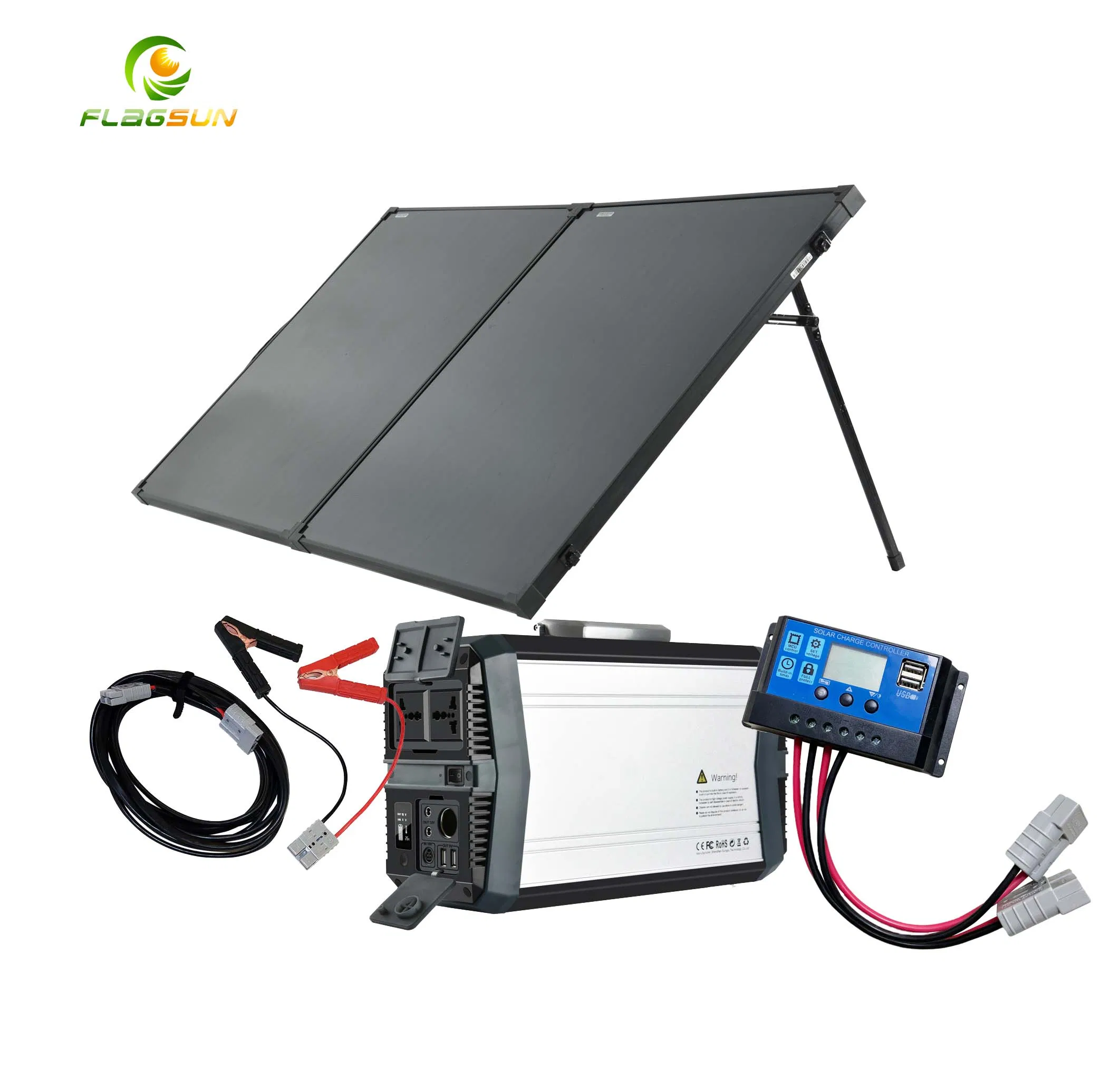

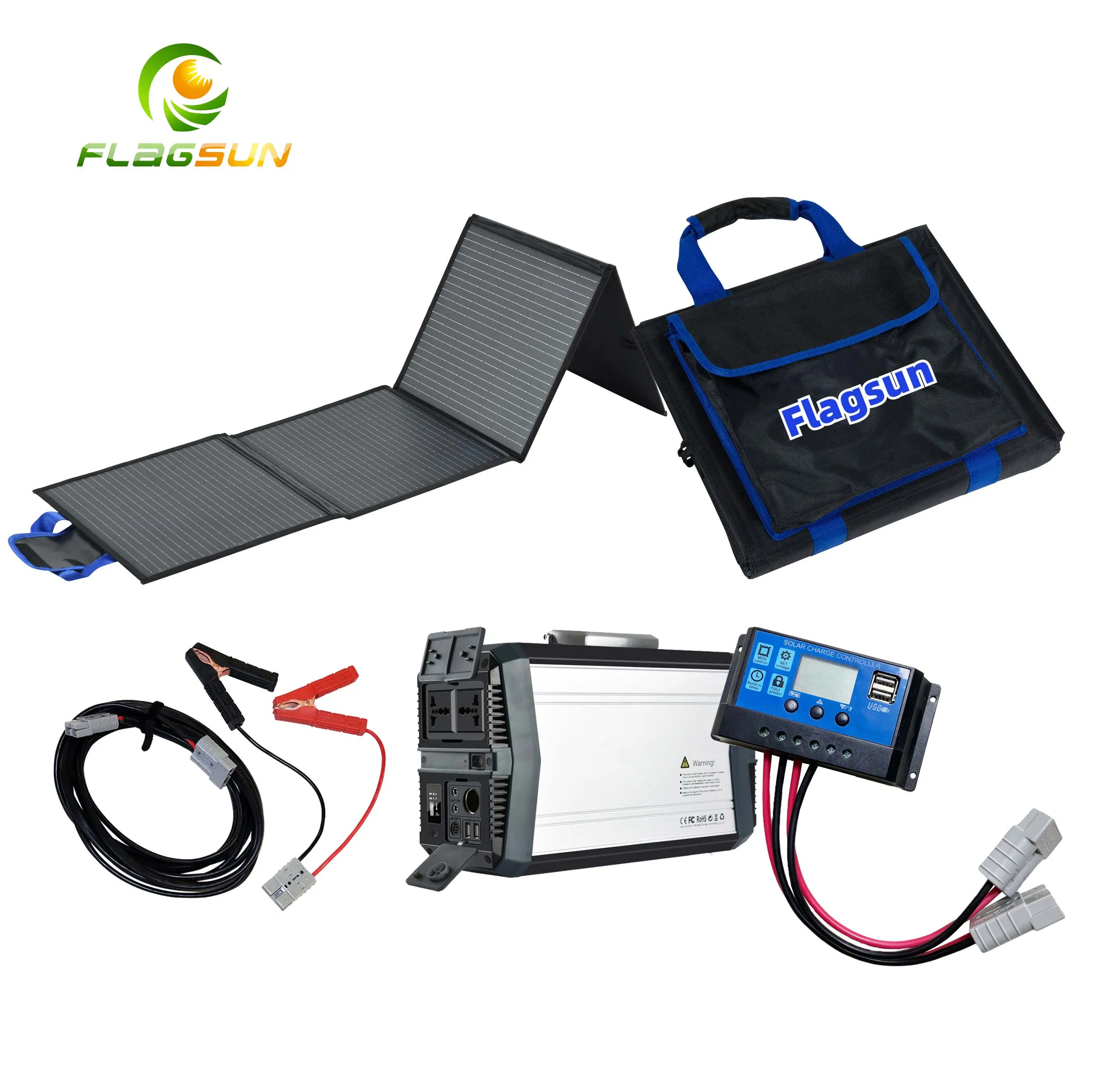

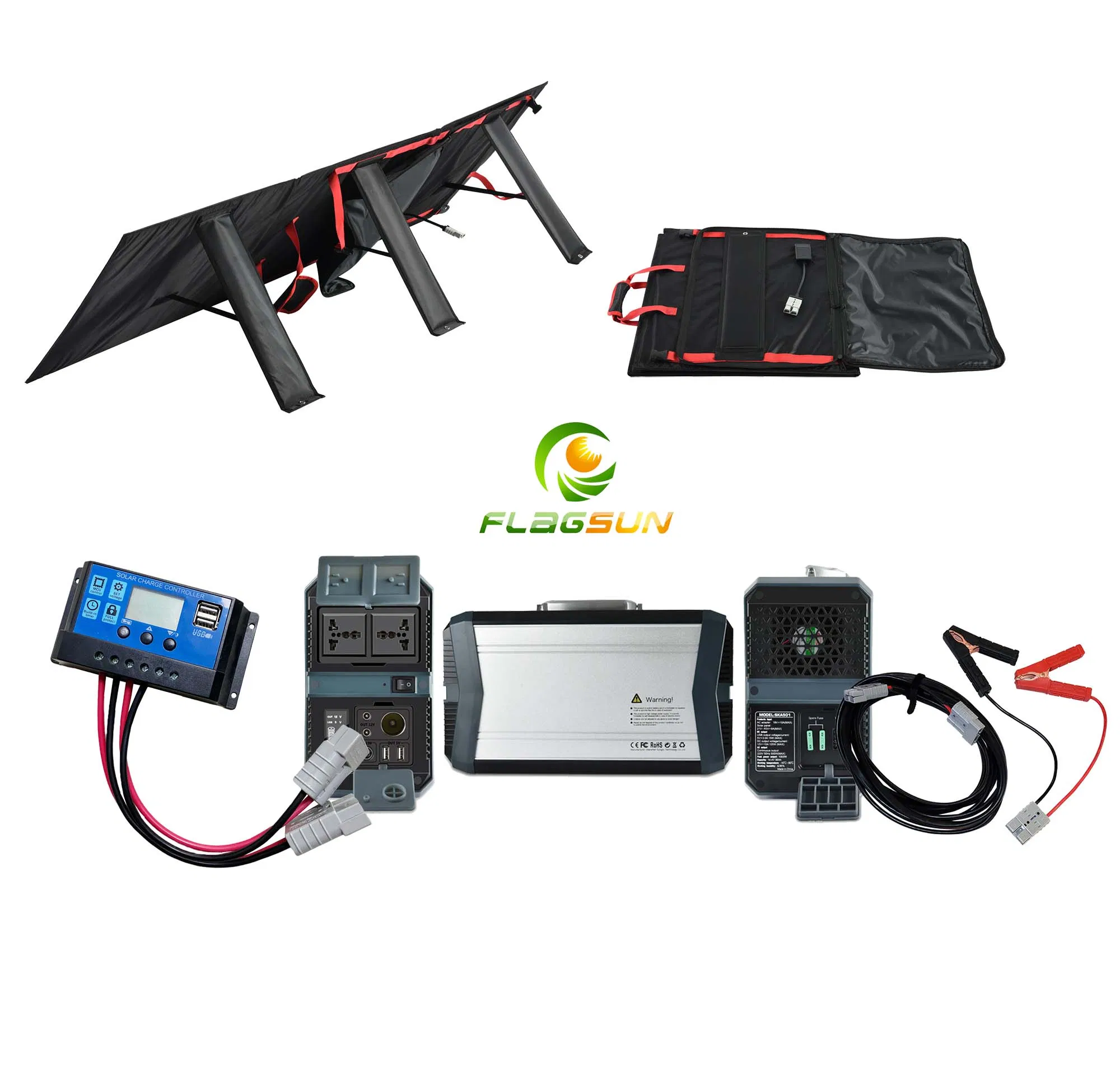

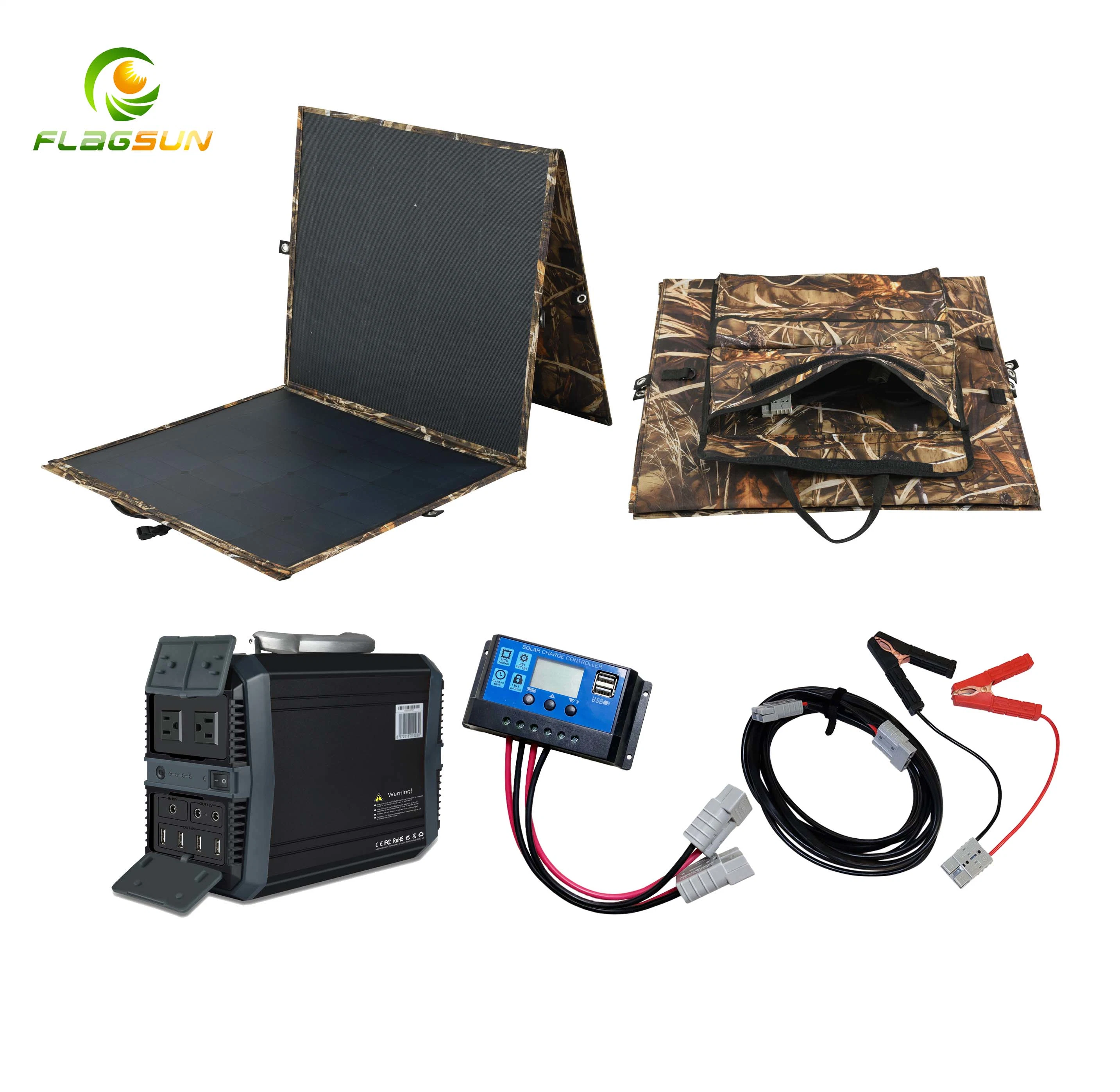

Portable Solar Energy System 500W with 130W Folding Solar Panel Bag

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Information

Certification
ISO, CB, CE
Application
Home, Industrial, Commercial
Load Power (W)
200W
Solar Power (W)
60W
Capacity
50000mAh
USB Port
5 USB Ports
Charging Period
4.5h
Output Voltage
5V/9V/12V/17.5V/19V
Material
Aluminium Alloy + Nylon 600d
HS Code
8504401920

Technical Specifications

Power Storage Box Size: 213*128*42mm Weight: 1.55kgs
Input: 12V~25V (Car/AC/Solar compatible)
Output Voltage USB: 5V/2.1A | QC 9V/2A | QC 12V/1.5A
DC Output: 12V/4A | 17.5V/4A | 19V/3.5A
Capacity: 14.8V/12A or 14.8V/13A
Protection Over-charged, Over-temperature (>65ºC), Short circuit protection
Environment Working: -10ºC~65ºC Storage: 10ºC~40ºC
Humidity: 90% Max Altitude: Under 2000M
Solar Panel Bag Foldable: 300*358*24mm | Open: 1280*358*5mm
Material: Waterproof Nylon 600D | Weight: 1.6kgs
Output: USB 5V/3A | 12V/4.5A | 19V/3.1A

Product Description

200W Portable Power Supply: Designed for UAVs (Phantom 3/4, MAVIC) with an OLED view screen. Features multiple outputs (5V USB, 12V, 17.5V, 19V DC) suitable for laptops, iPhones, iPads, and cameras. Integrated with multiple safety protections and an MPPT control system.

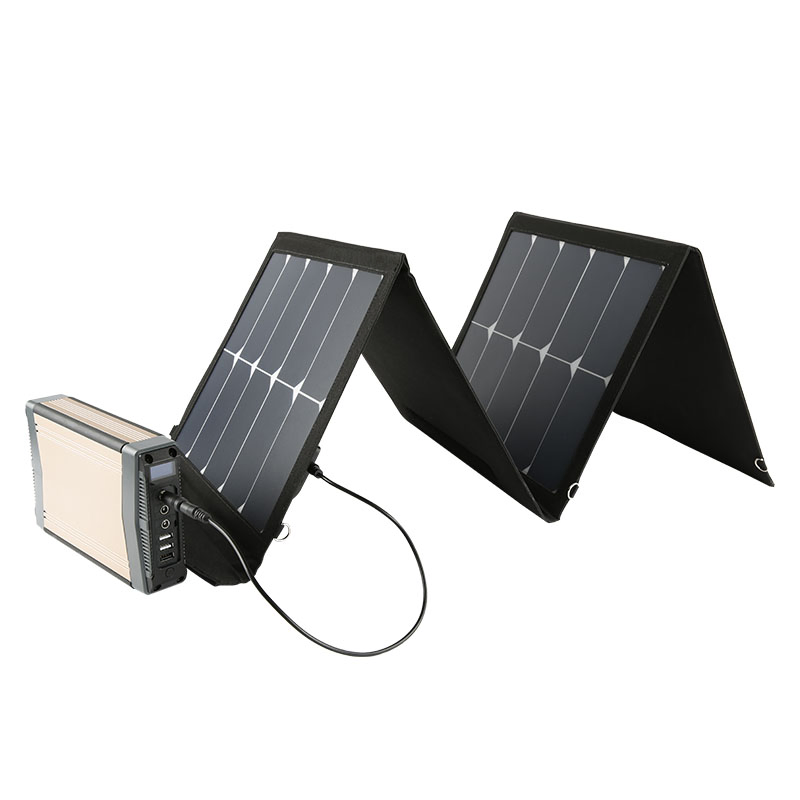

60W Portable Solar Panel: Foldable and waterproof design. Ideal for charging laptops, tablets, and smartphones while hiking, climbing, or camping. High-efficiency solar cells with 5V, 12V, and 19V outputs for fast charging.

20A Solar Charge Controller (Compatible with 12V/24V):

  • Smart Control: Build-in industrial micro controller for automated battery management.
  • Dual USB Output: 5V/2.5A max for mobile device charging.
  • 3-Stage PWM: Improves system efficiency and prolongs battery life.
  • Protection: Includes short-circuit, open-circuit, reverse, and over-load protection.
  • LCD Display: Clearly indicates status and data with easy mode configuration.
📷

Product Gallery

Frequently Asked Questions

What devices can the 200W power box charge?
It is specifically designed for UAVs like Phantom 3/4 and Mavic, but also supports laptops, iPhones, iPads, and digital cameras via its multiple DC and USB outputs.
Is the solar panel bag durable for outdoor use?
Yes, the solar panel is made of waterproof Nylon 600D material, making it ideal for outdoor activities like walking, climbing, and camping.
How long does it take to fully charge the system?
The charging period is approximately 4.5 hours under optimal conditions.
What safety features are included in the controller?
The controller includes short-circuit protection, open-circuit protection, reverse protection, and over-load protection, along with a 3-stage PWM charge management system.
Can I use the solar panel to charge my phone directly?
Yes, the solar panel features a USB 5V/3A output that can directly charge smartphones and other digital devices.
What is the capacity of the power storage box?
The system has a high capacity of 50,000mAh (14.8V/12A or 13A), providing ample power for various electronic devices.
