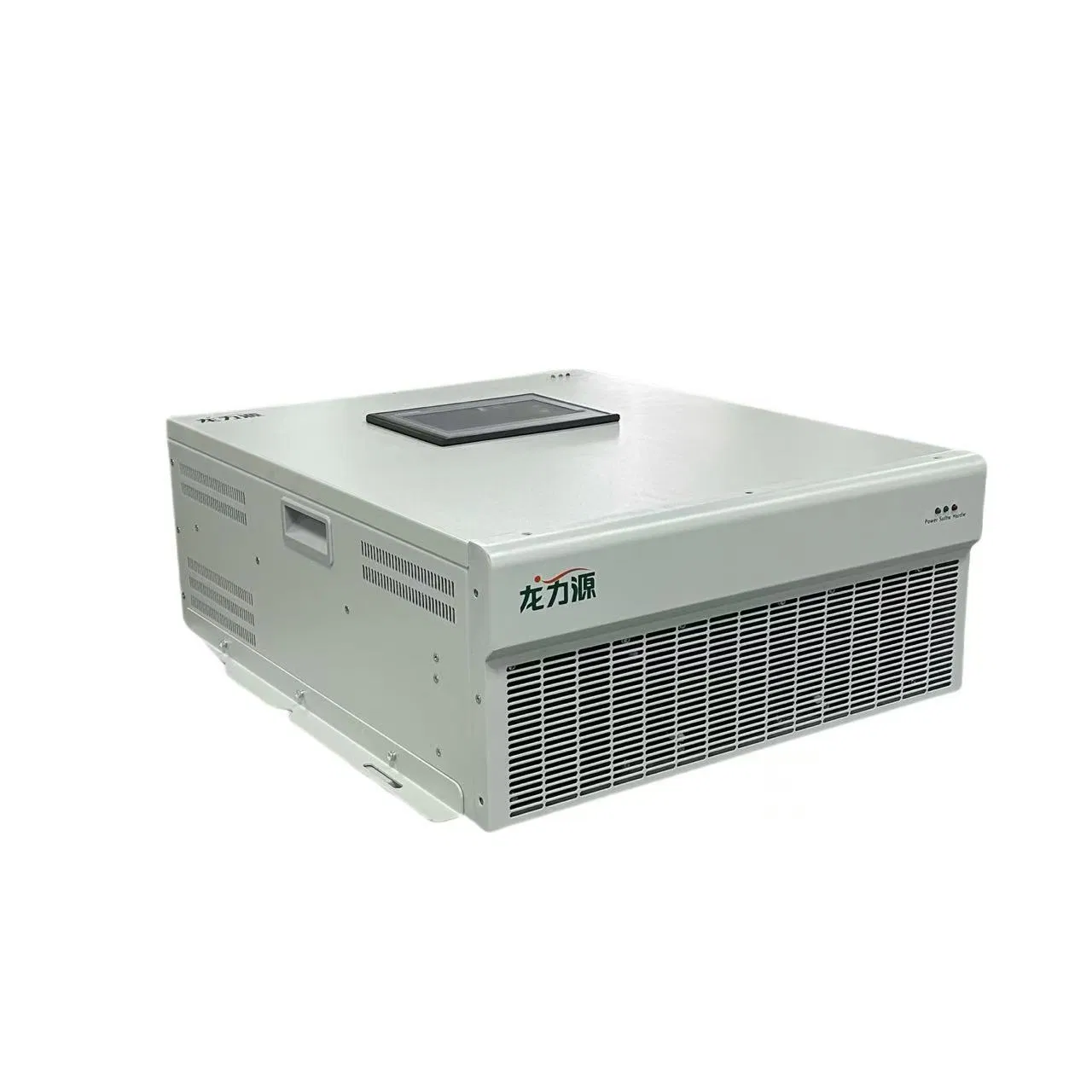

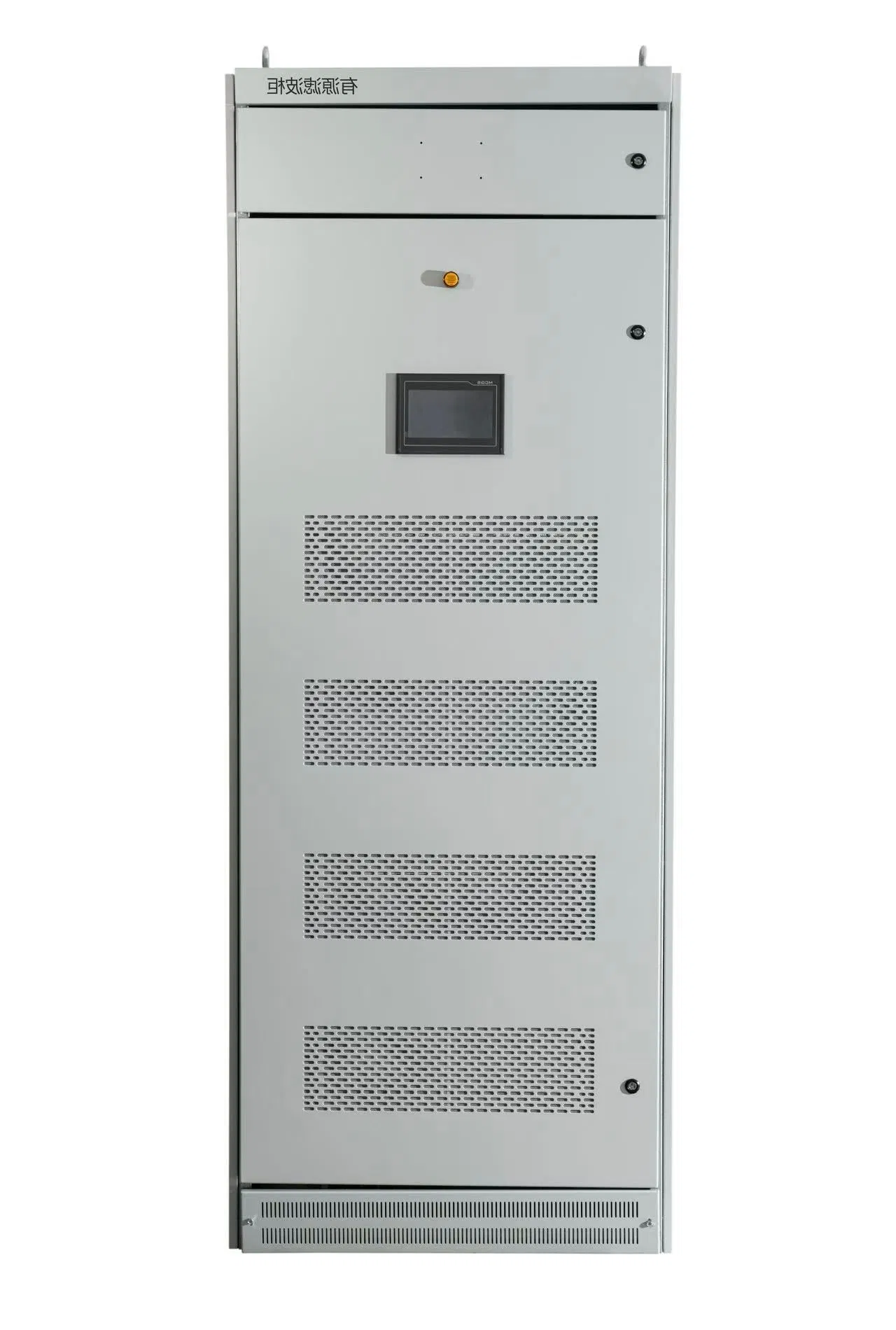

Smart Energy Management System for Enhanced Business Efficiency

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications
Operation Voltage
Low Voltage
Size
1 Uint
Application Range
All
Shell Material
Stainless Steel
Protection Grade
IP30
Colour
Silver, Black
Voltage
200V - 690V
Display Interface
External or Built-in HMI
Service
ODM / OEM
Frequency
50Hz±5%
Circuit Topology
3p4w 3p3w
HS Code
8543709990
Product Description
Active Harmonic Filter Cabinet
The Active Harmonic Filter (AHF) cabinet operates in parallel with the power grid, continuously monitoring harmonic distortions. It generates counter-phase compensation currents via its inverter to dynamically neutralize harmonics in real time. Available in standard colors like black and silver.

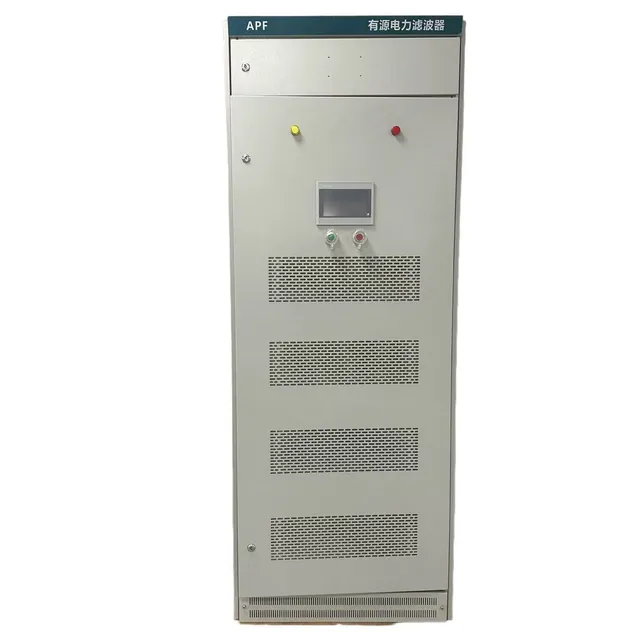

Active Harmonic Filter 1

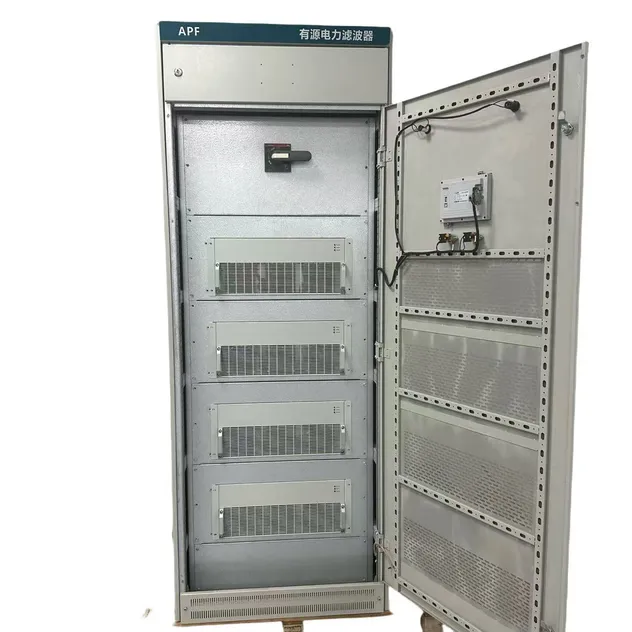

Active Harmonic Filter 2

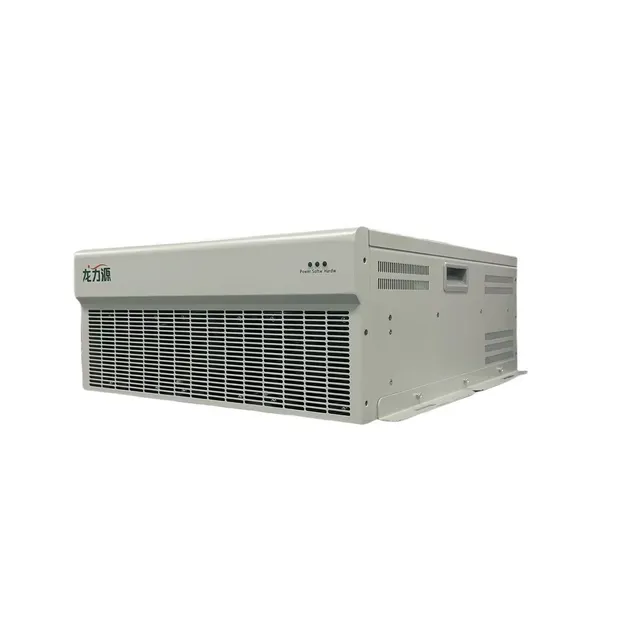

Active Harmonic Filter 3

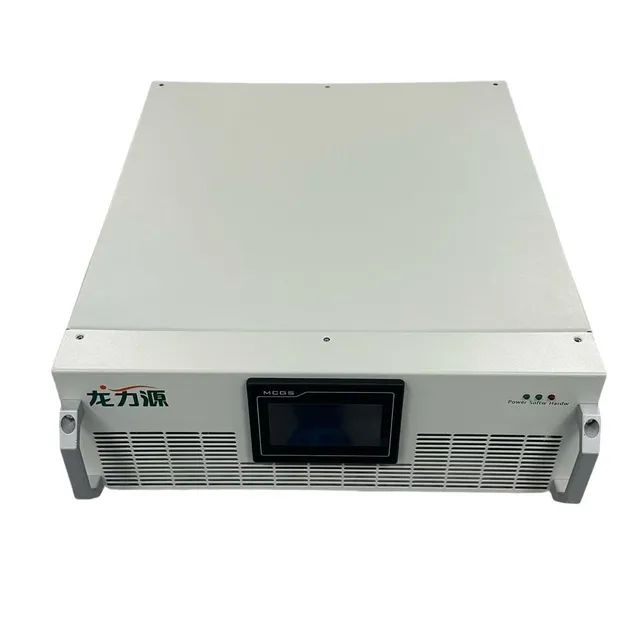

Equipment Detail 1

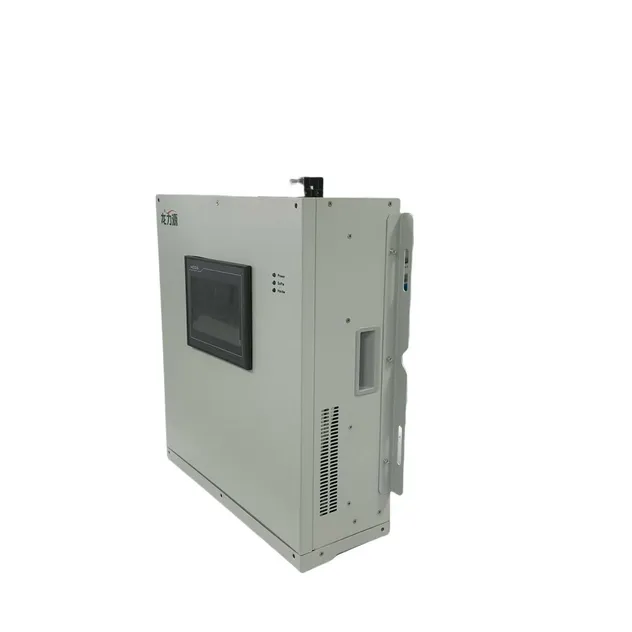

Equipment Detail 2

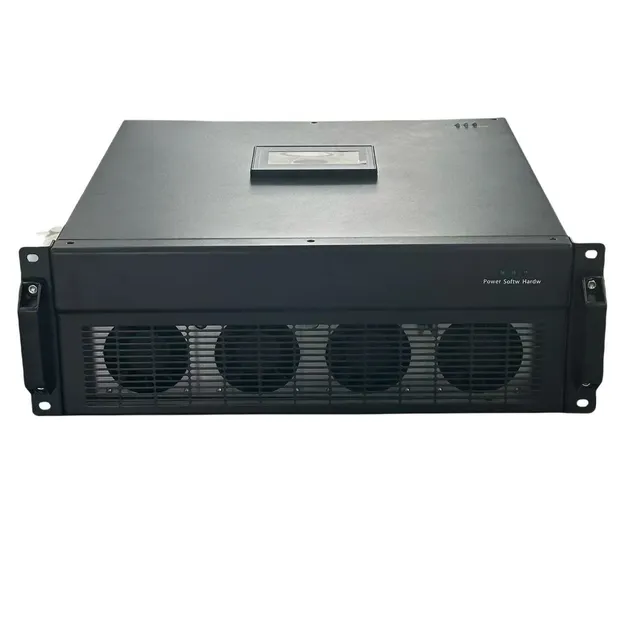

Equipment Detail 3
Key Features & Technical Parameter

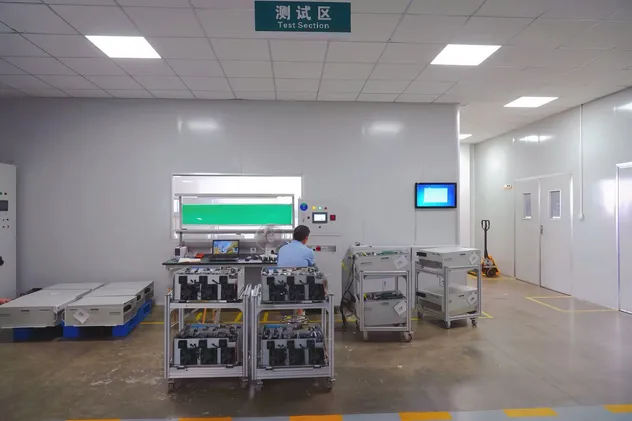

Module View 1

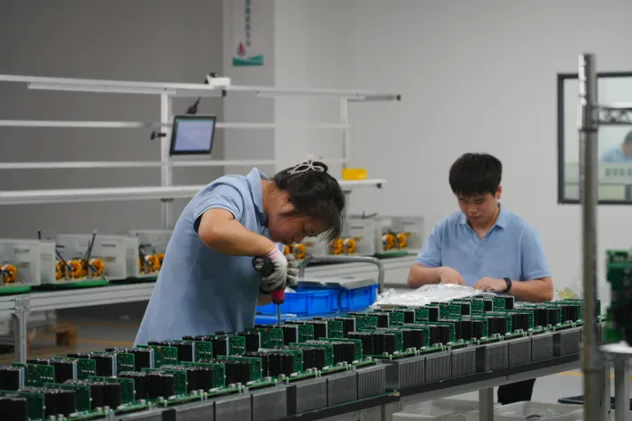

Module View 2

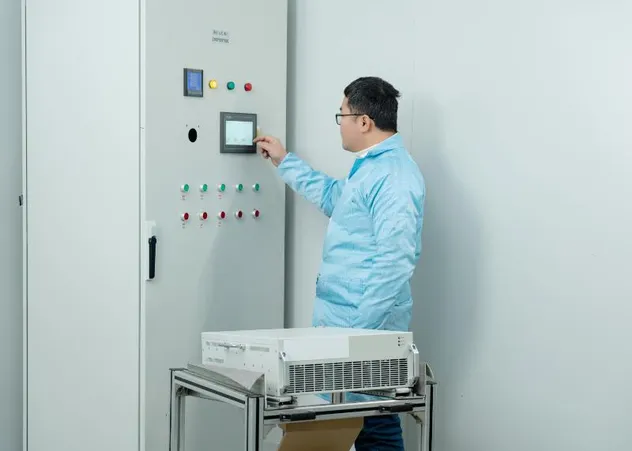

Module View 3
Power Quality Control
• Continuous power factor correction
• Accurate PF maintenance -1.0 ≤ CosΦ ≤ 1.0
• Three-phase load unbalance < 5%
• Neutral current reduction
Harmonic Mitigation
• Adaptive Algorithm (ADALINE)
• THDi < 5% at rated loads
• Up to 98% filtration efficiency
• Response time < 5ms
💎Advanced Design
• Three-level topology
• Ultra-compact modular design
• Switching frequency 25.6kHz
• Low Power Consumption ≤ 2%

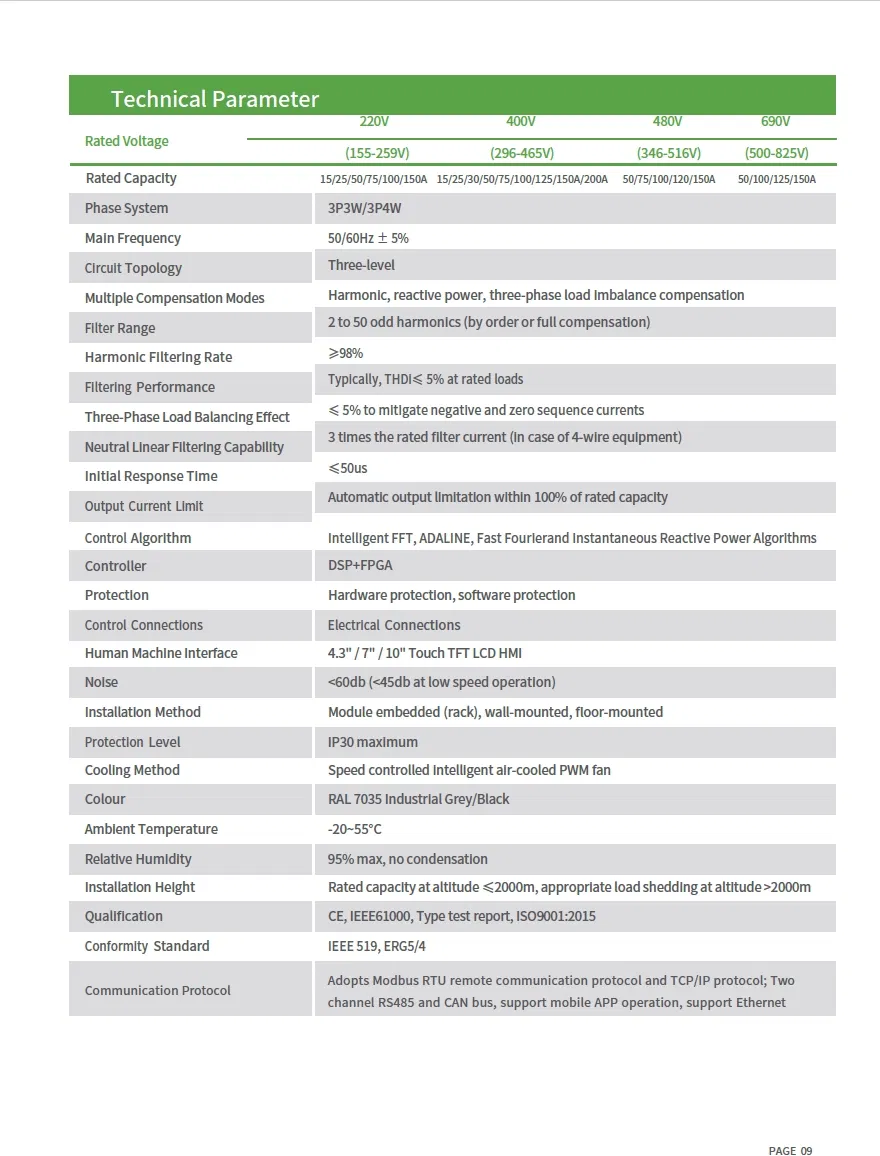

Technical Parameter Table
Our Services
ODM Services
• Turnkey Design & Production
• Faster Time-to-Market
• Proven Manufacturing Expertise
OEM Services
• Custom logo embroidery
• Private label packaging
• Tailored product requirements
After-Sales Support
• 15-month warranty
• 24/7 technical assistance
• Online maintenance training
Manufacturing Excellence
Manufacturing Banner

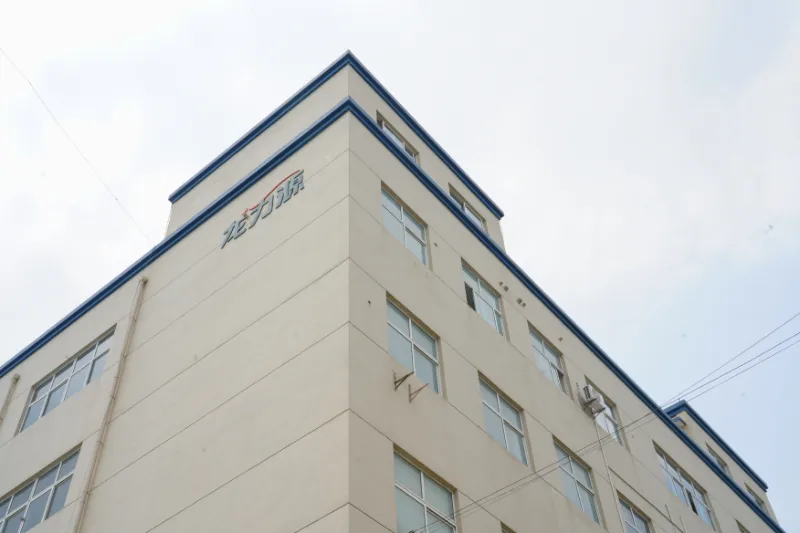

Workshop 1

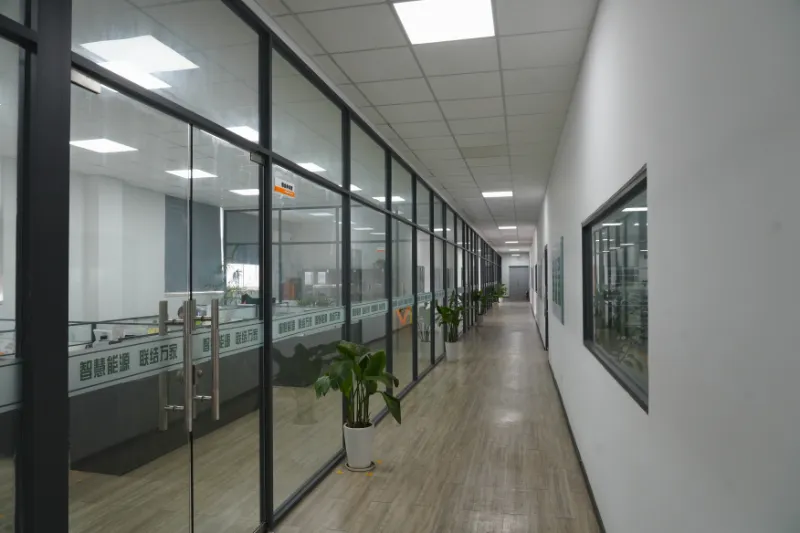

Workshop 2
Workshop 3

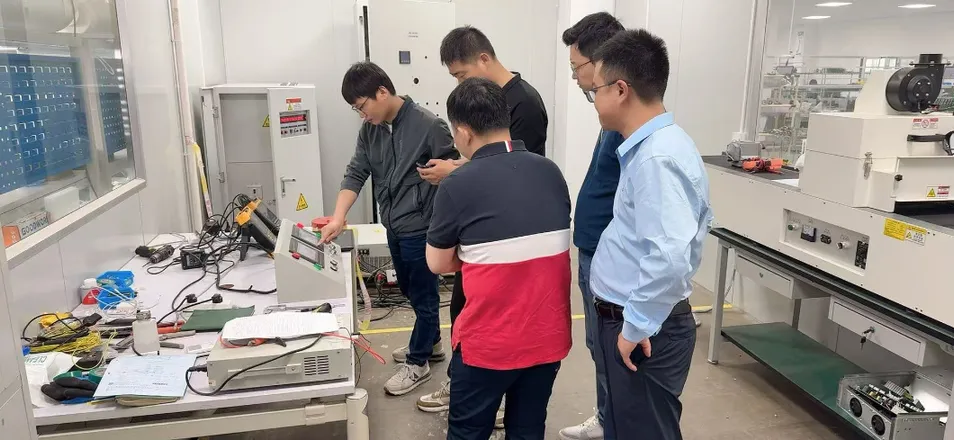

Workshop 4
Factory Advantages: Strong R&D, Global Trade Expertise, Guaranteed Quality.
Other Products: Static Var Generator, Intelligent capacitors, Reactive power compensation devices.
Certifications
Certificate 1
Certificate 2
Frequently Asked Questions
Why choose our products?
We utilize advanced equipment, an excellent production team, and strict quality control protocols to ensure top-tier product performance.
Are you a manufacturer or a trading company?
We are a professional factory specializing in power quality solutions.
Do you support OEM and ODM customization?
Yes, we provide full OEM and ODM services, including custom branding and tailored technical designs.
What is the typical delivery time?
Normally delivery takes 7-15 days, depending on the specific order quantity and customization requirements.
What is the warranty period for your equipment?
All products undergo 100% testing before shipment and come with a 15-month warranty against manufacturing defects.
What are your terms of payment?
Standard terms are 30% as a deposit and 70% before shipment, or as negotiated between both parties.
