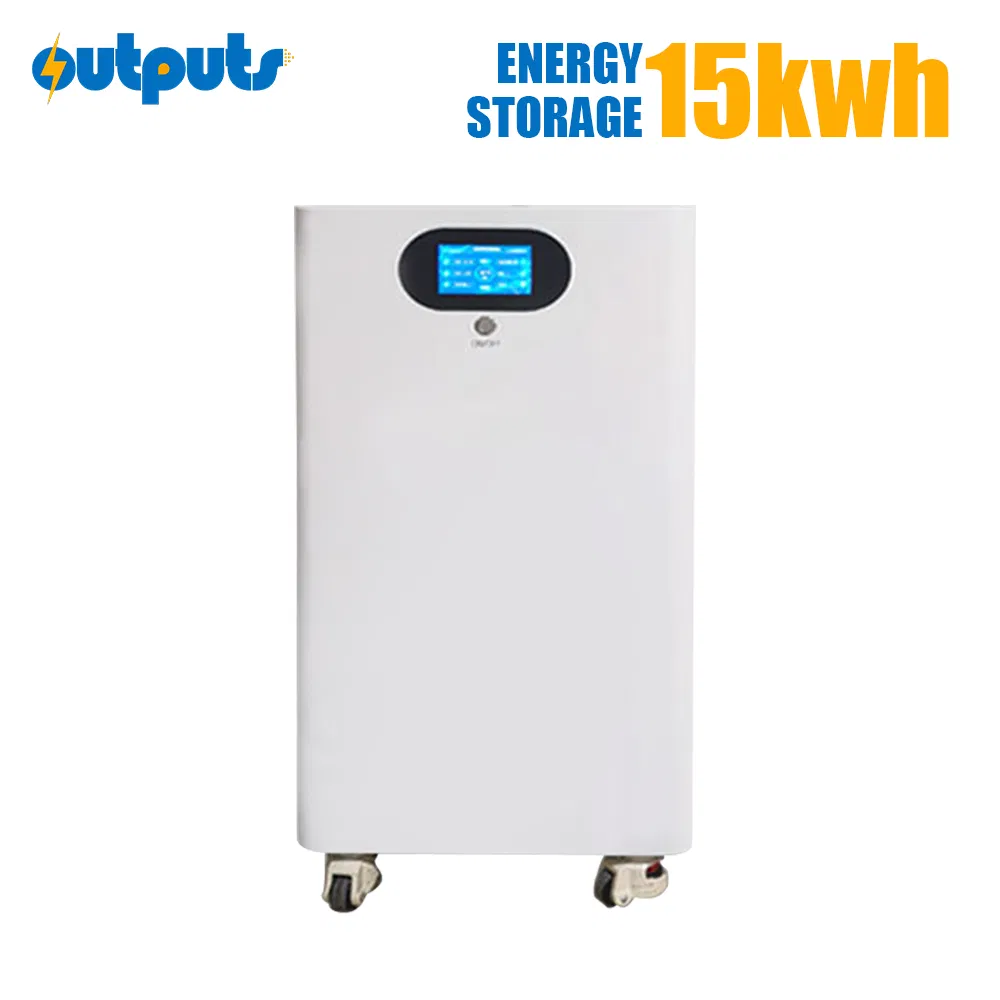

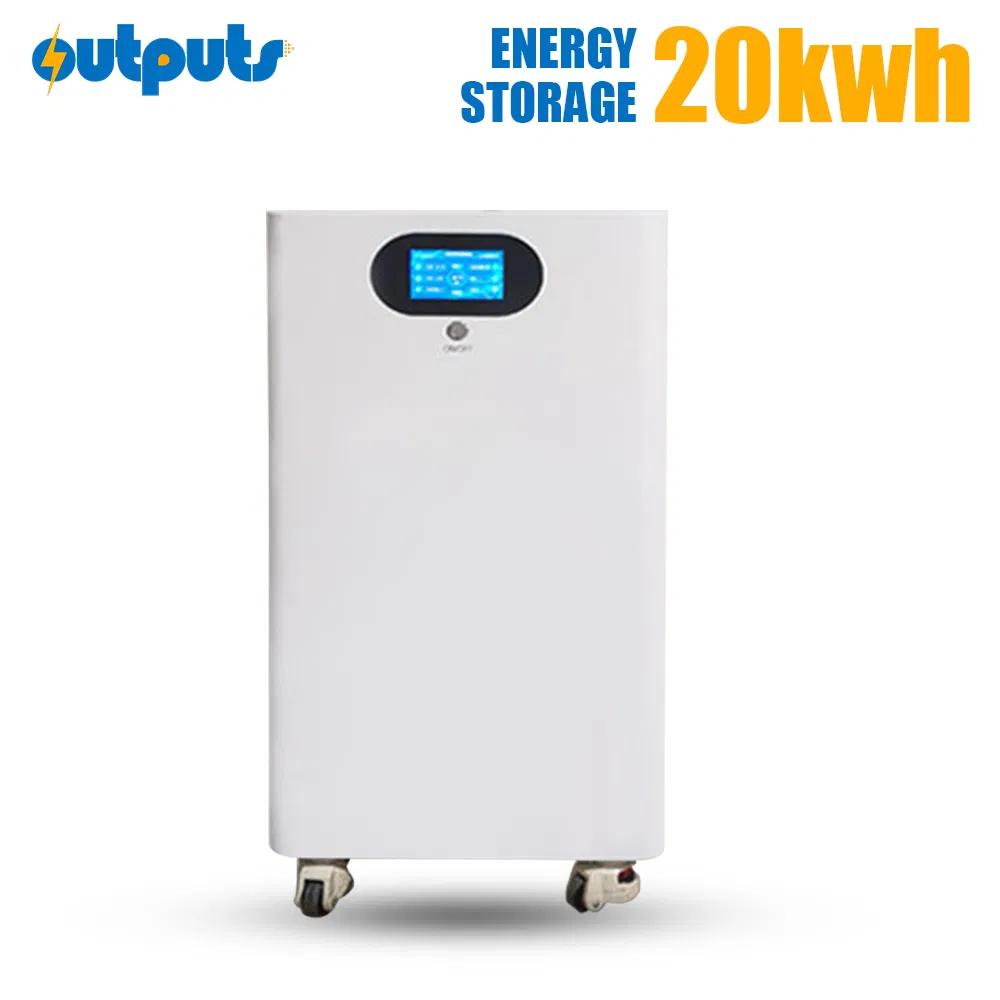

| Model | AP-LS-15 | AP-LS-16 | AP-LS-20 |
| Nominal voltage | 51.2V | 51.2V | 51.2V |
| Rated capacity | 300Ah | 314Ah | 400Ah |
| Charge cut-off voltage | 58.0V | 58.0V | 58.0V |
| Max charge current | 200A | 200A | 200A |
| Communication mode | RS485/CAN | RS485/CAN | RS485/CAN |
| Size (mm) | 470*237*690 | 490*255*740 | 510*293*970 |
| Weight | 118kg | 119kg | 162kg |

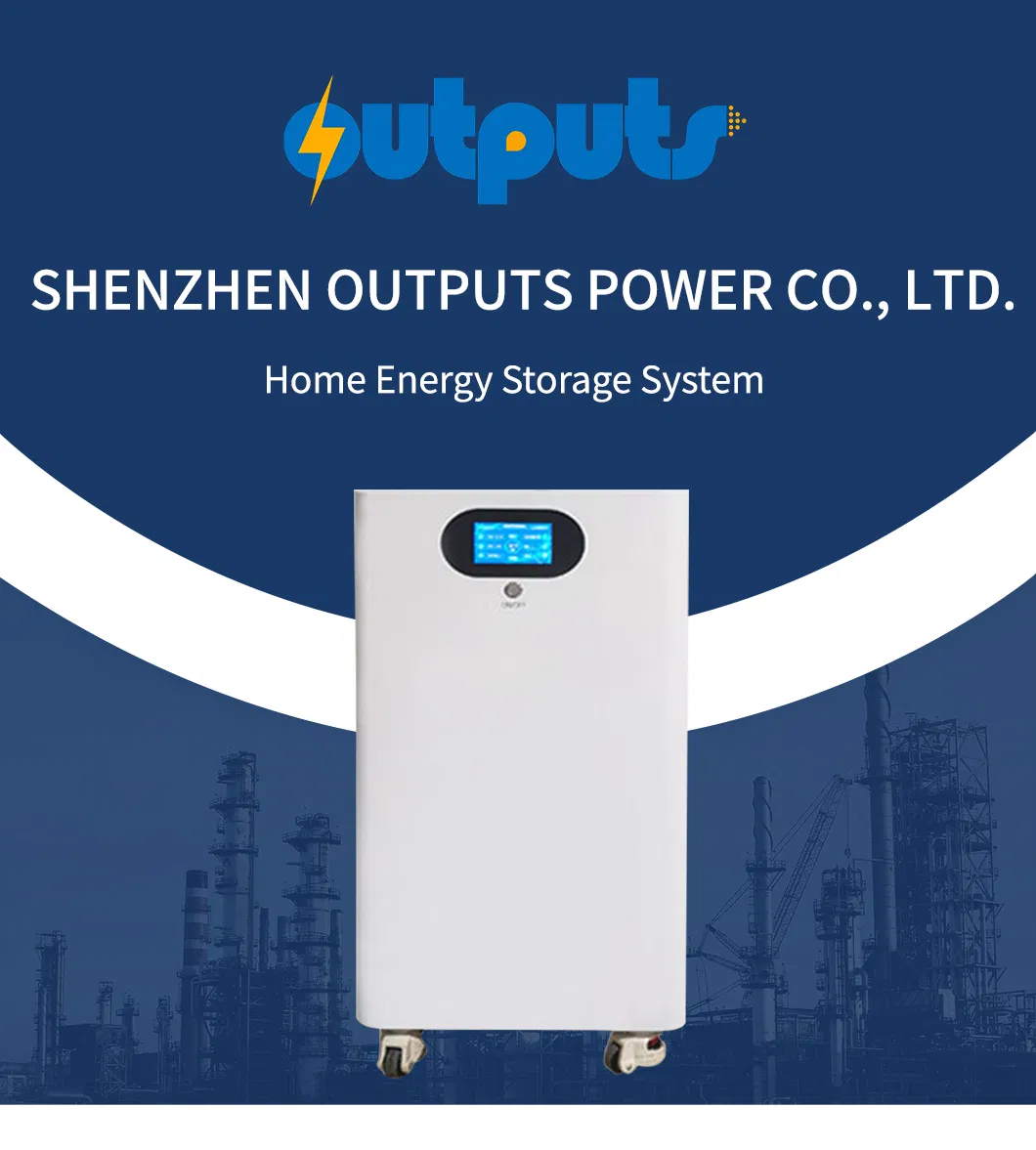

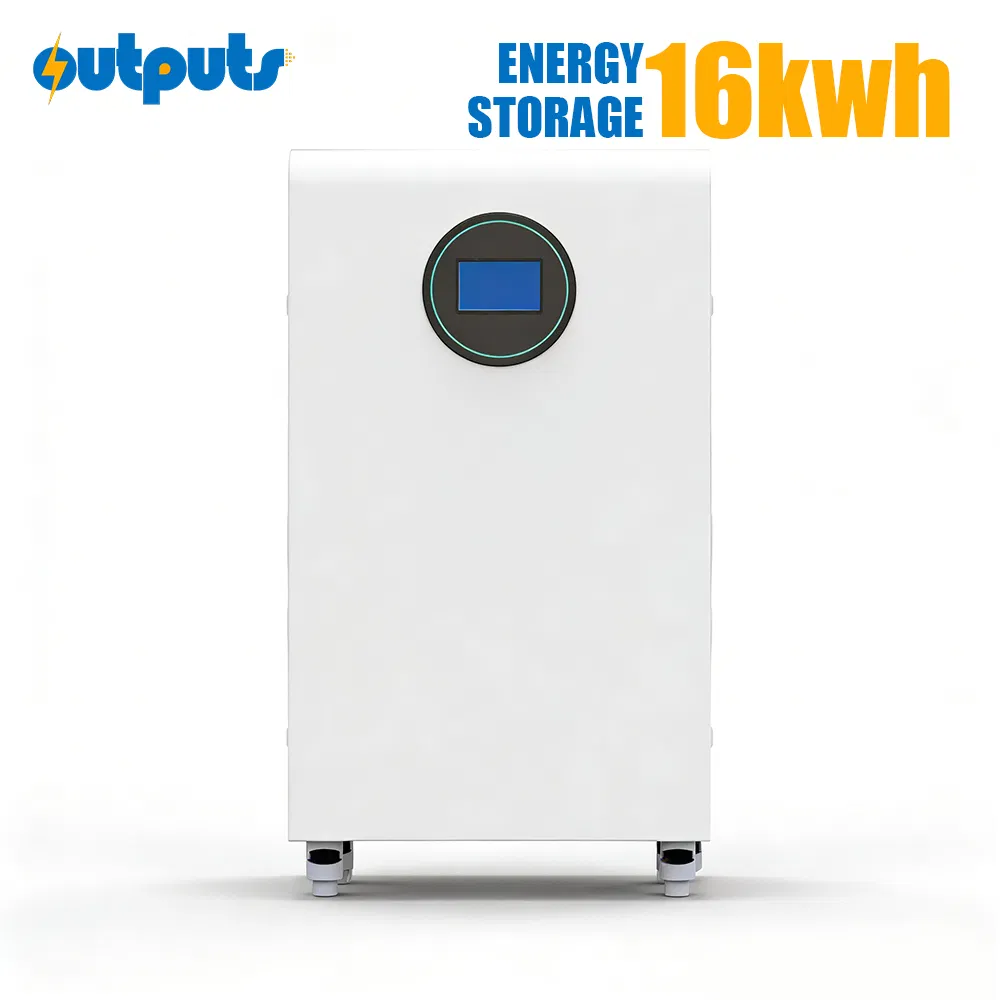

Our Home Energy Storage System provides reliable backup power and intelligent energy management. It stores surplus solar energy or low-cost grid electricity for use anytime, reducing bills and enhancing independence.

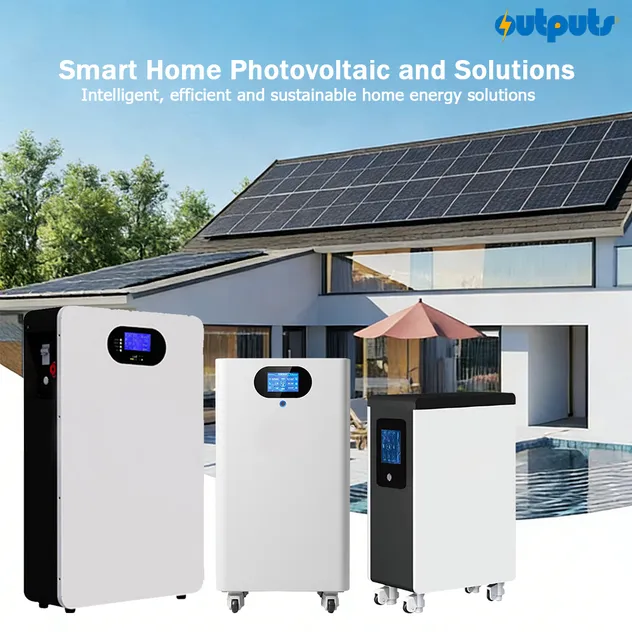

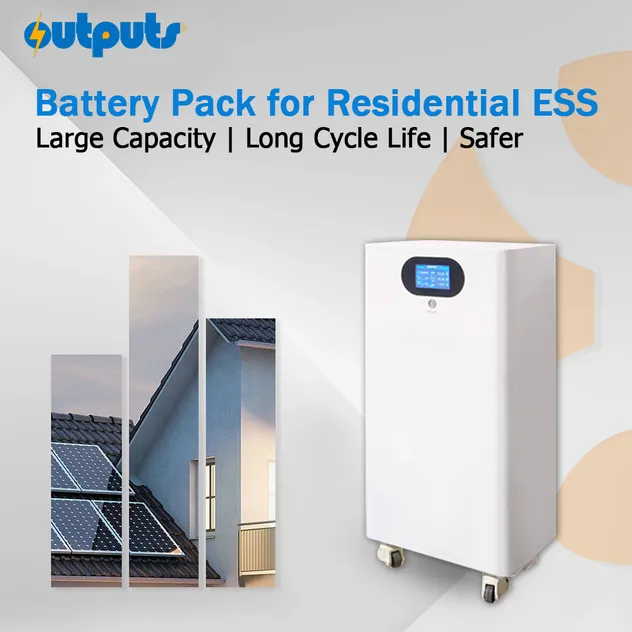

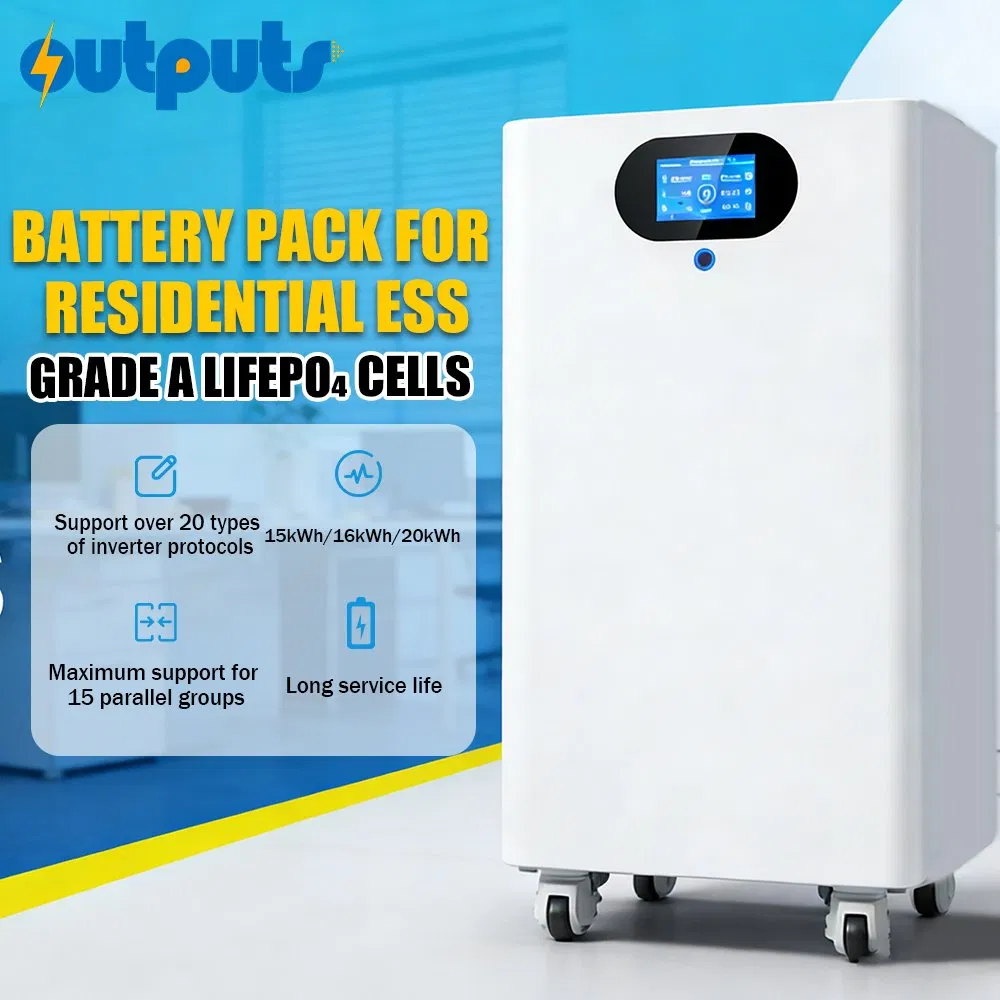

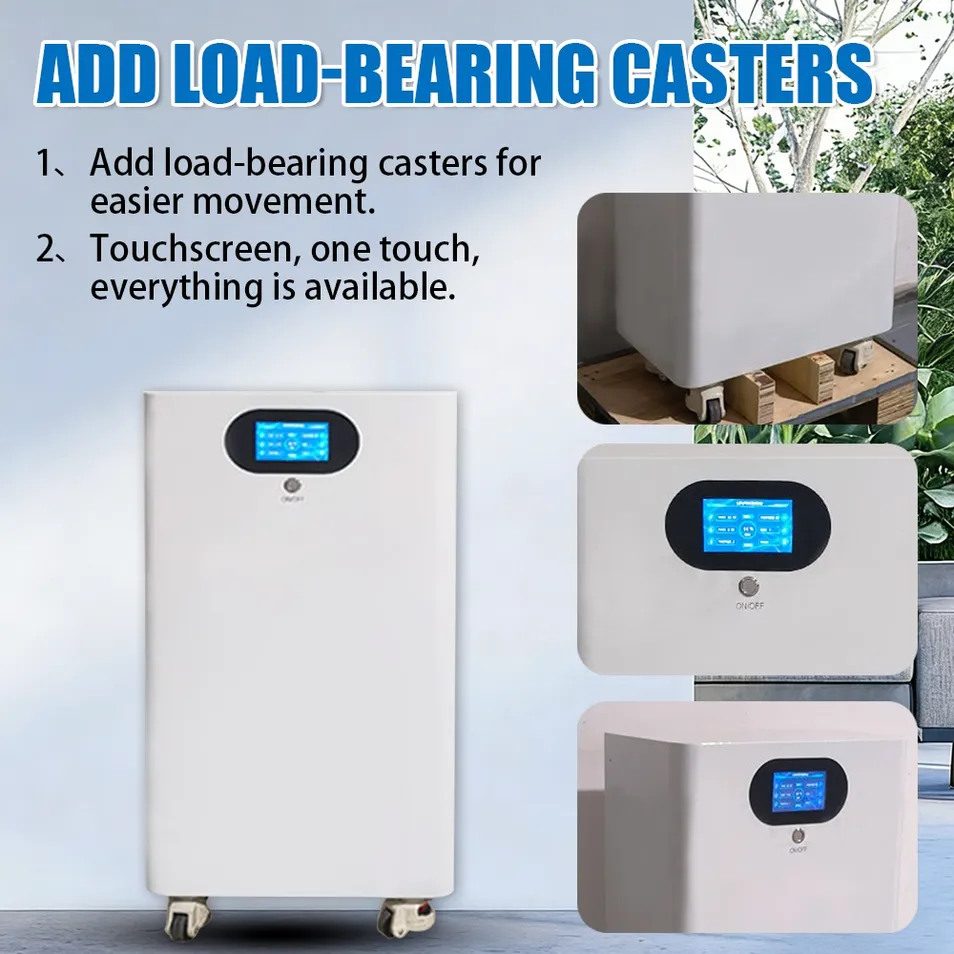

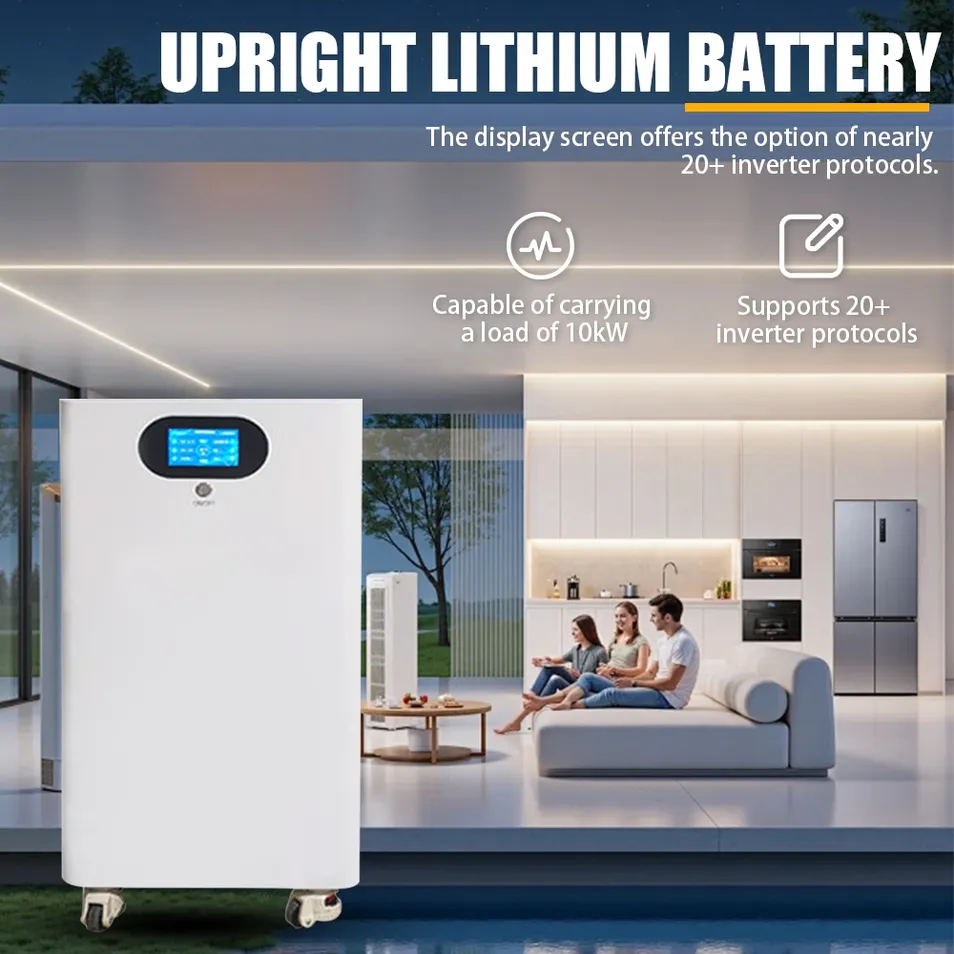

The system features load-bearing casters for convenient mobility, allowing easy repositioning in home spaces. A touchscreen interface enables one-touch control of all functions. It is widely compatible with over 20 mainstream inverter brands globally, including Growatt, Sofar, and SMA.

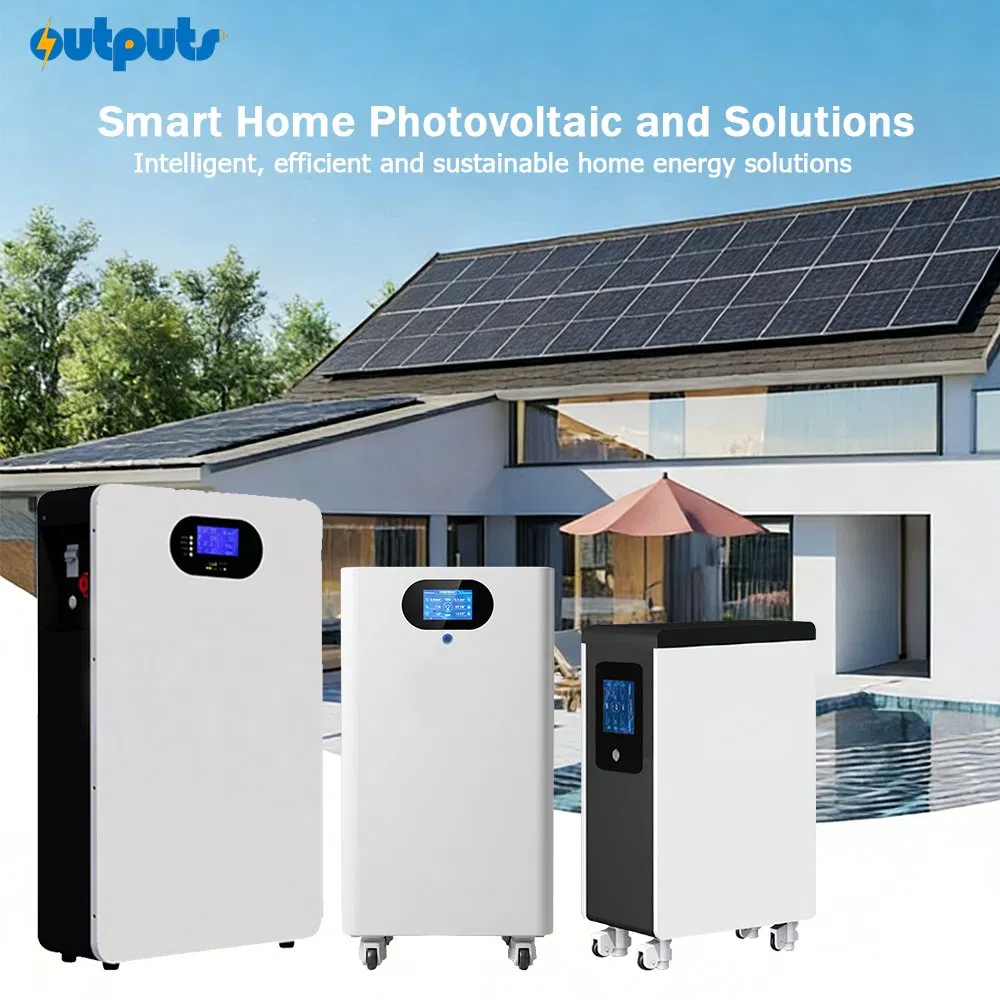

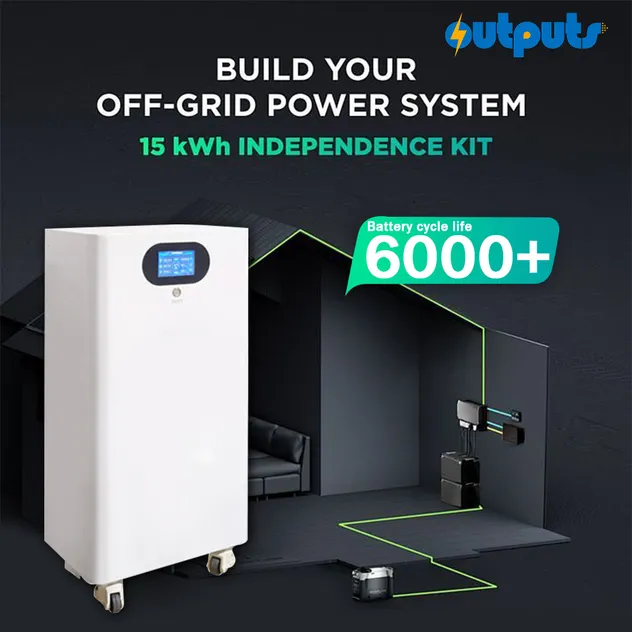

Solar panels generate DC power, converted to AC by an inverter. This power supplies home appliances, charges the storage system, or connects to the grid. When solar power is insufficient, the battery discharges to power devices, forming a self-sustaining cycle.

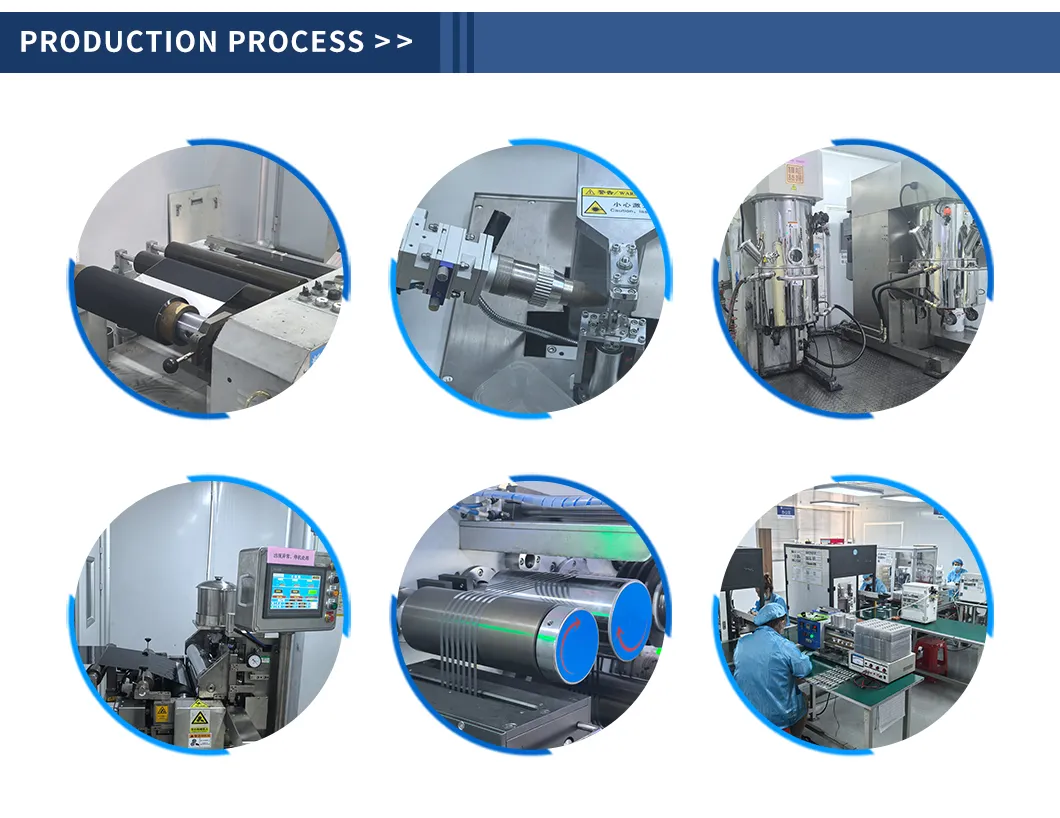

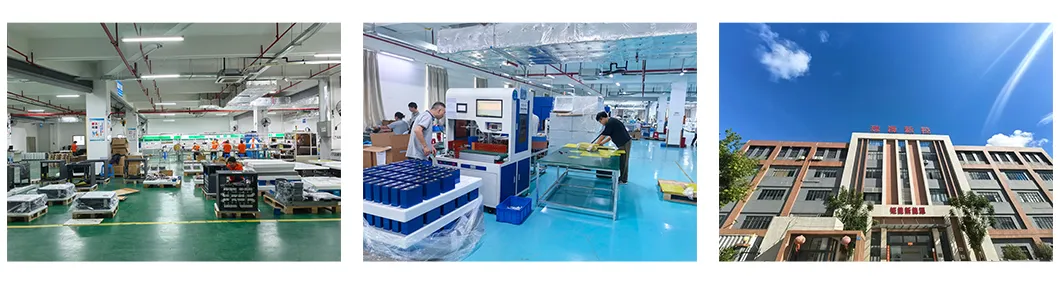

We provide comprehensive lithium battery solutions, specializing in OEM and ODM services. Our capabilities span from high-quality battery cells (Cylindrical, Li-Po, LiFePO4) to intelligent Home Energy Storage Systems (ESS) tailored to specific voltage and capacity requirements.
