(10~20KWh, All In One Solution)

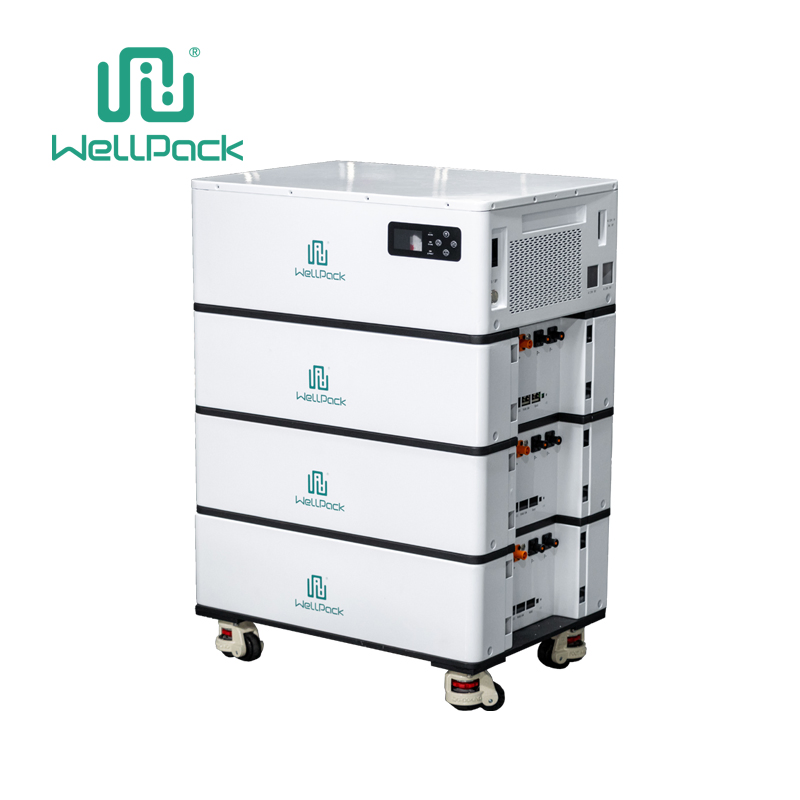

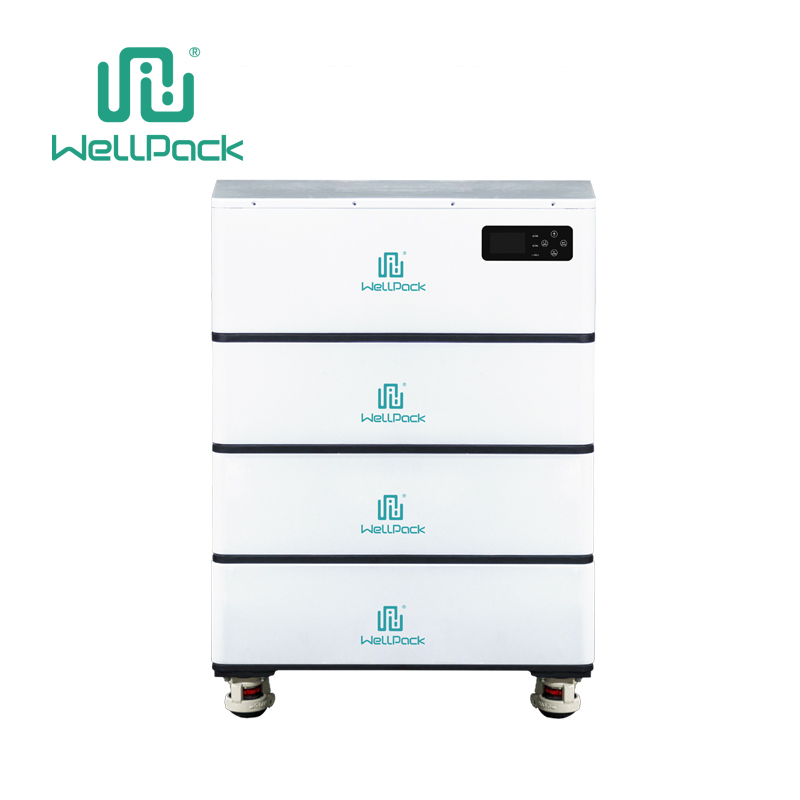

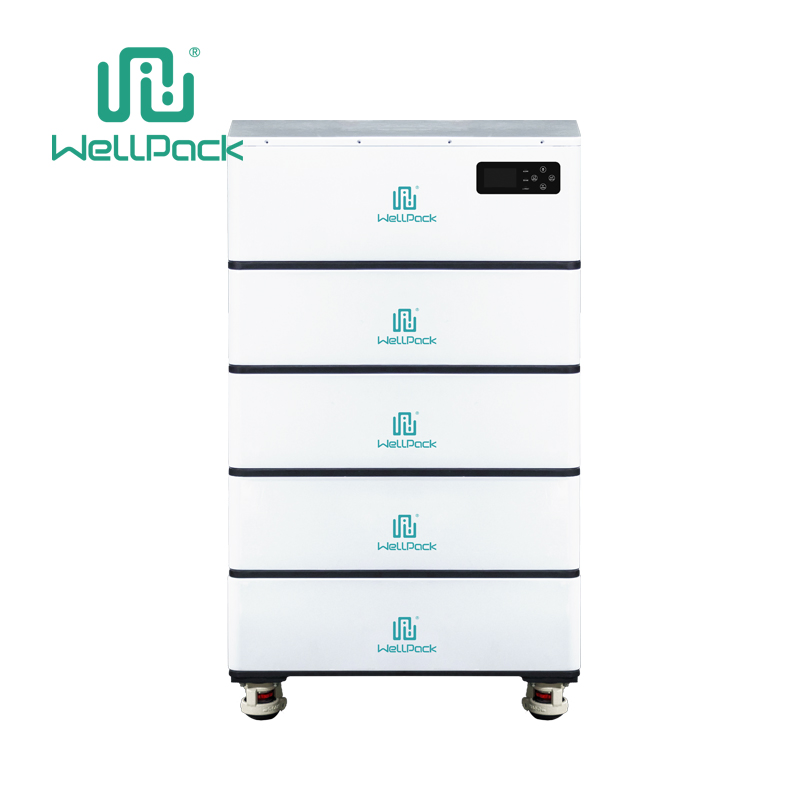

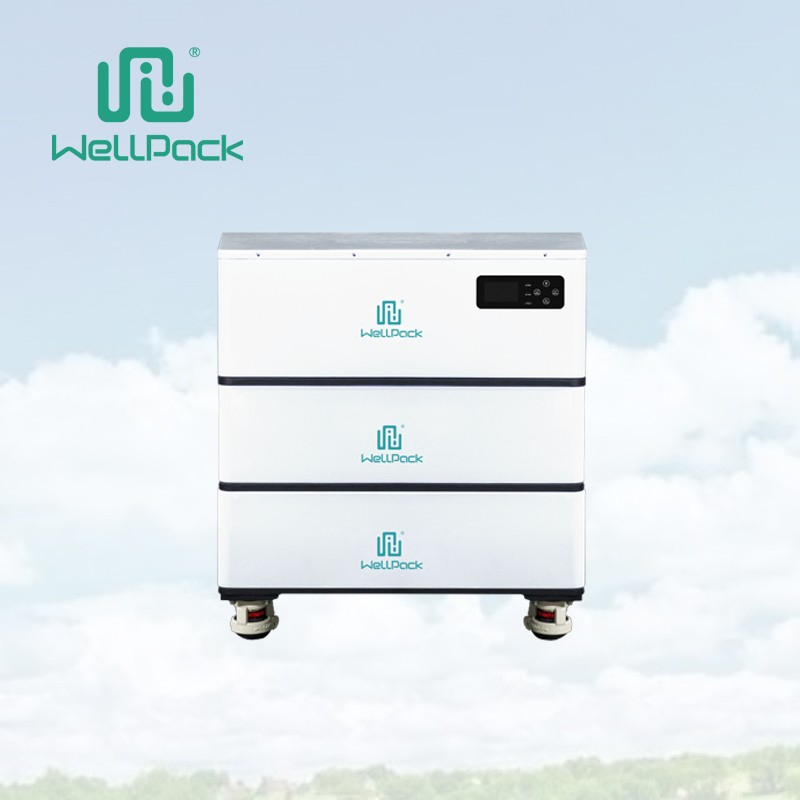

Residential Energy Storage System (10~20KWh, All In One) adopts integrated technology, allowing it to obtain electric energy from photovoltaic (PV), mains, and other multi-channel power supply facilities. This advanced system realizes 24-hour safe, economic, and uninterrupted electricity consumption for modern homes.
| No. | Item | General Parameter | Note |
|---|---|---|---|
| 1 | Battery Type | Lithium ion battery | |
| 2 | Battery Material | LiFePO4 | |
| 3 | Nominal Voltage | 51.2V | 16S1P |
| 4 | Voltage Range | 48~57.6V | Operating range |
| 5 | Charge Limit Voltage | 57.6V | |
| 6 | Battery Capacity | 100Ah/5.12KWh | At 25ºC, 0.2C |
| 7 | Internal Resistance | ≤80mΩ | AC 1kHz |
| 8 | Charging Voltage | 57.6V±0.5V | |
| 9 | Charge Limit Current | 10A | |
| 10 | Max Charge Current | 100A | Full power charge |
| 11 | Equalization Current | 80mA | |
| 12 | Charging Temp. | 0ºC~45ºC | Optimal range |
| 13 | Overcharge Protection | 58.4V±0.5V | |
| 14 | Discharge Protection | 40V±0.5V | Cut-off voltage |
| 15 | Max Discharge Current | 100A | Continuous |
| 16 | Parallel Connection | Supports Parallel | Up to 16 units |

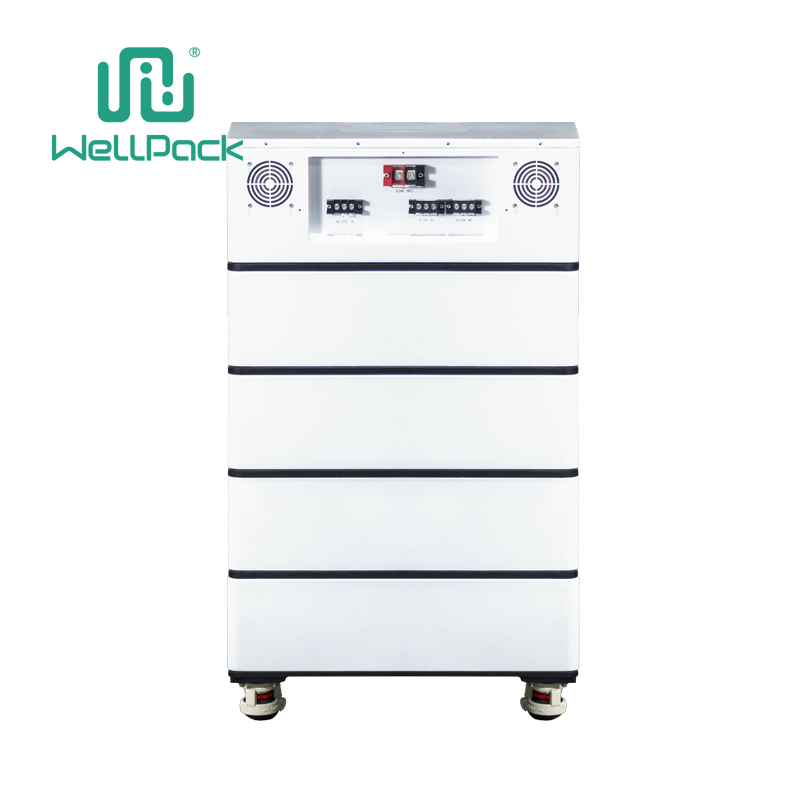

| 17 | Interface | Same Port | Charge/Discharge |
| 18 | Dimension | 620*440*182.5mm | Per Module |
| 19 | Weight | 40Kg | |
| 20 | Shell Material | Sheet metal + spraying | Durable design |
| 21 | Storage Condition | 0~25ºC |

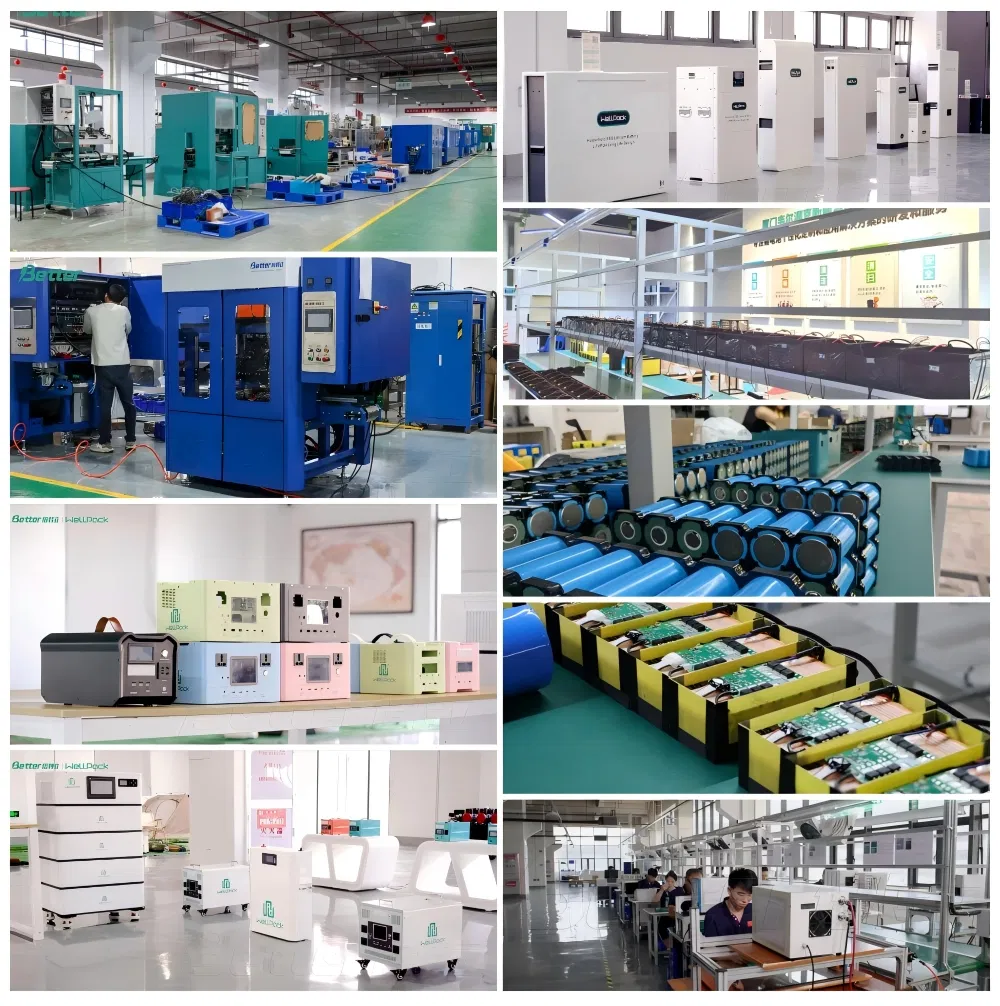

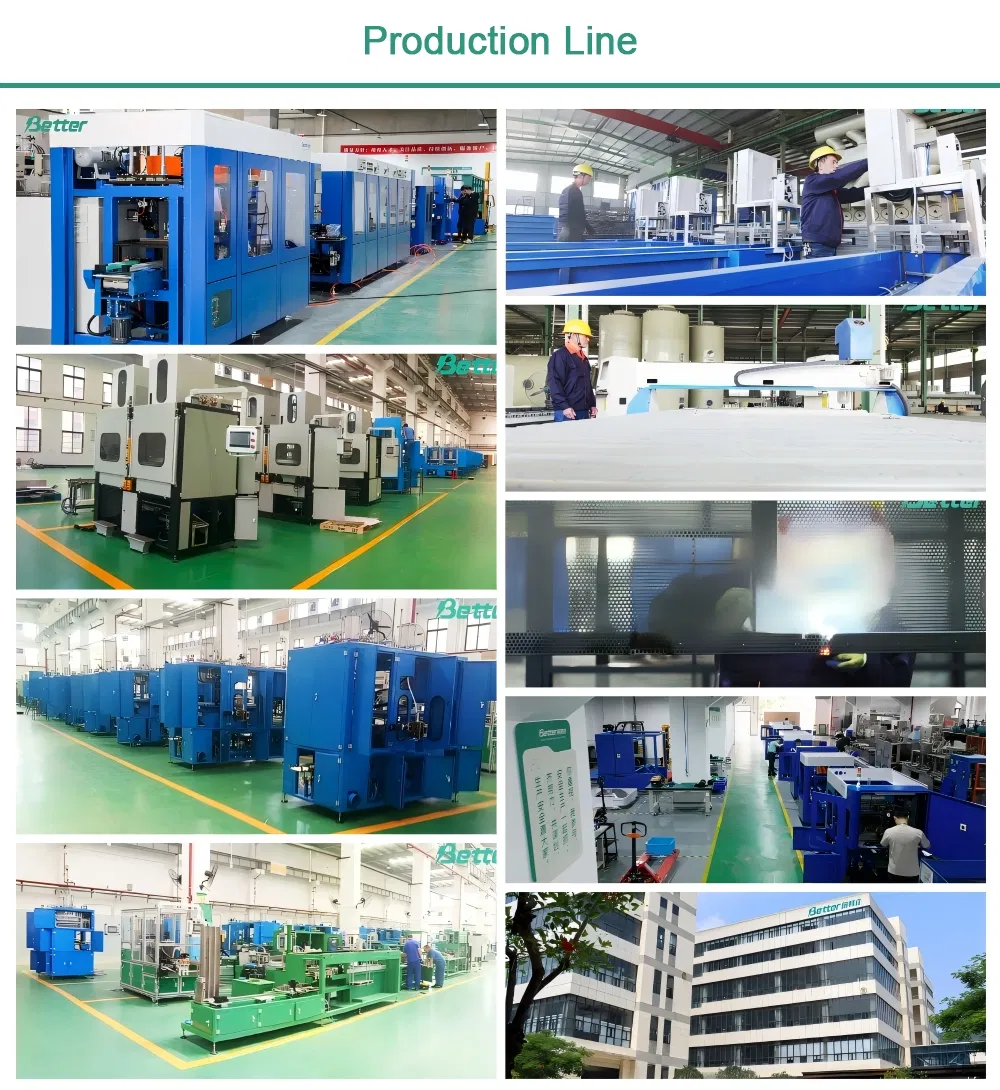

The company is a well-known integrated solution provider for global battery manufacturing. Operating multiple foreign and domestic manufacturing plants, it offers turnkey solutions for battery production, new energy lithium batteries, and lead-acid batteries. For over a decade, the group has deeply served global markets, extending its business to nearly 120 countries and regions worldwide.
Certified in ISO9001 (Quality Management Scheme), the company holds nearly 100 patents, software copyrights, and trademarks. It has been recognized as a "National High-tech Enterprise" and an "Outstanding Export Branded Enterprise." Through strategic cooperation with Fortune 500 companies and leading universities, the group continues to invest in product R&D, technological innovation, and strict quality control.
