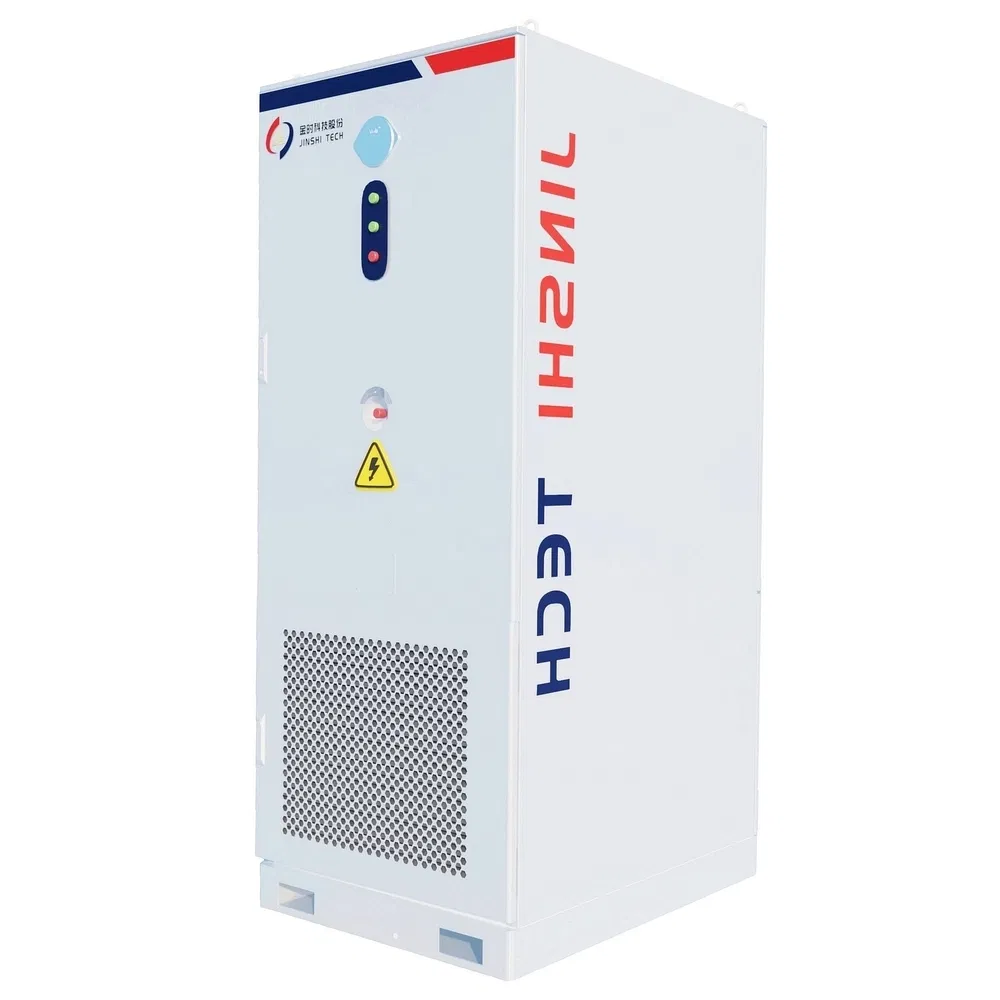

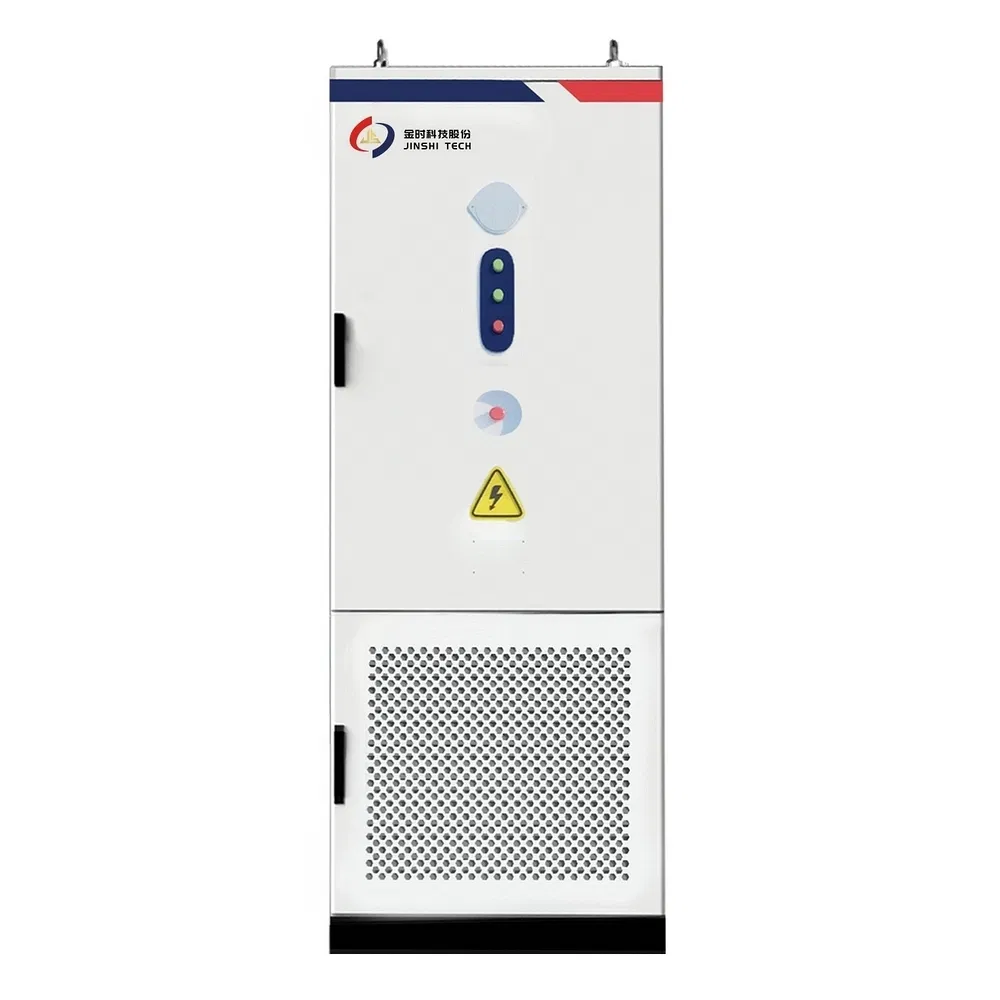

Ultra Efficient 261kw Smart BMS Liquid Cooled System for Renewable Energy Management

Customization:	Available
Nominal Voltage:	24V
Cell Type:	LFP Battery

ℹ️

Basic Information

Model NO.	261-C2
Configuration	1p260s
Rated Energy	261kwh
Rated Voltage	832V
Rated Power	125kw
Charge/Discharge Rate	0.5p
Operating Voltage Range	676~936V
Cooling Method	Liquid Cooling
Fire Suppression Medium	Novec 1230
Fire Detection	Temp., Co, Smoke Sensors
System Specifications	125kw/261kwh
Noise Level	≤ 75dB
Corrosion Resistance	C3
IP Rating	IP54
Weight	2.6t
Production Capacity	500 pieces/Year

⚙️

Product Description

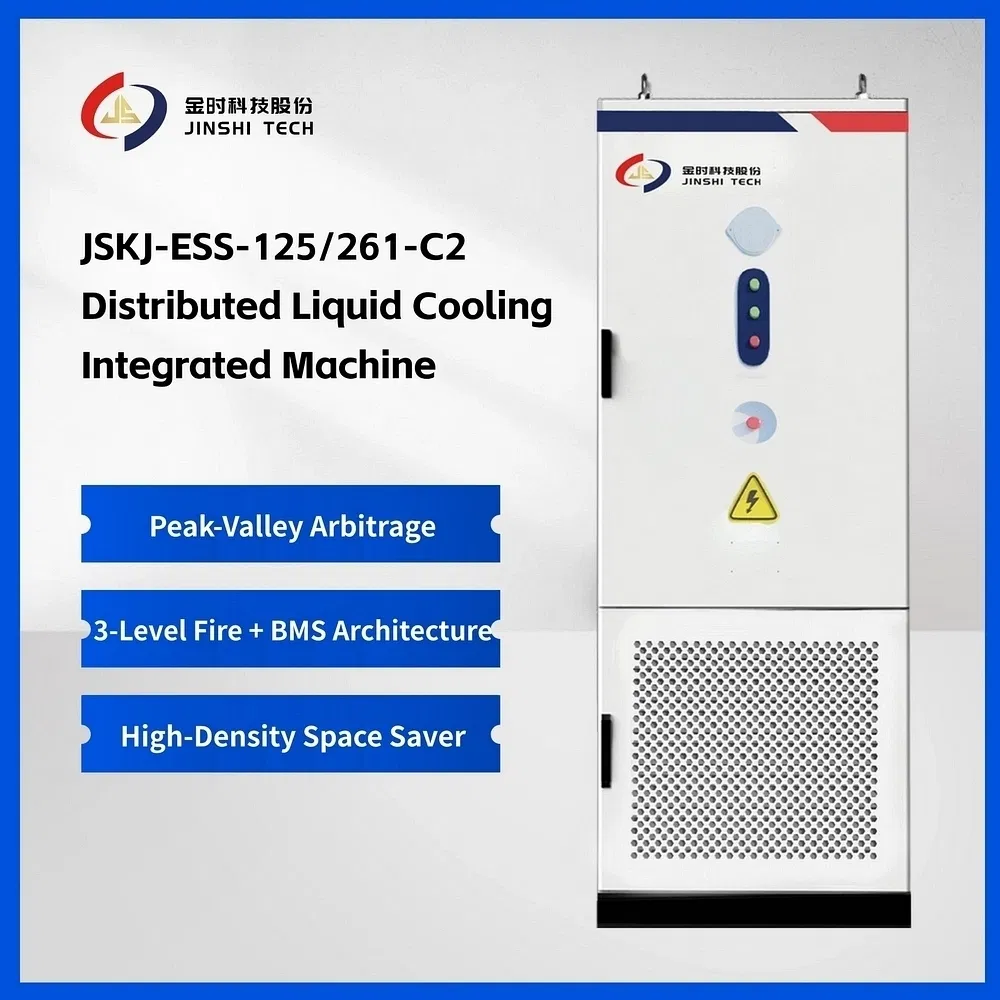

DISTRIBUTED LIQUID-COOLED ENERGY STORAGE SYSTEM

Our advanced Liquid Cooling Energy Storage System delivers exceptional performance with 125kW rated power and 261kWh capacity, engineered specifically for commercial and industrial applications. This LiFePO4 battery storage system features innovative liquid thermal management technology that ensures optimal operating temperatures and extended battery lifespan.

With triple-level fire protection utilizing NOVEC 1230 suppression medium and a comprehensive BMS architecture, safety is paramount.

✔ High energy density, space-saving design

✔ Triple-level fire protection + BMS architecture

✔ Supports remote monitoring + fault early warning

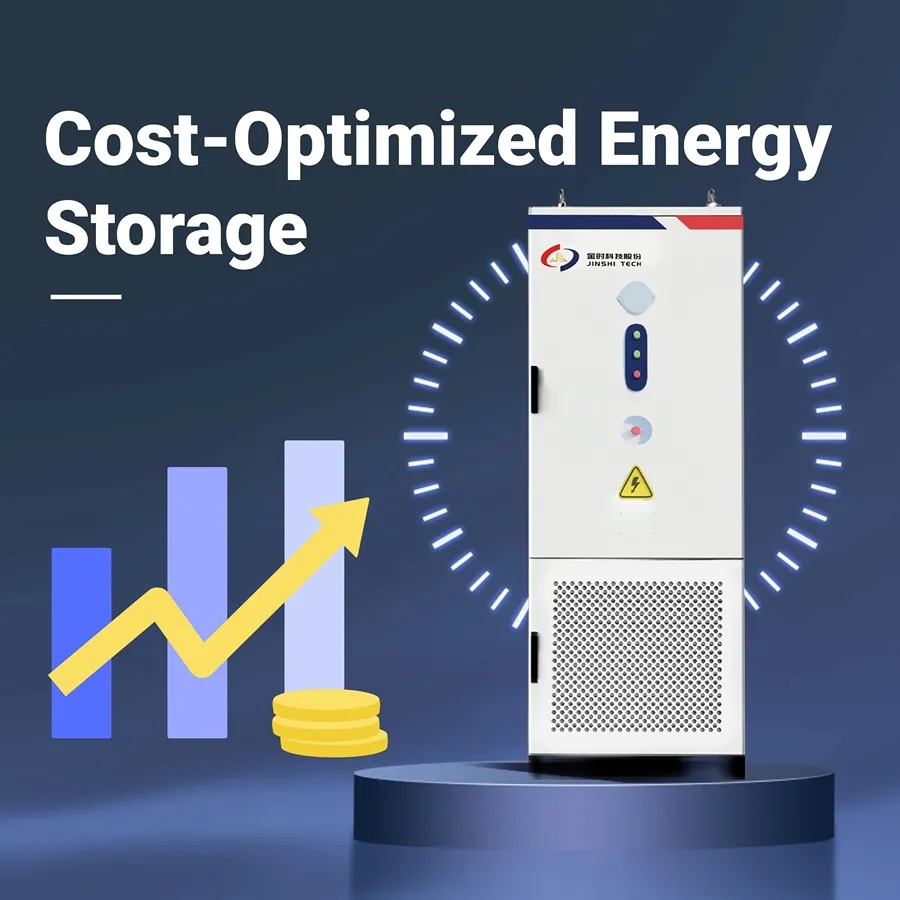

✔ Supports peak-valley arbitrage for cost reduction

✔ Dual-circuit power supply for high-voltage control

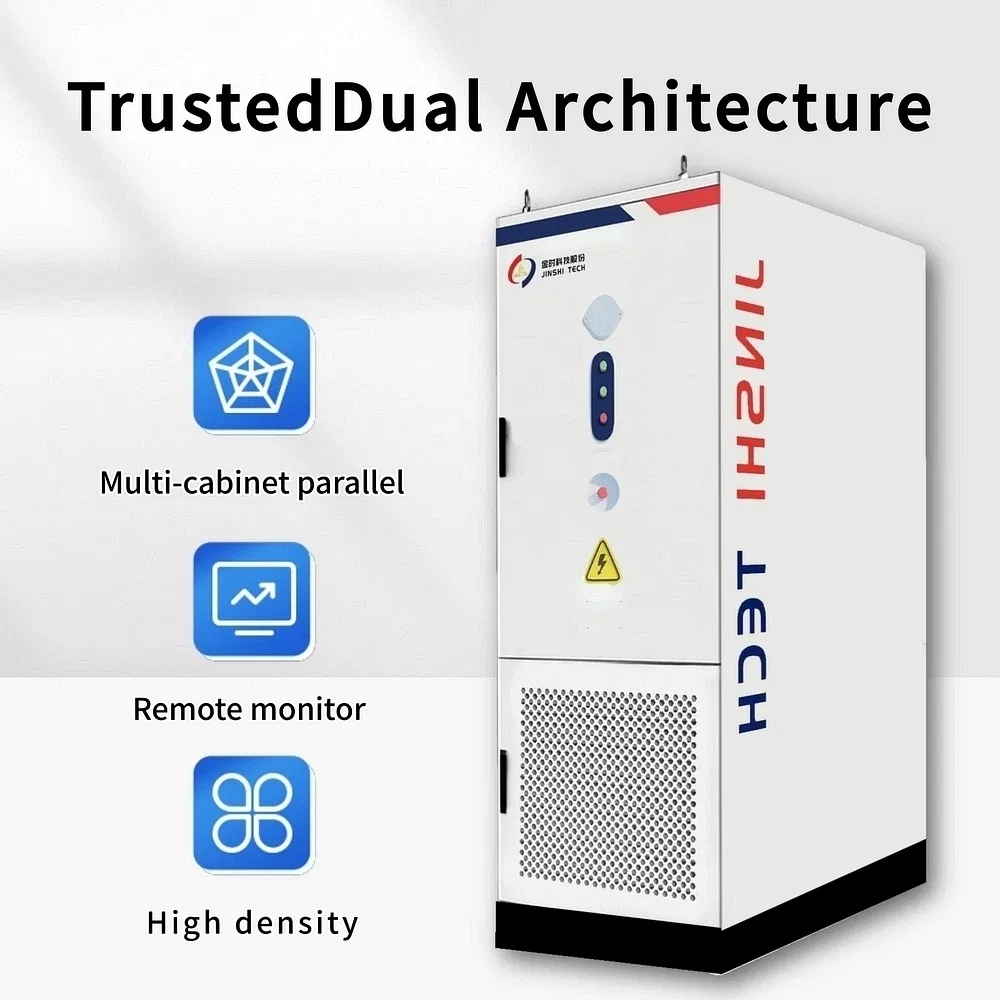

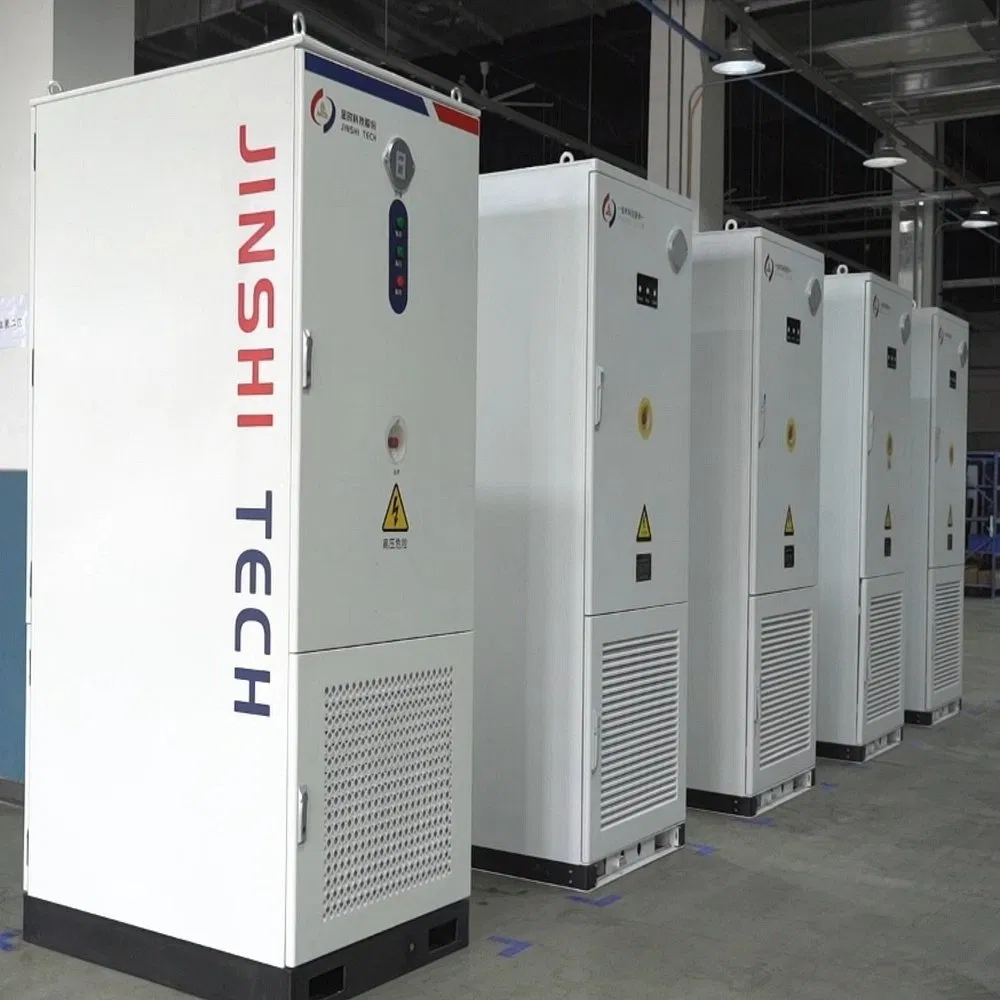

✔ Supports multi-cabinet parallel expansion

📊

Technical Parameters

Cell Type	LFP Battery
Configuration	1P260S
Rated Capacity	314Ah
Rated Energy	261kWh
Rated Voltage	832V
Rated Power	125kW
Charge/Discharge Rate	0.5P
Operating Voltage Range	676~936V
Standard Current	157/157A
Fire Suppression	NOVEC 1230
Protection Rating	IP54

📸

Detailed Features

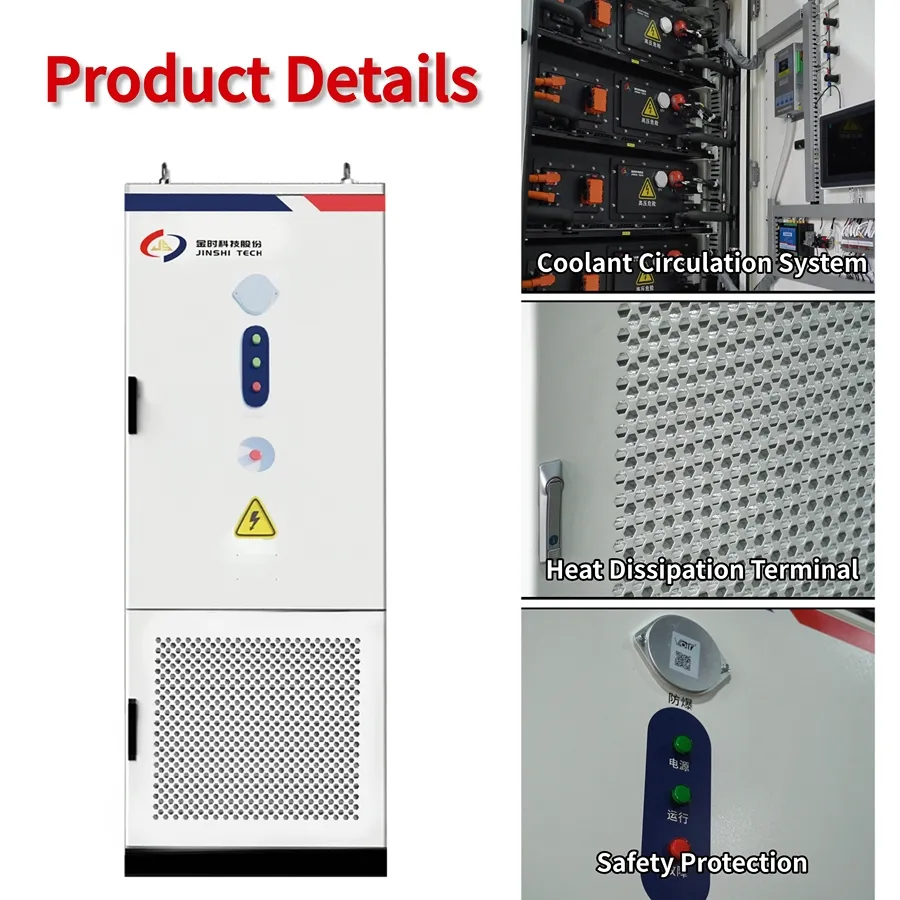

ADVANCED LIQUID COOLING SYSTEM: Precision thermal management ensures optimal operating temperatures, maximizing battery efficiency and extending service life beyond traditional air-cooled systems.

INTELLIGENT BMS ARCHITECTURE: Sophisticated Battery Management System with remote monitoring capabilities enables real-time performance tracking and predictive maintenance.

❓

Frequently Asked Questions

Q1: What are the primary benefits of the liquid cooling system? A: Liquid cooling provides superior thermal consistency across all cells, ensuring the battery operates in its ideal temperature range. This results in higher efficiency, improved safety, and a significantly longer battery lifecycle compared to traditional air-cooled systems.

Q2: How does the triple-level fire protection system work? A: The system integrates NOVEC 1230 fire suppression medium with multi-sensor detection (Temperature, CO, and Smoke). It is designed to detect and suppress potential hazards at the module, cabinet, and system levels instantly.

Q3: Can this system be used for peak-valley arbitrage? A: Yes. The intelligent EMS allows the system to charge during low-cost off-peak hours and discharge during high-cost peak demand periods, effectively reducing industrial electricity expenses.

Q4: What customization options are available? A: We support on-demand customization including specific LOGO application, color adjustments, and appearance size modifications to fit your specific site requirements.

Q5: Is the system suitable for outdoor installation? A: Absolutely. The unit features an IP54 rating and C3 corrosion resistance, making it robust enough for various commercial and industrial outdoor environments.

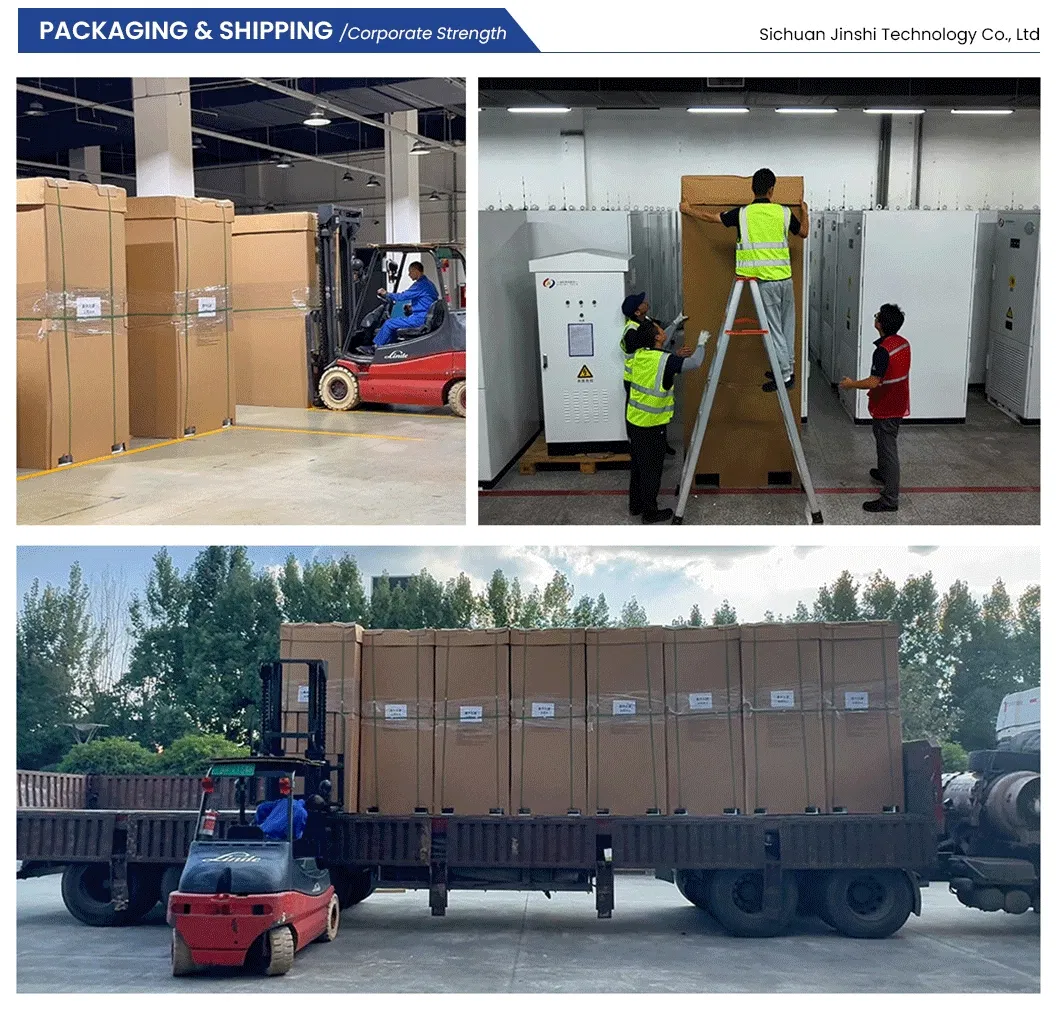

Q6: What payment and transportation methods are available? A: We support multiple payment methods including T/T, Western Union, and PayPal. For transportation, we offer sea, air, and land freight options based on the destination and cargo requirements.
