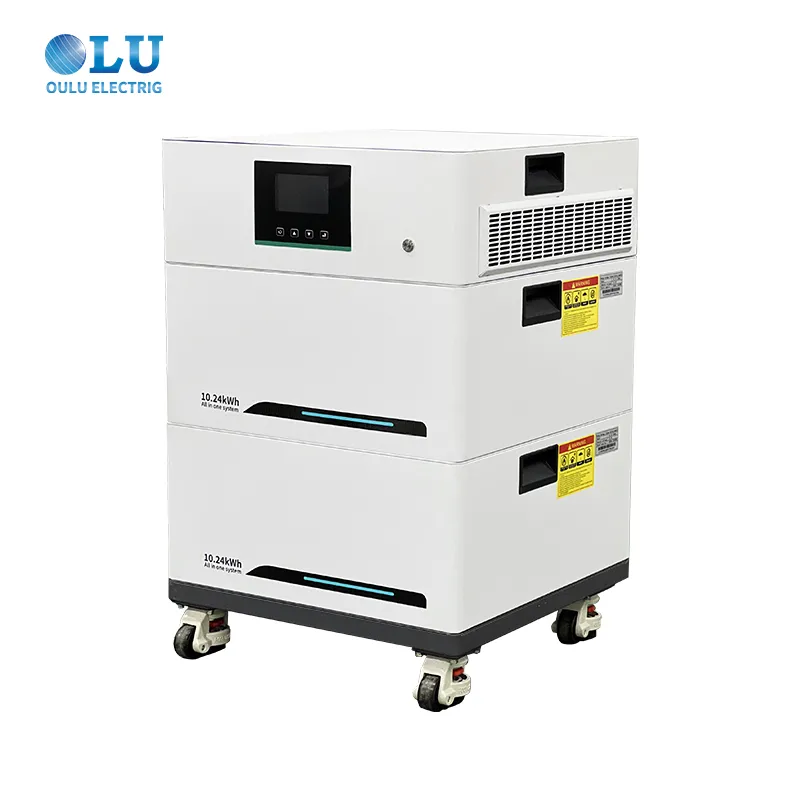

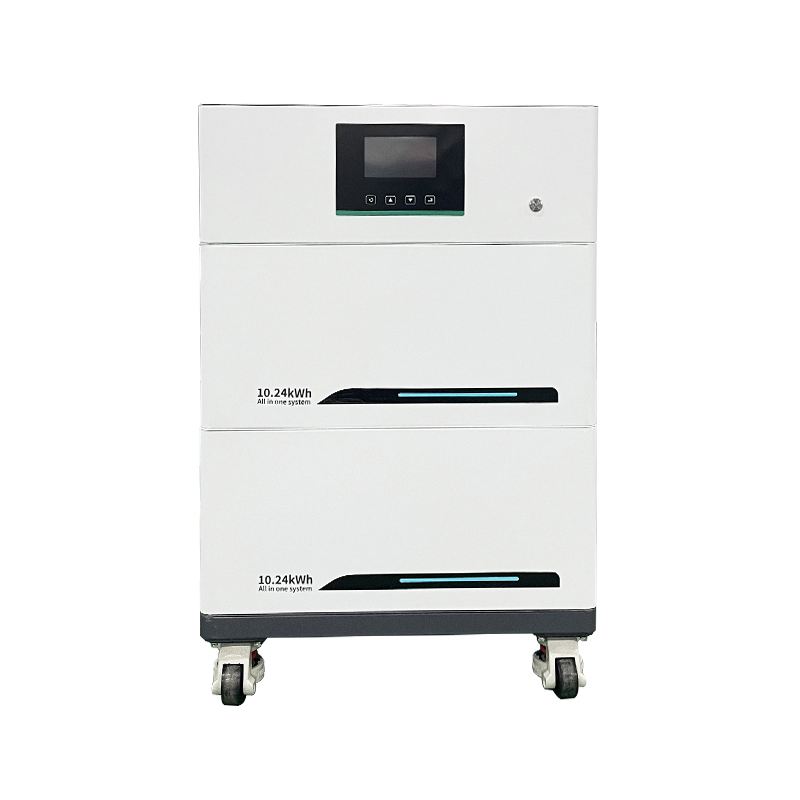

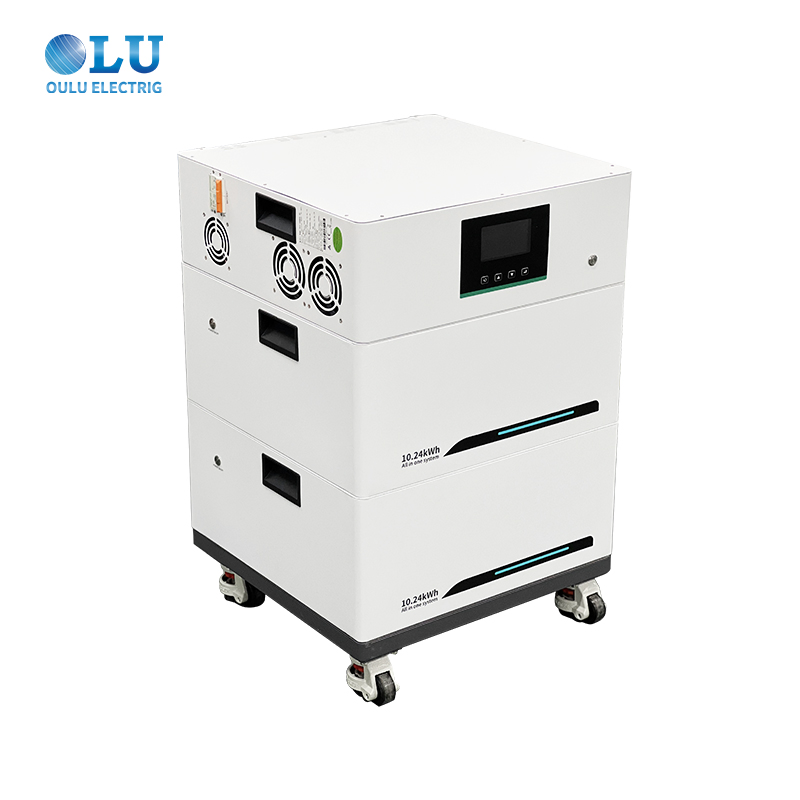

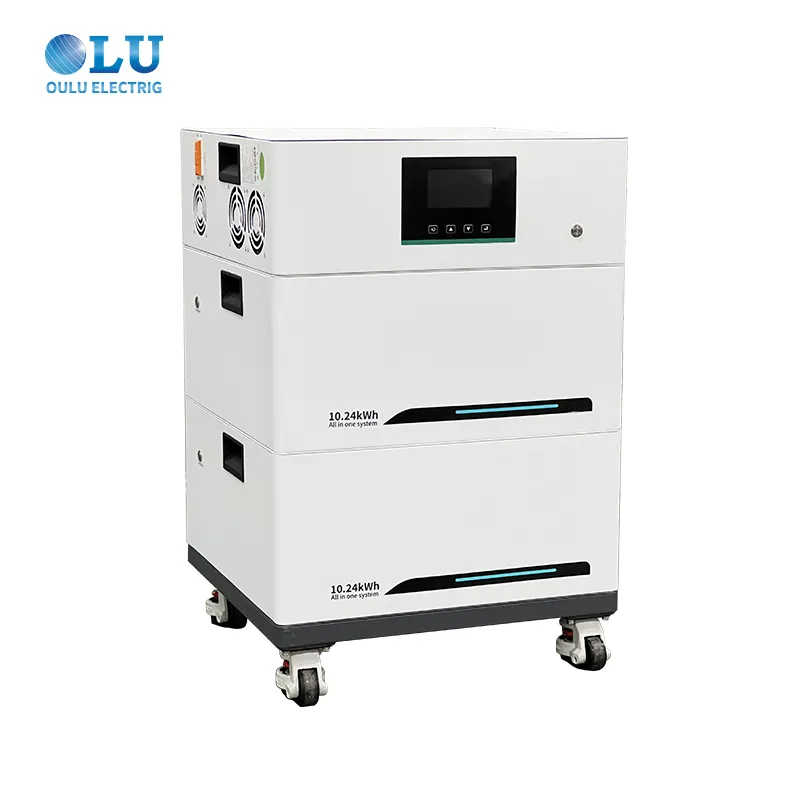

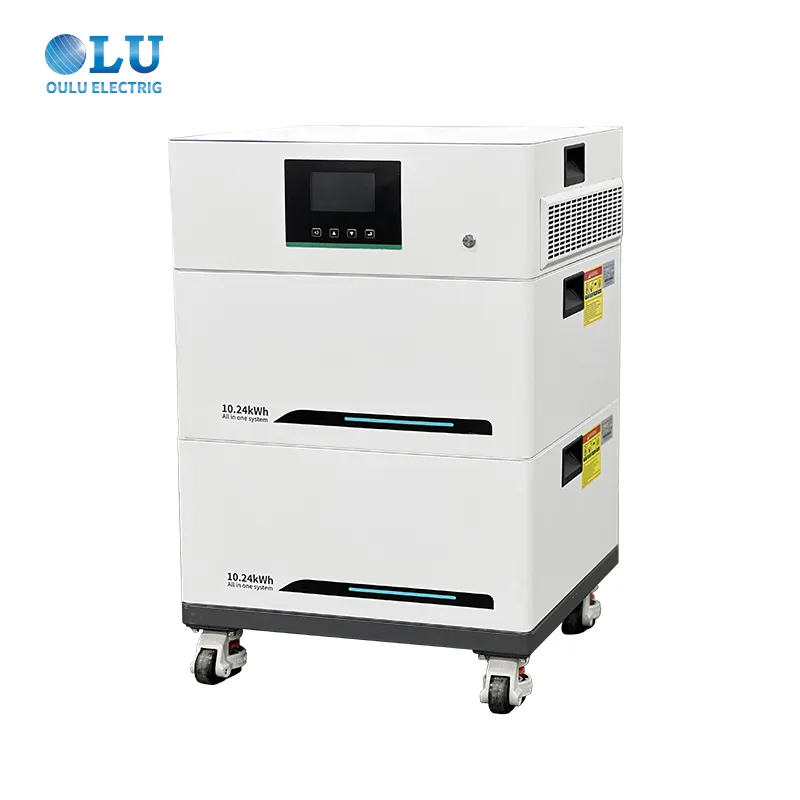

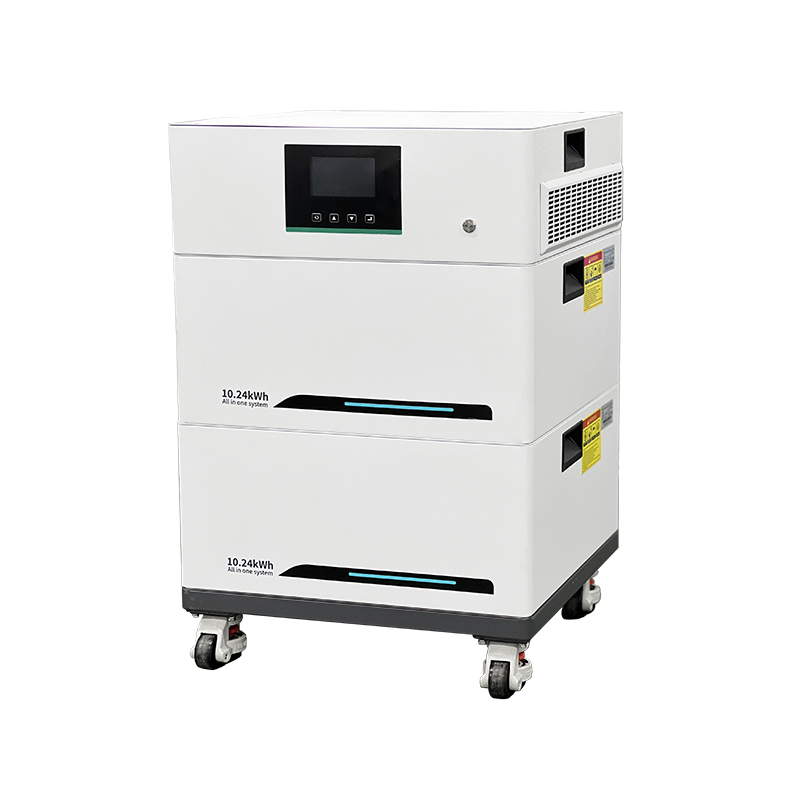

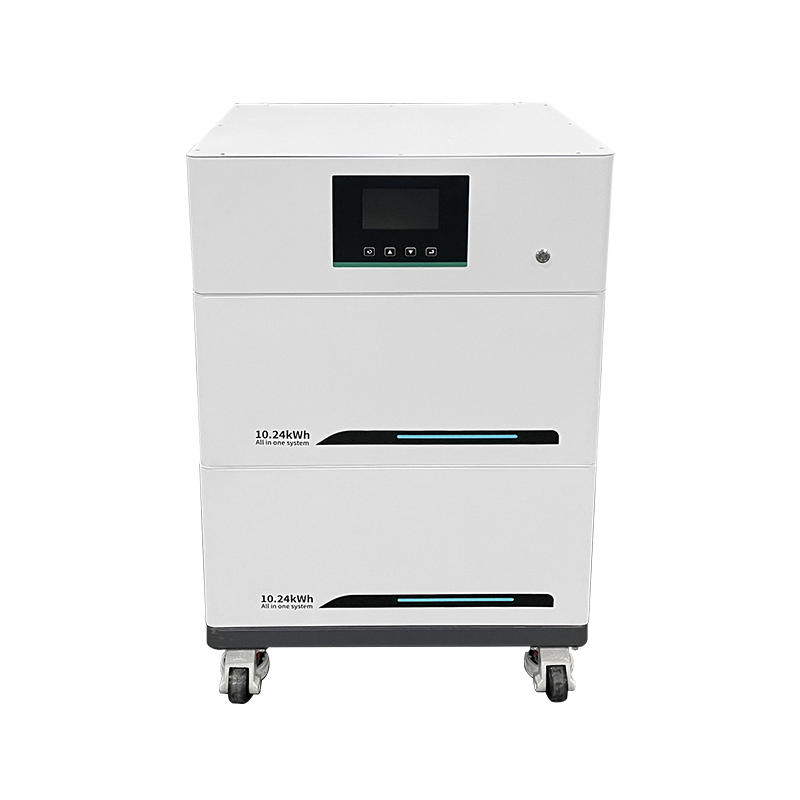

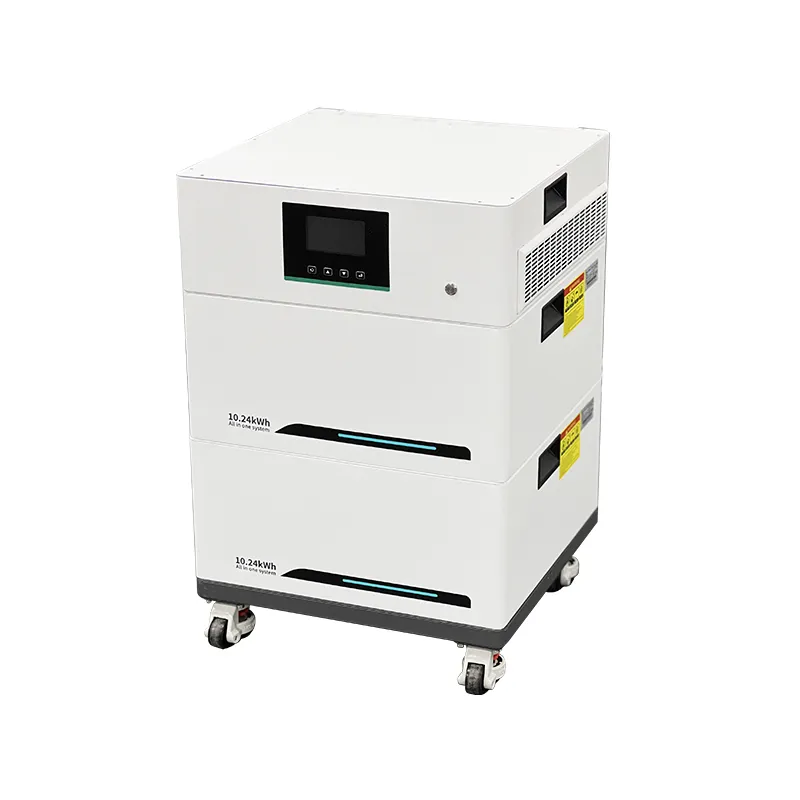

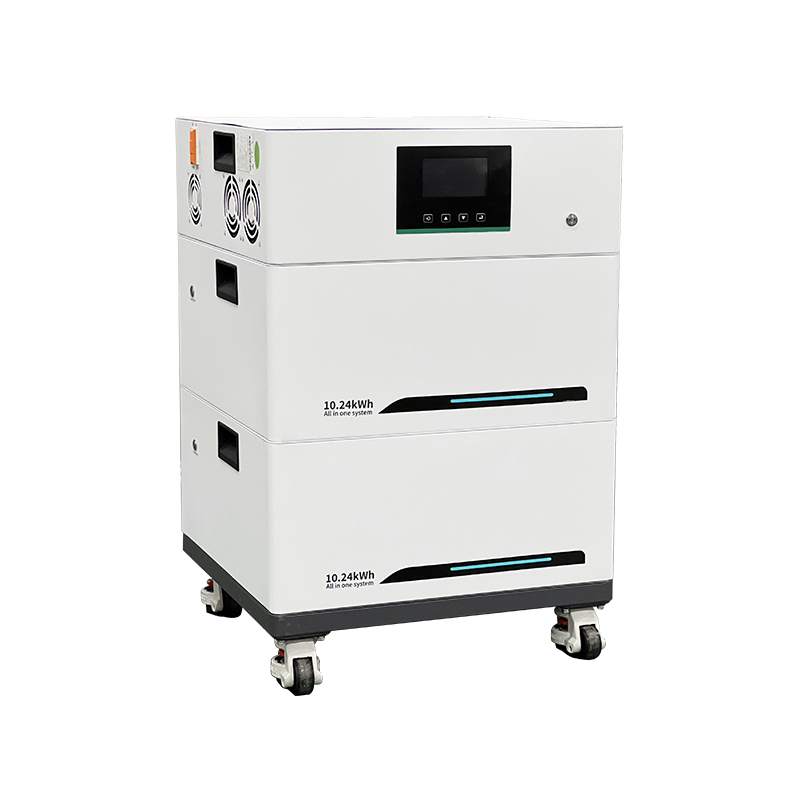

The All-in-One Energy Storage Battery System integrates multiple components into a single compact unit for complete energy management solutions. This system provides reliable backup power and energy storage capabilities with simplified installation and maintenance requirements.
Combines inverter, battery, and control functions in a single unit, reducing installation time.
Designed for residential backup power and household energy independence.
High inverter compatibility and broad input voltage range for seamless solar integration.
| Inverter Parameters | |
|---|---|
| Rated Power | 10kW |
| AC Rated Voltage | 230VAC |
| Efficiency | 93.50% |
| Waveform | Sine wave |
| Max. PV Array Power | 11kW |
| MPPT Voltage Range | 90-450VDC |
| Battery Parameters | |
| Rated Capacity | 20.48kWh |
| Nominal Voltage | 51.2V |
| Max. Charging Current | 200A @ 25℃ |
| Communication | RS485/RS232/CAN |
| Working Temp (Discharge) | -20℃ ~ 60℃ |
| Battery Gross Weight | 132kg |
