This system can be configured according to specific needs. Exclusive solutions are available for various commercial and industrial requirements.
Remarks: 1. Different mounting structures are available for various roof materials.
Remarks: 2. All systems can be designed per specific requests.

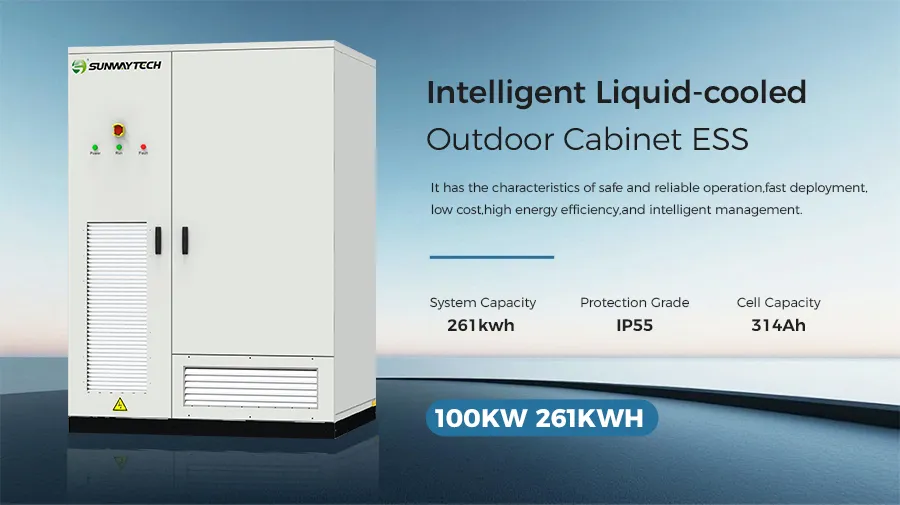

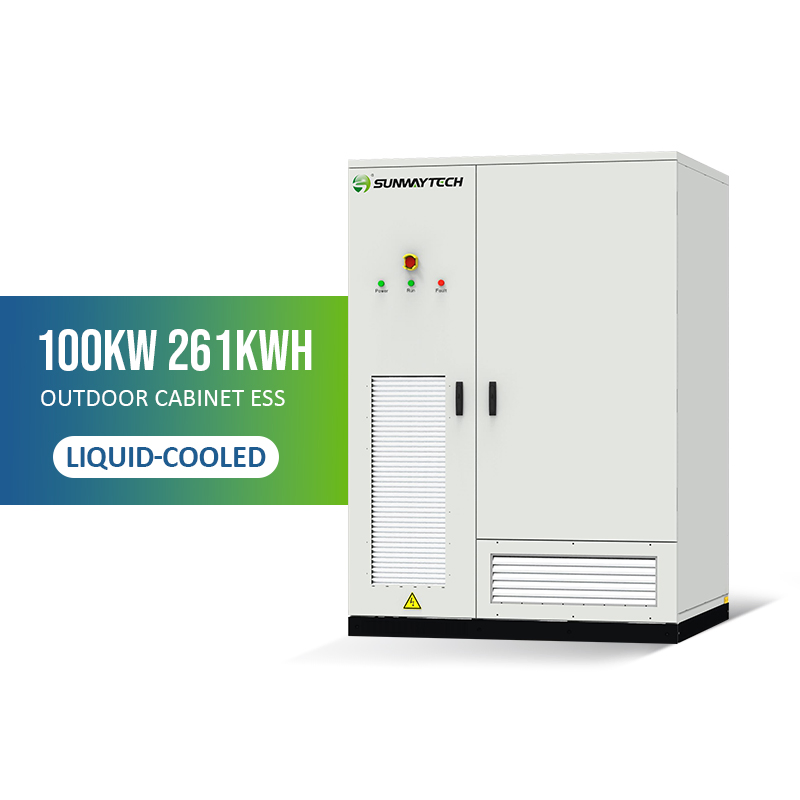

| Battery Parameters | |
| Battery Rated Capacity | 261kWh |
| Battery Rated Voltage | 832V |
| Battery Type | Lithium iron phosphate battery(LFP) |
| Cell Capacity | 314Ah |
| Max. Charge/Discharge Current | 157A |
| Photovoltaic Parameters | |
| Rated Power | 100kW |
| PV Voltage Range | 250~500V(MPPT) |
| MPPT Quantity | 2 |
| AC Parameters | |
| Rated AC Power | 125kw |
| Rated AC Voltage | 400V,3W+N+PE |
| Protection Level | IP55 |
| Ambient Temperature | -25°C~+60°C |

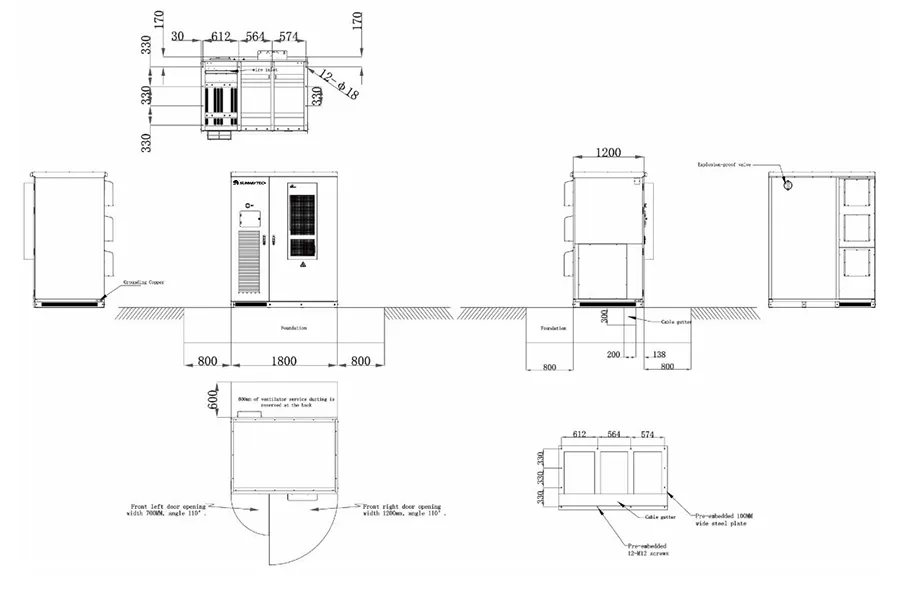

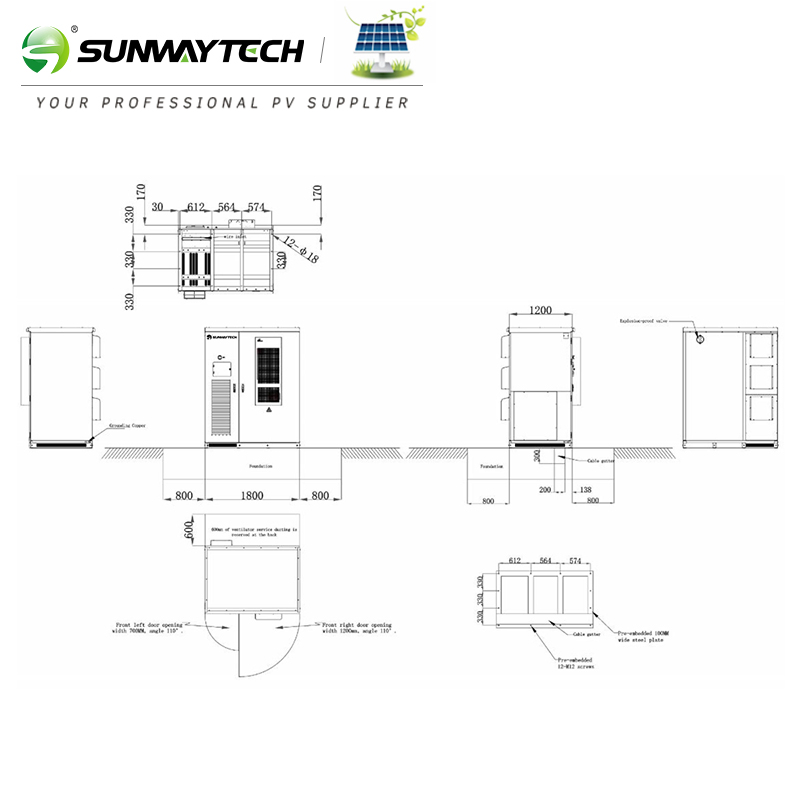

| Dimension(W*D*H) | 1600*1350*2300mm |

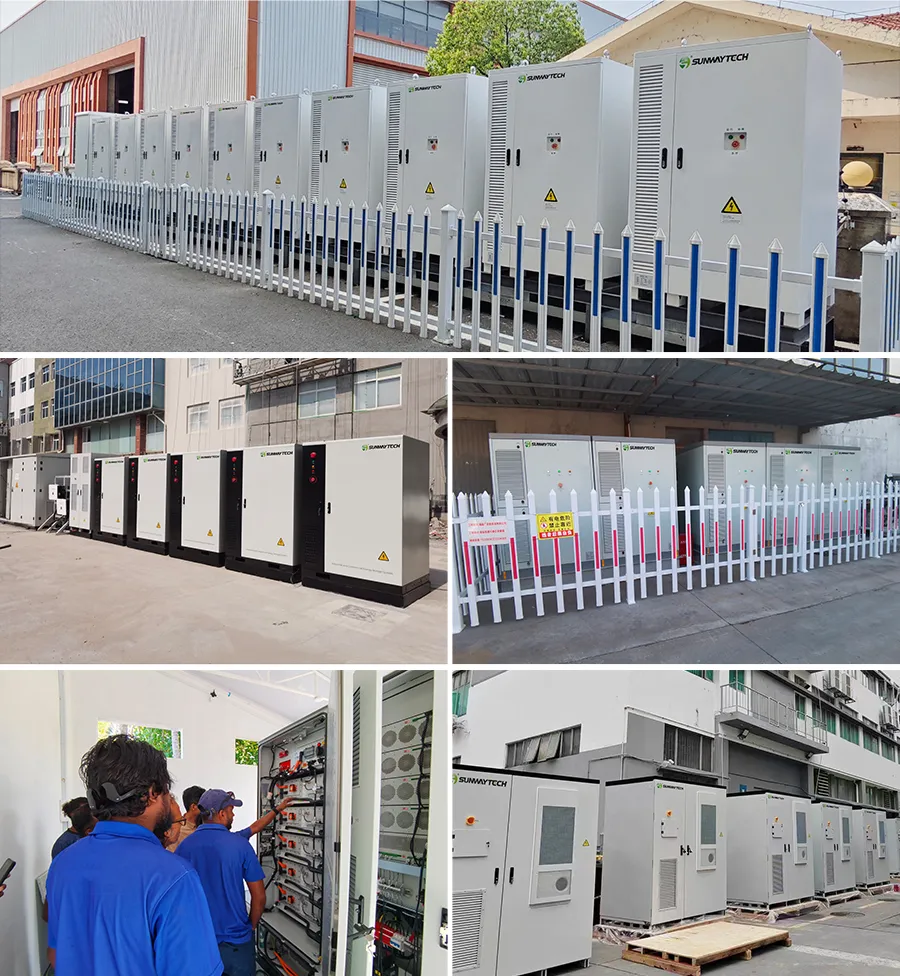

Schools, factories, gas stations, and other commercial buildings with high energy demands can maximize energy independence and reduce grid power demand through solar PV and battery storage. These solutions help save on electricity bills, reduce the risk of rising energy prices, and generate additional revenue from renewable energy.

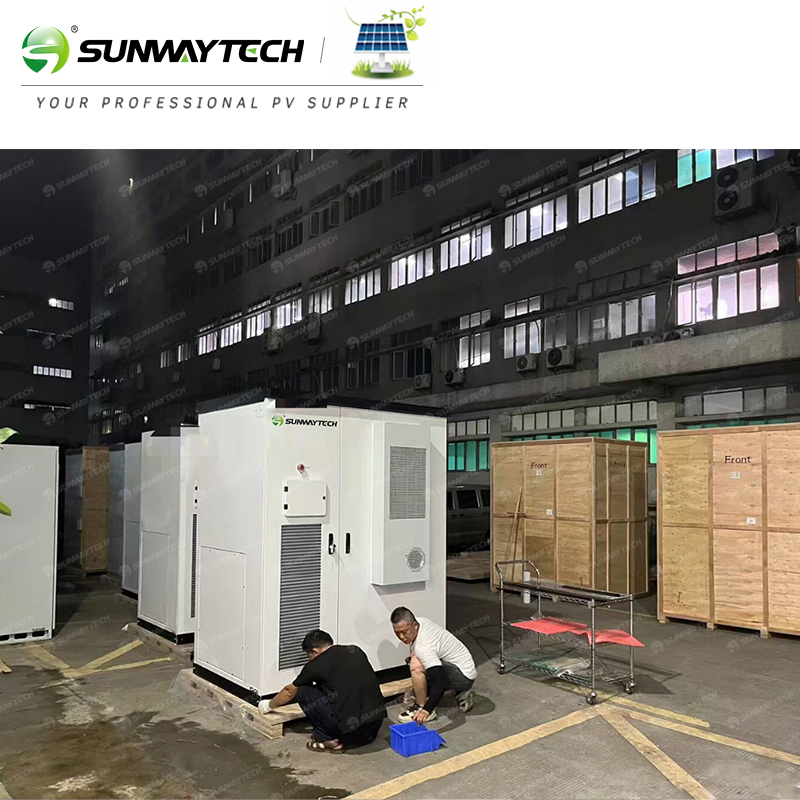

Wooden box packaging enables high-strength stacking, simple operation, and high cost-effectiveness. Extra-large and extra-long sizes can be easily assembled. The units can be loaded and unloaded from the front and transported flat or in kits to the assembly site.
