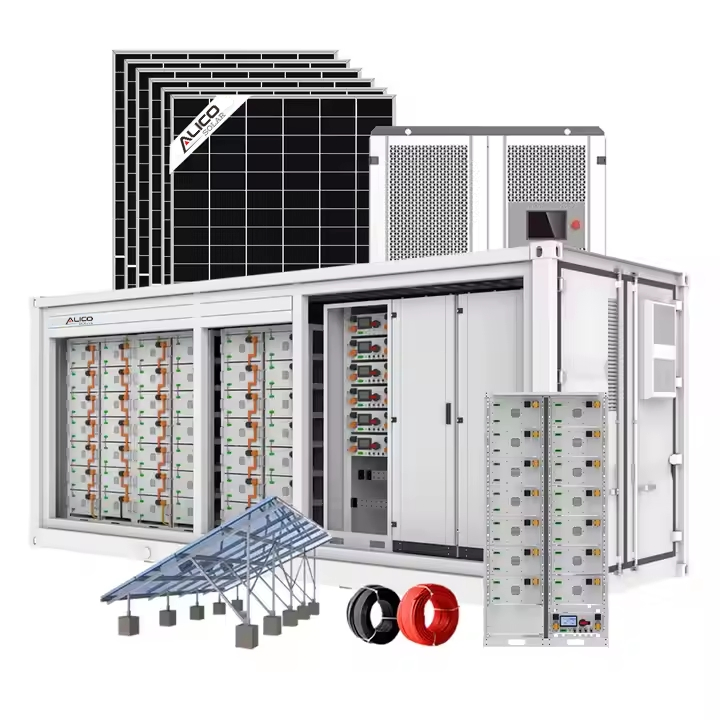

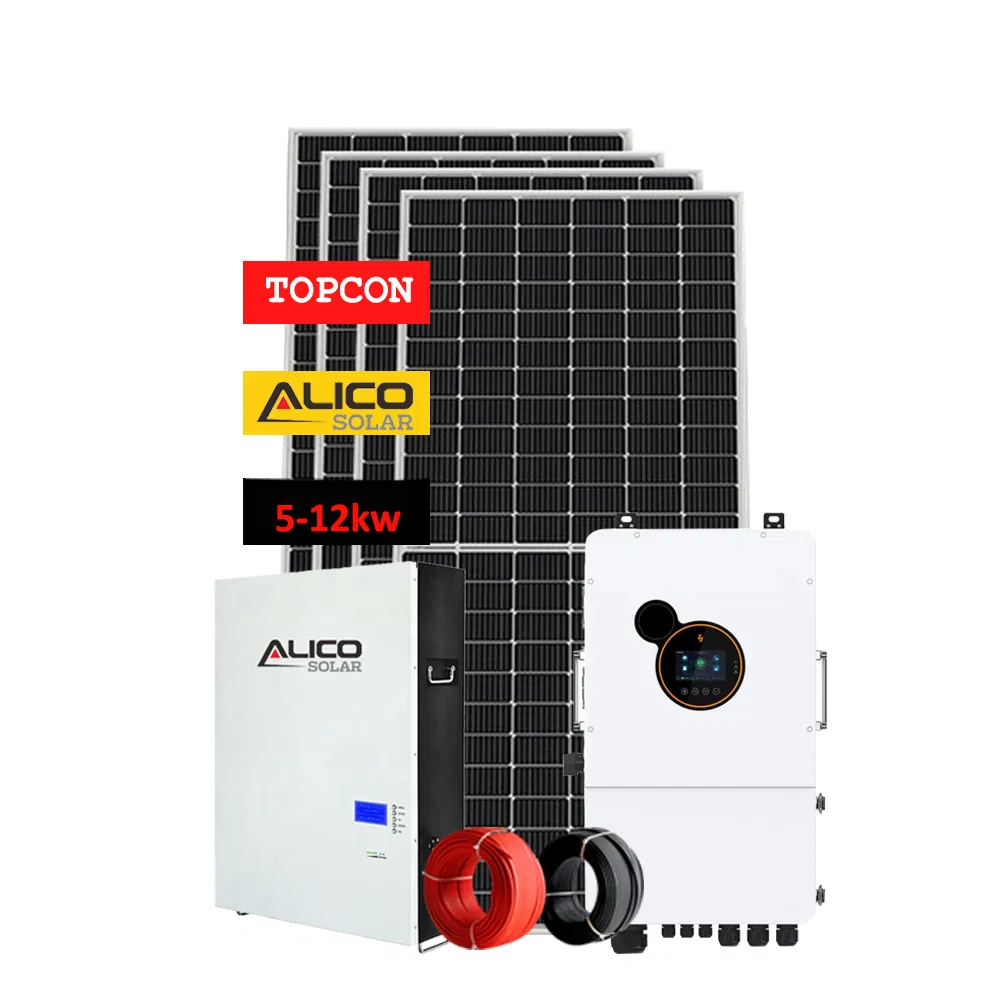

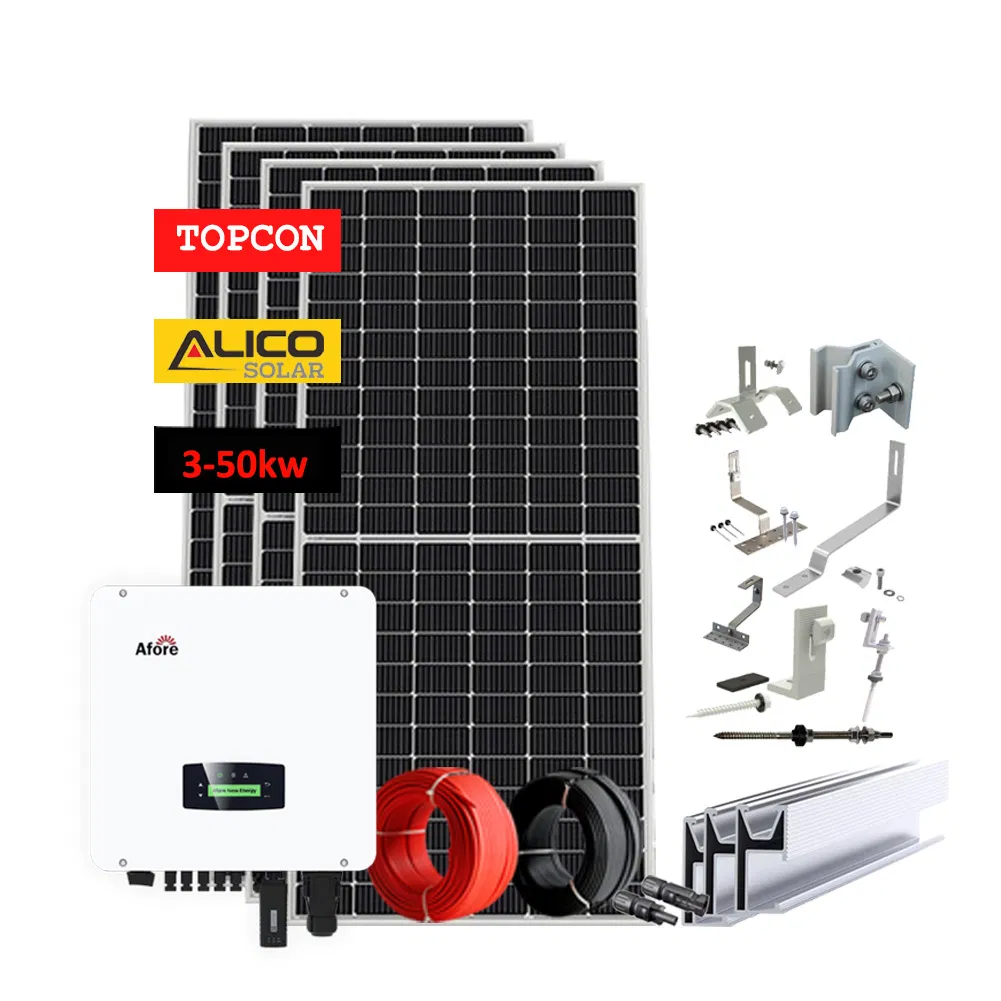

10kw Hybrid on Grid Home Potovoltaic Solar System 10kVA with PV Solar Panel Module LiFePO4 Lithium-Ion Battery Energy Storage Solar Grid Til Inverter

1 / 5

10kw Hybrid on Grid Home Potovoltaic Solar System 10kVA with PV Solar Panel Module LiFePO4 Lithium-Ion Battery Energy Storage Solar Grid Til Inverter

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋Basic Information

Model NO.

AS-ON-10K

Condition

New

Certification

ISO, CE

Application

Home, Industrial, Commercial

Mounting Support

Roof or Ground Solar Mount

Solar Inverter

Grid-Tied Inverter

System Type

Home Energy Storage System

Solar Panel

Mono N-Type HJT

Capacity

2 GW/Year

📦Packaging & Delivery

Package Size

4100.00cm * 3200.00cm * 1800.00cm

Gross Weight

2000.000kg

⚙On Grid System Configuration

Name	Description	Quantity
Solar Panel	Mono 550W 72HF Cells PV Module	24-1250 Pieces
DC Disconnect Switch	IP66 1000VDC 16A	2 Set
On Grid Inverter	10KW to 500kw	1 Set
AC Disconnect Switch	IP 66 1000VDC 32A	1 Set
DC Cable	4mm2	200 - 2000 Meters
MC4 Connector	4mm2 1000VDC	10-1000 Pairs
Mounting System	Standards Pitched Roof (Customized)	1 Set
PV Tools	Wire Cable Cutter & Stripper, Disassembly Tool	1 Set

☀Product Features

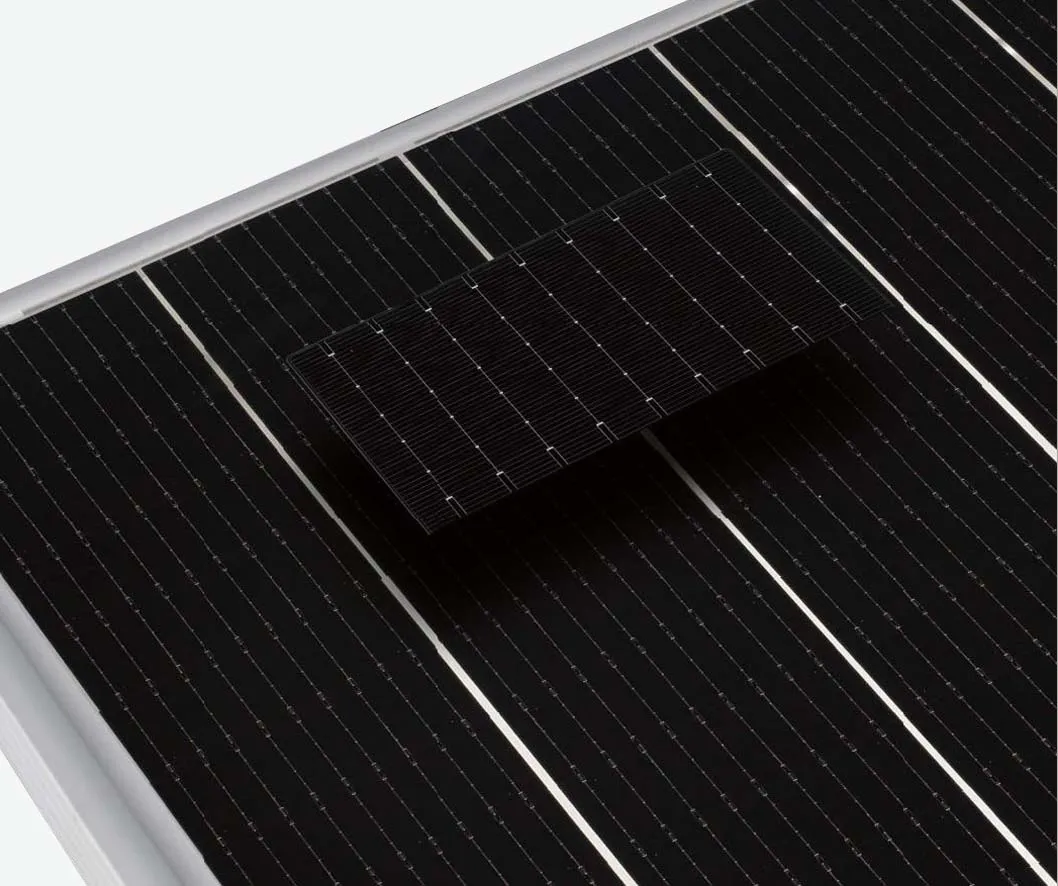

Mono Solar Panels

Peak Power Watts: 480W
Maximum Power Voltage: 49.2V
Maximum Power Current: 9.02A
Open Circuit Voltage: 42.8V
Short Circuit Current: 11.2A

5-125KW On-Grid Inverter

Rated Grid Voltage: 208/240V(US); 230V(EU)
Warranty: 5-10 Years
Wifi Stick For STD, Lan & GPRS Optional.

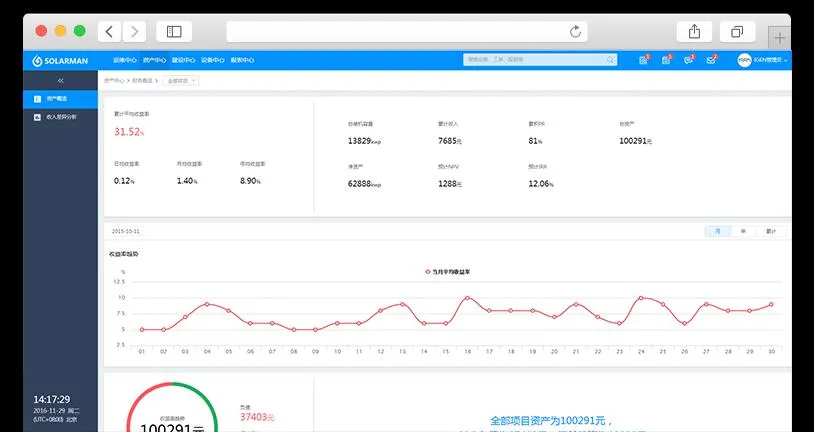

Remote Monitoring System

Data Logging Stick allows real-time tracking of PV system performance and atmospheric conditions via web server. App available for PC, IOS & Android.

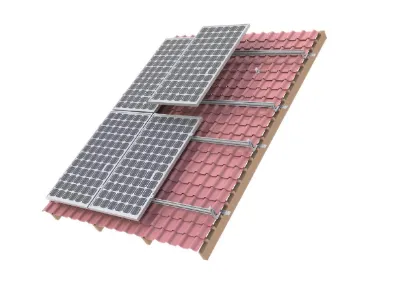

PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt. Mid & End Clamps: 35-50mm. Options for Asphalt Shingle Mount, Hanger Bolts, and Grounding Lugs.

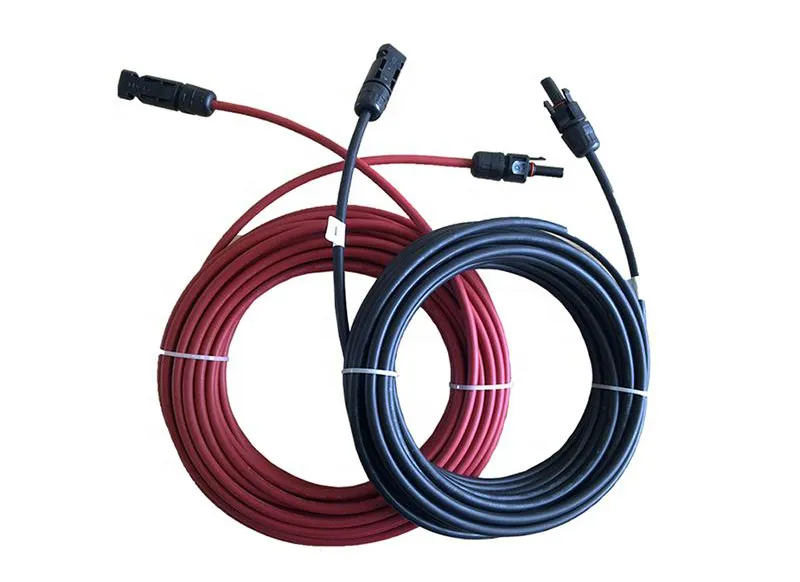

DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 Optional. Rated Voltage: 1000VDC(TUV). Lifetime: ≤25 Years. Standard Black and Red available.

🚢Packaging & Shipping

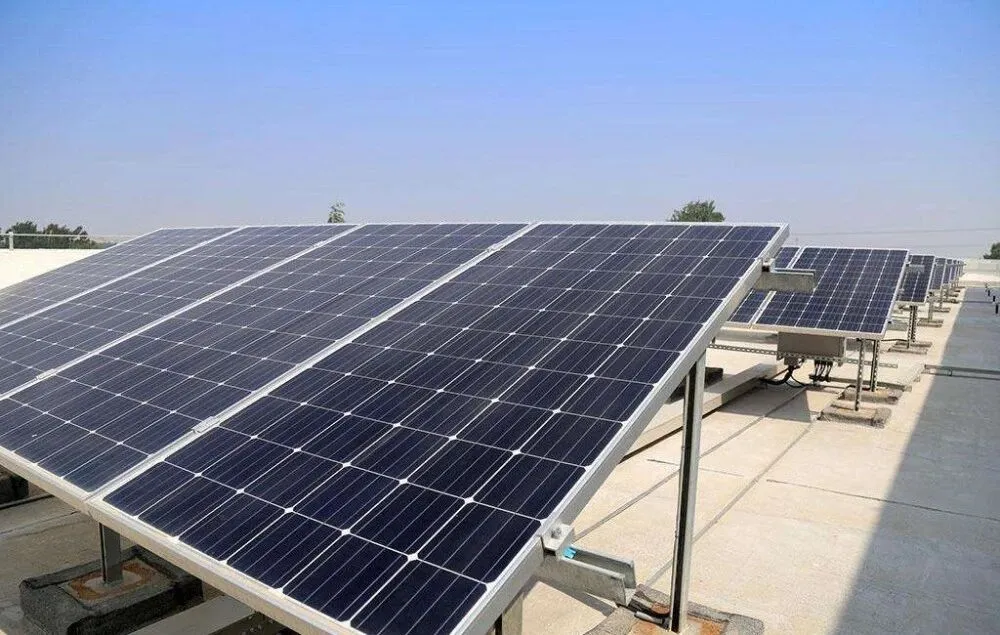

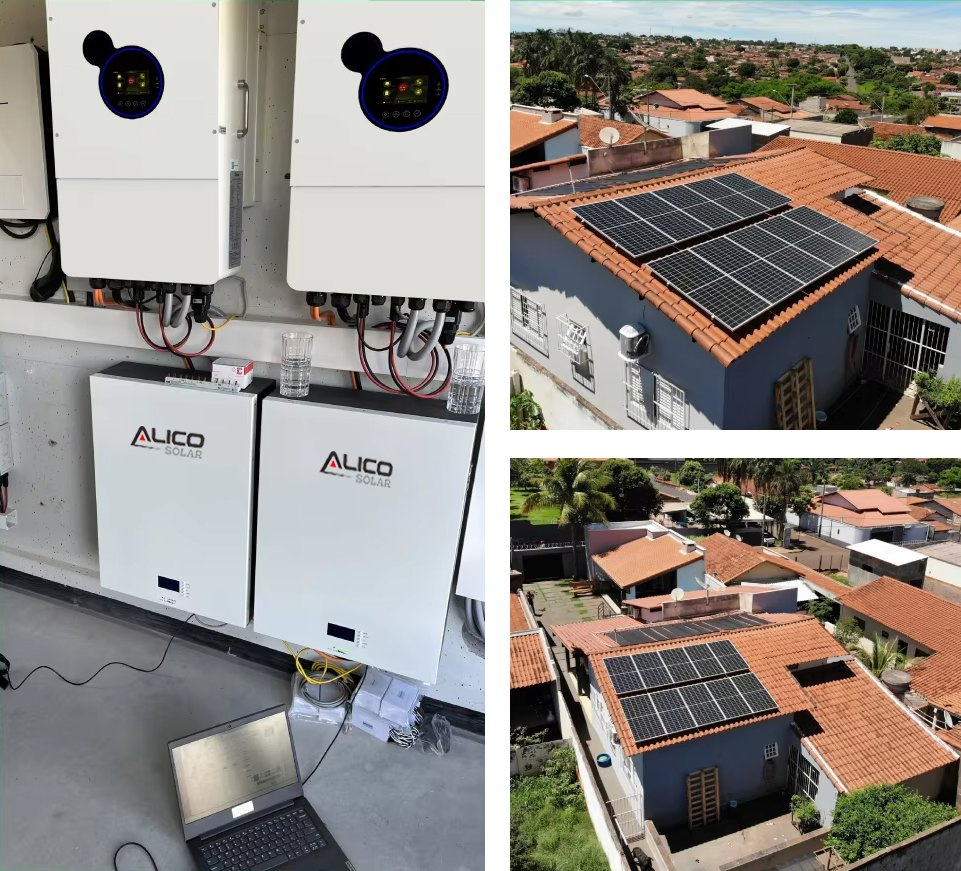

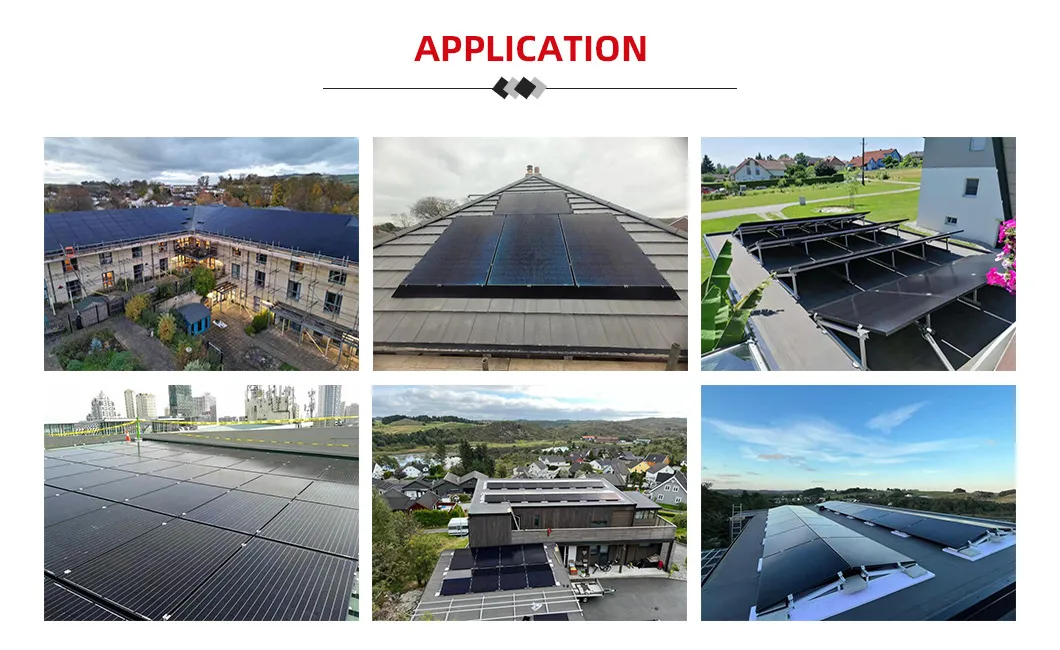

🏚Projects Shown

12MW Commercial Metal Roof Solar Plant

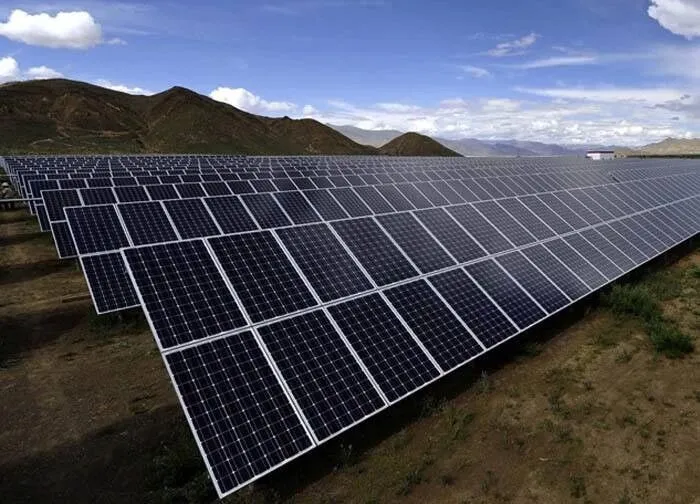

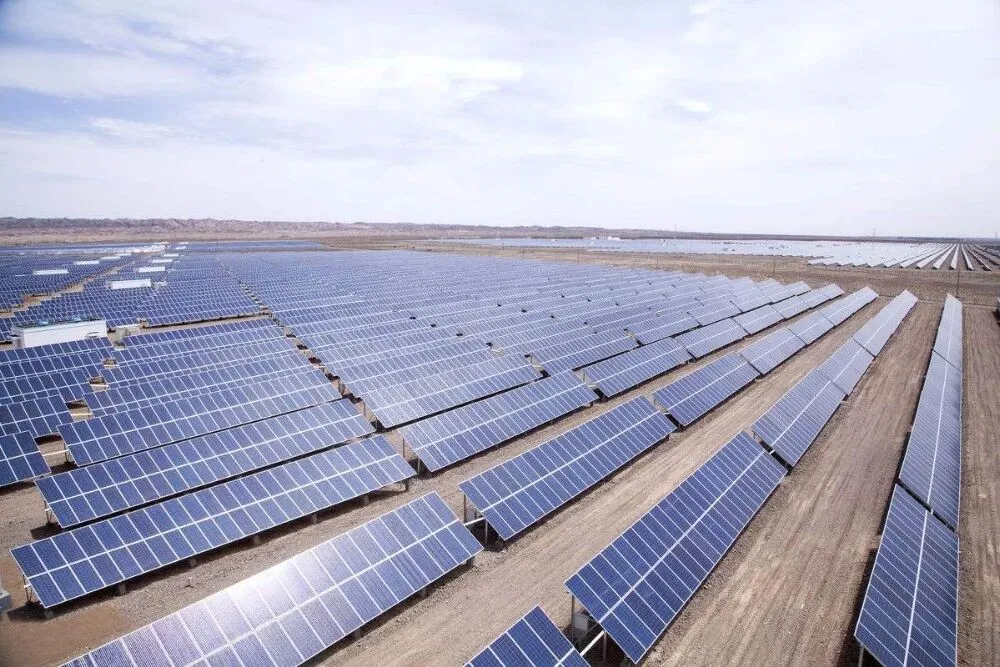

20MW Ground Solar Plant

50MW Solar Plant

20KW Solar Plant

❓Frequently Asked Questions

Q1: What is included in the 10kW On-Grid solar system package? The package includes Mono solar panels, a grid-tied inverter, DC/AC disconnect switches, DC cables, MC4 connectors, and a complete mounting system.

Q2: Can this system be monitored remotely? Yes, it comes with a data logging stick and supports monitoring via Wi-Fi, Lan, or GPRS with apps available for iOS, Android, and PC.

Q3: Is the mounting system compatible with my roof type? Standard systems are designed for pitched roofs, but we offer customized options for flat roofs, ground mounts, and various roof materials.

Q4: What is the expected lifespan of the components? The solar panels and DC cables are designed for a lifetime of up to 25 years, while the inverter typically comes with a 5 to 10-year warranty.

Q5: Is this system suitable for commercial use? Yes, our systems are highly scalable and suitable for residential, industrial, and commercial applications.

Q6: Are the materials certified for international standards? Yes, the components carry essential certifications such as ISO, CE, and TUV to ensure safety and performance.
