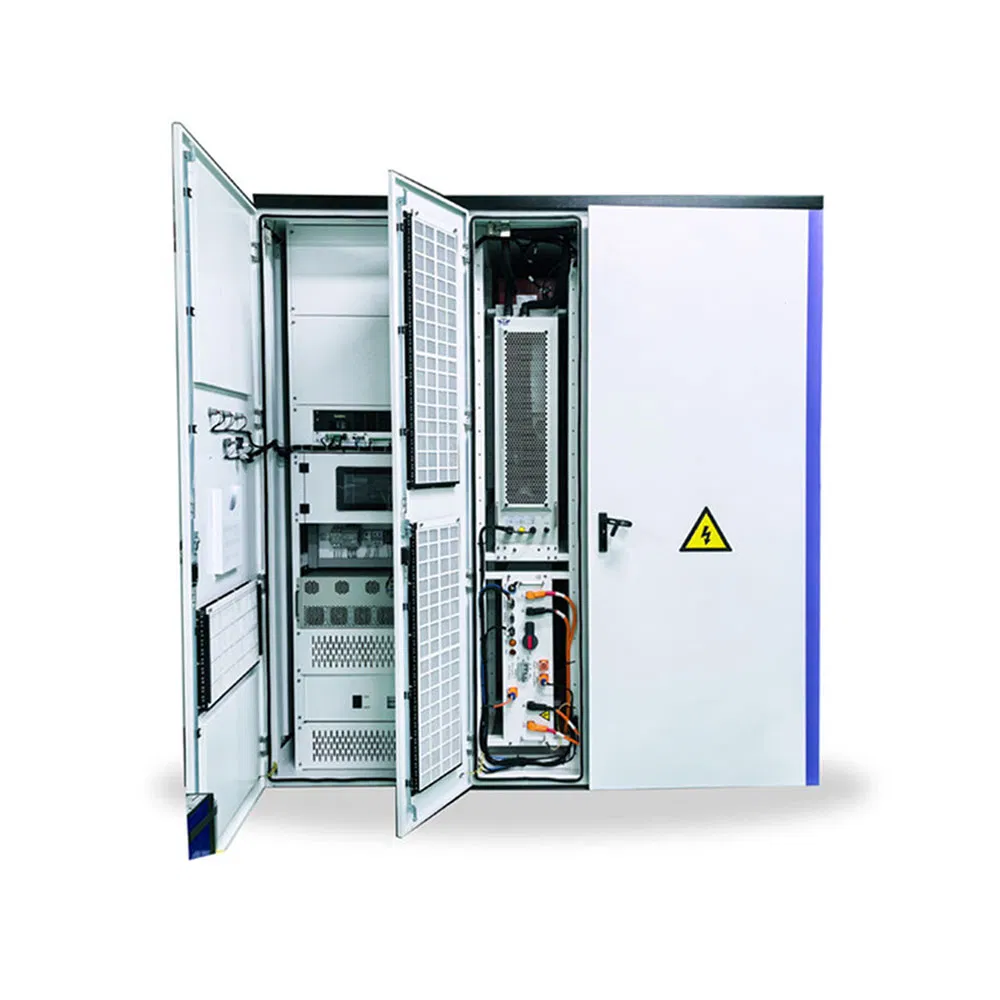

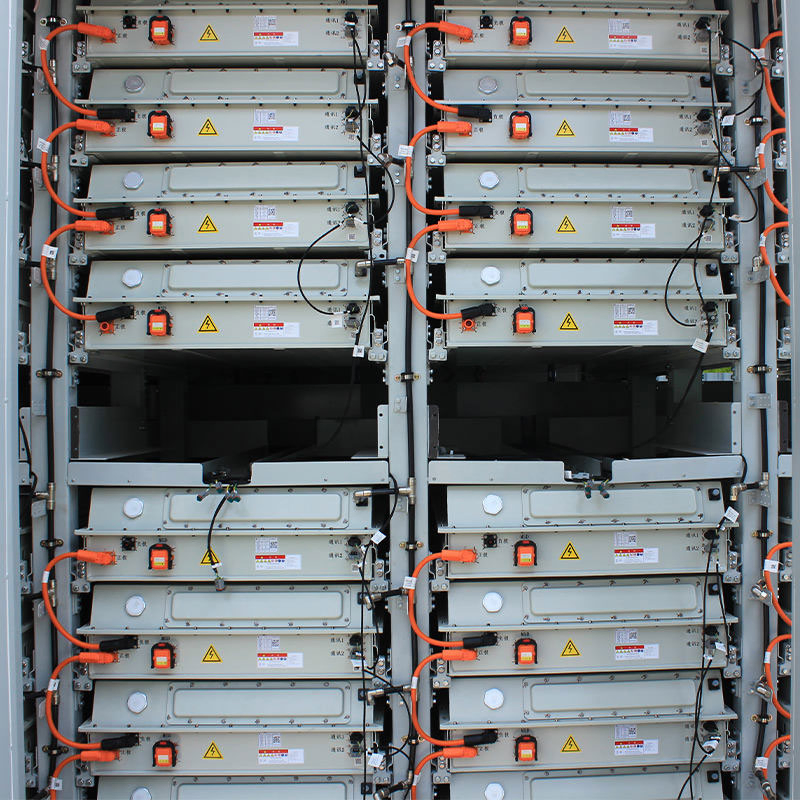

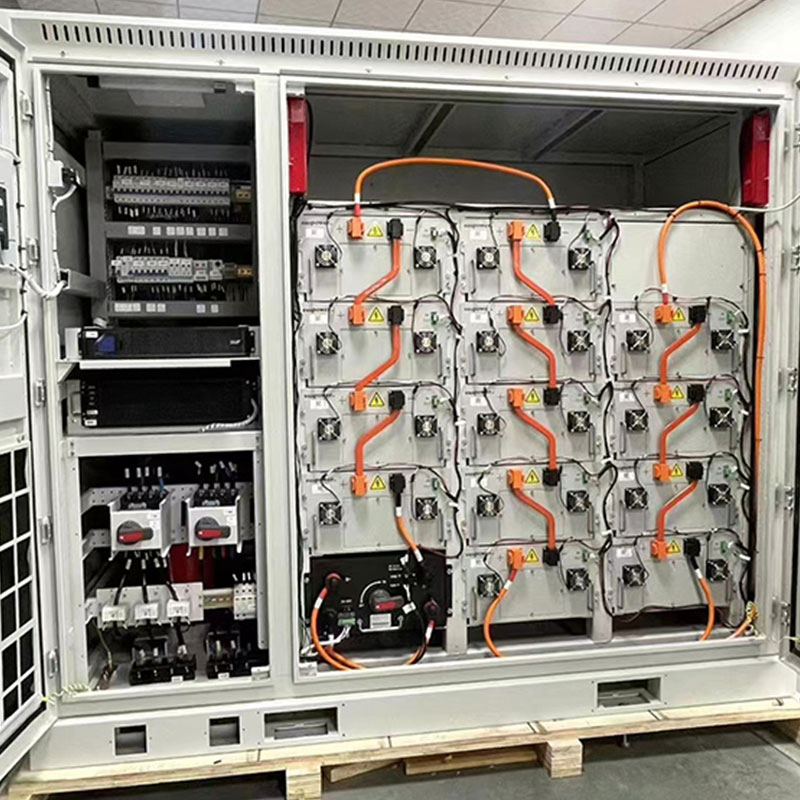

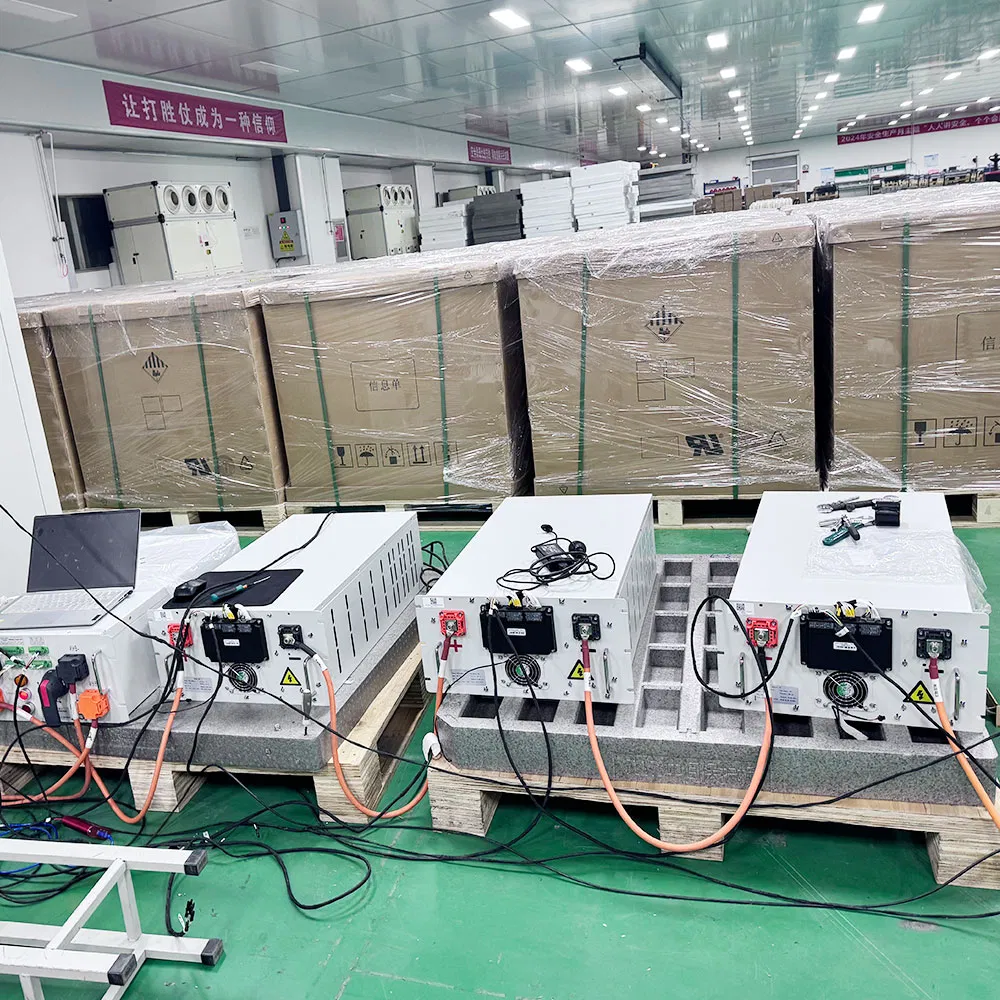

Design of Integrated Container Type Energy Storage System for Industry and Commerce 372kwh Three-Phase off Grid Solar Hybrid Energy Storage System

Customization: Available
Container Size: 2700*2900*1900mm
Weight: 4.5t

Product Description

Overview
Model NO. PLPF0280C0-1331R2A Nominal Voltage 1331.2
Warranty 2y Nominal Capacity 373
Cycle Life Yes Battery Type 302V/280ah
Rated Output Power 2200kVA Rated Grid Voltage 690V
Operating Temperature -30℃— 60℃ Transport Package Container
Specification 2300*2500*1400mm Origin China
Product Description

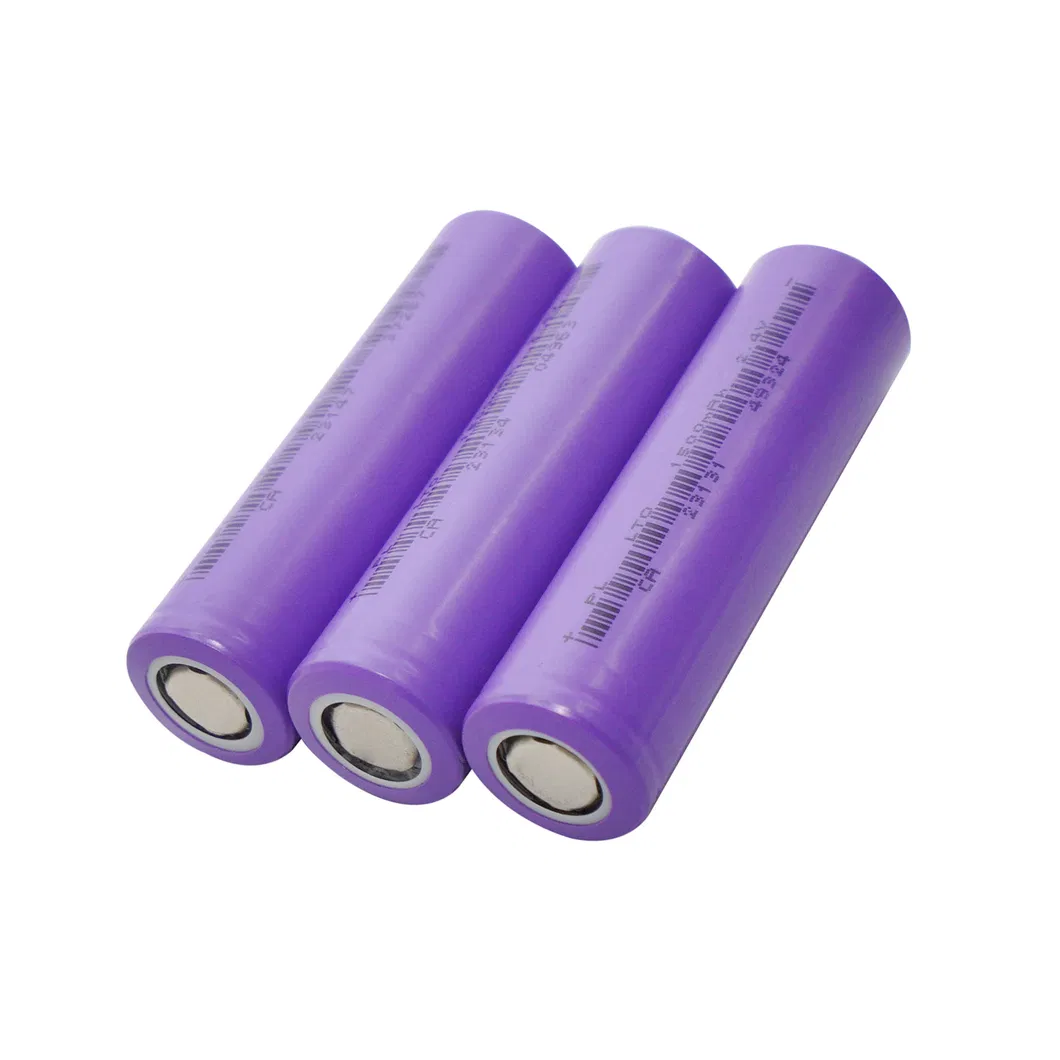

Energy Storage System Component 1

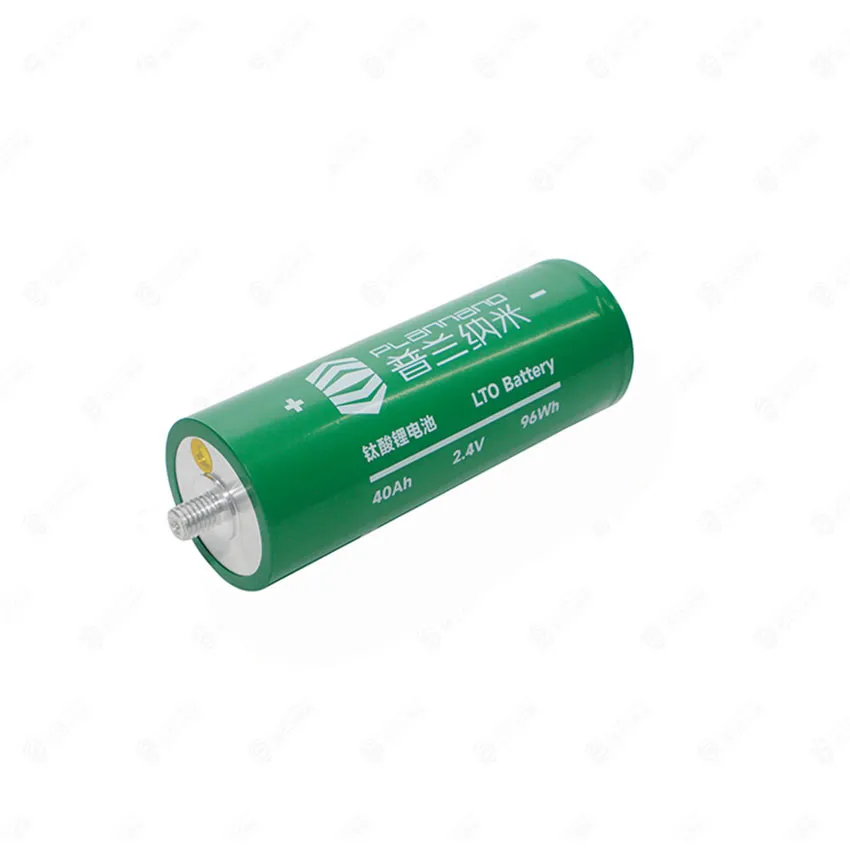

Energy Storage System Component 2

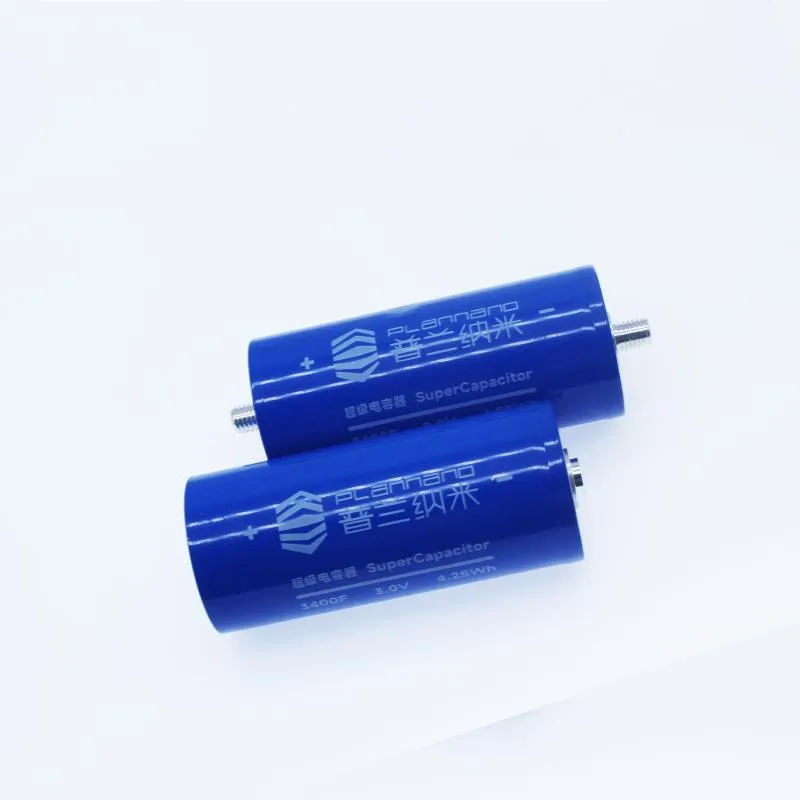

Energy Storage System Component 3

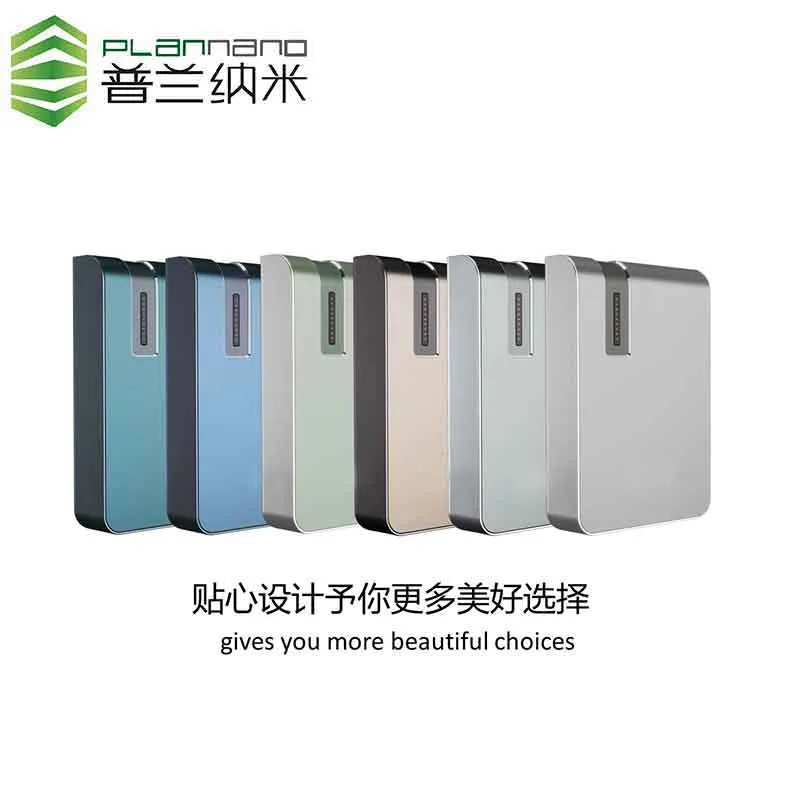

Energy Storage System Component 4

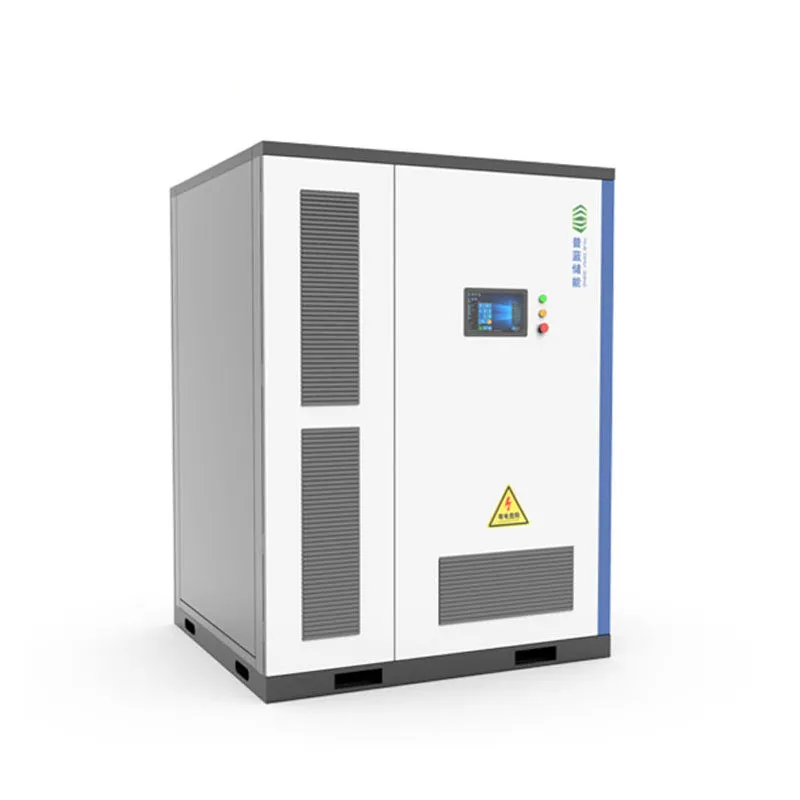

Energy Storage System Component 5

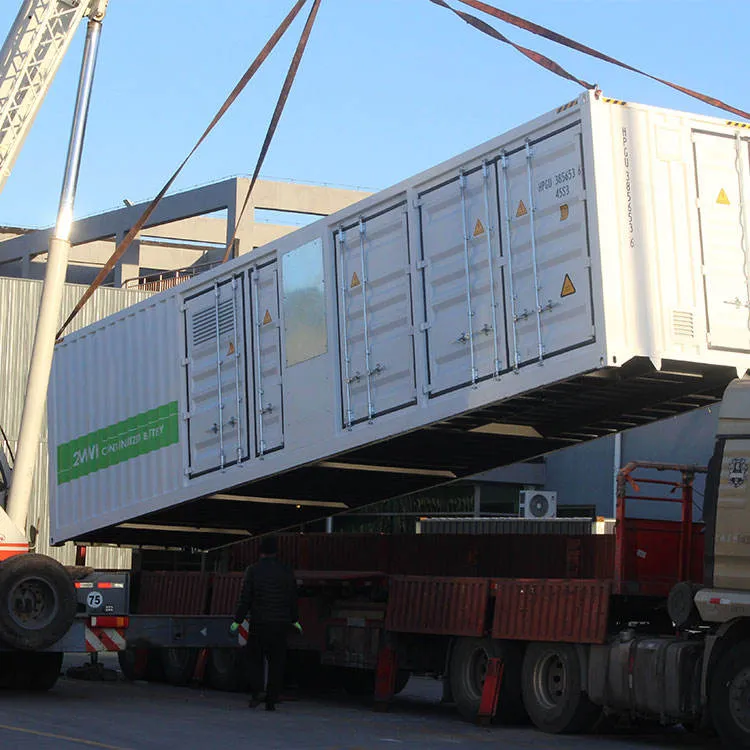

Energy Storage System Component 6
Product Parameters
Product modelPLPF0280C0-1331R2A
Battery parameter1p416s
Cell type3.2V/280Ah
Cell life≥6000@100%DOD,80%EOL
Rated battery capacity373kWh
AC PARAMETERS
Rated output power110kW
AC output power184A
Rated grid voltage690V
Grid voltage range±15%
Rated grid frequency50Hz/60Hz
Grid frequency range±2.5Hz
Power factor-1(leading)~1(lagging)
THDI<=3(at rated power)
Isolation modeTransformer Isolation(optional)
AC off grid voltage400V
SYSTEM PARAMETERS
Product Size2300X 2500X 1400mm
Humidity range0~95%(No condensation)
Operating temperature-30~ 60ºC
Cooling methodair/Liquid Cooled
Fire extinguishing systemAerosol/Perfluorocopper (optional)
Maximum altitude4000m
Communication protocolModBus -TCP/ModBus -RTU/IEC104
Detailed Photos
Detailed System View 1

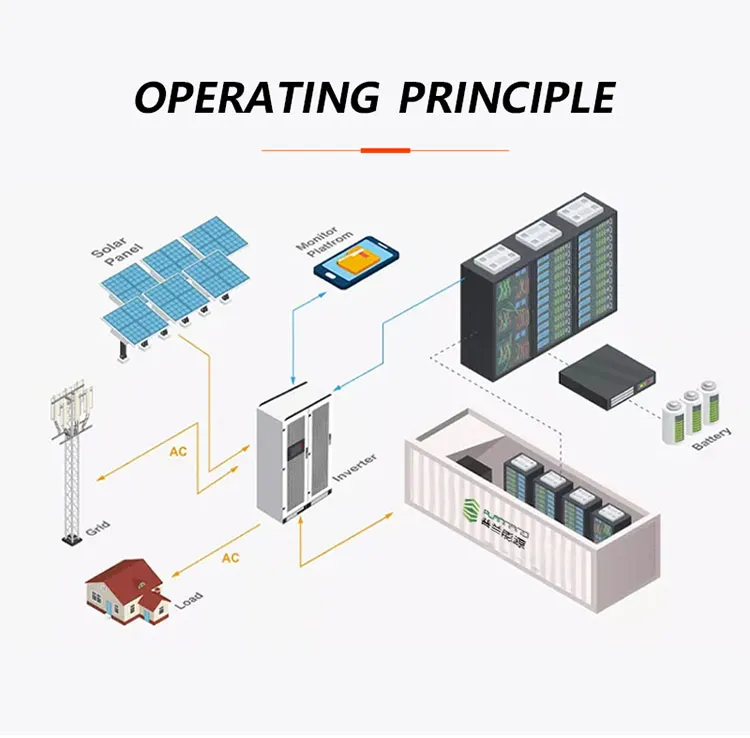

Detailed System View 2
Detailed System View 3

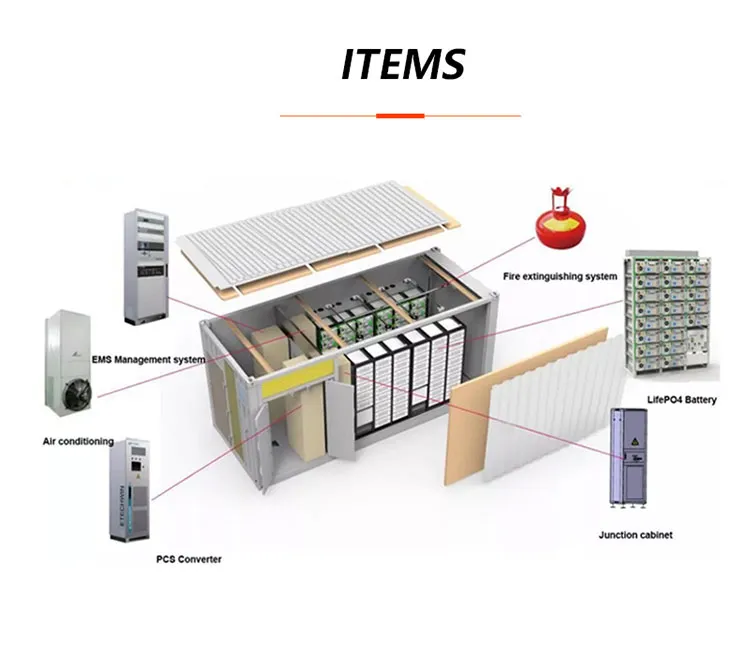

Detailed System View 4
Packaging & Shipping

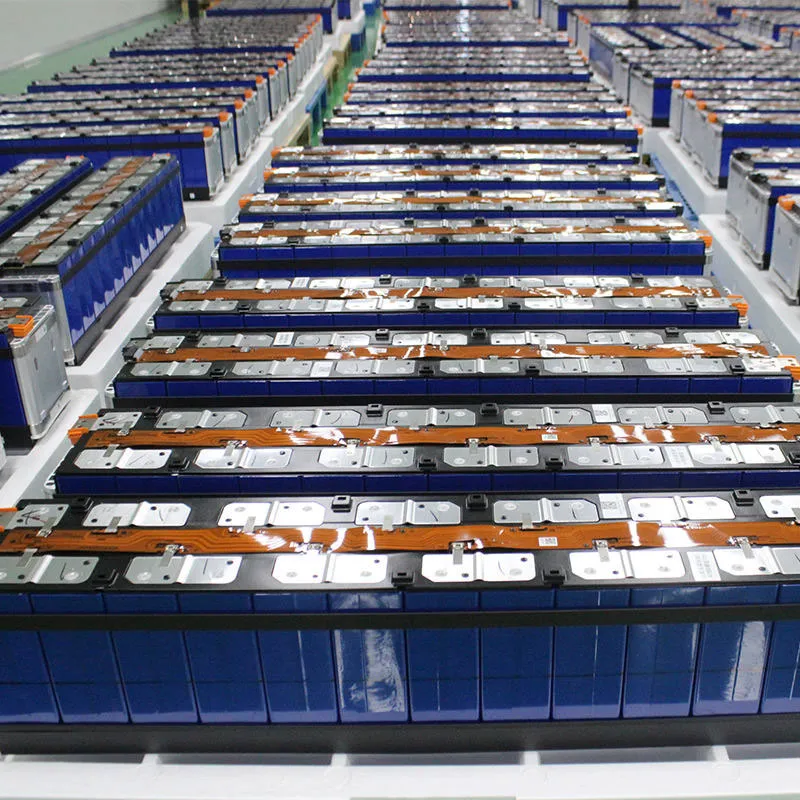

Packaging Process 1

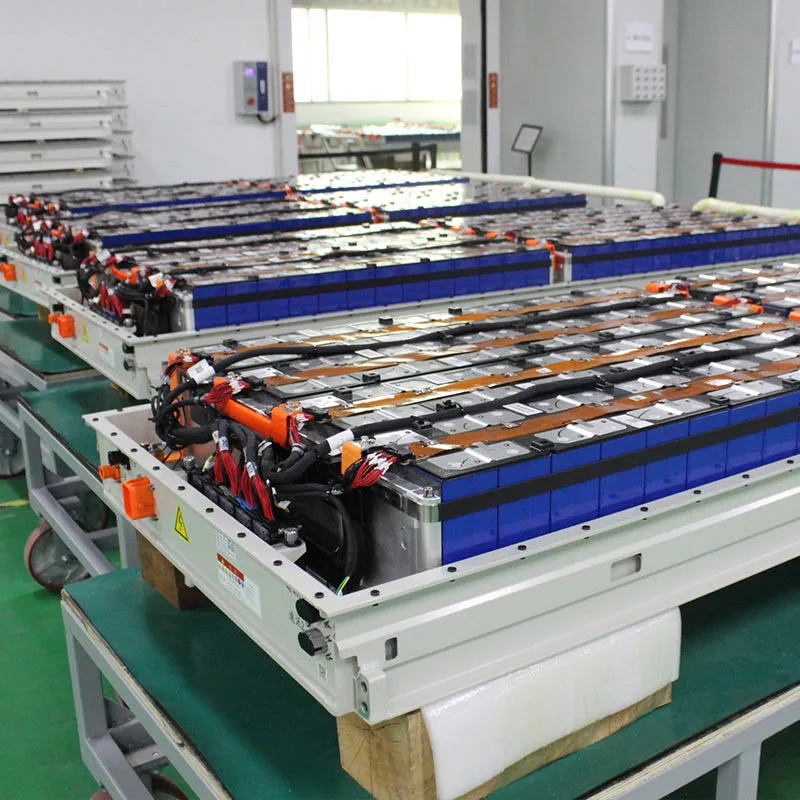

Packaging Process 2

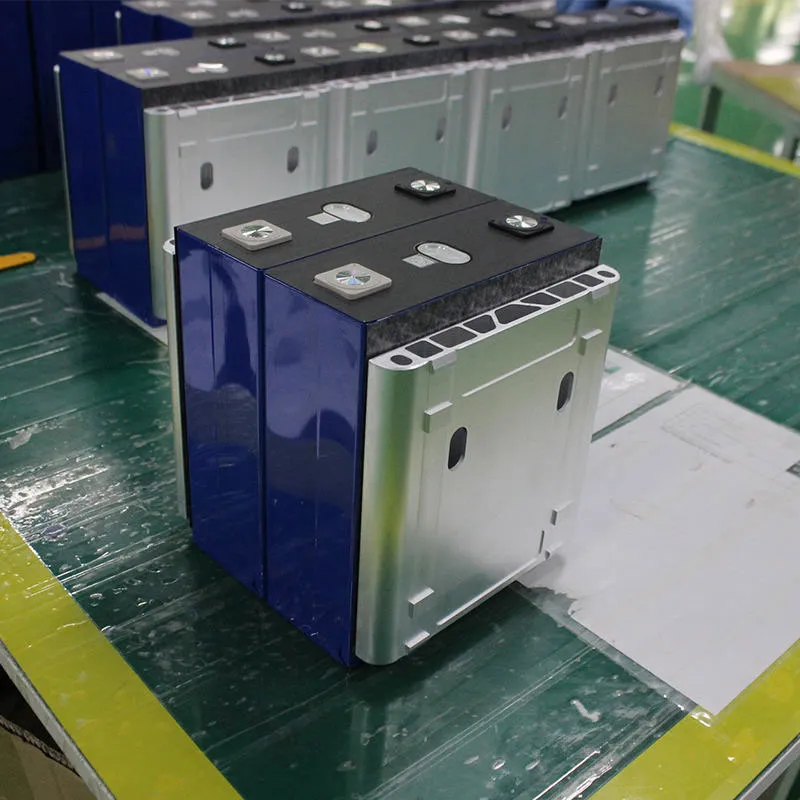

Shipping 1

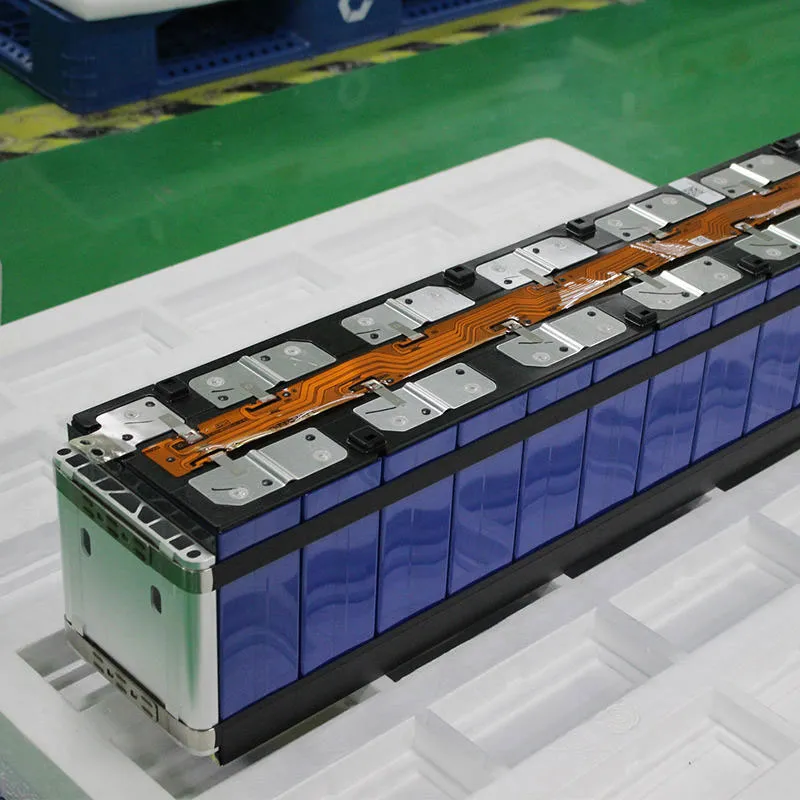

Shipping 2
Shipping 3
Shipping 4

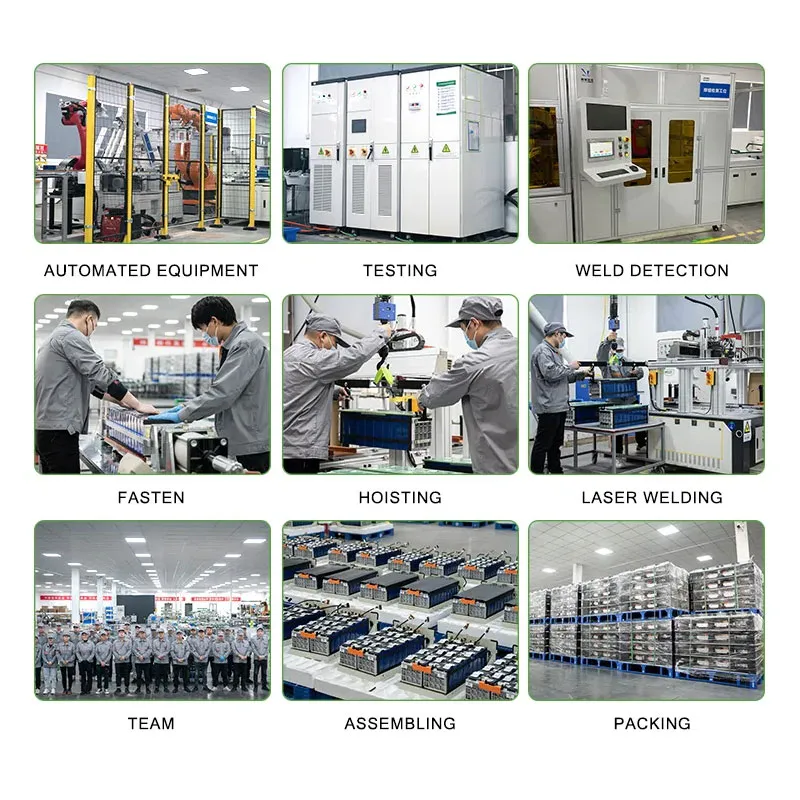

Shipping 5

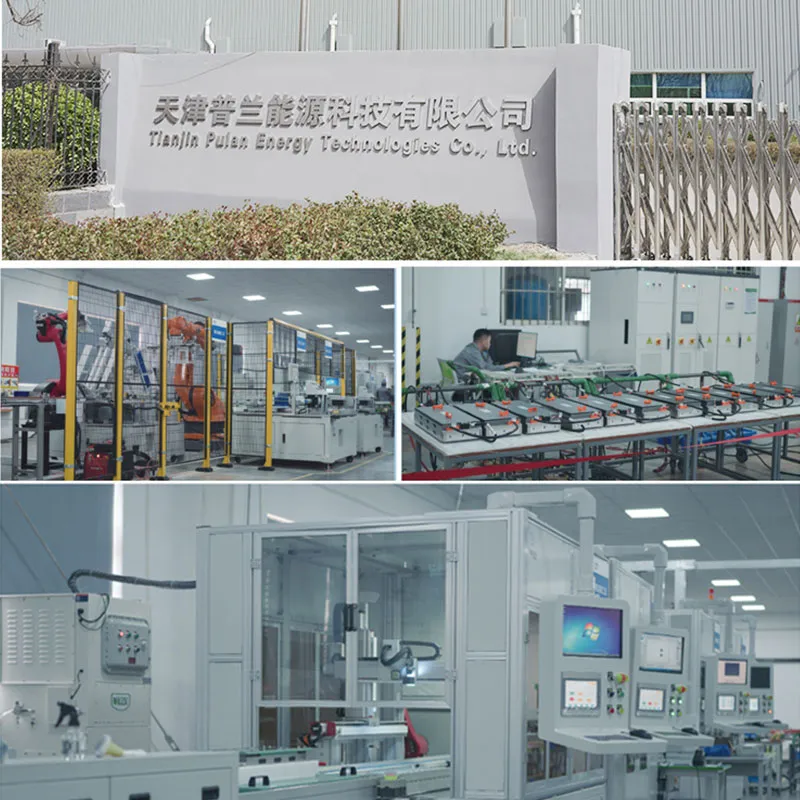

Company Profile
A high-tech company focuses on the research and development, manufacturing, marketing and technical service of graphene-based materials and their applications in clean energy. Based on excellent technical service and support, the aim is to supply a complete solution to green-energy storage and products in power system for the clients.
Together with research labs, the company owns high-standard test instruments, a top-class technical and management team.
With more than 50 patents in preparation and application of graphene-based material, the company has completed the building of the production lines for the material and products and successfully developed and mass-produced such products as graphene, LTO, Si/C material, super capacitor cells ranging from 0.1F to 3000F, 16V500F/48V165F super capacitor modules, LTO battery cells and modules ranging from 20Ah to 500Ah. The main products can be widely applied to new-energy vehicles, rail transportation, smart grid, micro grid, engineering machinery, industrial energy-saving and other fields.
The company always does its utmost to make the clients satisfied and treats credibility and integrity as its foundation. Based on the newest achievements in science and technologies, the aim is to manufacture the most advanced clean-energy products with high quality and supply the most reliable solutions to energy-related systems.
Frequently Asked Questions
What is the rated capacity of this energy storage system?
The system has a rated battery capacity of 373kWh.
What is the expected cycle life of the battery cells?
The cells are rated for a cycle life of ≥6000 cycles at 100% Depth of Discharge (DOD) until 80% End of Life (EOL).
In what temperature range can this system operate?
The system operates effectively within a temperature range of -30℃ to 60℃, with derating occurring above 40ºC.
Does the system include a fire suppression mechanism?
Yes, it offers optional Aerosol or Perfluorocopper fire extinguishing systems for enhanced safety.
Which communication protocols are supported for integration?
The system supports ModBus-TCP, ModBus-RTU, and IEC104 communication protocols.
What is the maximum installation altitude for this unit?
The system is designed to operate at a maximum altitude of 4000 meters.
