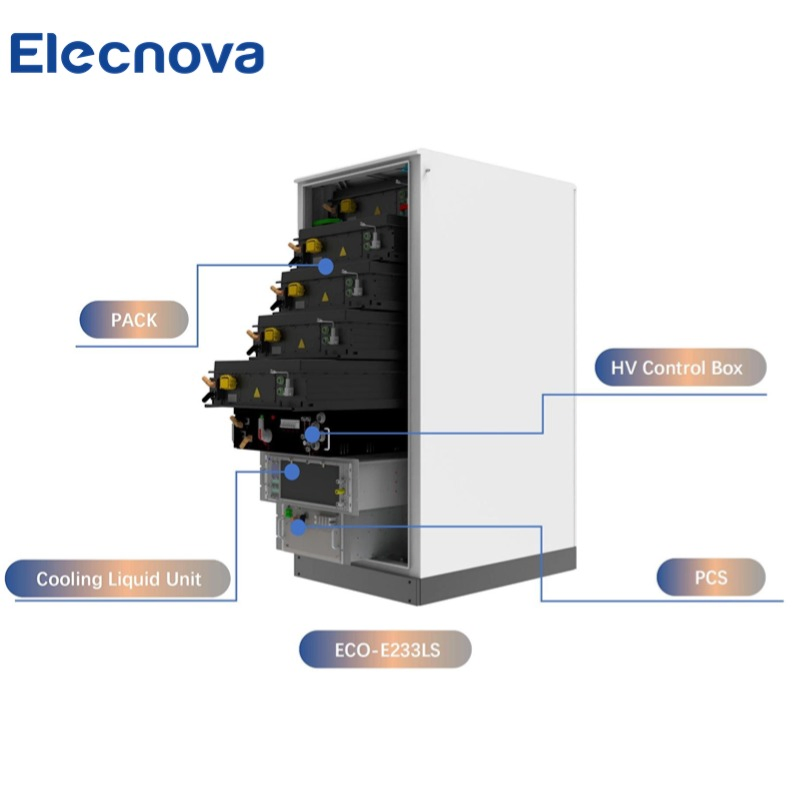

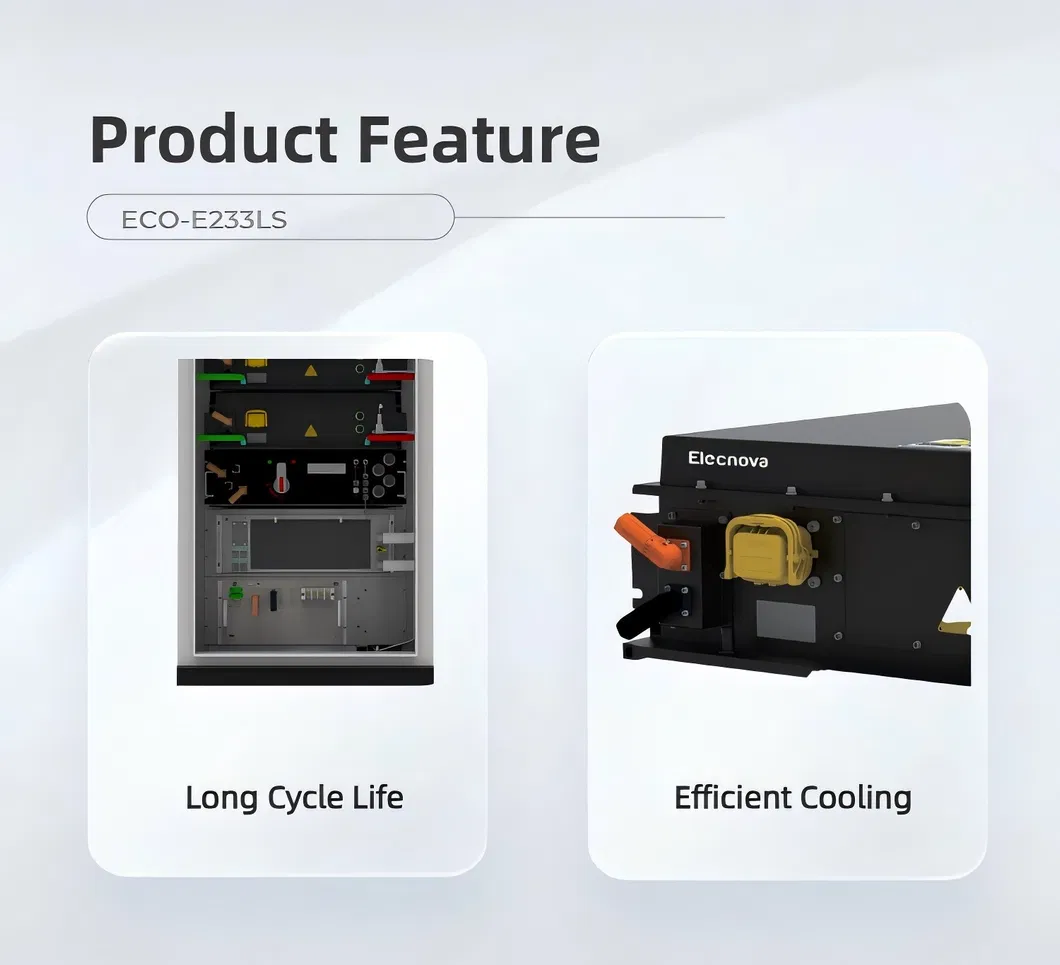

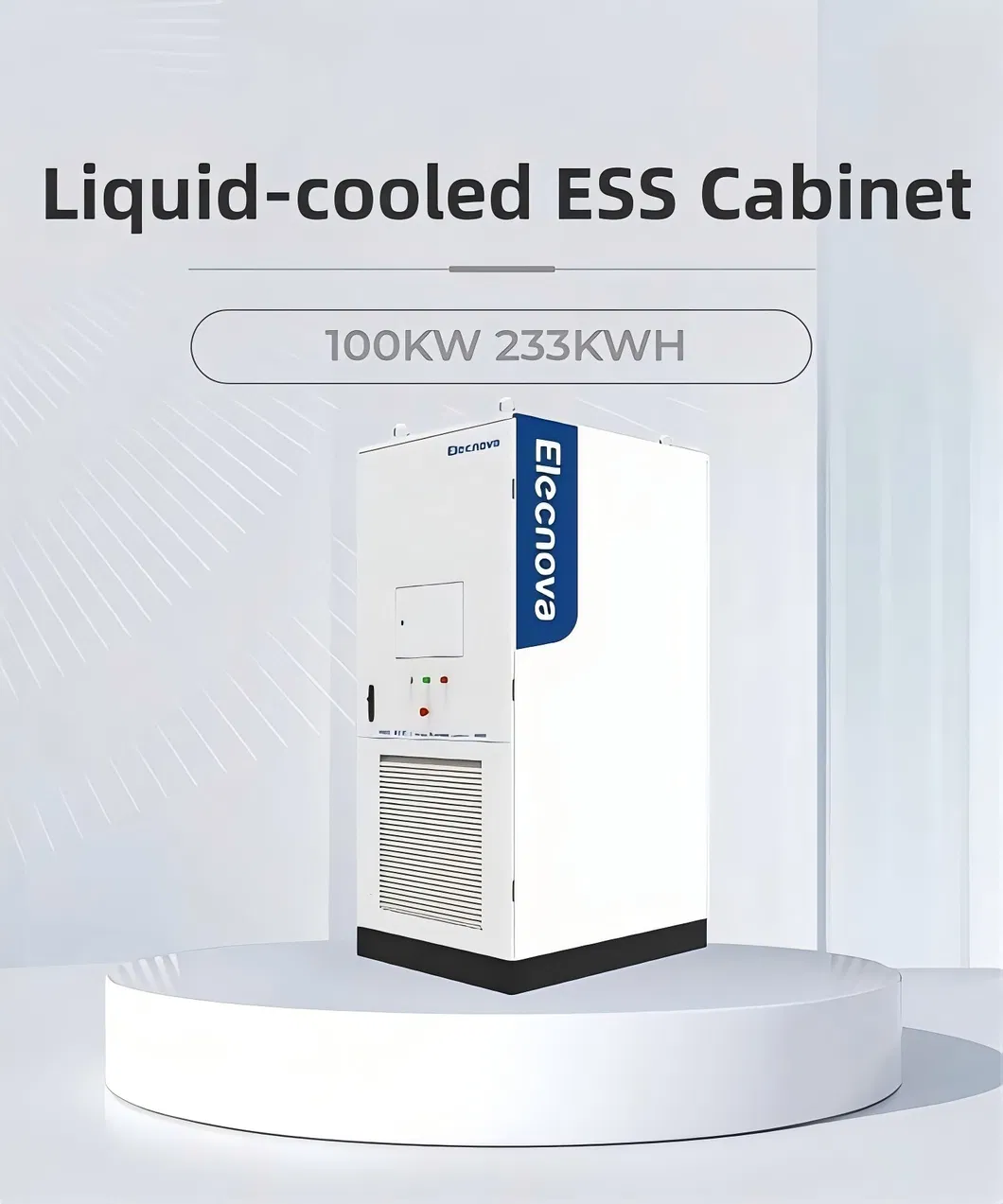

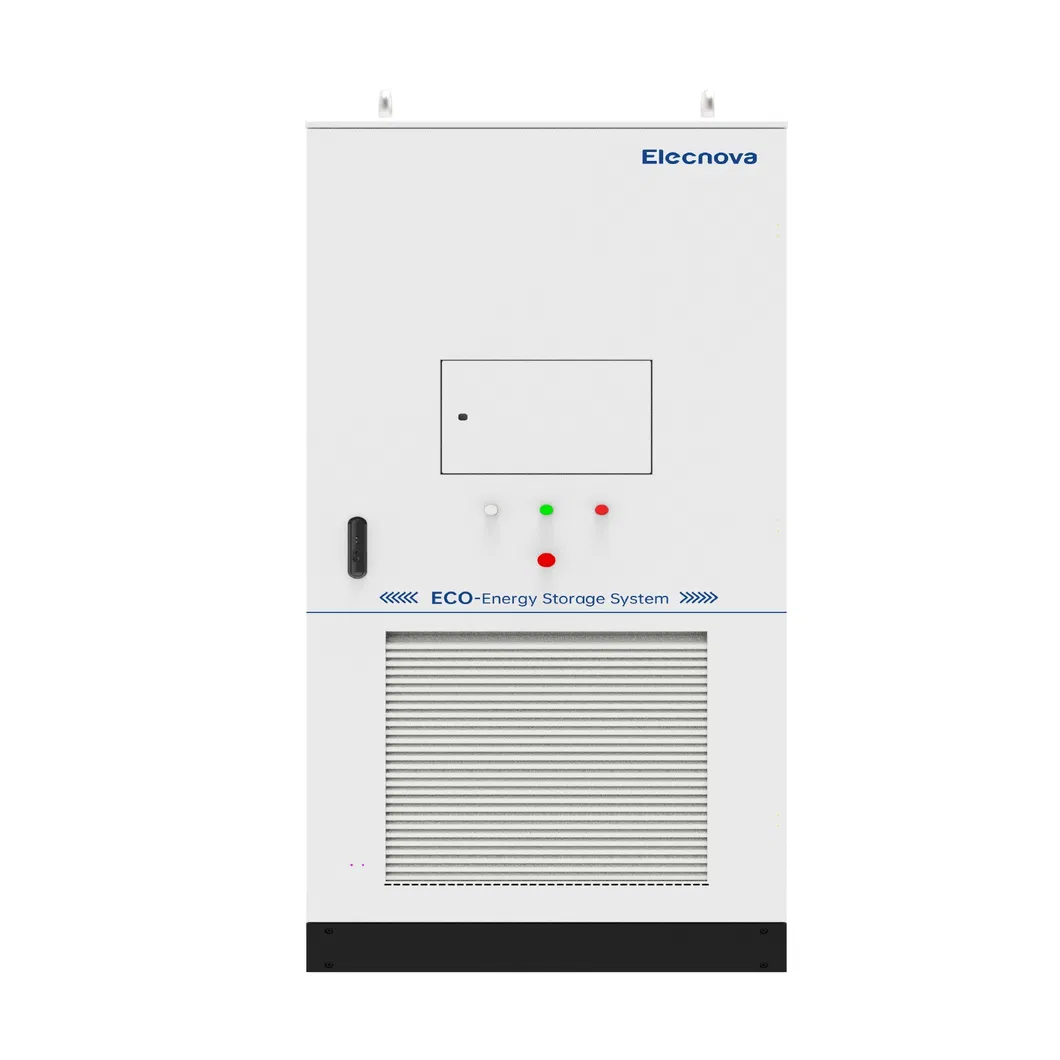

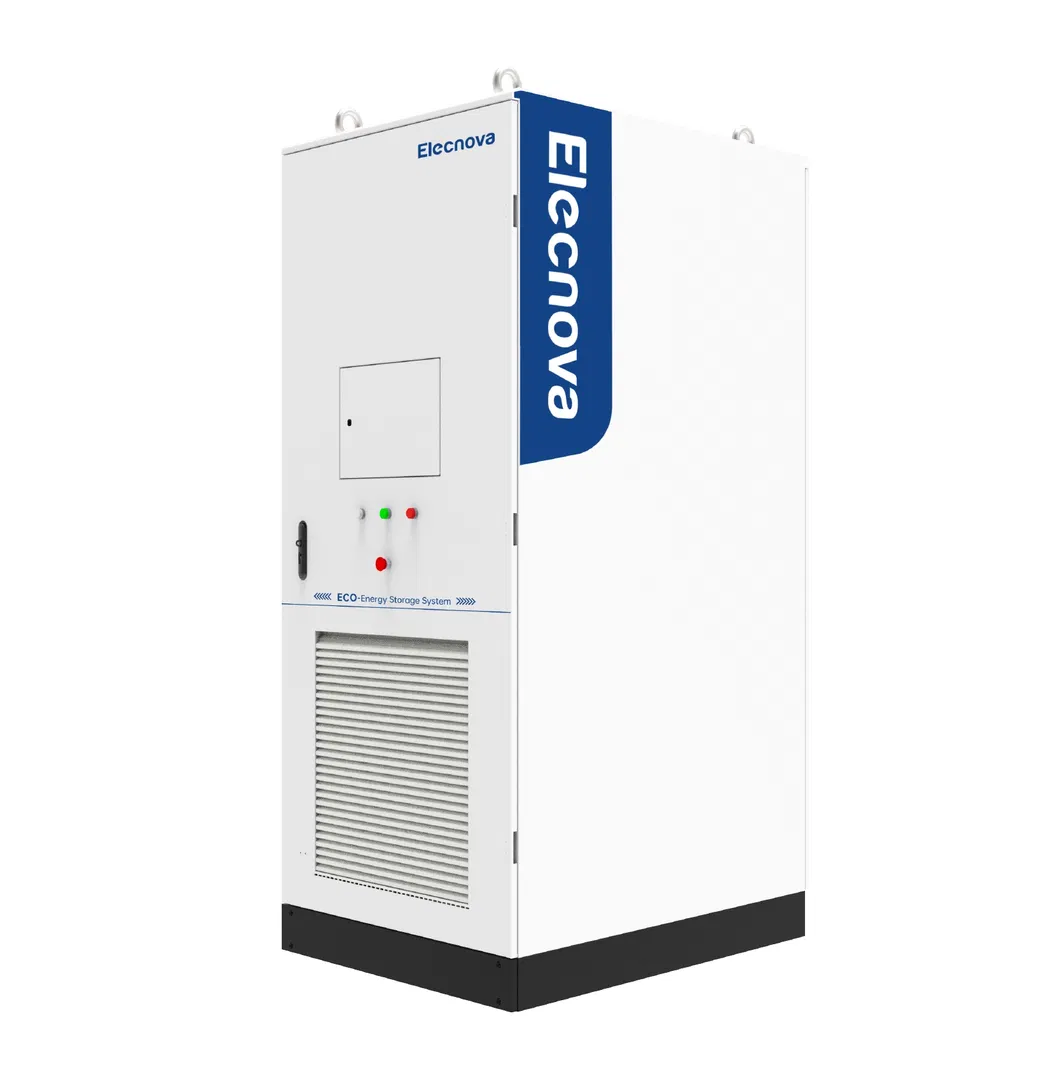

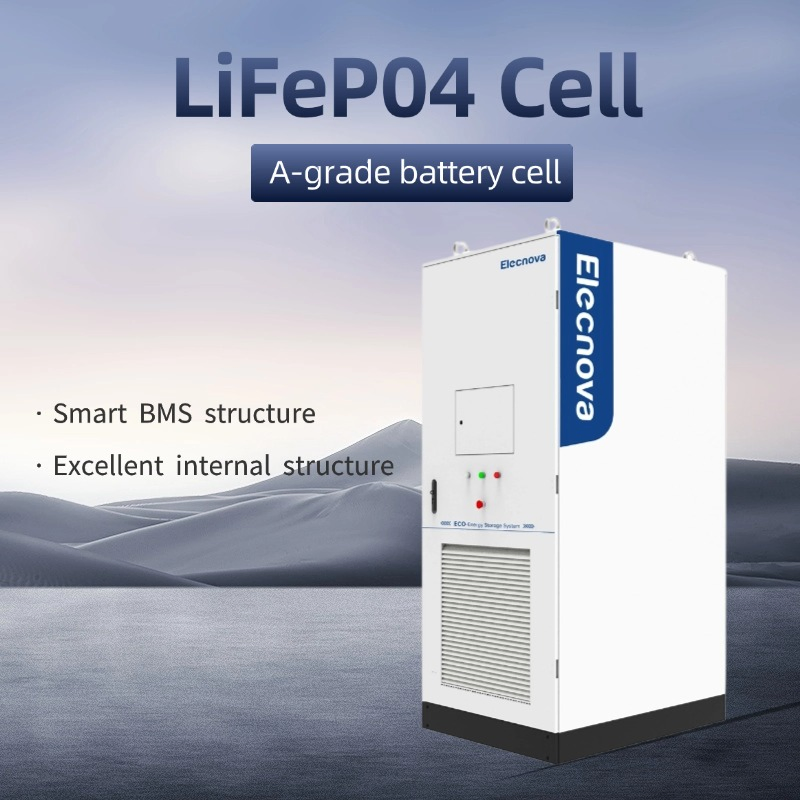

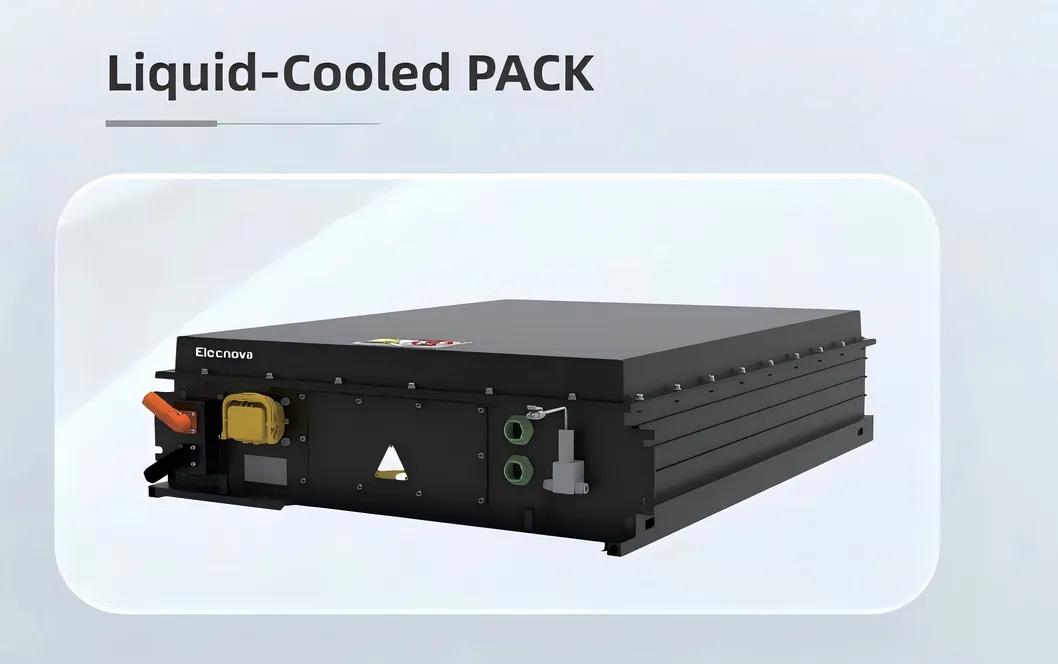

The 233KWH commercial & industrial energy storage system adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density, which significantly improves the economy, safety and construction convenience of ESS projects.
Conversion efficiency: 99%
IP65, ms-level on-/off-grid switching
Over 8,000 times cycle life
SOC Estimation Accuracy Error < 5%

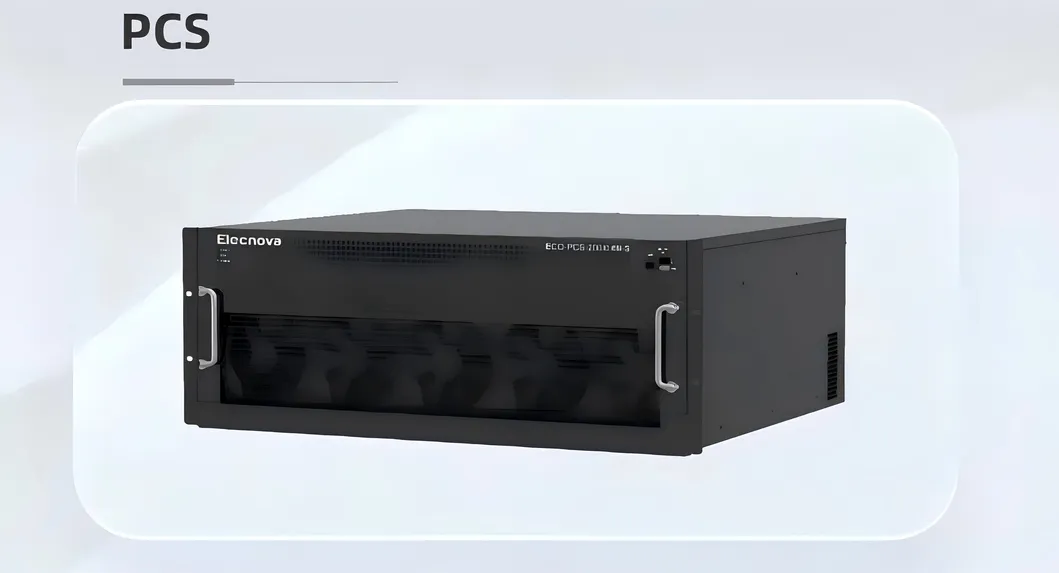

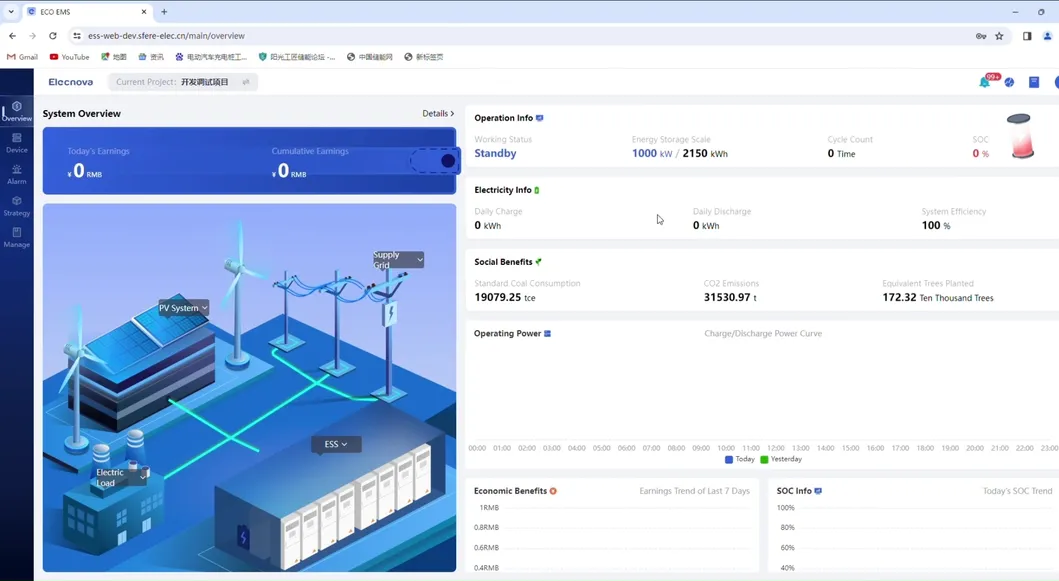

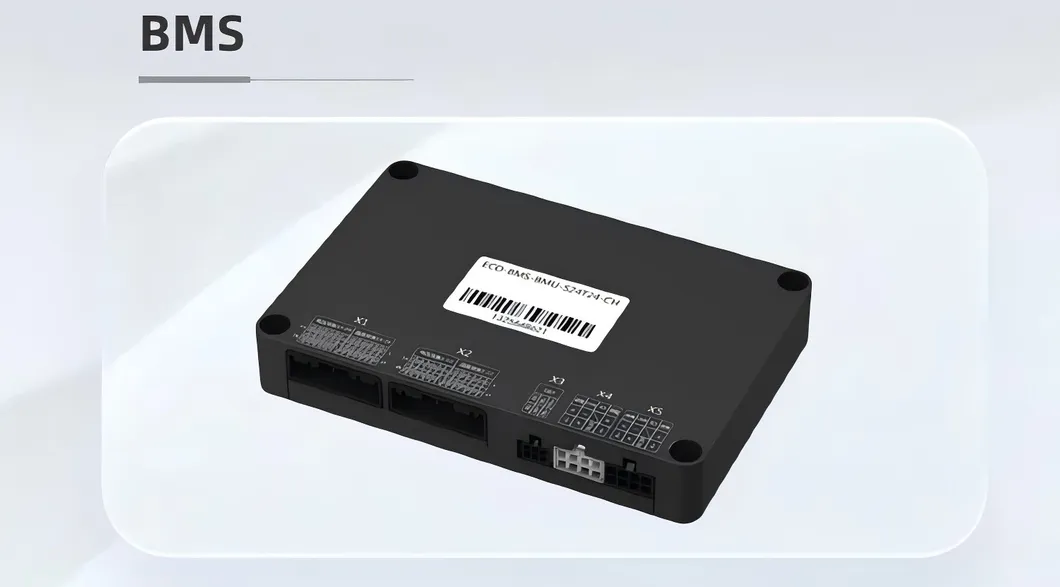

Monitoring of PCS, BMS, and AC
| DC Side Parameters | |
|---|---|
| Cell Type | LFP 280Ah |
| PACK Capacity | 46.592kWh / 1P52S |
| Battery System | 232.96kWh / 1P260S |
| Voltage Range | 728~936Vdc |
| AC Side Parameters | |
| Rated Power | 100kW |
| Max. Power | 110kW |
| Nominal Voltage | 400Vac / 3P+N+PE |
| General Data | |

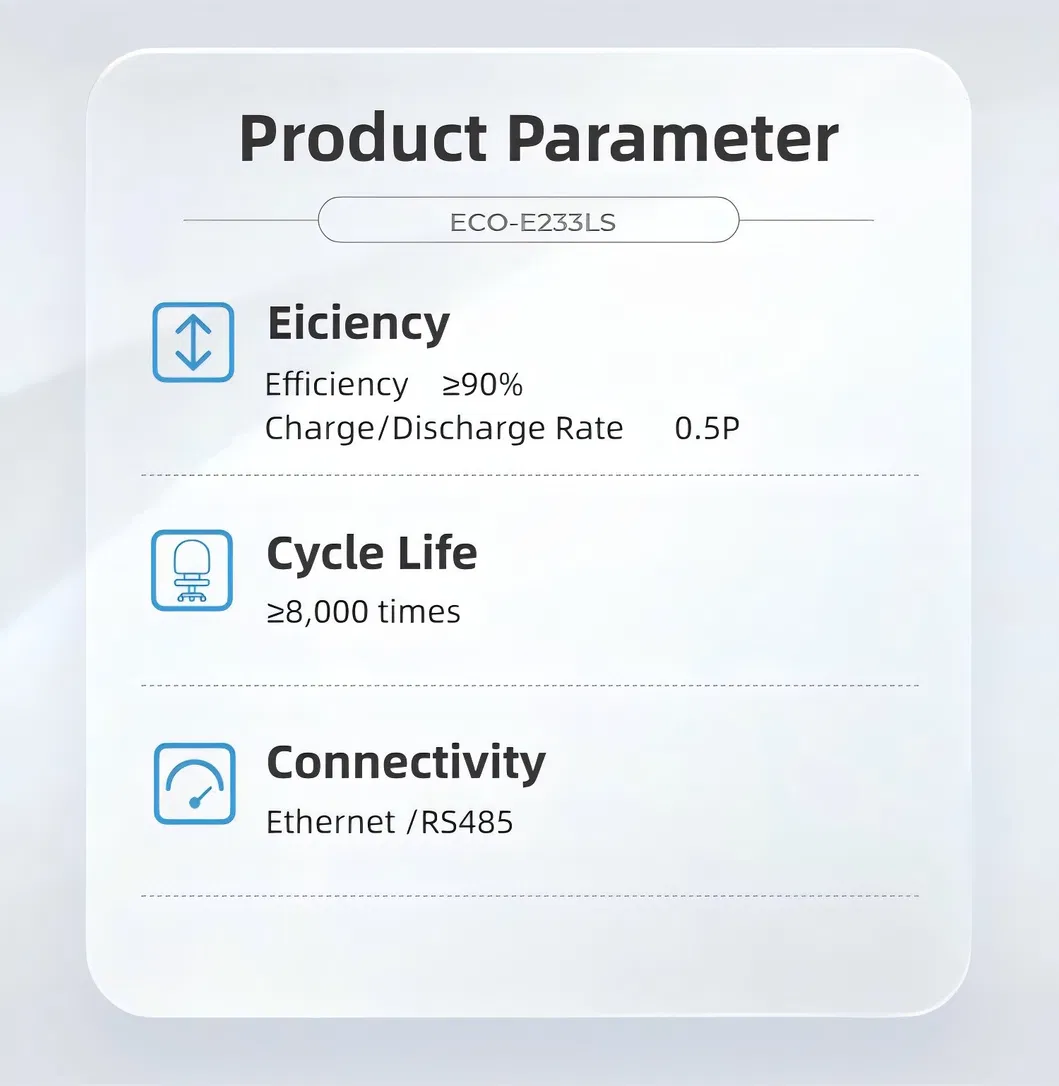

| System Efficiency | ≥90% |
| Cycle Life | ≥8,000 times |
| Cooling Method | Active liquid cooling |
| Operating Temp | -25ºC ~ 55ºC |
| Fire Safety | Aerosol |
| Weight | 2,570kg |

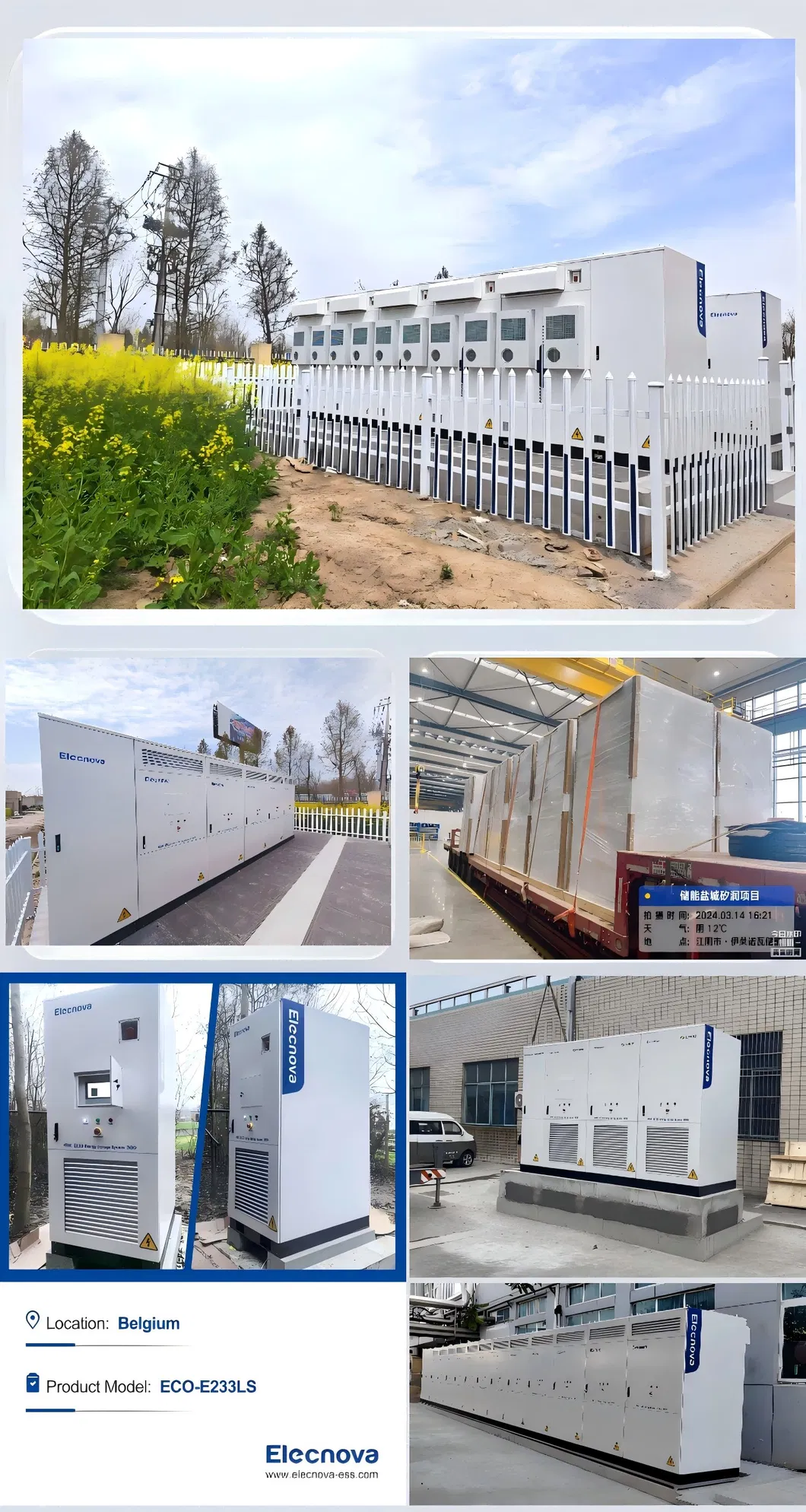

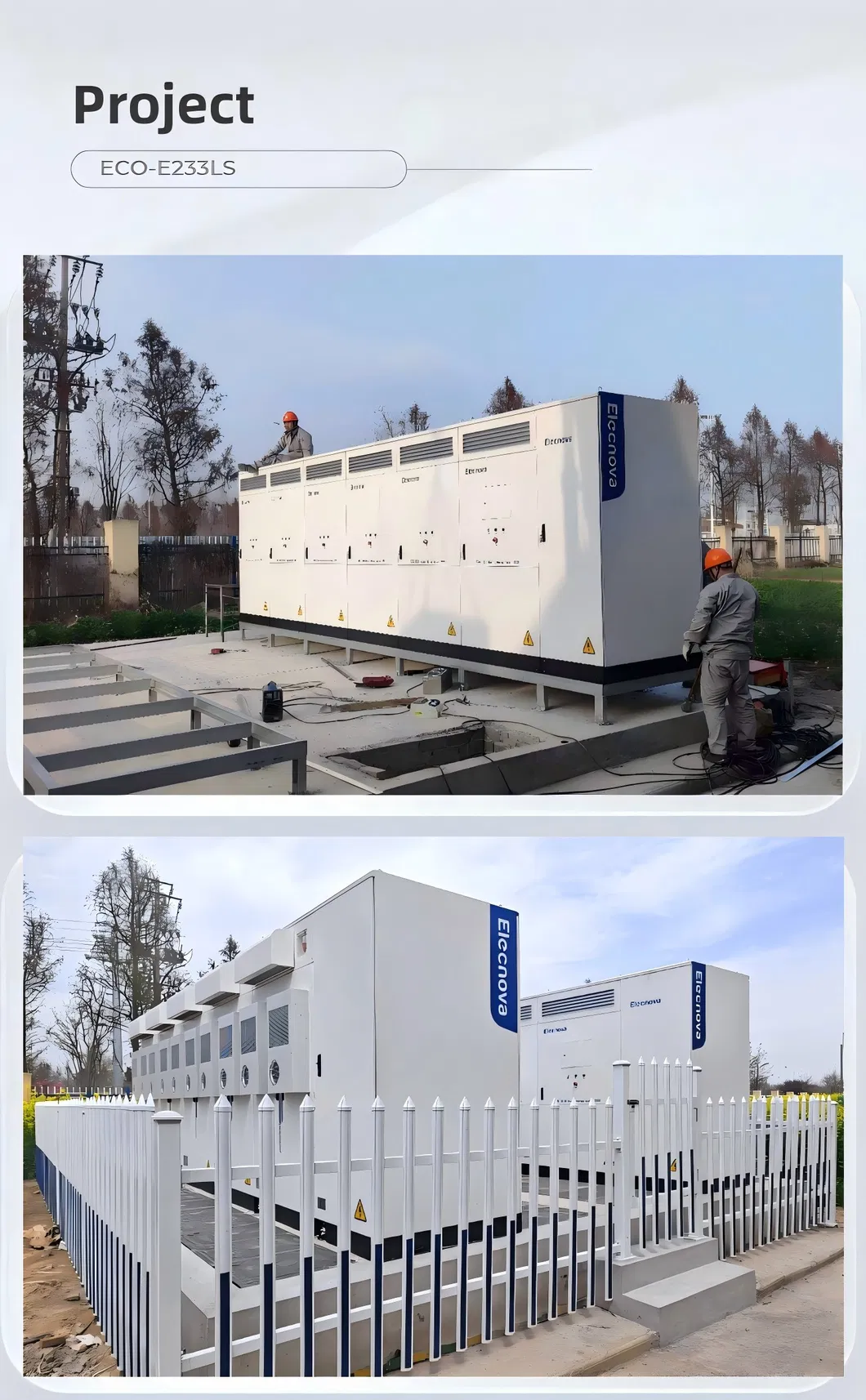

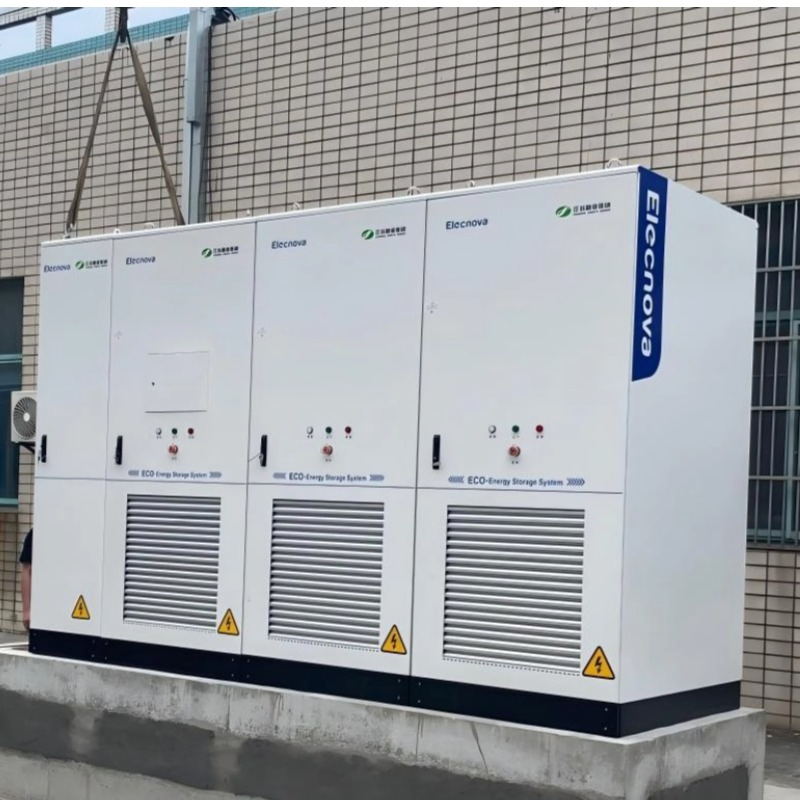

Our energy storage projects are successfully connected to the grid globally. These projects adopt advanced energy storage technology and equipment, characterized by high efficiency, stability, and safety.

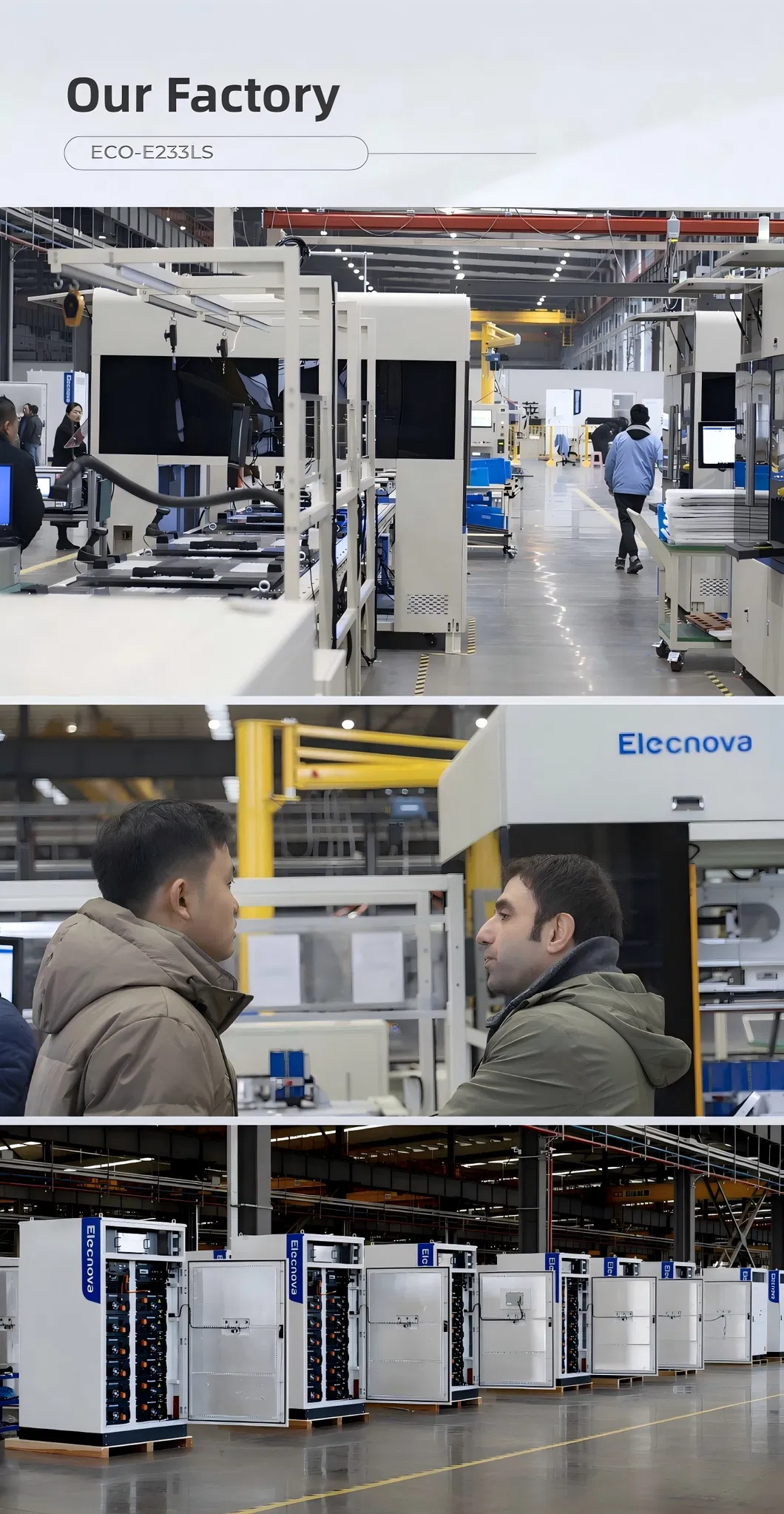

We are a technology-based enterprise focusing on overall solutions for energy storage systems. Our company has comprehensive supporting capabilities for system integration including PACK, PCS, and BMS. We aim to meet diversified energy requirements across power generation, grid-side, and user-side scenarios, with quality as our cornerstone.
