Basic Specifications
Certification
EST, ISO, CB, CE, TUV
Material
Monocrystalline Silicon
Specification
1050*1020*3mm
Technical Features
| Solar cells | Sunpower | Sunpower | Sunpower | Sunpower |
| Min power tolerance | ±3% | ±3% | ±3% | ±3% |
| Voltage at Pmax(Vmp) | 25.5V | 23.2V | 18.6V | 19.8V |
| Current at Pmax(Imp) | 5.97A | 5.97A | 5.97A | 4.04A |
| Open circuit voltage(Voc) | 30.1V | 27.4V | 21.9V | 23.4V |
| Short circuit current(Isc) | 6.32A | 6.32A | 6.32A | 4.28A |
| Max System Voltage | 45VDC |
| Cell Efficiency | 22.60% | 22.60% | 22.60% | 22.60% |
Product Advantages
Hardening Process: Surface treated with a special hardening process to prevent scratches from electronic appliances.

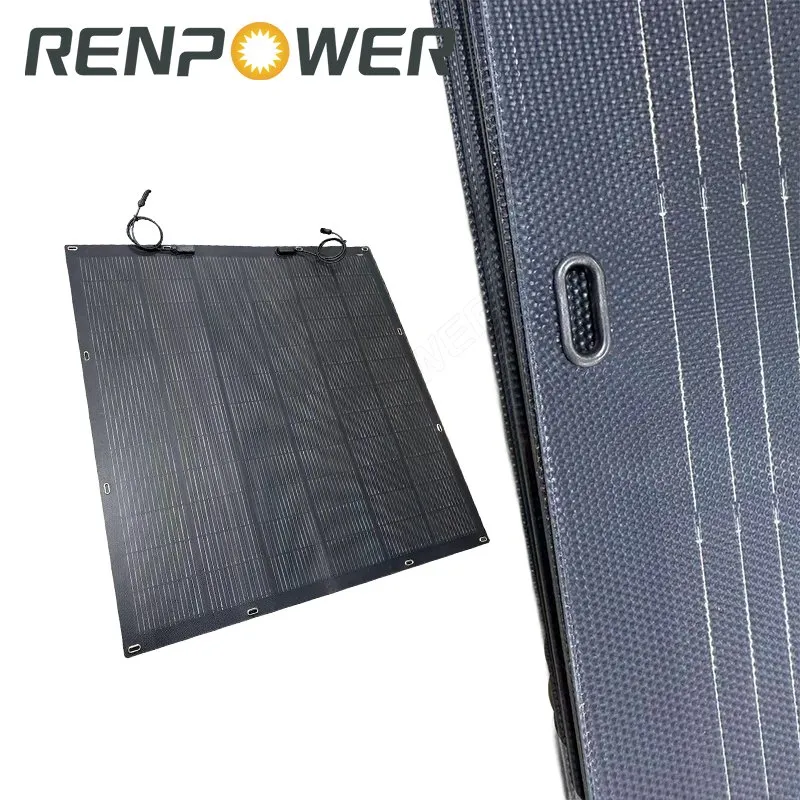

Easy Installation: Can be easily installed with glue, adhesive, screws, or the grommets located at the corners.
Weather Resistance: Designed to withstand high wind pressure, heavy snow loads, and extreme temperature fluctuations.

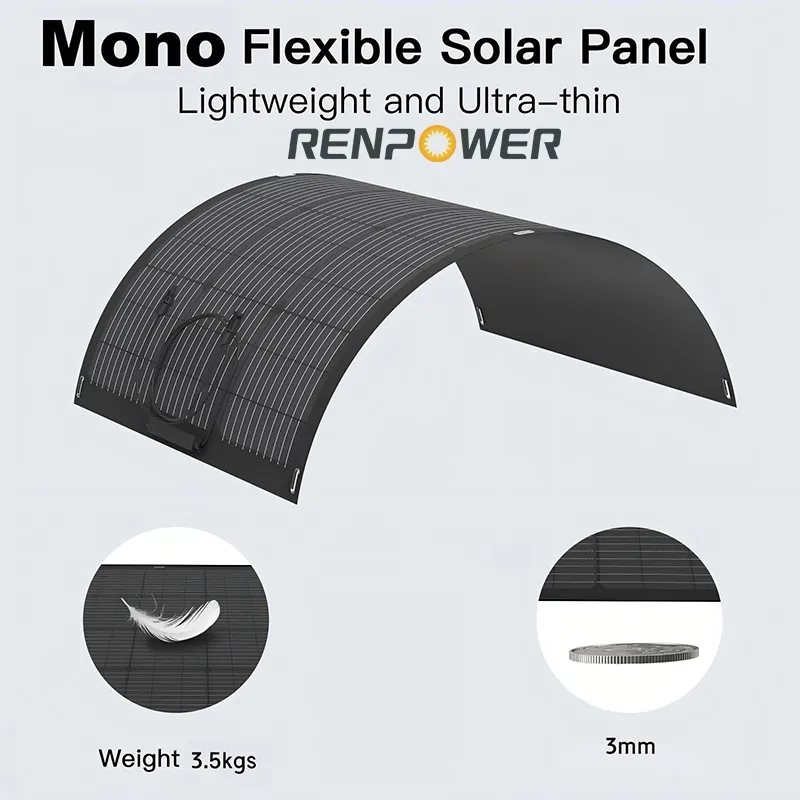

Ultra Lightweight: Approximately 83% lighter than conventional solar panels, ensuring easy transport and shipment.
Core Performance
⚡

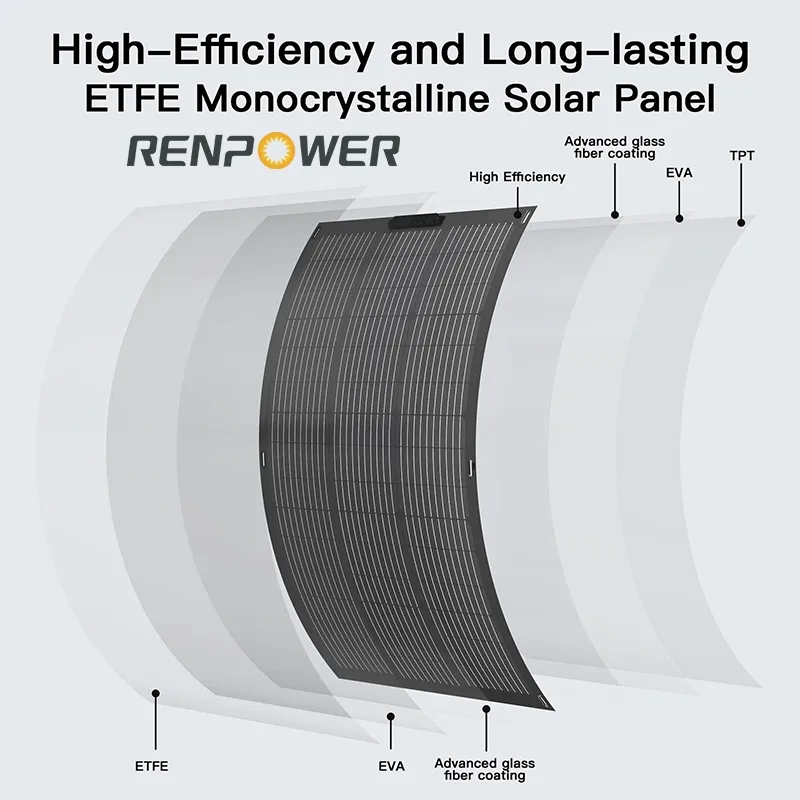

21kV High-Voltage Breakdown Test: Better durability withstanding fire, dust, and UV tests. Multi-layer structure ensures super isolation.
☀️

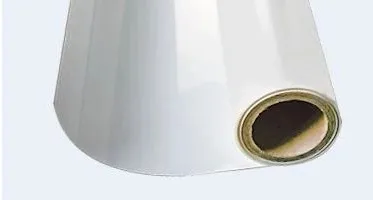

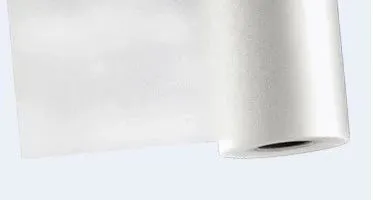

>90% Transmittance EVA: Higher GEL content provides excellent encapsulation and protects cells from vibration with longer durability.
💎
Ultra Clear Tempered Glass: Features 30% lower reflection for maximum light absorption.
Detailed Specifications

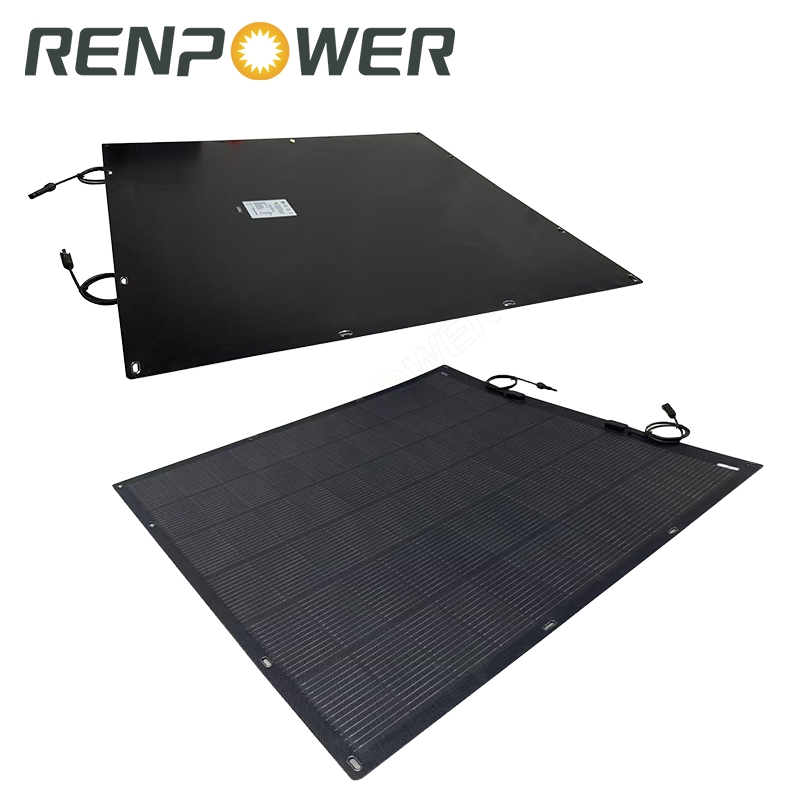

| Type | High efficiency flexible solar panel |
| Cells type | 20% high efficiency Sunpower brand cells |
| Top layer type | PET/ETFE |
| Color Options | White / Black / Transparent |
| Connector | Anderson / DC / Customized |
| Cable length | 0.9m / Customized |
| OEM Service | Available for branding and custom designs |

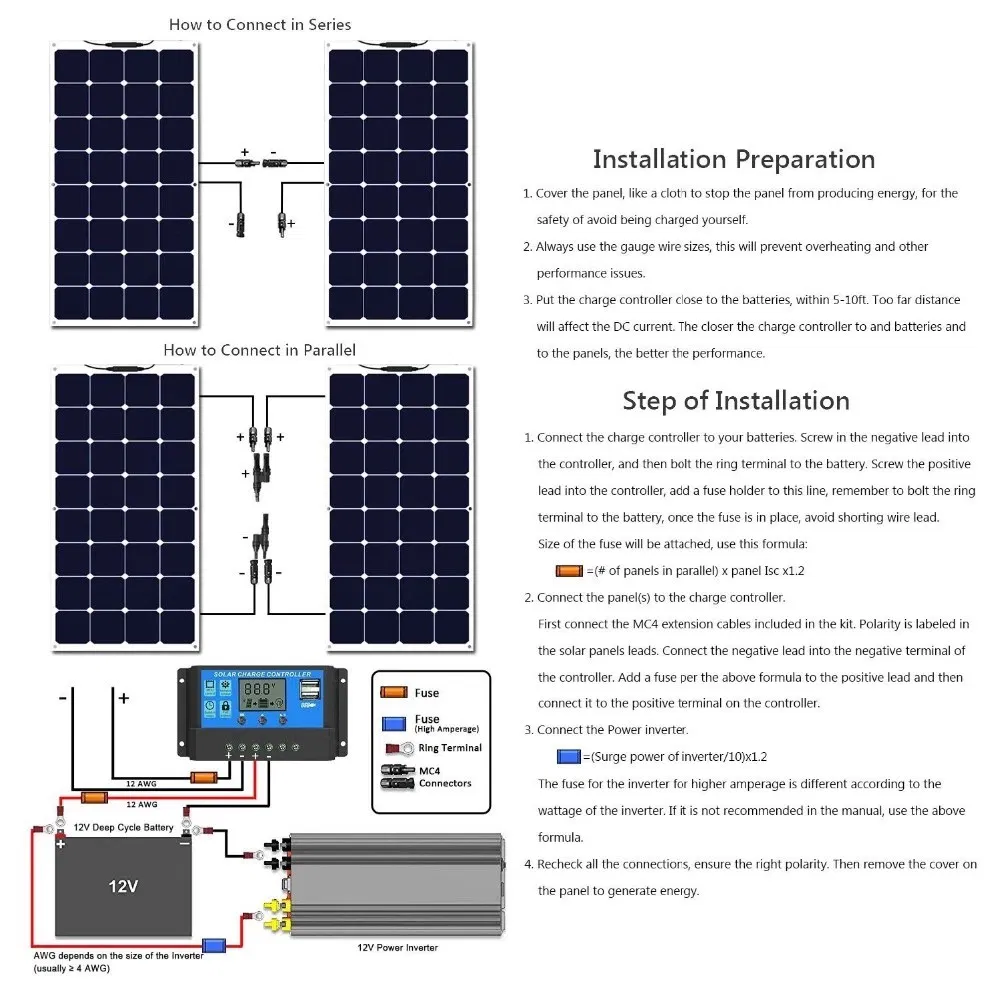

Installation Instructions
Frequently Asked Questions
1. Are you a professional solar panel manufacturer?
Yes, we are a professional manufacturer specializing in high-efficiency solar panels with extensive experience in the industry.
2. How is product quality guaranteed?

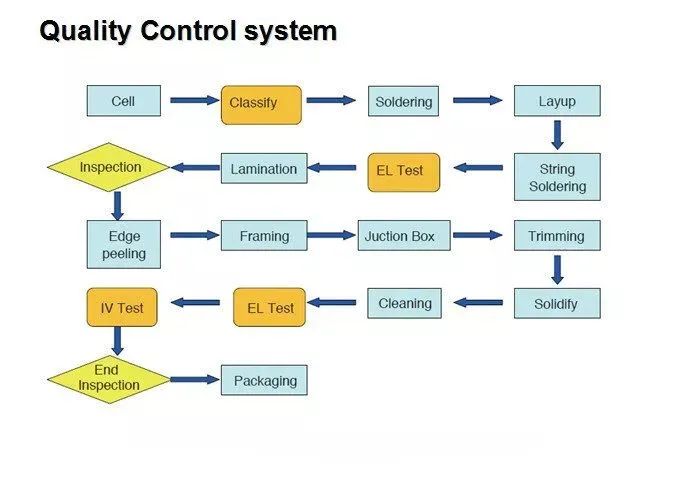

We provide pre-production samples before mass production and perform rigorous testing on every product before shipment to ensure top-tier quality.
3. What types of solar products do you supply?
Our range includes rigid solar panels, solar blankets, controllers, cables, semi-flexible solar panels, and complete solar power systems.
4. Can I customize the panels with my company logo?
Yes, we fully support OEM and ODM orders, allowing you to print your company logo and customize specifications.
5. What factors affect the solar conversion rate?
The primary factors include sunlight intensity, environmental temperature, the angle of installation, and the length of the solar cables used.
6. Are there discounts for large quantity orders?
Yes, we offer competitive tiered pricing and significant discounts for large volume purchases.
