| Model NO. | Balcony Solar System | Certification | CE |
| Application | Home, Industrial, Commercial | Specification | 117X6X177 cm |
| Output Voltage Range | 230V/176-265V | Output Frequency | 50Hz/60Hz |
| Operating Temperature | -40℃ to +70℃ | Power Factor | >0.99 |
| Peak Efficiency | 96.5% | MPPT Efficiency | >99.8% |
| Enclosure Rating | IP67 | Origin | China |

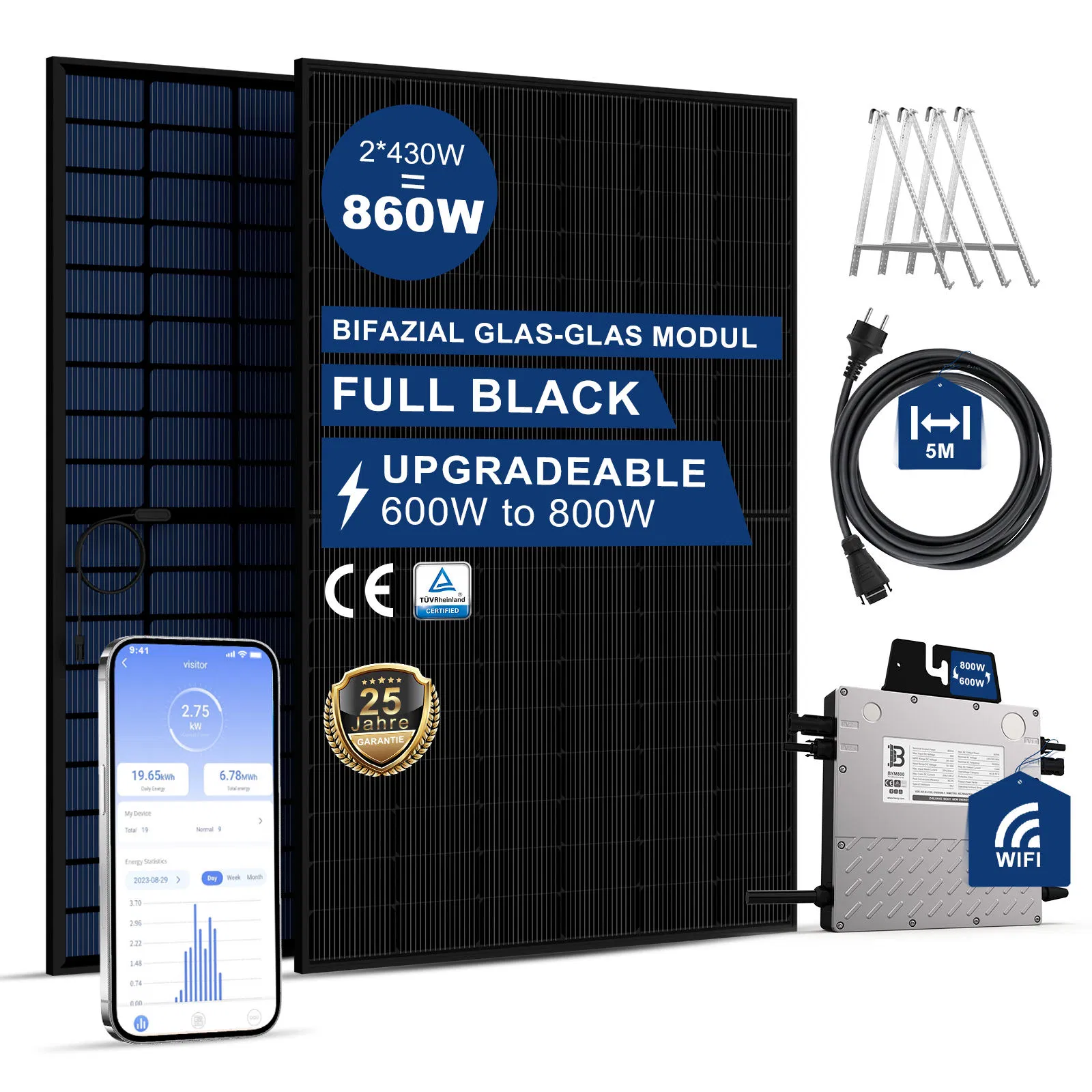

Efficient Power Package: Solar panels feature a total power of 860W (2 x 430W). These modules provide an efficiency of up to 22.02%. The double-sided design captures sunlight reflected from the back, offering up to a 30% performance increase on the same surface area.

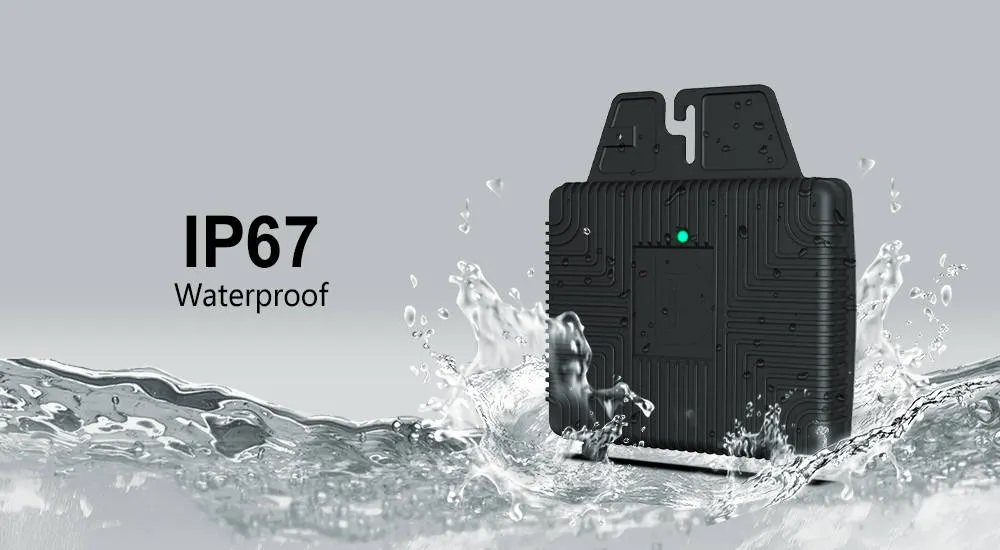

Highly Efficient Inverter: The inverter delivers 800W of power (switchable to 600W via app). With 96.5% efficiency, it ensures optimal yield even in partial shade. The IP67-rated housing guarantees durability in all weather conditions.

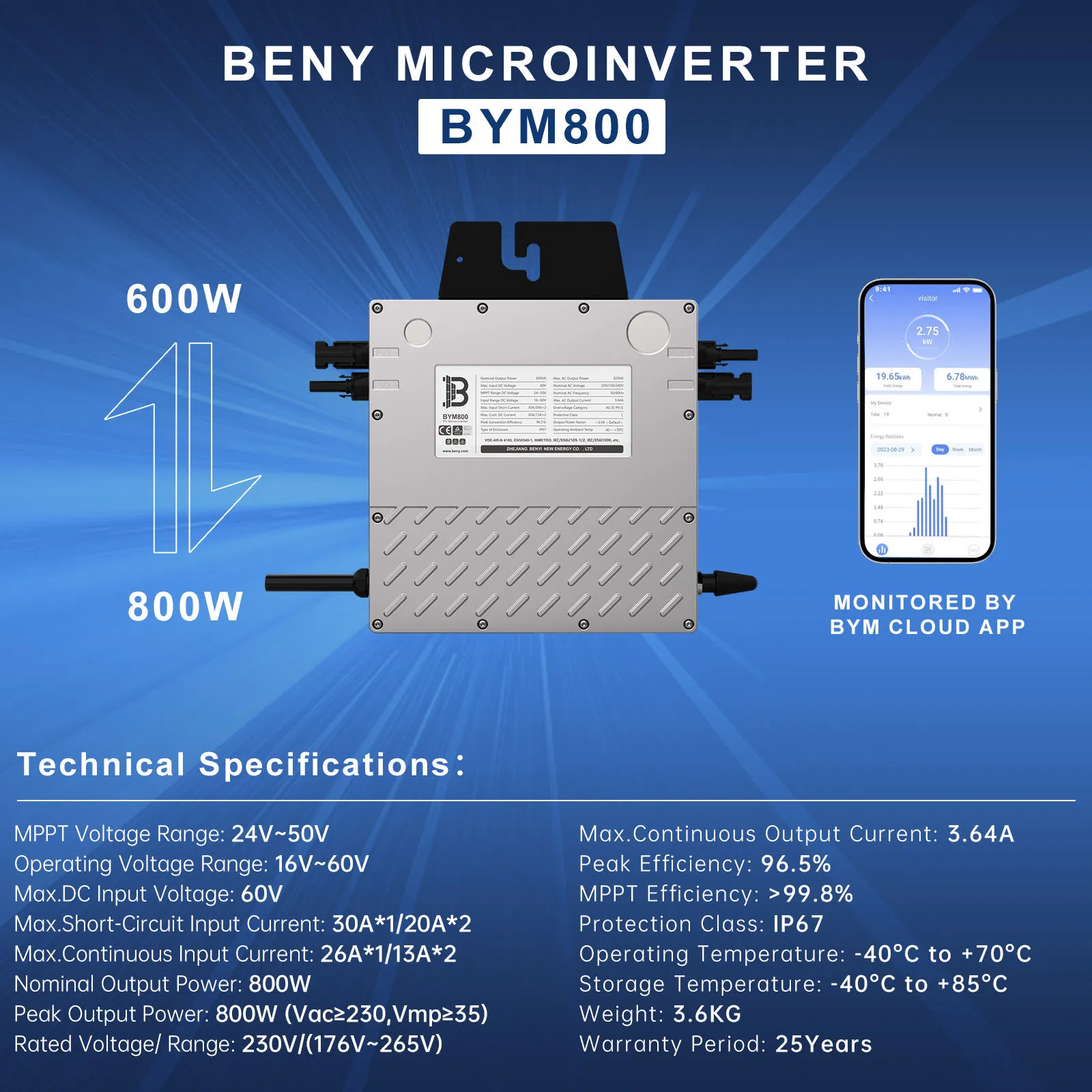

| Microinverter Input/Output Data | |
|---|---|
| MPPT Voltage Range | 24V-50V |
| Max. Short Circuit Current | 30A*1 / 20A*2 |
| Rated Output Power | 800W |
| Rated Voltage Range | 230V (176V~265V) |
| Peak Efficiency | 96.5% |
| MPPT Efficiency | >99.8% |
| Communication Method | Wi-Fi |
| Protection Class | IP67 / Class I |
Ultra-High Efficiency: Utilizing GaN (Gallium Nitride) third-generation semiconductor technology, our micro-inverters reach a peak efficiency of 97.5%, significantly higher than the industry average of 96%.

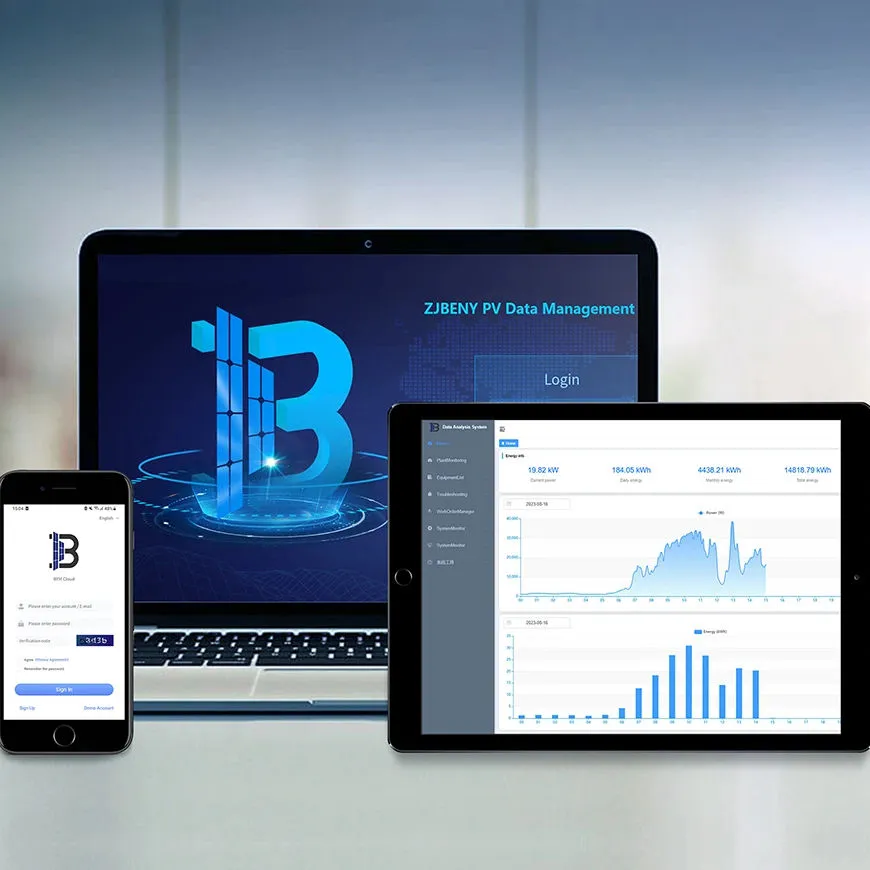

Remote Smart Monitoring: Communication via PLCC/Zigbee or WiFi allows users to manage their systems digitally, identifying potential issues instantly through a dedicated mobile app.

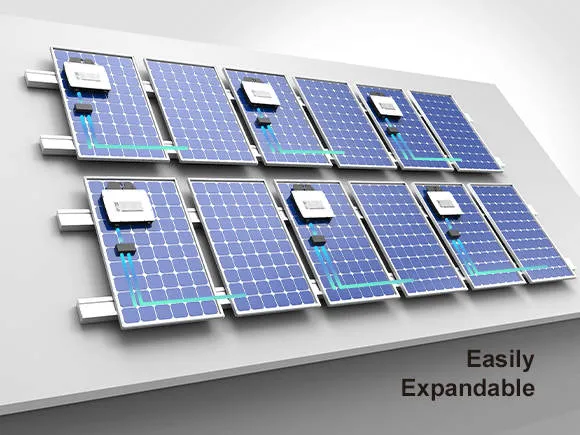

Easily Expandable: Thanks to the modular design, the system can be expanded from a single panel to multiple independent panels. Parallel optimizers solve current backflow issues and improve overall MPPT efficiency.
