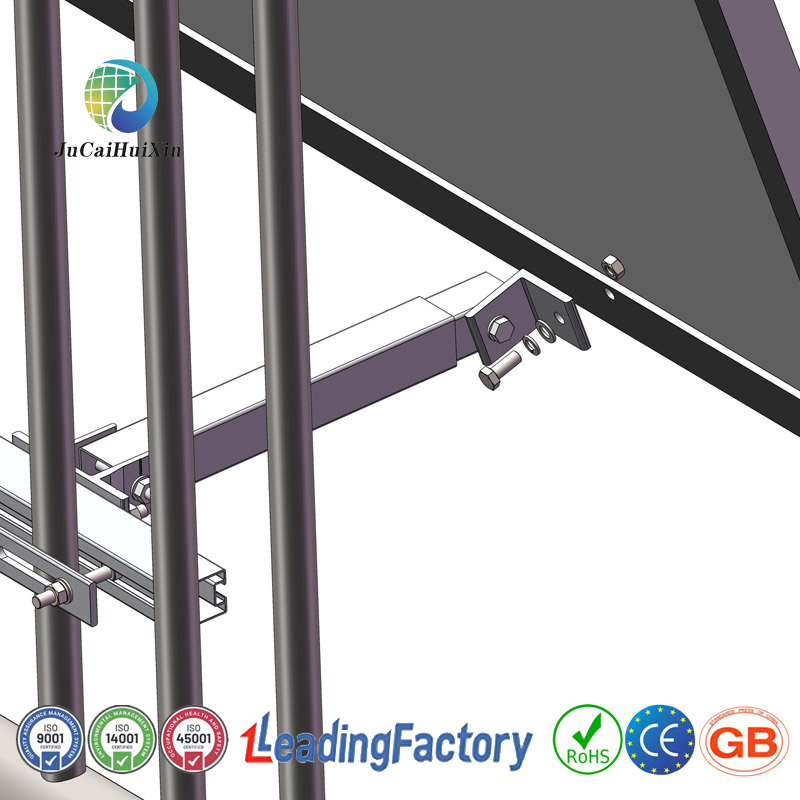

Jchx Solar Power System Kit Balcony Kit for Solar Energy System

Basic Information Overview

Model NO.	Sturdy Heavy-Duty Solar Rails	Certification	GB, ISO, CE, RoHS
Application	Commercial & Residential	Material	Aluminum Alloy 6005
Coating	Anodic Oxidation	Wind Load	0-60m/S
Snow Load	0-3kN/M²	Service Life	Over 25 Years
Waterproof	IP67	UV Reflectance	≥85%

Solar Power System Balcony Kit

This solar energy system uses high-strength aluminum profiles with an anodized surface (15-20μm), suitable for flat, pitched, and metal tile roofs. It supports customized sizes (1-6m), tilt angle adjustment (10°-40°), and is compatible with single or double-glass modules up to 670W. Pre-drilling and pre-assembly services are available to significantly reduce installation time and labor costs.

1

Lightweight & Corrosion Resistant
60% lighter than traditional steel. Anodized layer passes 2000 hours salt spray test, ideal for coastal and industrial environments.

2

Modular Quick Installation
Pre-assembled snap-in design. Efficiency increased by 300% compared to traditional programs.

3

High Wind & Snow Resistance
Static load capacity ≥1.5kN/m², wind speed tested up to 60m/s. Suitable for typhoon and high-altitude areas.

4

Flexible Customization
Support for non-standard sizes, curved roof adapters, and various RAL standard color options.

Installation Steps

01. Positioning: Use a detector to determine the position of the roof beams and mark drilling points (spacing ≤ 80cm).

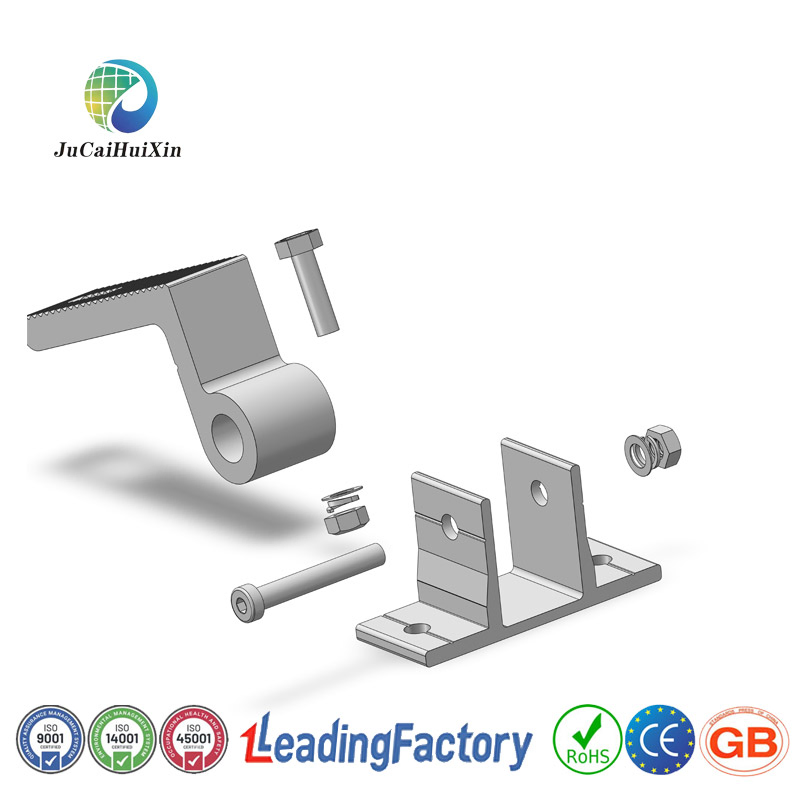

02. Fixing Base: Secure the aluminum alloy base to the beam using stainless steel self-tapping screws (torque 18-20N-m).

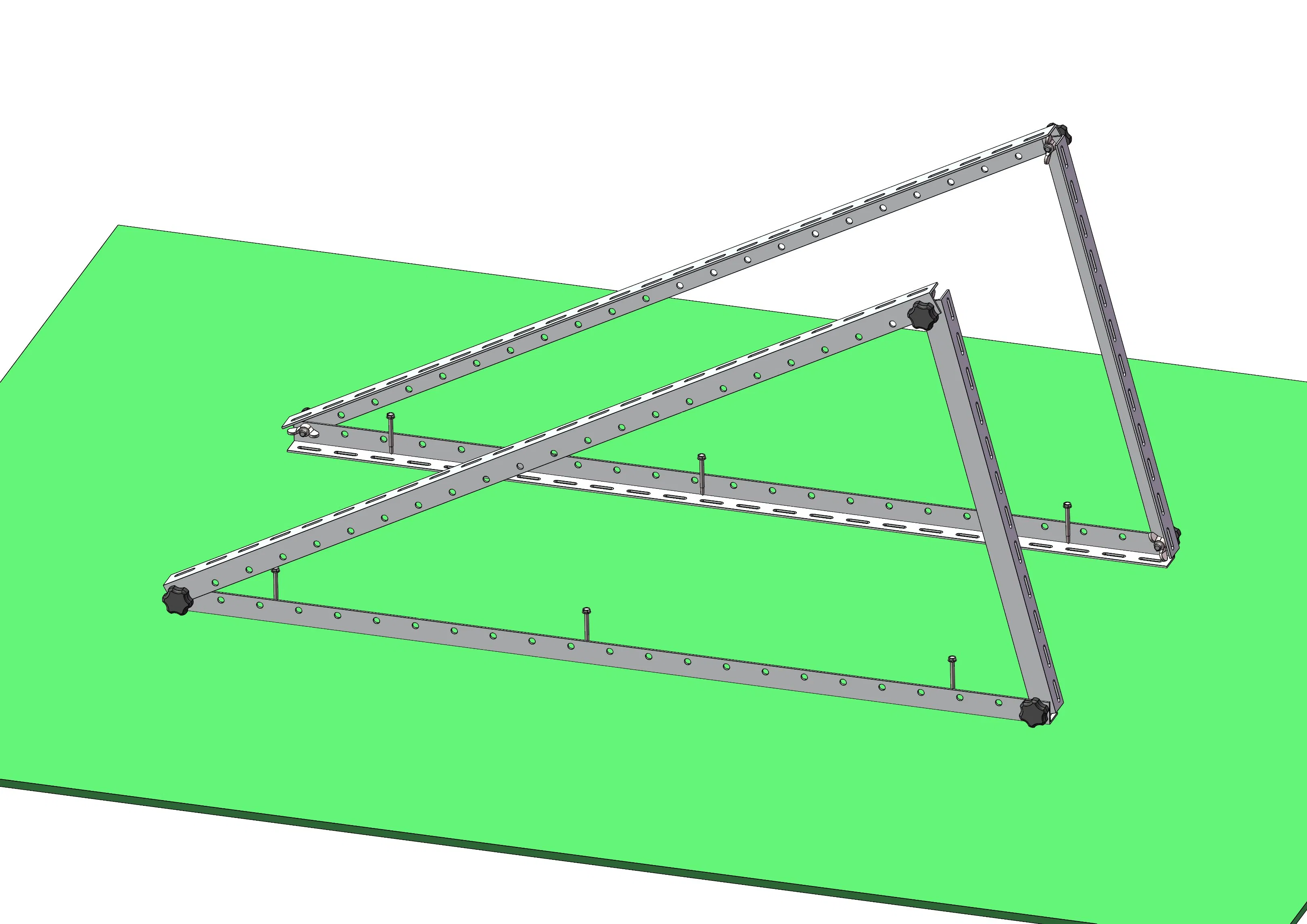

03. Angle Adjustment: Slide the bracket slot to the optimal angle (Latitude +5° Winter / -5° Summer) and lock the bolts.

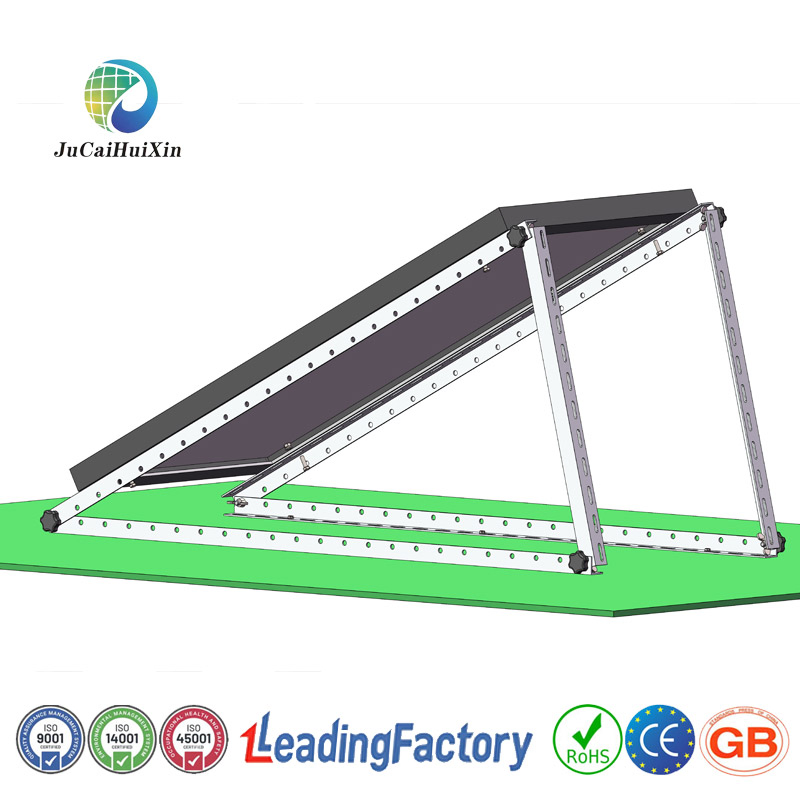

04. Module Mounting: Snap the PV panels into the rails and secure them with matching clip fasteners.

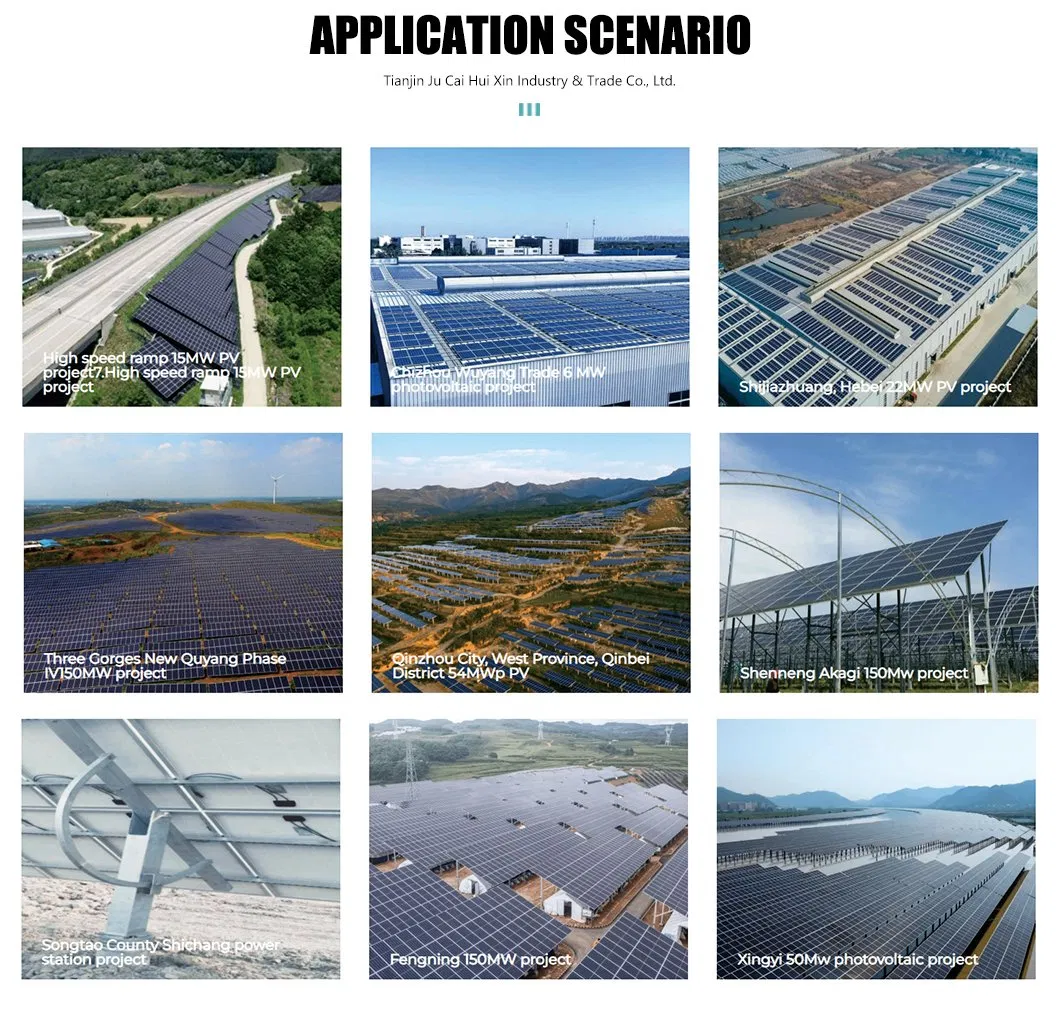

Versatile Applications

Our mounting solutions are engineered for diverse environments and needs:

✓ Residential Rooftops: Optimized for coastal city PV systems.

✓ Industrial & Commercial: Ideal for factory rooftops and large-scale distributed power stations.

✓ Off-grid Systems: Perfect for rural water pumps and communication base station power.

✓ Special Scenarios: Adapted for corrugated metal roofs with lightning protection.

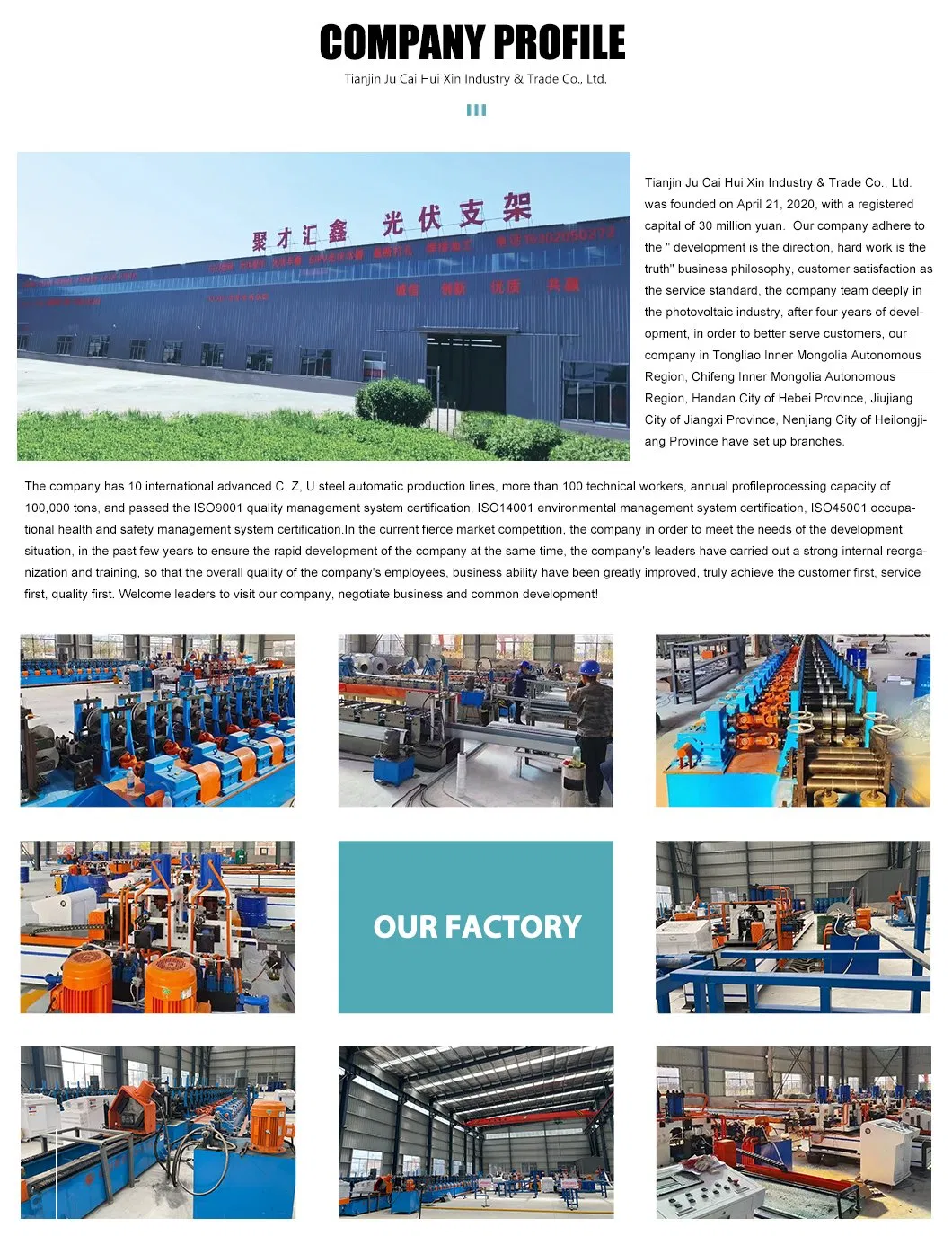

Manufacturing Strength

10,000 sqm Intelligent Base: Large scale physical factory ensuring robust production capabilities.

Advanced Production: 10 automated CZU steel lines producing 200,000 tons of profiles annually.

Global Certification: ISO triple system, CE, and RoHS certified for international quality assurance.

Core Product Matrix

BIPV System: Integrated waterproof brackets for buildings.
Ground Array: Reinforced systems for large-scale utility stations.
Solar Carports: Integrated power generation, parking, and charging.
Tracking Systems: Single-axis sunlight tracking to increase power by 30%.

Five-Star Service Commitment

1v1 Exclusive Butler: Full support from design to installation guidance.

24-hour Response: Uninterrupted global time zone support.

Free Experience: Complimentary design and sample services available.

Professional team responds within 10 minutes. Sample delivered within 72 hours. 3D modeling provided within 48 hours.

Frequently Asked Questions (FAQ)

Q1: What are Balcony Solar Mounting Solutions?

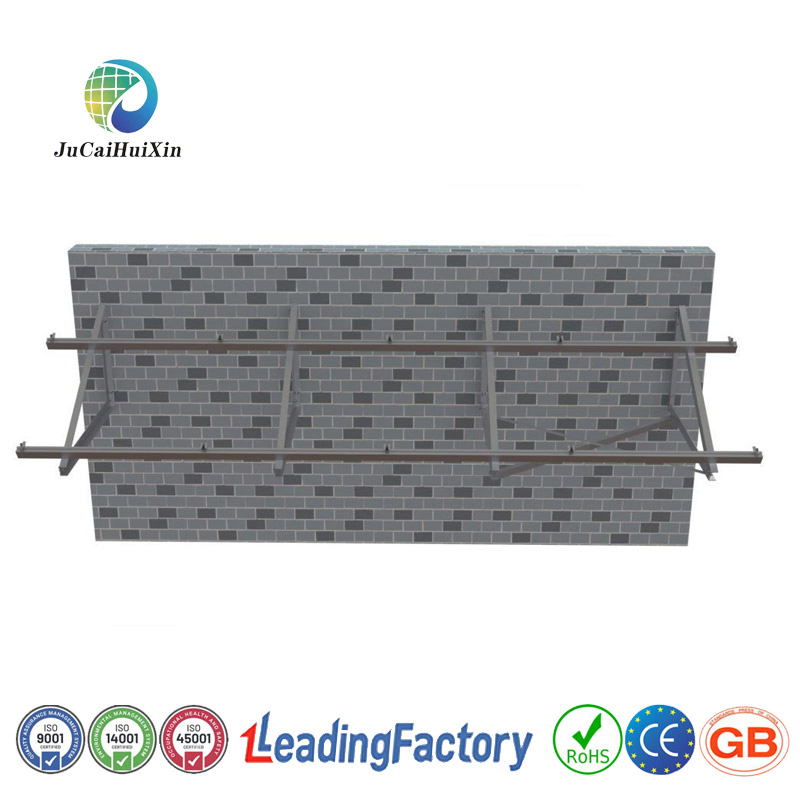

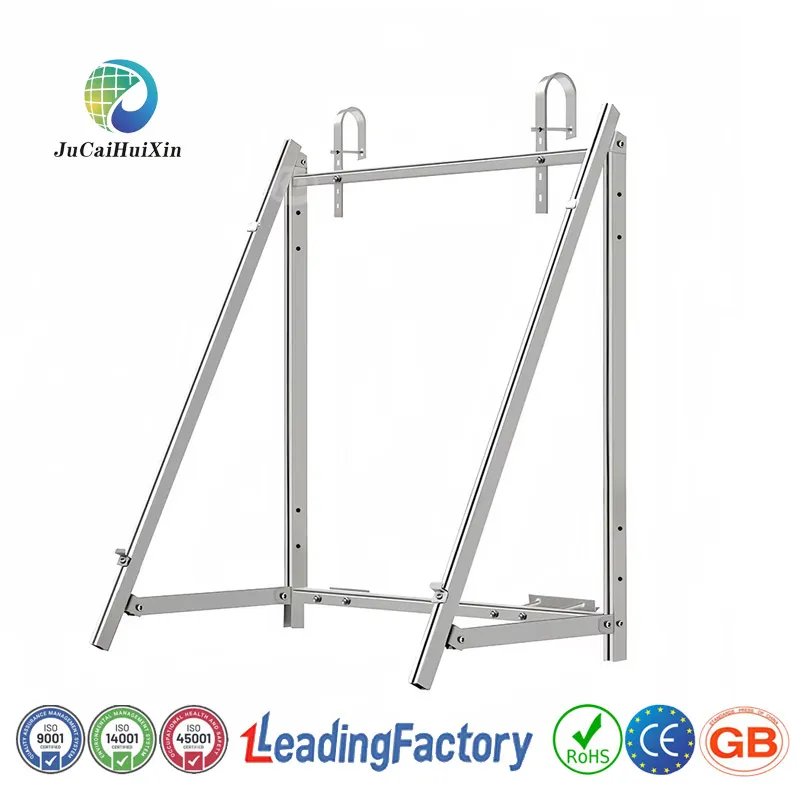

These systems are designed to securely attach solar panels to balcony railings, allowing for clean energy generation in urban environments where roof space is limited.

Q2: Are these brackets compatible with all balcony types?

We offer a range of adjustable mounting solutions designed to fit different railing designs and balcony structures. We recommend checking specific technical dimensions for a perfect fit.

Q3: How do you ensure wind resistance for high-rise balconies?

Our brackets are made from high-strength 6005 aluminum alloy and are tested to withstand wind speeds up to 60m/s, ensuring safety even in stormy conditions.

Q4: How long is the service life of the aluminum rails?

Thanks to the 15-20μm anodic oxidation coating, our rails are highly corrosion-resistant and have a designed service life of over 25 years.

Q5: Can I customize the length and color of the solar rails?

Yes, we support customization for rail lengths between 1-6 meters and offer RAL standard color anodizing to match your building's aesthetics.

Q6: Is the installation difficult for a single person?

No, the modular snap-in design allows a single person to install multiple sets per day efficiently without the need for heavy machinery.
