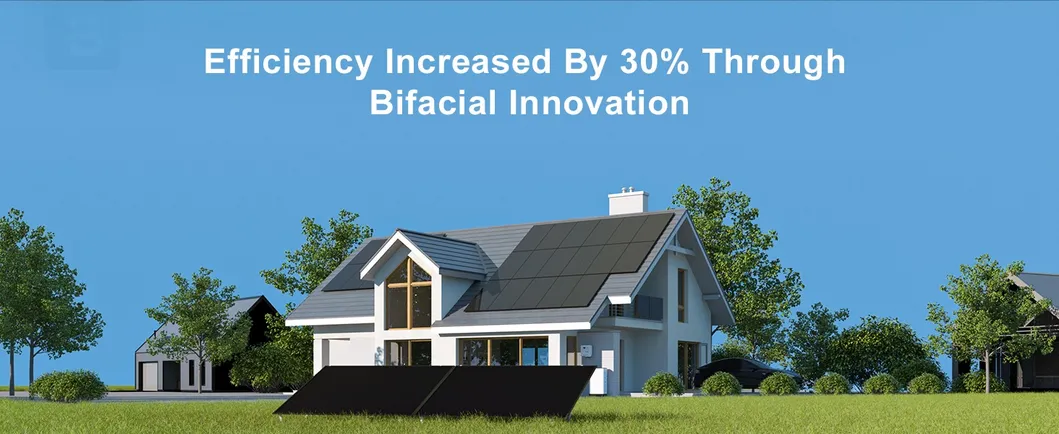

Efficient Power Package: Solar panels have a total power of 860 W (2 x 430 W). These modules feature an efficiency of up to 22.02%, utilizing a double-sided design that uses sunlight reflected from the back, providing up to a 30% performance increase. It is ideal for residential and commercial installations.

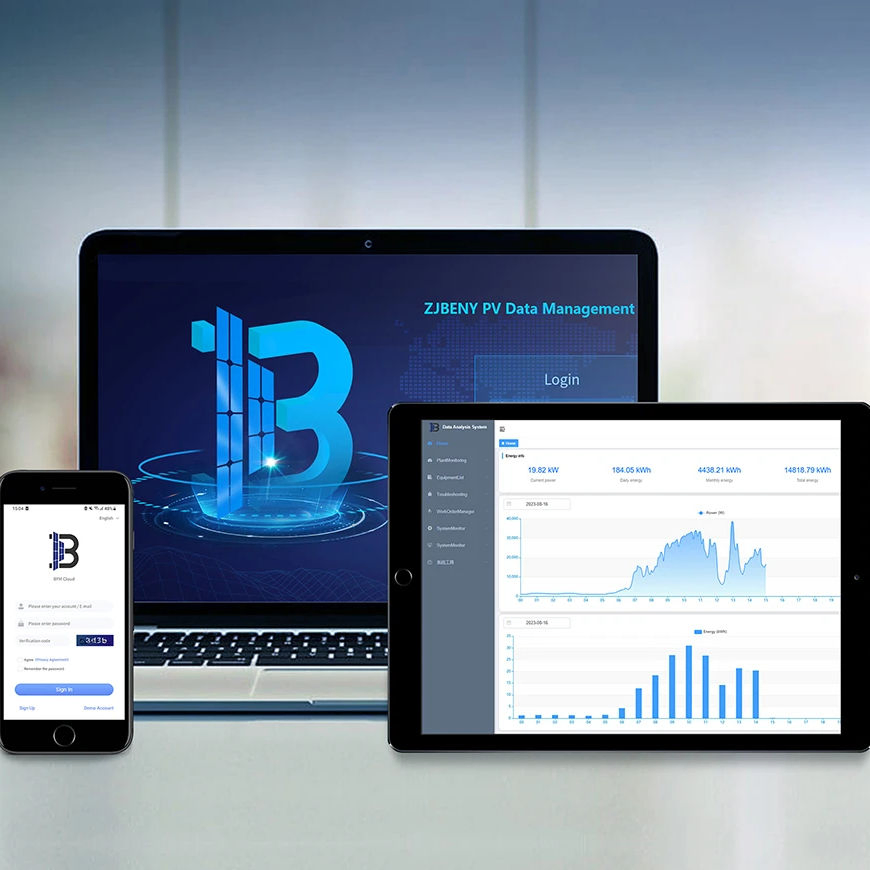

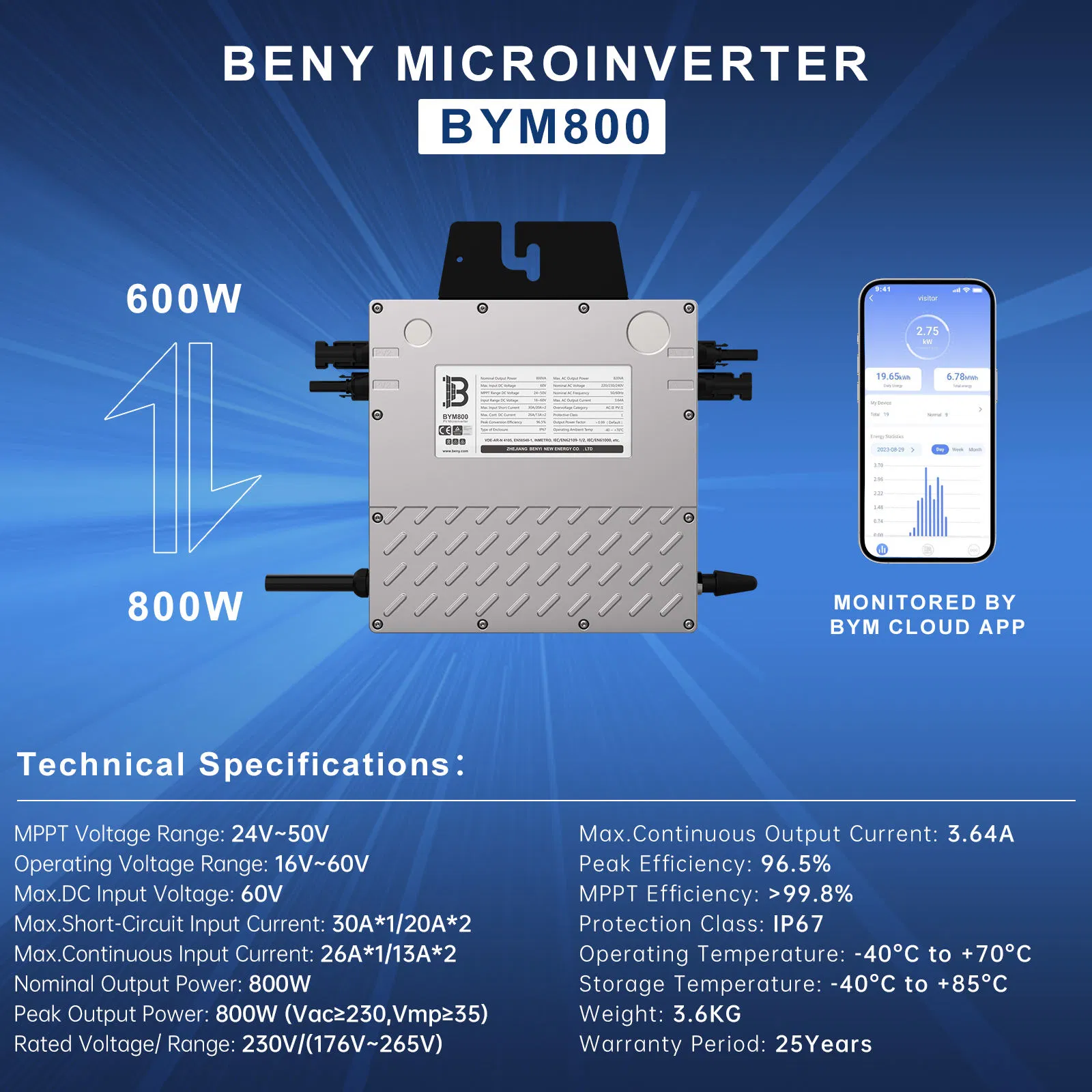

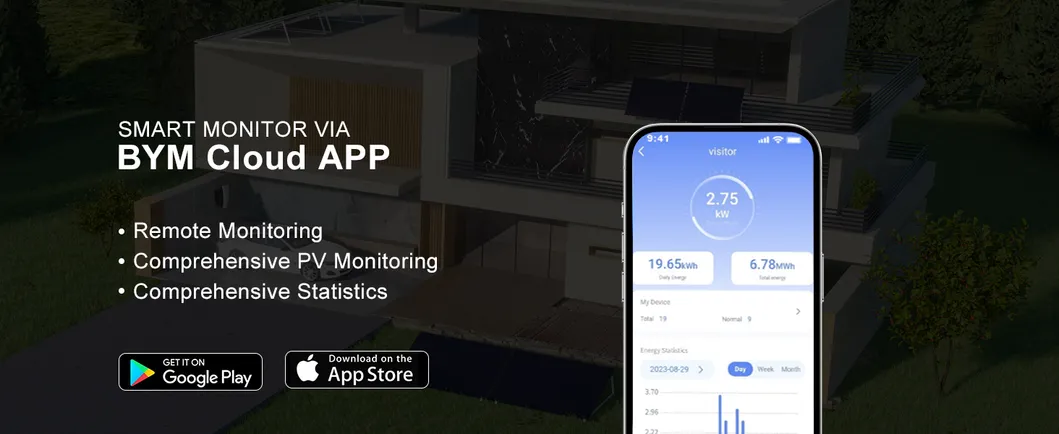

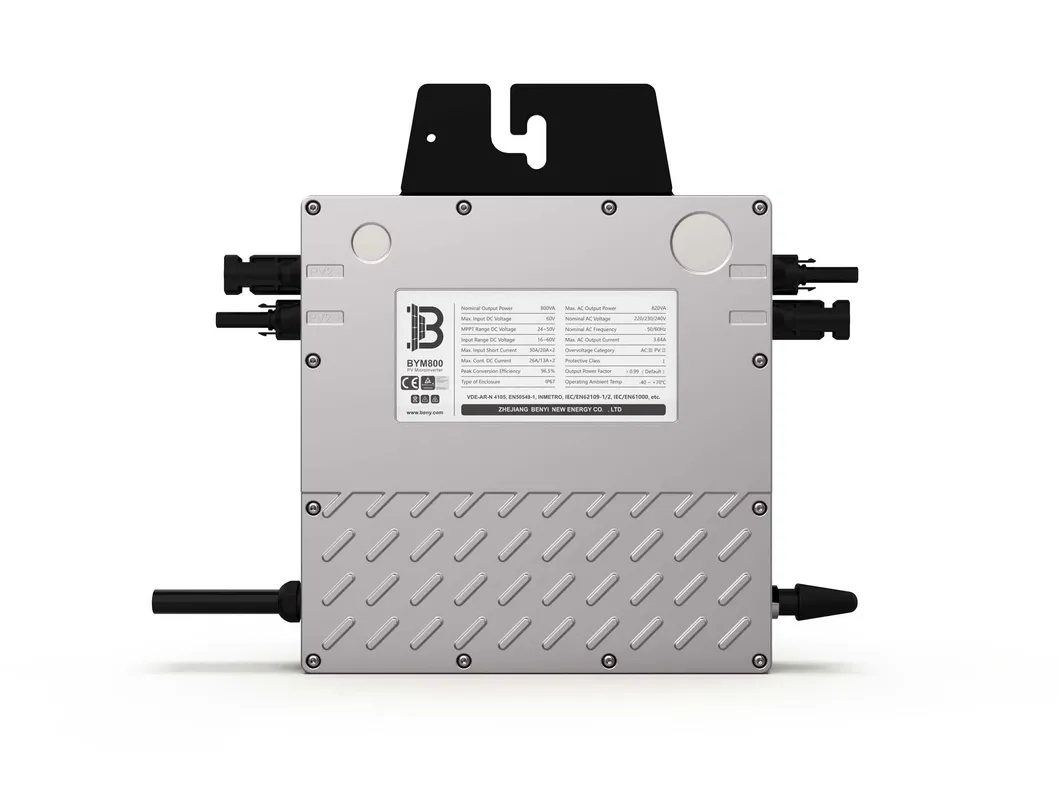

Highly Efficient Inverter: The inverter has a power of 800 W, which can be switched to 600 W via the mobile app. It reaches an efficiency of up to 96.5 percent for optimal yield in partial shade. Real-time monitoring is available via a mobile app, and the IP67 housing ensures durability in all weather conditions.

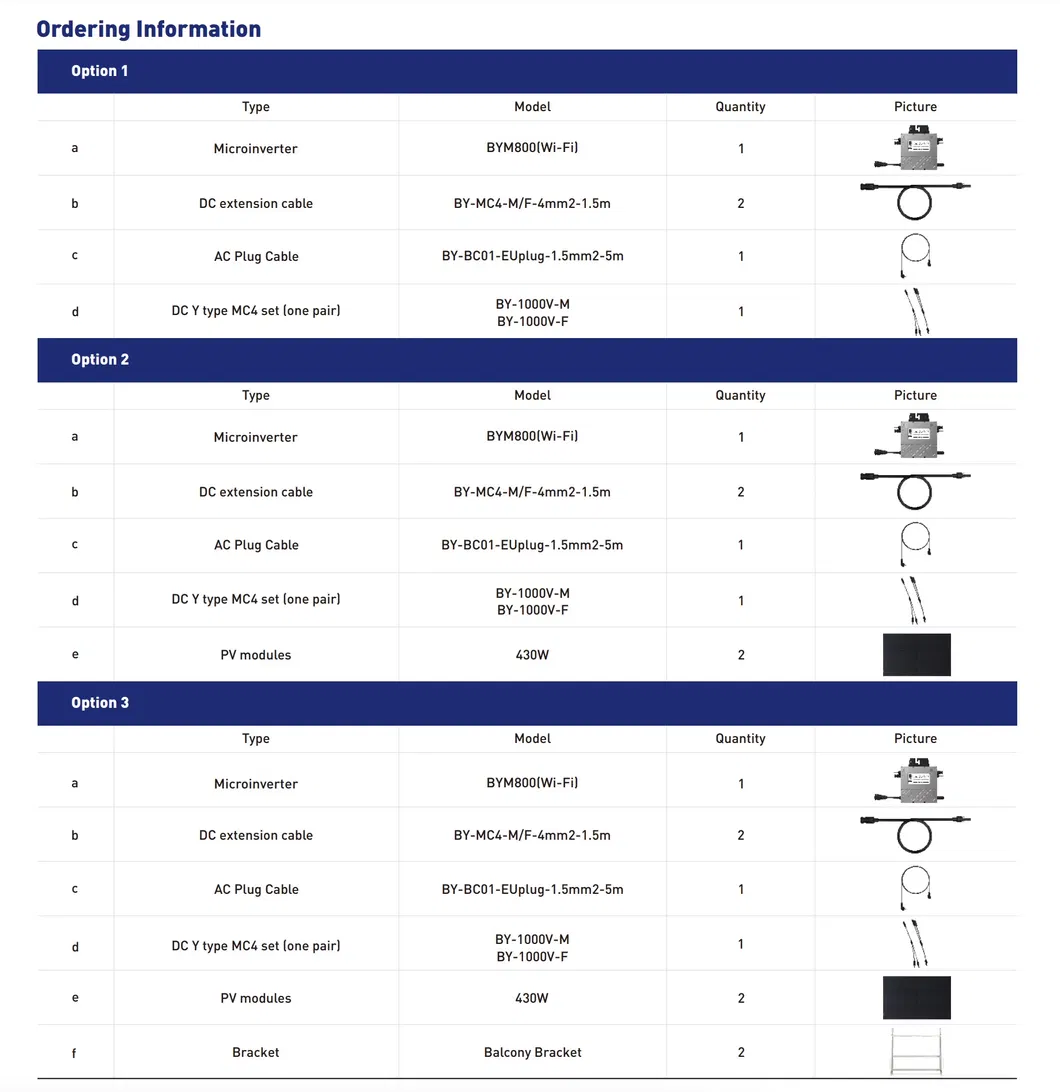

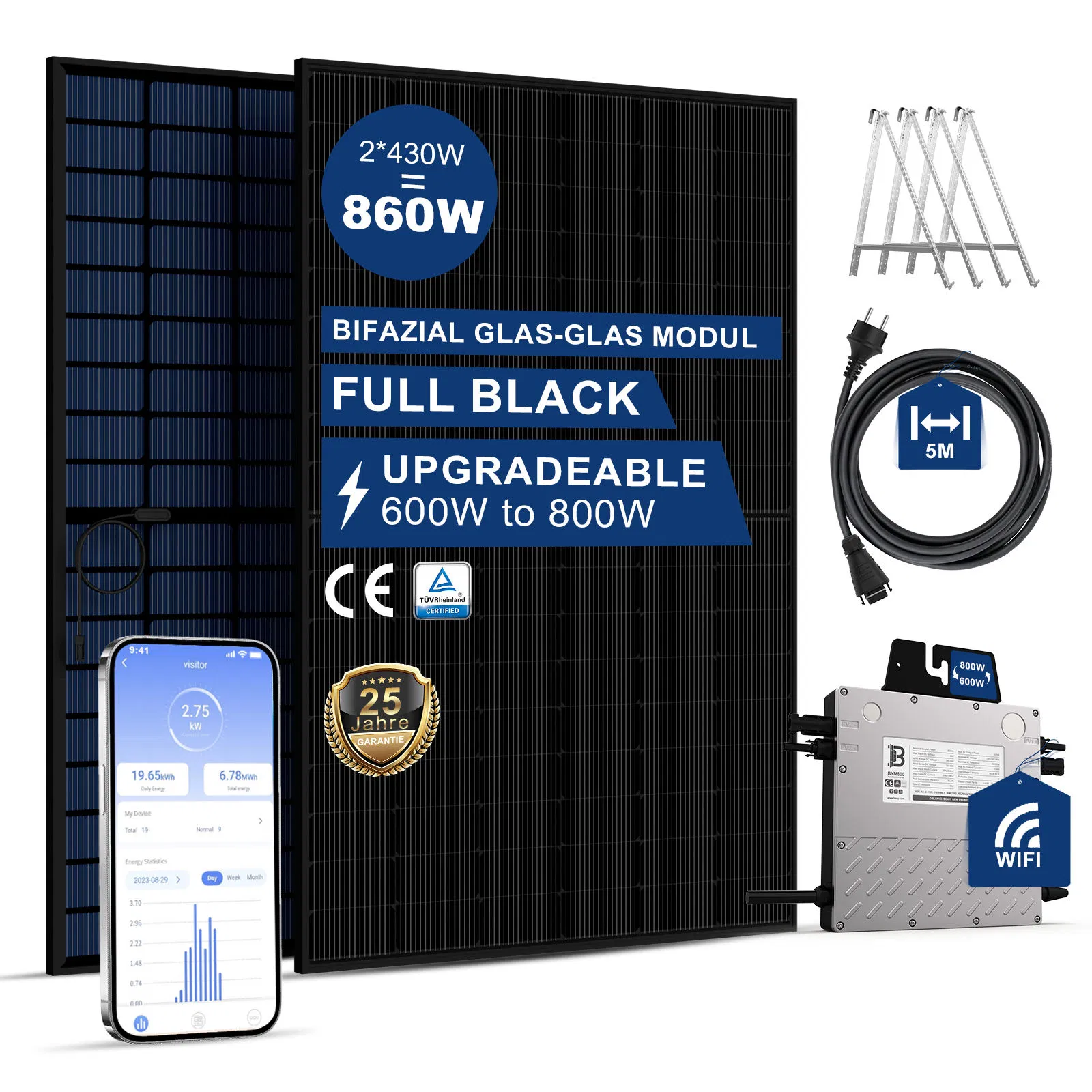

Complete Plug & Play System: Easy to install with complete sockets. The kit consists of two 430 watt solar modules, an adjustable inverter (800W to 600W), a 5-meter connection cable, and two 2-meter DC extension cables.
| Microinverter Input Data (DC) | |
| MPPT Voltage Range | 24V-50V |
| Operating Voltage Range | 16V-60V |
| Max. Short Circuit Current | 30A*1 / 20A*2 |
| Microinverter Output Data (AC) | |
| Rated Output Power | 800W |
| Rated Voltage Range | 230V (176V~265V) |
| Rated Frequency | 50Hz/60Hz |
| Power Factor | >0.99 |
| Efficiency & Environment | |
| Peak Efficiency | 96.5% |
| MPPT Efficiency | >99.8% |
| Enclosure Rating | IP67 |
| Operating Temperature | -40ºC to +70ºC |
| PV Modules Specifications | |
| Maximum Power (Pmax) | 430W per panel |
| Module Efficiency | 21.99% |
Applying GaN (Gallium Nitride) third-generation semiconductor technology, this microinverter achieves superior performance and heat management compared to traditional models.
While most microinverters on the market hover around 96%, this newly developed unit achieves a peak efficiency of 97.5%, allowing you to harvest more energy from your solar panels.

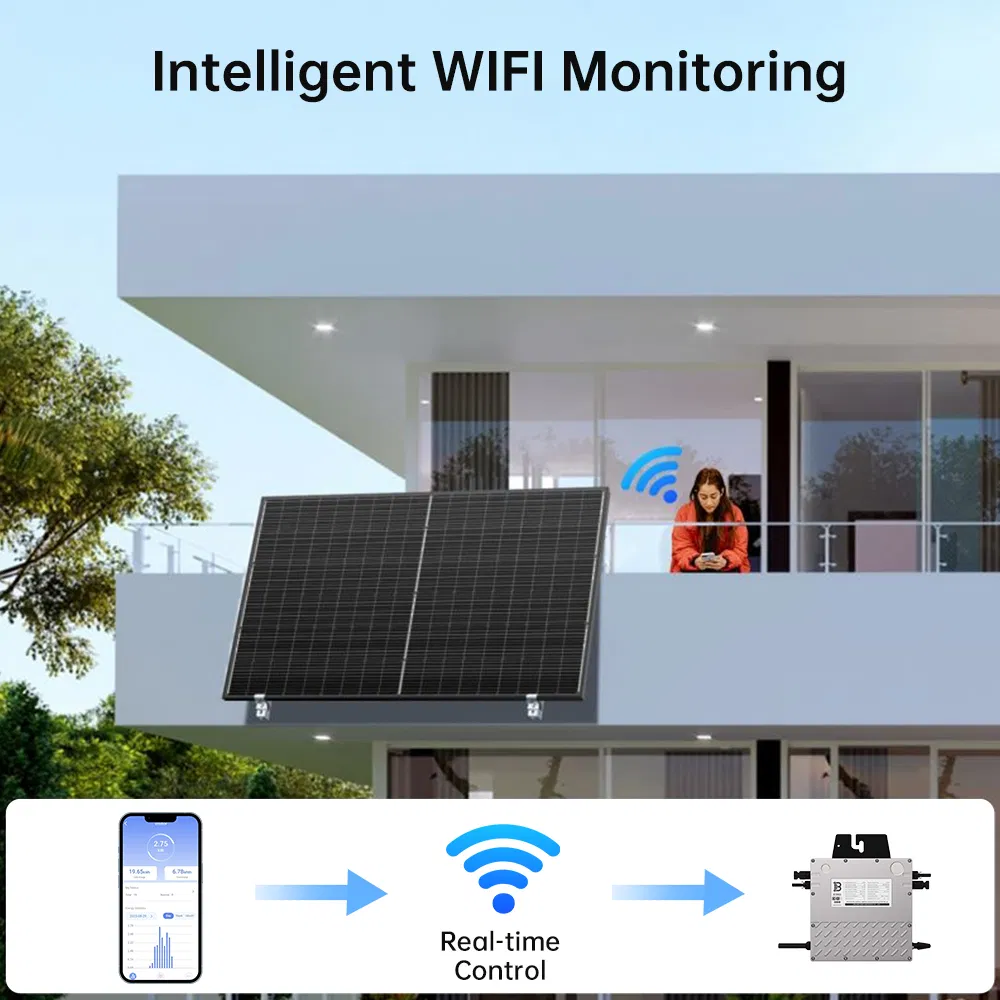

Communicate via PLCC/Zigbee/Wi-Fi to manage systems in a smart digital way. Isolate and solve problems much faster than with standard string inverters.

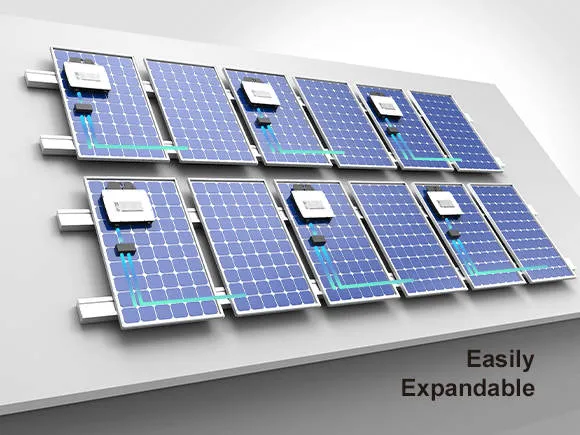

The system's modularity allows it to be expanded from a single panel to multiple panels independently. Parallel optimizers can be used to increase output power without damaging PV modules.
This technology is instrumental in the success of numerous photovoltaic, battery storage, and EV charging system projects across Germany, France, Poland, UK, USA, Brazil, and many more. We cater to major organizations including solar power system manufacturers, PV project contractors, and distributors worldwide.
