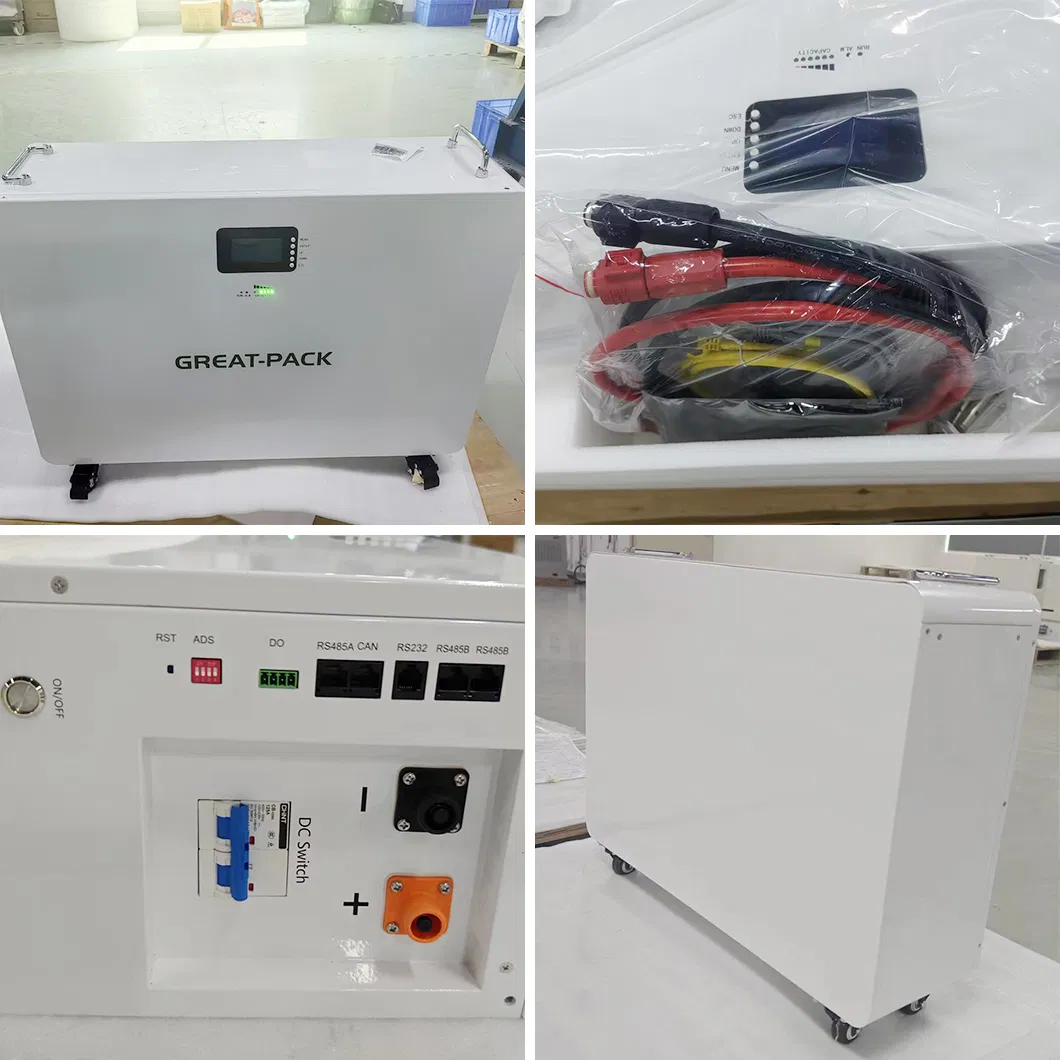

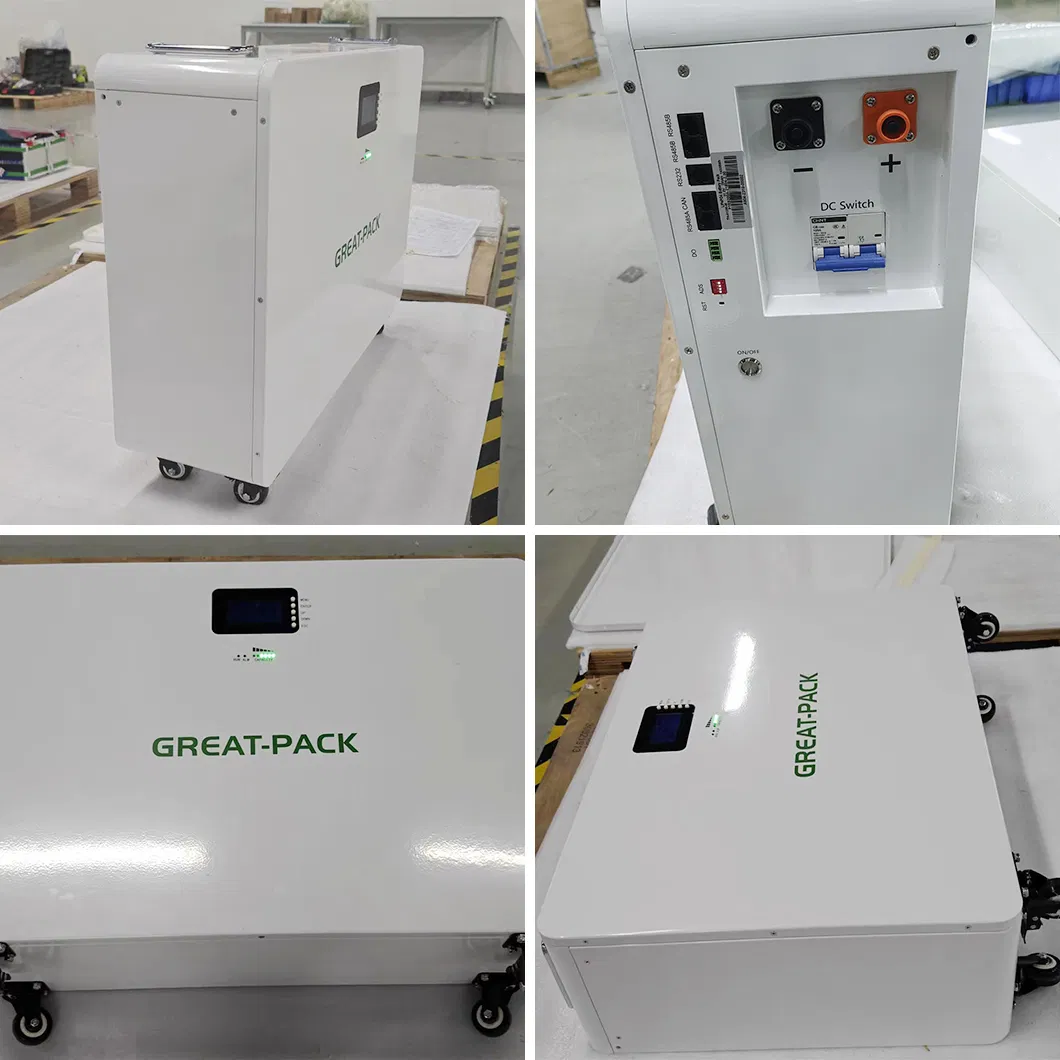

High-performance lithium iron phosphate battery system designed for residential energy storage. Features reliable prismatic cells and a robust built-in BMS.
| Technical Specifications | |
|---|---|
| Nominal Energy | 14.33KWH |
| Nominal Voltage | 51.2V (LFP-16 series) |
| Nominal Capacity | 280Ah |
| Range of DC Discharge Voltage | 43.2-58.4V |
| Recommend Charge Current | 100A |

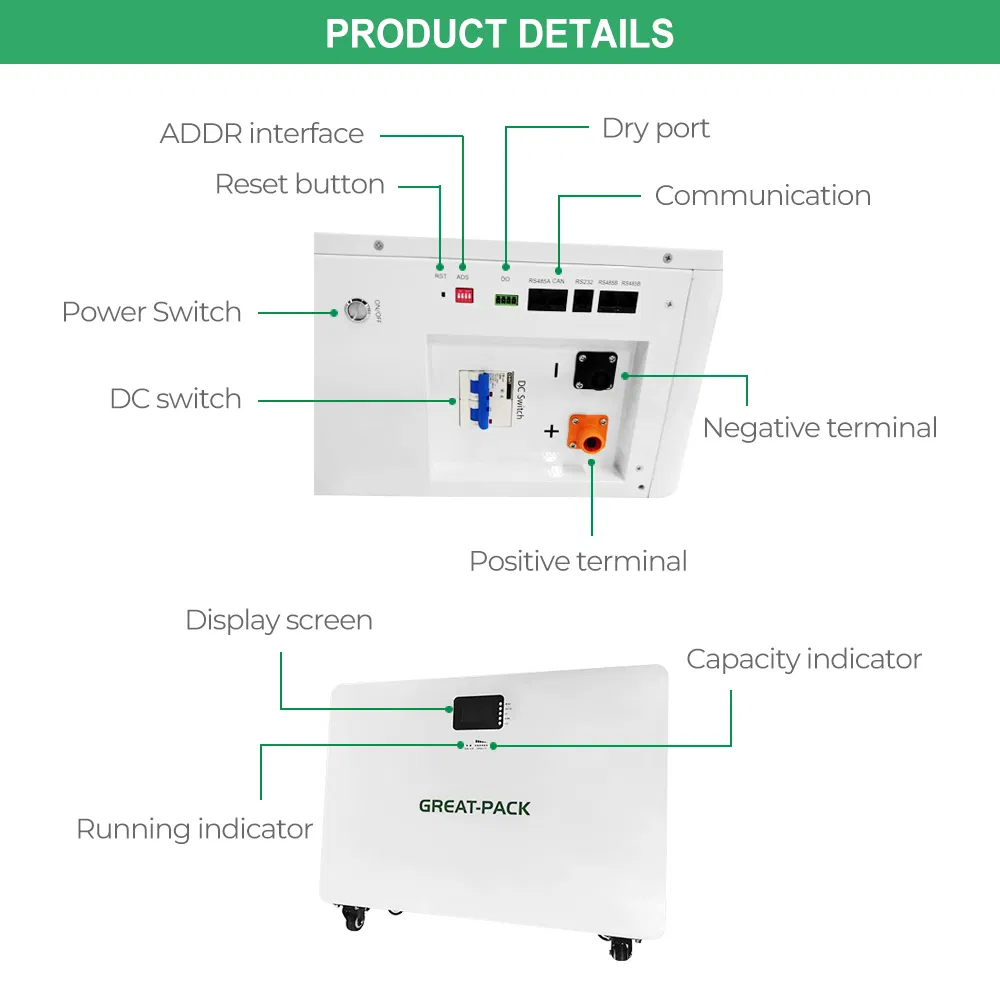

| Communication Method | RS485, RS232, CAN |
| Operation Temperature | 0~50ºC (Charge); -20~50ºC (Discharge) |
| Protection | Over temp, Overcurrent, Short circuit, Overcharge |
| Design Life | 15 years |
| Warranty | 10 years |

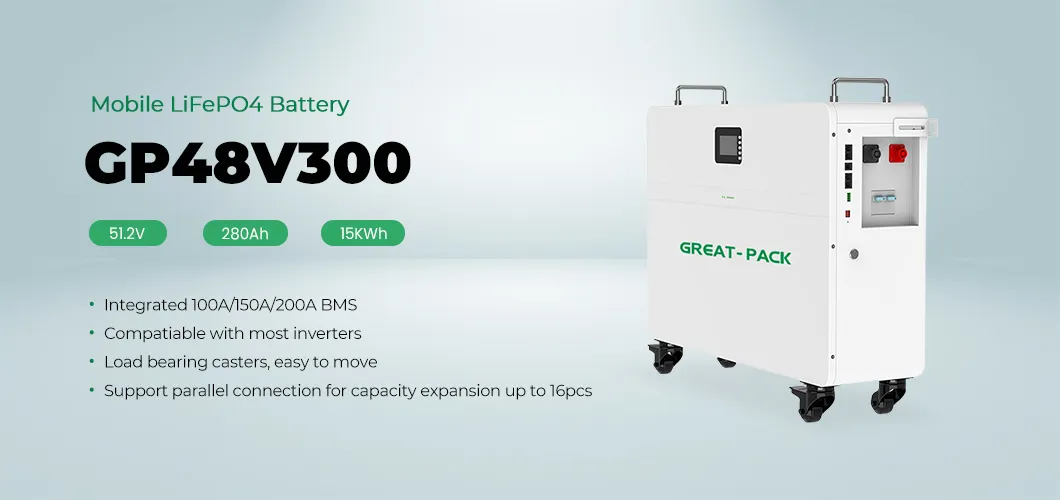

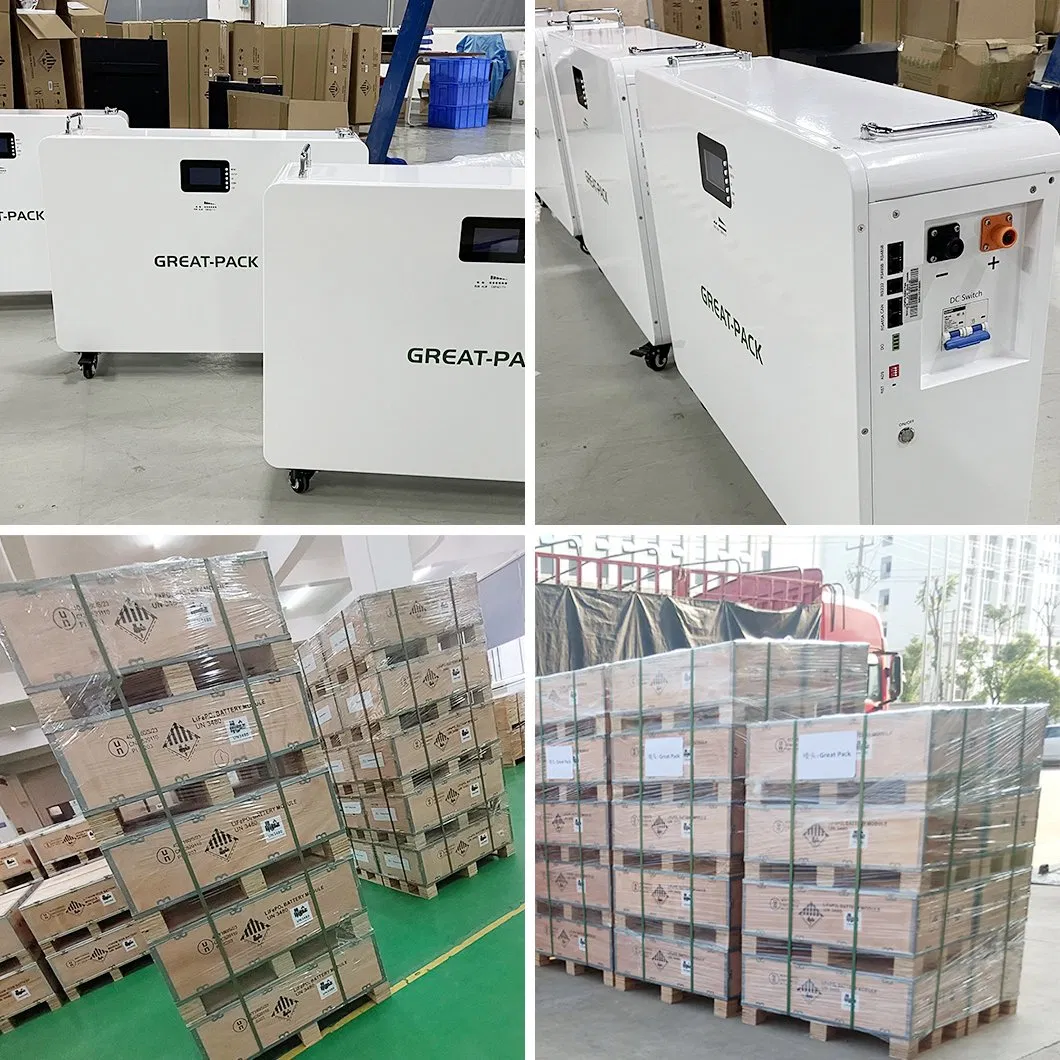

Support Max. 6pcs in parallel up to 86KWh. Equipped with wheels for easy moving and installation.

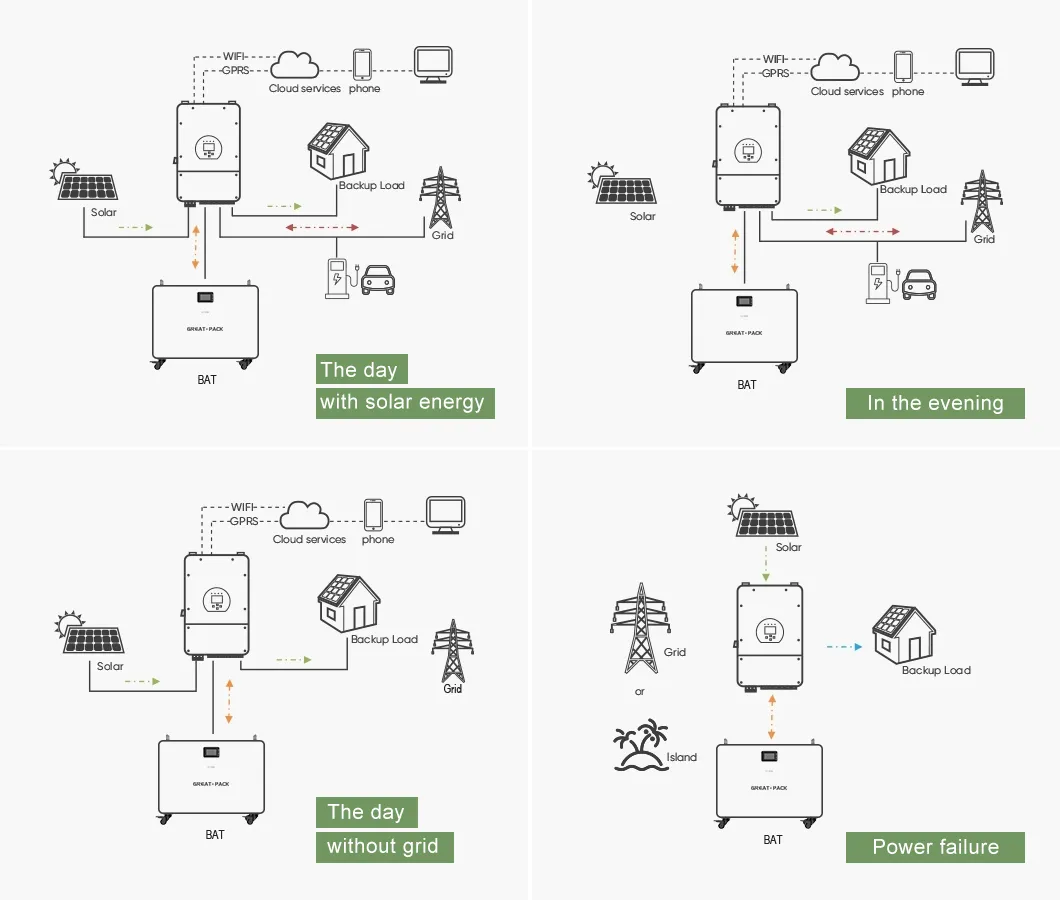

Widely used in solar systems, wind systems, UPS, and telecom systems, especially in off-grid and hybrid scenarios.

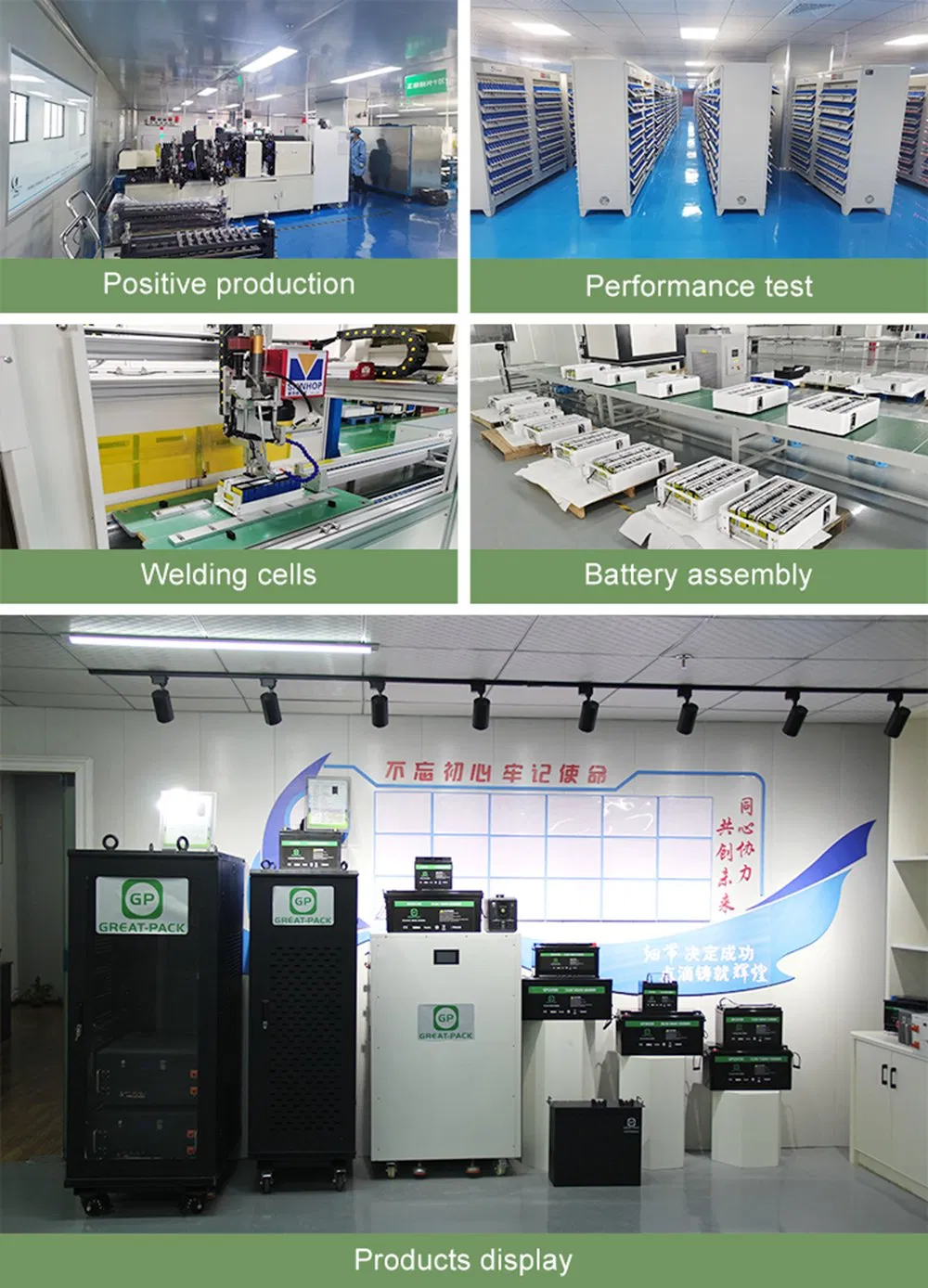

Specializing in LiFePO4, Li-polymer, and Li-ion rechargeable batteries. We are committed to R&D and innovation to supply green and clean energy solutions.
