| Model NO. | PNG-HYD5 | Condition | New |
|---|---|---|---|
| Certification | ISO, CE, IEC61215 61730, MSDS, RoHS | Application | Home, Industrial, Commercial |
| Solar Panel | Tier 1 Brand, 410W/415W/450W/550W | Hybrid Inverter | Deye Brand 5kw. Smart/ Safe/ Quiet |

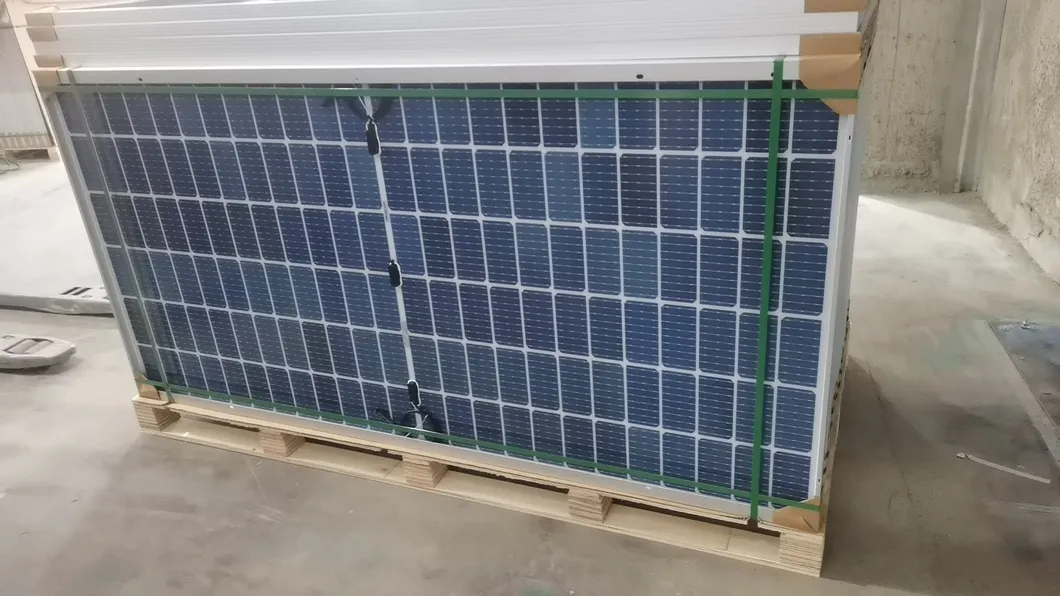

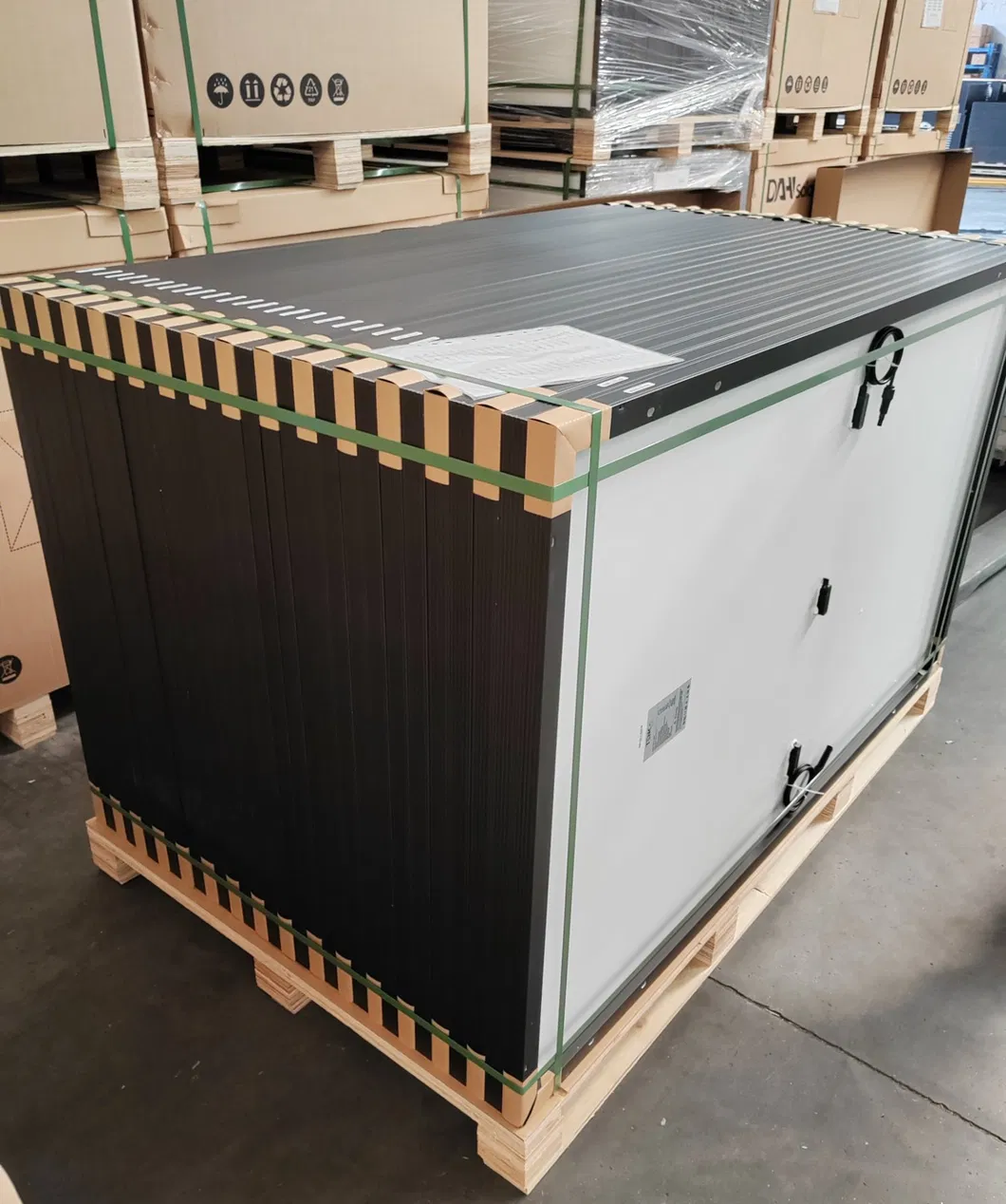

| Lithium Battery | 48V/51.2V, Wall-Mounted or Stackable | Transport Package | Wooden Box |
| Production Capacity | 1000 Sets Per Month | HS Code | 854149 |
Founded in 2016, our company is a professional and fast-growing enterprise focusing on R&D, production, and sales of PV modules, power stations, and PV system products. We are a recognized manufacturer and supplier of solar cells, solar PV modules, and solar systems globally.

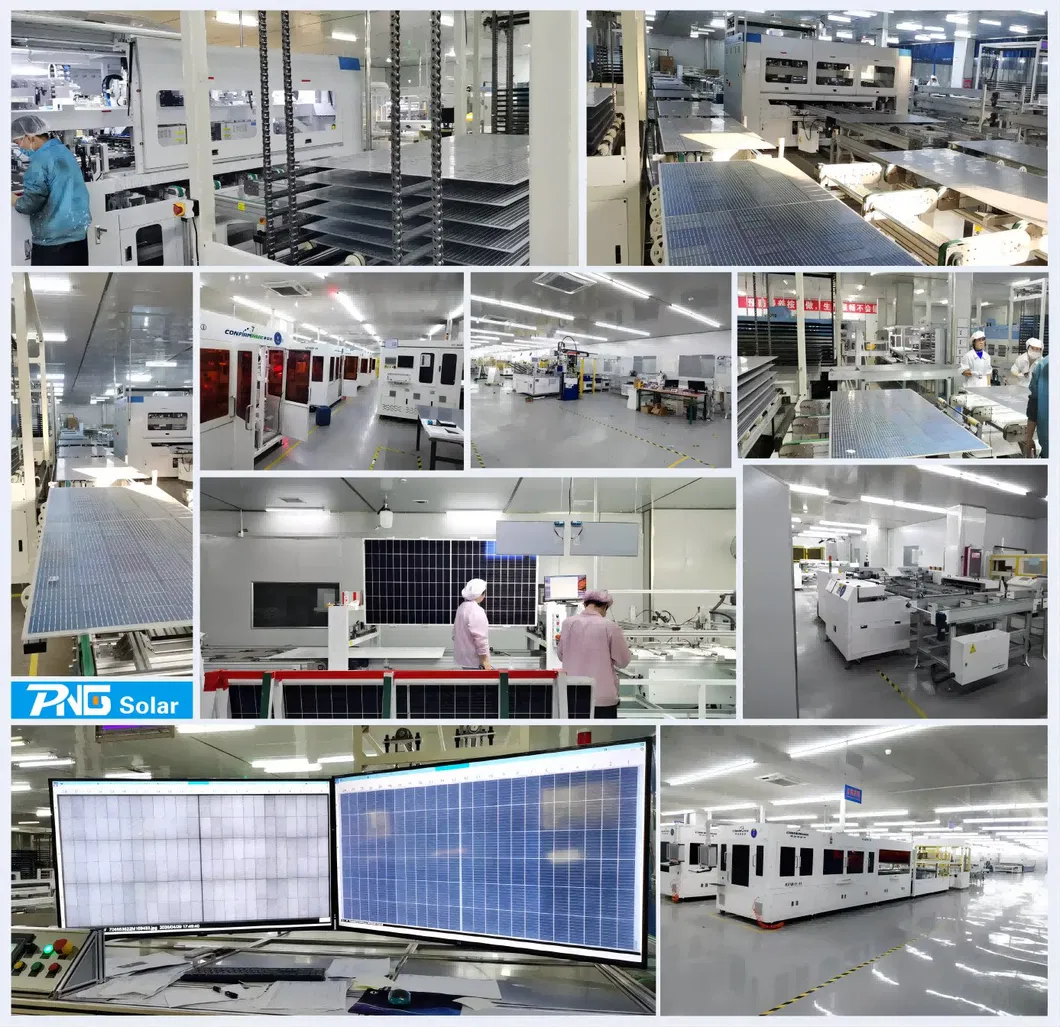

Covering an area of 46,000 square meters with more than 200 employees, we maintain an annual production capacity of 800MW. With advanced production systems and excellent quality control, we have earned certifications including ISO 9001/14001/45001, TUV, and CE. Our global sales network covers 70 countries and regions across Europe, Asia, and South America.
In 2022, total sales volume reached more than USD 1.4 billion, ranking among the top manufacturers and exporters in the region.
| Loads | Rated Power | Q'ty | Daily Service Time | Daily Consumption |
|---|---|---|---|---|
| TV | 120w | 1pc | 4hrs | 480wh |
| Lamp | 20w | 10pcs | 8hrs | 1600wh |
| Fans | 80w | 2pcs | 4hrs | 640wh |
| Refrigerator | 100w | 1pc | 24hrs | 2400wh |
| Computer | 100w | 2pc | 8hrs | 1600wh |
| Cooker | 800w | 1pc | 1hr | 800wh |
| Total Consumption Per Day | 7.52KWH | |||

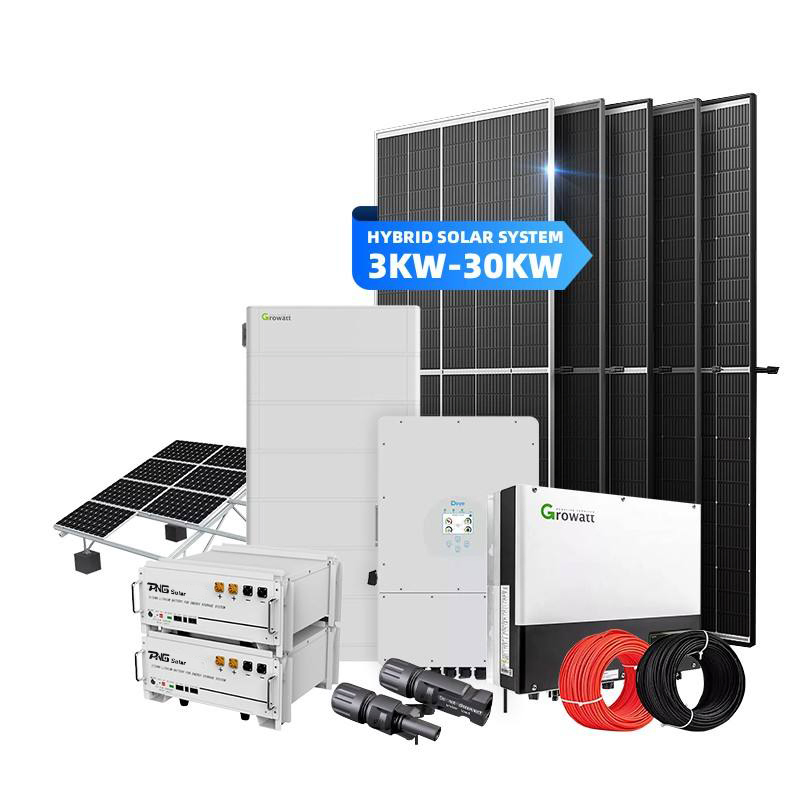

| Item | Model | Q'ty | Warranty |
|---|---|---|---|
| Solar Modules | Tier 1 brand, 415w/455w/550w/575w etc. | 8pcs | 12-25 Years |

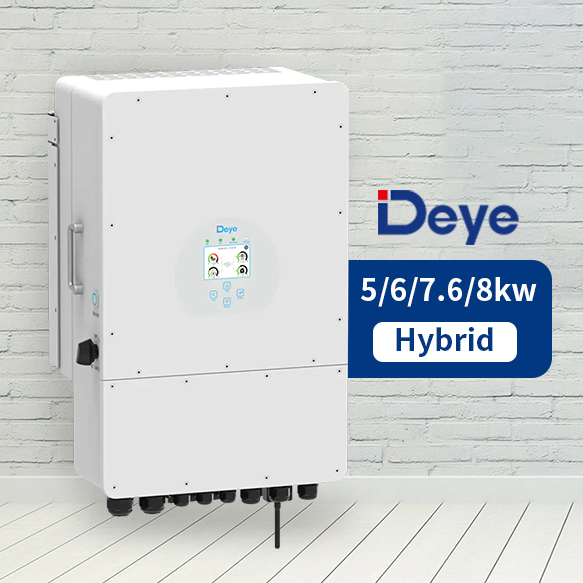

| Hybrid Inverter | Deye SUN-5K-SG04LP1-EU | 1pc | 5 Years |
| Lithium Battery | 51.2V 102AH Wall-mounted | 1pc | 5 Years |
| Grid-connected Box | Breaker, SPD included | 1pc | 3 Years |
| Solar Brackets | Galvanized Steel/Aluminum Alloy | 1set | 10 Years |

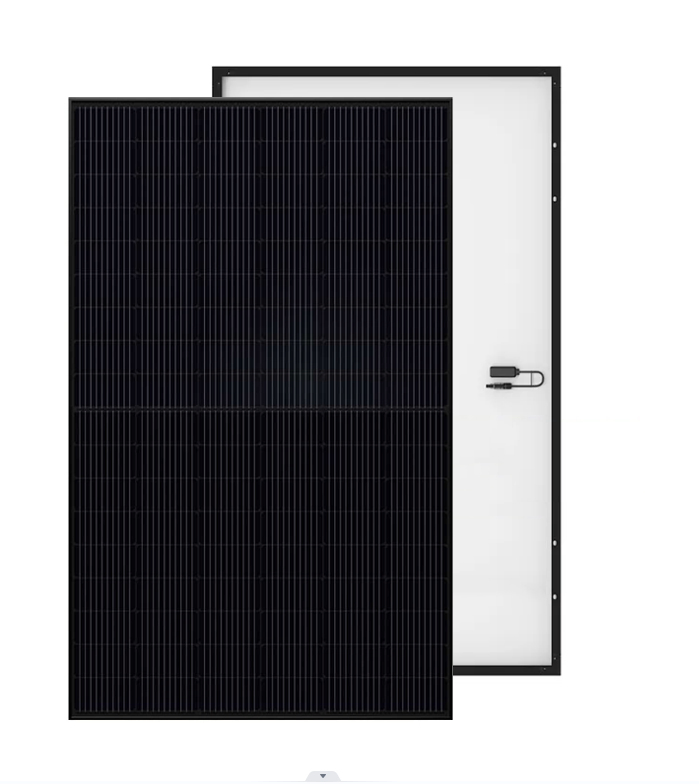

| Module Type | TWMPD-54HS415 | |
|---|---|---|
| Test Condition | STC | NOCT |
| Max. Power (Pmax) | 415W | 314.1W |
| Max. Power Voltage (Vmpp) | 37.53V | 35.15V |
| Module Efficiency | 21.3% | |
| Model | SUN-3.6K-SG03LP1-EU | SUN-5K-SG03LP1-EU | SUN-6K-SG03LP1-EU |
|---|---|---|---|
| Max. DC Input Power | 4680W | 6500W | 7800W |
| Battery Type | Lead-acid or Lithium-ion (40~60V) | ||
| Max. Efficiency | 97.60% | ||
| Protection Degree | IP65 | ||
| Noise Level | <30 dB | ||

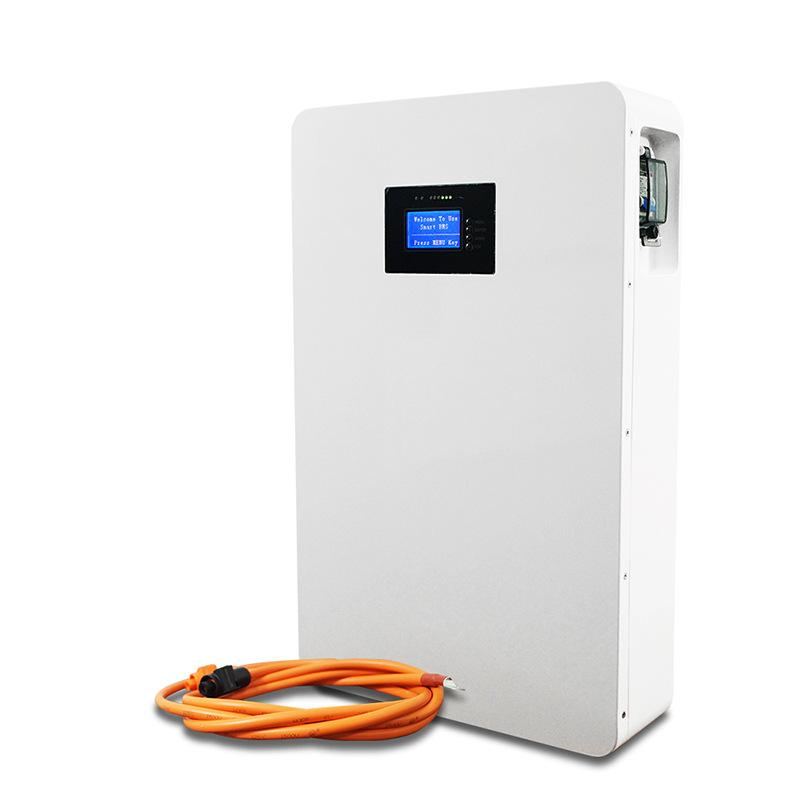

| Model | PNG-W5 (5.2KWH) | PNG-W10 (10.4KWH) |
|---|---|---|
| Nominal Voltage | 51.2V | |
| Cell Capacity | 102AH | 204AH |
| Life Cycling | 6000 Cycles @ 25ºC | |
| Communication | RS232, RS485, CAN | |
Extensive experience providing customized solutions for global customers across Europe, Asia, South America, and Africa.
Sophisticated production and marketing services help our customers capture increasing market share.
We prioritize long-term cooperation; most of our clients have been with us since our establishment.

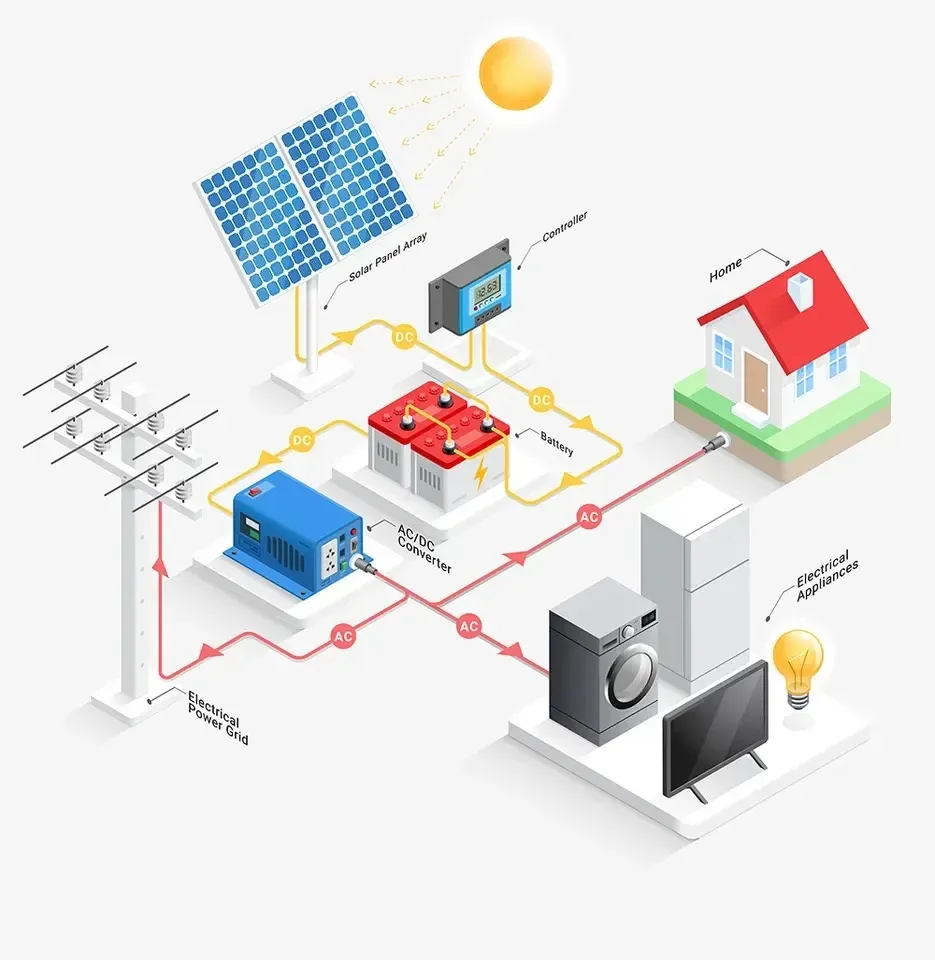

A: A hybrid solar system combines solar panels, a hybrid inverter, and a battery storage system. It allows you to use solar energy during the day, store excess power for night use, and remain connected to the grid for backup.
A: Yes, the Deye hybrid inverter included in our BOM features a UPS function that automatically switches to battery power during a grid failure to keep your essential loads running.
A: Our wall-mounted lithium batteries support up to 6000 cycles at 0.5C and 25ºC, ensuring a long service life of over 10 years depending on usage.
A: We provide a 12-year materials warranty and a 25-year linear power output warranty for Tier 1 brand modules.
A: Yes, our inverters comply with major international grid regulations including VDE 0126, AS4777, IEC61727, and more.
A: Yes, our lithium battery packs support parallel connection for up to 15 units, allowing you to easily scale your storage capacity as your energy needs grow.
