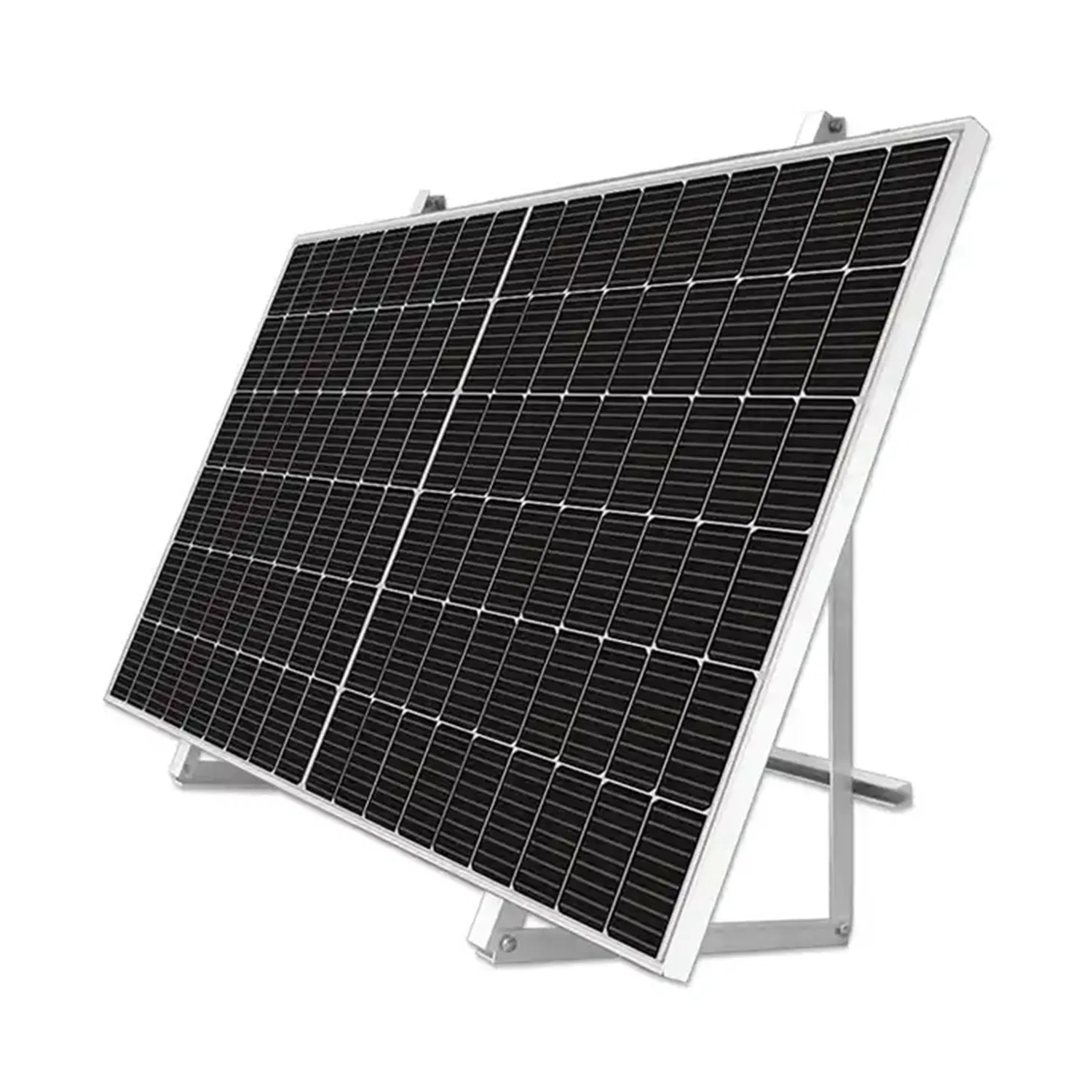

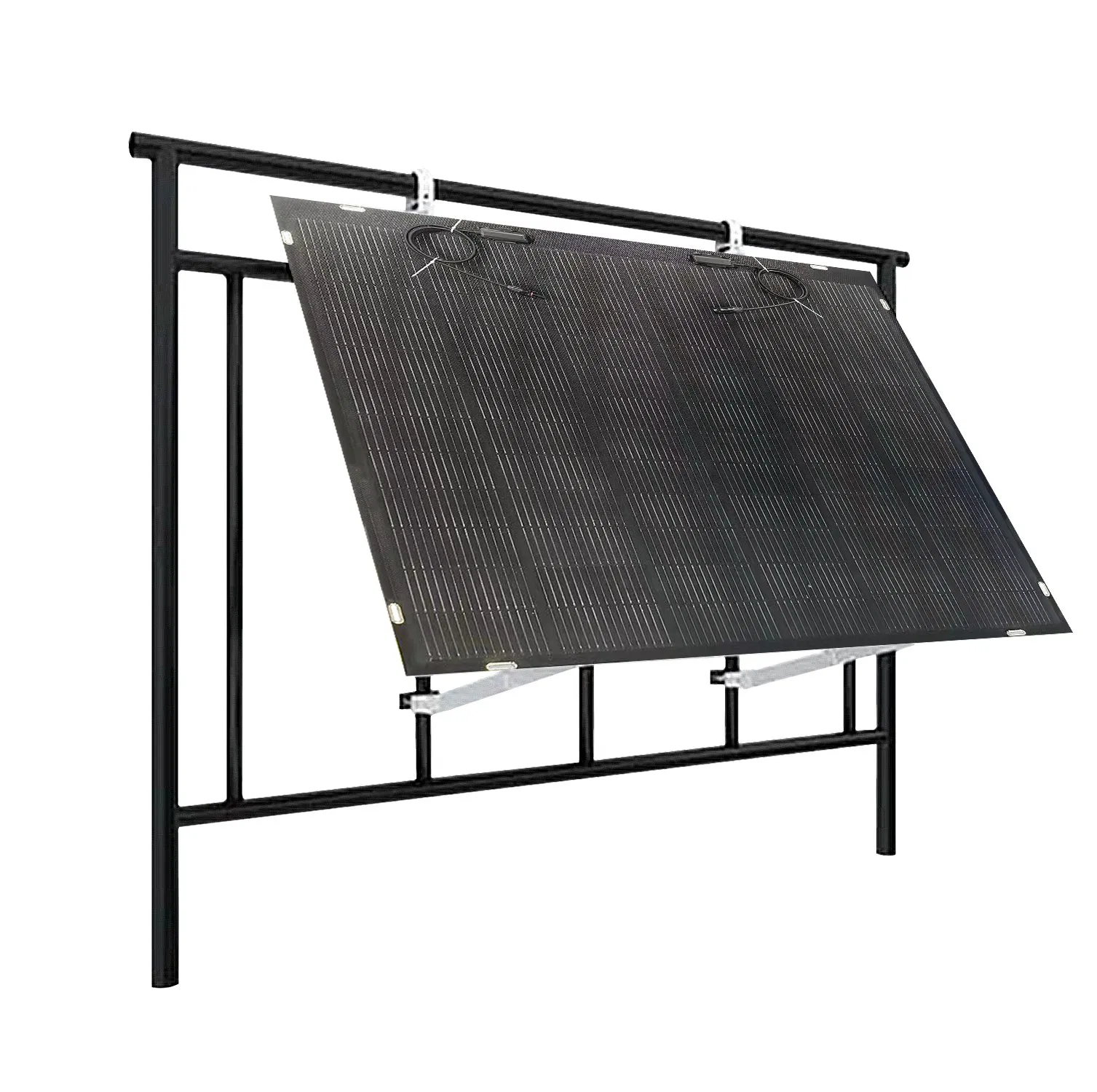

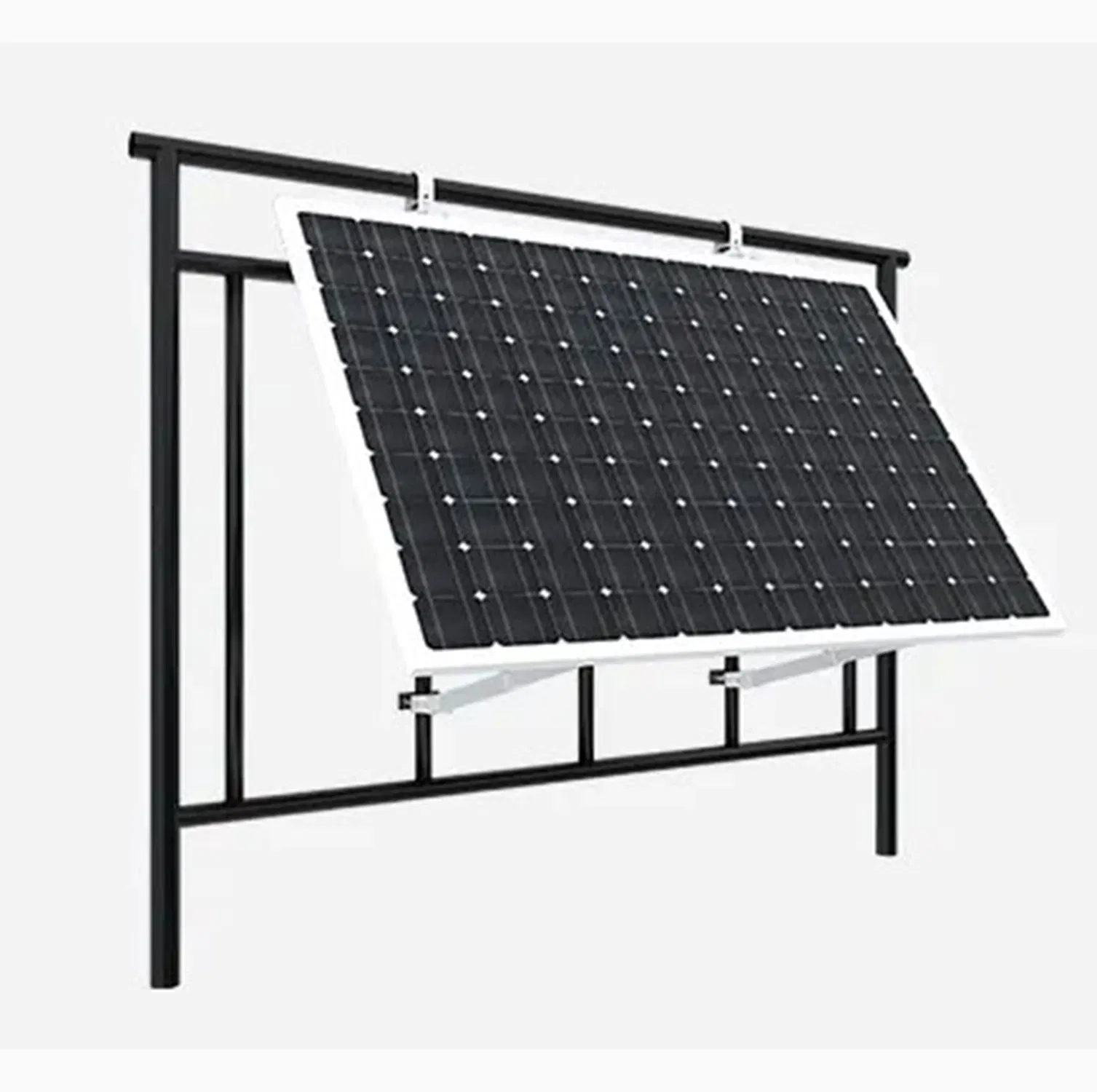

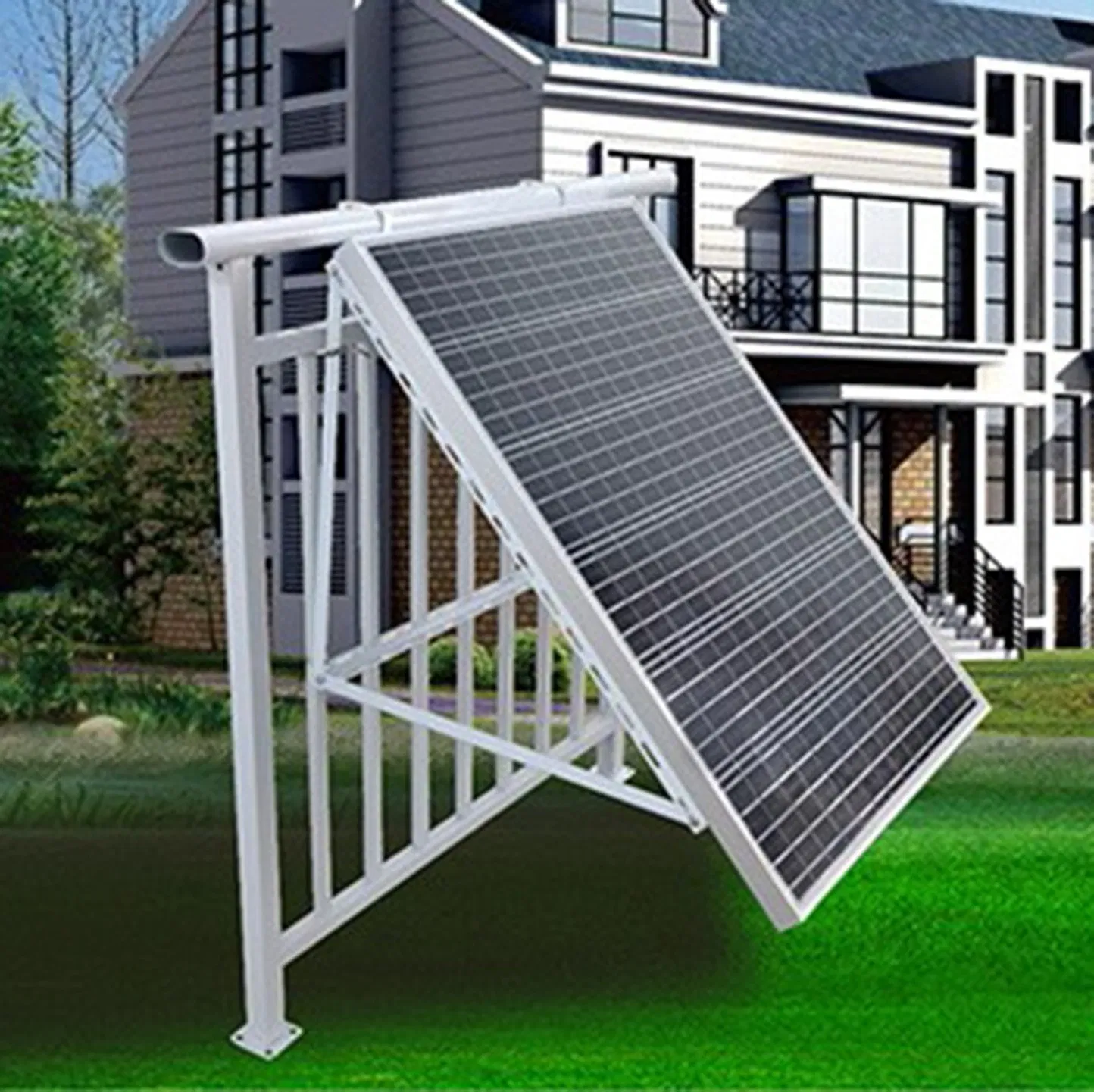

Compact Balcony Solar Power Generation Kit for Home Use

Still deciding? Get samples of $ !
Order Sample

Product Description

ℹ️
Basic Product Overview
Model NO.SPS-B
CertificationISO, CB, CE
ApplicationBalcony
TypeMono Perc Half Cell
Solar CellMono Cells
Junction BoxIP68, 3 Diodes
FrameAnodized Aluminium Alloy
Production Capacity100MW/Year
⚙️
Mechanical Specification
Hardware Components Details
Format1684*1002*35 mm
Weight23kg ± 5%
Cell Configuration6 x 20 Monocrystalline cells
Junction BoxProtection class IP67/IP68, with bypass diodes
Cable4mm² Solar cable (Length 300 mm)
ConnectorMC4 Compatible
Glass3.2 mm Coated Tempered Glass
⚡
Electrical Data (STC)
Model FS335M FS340M FS345M FS350M FS355M
Rated Power (Pmax)335W340W345W350W355W
Open Circuit Voltage (Voc)40.9V41.1V41.3V41.5V41.7V
Max Power Voltage (Vmp)34.9V35.1V35.3V35.5V35.7V
Short Circuit Current (Isc)10.21A10.29A10.37A10.45A10.53A
Max Power Current (Imp)9.6A9.69A9.78A9.87A9.95A
Module Efficiency (%)19.9%20.1%20.4%20.7%21%
📸

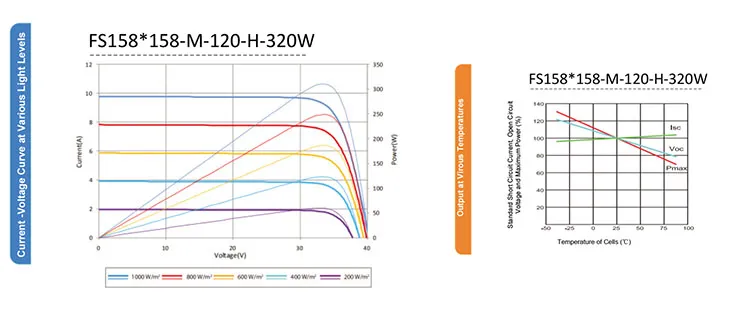

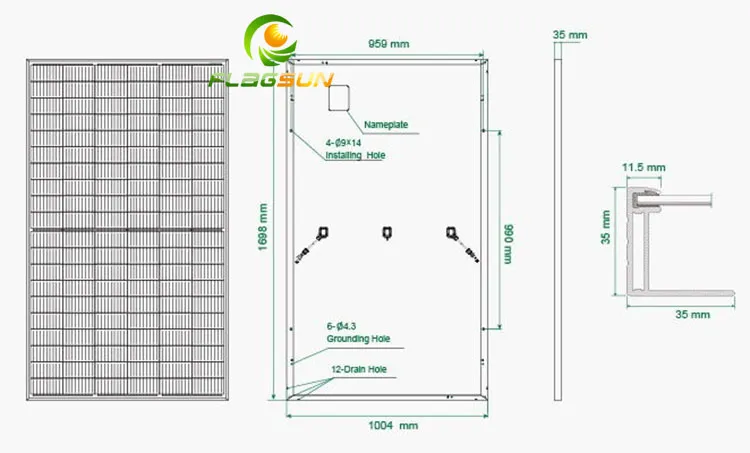

Product Drawing & Analysis
🏭

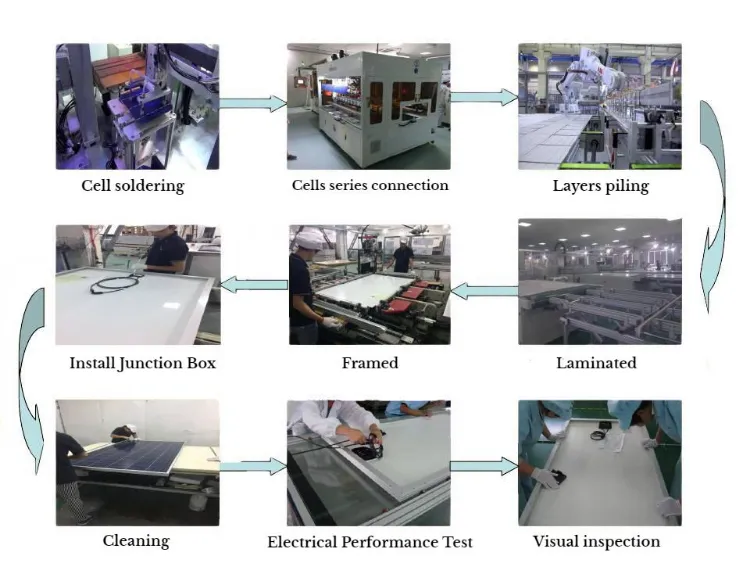

Process & Logistics
💎
Our Advantages
✅
GRADE A SOLAR CELLS: Highly efficient Grade A monocrystalline cells for maximum output.
✅
HIGH QUALITY: Fully automated production processes with strict testing for every solar panel.
✅
PRICE ADVANTAGES: Cost-effective solutions due to industrial chain integration and scale effect.
✅
AFTER-SALES ADVANTAGES: 24-hour online service to provide timely technical support.
✅
EXPERTISE: Over 10 years of experience in the PV industry with a large-scale production base.
❓
Frequently Asked Questions
Q: How can we guarantee the quality of the solar panels?
A: We provide pre-production samples before mass production and conduct a final strict inspection before every shipment.
Q: Why should I choose these balcony solar panels?
A: These modules are designed for residential and commercial systems globally, offering high efficiency in space-constrained environments like balconies.
Q: What delivery and payment terms are accepted?
A: We accept FOB, CFR, CIF, EXW terms. Payment can be made via T/T, L/C, or Credit Card in USD, EUR, or CNY.
Q: Are the solar panels weather-resistant?
A: Yes, with IP67/IP68 rated junction boxes and anodized aluminium frames, they are built to withstand various outdoor conditions.
Q: Can these panels be used for off-grid systems?
A: Absolutely. While designed for balconies, they are compatible with both on-grid and off-grid residential applications.
Q: What is the main benefit of half-cell technology?
A: Half-cell modules offer higher power output, better temperature-dependent performance, and reduced shading effects on energy generation.
