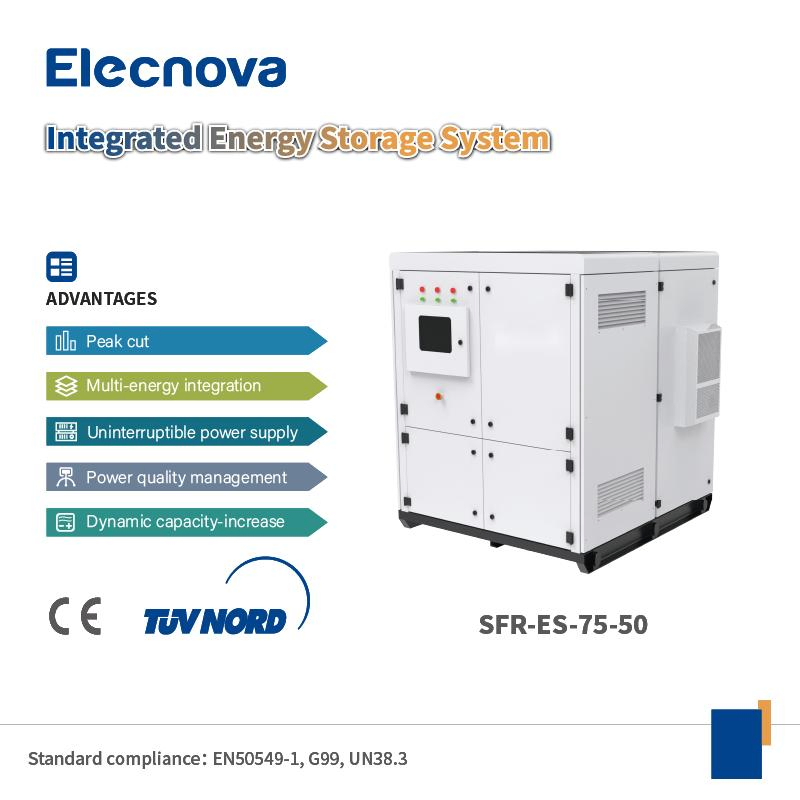

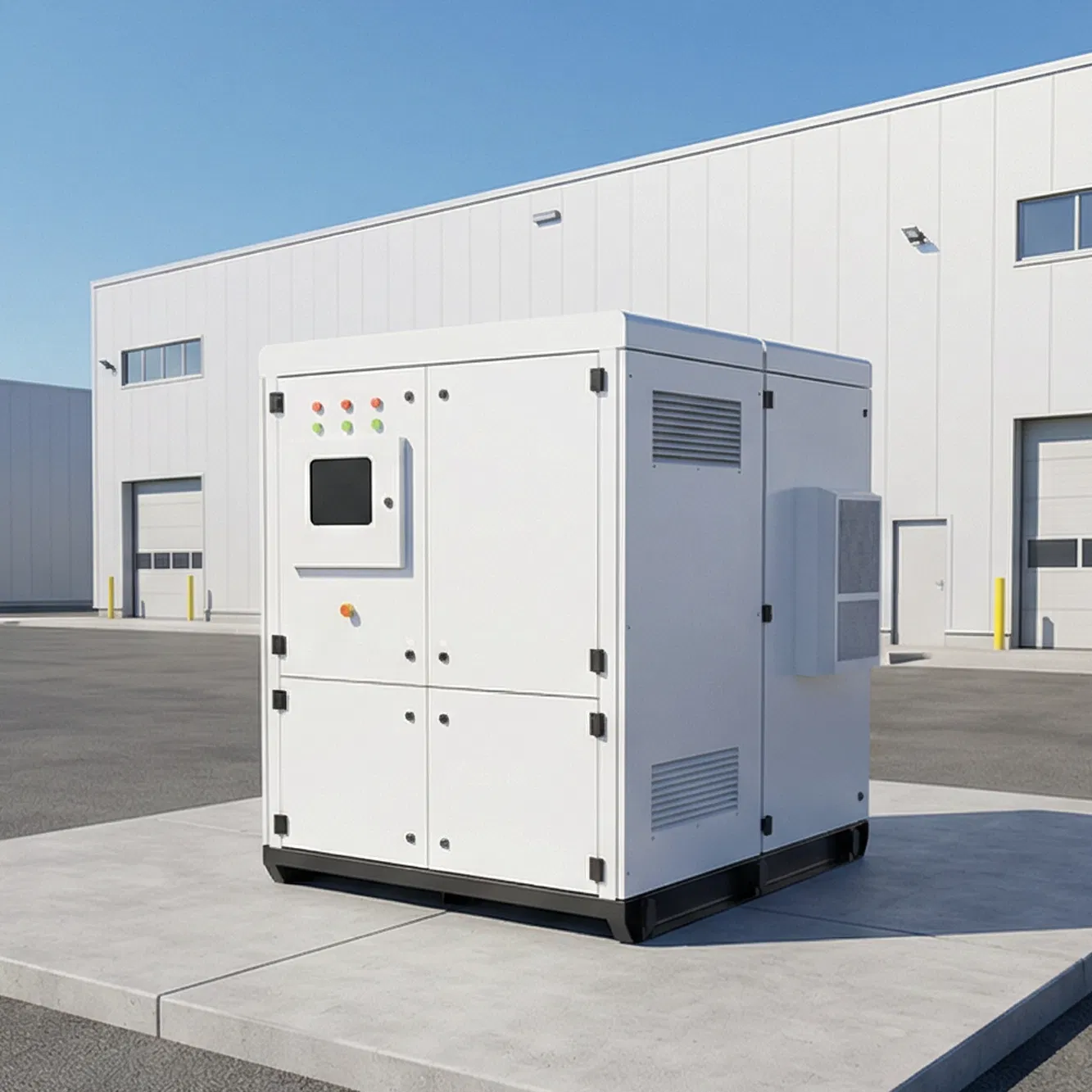

Elecnova 75kwh Peak Shaving Battery System Solar Storage Dg Micro-Grid Solution

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Information

Model NO. SFR-ES-75-50
Nominal Capacity 40ah/80ah/120ah
Cycle Life 4000 Cycles
Battery Type Lithium Ion (LiFePO4)

Product Description

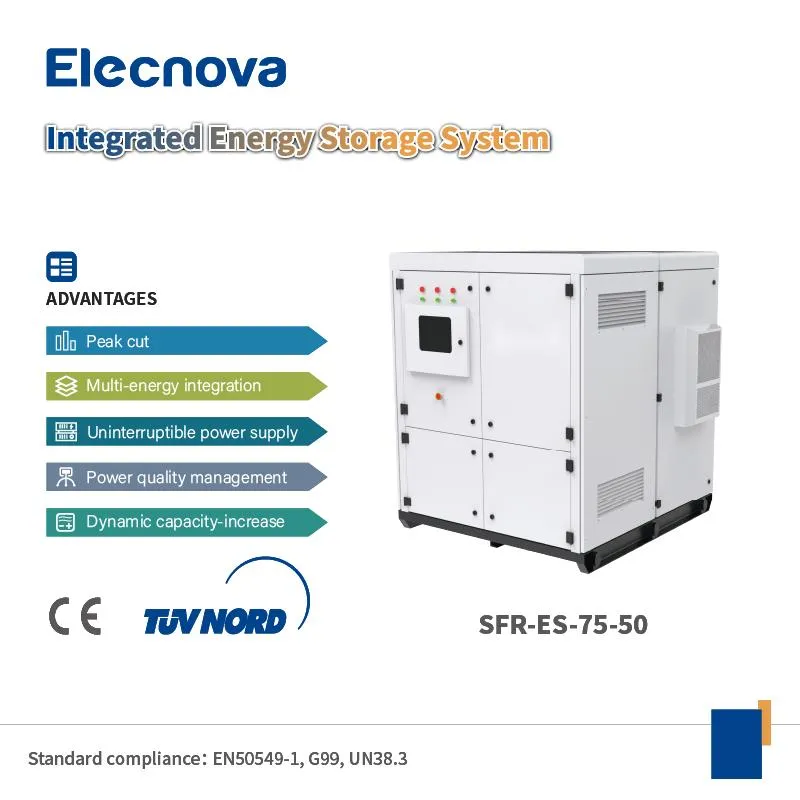

Peak Shaving Battery System
General Specifications
Output Frequency 50/60Hz Controller Type MPPT
Rated Output Power 50kw Max Output Power 52.5kw
Rated Grid Voltage AC 380/400 Power Grid 3W+N+PE
Application Industrial, Solar Energy Systems, Uninterruptible Power Supply

Technical Parameters

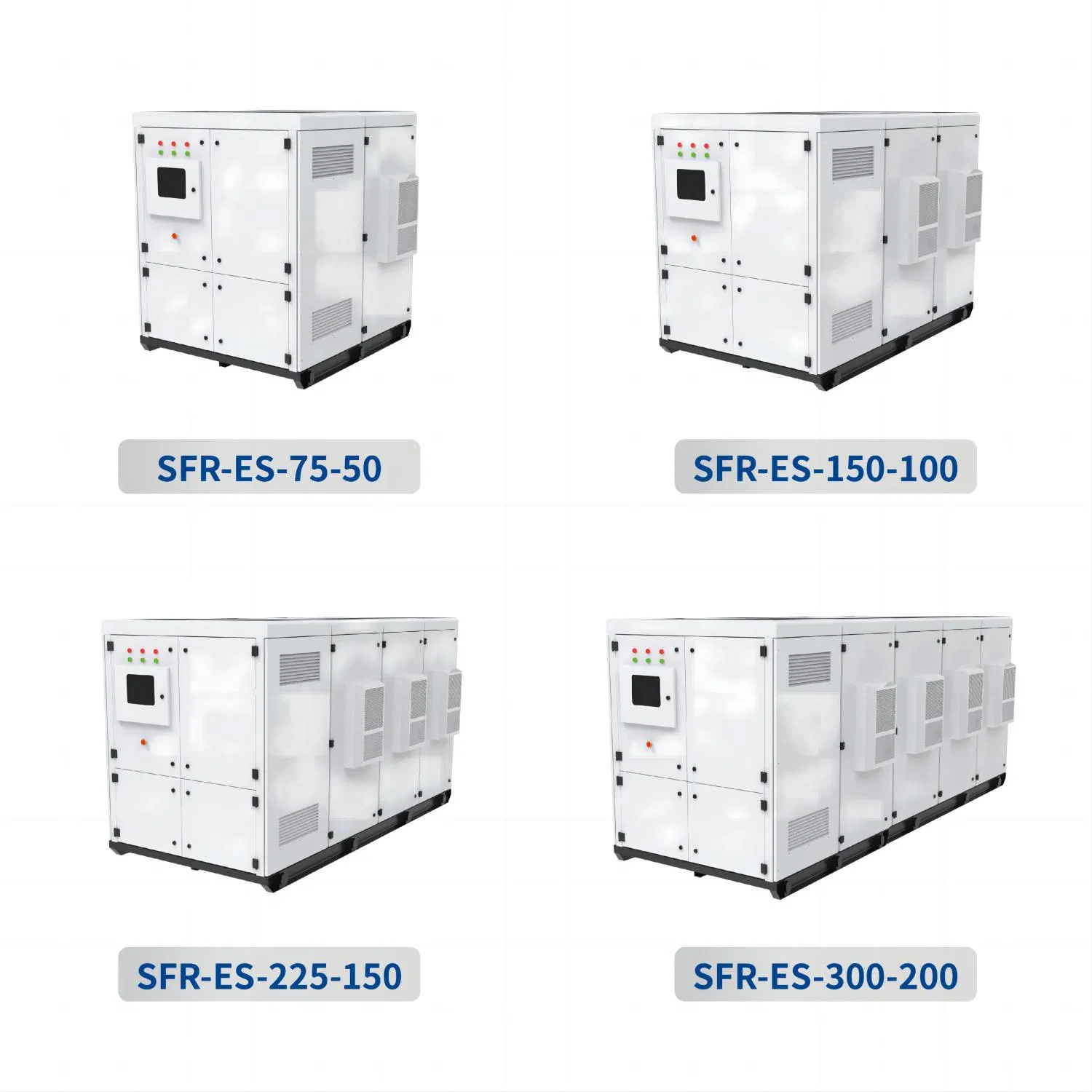

Model SFR-ES-75-50 SFR-ES-150-100 SFR-ES-225-150 SFR-ES-300-200
Rated Output Power (kW) 50 100 150 200
Max Output Power (kW) 55 110 165 220
Grid Voltage (V) 3W+N+PE, 380V
Grid Frequency (Hz) 50/60Hz
Protection Degree Outdoor IP54
Temperature Range -20 ~ 55°C (>45°C derating)
📷

Detailed Photos

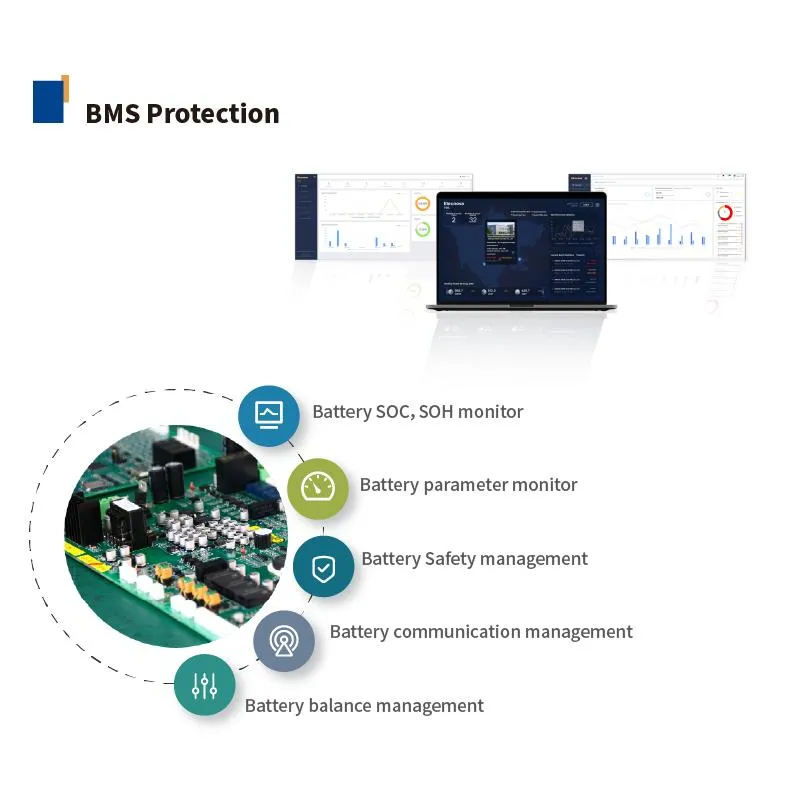

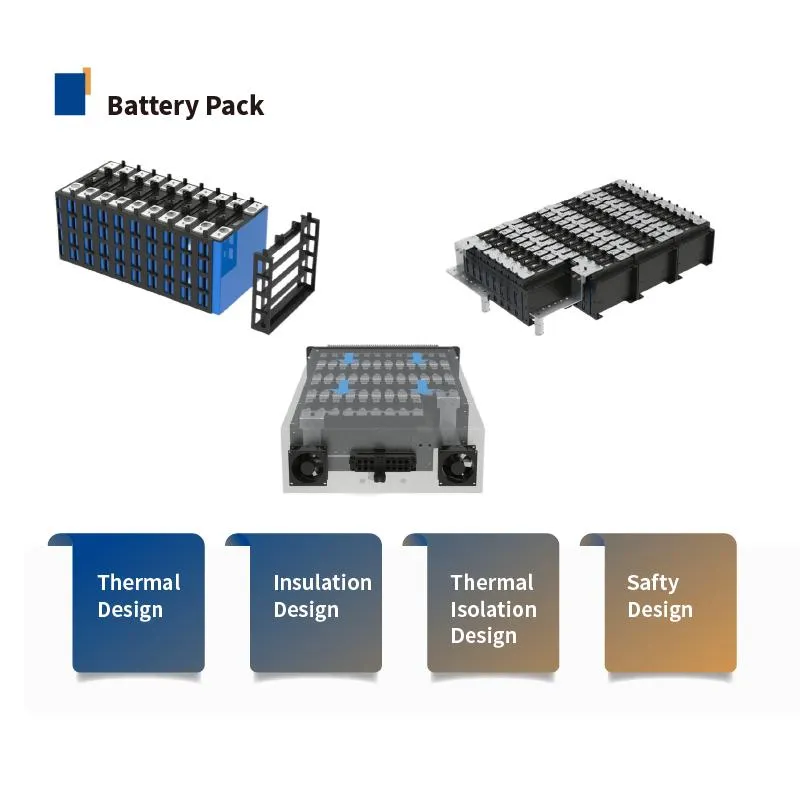

Detail 1 Detail 2

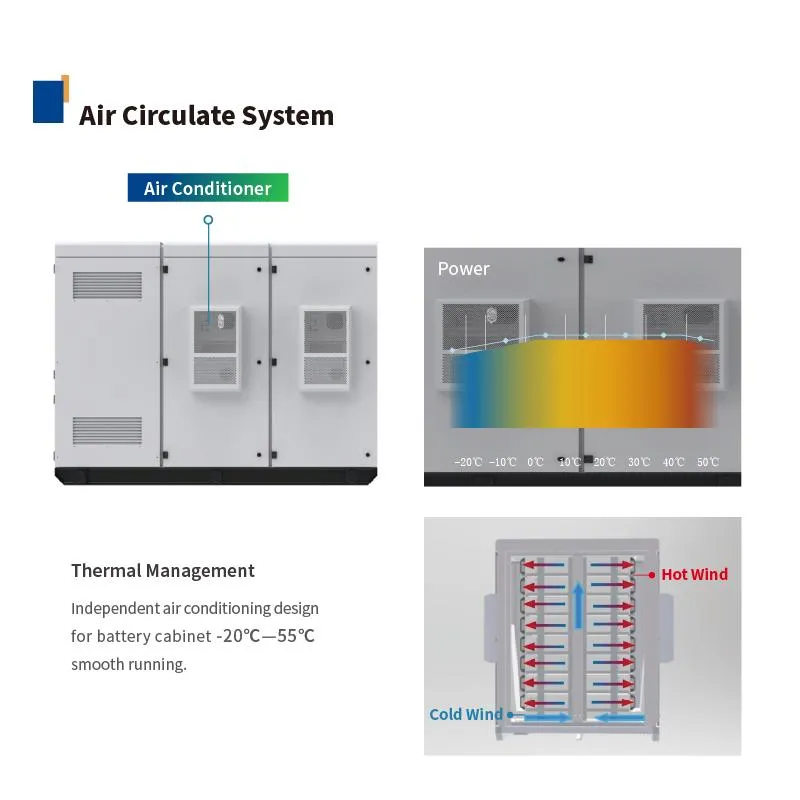

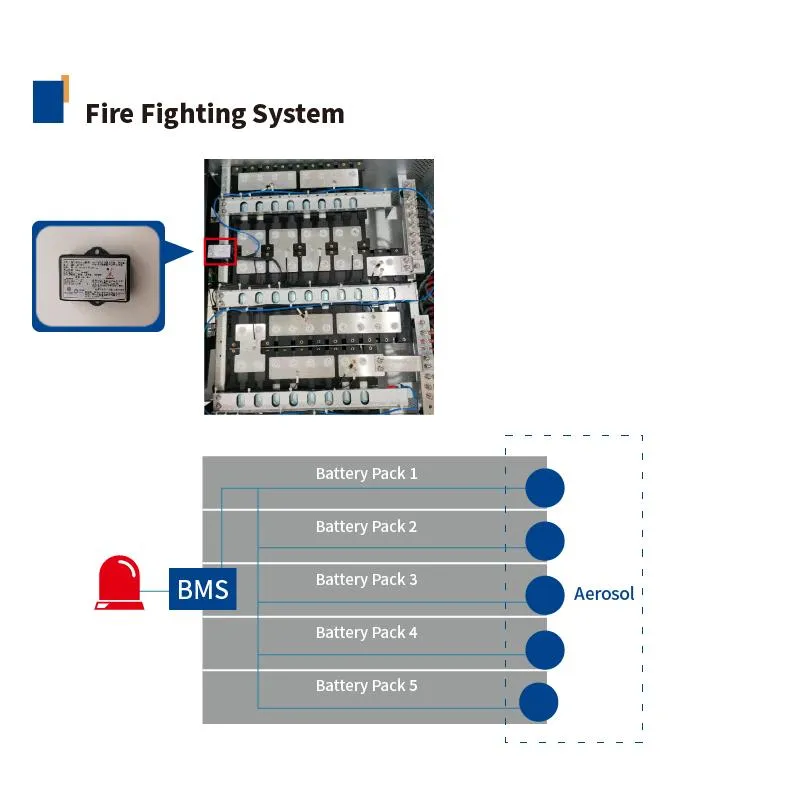

Detail 3 Detail 4
📋

Technical Reference

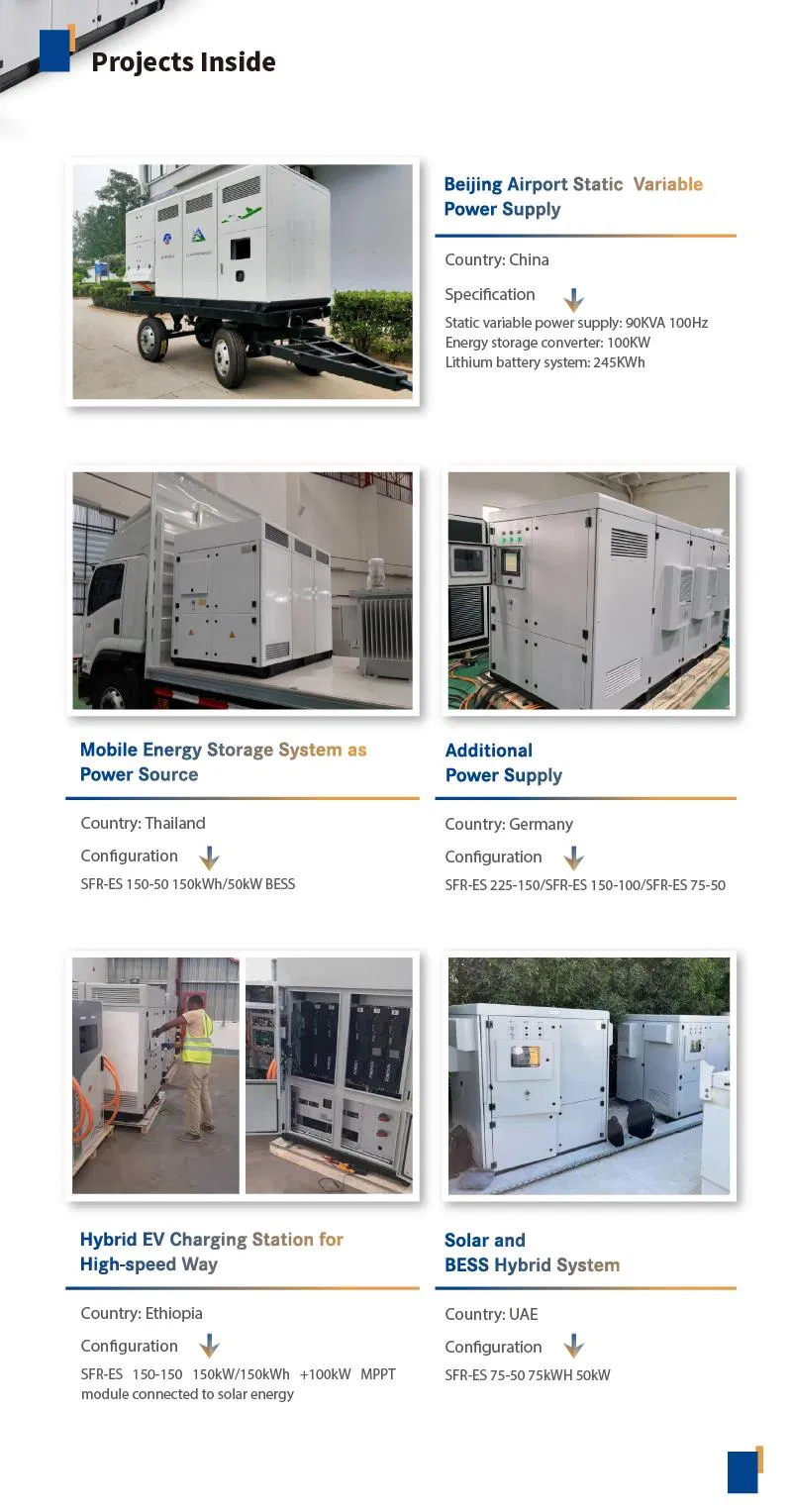

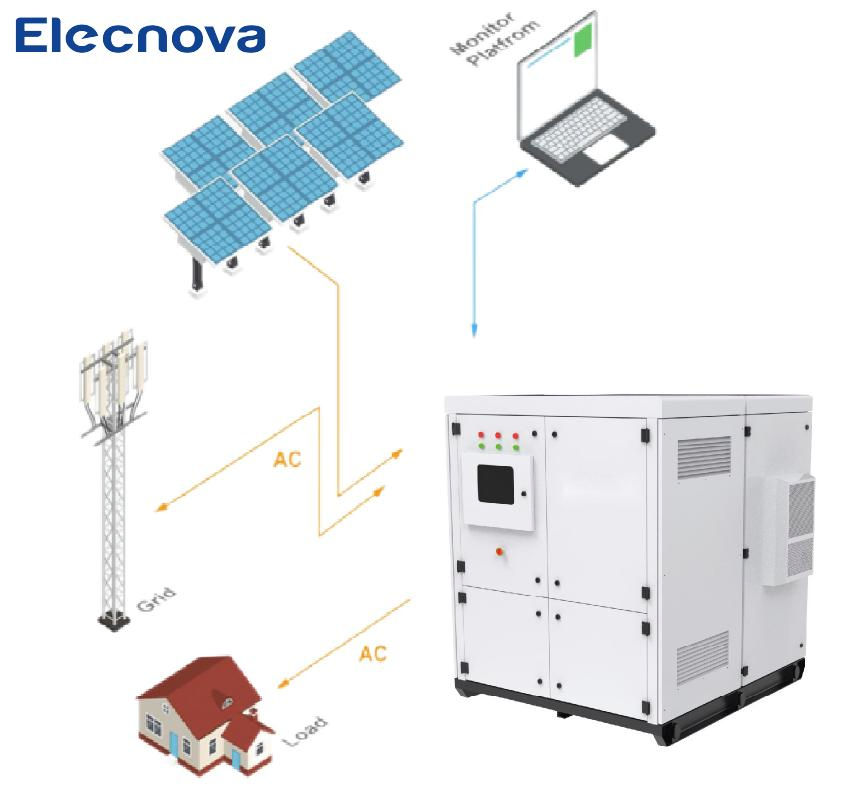

Reference Diagram

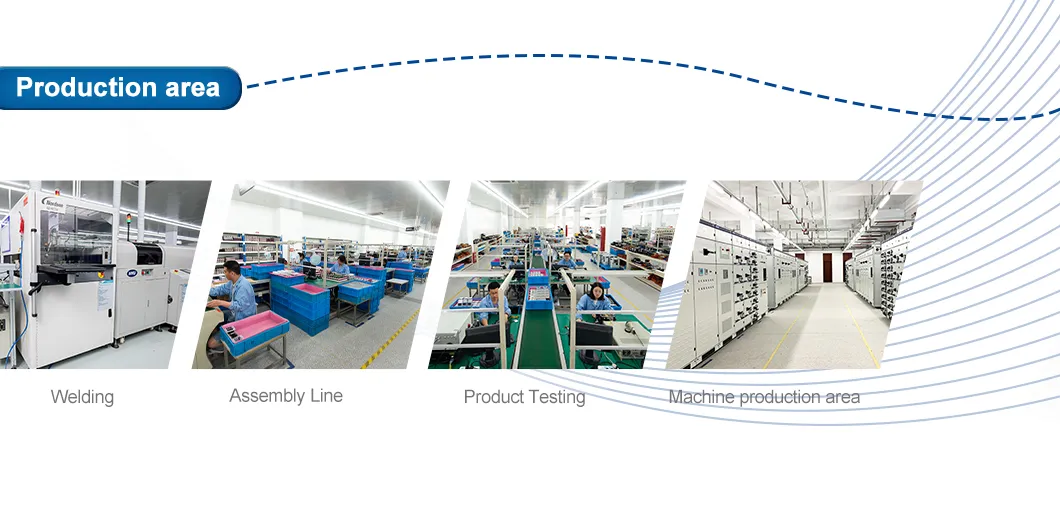

Profile 1 Profile 2 Profile 3 Profile 4
?

Frequently Asked Questions

Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturing factory.
Q: Does your company provide customized manufacturing?
A: Yes, we provide OEM/ODM services to our customers. Our experienced R&D team provides high-efficiency solutions tailored to specific needs.
Q: How long is the delivery time?
A: Delivery takes 3-5 working days for items in stock and 15-21 days for items that are out of stock.
Q: Do you provide samples? Is it free or extra?
A: Samples are available; however, customers are required to pay for the sample cost and the freight charges.
Q: What are your terms of payment?
A: For orders less than $3000, 100% payment is required before shipment. For orders over $3000, a 30% deposit is required, with the remaining 70% paid before shipment, or as negotiated.
Q: What certifications do your products hold?
A: Our systems are certified under IEC62477-1, EN61000, IEC62619, IEC62620, and UN38.3 standards.
